Happymodel ES24TX Slim Pro ELRS 2.4GHz Transmitter Module

HAPPYMODEL

This Slim Pro TX module is designed by Happymodel and based on the open-source  ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drones. Its main hardware architecture is ESP32, ESP8285, and SX1280 RF chip. The ES24TX Slim Pro module is a complete solution which is already pre-load the Expresslrs firmware and its plug-and-play for Frsky X-lite/X-lite pro/X9 Lite, TBS Tango2.This Slim Pro module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.The slim pro-TX module supports a maximum power output of about 1000mw, this would be very useful for Long Range FPV.
Check out our other ELRS accessorieses, as well as the rest of our HappyModel selection.
Features

Supports up to 1000mw RF power (T-lite radio and Tango2 radio need external power supply)
RGB LED ready
Cooling Fan ready
Open source ExpressLRS
Long-range, low latency, and High re-flashed Rates
Telemetry data transmission supported
CNC aluminum protective shell

Specifications

Regulatory Domain: ISM2400
MCU: ESP32(main),ESP8285(as ESP backpack)
RF chip: SX1280IMLTRT
Frsky Lite 8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: ≤30dBm
Power supply voltage: 5v~12v
Weight: 50gram (without antenna）
Dimension: 67.5x30x20.5mm (without antenna)
Antenna gain: 1.87dBi
Antenna Connector: SMA

Includes

1x HappyModel ES24TX Slim Pro 2.4GHz RC Transmitter Module
1x Antenna


This Slim Pro TX module is designed by Happymodel and based on the open-source ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drones. Its main hardware architecture is ESP32, ESP8285, and SX1280 RF chip. The ES24TX Slim Pro module is a complete solution which is already pre-load the Expresslrs firmware and its plug-and-play for Frsky X-lite/X-lite pro/X9 Lite, TBS Tango2. This Slim Pro module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw. The slim pro-TX module supports a maximum power output of about 1000mw, this would be very useful for Long Range FPV.

HappyModel ES24TX Slim Pro ELRS 2.4GHz RC Transmitter Module

HappyModel ES24TX Slim Pro 2.4GHz RC Transmitter Module - For Sale At RaceDayQuads

This Slim Pro TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim Pro module is a complete solution which

Happymodel 2.4g ExpressLRS ES24TX Slim Pro TX module for X-lite & Tango2

HappyModel


This Slim Pro TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim Pro module is a complete solution which is already pre-load the Expresslrs firmware and its plug and play for Frsky X-lite/X-lite pro/X9 Lite , TBS Tango2.
This Slim Pro module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.
The slim pro TX module supports a maximum power output of about 1000mw, this would be very useful for Long Range FPV.


SPECIFICATIONS:

Brand Name: Happymodel
Model: ES24TX Slim Pro
Regulatory Domain: ISM2400
MCU: ESP32(main),ESP8285(as ESP backpack)
RF chip: SX1280IMLTRT
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
Frsky Lite 8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: ≤30dBm
Power supply voltage: 5v~12v
Weight: 50g (without antenna）
Dimension: 67.5mm*30mm*20.5mm (without antenna)
Antenna gain: 1.87dBi

Notice: The antenna has been changed to Happymodel Moxon 2.4GHz from Oct.14th 2021
FEATURES:

Supports up to 1000mw RF power (T-lite radio and Tango2 radio need external power supply)
RGB LED ready
Cooling Fan ready
Open source ExpressLRS
Long range, low latency and High re-flashed Rates
Telemetry data transmission supported
CNC aluminum protective shell

NOTE:
The new Slim Pro module supports a maximum power of 1000mw (requires the power of the remote control to drive), and comes with RGB LED lights, the effect is very cool. The default program has been updated to ExpressLRS V1.0.0.
You can update firmware by ExpressLRS configurator or update the firmware via connect the Wifi hot spot of the “ExpressLRS TX Module”, visit “10.0.0.1” by browser (password: expresslrs)

PACKAGE INCLUDES:


1 x ES24TX Slim Pro TX Module
1 x Happymodel Moxon 2.4GHz antenna


2.4g ExpressLRS ELRS Slim Pro for TX  X Lite and Tango2

2.4g ExpressLRS ELRS Slim Pro for TX X Lite and Tango2

The Happymodel ES24TX Slim Pro TX Module is a complete solution which is already pre-load the Expresslrs firmware and is plug-and-play for Frsky X-lite/X-lite pro/X9 Lite, and TBS Tango2.

The Happymodel ES24TX Slim Pro ExpressLRS TX Module is designed by Happymodel and based on the open-source ExpressLRS which is a very popular low latency and high packet rate RF module for RC Airplane and FPV Racing drones. Its main hardwar

Happymodel ES24TX Slim Pro ExpressLRS TX Module

Radio Equipment

The radio is typically your first purchase. You control your quad using your radio which sends signals to your quad’s receiver. Beginner’s should choose an ELRS-compatible radio. Learn more about radios.

Radio Transmitters and Modules

TBS Crossfire Nano TX

Team BlackSheep

The Nano TX is designed to be installed in X-lite and X9D Lite radios with the "Lite" interface.

Same Crossfire Performance - Lite Size Module
The Crossfire Nano TX from TBS has the same RF internals as the Micro TX V2 but now comes in a smaller

Team Black Sheep

The Crossfire module boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra low latency. Now with a lite interface for Xlite / X9D Lite

Get the TBS Crossfire Nano TX shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Crossfire Nano TX - RMRC

FLYWOO

The Crossfire Nano TX from TBS has the same RF internals as the Micro TX V2 but now comes in a smaller &quotlite&quot module interface. Same Crossfire Performance - Lite Size Module The Crossfire Nano TX from TBS has the same RF internals as the Micro TX V2 but now comes in a smaller &quotlite&quot module interface. The Nano TX was de

The Crossfire Nano TX from TBS has the same RF internals as the Micro TX V2 but now comes in a smaller "lite" module interface. Same Crossfire Performance - Lite Size Module The Crossfire Nano TX from TBS has the same RF internals as the Micro TX V2 but now comes in a smaller "lite" module interface. The Nano TX was de










The Crossfire module boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra low latency. Now with a lite interface for Xlite / X9D Lite













WHY NANO?
The Nano TX is designed to be installed in X-lite and X9D Lite radios with the "Lite" interface. Performance, functionalities, and even pricing will be the same as the Micro TX V2.
A NEW ERA OF CONNECTIVITY
The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diversity, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior long range control link.
Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)
BOILED DOWN TO SIMPLICITY
The Crossfire Nano TX borrows the core technology from its larger brother, but is a JR-module transmitter simplified to the most sought-after features, at a killer price! For people looking to do extreme long range flights beyond 15-20km, the Crossfire TX is still the way to go. For anyone looking to penetrate buildings, fly mini quads or just explore your surroundings a few kilometers away, the Nano TX is the perfect companion. It will still go out up to 40km, just like its bigger brother. But it costs less than half the price.
IT JUST WORKS
Apart from unparalleled range, the thing that we are most proud about on the TBS CROSSFIRE is that it just works. In the past, our question always was "could our R/C link keep up?". With the TBS CROSSFIRE comes peace of mind. But don't take our word for it. All leading drone racing organizers require pilots to fly the TBS Crossfire. All top drone racers fly the TBS Crossfire. The furthest long range missions are flown with TBS Crossfire. Now it has become affordable to the masses as a general purpose radio link!
TELEMETRY / CRSF
As a modern R/C link, it has telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Nano TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
DOWNLOADS

TBS Crossfire Manual
TBS Crossfire Manual (German)
TBS Crossfire Quickstart Guide

TBS Agent M (new! online configurator and firmware update tool)

TBS Agent X (desktop configurator for software updates)
Latest OpenTX LUA Scripts for Crossfire
TBS Cloud - Wifi Firmware
TBS Cloud - Crossfire &amp Mavlink Over Wifi

OpenTX Nightly Firmware (Updated - Jan.11. 2021)
TBS Agent Lite

FEATURES:

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &amp frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 1W (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link

TECHNICAL SPECIFICATIONS:


Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)

Input Voltage: 6.0 - 13V

Connector: USB-C

Power consumption: 1.1W (@10mW) - 2W (@100mW)

Dimensions: 64 x 42 x 25 mm (Nano TX module size)

Weight: 48g
*The version of this product will be shipped according to your local restrictions

PACKAGE INCLUDES

TBS Crossfire Nano Tx
TBS Crossfire Stock Tx Antenna V2
X9D Lite Back Case

CERTIFICATES

TBS Crossfire - FCC Certificate Part 15C
TBS Crossfire - FCC Certificate Part 15B
TBS Crossfire - FCC DOC
TBS Crossfire - RED Declaration of Conformity




TBS Crossfire Micro TX | A NEW ERA OF CONNECTIVITYThe TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diver

TBS Crossfire Micro TX | Team BlackSheep

TBS Tango 2 FPV RC Radio Controller


REDEFINING THE REMOTE CONTROL

TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &amp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It's not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE
The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.

FEATURES

Full size HAL sensor gimbals
Ball-bearing

Configurable resistance and tension
Adjustable throttle &amp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Foldable gimbal sticks (Pro only)


Ergonomic and compact design with comfy rubber grips
Robust, streamlined switches

2x 2-position switches
2x 3-position switches
2x momentary buttons


TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available
Range of up to 30km / 20mi from the palm of your hand
Swivel-antenna that doubles as a kick-stand
Up to 12 channels supported


Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack &amp haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*96) black &amp white OLED screen w/ backlight
Digital rocker dial trim
100+ model memory with included SD-card
TBS Cloud compatible

TBS TANGO 2 INCLUDES

1 x Tango 2 remote
1 x Springs Set (Lower Tension)
1 x Tango 2 Neck Strap Mount

MORE INFORMATION


TBS Agent M (new! configurator and firmware update tool)
Self-support (FAQ)
TBS Tango 2 Manual
TBS Tango 2 Manual - German
Lanyard mount 3D print download
FreedomTX source code

Tango2 SD Card Contents download (For Freedom TX 1.0X)

Tango2 SD Card Contents download (2020-04-03) (For Freedom TX 1.1X)

Tango 2 SD Card Contents download (For Freedom TX 1.2x)
TBS Cloud - Wifi Firmware
Tango 2 JR Module Adapter - by cuxx
Tango 2 Module Bay Protector XJT mini by cuxx
TBS Agent Lite





REDEFINING THE REMOTE CONTROL TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork),

TBS Tango 2

The TBS Tango 2 is the first radio transmitter designed specifically for FPV.

The TBS Tango II now comes with an updated screen!
Redefining The Remote Control
TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being t

TBS Mambo (Tracer)

Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we&#39re back with one of the most popular requests: a compact full-size remote! The TBS Mambo follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons!

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

TBS Mambo - FPV RC Radio Drone Controller - RMRC

TBS Mambo - FPV RC Radio Drone Controller

The TBS Mambo follows in the footsteps of the Tango 2, but sets a new focus: larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons!

Team BlackSheep has already redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! The TBS Mambo Tracer Remote follows in the footsteps, but focuses on all of

TBS Mambo Tracer Remote FPV RC Radio Drone Controller

The TBS Mambo follows in the footsteps of the Tango 2, but sets a new focus: larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons! Check out all our Radios and the rest of our TBS Products! A CLASS ON ITS OWN Team BlackSheep has redefined the por

"We are proud to introduce our Ethix Special Edition Mambo Radio. This edition has a few notable changes that are more tailored to the likings of Mr. Steele &amp; Konasty. First and foremost we gave the front fascia a battleship grey color scheme with a more gritty texture for added grip. Next, the side grips were cust

Ethix Mambo - FPV RC Radio Drone Controller


Team BlackSheep has already redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! The TBS Mambo Tracer Remote follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries, and trim button!

VIDEOS: TBS COUCH - MAMBO LAUNCH

Features

TBS Tracer built-in

CRSF V3 protocol support for lowest latency and most direct response of any remote control available
Range of up to 25km / 15mi
Built-in antenna for ultimate ruggedness
External antenna available as add-on


Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Parallel 18650 x 2 (not included!) with USB-C 2A charging (2.5 hours for full charge)
High resolution (128*64) black &amp white LCD screen w/ backlight
High telemetry throughput for Mavlink and long range missions
Speech audio output with audio jack &amp haptic vibration alert
Rocker dial and 3 button menu for super simple navigation
TBS Cloud compatible1.6ms end to end latency
100+ model memory with included SD-card
Full size, ball bearing hall sensor gimbals

Configurable resistance and tension
Adjustable throttle &amp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension


Ergonomic shell design with grippy rubber edges

4x 3-position switches
2x potentiometer with center notch
1x 2-position switches
1x momentary button
4x digital trim buttons


Perfectly balanced lanyard mount
Up to 12 channels supported
TBS Cloud connectivity
Long-range capable
250Hz refresh rate



A CLASS ON ITS OWN
Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! The TBS Mambo follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries, and trim buttons!
But do not fear: we haven't made a cookie-cutter remote! With the built-in antenna (external antenna available as optional add-on), the 2-position and momentary gamepad buttons, and TBS Tracer built-in, we've accomplished a few "firsts" that put this radio into a class on its own!
TRACER INSIDE
The first radio with TBS Tracer built-in. And it fits your existing TBS Crossfire module through the JR bay! TBS Tracer is the world's lowest latency radio link, and builds upon the rock-solid reputation of the TBS Crossfire code base. With the continued development and expansion of the TBS ecosystem, pilots will remain on the bleeding edge of capabilities paired with the ease of use and overall robustness that TBS products are known for.
Specifications

USB-C Port: Battery charging (5V, 2A), Firmware upgrades &amp Simulator / HID
Switches: 4 x 3pos | 1 x 2pos | 1 x Momentary
Audio: 1W speaker &amp 3.5mm headphone jack
Display: 3.5” LCD panel (128 x 64)
Antenna: Embedded antenna
Battery: 18650
Weight: 565g

Downloads

Mambo SD Card Contents download (For Freedom TX 1.2x)
TBS Cloud - Wifi Firmware
FreedomTX source code
TBS Mambo Manual
TBS Agent Lite

Includes

1x Team BlackSheep Mambo Tracer Remote Control
2x Throttle limitation screws (with Allen key)
1x Springs Set (Lower Tension)





Team BlackSheep has already redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! The TBS Mambo Tracer Remote follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional for

About this product Team BlackSheep has already redefined the portable remote control with the TBS Tango 2. Now we&#x27re back with one of the most popular requests: a compact full-size remote! TheTBS Mambo Tracer Remotefollows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen

About this product Team BlackSheep has already redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! TheTBS Mambo Tracer Remotefollows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen

A class on its own
Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we're back with one of the most popular requests: a compact full-size remote! The TBS Mambo follows in the footsteps, but focuses on all of the th

TBS Mambo Starter Set (Radio + 3 Tracer RX)

GEPRC

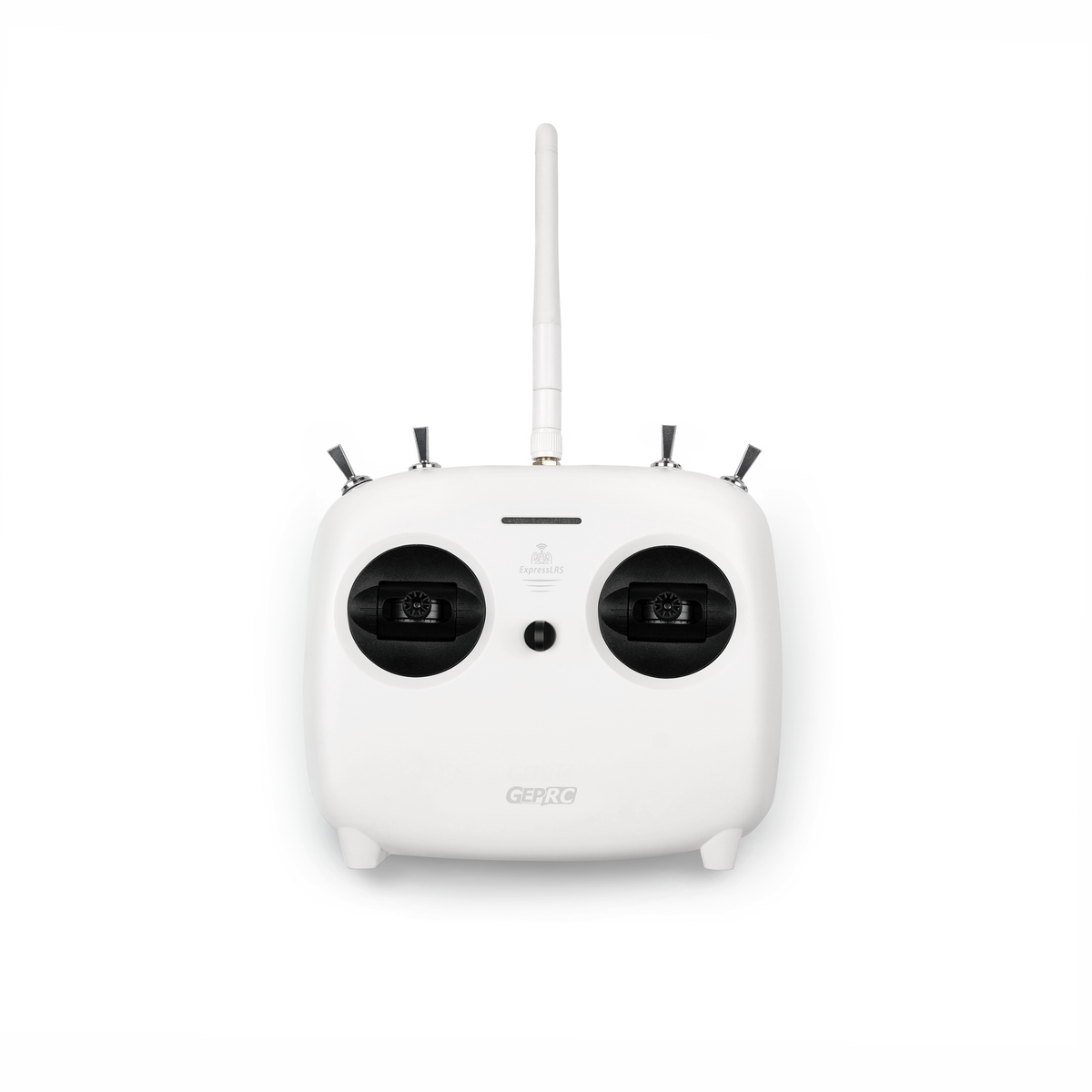

GEPRC TinyRadio ELRS Remote Controller

Summary
TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz.
TinyRadio adopts a simplified design to minimize the difficulty of use. Ergonomic design, more comfortable to hold.Built-in ELRS module, available in 915/868MHz and 2.4GHz versions, adjustable power of up to 500mW with replaceable antenna design, the remote control distance can reach more than 2KM under ideal conditions.Support upgrade remote control firmware through USB interface, and can upgrade ELRS module firmware through WIFI,Supports wireless connection to computer drone simulator via bluetooth. It supports two 18650 batteries for ultra-long battery life. 8 low latency channels can meet most of the needs of beginners and professionals.
（Notes：An antenna must be installed before Power On!）

Specifications

 	Size：147*135*71mm(Not including antenna)
 	Weight：223g
 	Adapted Drone Type: Multirotor, Airplane
 	Frequency band：915MHz FCC /868MHz EU /2.4GHz ISM
 	Input voltage：6.6-8.4V
 	Antenna interface：SMA
 	Power：100/250/500mW
 	Channel：8 channel
 	Charging interface：USB-C
 	Firmware upgrade：support
 	Bluetooth joystick：support

Feature

 	Built-in ELRS 915MHz/2.4GHz
 	Functional "less is more" design,Easy to carry
 	2KM+ flight range(subject to the environment)
 	500mW adjustable power
 	8 super low latency channels
 	Replaceable antenna
 	Two replaceable 18650 batteries
 	 Support USB-C charging
 	Custom remote control system
 	Fully compatible with drone simulators

TinyRadio Remote Controller diagram

Battery installation
Open the bottom battery cover and insert two 18650 batteries or a 2S battery.(not included)

Notes
1. Ensure the polarity symbols on the batteries match the symbols inside the battery compartment.
2. Do not mix new and old batteries.
3. Do not mix different types of batteries.

Instructions
Power ON/OFF
Long press the power button of the remote control for 2 seconds in the off state, and release the power button after the remote control vibrates, while the red LED lights up, the remote control is successfully powered on.
Long press the power button of the remote control for 2 seconds in the power on state, when the LED light goes out, the remote control is turn off successfully.

Binding
In the off state, long press the BIND button on the back of the remote control,and then press the power button at the same time to turn it on. When the indicator light turns flashing, the remote control enters the binding status.
The binding status will last for 5 seconds, there will be no feedback when the binding is successful, and it will automatically exit the binding status after 5 seconds. Check whether the remote control is in binded with the receiver. If not, please repeat the binding operation.

Joystick Calibration
With the joystick back in the center and the throttle lever in the lowest position, long press the SETUP button on the back of the remote control for 4 seconds, and when the remote control vibrates and the buzzer beeps sound, the calibration is complete.

Power switching
First long press the BIND button, then short press the SETUP button for 1 second, the 100/250/500mW power can be switched cyclically, and the current high performance Radio control link power can be observed through the indicator light.

WIFI mode
In the off state, long press the SETUP button to turn it on, and when the indicator light turns into quickly flashing runing led,  it will enter the WIFI update mode, and the ELRS high performance Radio control link firmware can be updated.
Bluetooth joystick
In the off state, long press the BIND and SETUP buttons at the same time to turn on the device. When the indicator light turns into a slowly flashing running led,                          it will enter the Bluetooth simulator mode, and you can connect to the computer drone simulator to practice.

Charging
Plug in the USB-C cable in the off state, it will be in the charging state when the remote control indicator turns blue,and the indicator light will automatically turn off after charging is completed.

Includes
Standard:
1 x TinyRadio
1x 18650 tray
1 x Instruction manual
Note: Batteries Not Included.

Combo:
1 x TinyRadio
1x 18650 tray
1 x Instruction manual
1 x Storage Case For TinyRadio
Note: Batteries Not Included.
Tips: TinyRadio ELRS Radio Controller Firmware Upgrade Guide

Summary TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz. TinyRadio adopts a simplified design to minimize the difficulty of use. Ergonomic design, more comfortable to hold.Built-in ELRS module, available [...]

GEPRC TinyRadio ELRS Remote Controller

More Radio Transmitters and Modules

Happymodel ES24TX Slim Pro ELRS 2.4GHz Transmitter Module

TBS Crossfire Nano TX

TBS Tango 2 FPV RC Radio Controller

TBS Mambo (Tracer)
