Lumenier

Lumenier QAV-S 2 JohnnyFPV SE 5" Frame Kit

LUMENIER

Introducing the Lumenier QAV-S 2 JohnnyFPV Special Edition frame, a cutting-edge masterpiece designed to elevate your FPV drone experience. This frame boasts an innovative X-Lock arm retention system featuring a lateral locking mechanism that enhances rigidity and ease of use. The arms can effortlessly fold for convenient transportation with just one screw per side. The frame's aluminum FPV camera protection ensures superior camera support, with customizable carbon plates compatible with various cameras, including vibration isolation options optimized for image stabilization. With 6mm thick arms, the QAV-S 2 5" frame achieves an unparalleled balance of durability and weight at 133g (frame only).Capture stunning footage with the injection-molded GoPro mount, compatible with the industry-standard pattern. It maintains backward compatibility with QAV-S series mount patterns, providing flexibility for users. The O3 compatible mounting system adds versatility, allowing direct mounting of the O3 air unit, supported by a 5mm full aluminum mounting kit for optimal wire routing. The adjustable aluminum XT60 and accessory mount at the rear provide options for hard-mounted XT60 connection and various accessory placements, ensuring adaptability for antennas, GPS, and rear-facing action cameras. Elevate your FPV cinematography with the Lumenier QAV-S 2 JohnnyFPV Special Edition frame – where innovation meets performance.
Features

Made in Collaboration with expert FPV pilot JohnnyFPV
Frame made of High-Quality Lumenier components
Adjustable Aluminum XT60 and Accessory Mount
Backward-compatible mounting patterns
Aluminum FPV Camera Protection
Balanced Durability and Weight
Injection-Molded GoPro Mount
O3 Compatible Mounting
X-Lock Arm Retention



 BALANCED DURABILITY AND WEIGHTThe QAV-S 2 JohnnyFPV Edition builds on the durability of its predecessor with upgraded 6mm thick arms in addition to the aluminum X-lock and FPV camera protection. At 133g (frame only - without accessories) this combination provides an industry-leading balance of weight and durability for even the most demanding applications.

X-LOCK ARM RETENTIONThe QAV-S 2 introduces a new lateral X-Lock arm system. This all-aluminum arm locking system improves the QAV-S design in both rigidity and ease of use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw per side for easy transportation.

ALUMINUM FPV CAMERA PROTECTIONThe new FPV camera mounting solution offers excellent camera protection and support for various cameras through customizable carbon plates. The frame includes plates with damped mounts tested and optimized for the O3 camera and plates with mounts for a range of other camera options. If you want to create your own, the M2 mount points on the aluminum guards easily allow for custom mounts. Your imagination is the limit.

INJECTION MOLDED GOPRO MOUNTThe QAV-S 2 uses the same GoPro mount pattern used by other Lumenier frames, allowing a durable injection molded GoPro mount to attach with a single screw.

BACKWARD-COMPATIBLE MOUNTING PATTERNSFor those who still want to use printed GoPro and antenna mounts, the QAV-S 2 brings the JohnnyFPV frame into line with the mount patterns from the other QAV-S series frames. The new edition now uses the same mounting pattern and standoff placement as the other frames in the series. All previous QAV-S* mounts and Bardwell Special Edition frames will fit the JohnnyFPV Edition without modification. *Original QAV-S JohnnyFPV Special Edition mounts are no longer compatible

O3 COMPATIBLE MOUNTINGThe rear plate adds 25.5 M1.6 mount holes to mount the O3 air unit to the frame directly. The frame kit also includes a 5mm full aluminum mounting kit to allow for perfect wire routing for both the O3 air unit and a rear XT60 connector.

ADJUSTABLE ALUMINUM XT60 AND ACCESSORY MOUNTA custom rear mounting solution allows for a hard mounted XT60 connection as well as a range of accessory mounting options for antennas, GPS, and rear-facing action cameras. Adjustable angles allows for the perfect position regardless of the accessory being used. The frame kit includes plates for the injection molded GoPro mount and GPS mounts with both single and dual antenna options, as well as a single antenna only option.

FOLDING ARMSThe new lock system on the QAV-S 2 JohnnyFPV SE allows the arms to fold with only one screw per side for easy transportation. Simply remove the side screws and wedges, and you are now able to fold the arms.
Specifications

Rear Stack Dimensions: 20x20 (potentially 30x30 with adapter)
Custom Parts: 6061 Aluminum (Bronze Gold)
Standoffs: 7075 Aluminum (Bronze Gold)
Screws: Black Zinc Steel 12.9 grade
Weight: 133g (without accessories)
Middle Stack Dimensions: 30x30
Arm: 6mm 3K Carbon Fiber
Frame Size: 220mm

Lumenier QAV-S 2 JohnnyFPV Manual
IMPORTANT NOTES

The new QAV-S 2 arms will work with the original QAV-S frame, but the original QAV-S arms will not work with the new QAV-S 2 frame.


Includes

1x Lumenier QAV-S 2 JohnnyFPV SE 5" Frame Kit



1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate Dual Antenna
1x JohnnyFPV QAV-S 2 Rear GPS Dual Antenna Mount Plate
1x JohnnyFPV QAV-S 2 Battery Pad (Black Silicon Rubber)
1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Right
2x JohnnyFPV QAV-S 2 Camera Plate for Grommets
1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Left
1x JohnnyFPV QAV-S 2 Rear GPS XT60 Mount Plate
1x JohnnyFPV QAV-S 2 20mm Camera Plate Right
1x JohnnyFPV QAV-S 2 20mm Camera Plate Left
1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate
1x JohnnyFPV QAV-S 2 Rear FPV Antenna Plate
1x JohnnyFPV QAV-S 2 Pro Mount Spacer Plate
1x JohnnyFPV QAV-S 2 Rear Base Mount Right
1x JohnnyFPV QAV-S 2 Aluminum Guard Right
1x 14 Gauge Silicon Wire (Pair, Red and Black)
1x JohnnyFPV QAV-S 2 6mm FC Isolator 6mm
1x JohnnyFPV QAV-S 2 Rear Base Mount Left
1x JohnnyFPV QAV-S 2 Aluminum Guard Left
2x JohnnyFPV QAV-S 2 6mm Arm Wedge
1x JohnnyFPV QAV-S 2 Split Plate Front
1x JohnnyFPV QAV-S 2 Split Plate Rear
1x Lumenier QAV-PRO Gopro Mount
4x JohnnyFPV QAV-S 2 5 Inch Arm
2x 5mm O3 Air Unit Mount 20mm
1x JohnnyFPV QAV-S 2 Top Plate
2x Heatshrink 5mm Diameter
2x Lumenier Battery Strap
4x Knurled Standoff
1x XT60E-M (Black)
1x Hardware Set
4x Foam Pads




Introducing the Lumenier QAV-S 2 JohnnyFPV Special Edition frame, a cutting-edge masterpiece designed to elevate your FPV drone experience. This frame boasts an innovative X-Lock arm retention system featuring a lateral locking mechanism that enhances rigidity and ease of use. The arms can effortlessly fold for conveni

Frame Size

The frame is typically the first part to pick because it determines what kind of flying you’ll be doing the most. Start by picking a frame type, and narrow down the options by propeller size. The frame holds your quad parts together and heavily impacts what the quad can do.

Frames

Frame Kit

Frame Stack Mount

FPV Camera Mount

Frame Type

Lumenier QAV-S 2 JohnnyFPV SE 7" Frame Kit

Introducing the Lumenier QAV-S 2 JohnnyFPV Special Edition frame, a cutting-edge masterpiece designed to elevate your FPV drone experience. This frame boasts an innovative X-Lock arm retention system featuring a lateral locking mechanism that enhances rigidity and ease of use. The arms can effortlessly fold with only one screw per side. The frame's aluminum FPV camera protection ensures superior camera support, with customizable carbon plates compatible with various cameras, including vibration isolation options optimized for image stabilization. With 6mm thick arms, the QAV-S 2 7" frame achieves an unparalleled balance of durability and weight at 182g (frame only).Capture stunning footage with the injection-molded GoPro mount, compatible with the industry-standard pattern. It maintains backward compatibility with QAV-S series mount patterns, providing flexibility for users. The O3 compatible mounting system adds versatility, allowing direct mounting of the O3 air unit, supported by a 5mm full aluminum mounting kit for optimal wire routing. The adjustable aluminum XT60 and accessory mount at the rear provide options for hard-mounted XT60 connection and various accessory placements, ensuring adaptability for antennas, GPS, and rear-facing action cameras. Elevate your FPV cinematography with the Lumenier QAV-S 2 JohnnyFPV Special Edition frame – where innovation meets performance.
Check out the rest of our Lumenier products or the rest of our 7" drone frames.
Features

Made in Collaboration with expert FPV pilot JohnnyFPV
Frame made of High-Quality Lumenier components
Adjustable Aluminum XT60 and Accessory Mount
Backward-compatible mounting patterns
Aluminum FPV Camera Protection
Balanced Durability and Weight
Injection-Molded GoPro Mount
DeadCat Arm Configuration
O3 Compatible Mounting
Arm Braces for Rigidity
X-Lock Arm Retention



BALANCED DURABILITY AND WEIGHTThe QAV-S 2 JohnnyFPV Edition builds on the durability of its predecessor with upgraded 6mm thick arms in addition to the aluminum X-lock and FPV camera protection. At 133g (frame only - without accessories) this combination provides an industry-leading balance of weight and durability for even the most demanding applications.

X-LOCK ARM RETENTIONThe QAV-S 2 introduces a new lateral X-Lock arm system. This all-aluminum arm locking system improves the QAV-S design in both rigidity and ease of use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw per side for easy transportation.

ALUMINUM FPV CAMERA PROTECTIONThe new FPV camera mounting solution offers excellent camera protection and support for various cameras through customizable carbon plates. The frame includes plates with damped mounts tested and optimized for the O3 camera and plates with mounts for a range of other camera options. If you want to create your own, the M2 mount points on the aluminum guards easily allow for custom mounts. Your imagination is the limit.

INJECTION MOLDED GOPRO MOUNTThe QAV-S 2 uses the same GoPro mount pattern used by other Lumenier frames, allowing a durable injection molded GoPro mount to attach with a single screw.

BACKWARD-COMPATIBLE MOUNTING PATTERNSFor those who still want to use printed GoPro and antenna mounts, the QAV-S 2 brings the JohnnyFPV frame into line with the mount patterns from the other QAV-S series frames. The new edition now uses the same mounting pattern and standoff placement as the other frames in the series. All previous QAV-S* mounts and Bardwell Special Edition frames will fit the JohnnyFPV Edition without modification. *Original QAV-S JohnnyFPV Special Edition mounts are no longer compatible

O3 COMPATIBLE MOUNTINGThe rear plate adds 25.5 M1.6 mount holes to mount the O3 air unit to the frame directly. The frame kit also includes a 5mm full aluminum mounting kit to allow for perfect wire routing for both the O3 air unit and a rear XT60 connector.

ADJUSTABLE ALUMINUM XT60 AND ACCESSORY MOUNTA custom rear mounting solution allows for a hard mounted XT60 connection as well as a range of accessory mounting options for antennas, GPS, and rear-facing action cameras. Adjustable angles allows for the perfect position regardless of the accessory being used. The frame kit includes plates for the injection molded GoPro mount and GPS mounts with both single and dual antenna options, as well as a single antenna only option.

FOLDING ARMSThe new lock system on the QAV-S 2 JohnnyFPV SE allows the arms to fold with only one screw per side for easy transportation. Simply remove the side screws and wedges, and you are now able to fold the arms.
Specifications

Rear Stack Dimensions: 20x20 (potentially 30x30 with adapter)
Custom Parts: 6061 Aluminum (Bronze Gold)
Standoffs: 7075 Aluminum (Bronze Gold)
Screws: Black Zinc Steel 12.9 grade
Weight: 182g (without accessories)
Middle Stack Dimensions: 30x30
Arm: 6mm 3K Carbon Fiber
Frame Size: 220mm

Lumenier QAV-S 2 JohnnyFPV Manual
IMPORTANT NOTES

The new QAV-S 2 arms will work with the original QAV-S frame, but the original QAV-S arms will not work with the new QAV-S 2 frame.


Includes

1x Lumenier QAV-S 2 JohnnyFPV SE 7" Frame Kit



1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate Dual Antenna
1x JohnnyFPV QAV-S 2 Rear GPS Dual Antenna Mount Plate
1x JohnnyFPV QAV-S 2 Battery Pad (Black Silicon Rubber)
1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Right
2x JohnnyFPV QAV-S 2 Camera Plate for Grommets
1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Left
1x JohnnyFPV QAV-S 2 Rear GPS XT60 Mount Plate
1x JohnnyFPV QAV-S 2 20mm Camera Plate Right
1x JohnnyFPV QAV-S 2 20mm Camera Plate Left
1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate
1x JohnnyFPV QAV-S 2 Rear FPV Antenna Plate
1x JohnnyFPV QAV-S 2 Pro Mount Spacer Plate
1x JohnnyFPV QAV-S 2 Rear Base Mount Right
1x JohnnyFPV QAV-S 2 Aluminum Guard Right
1x 14 Gauge Silicon Wire (Pair, Red and Black)
1x JohnnyFPV QAV-S 2 6mm FC Isolator 6mm
1x JohnnyFPV QAV-S 2 Rear Base Mount Left
1x JohnnyFPV QAV-S 2 Aluminum Guard Left
2x JohnnyFPV QAV-S 2 6mm Arm Wedge
2x JohnnyFPV QAV-S 2 7 Inch Arm Brace
2x JohnnyFPV QAV-S 2 7 Inch Arm Front
2x JohnnyFPV QAV-S 2 7 Inch Arm Rear
1x JohnnyFPV QAV-S 2 Split Plate Front
1x JohnnyFPV QAV-S 2 Split Plate Rear
1x Lumenier QAV-PRO Gopro Mount
2x 5mm O3 Air Unit Mount 20mm
1x JohnnyFPV QAV-S 2 Top Plate
2x Heatshrink 5mm Diameter
2x Lumenier Battery Strap
4x Knurled Standoff
1x XT60E-M (Black)
1x Hardware Set
4x Foam Pads



Introducing the Lumenier QAV-S 2 JohnnyFPV Special Edition frame, a cutting-edge masterpiece designed to elevate your FPV drone experience. This frame boasts an innovative X-Lock arm retention system featuring a lateral locking mechanism that enhances rigidity and ease of use. The arms can effortlessly fold with only o

Lumenier QAV-PRO Mega Whoop 7" Frame Kit - Cinequads Edition

The Lumenier QAV-PRO Mega Whoop - Cinequads Edition is a professional 7" prop-guarded cinematic drone that is capable of handling large payloads. This advanced quadcopter is equipped with durable carbon fiber and aluminum components, providing complete propeller safeguarding. This frame is specifically designed to accommodate your cinema camera, and with the addition of the optional cinema camera mounting kit and X8 upgrade kit, this setup has a lot to offer and ensures an exceptional QAV-PRO experience. This whoop is a great tool to add to your cinematic arsenal and can be used in many scenarios where additional safety and stability are needed.
Check out the rest of our Lumenier products or the rest of our 7" drone frames.CINEQUADSLumenier has once again teamed up with Cinequads… the world-renowned German FPV cinematography company. Cinequad’s input and knowledge from having many years in the professional FPV industry have been highly valuable in the creation of industry-leading professional FPV products. Together, Lumenier and Cinequads are releasing the QAV-PRO line… which is the composition of professional FPV cinematic drones. These quads are tailored to get that perfect shot. Lumenier has pushed the limits with these drone kits by incorporating high-tech designs with high-quality materials.Combining Cinequads' professional experience and optimized workflow with Lumenier's high-quality design and manufacturing, we are excited to bring you the next professional class of FPV Cine drones... the Lumenier QAV-PRO line.


Features

Additional XT30 connectors allow cinema cameras to be powered by the drone to reduce the overall weight
Supports cinematic cameras, such as the RED Komodo and DSLR cameras.
Designed in Germany by Cinequads in collaboration with Lumenier
Configured for camera centering, allowing even weight distribution
Designed for internal electronic mounting for added protection
Switchable camera plates for 19x19 or 20x20 FPV cameras
Aluminum XT90 connector mount for cinematic batteries
Rear, front, or center cinema camera mounting options
Aluminum rear-end structural brace with LiPo strap
Symmetric motor arms with minimal masking
Durable carbon tubes with nylon landing feet
Organized aluminum cable mounting system
Vertical aluminum Crossfire antenna mount
Specially designed 4mm O3 heatsinks
50x50mm internal LiPo battery cage
Ducted for indoor/outdoor safety
Isolated O3 Camera Mount
Universal GoPro Mount
Pusher style frame
TPU GPS Mount



SWITCHABLE FPV CAMERA MOUNTING SYSTEMThe QAV-PRO Mega Whoop was specially designed with the O3 unit in mind. The increased airflow design, heatsink mounts, and aluminum camera mounts provide the perfect setup to utilize your O3 Unit in an optimized way, and the isolated O3 camera mount helps with stabilization. This unique camera mounting system also allows the pilot to use either 19X19 or 20X20mm FPV cameras. This camera mounting system can be flipped to allow space for your personal camera needs. The combination of aluminum brackets and durable carbon plates keeps your camera secure and safe.

O3 HEATSINK MOUNTSThese custom O3 mounts feature a heatsink design to reduce temperatures during flight and provide a longer flight time while keeping your O3 secure.

REAR FRAME FEATURESThe rear of this frame is equipped with multiple aluminum features. The rear brackets have secure slots for LiPo straps to ensure your battery does not move in flight, and the battery cage holds up to 50x50mm batteries. The mounts for the Crossfire antenna and XT90 connectors ensure your components stay safe in place during flights.

DUCTED FRAME DESIGN WITH SYMMETRIC MOTOR ARMSThe QAV-PRO Mega Whoop gives you the option to fly this larger rig with ducted protection. Flying close to people or objects that you need a little more security? No problem! Protect those props and motors while providing safety to spectators. The symmetric motor arms have minimal masking of the prop surface thanks to double-decker-style arms. This design provides a minimal overall height for better aerodynamics.

XT30 CONNECTORS FOR CINEMA CAMERAThese XT30 connectors allow you to power your cinema camera through the drone's battery, eliminating the need for a camera battery, and reducing overall weight for better flight performance.

CLEAN CABLE MANAGEMENTThe integrated cable management system on this frame leaves every FPV pilot with a professional, clean build. Slots for two zip ties are built into the frame, as well as aluminum cable brackets that keep your power cables centered and secure on the build.



Specifications

Connector: XT60 (1) for Battery + XT30 (2) for Cinema Cameras
Model: Lumenier QAV-PRO Mega Whoop 7" Cinequads Edition
FPV Camera Mounting: 20x20 or 19x19
VTX/AIO Mounting Patterns: 25x25mm
Antenna Mount Material: Aluminum
Motor Mounting Pattern: 9x9mm
Standoffs: M2x16mm Aluminum
O3 Heatsink Mounts: Aluminum
Carbon Fiber Thickness: 3mm
Dimensions: 470x400x60mm
Camera Mounts: Aluminum
Cable Mounts: Aluminum
Camera Plates: Carbon
Weight: Approx. 750g

Lumenier QAV-PRO Mega Whoop Manual
Includes

1x Lumenier QAV-PRO Mega Whoop 7" Cinequads Edition Frame Kit



1x Aluminum QAV-PRO Universal Camera Mount Base
1x Lumenier QAV-PRO Mega Whoop Bottom Plate
1x Lumenier QAV-PRO Mega Whoop Middle Plate
1x Lumenier QAV-PRO Mega Whoop Top Plate
1x USB-C to 90° USB-C Extension Cable
1x 4mm O3 Mounting Heatsink Kit
2x Aluminum Camera Mount
2x XT30 3D Printed Mount
1x Lumenier LiPo Strap
1x Foam Battery Shield
4x Rubber Grommets
4x M2 Steel Hex Nut
1x XT60 Connector
2x XT30 Connector
1x Antenna Mount
4x Landing Feet
1x Hardware Kit
1x XT60 Mount
6x Standoffs
6x Zip Ties



The Lumenier QAV-PRO Mega Whoop - Cinequads Edition is a professional 7" prop-guarded cinematic drone that is capable of handling large payloads. This advanced quadcopter is equipped with durable carbon fiber and aluminum components, providing complete propeller safeguarding. This frame is specifically designed to acco

Lumenier QAV-PRO Mega Whoop Cinequads Edition 7" Frame Kit

Lumenier QAV-PRO Whoop 2.5" Frame Kit - Cinequads Edition

The Lumenier QAV-PRO Micro Whoop - Cinequads Edition is a versatile 2.5" micro-sized FPV quadcopter that is designed to be small and agile. Featuring full propeller protection with premium carbon fiber, while carrying your HD camera for the ultimate micro FPV cinema experience.Lumenier has once again teamed up with Cinequads, founded by the world-renowned FPV pilot Phil Freybott! Now bringing you the ultimate micro cinematography whoop. Phil has many years of experience shooting professionally with FPV drones on TV commercial sets, and movies. You can find his work showcased with automotive brands like Porsche and Mercedes.Combining Cinequads' professional experience and optimized workflow with Lumenier's high-quality design and manufacturing, we are excited to bring you the next professional class of FPV Cine drones... the Lumenier QAV-PRO line.
Check out the rest of our Lumenier products or the rest of our 2.5" Micro Frames.
Features

Designed by Lumenier in collaboration with Cinequads
Supports HD Action Camera Mounting
Great for Professional Cinematic Use
Designed for both Analog and HD
Molded Foam Bumper Protection
Pusher Style Frame
Ultra-lightweight





ADDED PROTECTION WTH MOLDED FOAM BUMPERSThe QAV-PRO Micro Whoop gives you the option to fly with only the Carbon Fiber frame, or with added protection provided by the snap-on foam bumpers. Flying close to people or objects that you need a little more security? No problem! Simply pop on the foam pads in seconds and you're good to go. When you're done you can take them back off and fly again with just the carbon guards. So simple!SUPPORTS GOPRO / HD CAMERA MOUNTINGWant to add 4k buttery smooth video recording to your QAV-PRO? No problem! the frame is designed to carry a GoPro style camera with a dedicated camera mount on top. This allows a variety of cameras and 3-D prints to securely hold the HD camera in place making sure you get the perfect shot!DESIGNED FOR BOTH ANALOG AND HDThe QAV-PRO Micro Whoop frame was designed from the ground up to be very versatile and allow many different configurations with the same design. This one airframe design fits 20x20 stacks, 25.5x25.5 toothpick AIO boards, and Caddx Vista digital HD system. This frame has mounting points for an antenna, camera, receiver, transmitter, and more. Now you can fly in full digital HD in an incredibly small package!PUSHER STYLE FRAMEThe Lumenier QAV-PRO Micro Whoop airframe design supports a pusher configuration. it was found to have 15-20% more flight time and an even better throttle response. Many "pusher" style frames struggle to easily take off from the ground since their props are often resting on the surface, but with the QAV-PRO Micro Whoop... it's no problem since the entire prop is surrounded by carbon fiber. This gives you plenty of clearance to take off and land without any issue.ULTRA-LIGHTWEIGHTWith an all-up weight of just 53g, this airframe is top in class. It has the perfect balance of durability and protection that you need, without any extra dead weight that you don't. The body is made up of ultra-strong 3K carbon fiber. Combined with custom light-weight quick-swap battery straps and M2 hardware, this kit is the perfect 2.5" setup.
Specifications

Weight: 53g (66g with bumpers and lipo straps)
Dimension: 180mm x 155mm x 53mm
Material: 2mm Quasi-Isortropic Japanese Carbon Fiber (Matte Finish)
Motor Bolt Pattern: 9x9mm


Includes

1x Lumenier QAV-PRO Micro Whoop Cinequads Edition 2.5" Frame Kit



1x Hardware Set (Steel M2 Screws, M2 Stack Screws and Spacers, Aluminum Standoffs, Rubber O-rings, Nuts)
1x 3D Printed Universal Camera Mount Base
2x 1mm Carbon Fiber Camera Side Plate
1x 2mm Carbon Fiber Bumper Plate
1x 2mm Carbon Fiber Motor Plate
1x Foam Battery Pad
4x Foam Bumpers



The Lumenier QAV-PRO Micro Whoop - Cinequads Edition is a versatile 2.5" micro-sized FPV quadcopter that is designed to be small and agile. Featuring full propeller protection with premium carbon fiber, while carrying your HD camera for the ultimate micro FPV cinema experience.Lumenier has once again teamed up with Cin

Lumenier QAV-PRO Whoop Cinequads Edition 2.5" Micro Frame Kit

Fractal Engineering

Fractal Engineering Fractal 65 Pro Frame Kit

FRACTALENGINEERING













Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 Pro was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 65 Pro Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Pro Whoop Micro Frame Kit and Meteor65 Pro Whoop frame.
Note: This is designed for prop guards that fit 35mm props like the Meteor65 Pro. This will serve as your protection and allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
The Pro version has been squished to the max to fit 35mm props with Meteor 65 Pro ducts.
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!
Features

A variant of the Fractal 65 frame kit

Squished to the max to fit 35mm props with Meteor 65Pro ducts

Maintains 65mm motors distance to meet racing specs

Still fits the camera between the front ducts 1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction

Low-profile camera mount, no props in view, no tilt offset
Low Center of gravity, by bringing the AIO closer to the frame/motors
Allows mounting with USB pointing up for easy accelerometer calibration
No need for a canopy as all electronics are tucked safely between the ducts
Maximum rigidity where it matters most connecting the motors to the FC
Easy maintenance, break one duct, replace only the single duct

Recommended Part List


BetaFPV Gemfan 1406 Tri-Blade 35mm Micro/Whoop Prop 4 Pack (1mm Shaft) - Choose Your Color


HappyModel EX 0802 19000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel EX 0802 25000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz















FEA optimization test performed, ensuring the stress gets spread out across the whole structure without concentrations

Specifications

CF Weight: 1.8g

Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 65 Micro Frame Kit - Pro Lite Kit + Meteor65 Pro Green


Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 Pro was designed for you! This kit contains all

Fractal Engineering Fractal 65 Pro Micro/Whoop Frame Kit - Pro Lite Kit + Meteor65 Pro Green

Fractal Engineering Fractal 65 Pro Micro/Whoop Frame Kit - Pro Lite Ki













Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 Pro was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 65 Pro Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Pro Whoop Micro Frame Kit and Meteor65 Pro Whoop frame.
Note: This is designed for prop guards that fit 35mm props like the Meteor65 Pro. This will serve as your protection and allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
The Pro version has been squished to the max to fit 35mm props with Meteor 65 Pro ducts.
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!
Features

A variant of the Fractal 65 frame kit

Squished to the max to fit 35mm props with Meteor 65Pro ducts

Maintains 65mm motors distance to meet racing specs

Still fits the camera between the front ducts 1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction

Low-profile camera mount, no props in view, no tilt offset
Low Center of gravity, by bringing the AIO closer to the frame/motors
Allows mounting with USB pointing up for easy accelerometer calibration
No need for a canopy as all electronics are tucked safely between the ducts
Maximum rigidity where it matters most connecting the motors to the FC
Easy maintenance, break one duct, replace only the single duct

Recommended Part List


BetaFPV Gemfan 1406 Tri-Blade 35mm Micro/Whoop Prop 4 Pack (1mm Shaft) - Choose Your Color


HappyModel EX 0802 19000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel EX 0802 25000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz















FEA optimization test performed, ensuring the stress gets spread out across the whole structure without concentrations

Specifications

CF Weight: 1.8g

Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 65 Micro Frame Kit - Pro Lite Kit + Meteor65 Pro Black


Fractal Engineering Fractal 65 Pro Micro/Whoop Frame Kit - Pro Lite Kit + Meteor65 Pro Black

Quad Type

Pre-Built Quads and Kits

Fractal Engineering Fractal 75 Pro Max Frame Kit

From motorpost to motorpost on this frame, the distance is 84mm.
Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 75 Pro Max was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 75 Pro Max whoop micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 75 Pro Max Whoop Micro-frame kit and BetaFPV Meteor75 Pro Whoop Frame.
Note: This is designed for prop guards that fit 45mm props like the Meteor75 Pro. This will serve as your protection and allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
The Pro Version has been scaled to the max to fit 45mm props
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!
Features

A completely new variant of the F75, but this is actually 84mm motorpost to motorpost distance.

The same winning recipe, scaled to fit 45mm props with ducts while keeping the camera up front

Extended camera mount to reduce prop guards in view

Low center of gravity, by bringing the AIO close to the frame/motors

Allows mounting with USB pointed up for easy accelerometer calibration

Easy maintenance, break a duct, replace only the single duct

No need for a canopy as all electronics are tucked safely between the ducts

Approximately 21g using the Happymodel DiamondF4 AIO

Recommended Parts List


Gemfan Ducted 1815 Tri-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color


Gemfan Ducted 1815 Bi-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color

HappyModel RS 0802 20,000Kv Micro Motor - Choose Version

HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

HappyModel OVX300 25-300mW 5.8GHz U.Fl VTX w/ OpenVTX




FEA optimization test performed, ensuring the stress gets spread out across the whole structure without concentrations






Specifications

CF Weight: 2.21g
Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 75 Micro Frame Kit - Choose Your Version


From motorpost to motorpost on this frame, the distance is 84mm. Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, th

Fractal Engineering Fractal 75 Pro Max Micro/Whoop Frame Kit - Pro Lite Kit + BetaFPV Meteor75 Pro Cyan

Fractal Engineering Fractal 75 Pro Max Micro/Whoop Frame Kit - Pro Lit

From motorpost to motorpost on this frame, the distance is 84mm.
Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 75 Pro Max was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 75 Pro Max whoop micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 75 Pro Max Whoop Micro-frame kit and BetaFPV Meteor75 Pro Whoop Frame.
Note: This is designed for prop guards that fit 45mm props like the Meteor75 Pro. This will serve as your protection and allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
The Pro Version has been scaled to the max to fit 45mm props
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!
Features

A completely new variant of the F75, but this is actually 84mm motorpost to motorpost distance.

The same winning recipe, scaled to fit 45mm props with ducts while keeping the camera up front

Extended camera mount to reduce prop guards in view

Low center of gravity, by bringing the AIO close to the frame/motors

Allows mounting with USB pointed up for easy accelerometer calibration

Easy maintenance, break a duct, replace only the single duct

No need for a canopy as all electronics are tucked safely between the ducts

Approximately 21g using the Happymodel DiamondF4 AIO

Recommended Parts List


Gemfan Ducted 1815 Tri-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color


Gemfan Ducted 1815 Bi-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color

HappyModel RS 0802 20,000Kv Micro Motor - Choose Version

HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

HappyModel OVX300 25-300mW 5.8GHz U.Fl VTX w/ OpenVTX




FEA optimization test performed, ensuring the stress gets spread out across the whole structure without concentrations






Specifications

CF Weight: 2.21g
Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 75 Micro Frame Kit - Pro Lite Kit + BetaFPV Meteor75 Pro Blue


Fractal Engineering Fractal 75 Pro Max Micro/Whoop Frame Kit - Pro Lite Kit + BetaFPV Meteor75 Pro Blue

From motorpost to motorpost on this frame, the distance is 84mm.
Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 75 Pro Max was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 75 Pro Max whoop micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 75 Pro Max Whoop Micro-frame kit and BetaFPV Meteor75 Pro Whoop Frame.
Note: This is designed for prop guards that fit 45mm props like the Meteor75 Pro. This will serve as your protection and allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
The Pro Version has been scaled to the max to fit 45mm props
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!
Features

A completely new variant of the F75, but this is actually 84mm motorpost to motorpost distance.

The same winning recipe, scaled to fit 45mm props with ducts while keeping the camera up front

Extended camera mount to reduce prop guards in view

Low center of gravity, by bringing the AIO close to the frame/motors

Allows mounting with USB pointed up for easy accelerometer calibration

Easy maintenance, break a duct, replace only the single duct

No need for a canopy as all electronics are tucked safely between the ducts

Approximately 21g using the Happymodel DiamondF4 AIO

Recommended Parts List


Gemfan Ducted 1815 Tri-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color


Gemfan Ducted 1815 Bi-Blade 45mm Micro/Whoop Prop 8 Pack (1.5mm Shaft) - Choose Your Color

HappyModel RS 0802 20,000Kv Micro Motor - Choose Version

HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

HappyModel OVX300 25-300mW 5.8GHz U.Fl VTX w/ OpenVTX




FEA optimization test performed, ensuring the stress gets spread out across the whole structure without concentrations






Specifications

CF Weight: 2.21g
Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 75 Micro Frame Kit - Pro Lite Kit + BetaFPV Meteor75 Pro White


Fractal Engineering Fractal 75 Pro Max Micro/Whoop Frame Kit - Pro Lite Kit + BetaFPV Meteor75 Pro White

Fractal Engineering Fractal 65 Frame Kit













Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 65 Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Whoop Micro Frame kit and HappyModel Mobula6 Whoop frame.
Note: You're gonna want to cut ducts from either an NBD, BetaFPV, or Happymodel 65mm whoop frame, and that will serve as your protection for your motor and propellers. This also allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!












Features

65mm diagonal, squished X geometry, for 31mm props
1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction
Low-profile camera mount, no props in view, no tilt offset
Low Center of gravity, by bringing the AIO closer to the frame/motors
Allows mounting with USB pointing up for easy accelerometer calibration
No need for a canopy as all electronics are tucked safely between the ducts
Maximum rigidity where it matters most connecting the motors to the FC
Easy maintenance, break one duct, replace only the single duct

Recommended Part List

Gemfan Durable 1210 Bi-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft)

Gemfan 1219-3 Durable Tri-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft) - Choose Your Color


HappyModel EX 0802 19000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel EX 0802 25000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

 HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version


 HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz



 FEA optimization test preformed ensuring the stress gets spread out across the whole structure without concentrations


Specifications

CF Weight: 1.6g
Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 65 Micro Frame Kit - Lite Kit + Mob6 Clear


Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 was designed for you! This kit contains all you

Fractal Engineering Fractal 65 Micro/Whoop Frame Kit - Lite Kit + Mob6 Clear

Fractal Engineering Fractal 65 Micro/Whoop Frame Kit - Lite Kit + Mob6













Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.
Choose between getting the Fractal 65 Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Whoop Micro Frame kit and HappyModel Mobula6 Whoop frame.
Note: You're gonna want to cut ducts from either an NBD, BetaFPV, or Happymodel 65mm whoop frame, and that will serve as your protection for your motor and propellers. This also allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
Check out our other Micro frames, and our Fractal Engineering Products!
Check out these other Fractal Kits with a Whoop Frame included!












Features

65mm diagonal, squished X geometry, for 31mm props
1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction
Low-profile camera mount, no props in view, no tilt offset
Low Center of gravity, by bringing the AIO closer to the frame/motors
Allows mounting with USB pointing up for easy accelerometer calibration
No need for a canopy as all electronics are tucked safely between the ducts
Maximum rigidity where it matters most connecting the motors to the FC
Easy maintenance, break one duct, replace only the single duct

Recommended Part List

Gemfan Durable 1210 Bi-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft)

Gemfan 1219-3 Durable Tri-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft) - Choose Your Color


HappyModel EX 0802 19000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel EX 0802 25000Kv Whoop/Micro Motor for Mobula6 HD - CW


HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes &amp Plug for Mobula6

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC &amp 400mW VTX - ELRS SPI

 HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version


 HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz



 FEA optimization test preformed ensuring the stress gets spread out across the whole structure without concentrations


Specifications

CF Weight: 1.6g
Motor Bolt Pattern: 6mm Tri-Mount &amp 5.5mm Tri-Mount
Stack Size: 25x25mm

 Includes

1x Fractal Engineering Fractal 65 Micro Frame Kit - Lite Kit + Mob6 Blue


Fractal Engineering Fractal 65 Micro/Whoop Frame Kit - Lite Kit + Mob6 Blue

iFlight

iFlight BOB57 O3 6" Frame Kit

IFLIGHT

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot &amp videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.
Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories.
Don't feel like building it but one one now!? We also carry the BNF!
Features

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers
Solid antenna mount for less ocillations when using long antennas

H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
Front-mounting XT-60
Compatible with DJI O3 Air Unit and Vista

Specifications

Product Name: BOB57 O3 Frame Kit
Frame wheelbase: 278mm
Frame Dimension: L165 x W225 x H34 mm
Weight: 305g
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 1.5mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Motor Mounting: 16 x 16mm
VTX Mounting: 25.5 x 25.5/Φ1.6mm, 20 x 20/Φ2mm



Includes

1 x BOB57 O3 Frame Kit
1 x BOB57 TPU Parts
1 x 215mm MIPI Video Cable for DJI O3 Air Unit
4 x Motor Wire Shield Tube
1 x Battery Anti-Slip Pad
2 x Battery Strap
1 x Screw Bag


The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot &amp; videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights. Be sure

iFlight BOB57 O3 LR & Freestyle Cinematic 6" Frame Kit

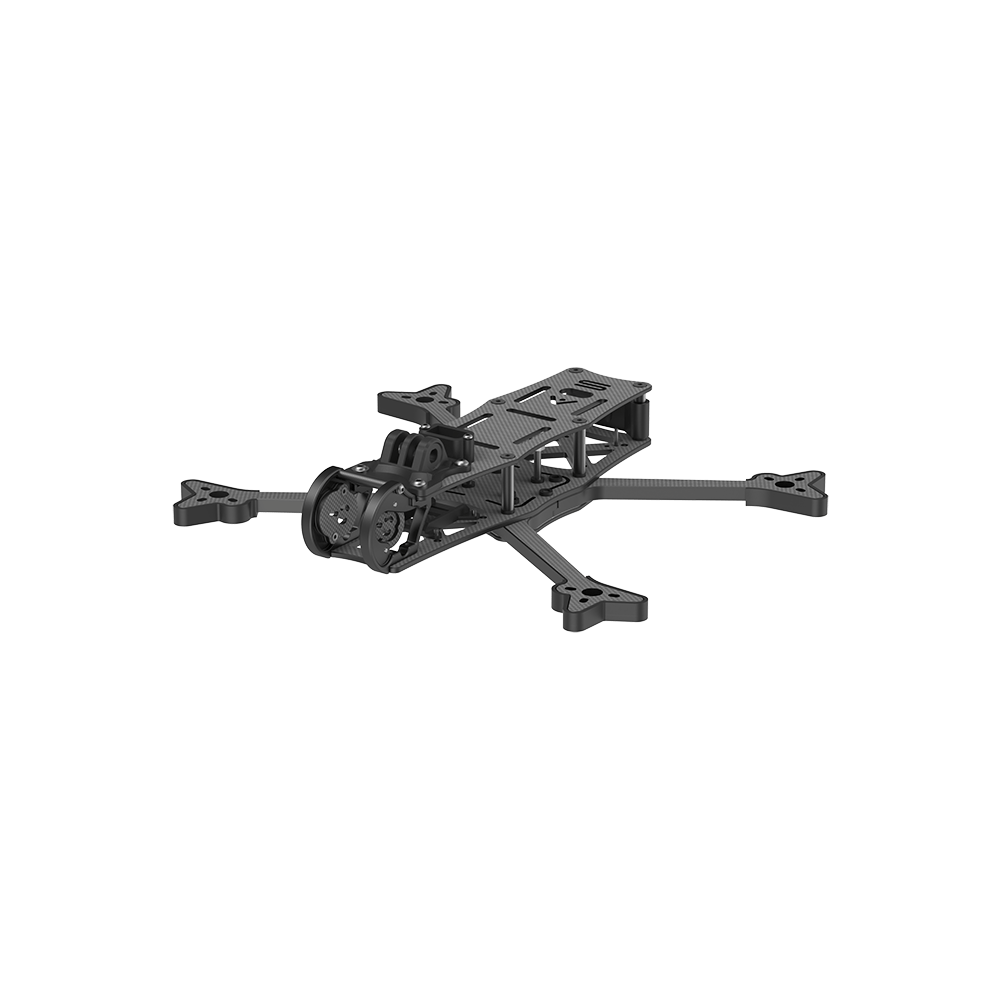

iFlight AOS 5 V5 5" Frame Kit

Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 5 V5 is the ultimate choice for drone enthusiasts.
Be sure to browse the rest of our iFlight products and our other DJI O3 Compatible Quads and DJI compatible frames, electronics and accessories.
Features

Supports up to 5.2" Props
AOS X-Cell Anti-Vibration Technology
Three 30.5x30.5, 25.5x25.5, or 20x20 mm stacks
155° FOV no props in view
Fully DJI O3 compatible (soft mount + ND filters)
Supports 19-20mm cameras (hard or soft mounted)
Reinforced 7075 Aluminium Camera Cage
Supports Lengthwise or Toilet Tank battery mounting
⌀16 - ⌀19mm motor mounting (supports all standard 5" motors)
28x28mm M3 GoPro Mounting Pattern
32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Specifications

Product Name: AOS 5 V5 Frame Kit
Frame wheelbase: 228mm
Frame Dimension: L180xW140xH34 mm
Arm Thickness: 6mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Max Flight Stack Height: 20mm
Max VTX Height: 20mm
Motor Mounting: 19x19-φ3mm/16x16-φ3mm
Flight Stack Mounting: 20x20 Φ3mm / 25.5x25.5 Φ2mm / 30.5x30.5 Φ3mm
VTX Mounting: 20x20 ⌀2mm / 25.5x25.5 Φ2mm/30.5x30.5 Φ3mm
Weight: 150g
Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX

Includes

1x iFlight AOS 5 V5 5" Frame Kit


Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 5 V5 is the ultimate choice for drone enthusiasts. Be sure to browse the rest of our iFlight products and our other DJI O

iFlight AOS 5R 5" Frame Kit

Redefining state of the art in FPV drone racing. The AOS 5R V5 is designed with cutting-edge patent pending technology to give you an edge over the competition.
Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories.
Features

Supports up to 5.3" Props
AOS X-Cell Anti-Vibration Technology
20x20 mm M3 flight stack
25.5x25.5 mm OR 20x20 mm M2 top plate mounting
20mm standoff spacing fits most existing 3D prints for 14mm camera, shark fin, and VTX antenna
50mm stack clearance front to rear fits even the largest 20x20 M3 ESCs
⌀16mm motor mounting (supports all standard 5" motors)


Specifications

Product Name: AOS 5R Frame Kit
Frame wheelbase: 201mm
Frame Dimension: L142xW142xH38 mm
Arm Thickness: 6mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2mm
Max Flight Stack Height: 25mm
Max VTX Height: 25mm
Motor Mounting: 16x16-φ3mm
Flight Stack Mounting: 20x20 Φ3mm
VTX Mounting: 20x20/Φ2mm 25.5x25.5/Φ2mm
Weight: 90g
Compatible: Vista HD system/ BLITZ mini 1.6W VTX

Includes

1x iFlight AOS 5R 5" Frame Kit


Redefining state of the art in FPV drone racing. The AOS 5R V5 is designed with cutting-edge patent pending technology to give you an edge over the competition. Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories. Features Supports up to 5.3" Props AOS X-Cell Anti-V

SpeedyBee

SpeedyBee Bee35 Pro 3.5" Micro Frame Kit - LED Version

The brand-new Bee35 Pro - Now available with customizable LED light strip!
The SpeedyBee Bee35 3.5-Inch Frame Kit is the perfect tool for any cinewhoop pilot looking for a bit more power to capture stunning pictures and videos, freestyle cruising, and exploring your flight zones. Durable, effective, and resilient, the frame kit is great for both beginners and veterans with its tough prop guards that can survive rough handling.
Looking for the non-pro version, check out the SpeedyBee Bee35!
Be sure to check out all our 3.5&quot frames, and all our Speedy Bee products!
Features

Custom-made aluminum alloy head to protect the O3 effectively without obstruction.
Customized silicone shock absorption O3 lens, eliminates the &#39jelly&#39 effect.
Custom-designed bottom aluminum alloy for heat dissipation, integrating seamlessly with O3 and RunCam Link. Includes a convenient Type-C port and memory card slot for easy frequency tuning.
Compatibility with 20x20mm, 25x25mm, and 30.5x30.5mm stacks.
Battery support featuring both horizontal and vertical binding designs for enhanced durability and easy installation.
Connects to the flight controller without disassembling the drone, supporting both Type-C and micro interfaces.
Ultra-strong injection-molded protective ring with a cutout for simple LED light strip installation.
A comprehensive set of printed parts: GoPro mount / 121GPS mount / multifunctional antenna mount / T-shaped antenna mount.
Adjustable GPS mount for MASTER 5 V2 GPS, including a standard 121GPS mount.
Option for a detachable shock-absorbing gimbal (sold separately).

Quick Release Solution
Only 6 screws are to be removed for freeing drone body and propeller guard.



Aerospace-grade Aluminum Front Plate
The aviation-grade aluminum headpiece provides excellent protection for the lens, and it is embedded with custom silicone damping material, resulting in effective anti-vibration performance for the lens. The GyroFlow effect is enhanced for better stability.

100% efficient heat dissipation
We have found that the O3 video transmitter shuts down due to high CPU temperatures during prolonged high-temperature operation. To address this issue, we have specially designed a 7075-T aerospace-grade aluminum component for the O3 video transmitter, doubling its heat dissipation efficiency! Additionally, it features 20x20 mounting screw holes, making it compatible with Link, TX800, and other 20-hole video transmitters.
Note: The test data is conducted at an ambient temperature of 26 degrees Celsius. The actual performance may vary depending on the temperature of the usage environment.

Custom-made aerospace-grade aluminum components
Specially designed to solve the TF card insertion issue of O3 without disassembly. Easily insert the card without any hassle. It also features a dedicated frequency position for O3 and Link video transmitters, making it super convenient for Type-C connection!

H-FOV135°
135° wide-angle without dark corners.

Two battery installation methods
Super convenient battery strap design allows for horizontal or vertical battery mounting.





Super durable injection-molded ring
Made of high-strength imported composite material with built-in LED strip mounting groove.
Compatible with Meteor LED
Offers seven preset basic effects and allows for wireless customization of your personal lighting styles through the app.




Compatible with flight towers
Supports installation of various flight towers and AIO (All-In-One) boards in sizes of 20x20, 25.5x25.5 (45° 90°), and 30.5x30.520-hole MINI flight tower —— Recommended (Perfect fit)25.5-hole AIO flight controller —— Recommended (Perfect fit)30.5-hole standard flight tower —— Not recommended (Installation is compact and requires some hands-on skills)






Multi-function antenna mount
Type-C adapter cable directly plugs into the flight controller without disassembling the aircraft.






Specifications

Wheelbase: 153mm
Top Plate Thickness: 3.5mm
Bottom Plate Thickness: 2mm
Camera Mounting Distance: 19/20mm
ESC/Motor Mounting Height: 24mm
Flight Stack Mounting Holes: 20x20/25.5x25.5/30.5x30.5mm
Video Transmitter Mounting Holes: 20x20/25.5x25.5
Propeller Size: 90mm
Motor Mounting Holes: 12x12mm
Weight: 138g
CNC Heat Sink: 15g
Camera Gimbal: 28g
Recommended Motor: 1806/2004/2006
Recommended KV: 4S/2500-3500KV, 6S/1800-2300KV
Recommended Battery: 900-1500mAh 4S/6S

Includes

1x SpeedyBee Bee35 Pro 3.5&quot Frame - LED Version



The brand-new Bee35 Pro - Now available with customizable LED light strip! The SpeedyBee Bee35 3.5-Inch Frame Kit is the perfect tool for any cinewhoop pilot looking for a bit more power to capture stunning pictures and videos, freestyle cruising, and exploring your flight zones. Durable, effective, and resilient, the

SpeedyBee Bee35 Pro 3.5" Micro Frame - LED Version from WREKD Co.

SpeedyBee Bee35 Pro 3.5

SpeedyBee Bee35 Pro 3.5" Micro Frame - LED Version

RUNCAM

The brand-new Bee35 Pro - Now available with customizable LED light strip!
The SpeedyBee Bee35 3.5-Inch Frame Kit is the perfect tool for any cinewhoop pilot looking for a bit more power to capture stunning pictures and videos, freestyle cruising, and exploring your flight zones. Durable, effective, and resilient, the frame kit is great for both beginners and veterans with its tough prop guards that can survive rough handling.
Looking for the non-pro version, check out the SpeedyBee Bee35!
Be sure to check out all our 3.5" frames, and all our Speedy Bee products!
Features

Custom-made aluminum alloy head to protect the O3 effectively without obstruction.
Customized silicone shock absorption O3 lens, eliminates the 'jelly' effect.
Custom-designed bottom aluminum alloy for heat dissipation, integrating seamlessly with O3 and RunCam Link. Includes a convenient Type-C port and memory card slot for easy frequency tuning.
Compatibility with 20x20mm, 25x25mm, and 30.5x30.5mm stacks.
Battery support featuring both horizontal and vertical binding designs for enhanced durability and easy installation.
Connects to the flight controller without disassembling the drone, supporting both Type-C and micro interfaces.
Ultra-strong injection-molded protective ring with a cutout for simple LED light strip installation.
A comprehensive set of printed parts: GoPro mount / 121GPS mount / multifunctional antenna mount / T-shaped antenna mount.
Adjustable GPS mount for MASTER 5 V2 GPS, including a standard 121GPS mount.
Option for a detachable shock-absorbing gimbal (sold separately).

Quick Release Solution
Only 6 screws are to be removed for freeing drone body and propeller guard.



Aerospace-grade Aluminum Front Plate
The aviation-grade aluminum headpiece provides excellent protection for the lens, and it is embedded with custom silicone damping material, resulting in effective anti-vibration performance for the lens. The GyroFlow effect is enhanced for better stability.

100% efficient heat dissipation
We have found that the O3 video transmitter shuts down due to high CPU temperatures during prolonged high-temperature operation. To address this issue, we have specially designed a 7075-T aerospace-grade aluminum component for the O3 video transmitter, doubling its heat dissipation efficiency! Additionally, it features 20x20 mounting screw holes, making it compatible with Link, TX800, and other 20-hole video transmitters.
Note: The test data is conducted at an ambient temperature of 26 degrees Celsius. The actual performance may vary depending on the temperature of the usage environment.

Custom-made aerospace-grade aluminum components
Specially designed to solve the TF card insertion issue of O3 without disassembly. Easily insert the card without any hassle. It also features a dedicated frequency position for O3 and Link video transmitters, making it super convenient for Type-C connection!

H-FOV135°
135° wide-angle without dark corners.

Two battery installation methods
Super convenient battery strap design allows for horizontal or vertical battery mounting.





Super durable injection-molded ring
Made of high-strength imported composite material with built-in LED strip mounting groove.
Compatible with Meteor LED
Offers seven preset basic effects and allows for wireless customization of your personal lighting styles through the app.




Compatible with flight towers
Supports installation of various flight towers and AIO (All-In-One) boards in sizes of 20x20, 25.5x25.5 (45° 90°), and 30.5x30.520-hole MINI flight tower —— Recommended (Perfect fit)25.5-hole AIO flight controller —— Recommended (Perfect fit)30.5-hole standard flight tower —— Not recommended (Installation is compact and requires some hands-on skills)






Multi-function antenna mount
Type-C adapter cable directly plugs into the flight controller without disassembling the aircraft.






Specifications

Wheelbase: 153mm
Top Plate Thickness: 3.5mm
Bottom Plate Thickness: 2mm
Camera Mounting Distance: 19/20mm
ESC/Motor Mounting Height: 24mm
Flight Stack Mounting Holes: 20x20/25.5x25.5/30.5x30.5mm
Video Transmitter Mounting Holes: 20x20/25.5x25.5
Propeller Size: 90mm
Motor Mounting Holes: 12x12mm
Weight: 138g
CNC Heat Sink: 15g
Camera Gimbal: 28g
Recommended Motor: 1806/2004/2006
Recommended KV: 4S/2500-3500KV, 6S/1800-2300KV
Recommended Battery: 900-1500mAh 4S/6S

Includes

1x SpeedyBee Bee35 Pro 3.5" Frame - LED Version



BetaFPV

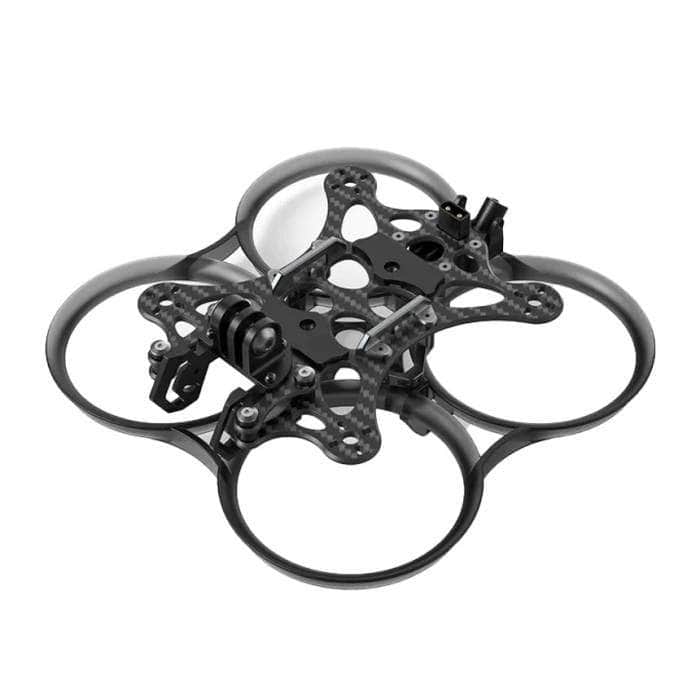

BetaFPV Pavo35 Cinewhoop 3.5" Micro Frame Kit

BETAFPV

Pavo35 cinewhoop frame features newly engineered supports to reduce vibrations as well as being able to accommodate the strong thrust of 6S motors. The ducts are inspired by rocket nozzles to enhance horizontal stability. This frame has aluminum CNC metal supports &ampamp built-in XT-60 mount.
Be sure to check out all our 3.5&quot frames, and the rest of our BetaFPV gear!

Features

The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.

Rocket engine-inspired duct design improves lateral stability and increases thrust by 400g compared to without a propeller guard, giving the Pavo35 stronger power and a better flying feel.

The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.


Pavo35 Frame Kit
Pavo35 whoop duct can enhance an additional 400g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses between the upper edge and lower edge, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 400g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo35 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.
The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material - 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.
Specifications

Item: Pavo35 Brushless Whoop Frame
Wheelbase: 148mm

Top Plate: 3mm T700 carbon fiber

Base Plate: 1.5mm T700 carbon fiber

Gimbal Carbon Plate: 2mm T700 carbon fiber

Column: 7075 aluminum alloy CNC

Battery Holder: 7075 aluminum alloy CNC

Whoop Duct: PC injection-molded translucent gray


Whoop Duct Diameter: 92mm
Battery Connector: Fixed XT60

Camera Installation Size: 20mm (compatible with 19mm)

HD VTX Installation Size: 25.5x25.5mm M1.6/20x20mm M2

HD VTX Antenna Mounting Hole Size: 4mm

Flight controller Mounting Hole Size: 25.5x25.5mm

Motor Mounting Hole Size: 4xM2 EQS ø12mm

Weight: 113.9g

Includes

1x Top Plate
1x Gimbal Carbon Plate

1x Base Plate

2x Battery Tie Holder

4x Y-shaped Aluminum Alloy Bracket

1x Whoop Duct

1x Receiver Holder

1x Amass XT60EW-M Socket (Black)

2x Battery Anti-slip Mat
1x Battery Tie

4x Flight Controller Amping Ball

4x Pan/Tilt Vibration Reduction Ball

4x Pan/Tilt Screws

2x Inner Hex Flat Head Screw M2.5x5

10x Inner Hex Flat Head Screw M2x6

4x Inner Hex Flat Head Screw M2x8

4x Inner Hex Flat Head Screw M2x10

4x Nylon nut M2
1x Accessory package

1x Service Card

1x Frame Manual



Pavo35 cinewhoop frame features newly engineered supports to reduce vibrations as well as being able to accommodate the strong thrust of 6S motors. The ducts are inspired by rocket nozzles to enhance horizontal stability. This frame has aluminum CNC metal supports &amp; built-in XT-60 mount.  Be sure to check out all o

BetaFPV Pavo35 Cinewhoop 3.5" Micro Frame Kit from WREKD Co.

BetaFPV Pavo35 Cinewhoop 3.5

Pavo35 cinewhoop frame features newly engineered supports to reduce vibrations as well as being able to accommodate the strong thrust of 6S motors. The ducts are inspired by rocket nozzles to enhance horizontal stability. This frame has aluminum CNC metal supports &amp built-in XT-60 mount.
Be sure to check out all our 3.5" frames, and the rest of our BetaFPV gear!

Features

The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.

Rocket engine-inspired duct design improves lateral stability and increases thrust by 400g compared to without a propeller guard, giving the Pavo35 stronger power and a better flying feel.

The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.


Pavo35 Frame Kit
Pavo35 whoop duct can enhance an additional 400g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses between the upper edge and lower edge, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 400g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo35 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.
The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material - 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.
Specifications

Item: Pavo35 Brushless Whoop Frame
Wheelbase: 148mm

Top Plate: 3mm T700 carbon fiber

Base Plate: 1.5mm T700 carbon fiber

Gimbal Carbon Plate: 2mm T700 carbon fiber

Column: 7075 aluminum alloy CNC

Battery Holder: 7075 aluminum alloy CNC

Whoop Duct: PC injection-molded translucent gray


Whoop Duct Diameter: 92mm
Battery Connector: Fixed XT60

Camera Installation Size: 20mm (compatible with 19mm)

HD VTX Installation Size: 25.5x25.5mm M1.6/20x20mm M2

HD VTX Antenna Mounting Hole Size: 4mm

Flight controller Mounting Hole Size: 25.5x25.5mm

Motor Mounting Hole Size: 4xM2 EQS ø12mm

Weight: 113.9g

Includes

1x Top Plate
1x Gimbal Carbon Plate

1x Base Plate

2x Battery Tie Holder

4x Y-shaped Aluminum Alloy Bracket

1x Whoop Duct

1x Receiver Holder

1x Amass XT60EW-M Socket (Black)

2x Battery Anti-slip Mat
1x Battery Tie

4x Flight Controller Amping Ball

4x Pan/Tilt Vibration Reduction Ball

4x Pan/Tilt Screws

2x Inner Hex Flat Head Screw M2.5x5

10x Inner Hex Flat Head Screw M2x6

4x Inner Hex Flat Head Screw M2x8

4x Inner Hex Flat Head Screw M2x10

4x Nylon nut M2
1x Accessory package

1x Service Card

1x Frame Manual



NewBeeDrone

NewBeeDrone Whirligig V2 5" Frame

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit or Caddx Vista Unit) whoop board or 20x20 stack 3&#39&#39 4&#39&#39 5&#39&#39 arms - the combination is endless - even long range light weight build.
Design to work best with 1404 3000kv motors, 850mah 4s and a 20x20 FC and ESC stack for ~ 15 minutes flight time!
The 20x20 used on this frame must use M3 hardware.

Slotted M3 stack mounting holes on the bottom plate
DJI mounts in center of quad near CoG in the NBD DJI AirUnit Standoffs, M3 stack mounts in rear of quad suggested use of wire pcbs for shorter motor wires.

frame can be used without DJI Air unit


DJI Camera Mounting holes: M2 Mounting slots DJI Camera that allow for 10-40deg of cam angle
A single M2 mounting hole for traditional micro cam mounting option.


Build Video:
FreeSytle Video:
Related Video:Recommend Build List:
LongRange 4inch with DJI HD DVR1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS Module
LongRange 4inch with Vista UnitHardware: 1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS ModuleLongRange 5inch with DJI HD DVR1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
LongRange 5inch with Vista Unit1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
Battery: GNB 650mAh 4S batteryGNB 750mAh 4S batteryGNB 850mAh 4S Battery
3D Print Parts:GoPro Hero8 3D FileFrame 3D Print PartsGo2 Mount 3D fileOther 3D printed Parts design by Jason
Buy the 3D printed Go2 Mount
Carbon Fiber Parts:Body: Top Plate&ampamp Bottom Plate with Battery padSide Camera Plate3inch Arm set include front and rear armOR4inch Arm set include front and rear armOR5inch Arm set include front and rear arm
Hardware include: Standoff M2 25mm X2 Standoff M2 20mm X4Screw M3 8mm X5Screw M3 6mm X7Screw M2 8mm X14
3D Printed parts Left DJI AirUnit Antenna MountRight DJI AirUnit Antenna MountBack Caddx Vista Antenna MountGPS + back antenna Mount
Parts for the Whirligig V2

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability; easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit o

NewBeeDrone Whirligig V2 Frame 3'' 4'' 5'' from WREKD Co.

NewBeeDrone Whirligig V2 Frame 3'' 4'' 5''

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit or Caddx Vista Unit) whoop board or 20x20 stack 3'' 4'' 5'' arms - the combination is endless - even long range light weight build.
Design to work best with 1404 3000kv motors, 850mah 4s and a 20x20 FC and ESC stack for ~ 15 minutes flight time!
The 20x20 used on this frame must use M3 hardware.

Slotted M3 stack mounting holes on the bottom plate
DJI mounts in center of quad near CoG in the NBD DJI AirUnit Standoffs, M3 stack mounts in rear of quad suggested use of wire pcbs for shorter motor wires.

frame can be used without DJI Air unit


DJI Camera Mounting holes: M2 Mounting slots DJI Camera that allow for 10-40deg of cam angle
A single M2 mounting hole for traditional micro cam mounting option.


Build Video:
FreeSytle Video:
Related Video:Recommend Build List:
LongRange 4inch with DJI HD DVR1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS Module
LongRange 4inch with Vista UnitHardware: 1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS ModuleLongRange 5inch with DJI HD DVR1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
LongRange 5inch with Vista Unit1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
Battery: GNB 650mAh 4S batteryGNB 750mAh 4S batteryGNB 850mAh 4S Battery
3D Print Parts:GoPro Hero8 3D FileFrame 3D Print PartsGo2 Mount 3D fileOther 3D printed Parts design by Jason
Buy the 3D printed Go2 Mount
Carbon Fiber Parts:Body: Top Plate&amp Bottom Plate with Battery padSide Camera Plate3inch Arm set include front and rear armOR4inch Arm set include front and rear armOR5inch Arm set include front and rear arm
Hardware include: Standoff M2 25mm X2 Standoff M2 20mm X4Screw M3 8mm X5Screw M3 6mm X7Screw M2 8mm X14
3D Printed parts Left DJI AirUnit Antenna MountRight DJI AirUnit Antenna MountBack Caddx Vista Antenna MountGPS + back antenna Mount
Parts for the Whirligig V2

NewBeeDrone Turismo 5'' Frame

This is NewBeeDrone's first 5inch light weight frame for racing and freestyle.
Introducing the Turismo Frame. The Turismo Frame is an offering for the ultralight 5inch enthusiast who wants a versatile, ultralight frame to build a locked-in setup with a sturdy roll-cage for the ‘goods’ inside. Pairing this frame with a whoop-size AIO board, then we suggest a build with an analog vtx setup or set it up with the Caddx Vista for that digital HD cruising. If you decide to pair this ultralight frame with a signature NewBeeDrone 20x20 series stacks (Infinity200 or CricketFPV stack) then an analog vtx build is the way to go.
At-A-Glance Frame Breakdown:

Motor Layout Type: Stretched-X configuration (longer front-to-back, than side-to-side)

Motor-to-Motor: 211mm
Cam Mounting: 14x14mm
Motor Mounting hole spacing: 4-holes spaced on a 12mm diameter
Stack Mounting: Whoop AIO board - 25.4x25.4mm (1x1inch) and 20x20 stack
Weight: (with Caddx Vista mount and TPU arm guards)  -  53g


Include:Top Plate x1Bottom Plate x1Side Camera Plate x2Arm left x2Arm Right  x2Cross Plate x23D Print Part Arm edge protect x43D Print Part Vista mount x1
Recommend build: 1. NewBeeDrone Turismo 5inch Frame2. NewBeeDrone Flow 2004 motor3. JHEMCU GHF405 BLHELI_S 35A 3-6S AIO for Racing Toothpick4. Gemfan 5125 Hurricane Durable 3 Blade 1.5mm5. Caddx Vista with Nebula nano kit V2
Instruction: Link
3DPrinted part file: Link

This is NewBeeDrone's first 5inch light weight frame for racing and freestyle.  Introducing the Turismo Frame. The Turismo Frame is an offering for the ultralight 5inch enthusiast who wants a versatile, ultralight frame to build a locked-in setup with a sturdy roll-cage for the ‘goods’ inside. Pairing this frame with a

NewBeeDrone Turismo 5'' light weight frame for Racing and Freestyle


This is NewBeeDrone&#39s first 5inch light weight frame for racing and freestyle.
Introducing the Turismo Frame. The Turismo Frame is an offering for the ultralight 5inch enthusiast who wants a versatile, ultralight frame to build a locked-in setup with a sturdy roll-cage for the ‘goods’ inside. Pairing this frame with a whoop-size AIO board, then we suggest a build with an analog vtx setup or set it up with the Caddx Vista for that digital HD cruising. If you decide to pair this ultralight frame with a signature NewBeeDrone 20x20 series stacks (Infinity200 or CricketFPV stack) then an analog vtx build is the way to go.
At-A-Glance Frame Breakdown:

Motor Layout Type: Stretched-X configuration (longer front-to-back, than side-to-side)

Motor-to-Motor: 211mm
Cam Mounting: 14x14mm
Motor Mounting hole spacing: 4-holes spaced on a 12mm diameter
Stack Mounting: Whoop AIO board - 25.4x25.4mm (1x1inch) and 20x20 stack
Weight: (with Caddx Vista mount and TPU arm guards)  -  53g


Include:Top Plate x1Bottom Plate x1Side Camera Plate x2Arm left x2Arm Right  x2Cross Plate x23D Print Part Arm edge protect x43D Print Part Vista mount x1
Recommend build: 1. NewBeeDrone Turismo 5inch Frame2. NewBeeDrone Flow 2004 motor3. JHEMCU GHF405 BLHELI_S 35A 3-6S AIO for Racing Toothpick4. Gemfan 5125 Hurricane Durable 3 Blade 1.5mm5. Caddx Vista with Nebula nano kit V2
Instruction: Link
3DPrinted part file: Link

NewBeeDrone Turismo 5'' light weight frame for Racing and Freestyle from WREKD Co.

NewBeeDrone Mosquito XL Micro Frame

NewBeeDrone Mosquito XL - 65mm Propeller Whoop Frame Miskito

Designed to drop-in your existing whoop electronics, the Mosquito XL transforms your whoop into an outdoor nano beast!
With 65mm props the Mosquito flies like a 3 inch toothpick but at a lighter weight and smaller form factor.
We recommend using the BeeBrain BLV3 AIO and Gold 0802 18000KV motors with 1s batteries. While designing the Mosquito XL, we found that the 0802 motors provide plenty of power while keeping the weight low.
Note: The frame does not accept the mounting of larger motors. If your existing whoop motors have wires that are too short, solder on the included motor wires. When doing so, check that the solder joints are not coming into contact with the carbon fiber frame.


Specifications

Carbon Weight: 7.5g
Carbon Fiber Thickness: 2.5mm
Carbon + Battery Mounting Weight: 8.0g
Motor to Motor Diagonal Distance: 104mm

Includes

1x Mosquito Frame
1x 1s Battery Mount
1x 2s Battery Mount
6x Rubber Bands
14x M1.4 4mm Screws
2x M2 6mm Screws
4x M2 9mm Screws
5x M2 Flight Controller Grommets
1x Motor Wire Extensions

Recommended Build
(AcroBee65 BLV3 Drop-In) 1102Motor 1S

AcroBee65 BLV3 BNF
BeeBrain BLV3 Flight Controller

1s Build 1102 Flow Motor

Gemfan 65mmS Propellers 1.5mm

1s 300mAh Nitro Nectar Gold GNB27
BeeEye FPV Camera
Goober Canopy
GNB27 Power Cable

(AcroBee65 BLV3 Drop-In) 1102Motor 2S

AcroBee65 BLV3 BNF
BeeBrain BLV3 Flight Controller

2s Build 1102 Flow Motor

Gemfan 65mmS Propellers 1.5mm
2s 300mAh Nitro Nectar Gold GNB27
BeeEye FPV Camera
Goober Canopy
GNB27 Power Cable


Alternative FPV Gear

Caddx Ant Lite
BeeBrain V2 Canopy


Compatible with the Following

Standard Brushless Whoop FC:

BeeBrain BLV1 Flight Controller
BeeBrain BLV2 Flight Controller (No longer sold separately)
BeeBrain BLV3 Flight Controller

Motors:


10000kv Flow Motors  1.5 Shaft


19000kv Flow Motors  1.5 Shaft


65mm Propellers:


Gemfan 65mmS Durable 2-Blade Props (1.5mm Shaft - Set of 8)

300 Gold Battery:


 1s 300mAh Nitro Nectar Gold GNB27


 2s 300mAh Nitro Nectar Gold GNB27


 Canopy:

V2 Canopy
Goober Canopy


NewBeeDrone Mosquito XL - 65mm Propeller Whoop Frame Miskito Designed to drop-in your existing whoop electronics, the Mosquito XL transforms your whoop into an outdoor nano beast! With 65mm props the Mosquito flies like a 3 inch toothpick but at a lighter weight and smaller form factor.  We recommend using the BeeBrain

NewBeeDrone Mosquito XL Frame from WREKD Co.

NewBeeDrone Mosquito XL Frame

NewBeeDrone M-367 True-X 7" Frame

NewBeeDrone M-367 7inch True-X FPV Frame

Design Idea:



Simplicity in Construction: Designed for effortless assembly and minimal maintenance.

Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs.

Strategic Tactic Mounting Points: Featuring mounting points on both top and bottom plates, enabling users to securely fasten any accessory using straps.

Innovative Motor Arm Protection: Inspired by the Air Max concept, our motor arm protectors are crafted with a lightweight, hollow design, using durable TPU material. This not only reduces weight but also offers enhanced protection for the arm edges and motor. The snap-on installation eliminates the need for screws, ensuring the motor remains firmly attached to the frame, optimizing system performance.


Spec:

FC Mount: 20X20, 25.5X25.5, 30.5X30.5 mm
VTX Mount: 20X20
Camera Mount: 19mm wide
Motor Mount:19x19 M3 screw mount


What's include: Carbon Fiber Parts:

Top plate 2mm x1

Mid plate 2.5mm x1
 Bottom plate 2.5m x1
Front arm 6mm x2
Rear arm 6mm x2

3D Printed Parts:

Motor arm protector TPU
TBS Crossfire nano receiver mount TPU
VTX Antenna Mount (two antenna) TPU
FPV Camera mount TPU

Hardware:

M3  High Tensile Carbon Steel 8mm x13
M3 High Tensile Carbon Steel 10mm x18
M3 High Tensile Carbon Steel 14mm x9
M3 High Tensile Carbon Steel 16mm x5
M3 High Tensile Carbon Steel 25mm x5
M3 Nylon Lock Nut x9
M3  7075 Aluminum Standoff 28mm x9

Accessory:

PU Battery mount sticker x1
Strap 20mm x 300mm x3
Nylon Zipties 3*100mm x5




NewBeeDrone M-367 7inch True-X FPV Frame   Design Idea:  Simplicity in Construction: Designed for effortless assembly and minimal maintenance. Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs. Strategic Tactic Mounting Points:

NewBeeDrone M-367 7inch True-X FPV Frame

NewBeeDrone M-367 7inch True-X FPV Frame

Design Idea:



Simplicity in Construction: Designed for effortless assembly and minimal maintenance.

Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs.

Strategic Tactic Mounting Points: Featuring mounting points on both top and bottom plates, enabling users to securely fasten any accessory using straps.

Innovative Motor Arm Protection: Inspired by the Air Max concept, our motor arm protectors are crafted with a lightweight, hollow design, using durable TPU material. This not only reduces weight but also offers enhanced protection for the arm edges and motor. The snap-on installation eliminates the need for screws, ensuring the motor remains firmly attached to the frame, optimizing system performance.


Spec:

FC Mount: 20X20, 25.5X25.5, 30.5X30.5 mm
VTX Mount: 20X20
Camera Mount: 19mm wide
Motor Mount:19x19 M3 screw mount


What&#39s include: Carbon Fiber Parts:

Top plate 2mm x1

Mid plate 2.5mm x1
 Bottom plate 2.5m x1
Front arm 6mm x2
Rear arm 6mm x2

3D Printed Parts:

Motor arm protector TPU
TBS Crossfire nano receiver mount TPU
VTX Antenna Mount (two antenna) TPU
FPV Camera mount TPU

Hardware:

M3  High Tensile Carbon Steel 8mm x13
M3 High Tensile Carbon Steel 10mm x18
M3 High Tensile Carbon Steel 14mm x9
M3 High Tensile Carbon Steel 16mm x5
M3 High Tensile Carbon Steel 25mm x5
M3 Nylon Lock Nut x9
M3  7075 Aluminum Standoff 28mm x9

Accessory:

PU Battery mount sticker x1
Strap 20mm x 300mm x3
Nylon Zipties 3*100mm x5




NewBeeDrone M-367 7inch True-X FPV Frame from WREKD Co.

NewBeeDrone Inertia DC Dead Cat 5" Frame

NewBeeDrone Inertia 5&quot DC (Dead Cat Style) FPV Frame

Meet the Inertia 5inch DC FPV frame - the newest addition to the Inertia series of high-performance drone frames. This innovative frame features a deadcat style design and is specifically tailored for the DJI O3 camera system, which offers stunning 4K resolution and eliminates the need for a separate action camera.The Inertia 5inch DC FPV frame is designed for optimal stability and agility, with front and rear arms angled backward to minimize prop wash and offer an unobstructed view for the DJI O3 camera system. The frame is built with durable, lightweight carbon fiber and is compatible with standard 5-inch propellers and 22xx or 23xx size motors. It also includes multiple accessory mounting options and features a modular design for easy assembly and maintenance.
Overall, the Inertia 5inch DC is a top-performing frame that is perfect for pilots looking to take their aerial photography and videography to the next level with the DJI O3 camera system. With its exceptional stability, maneuverability, and easy customization, the Inertia 5inch DC is an ideal choice for both casual and professional pilots alike.
What&#39s included- Carbon Fiber Parts:1x InertiaDC Top Plate 1.5mm1x InertiaDC Mid Plate 2mm (M3 Press nut Installed)1x InertiaDC Bottom Plate 2mm2x InertiaDC 5 inch Front Arm 6mm2x InertiaDC 5 inch Rear Arm 6mm2x InertiaDC FPV Cam Side Plate 1.5mm- Hardware Pack:7x Inertia M3 7075 Aluminum Standoff 20mm 3x Inertia M3 7075 Aluminum Standoff 28mm4x Inertia M2 7075 Aluminum Standoff 20mm 17x Inertia M3 High Tensile Carbon Steel 10mm13x Inertia M3 High Tensile Carbon Steel  8mm5x Inertia M3 High Tensile Carbon Steel  12mm5x Inertia M3 High Tensile Carbon Steel  16mm5x Inertia M2 High Tensile Carbon Steel  8mm6x Inertia M3 Cone Washer
-DJI O3 VTX Hardware:2x CNC Aluminum Parts5x M1.6 x 8mm Stainless steel screw Philips head5x M2-5mm screws
-Accessories:2x NewBeeDrone Battery Strap Large5x NewBeeDrone Motor Wire Protector 30x75x Zip-tight 2mm x10mm-3D Printed Parts:4x Arm Protectors1x FPV Camera and Crossfire Antenna Mount1x GPS Mount (Diatone mamba m8 plus GPS Module)1x Zip-tight Style VTX Antenna Mount
NetWeight: 130g (Not include the gopro Mount and Arm protectors)
Inertia Frame 3D Printed Part STL File

NewBeeDrone Inertia 5" DC (Dead Cat Style) FPV Frame Meet the Inertia 5inch DC FPV frame - the newest addition to the Inertia series of high-performance drone frames. This innovative frame features a deadcat style design and is specifically tailored for the DJI O3 camera system, which offers stunning 4K resolution and

NewBeeDrone Inertia 5" DC (Dead Cat Style) FPV Frame from WREKD Co.

NewBeeDrone Inertia 5

NewBeeDrone Inertia 5" DC (Dead Cat Style) FPV Frame

NewBeeDrone Inertia 5" DC (Dead Cat Style) FPV Frame

Meet the Inertia 5inch DC FPV frame - the newest addition to the Inertia series of high-performance drone frames. This innovative frame features a deadcat style design and is specifically tailored for the DJI O3 camera system, which offers stunning 4K resolution and eliminates the need for a separate action camera.The Inertia 5inch DC FPV frame is designed for optimal stability and agility, with front and rear arms angled backward to minimize prop wash and offer an unobstructed view for the DJI O3 camera system. The frame is built with durable, lightweight carbon fiber and is compatible with standard 5-inch propellers and 22xx or 23xx size motors. It also includes multiple accessory mounting options and features a modular design for easy assembly and maintenance.
Overall, the Inertia 5inch DC is a top-performing frame that is perfect for pilots looking to take their aerial photography and videography to the next level with the DJI O3 camera system. With its exceptional stability, maneuverability, and easy customization, the Inertia 5inch DC is an ideal choice for both casual and professional pilots alike.
What's included- Carbon Fiber Parts:1x InertiaDC Top Plate 1.5mm1x InertiaDC Mid Plate 2mm (M3 Press nut Installed)1x InertiaDC Bottom Plate 2mm2x InertiaDC 5 inch Front Arm 6mm2x InertiaDC 5 inch Rear Arm 6mm2x InertiaDC FPV Cam Side Plate 1.5mm- Hardware Pack:7x Inertia M3 7075 Aluminum Standoff 20mm 3x Inertia M3 7075 Aluminum Standoff 28mm4x Inertia M2 7075 Aluminum Standoff 20mm 17x Inertia M3 High Tensile Carbon Steel 10mm13x Inertia M3 High Tensile Carbon Steel  8mm5x Inertia M3 High Tensile Carbon Steel  12mm5x Inertia M3 High Tensile Carbon Steel  16mm5x Inertia M2 High Tensile Carbon Steel  8mm6x Inertia M3 Cone Washer
-DJI O3 VTX Hardware:2x CNC Aluminum Parts5x M1.6 x 8mm Stainless steel screw Philips head5x M2-5mm screws
-Accessories:2x NewBeeDrone Battery Strap Large5x NewBeeDrone Motor Wire Protector 30x75x Zip-tight 2mm x10mm-3D Printed Parts:4x Arm Protectors1x FPV Camera and Crossfire Antenna Mount1x GPS Mount (Diatone mamba m8 plus GPS Module)1x Zip-tight Style VTX Antenna Mount
NetWeight: 130g (Not include the gopro Mount and Arm protectors)
Inertia Frame 3D Printed Part STL File

NewBeeDrone Inertia 5" Frame

NewBeeDrone Inertia 5&quot FPV Frame

Introducing INERTIA FPV Frame, a passion project created by NewBeeDrone to push the boundary of lightweight frame design. This beast strikes a perfect balance between practicality and aesthetics. We were able to pack all of your favorite features in to this thin and light package. The crazy skinny carbon fiber arms are engineered to minimize air resistance and provide excellent structural rigidity with our special 3-point locking mechanism. The center portion of the body extends outward to further reinforce the arms and give the frame a wide-body look that’s reminiscent of a modified race car. We also ensured outstanding hardware compatibilities by including multiple mounting options for both analog and digital system. The widened front standoffs make it possible to install cameras with any lens size, perfect for the large camera of the new DJI Digital HD system. The extra-strong action camera mounting system allows you to securely carry your favorite recording devices. With its unlimited capabilities, the INERTIA frame will exceeds in all scenarios, whether you are flying cinematic, freestyle, or both.
What&#39s included- Carbon Fiber Parts:1x Inertia Top Plate 1.5mm1x Inertia Mid Plate 2mm (M3 Press nut Installed)1x Inertia Bottom Plate 2mm4x Inertia 5 inch Arm 6mm2x Inertia FPV Cam Side Plate 1.5mm- Hardware Pack:7x Inertia M3 7075 Aluminum Standoff 20mm 3x Inertia M3 7075 Aluminum Standoff 28mm3x Inertia M2 7075 Aluminum Standoff 20mm 17x Inertia M3 High Tensile Carbon Steel 10mm13x Inertia M3 High Tensile Carbon Steel  8mm5x Inertia M3 High Tensile Carbon Steel  12mm5x Inertia M3 High Tensile Carbon Steel  16mm5x Inertia M2 High Tensile Carbon Steel  8mm6x Inertia M3 Cone Washer
-Vista/Link VTX Hardware:4x M2 Steel Screw 18mm5x M2 Lock Nut with Nylon Ring4x M2 Dampening Grommet Small
-Accessories:2x NewBeeDrone Battery Strap Large5x NewBeeDrone Motor Wire Protector 30x75x Zip-tight 2mm x10mm-3D Printed Parts:4x Arm Protectors1x FPV Camera and Crossfire Antenna Mount1x GPS Mount (Diatone mamba m8 plus GPS Module)1x Zip-tight Style VTX Antenna Mount
NetWeight: 130g (Not include the gopro Mount and Arm protectors)
Inertia Frame 3D Printed Part STL File
Build Video:








NewBeeDrone Inertia 5" FPV Frame Introducing INERTIA FPV Frame, a passion project created by NewBeeDrone to push the boundary of lightweight frame design. This beast strikes a perfect balance between practicality and aesthetics. We were able to pack all of your favorite features in to this thin and light package. The c

NewBeeDrone INERTIA 5" FPV Frame from WREKD Co.

NewBeeDrone INERTIA 5

NewBeeDrone INERTIA 5" FPV Frame

NewBeeDrone Inertia 5" FPV Frame

Introducing INERTIA FPV Frame, a passion project created by NewBeeDrone to push the boundary of lightweight frame design. This beast strikes a perfect balance between practicality and aesthetics. We were able to pack all of your favorite features in to this thin and light package. The crazy skinny carbon fiber arms are engineered to minimize air resistance and provide excellent structural rigidity with our special 3-point locking mechanism. The center portion of the body extends outward to further reinforce the arms and give the frame a wide-body look that’s reminiscent of a modified race car. We also ensured outstanding hardware compatibilities by including multiple mounting options for both analog and digital system. The widened front standoffs make it possible to install cameras with any lens size, perfect for the large camera of the new DJI Digital HD system. The extra-strong action camera mounting system allows you to securely carry your favorite recording devices. With its unlimited capabilities, the INERTIA frame will exceeds in all scenarios, whether you are flying cinematic, freestyle, or both.
What's included- Carbon Fiber Parts:1x Inertia Top Plate 1.5mm1x Inertia Mid Plate 2mm (M3 Press nut Installed)1x Inertia Bottom Plate 2mm4x Inertia 5 inch Arm 6mm2x Inertia FPV Cam Side Plate 1.5mm- Hardware Pack:7x Inertia M3 7075 Aluminum Standoff 20mm 3x Inertia M3 7075 Aluminum Standoff 28mm3x Inertia M2 7075 Aluminum Standoff 20mm 17x Inertia M3 High Tensile Carbon Steel 10mm13x Inertia M3 High Tensile Carbon Steel  8mm5x Inertia M3 High Tensile Carbon Steel  12mm5x Inertia M3 High Tensile Carbon Steel  16mm5x Inertia M2 High Tensile Carbon Steel  8mm6x Inertia M3 Cone Washer
-Vista/Link VTX Hardware:4x M2 Steel Screw 18mm5x M2 Lock Nut with Nylon Ring4x M2 Dampening Grommet Small
-Accessories:2x NewBeeDrone Battery Strap Large5x NewBeeDrone Motor Wire Protector 30x75x Zip-tight 2mm x10mm-3D Printed Parts:4x Arm Protectors1x FPV Camera and Crossfire Antenna Mount1x GPS Mount (Diatone mamba m8 plus GPS Module)1x Zip-tight Style VTX Antenna Mount
NetWeight: 130g (Not include the gopro Mount and Arm protectors)
Inertia Frame 3D Printed Part STL File
Build Video:








NewBeeDrone CinemAh 3" Frame


A New Cinewhoop Design Philosophy

To date, many ducted cinewhoop frames have been needlessly heavy. Additionally, existing light cinewhoop frames don’t have guarded props for flying around softer targets. Heavy frames leave you with very little room for adaptability to use the frame for your shoots whether it be increased payload capacity or the option for larger batteries. We at NewBeeDrone worked to change that.
The CinemAh Frame - The Most Versatile Cinewhoop Frame
The CinemAh frame is NewBeeDrone’s response to the need for a lighter and more versatile cinewhoop frame to carry a full GoPro. The CinemAh has a unique all-carbon fiber frame structure that allows for easy access to electronics while providing maximum structural strength.
The GoPro Mount (Not Included)
The NewBeeDrone CinemAh cinewhoop TPU GoPro 8 and 9 mounts allow for 4 built-in angles for quick-snap adjustment from 0 deg to 22.5 deg. The capture cam mounts are 2xM2 mounting holes set 20mm apart allowing the community to design any mounting solution for any HD capture cam option.
Other 3D Printed Accessories (Not Included)
﻿Check out our complete collection of 3D printed accessories for the Cinemah! We've got snap in ducts, lightweight battery straps, and protective duct coverings in addition to action camera mounts.

Electronics Mounting:

2 sets of 1x1inch mounting locations
Front 20x20 location has M3 mounting for a flight controller and ESC stack.
Rear 20x20 location has M2 mounting for Caddx Vista – with rear antenna mount.
Camera mounting – single and double screw camera mounting options.
Note: The frame does not fit an air unit.

Motor Mounting: 12mm diameter, 4-hole pattern

Suggested Motors: 14xx – 20xx

Propeller size:

3inch or 76mm propeller


Weight:

78g with Adjustable GoPro Hero8 mount and motor screws
68g without GoPro Hero 8 mount
Downloadable 3D printed TPU snap-in ducts (x4) weigh 24g total – 6g each duct

Included in the CinemAh Frame Package

1x Set of Carbon Fiber Parts
1x Set of Hardware

Recommended Parts:

Stack: NewBeeDrone Infinity200 or Cricket200
Motors: NewBeeDrone Flow 1408 4150KV
DJI FPV System: CaddX Vista with DJI Camera

Battery: GNB 1300-1350mAh 4s Lipo
Propellers: Gemfan Ducted Durable 5 Blade 76mm
GoPro Hero 8 and Hero 9 Mount

If you need 3D prints, get them here!
3D Printed Parts Files
3D Printed Parts Design by Third partyCaddx Peanut Mount by Jason Suter. Thank you Jason!!
Link to manual.
We have both 4S and 6S tune by using the parts above, this tune is under betaflight firmware 4.2.X. if you are using 4.2.x you can directly copy the text and go to CLI commend to paste. it will auto save to your PID and Filter profile setting. Profile 1 is for 6S setup, Profile 2 is for 4S setup, Please make sure you choose the right PID profile on the setting to match your drone configuration. This PID will also works for any flight controller are under betaflight 4.2.x version, as long as the flight controller is using MPU6000 gyro. The text document I provide below only contain the PID and Filter data for 3 different profile. It will not change any other settings on your flight controller. Link




Build Video:

A New Cinewhoop Design Philosophy To date, many ducted cinewhoop frames have been needlessly heavy. Additionally, existing light cinewhoop frames don’t have guarded props for flying around softer targets. Heavy frames leave you with very little room for adaptability to use the frame for your shoots whether it be increa

NewBeeDrone CinemAh Frame

Axis Flying

AxisFlying CineON C35 V2 Cinewhoop 3.5" Frame Kit

AxisFlying




The Axisflying CineON C35 V2 Cinewhoop 3.5&quot Micro Frame Kit is tailored for cinematic use. This versatile C35 V2 drone is ideal for capturing cinematic shots both indoors and outdoors. With careful market research and input from skilled pilots, Axisflying has created a high-performing drone that offers stable flight, minimal noise, and up to 9 minutes of flying time.



Be sure to check out all our 3.5&quot frames, and all our Axis Flying Products!
Features

Better wind resistance for smoother footage - C224 Motor, more torque and power

Provide adequate security for the whoop - High performance 40A/F722 AIO

No jello for more stable footage - Triangular shock-absorbing gimbal

The strength has been improved ,don&#39t worry about crash - The frame is fixed with 6 customized M3-7075 standoffs

Reducing the risk of lost drone - The drone and the frame kit are equipped with beeper as standard

Newly designed ducted aerodynamic layout to effectively reduce flight noise

Independent receiver storage, convenient for binding

Support 12mm/9mm motor mounting

27mm height, compatible with most VTXs


Specifications

Wheelbase: 152mm
Weight: 140.7g
Bottom plate thickness: 2mm
Top plate thickness: 3.5mm
Carbon plate material: T700
Bottom-to-top distance: 27mm
Motor mounting: 9x9mm &ampamp 16x16mm
VTX mounting: 20mm/25.5mm (M2)
Stack mounting: 20mm/25.5mm (M2)

Camera Space: 14~20mm
Prop size: Max 3.5mm

Includes

1x AxisFlying CineON C35 V2 Cinewhoop 3.5&quot Micro Frame Kit - Clear Gray Prop Guard


The Axisflying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit is tailored for cinematic use. This versatile C35 V2 drone is ideal for capturing cinematic shots both indoors and outdoors. With careful market research and input from skilled pilots, Axisflying has created a high-performing drone that offers stable flight, m

AxisFlying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit - Clear Gray Prop Guard from WREKD Co.

AxisFlying CineON C35 V2 Cinewhoop 3.5

AxisFlying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit - Clear Gray Prop Guard

AXIS FLYING




The Axisflying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit is tailored for cinematic use. This versatile C35 V2 drone is ideal for capturing cinematic shots both indoors and outdoors. With careful market research and input from skilled pilots, Axisflying has created a high-performing drone that offers stable flight, minimal noise, and up to 9 minutes of flying time.



Be sure to check out all our 3.5" frames, and all our Axis Flying Products!
Features

Better wind resistance for smoother footage - C224 Motor, more torque and power

Provide adequate security for the whoop - High performance 40A/F722 AIO

No jello for more stable footage - Triangular shock-absorbing gimbal

The strength has been improved ,don't worry about crash - The frame is fixed with 6 customized M3-7075 standoffs

Reducing the risk of lost drone - The drone and the frame kit are equipped with beeper as standard

Newly designed ducted aerodynamic layout to effectively reduce flight noise

Independent receiver storage, convenient for binding

Support 12mm/9mm motor mounting

27mm height, compatible with most VTXs


Specifications

Wheelbase: 152mm
Weight: 140.7g
Bottom plate thickness: 2mm
Top plate thickness: 3.5mm
Carbon plate material: T700
Bottom-to-top distance: 27mm
Motor mounting: 9x9mm &amp 16x16mm
VTX mounting: 20mm/25.5mm (M2)
Stack mounting: 20mm/25.5mm (M2)

Camera Space: 14~20mm
Prop size: Max 3.5mm

Includes

1x AxisFlying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit - Clear Gray Prop Guard


AxisFlying CineON C35 V2 Cinewhoop 3.5" Micro Frame Kit - Clear Gray P

Propeller Size

The props work with the motors to lift your quad off the ground.  Choose a prop size that fits your frame.  Higher pitch props are efficient in fast environments and are less responsive in slow speeds. Lower pitch props are efficient in slower environments and are more responsive in slow speeds. Beginners should try various pitch props to see what works best for them.

Propellers

Motor Stator Size

The motors spin with the propellers to lift your quad off the ground. If you’ve picked a frame already, we show you which motors are appropriate for your frame. Beginners can choose motors with a similar stator size that others have used for the frame you’ve selected. Alternatively, calculate the thrust required for a particular thrust-to-weight ratio and learn to read motor thrust tables to select the best motors for your needs.

Motors

ESC Stack Mount

The ESC(s) controls your motors’ speed. It draws power from the battery to spin the motors based on what the FC tells it to do. Each motor needs an ESC. It’s common today to see 4-in-1 ESCs so you only need to buy a single part. For beginners, choose a 4-in-1 ESC that has a compatible mount with your frame and FC. The biggest consideration is amperage limit. We show you ESCs with appropriate amperage limits based on your frame size. You can calculate how much amperage you need based on your motor and prop choice.

ESCs

FC Stack Mount

The FC is the brain or the CPU of your quad. It has a processor and other components that allow it to listen to your inputs and tells the quad what to do. FCs are commonly sold together with other components integrated or stacked (like ESCs and video transmitters). For beginners, choose a FC with a F4 or F7 processor that has a compatible mount with your frame.

Flight Controllers

Camera Size

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
