NewBeeDrone

NewBeeDrone Flow 0702 Motor - 27000Kv

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (4pack)

Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor&#39s 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!


NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (4pack) Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other. One of the stando

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (4pack) from WREKD Co.

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (4pack)

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (Qty 4)


Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor's 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!
 SET OF (4 MOTORS)

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (Qty 4)   Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other. One of the stan

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv SET OF (4 MOTORS)

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv (4pack)

Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor's 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!


NEWBEEDRONE











Introducing the NewBeeDrone Flow 0702 motor, designed for whoop racing. It weighs only 1.58g (1.38g without cables) and is equipped with double ball bearings for a smooth, durable performance. Crafted with 7075 aluminum, it stands strong against the toughest racing conditions. Experience peak performance and thrill with this ultimate motor choice. Get yours today and experience the thrill of racing like never before!










Check out our other micro motors and all our NewBeeDrone products!

 Specifications

Motor KV: 27000 (Designed for 1S)

Internal Resistance (mΩ): 285

Stator Resistance (mΩ): 7

Stator Height (mm): 2

No.of Stator Slots: 9

No.of Rotor Poles: 12

Dynamic balance (mg): ≤10mg

NO-Load Current(A):P 0.80A

Maximum Power (W) 15.2
Maximum Current (A): 3.8

Overall Dimension(mm): Ø1xL12.2

Shaft Diameter(mm): 30AWGxL40

ESC(A):5

Rated Voltage(V): 4.2(1S)

Includes

1x NewBeeDrone Flow 0702 27000Kv Dual Ball Bearing Micro Motor 4 Pack
4x JST1.25 Whoop Motor Plug Replacement
16x M1.4x3 Screws


Introducing the NewBeeDrone Flow 0702 motor, designed for whoop racing. It weighs only 1.58g (1.38g without cables) and is equipped with double ball bearings for a smooth, durable performance. Crafted with 7075 aluminum, it stands strong against the toughest racing conditions. Experience peak performance and thrill wit

NewBeeDrone Flow 0702 27000Kv Dual Ball Bearing Micro Motor 4 Pack

Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 27000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.  Also check out all our 07XX Motors as well as the rest of our Newbeedrone Products!

Motor KV

The motors spin with the propellers to lift your quad off the ground. If you’ve picked a frame already, we show you which motors are appropriate for your frame. Beginners can choose motors with a similar stator size that others have used for the frame you’ve selected. Alternatively, calculate the thrust required for a particular thrust-to-weight ratio and learn to read motor thrust tables to select the best motors for your needs.

Motors

Motor Stator Size

NewBeeDrone Flow 0702 Motor - 29000Kv











Introducing the NewBeeDrone Flow 0702 motor, designed for Whoop racing. It weighs only 1.58g (1.38g without cables) and is equipped with double ball bearings for a smooth, durable performance. Crafted with 7075 aluminum, it stands strong against the toughest racing conditions. Experience peak performance and thrill with this ultimate motor choice. Get yours today and experience the thrill of racing like never before!










Check out our other micro motors and all our NewBeeDrone products!

 Specifications

Motor KV: 29000 (Designed for 1S)

Internal Resistance (mΩ): 275

Stator Resistance (mΩ): 7

Stator Height (mm): 2

No.of Stator Slots: 9

No.of Rotor Poles: 12

Dynamic balance (mg): ≤10mg

NO-Load Current(A):P 0.90A

Maximum Power (W) 15.2
Maximum Current (A): 3.8

Overall Dimension(mm): Ø1xL12.2

Shaft Diameter(mm):30AWGxL40

ESC(A): 5

Rated Voltage(V): 4.2(1S)

Includes

1x NewBeeDrone Flow 0702 29000Kv Dual Ball Bearing Micro Motor 4 Pack
4x JST1.25 Whoop Motor Plug Replacement
16x M1.4x3 Screws


Introducing the NewBeeDrone Flow 0702 motor, designed for Whoop racing. It weighs only 1.58g (1.38g without cables) and is equipped with double ball bearings for a smooth, durable performance. Crafted with 7075 aluminum, it stands strong against the toughest racing conditions. Experience peak performance and thrill wit

NewBeeDrone Flow 0702 29000Kv Dual Ball Bearing Micro Motor 4 Pack

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (Qty 4)


Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor's 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!
SET OF (4 MOTORS)

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (Qty 4)   Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other. One of the stan

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv SET OF (4 MOTORS)

Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.  Also check out all our 07XX Motors as well as the rest of our Newbeedrone Products!

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (4pack)

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (4pack)
Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor&#39s 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!



NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (4pack) Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other. One of the stando

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (4pack) from WREKD Co.

NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv (4pack)
Introducing the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv, the ultimate choice for Whoop racing enthusiasts! Engineered to perfection, this motor is designed to provide an exceptional racing experience like no other.
One of the standout features of this motor is its incredibly lightweight design. Without cables, it weighs only 1.38g, while with cables and plugs, it weighs a mere 1.58g. This makes it one of the lightest motors on the market, giving you a significant advantage in Whoop racing.
In addition to its lightweight design, the Flow 0702 motor is equipped with double ball bearings, providing a super-smooth feeling and longer lifespan for the motor. This ensures that your motor will perform at its best for longer, without any loss in performance.
The motor's 7075 aluminum construction makes it the strongest and most durable motor in its class. It can withstand even the most intense racing conditions, making it an excellent investment for those looking for a reliable and long-lasting motor.
In conclusion, the NewBeeDrone Flow 0702 Dual Ball Bearing Whoop motor 29000kv is the perfect motor for those looking to take their Whoop racing to the next level. Its lightweight design, double ball bearings, and sturdy construction make it an excellent choice for anyone looking to optimize their racing experience. Get yours today and experience the thrill of racing like never before!



NewBeeDrone Gold Edition 0802 Motor - 18000Kv

NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level. These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs. These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs! Specifications:  - 0802 Motor Size- 18,000kv (Designed for 1s)- 1mm Shaft size- Lead wire solder pads- JST-1.0 Plugs installed - 24mm cable length

NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level. These motors come w

NewBeeDrone 0802 18000kv Brushless Motors - Gold Edition (Set of 4)



NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level.


These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25&#39s. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!


Spare motor plugs can be found here.
Spare motor screws can be found here.




Specifications:


- 0802 Motor Size
- 18,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 2.05g each


What does that mean in terms of performance?

Check out this video from team pilot DZ flying outdoors on 1s using our Nectar gold 300 packs and BeeBrain BL FC.




NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set of 4) from WREKD Co.

NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set of 4)



NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level.


These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!


Spare motor plugs can be found here.
Spare motor screws can be found here.




Specifications:


- 0802 Motor Size
- 18,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 2.05g each


What does that mean in terms of performance?

Check out this video from team pilot DZ flying outdoors on 1s using our Nectar gold 300 packs and BeeBrain BL FC.




NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set

Brushless or Brushed

FPV Cycle

FPV Cycle 16mm Motor - 4100Kv

This motor is unique in a few ways. First off, it’s sporting our new lighter prop shaft design, it’s got a 9x9 M2 mount so it will fit lighter style frames and the overall stator volume is higher than 1605 while weighing much less than it should. This motor is ideal for high powered 3” operation and low weight 4” craft

FPVCycle 16mm Motor - 4100Kv

FPVCycle

This motor is unique in a few ways. First off, it’s sporting our new lighter prop shaft design, it’s got a 9x9 M2 mount so it will fit lighter style frames and the overall stator volume is higher than 1605 while weighing much less than it should. This motor is ideal for high powered 3” operation and low weight 4” crafts.The goal of this motor is maximum power and control for a medium weight 3&quot quad. A taller stator with taller magnets are used for the high RPM control needed for small 3&quot props but a wide 16mm diameter with middling 4100kv is used to manage the heat dissipation of the motor in use. This is one of the most genuinely unique and interesting motors we&#39ve got in our lineup.This motor is very powerful and &#39notchy&#39. Please be sure to use a properly applied and appropriately sized capacitor.
Recommended Uses:

3” 3S-4S high powered craft with AUW &ampgt150g
4” 3S with very low load props and under ~250g AUW

Specifications:

16mm stator diameter, greater than 5mm stator height
9x9mm M2 mounting pattern (not flush mount)
~13g with ~70mm length wires
~16g with prop adapter, nut and 240mm 24awg wire length
0.15mm Kawasaki High performance laminations
N52SH ARC magnets
3mm grade 5 titanium internal shaft
M3 grade 5 titanium prop shaft with M5 adapter

2x5x2.5mm 520zz Japan ISC Custom bearings
7075-T6 aluminum casing
260℃ enamel coated single wrap oxygen-free copper windings


FPVCycle 16mm Motor - 4100Kv from WREKD Co.

FPV Cycle 22.6mm Motor - 1920Kv

This motor is designed for high power and high response 5" performance without sacrificing efficiency. The unique 22.6mm stator size comes from the RCInpower Wasp motor which is uniquely powerful and efficient for its size and weight. We've taken that same formula, updated the magnets, thickened the magnets, and increased the stator height for more overall torque without overdoing the surface area to volume ratio of the stator. The Kv has been carefully tuned to provide the response and power which results in that intoxicating connected feel with the craft. Other features include a bell that can easily be removed and a rubber O-ring between the bell and bearing for shaft retention pressure control.The bell spoke design of all our latest 5" and up motors are extra thick for even more durability. Even so, nothing can ultimately hold up to FPV smashing punishment. That's why we sell the bell and stator separately. To make a statement that you can repair your motors too. As a bonus, we're able to offer various bell colors without stocking an excessive number of products. Recommendations: Gemfan 51433 (HIGHLY recommended all around) Gemfan F4S (GREAT response and power) Gemfan F3S (more response, lower power) 1000 - 1250mah 6S 1100 - 1300mah 5S 1300mah 4S - very high efficiency, less power (Highest C rated batteries are generally recommended for the best performance) Specifications: Bell - 14.4g (silver is 14.3g) Stator - ~19.6g with ~90mm wire Total motor weight with short wire is about 33g Delta wound wires 7075 Aluminum alloy 12N14P Configuration M5 Prop Adapter Shaft Thread 14mm Titanium alloy hollow shaft (8mm thread) Flanged prop nut (M5x6), no washer Japanese NMB 9x4x4mm Bearing N52H arc magnets with retention lip on bell 0.15mm Nippon Steel silicon steel laminations 20AWG wire, ~20cm length 2.5mm thick mounting base, flush mount 16X16mm M3 mount M3x5 button head bell retention screw DO NOT DRIVE YOUR MOUNTING SCREWS INTO THE WINDINGS WHEN MOUNTING THE MOTOR. IT WILL BREAK THE MOTOR.

FPVCycle 22.6mm Motor - 1920kv

FPV Cycle The Extra Smooth One 25mm Motor - 1870Kv

Simulations told us that this design would be 99% the same as a skewed stator design which is supposed to even out the flux field around the bell and increase the average torque. We've been around the block a few times so we weren't surprised when that's not how it played out in the real world. The real world result is that the throttle just feels like it has a whole lot more resolution on it leading to a more enhanced control feel when you're trying to smoothly work the throttle. (spoiler, the Split Shifted magnet design doesn't work out as an improvement on any motor size...we're only using it on this motor after much testing and tweaking)

FPVCycle 25mm Motor - The Extra Smooth One

Bell and stator now sold separately.
Buy the colors you want and simply snap the bell onto the stator.



This is the first and only FPV motor on the market with Split Shifted magnets.
Simulations told us that this design would be 99% the same as a skewed stator design which is supposed to even out the flux field around the bell and increase the average torque. We&#39ve been around the block a few times so we weren&#39t surprised when that&#39s not how it played out in the real world. The real world result is that the throttle just feels like it has a whole lot more resolution on it leading to a more enhanced control feel when you&#39re trying to smoothly work the throttle. (spoiler, the Split Shifted magnet design doesn&#39t work out as an improvement on any motor size...we&#39re only using it on this motor after much testing and tweaking)

The performance target of this motor is improved low throttle power with enhanced throttle feel. If you&#39re looking for the smoothest flight performance, this is the motor for you. It&#39s still powerful enough to knock your socks off and especially good at maintaining higher cruising speeds on a 5.2&quot prop like the Gemfan 5226 (don&#39t bother with the 5236, it&#39s not as good as the 5226).This is the 4th gen of this motor and it&#39s been an expensive development journey. With the latest development of the Split Shift magnet structure, we believe it&#39s as good as it can be. This motor also shares the more recent developments of easy bell swaps, extra thick bell spoke structure and the O-ring shaft tension system.



Recommendations:

High performance: 1870kv with 6S 1100-1400mah and AUW below ~745g
Med-High performance: 1870kv with 5S 1550mah and AUW below ~745g

High performance: 2150kv with 5S 1200-1600mah and AUW below ~745g
Cruising: 1870kv or 2150kv with as little as 4S 1300mah or larger battery
Any of the above setups at a lower AUW is going to perform significantly better.

This Motor Pairs Well With:


Gemfan 51433 (strongly recommended)

Gemfan F4S (GREAT response + power)

Gemfan 5226 (Higher cruising speed)
GNB 1250mah 6S 130C
GNB 1100mah 6S 130C
GNB 1550mah 5S 130C
Sonicare frame
 INCISOR (Prototype 5) frame
Glide frame




Specifications:

~35g with ~20mm wires
Delta wound winding
7075 Aluminum alloy
12N14P Configuration
M5 Prop Adapter Shaft Thread
13.5mm Titanium Alloy hollow shaft (8mm thread)
Flanged prop nut (M5x6), no washer
Japanese NMB 9x4x4mm Bearing
N52H arc magnets with retention lip on bell
0.15mm Nippon Steel silicon steel laminations
20AWG wire, ~20cm length
2.5mm thick mounting base, flush mount
16X16mm M3 mount
M3x8 button head bell retention screw
DON&#39T DRIVE YOUR MOUNTING SCREWS INTO THE WINDINGS WHEN MOUNTING THE MOTOR. IT WILL BREAK THE MOTOR.


Bell and stator now sold separately. Buy the colors you want and simply snap the bell onto the stator.   This is the first and only FPV motor on the market with Split Shifted magnets. Simulations told us that this design would be 99% the same as a skewed stator design which is supposed to even out the flux field around

FPVCycle 25mm Motor - The Extra Smooth One from WREKD Co.

FPV Cycle 28mm 2809 Motor - 1300Kv

FPVCYCLE













The 2809 is a great size because of it's proportion of width to height providing good permanent magnetic flux, adequate stator heat dissipation, good efficiency, good motor weight and excellent low and high rpm control for typical 7-8" loads on 6S with it's 1300kv.
This motor is built with the latest components RCinpower has to offer and parts we've found to perform well. Various adjustments and quality of life improvements include bell durability design, bearing accessibility, flush mounting, magnet heat dissipation and other minor details.


























Check out our other motors, and all our FPVCycle selection!

Specifications

Weight: 53g with 20cm 18awg wire

KV: 1300


Configuration: 12N14P

Input Voltage: 6-8S

N52H arc magnets

260℃ enamel copper wire

0.2mm laminations

Titanium Alloy hollow shaft

Japanese NMB 13x6x5mm bearings

Wire: 18AWG 20cm length

Material: 7075 Aluminum

M5 Prop shaft

Motor Mounting: M3 19X19mm flush mount base

Includes

1x FPV Cycle 28mm 1300Kv Motor













The 2809 is a great size because of it's proportion of width to height providing good permanent magnetic flux, adequate stator heat dissipation, good efficiency, good motor weight and excellent low and high rpm control for typical 7-8" loads on 6S with it's 1300kv. This motor is built with the latest components RCinpow

FPV Cycle 28mm 1300Kv Motor

While the 2809 size isn't new, this motor is built with the latest components RCinpower has to offer and parts we've found to perform well. Various adjustments and quality of life improvements include bell durability design, bearing accessibility, flush mounting, magnet heat dissipation and other minor details. The 280

FPVCycle 28mm 1300Kv - 7

FPV Cycle 23mm Short Motor - 3450Kv

This motor is the first of its kind in that it’s a full 5” performance size motor with a 12x12 M2 mount platform and M3 Prop shaft. (M5 adapter included) Pair this motor with the Gemfan F3 or F4 prop and a sub 500g AUW 5” frame for a truly stellar level of control performance.
This motor is specifically designed for the following uses:

3” Ducted whoop
4” Anything

5” Light blade and low general AUW for 5”

Tall version w/ M5 shaft also available!
Check out our other motors, and all our FPVCycle selection!

Specifications


Kv: 3450Kv


Input Voltage: 3-5S LiPo


Configuration: 12N14P


Motor Dimensions: Φ26mm x 26mm


Stator Dimensions: Φ23mm

Shaft Diameter: 3mm w/ 5mm Adapter
Mounting Pattern: Φ12mm M2

Wire Dimensions: 22AWG x 250mm


Weight: 29g


Includes

1x FPVCycle 23mm Short 3450Kv Motor - M3 Mount w/ M5 Adapter


This motor is the first of its kind in that it’s a full 5” performance size motor with a 12x12 M2 mount platform. Pair this motor with the Gemfan F3 or F4 prop and a sub 500g AUW 5” frame for a truly stellar level of control performance.

FPV Cycle 23mm Short 3450Kv Motor - M3 Prop Shaft w/ M5 Adapter

FPV Cycle 23mm Short 3450Kv Motor - For Sale At RaceDayQuads

The update:New look, minor tweak to internal stator design, improved low end prop handling, new prop mount, less weight, screw retained bell.  These motors are compatible with the previous 2203/4.  If you mix them on the same craft with similar kv, you won't be able to tell a difference in flight performance.We haven't

FPVCycle 23mm Short Motor - THE Cinewhoop motor

T-Motor

T-Motor VELOX V3 V2207 Motor - 1750Kv

Tiger Motors



Introducing the new VELOX V3 motors by T-Motor. The V2207 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing!
Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved one
Design: It creatively used angular pedestal, Top part has been strengthened, propeller is strengthened, therefore is more stable as well.








SPECIFICATIONS:

KV: 1750

Stator: 2207

Brand: T-motor

Configuration: 12N14P
Shaft Diameter: 5mm
Motor Bolt Pattern: 16x16mm
Power Cable Gauge: 20# 150mm
Weight (Incl. Cable): 37.3g
Rated Voltage(Lipo): 6S
Idle Current (10V): 1.2A
Max Power (60s): 814.3W
Peak Current (60s): 34.6A






PACKAGE INCLUDES:

1 x T-Motor Velox V3 2207 1750KV Motor













Introducing the new VELOX V3 motors by T-Motor. The V2207 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing! Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved

T-Motor Velox V3 V2207 1750KV Motor

T-Motor VELOX V3 V2207 Motor - 1950Kv



Introducing the new VELOX V3 motors by T-Motor. The V2207 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing!
Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved one
Design: It creatively used angular pedestal, Top part has been strengthened, propeller is strengthened, therefore is more stable as well.








SPECIFICATIONS:

KV 1950
Stator: 2207

Brand: T-motor

Configuration: 12N14P
Shaft Diameter: 5mm
Motor Bolt Pattern: 16x16mm
Power Cable Gauge: 20# 150mm
Weight (Incl. Cable): 37.1g
Rated Voltage(Lipo): 6S
Idle Current (10V): 1.32A
Max Power (60s): 1050.5W
Peak Current (60s): 45A


PACKAGE INCLUDES:

1 x T-Motor Velox V3 2207 1950KV Motor












T-Motor Velox V3 V2207 1950KV Motor

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

T-Motor V2207 v3 1950KV Motor Green - RMRC

T-Motor V2207 Velox v3 1950KV Motor - Green

T-Motor Velox V3 V2306 Motor - 1750Kv



Introducing the new VELOX V3 motors by T-Motor. The V2306 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing!
Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved one
Design: It creatively used angular pedestal, Top part has been strengthened, propeller is strengthened, therefore is more stable as well.


SPECIFICATIONS

KV: 1750
Stator: 2306

Brand: T-motor

Configuration: 12N14P
Shaft Diameter: 5mm
Motor Bolt Pattern: 16x16mm
Power Cable Gauge: 20# 150mm
Weight (Incl. Cable): 33.8g
Rated Voltage(Lipo): 6S
Idle Current (10V): 0.85A
Max Power (60s): 820.7W
Peak Current (60s): 34.9A


PACKAGE INCLUDES:


1 x T-Motor Velox V3 2306 1750KV Motor











Introducing the new VELOX V3 motors by T-Motor. The V2306 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing! Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved

T-Motor Velox V3 V2306 1750KV Motor

T-Motor Velox V3 V2306 Motor - 1950Kv



Introducing the new VELOX V3 motors by T-Motor. The V2306 V3 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing!
Upgrade Materials: varnished wire is thermostable and single wireMagnet is high-quality curved one
Design: It creatively used angular pedestal, Top part has been strengthened, propeller is strengthened, therefore is more stable as well.








SPECIFICATIONS

KV: 1950
Stator: 2306

Brand: T-motor

Configuration: 12N14P
Shaft Diameter: 5mm
Motor Bolt Pattern: 16x16mm
Power Cable Gauge: 20# 150mm
Weight (Incl. Cable): 37.3g
Rated Voltage(Lipo): 6S
Idle Current (10V): 1.28A
Max Power (60s): 814.3W
Peak Current (60s): 34.6A


PACKAGE INCLUDES:


1 x T-Motor Velox V3 2306 1950KV Motor








T-Motor Velox V3 V2306 1950KV Motor

T-Motor F1408 1408 Motor - 3950Kv




About this product


The new F1408 is one of T-Motor's greatest additions to the Cinewhoop class of motors. The F1408 cinewhoop motors are made of the finest quality CNC aluminum and provide stable power for a 3-4" build.

Features

High-Quality Design for 3-4" Cinewhoop Builds
High-Quality CNC Material
Black and Red in Color
Faster Response
Better Cooling
Lightweight




Specifications
1100KV

Weight: 12.7g (excluding Cables),14.9g (Including Cable)
Motor Dimension: 17.9*20.2mm
Internal Resistance: 141 mΩ
Max. Power (60s): 385W
Peak Current(60s) 15.3A
Idle Current(10v): 0.62A
Configuration: 9N12P
Shaft Diameter: 2mm
Rated Voltage: 4~6S
Lead: 24g 150mm
KV: 2800

3950KV

Weight: 12.75 (excluding Cables),14.95g (Including Cable)
Motor Dimension: 17.9*20.2mm
Internal Resistance: 88 mΩ
Max. Power (60s): 371W
Peak Current(60s) 22.4A
Idle Current(10v): 0.86A
Configuration: 9N12P
Shaft Diameter: 2mm
Rated Voltage: 4~6S
Lead: 24g 150mm
KV: 3950




Includes

1xT-Motor F1408 Cinewhoop Motor (2800KV or 3950KV Options)
1x Hardware Pack





More Information





SKU
17437


Manufacturer
Tiger Motors


Popo Compatible
No


Item Returns
This item can be returned







Products Related To This Item






Xhover POPO® Quick Swap XH2207-2500KV CINEMATIC Motor
$26.99







Xhover XH2207-2500KV CINEMATIC Motor
$26.99







Lumenier 2306 JohnnyFPV Cinematic V2 POPO Pro Motor (1750KV/2250KV/2550KV)
$16.99







Lumenier 2306 JohnnyFPV Cinematic V2 Motor (1750KV/2250KV/2550KV)
$25.99







iFlight XING-C 1408 CineWhoop Motor (1pc)
$11.99







T-Motor F1507 V1 2700KV/3800KV Motor - CineWhoop Version
$19.99







Xhover XH2207 1824KV Cinematic Motor - V2
$27.99







Xhover XH2207 2500KV Cinematic Motor - V2
$24.99







Hypershot 1507.5 3922KV/ 2922KV Cinewhoop Motor - M5 Shaft
$15.99







Hypershot 1507.5 3922KV/ 2922KV Cinewhoop Motor - 1.5mm T-Mount
$12.78







T-Motor F1507 V2 2700KV/3800KV Motor - CineWhoop Version (No Shaft)
$19.99







Lumenier ZIP V2 2812 Cinematic Motor - 1150KV/1300KV
$33.99







Lumenier ZIP V2 2807 Cinematic Motor - 1300KV/1700KV/1950KV
$28.99







Lumenier ZIP V2 2807 Cinematic Motor - 1950KV - Cinequads Edition
$28.99

















About this product The new F1408 is one of T-Motor's greatest additions to the Cinewhoop class of motors. The F1408 cinewhoop motors are made of the finest quality CNC aluminum and provide stable power for a 3-4" build.   Features High-Quality Design for 3-4" Cinewhoop Builds High-Quality CNC Material Black and Red in

T-Motor F1408 Cinewhoop Motor 3950Kv

T-Motor Hobby

Check out the V2 of a classic from T-Motor, the T-motor F1408-II. This is an ultra light weight motor weighing in at only 12.7g. The high manufacturing standards and premium performance offered by T-motor to make sure your builds will stand out like none other.  F1408-II has been upgraded to be more durable and is suitable for 3&quot-4&quot props.
Check out our other 1408 motors, and all our T-Motor products!










Specifications


Kv: 3950Kv


Input Voltage: 3-4S LiPo


Configuration: 9N12P


Peak Current: 22.4A

Idle Current(10v): 0.86A

Internal Resistance: 88mΩ


Motor Dimensions: Φ17.9mm x 20.2mm


Stator Dimensions: Φ14mm x 08mm


Shaft Diameter: 1.5mm

Mounting Pattern: Φ9mm

Wire Dimensions: 24AWG x 150mm

Lead: 24g 150mm
Weight: 12.75 (excluding Cables),14.95g (Including Cable)

Motor Bolt Pattern: 12 x 12mm

Includes

1x T-Motor F1408-II 1408 3950Kv Motor


Check out the V2 of a classic from T-Motor, the T-motor F1408-II. This is an ultra light weight motor weighing in at only 12.7g. The high manufacturing standards and premium performance offered by T-motor to make sure your builds will stand out like none other.  F1408-II has been upgraded to be more durable and is suit

T-Motor F1408-II 1408 3950Kv Motor from WREKD Co.

T-Motor F1408-II 1408 3950Kv Motor

The T-motor F1408-II is an ultra light weight motor weighing in at only 12.7g. T F1408-II has been upgraded to be more durable and is suitable for 3"-4" props. Check out all our 14XX Motors and the rest of our T-Motor Products! Specifications: KV: 3950 Internal Resistance: 88 mΩ Shaft Diameter: 2mm Weight: 12.75 (exclu

T-Motor F1408-II 3950KV FPV Drone Motor - Titanium Red

TMOTOR

Check out the V2 of a classic from T-Motor, the T-motor F1408-II. This is an ultra light weight motor weighing in at only 12.7g. The high manufacturing standards and premium performance offered by T-motor to make sure your builds will stand out like none other.  F1408-II has been upgraded to be more durable and is suitable for 3"-4" props.
Check out our other 1408 motors, and all our T-Motor products!










Specifications


Kv: 3950Kv


Input Voltage: 3-4S LiPo


Configuration: 9N12P


Peak Current: 22.4A

Idle Current(10v): 0.86A

Internal Resistance: 88mΩ


Motor Dimensions: Φ17.9mm x 20.2mm


Stator Dimensions: Φ14mm x 08mm


Shaft Diameter: 1.5mm

Mounting Pattern: Φ9mm

Wire Dimensions: 24AWG x 150mm

Lead: 24g 150mm
Weight: 12.75 (excluding Cables),14.95g (Including Cable)

Motor Bolt Pattern: 12 x 12mm

Includes

1x T-Motor F1408-II 1408 3950Kv Motor


A classic T-Motor with a new stunning look. This new 1408 motor is sure to make your build stand out like none other.

T-Motor F1408 1408 2800Kv Motor - For Sale At RaceDayQuads

Axis Flying

Axis Flying AE2306.5 Motor - 1800Kv

AxisFlying

Premium performance. That’s been the focus of AxisFlying since we started a year ago. The AF series, and now the BB series. We pushed the envelope of the tried-and-true FPV formula. Now we’ll be doing it again…Introducing AE series, by AxisFlying. Great performance, high quality, and the high standards that we hold all of our products to. The AE series is the perfect compromise of price and performance. Now, we’re fully aware of the stigma surrounding ‘budget’ motors. Can’t compromise on price without compromising on performance, right? Wrong. Our engineers took the same principles we take to all our motor designs, and pulled back as much cost as possible – all while keeping the quality and performance. We truly believe that this is the alternative to the high-end motors… whilst being under $16.
Check out our vast motor selection and all our Axis Flying Products!
Specifications

Input Voltage: 6S
Kv Rating: 1800Kv
Stator Size: 23x6mm

Configuration: 12N14P
Wire: 20#AWG 150mm length
Shaft Diameter: 5mm
Max. Power (60s): 901W
Internal Resistance: 60.7mΩ
Peak Current: 40.6A
Motor Dimensions: ɸ27.9x32.7mm
Weight (Incl. Cable): 31.5g
Mounting Pattern: 16x16mm





Includes

1x Axis Flying AE2306.5 1800Kv Motor


Premium performance. That’s been the focus of AxisFlying since we started a year ago. The AF series, and now the BB series. We pushed the envelope of the tried-and-true FPV formula. Now we’ll be doing it again…Introducing AE series, by AxisFlying. Great performance, high quality, and the high standards that we hold all

AxisFlying AE 2306.5 1800Kv Motor from WREKD Co.

AxisFlying AE 2306.5 1800Kv Motor










Premium performance. That’s been the focus of AxisFlying since we started a year ago. The AF series, and now the BB series. We pushed the envelope of the tried-and-true FPV formula. Now we’ll be doing it again…
Introducing AE series, by AxisFlying. Great performance, high quality, and the high standards that we hold all of our products to. The AE series is the perfect compromise of price and performance.
Now, we’re fully aware of the stigma surrounding ‘budget’ motors. Can’t compromise on price without compromising on performance, right? Wrong. Our engineers took the same principles we take to all our motor designs, and pulled back as much cost as possible – all while keeping the quality and performance. We truly believe that this is the alternative to the high-end motors… whilst being under $16.


1800 KV is efficiency edition for 6S


1960 KV is powerful edition for 6s


2400KV is for 4s setup


Configuration: 12N14P


Motor stator size: 2306.5


Motor cables: AWG 20#, 150MM


Motor dimensions (Dia *Len): 27.9*32.7MM


Motor weight (excluding 150MM cables) : 31.5g


The motor is very powerful that can get over 1.6KG and most current is about 40A













Premium performance. That’s been the focus of AxisFlying since we started a year ago. The AF series, and now the BB series. We pushed the envelope of the tried-and-true FPV formula. Now we’ll be doing it again… Introducing AE series, by AxisFlying. Great performance, high quality, and the high standards that we hold al

Axis Flying AE 2306.5 1800Kv Motor

Axis Flying Black Bird V3 2207 Motor - 1975Kv


The Blackbird V3 motor is one of the most premium on the market with performance that never fails to impress. Quick, responsive, Powerful. These motors have it all!

Specifications

Kv Rating: 1975Kv
Motor Dimensions: ɸ27.5*33.4mm

Wire: 20#AWG 150mm length
Shaft Diameter: 5mm
Max. Power (60s): 1070W
Weight (Incl. Cable): 32.6g
Internal Resistance: 56mΩ
Configuration: 12N14P
Rated Voltage (Lipo): 5-6S
Peak Current: 44.7A

Includes

1x Axis Flying Blackbird V3 2207 1975Kv Motor






The Blackbird V3 motor is one of the most premium on the market with performance that never fails to impress. Quick, responsive, Powerful. These motors have it all!   Specifications Kv Rating: 1975Kv Motor Dimensions: ɸ27.5*33.4mm Wire: 20#AWG 150mm length Shaft Diameter: 5mm Max. Power (60s): 1070W Weight (Incl. Cable

Axis Flying BlackBird V3 FPV Drone Freestyle Motor - 1975KV

Axis Flying AF223 2203 Motor - 2910Kv


Axis Flying AF223 FPV Drone Motor

SPECIFICATIONS:

Stator Size: 22*3mm
Shaft Diameter: 5mm
Rated Voltage: 3-6S
Max Power: 570w
Configuration: 12N14P
Dimensions: 27*27.7mm
Silicon Wire: 24# 130mm
Weight(no cable): 19.5g
Peak Current: 43A

PACKAGE INCLUDES:

1 x Axis Flying AF223 FPV Drone Motor







Axis Flying AF223 FPV Drone Motor   SPECIFICATIONS: Stator Size: 22*3mm Shaft Diameter: 5mm Rated Voltage: 3-6S Max Power: 570w Configuration: 12N14P Dimensions: 27*27.7mm Silicon Wire: 24# 130mm Weight(no cable): 19.5g Peak Current: 43A PACKAGE INCLUDES: 1 x Axis Flying AF223 FPV Drone Motor

Axis Flying AF223 FPV Drone Motor

BrotherHobby

BrotherHobby VS 2207 Motor - 1720Kv

The BrotherHobby VS 2207 Motor comes in an anti-skid design and is suitable for any 5" quad! This motor is durable, lightweight, and has excellent performance.

The BrotherHobby VS 2207 Motor comes in an anti-skid design and is suitable for any 5

BrotherHobby VS 2207 Motor (CW) - 1720KV/2400KV/2700KV

Brother Hobby's latest motors VS 2207 are suitable for 5" racing and freeestyle builds. Check out all 22XX Motors we carry and the rest of our Brother Hobby Collection! Specifications: KV: 1720kvStator: 0.2mm Kawasaki silicon steelConfiguration: 12N14PProp Adapter Shaft Thread: M5Shaft: SUS 420 hollow shaftNo.of Cells(

Brotherhobby VS 2207-1720KV FPV Motor

Brother Hobby


This stunning motor distracts from its real power using its great design. However, underneath this stunning visage lies a powerful motor ready to roar. The Brother Hobby VS2007 motors are a perfect blend of form and function.





Specifications:

KV: 1720KV
Base casing: Al 7075

Stator: 0.2mm Kawasaki silicon steel

Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: SUS 420 hollow shaft
No.of Cells(Lipo): 4-6S
Bolt Pattern: M3(16X16mm)
Bearings: Japanese NMB 8x3x4mm
Rotor: N52H arc magnets
Weight: 32.5g with 16cm SR wires
Wire AWG: 20AWG 16cm length
Bell cap: Al 7075








This stunning motor distracts from its real power using its great design. However, underneath this stunning visage lies a powerful motor ready to roar. The Brother Hobby VS2007 motors are a perfect blend of form and function. Specifications: KV: 1720KV Base casing: Al 7075 Stator: 0.2mm Kawasaki silicon steel Configura

BrotherHobby VS 2207 1720Kv Motor

FETtec

FETtec FM2004T Motor - 1800Kv






FETtec Motor 2004

Light, powerful and supple. These motors stand for high flexibility and speed.

Specification:

1800 KV
12N14P
4 - 6s


Dimensions:

Weight: 17 g
Stator 20 x 4mm
Shaft 1,5mm (3mm inside)
Diameter 25mm
Height 13,7mm


Scope of delivery:
4x FETtec Motor 2004

Available downloads:

 Download FETtec FM2004T 1800KV data sheet




FETtec Motor 2004   Light, powerful and supple. These motors stand for high flexibility and speed.   Specification: 1800 KV 12N14P 4 - 6s   Dimensions: Weight: 17 g Stator 20 x 4mm Shaft 1,5mm (3mm inside) Diameter 25mm Height 13,7mm   Scope of delivery: 4x FETtec Motor 2004 Available downloads:  Download FETtec FM2004

FETtec Motor FM2004T - 1800kv

A more perfect match for a weight-conscious build may not exist, but who wants one when this is already right here? If you're looking for a smooth motor for your next build, look no further. Check out all our 20XX motors, and the rest of our FETTEC Products! Features Quick Heat Dissipation Durable Light-Weight Specific

FETtec FM2004T 1800Kv Motor

FETTEC

Introducing the new FETtec Motor FM2004T 1800kv FPV Drone Motors. Not are they only fast but they're also meant to be durable and smooth. Step up your FETtec build with these amazing motors!!
Check out our other motors and all of our FETtec products!
Specifications

Kv: 1800Kv
Prop Shaft Diameter: 1.5mm
Rated Voltage: 4-6S
Config: 12N14P
Stator Dimension: 2004

Mounting Pattern: 12mmΦ
Shaft Diameter: 1.5mm
Weight: 17g


Includes

1x FETtec Motor FM2004T 1800kv Motor



Introducing the new FETtec Motor FM2004T 1800kv FPV Drone Motors. Not are they only fast but they're also meant to be durable and smooth. Step up your FETtec build with these amazing motors!! Check out our other motors and all of our FETtec products! Specifications Kv: 1800Kv Prop Shaft Diameter: 1.5mm Rated Voltage: 4

FETtec FM2004T 2004 1800kv Motor

Ethix

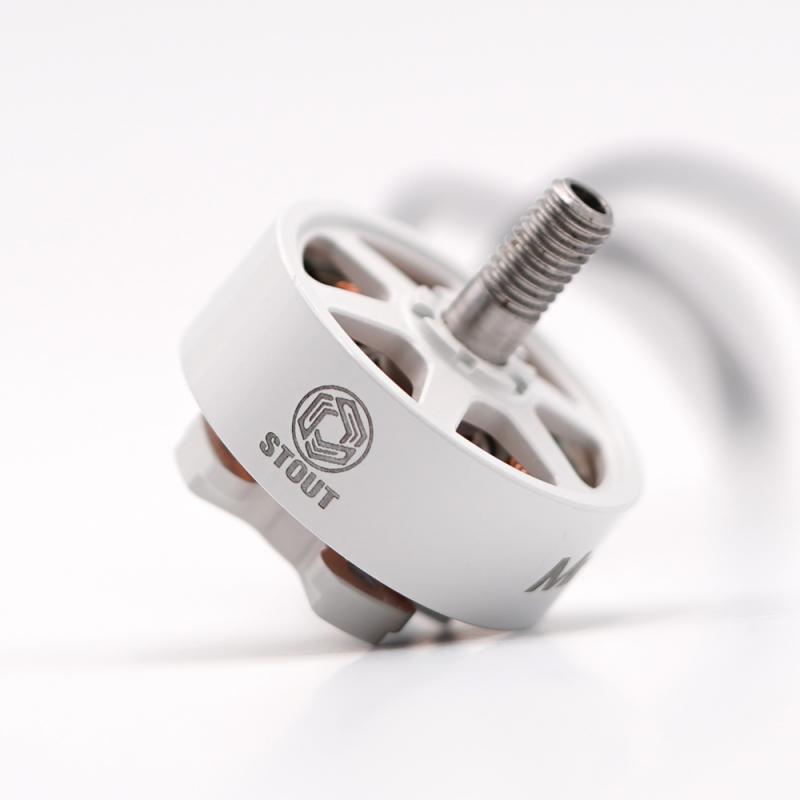

Ethix Mr Steele Stout V4 2306 Motor - 1750Kv

Introducing the 4th iteration of the Mr. Steele Stout 6S motor! The ETHIX Mr. Steele Stout 2306 Motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durab

The ETHIX Mr. Steele Stout 2306 Motor is an absolute gem - only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.


Ethix Mr Steele Stout 2306 Motor V4 - 1750KV

I would like to Introduce the Mr. Steele V4 STOUT 2306 (1750KV) 6S FPV freestyle motor. I take great pride in my work and am always trying to raise the bar. After two years of seemingly nonstop research &amp development, I am proud to present this fine piece of Miniquad motor engineering.

Get the ETHIX Mr Steele Stout Motor V3 shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

ETHIX Mr Steele Stout Motor V3 - RMRC

ETHIX Mr Steele Stout Motor V4 - 1750KV


The wait is over!

I would like to Introduce the Mr. Steele V4 STOUT 2306 (1750KV) 6S FPV freestyle motor.
I take great pride in my work and am always trying to raise the bar. After two years of seemingly nonstop research &amp development, I am proud to present this fine piece of Miniquad motor engineering.
V4 MOTOR HIGHLIGHTS/CHANGES

base redesign 16x16(only) mounting holes (structural changes for more durability)
Complete bell redesigned (durability and smoothness in mind)
Thicker single strand copper winding
increased EFFICIENCY &amp POWER
Complete Interchangeable motor pants redesign (thicker &amp more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
better assembly tolerances
Overall QC improvements
9mm steel bearings
Eco-Friendly packaging
Motor weight 31.8g
(full-length cables) compared to Stout V3 at 30.5g

PANTS WEIGHTS

Low - 1g vs (0.8 v3)
Tall - 2g vs (1.8 v3)

All in all this motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.
V3- V4 COMPATIBILITY

V4 and V3 motors are completely cross-compatible.
V3 bells - V4 stator
V4 bells - V3 stator

( everything is interchangeable except pants) The pants are stator-specific and can be interchangeable but with less than desired effect.
 Enjoy &amp Thank you for your continued support.
-Steele
SPECIFICATIONS


Stator Size (Diameter): 23mm*6mm
Kv: 1750kv
Magnets: N52SH Curved
Windings: 15turn DLRK
Shaft Length (mm): 11.5mm
Shaft Diameter (mm): 4mm
Shaft material: Steel
Bearing : NMB684
Weight (With Wires) (g): 32.4g
Cells (Lipo): 6S
Max Current (A): 45A
Max Burst Current (A): 50A
Internal Resistance (Rm): 100mΩ
Wire Spec (AWG): 20#-135mm
Base Mounting Pattern: 16x16mm
Base Mounting Thread: M3 Thread
Motor Overall Dimensions: φ28.6mm*17.5mm

INCLUDES

1 x Motor
1 x Tall Motor Pants
1 x Short Motor Pants
4 x motor screws

This item does not qualify for discount codes

The wait is over! I would like to Introduce the Mr. Steele V4 STOUT 2306 (1750KV) 6S FPV freestyle motor.  I take great pride in my work and am always trying to raise the bar. After two years of seemingly nonstop research &amp; development, I am proud to present this fine piece of Miniquad motor engineering.  V4 MOTOR

Ethix Mr Steele Stout motor V4

BrotherHobby TC 2004 Motor - 3150Kv

Introducing the BrotherHobby TC 2004 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for the Sub-250G Racing Drone. With aerospace-grade 7075 AL, titanium alloy shaft, and hard anodizing cover... this motor is w

Introducing the BrotherHobby TC 2004 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for the Sub-250G Racing Drone. With aerospace-grade 7075 AL, titanium alloy shaft, and hard anodizing cover... this

Brotherhobby TC 2004 Motor - 1700KV/1950KV/2100KV/3150KV


Introducing the BrotherHobby TC 2004 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for the Sub-250G Racing Drone. With aerospace-grade 7075 AL, titanium alloy shaft, and hard anodizing cover... this motor is wearproof with high crash tolerance.

Introducing the BrotherHobby TC 2004 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for the Sub-250G Racing Drone. With aerospace-grade 7075 AL, titanium alloy shaft, and hard anodizing cover... this motor is wearproof with high crash tolerance.
Features

Missile grade high purity electronic silver wire
Heat treatment Titanium alloy shaft
Aerospace-grade 7075 AL
Japanese NMB bearings
Wearproof



Specifications

Stator: 0.15mm Nippon silicon steel
Prop Adapter Shaft Thread: M 1.5
KV: 3150
Rotor: N52H arc magnets
AlBase casing: 7075 Al
Bolt Pattern: M2 12X12
Configuration: 12N14P
No.of Cells(Lipo): 4-6S
Bearings: NMB 7x3x3
Wire AWG: 24 AWG
Wire length:16cm
Model: TC 2004
Shaft: SUS 420
Bell cap: 7075

Includes

1 x Brotherhobby TC 2004 Motor
4 x M2x6 Base Screws
2 x M2x7 Prop Screws


Introducing the BrotherHobby TC 2004 Brushless Motor! This Ultralite motor is suitable for those who love to race and is perfect for the Sub-250G Racing Drone. With aerospace-grade 7075 AL, titanium alloy shaft, and hard anodizing cover... this motor is wearproof with high crash tolerance.   Introducing the BrotherHobb

Brotherhobby TC 2004 Motor - 3150KV

Ultra-light 2004 micro motor designed for sub 250g racing or long range builds, just throw on your favorite racing 5" T-Mount prop. Check out all our 20XX Motors and the rest of our BrotherHobby Products! Specifications:  KV: 2100Kv No. of Cells (Lipo): 4-6S Configuration: 12N14P Base casing: Al 7075 Stator: 0.15mm Nip

BrotherHobby TC 2004 3150Kv Ultralite Motor

BROTHERHOBBY

These motors are designed for sub 250g racing builds with T-Mount props, they work great as micro long-range motors as well.
Available in multiple KV options.
Check out our huge selection of motors and all our BrotherHobby gear!
Specifications

KV: 3150
Configuration: 12N14P
No.of Cells(Lipo): 4-6S
Rotor: N52H arc magnets
Stator: 0.15mm Nippon silicon steel
Shaft: SUS 420
Bearings: NMB 7x3x3
Wire AWG: 24 AWG wire 16cm length
Bell cap: 7075 Al
Base casing: 7075 Al
Prop Adapter Shaft Thread: M1.5
Bolt Pattern: M2 12X12
Weight: 14.9g w/ short wire

Includes

1x BrotherHobby TC 2004 3150Kv Micro Motor




These motors are designed for sub 250g racing builds with T-Mount props, they work great as micro long-range motors as well.

BrotherHobby TC 2004 3150Kv Micro Motor

BrotherHobby TC 2004 3150Kv Micro Motor - For Sale at RaceDayQuads

These motors are designed for sub 250g racing builds with T-Mount props, they work great as micro long-range motors as well. Available in multiple KV options. Check out our huge selection of motors and all our BrotherHobby gear! Specifications KV: 3150 Configuration: 12N14P No.of Cells(Lipo): 4-6S Rotor: N52H arc magne

BrotherHobby TC 2004 3150Kv Micro Motor from WREKD Co.

Frame Size

The frame is typically the first part to pick because it determines what kind of flying you’ll be doing the most. Start by picking a frame type, and narrow down the options by propeller size. The frame holds your quad parts together and heavily impacts what the quad can do.

Frames

Propeller Size

The props work with the motors to lift your quad off the ground.  Choose a prop size that fits your frame.  Higher pitch props are efficient in fast environments and are less responsive in slow speeds. Lower pitch props are efficient in slower environments and are more responsive in slow speeds. Beginners should try various pitch props to see what works best for them.
