Happymodel

Happymodel BNF Moblite7 Whoop

Happymodel Moblite7 Ultralight 1S 75mm Brushless Whoop - SPI Frsky

Introducing the Moblite7 Ultralight FPV Brushless Whoop! Made in collaboration with FPV pilot

HAPPYMODEL

The Happymodel Moblite7 HDZero Whoop is a 75mm HD brushless whoop weighing just 29.5 grams. It features the HDZero Whoop Lite VTX and Nano Camera and a built-in SPI ELRS 2.4GHz or FrSky 2.4GHz receiver.  With powerful EX1002 KV20000 motors and a Superbee F4 Lite flight controller, this should be a great performing high-definition whoop you can fly just about anywhere.
Be sure to check out all our <a title="all prebuilt quads for Sale at RaceDayQuads" href="https://www.racedayquads.com/collections/pre-built-quads-1" target="_blank">pre-built quads</a>, and all our <a title="all happymodel FPV Products for Sale at RaceDayQuads" href="https://www.racedayquads.com/collections/happymodel-products" target="_blank">Happymodel products</a>!
<h3>Features</h3>
<ul>
<li>The lightest 1S 75mm brushless whoop</li>
<li>Powerful and efficiency</li>
<li>The lightest 1S AIO 5IN1 F4 flight controller</li>
<li>1002 brushless motors</li>
<li>Low-profile Canopy design</li>
<li>HD Zero</li>
</ul>
<h3>Specifications</h3>
<ul>
<li>Wheelbase: 75mm</li>
<li>Size: 97x97x25mm</li>
<li>Weight: 19.5g (without battery)</li>
<li>Weight: 36g</li>
</ul>
Motor
<ul>
<li>Model: EX EX1002 20000KV
</li>
<li>Configuration: 9N12P</li>
<li>Stator Diameter: 10mm</li>
<li>Stator Length: 2mm</li>
<li>Shaft Diameter:Φ1.5mm</li>
<li>Motor Dimension(Dia.Len): Φ13.5mmx12.5mm</li>
<li>Weight(g): 2.5</li>
<li>No.of Cells(Lipo): 1S only</li>
</ul>
Flight Controller
<ul>
<li>
SPI ELRS version Firmware target: CrazybeeF4SX1280
</li>
<li>SPI FRSKY version Firmware target: CrazybeeF4FR</li>
<li>MCU: STM32F411CEU6 (100MHz, 512K FLASH)
</li>
<li>Sensor: ICM20689 or ICM42688P or BMI270(SPI connection)
</li>
<li>Original whoop size compatible</li>
<li>Power supply: 1S battery input (DC 2.9V-4.35V)</li>
<li>Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready</li>
<li>Built-in Betaflight OSD(SPI Control)</li>
<li>Built-in 5.8G VTX</li>
<li>Built-in SPI Frsky/ELRSreceiver</li>
<li>Built-in 5V 1A BEC</li>
<li>Built-in voltage detection</li>
</ul>
Onboard 4in1 ESC
<ul>
<li>MCU Upgraded to EFM8BB21</li>
<li>Power Supply: 1S LiPo/LiPo HV</li>
<li>Current: 5A continuous, peak 6A (3 seconds)</li>
<li>Support BLHeliSuite programmable</li>
<li>Factory Firmware: O_H_50_REV16_8.HEX</li>
<li>Default Protocol: DSHOT600</li>
</ul>
 Onboard Frsky SPI D8 receiver Version
<ul>
<li>
SPI BUS receiver Frsky D8/D16 compatible
</li>
<li>
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
</li>
<li>
Channels: 8ch or 16ch
</li>
<li>
Failsafe support
</li>
<li>
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
</li>
<li>Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol</li>
</ul>
 Onboard ELRS Receiver Version
<ul>
<li>
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
</li>
<li>
RF Frequency: 2.4GHz
</li>
<li>
Telemetry output Power: &lt12dBm
</li>
<li>
Receiver protocol:  SPI ExpressLRS
</li>
<li>Could bind with ELRS V2.0 firmware TX module</li>
</ul>
 Onboard 5.8G 40CH 25-200mW VTX
<ul>
<li>Output Power: 25mw~200mw switchable</li>
<li>Frequency: 40CH</li>
<li>Input Voltage: 3.3V 5.5V</li>
<li>Current Consumption: 300mA (type)</li>
<li>Frequency: 5.8GHz 5bands 40 channels (include Race band)</li>
<li>Smart-audio Ready</li>
</ul>
HDZERO NANO LITE CAMERA SPECIFICATIONS:
<ul>
<li>Dimensions: 14x16x11 mm </li>
<li>Weight: 1.5gram </li>
<li>Sensor: 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMOS sensor </li>
<li>Excellent low light performance </li>
<li>FOV: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65°</li>
</ul>
<ul></ul>
<h3>Includes</h3>
<ul>
<li>1 x HappyModel BNF Moblite7 HDZERO 1S 75MM Brushless HD Whoop
</li>
<li>1 x Moblite7 Spare Canopy</li>
<li>1 x Gemfan 1610 propeller Set (4cw+4ccw)
</li>
<li>1 x Propeller disassemble tool
</li>
<li>1 x Screwdriver</li>
</ul>

All products containing lithium batteries must be shipped by a ground shipping method. The Moblite7 is one of the most streamlined low-profile BNF whoops available on the market.

HappyModel BNF Moblite7 HDZERO 1S 75mm Whoop - Choose Your RX

HappyModel BNF Moblite7 Whoop - Choose Your RX For Sale at RaceDayQuads

The Moblite7 is one of the most streamlined low-profile BNF whoops available on the market. This 75mm lowrider boasts a RunCam Nano 3 camera along with a VTX capable of up to 200mW, the extremely light AIO FC powers the unibell 0802 motors. This whoop is a blast, with plenty of power and quality video. Check out all ou

HappyModel BNF Moblite7 Whoop - FrSky

Pre-Built Quad Kit Type

Pre-Built Quads and Kits

Quad Frame Size

Quad Type

iFlight

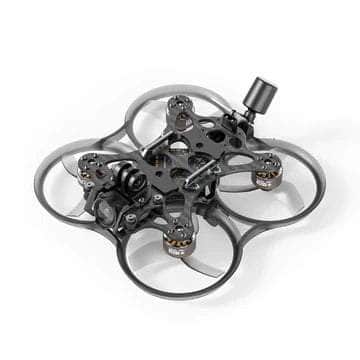

iFlight BNF ProTek35 Analog 3.5" Cinewhoop

New batch updated yellow frame with rubber bumpers! New iFlight Cinewhoop! The ProTek35 Analog BNF! Try new HQProp 8 Blade 3.5" Propellers for the Protek35 Cinewhoop! After our very popular 3inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series, we were trying to increase performance and reduce weight f

iFlight ProTek35 CineWhoop Analog - 4S BNF Choose RX Type

IFLIGHT

After our very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series, we were trying to increase performance and reduce weight for an even better and longer flight experience for a wide variety of use.
Our all-new 3.5inch project is finally ready for all you content creators or those guys who like to wear some protection every now and then. Prop protection is what we're talking about here.
ProTek is not necessarily just a Cinewhoop series but far more. Equipped with our all-new 2205 motors for more power and less heat. We were able to increase speed and thrust by 50% compared to its 3inch predecessor which gives a lot more room for a lot more fun. Our GPS-measured maximum speed was above 120km/h and a maximum thrust of 750g per motor (3kg in total) would even carry heavier cams than a Gopro but also do some loaded punch-outs or light freestyle moves.
A lot of thought was put into the different assembly options. Our stock BNF will ship in the standard configuration but you can either do a pusher mod (flip the build upside down) or a lite mod (remove the protective plastic for weight optimization).
Note: Battery, GoPro, and GoPro mount are NOT included.
<iframe title="YouTube video player" src="https://www.youtube.com/embed/34s0mYCq7r8" height="315" width="560" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0"></iframe>
Check out our other <a href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" data-mce-fragment="1" target="_blank" data-mce-href="https://www.racedayquads.com/collections/all-pre-built-quads-wings">pre-built quads</a>, as well as the rest of our <a href="https://www.racedayquads.com/collections/iflight-products?sort_by=created-descending" title="all iflight products for Sale at RaceDayQuads" data-mce-fragment="1" target="_blank" data-mce-href="https://www.racedayquads.com/collections/iflight-products?sort_by=created-descending">iFlight selection</a>!
<h3 data-mce-fragment="1">Features</h3>
<ul>
<li>High-performance True-AIO Board Beast Whoop F7 AIO 55A v2.0 to save weight and space</li>
<li>T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)</li>
<li>Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)</li>
<li>Low Resonance frame construction (Less Jello, more Cinematic footage)</li>
<li>Pre-tuned with smooth freestyle settings</li>
<li>Butter smooth 2205 3200KV (4S)</li>
<li>ProTek35 Prop Guards V2.0</li>
<li>No Props or frame in view!</li>
</ul>
<h3>Pre-Tuned &amp Pre-Setup:</h3>
<ul>
<li>Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning were applied for a great flight experience!</li>
<li>To restore lost tunes or updates, please check our linked article on <a href="https://iflightrc.freshdesk.com/support/solutions/articles/48001148115-firmware-wiring-factory-dumps">"Firmware/Factory Dumps"</a>
</li>
<li>Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!</li>
<li>Please check our linked article on <a href="https://iflightrc.freshdesk.com/a/solutions/articles/48001158403">"How to disable Angle-Mode, and activate Acro-Mode"</a>
</li>
</ul>
<h3>
Specifications</h3>
Beast F7 V2 AIO FC
<ul>
<li>MCU: BGA-STM32F745</li>
<li>Gyro: BMI270</li>
<li>Blackbox: 8Mb Onboard Flash</li>
<li>BEC output: 5V 2.5A</li>
<li>Barometer: BMP280</li>
<li>Connector: Micro-USB</li>
<li>OSD: AT7456E</li>
<li>FC Firmware：IFLIGHT_F745_AIO_V2
</li>
<li>Mounting pattern: 25.5x25.5mm φ3mm</li>
<li>Dimensions: 32.5x32.5mm</li>
<li>Weight: 8.5g</li>
</ul>
F7 55A 2-6S ESC
<ul>
<li>Current Sensor: Yes</li>
<li>Input: 2-6S LIPO</li>
<li>Current scale: 200</li>
<li>Constant: 55A </li>
<li>BLHeli: BLHeli-S</li>
<li>Telemetry: no</li>
<li>ESC Firmware: BlheliS G-H-30</li>
<li>Mounting pattern: 25.5x25.5mm/Φ3mm</li>
<li>Dimensions: 32.5x32.5mm</li>
</ul>
SucceX Mini Force 5.8GHz 600mW VTX
<ul>
<li>Power: PIT/25/200/400mW/600mW</li>
<li>Antenna interface: MMCX</li>
<li>VTX protocol: IRC Tramp</li>
<li>Output 40 channels.</li>
<li>Size: 29x29mm</li>
<li>Mounting pattern: 20x20Φ3/25x25 mmΦ2</li>
<li>Weight: 4g</li>
</ul>
<img alt="" src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT2.jpg?v=1666733181"><img src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT3.jpg?v=1666733198" alt="" data-mce-fragment="1" data-mce-src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT3.jpg?v=1666733198"><img src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT5.jpg?v=1666733214" alt="" data-mce-fragment="1" data-mce-src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT5.jpg?v=1666733214"><img src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT7.jpg?v=1666733242" alt="" data-mce-fragment="1" data-mce-src="https://cdn.shopify.com/s/files/1/1285/4651/files/Protek35-HD-blackMT7.jpg?v=1666733242">

<h3>Includes</h3>
<ul>
<li>1x ProTek35 Frame</li>
<li>2x Albatross RHCP RP-SMA 5.8g antenna</li>
<li>1x TPU Antenna holder</li>
<li>2x Nazgul 3535 propeller (Set of 4 - Color May Vary)</li>
<li>1x iFlight Lipo Strap 15x150mm (Color May Vary)</li>
<li>1x iFlight Lipo Strap 15x250mm (Color May Vary)</li>
<li>1x GoPro TPU bottom stand black (GoPro Protector not included)</li>
</ul>

After our very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series, we were trying to increase performance and reduce weight for an even better and longer flight experience for a wide variety of use.  Our all-new 3.5inch project is finally ready for all you content creators or those guys who

iFlight BNF Protek35 Analog 4S 3.5" Quad  - Choose Receiver Type

iFlight BNF Protek35 Analog 4S 3.5" Quad - Choose Receiver Type

Flywoo

Flywoo BNF Firefly Nano Baby 20 Walksnail Avatar Quadcopter

FLYWOO


Equipped with the latest version of walksnail 1S VTX （smaller and lighter）




"In my opinion Flywoo makes some of the very best micro quads in the world. The Flywoo Nano Baby 20 is another fantastic example of their attention to detail."
- Chris Rosser

Firefly Nano baby 20  is the smallest and lightest whoop drone with avatar digital VTX in the world. Equipped with the most efficient micro motor and the top AIO flight control on the market. It will bring you an unprecedented flying experience.  The drone could do all the acrobatic motions smoothly, like dive and power loop
Firefly Nano baby 20 could support the Walksnail Avatar and Fat Shark HD Dominator.. Pilots can now enjoy both superb image quality and a minimum latency within 22 ms. The video is recorded withWalksnail Avatar and Fat Shark HD Dominator. in 1080P@60fps.





Highlights:


	1002 15500KV and Gemfan 2015 - 2 blade with perfect thrust-to-weight ratio on 2inch. provide a best balance of performance and flight time.
	GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board ! Built-in build-in ELRS 2.4g RX. Have multiple sets of serial external devices
	Easily swith battery mount design .  Explorer 2S 420mAh for Racing , Explorer 2S 750mAh for long flight time.
	Great mount compatibility.Swith easily. Thumb Pro \ Peanut \ GO2 \ Thumb


Specifications


	Weight: 42.4g (without battery)
	FC &amp ESC : GOKU Versatile F405 2S 12A AIO

	Frame: Firefly 2S Nnano Baby 20 Avatar Frame kit
	Motors: Flywoo ROBO 1002 15500KV

	Props: Gemfan 2015-2 blade



















In the BOX


	1 x Firefly 2S Nano Baby 20 Walksnail Avatar Micro Drone
	2 x set of  2015-2 props
	1X Screw spare packs
	2x battery holder
	4x Prop guards



















Firefly Nano baby 20  is the smallest and lightest whoop drone with avatar digital VTX in the world. Equipped with the most efficient micro motor and the top AIO flight control on the market. It will bring you an unprecedented flying experience.  The drone could do all the acrobatic motions smoothly, like dive and power loop Firefly Nano baby 20 could support the Walksnail Avatar and Fat Shark HD Dominator.. Pilots can now enjoy both superb image quality and a minimum latency within 22 ms. The video is recorded withWalksnail Avatar and Fat Shark HD Dominator. in 1080P@60fps.   Highlights: 1002 15500KV and Gemfan 2015 - 2 blade with perfect thrust-to-weight ratio on 2inch. provide a best balance of performance and flight time. GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board ! Built-in build-in ELRS 2.4g RX. Have multiple sets of serial external devices Easily swith battery mount design .  Explorer 2S 420mAh for Racing , Explorer 2S 750mAh for long

Firefly 2S Nano Baby 20 Walksnail Avatar Micro Drone

Equipped with the latest version of walksnail 1S VTX （smaller and lighter） "In my opinion Flywoo makes some of the very best micro quads in the world. The Flywoo Nano Baby 20 is another fantastic example of their attention to detail." - Chris Rosser Firefly Nano baby 20  is the smallest and lightest whoop drone with avatar digital VTX in the world. Equipped with the most efficient micro motor and the top AIO flight control on the market. It will bring you an unprecedented flying experience.  The drone could do all the acrobatic motions smoothly, like dive and power loop Firefly Nano baby 20 could support the Walksnail Avatar and Fat Shark HD Dominator.. Pilots can now enjoy both superb image quality and a minimum latency within 22 ms. The video is recorded withWalksnail Avatar and Fat Shark HD Dominator. in 1080P@60fps.   Highlights: 1002

Firefly Nano Baby 20 is equipped with the most efficient micromotor and the top AIO flight control on the market. It will bring you an unprecedented flying experience.  The drone could do all the acrobatic motions smoothly, like diving and power looping!
Check out the rest of our <a href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" data-mce-href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" target="_blank">pre-built quads</a>, as well as the rest of our <a href="https://www.racedayquads.com/collections/flywoo-products" data-mce-href="https://www.racedayquads.com/collections/flywoo-products" target="_blank">Flywoo</a> selection!
<iframe title="YouTube video player" src="https://www.youtube.com/embed/i9R1C1fIAA4" height="315" width="560" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0"></iframe>
<h3>Specifications</h3>
<ul>
<li data-mce-fragment="1">Weight: 33.8g (without battery)
</li>
<li data-mce-fragment="1">FC &amp ESC: GOKU Versatile F405 2S 12A AIO
</li>
<li data-mce-fragment="1">Frame: Firefly 2S nano Baby 20 Avatar Frame</li>
<li data-mce-fragment="1" data-handle="nin-v2-1203pro-3400kv-11500kv">Motors: Flywoo ROBO 1002 15500KV</li>
<li data-mce-fragment="1" data-handle="gemfan-d51-5-penta-blade-51mm-prop-8-pack-choose-color">Props: Gemfan 2015-2 blade </li>
<li data-mce-fragment="1" data-handle="gemfan-d51-5-penta-blade-51mm-prop-8-pack-choose-color">VTX: Avatar 1S 350Mw VTX w/ Avatar nano cam  </li>
</ul>
<ul></ul>
GOKU Versatile F4 5-IN-1 1S AIO FC / VTX
<ul data-mce-fragment="1">
<li data-mce-fragment="1">SIZE: 30x30mm</li>
<li data-mce-fragment="1">Weight: 4.1g</li>
<li data-mce-fragment="1">Hole: 25.5x25.5-3mm</li>
<li data-mce-fragment="1">MCU: STM32F405</li>
<li data-mce-fragment="1">UARTS: 1,2,3,4,5,6</li>
<li data-mce-fragment="1">MOTOR: M1-M4 OUTPUT I2C: SCL/SDA</li>
<li data-mce-fragment="1">GYRO: MPU6000</li>
<li data-mce-fragment="1">Barometer: BMP280</li>
<li data-mce-fragment="1">LED: 2x WS2812</li>
<li data-mce-fragment="1">Flash: 8M</li>
<li data-mce-fragment="1">BEC: 5V 2A</li>
<li data-mce-fragment="1">Firmware: FLYWOOF405S_AIO</li>
</ul>
Onboard 4in1 ESC
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Built-in 1S/2S 12A BL_S 4in1 ESC</li>
<li data-mce-fragment="1">Support Oneshot125, Oneshot42, Multishot,</li>
<li data-mce-fragment="1">Dshot150, Dshot300, Dshot600</li>
<li data-mce-fragment="1">Input Voltage: 1-2S Lipo</li>
<li data-mce-fragment="1">Firmware: BLHELI_S</li>
<li data-mce-fragment="1">Firmware: Z_H_30_REV16.7</li>
</ul>
Flywoo ROBO 1002 15500Kv Motor
<ul>
<li>
Kv: 15500Kv
</li>
<li>
Input Voltage: 2S LiPo
</li>
<li>
Stator Dimensions: Φ10mm x 2mm
</li>
<li>
Shaft Diameter: Φ 1.5mm
</li>
<li>
Wire Dimensions: 30AWG x 40mm
</li>
<li>Weight (w/ wires): 2.4g</li>
</ul>
<ul></ul>
<ul data-mce-fragment="1"></ul>
<ul></ul>
<ul></ul>
<h3>Includes</h3>
<ul>
<li data-mce-fragment="1" class="li4">1x Firefly 2S Nano Baby 20 Analog Micro Drone</li>
<li data-mce-fragment="1" class="li4">2x set of  2015-2 props</li>
<li data-mce-fragment="1" class="li4">1x Screw spare packs</li>
<li data-mce-fragment="1" class="li4">2x battery holder</li>
<li data-mce-fragment="1" class="li4">4x Prop guards</li>
</ul>

Firefly Nano Baby 20 is equipped with the most efficient micromotor and the top AIO flight control on the market. It will bring you an unprecedented flying experience.  The drone could do all the acrobatic motions smoothly, like diving and power looping! Check out the rest of our pre-built quads, as well as the rest of

Flywoo BNF Firefly 2S Nano Baby 20 W/ Walksnail Avatar Micro Quad - Choose RX

Flywoo BNF Firefly 2S Nano Baby 20 W/ Walksnail Avatar Micro Quad - Ch

GEPRC

GEPRC BNF GEP-MK5 Mark5 HD 5" Quadcopter

GEPRC has launched the Mark4 HD GPS, which is a stable, durable, and perfectly structured quad that features the Caddx Nebula Nano V2.

GEPRC has launched the Mark5 HD Vista Freestyle, which is a stable, durable, and perfectly structured freestyle quad that features the DJI Camera with Caddx Vista. The MARK5 is developed specifically for freestyle with a squashed X arm design. The un

GEPRC Mark5 HD Vista Freestyle FPV Drone - 6S

Recommend GEPRC Storm 1550mAh Battery for MARK5 4S Version
Recommend GEPRC Storm 1400mAh Battery for MARK5 6S Version

Recommend GEPRC Storm 1550mAh Battery for MARK5 4S Version Recommend GEPRC Storm 1400mAh Battery for MARK5 6S Version

GEPRC MARK5 HD Vista Freestyle FPV Drone - GEPRC

GEPRC MARK5 HD Vista Freestyle FPV Drone

GEPRC MARK5 HD DJI AIR UNIT Freestyle FPV Drone - GEPRC

GEPRC MARK5 HD DJI AIR UNIT Freestyle FPV Drone

The GEPRC BNF Mark5 HD Quad w/ Caddx Air Unit Micro is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce weight and add more endurance.
Make sure to check the ELRS Version!
<a href="https://www.racedayquads.com/products/geprc-mark5-gopro-hero-mount-choose-version" title="geprc tpu gopro case for Sale at RaceDayQuads" data-mce-fragment="1" data-mce-href="https://www.racedayquads.com/products/geprc-mark5-gopro-hero-mount-choose-version" target="_blank">Gopro case</a> available separately.
Check out all our <a title="all pre-built quads for Sale at RaceDayQuads" href="https://www.racedayquads.com/collections/pre-built-quads-1" data-mce-fragment="1" data-mce-href="https://www.racedayquads.com/collections/pre-built-quads-1" target="_blank">pre-built quads</a>, and all our <a title="all geprc FPV Products for Sale at RaceDayQuads" href="https://www.racedayquads.com/collections/geprc-products" data-mce-fragment="1" data-mce-href="https://www.racedayquads.com/collections/geprc-products" target="_blank">GEPRC selection</a>!
<iframe title="YouTube video player" src="https://www.youtube.com/embed/JKIGDlbjyLs" height="315" width="560" data-mce-fragment="1" data-mce-src="https://www.youtube.com/embed/JKIGDlbjyLs" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0"></iframe>
<iframe width="560" height="315" src="https://www.youtube.com/embed/M2YX2AQ86i4" title="YouTube video player" data-mce-fragment="1" data-mce-src="https://www.youtube.com/embed/M2YX2AQ86i4" frameborder="0" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" allowfullscreen=""></iframe>
<h3 data-mce-fragment="1"><iframe title="YouTube video player" src="https://www.youtube.com/embed/4FUuDogNRMQ" height="315" width="560" data-mce-fragment="1" data-mce-src="https://www.youtube.com/embed/4FUuDogNRMQ" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0"></iframe></h3>
<h3 data-mce-fragment="1">Specifications</h3>
<ul data-mce-fragment="1">
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Input Voltage: 6S
</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Wheelbase: 225mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Top plate: 2.5mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Bottom plate: 2.5mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Arm: 5mm</li>
<li data-mce-fragment="1">Charge connector: XT60</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Motor: 2107.5 1960Kv
</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Weight: 385.5g</li>
</ul>
SPAN F722-HD-BT FC
<ul data-mce-fragment="1">
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">MCU: STM32F722</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">IMU: MPU6000(SPI)</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">OSD: BetaFlight OSD w/AT7456E chip</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Blackbox: 16Mb Flash</li>
<li>BEC: 5V, 9V
</li>
<li>LC Filter: Yes</li>
</ul>
G50A ESC
<ul>
<li>MCU: STM32F051K86</li>
<li>Max Continuous Current: 50A</li>
<li>Max Burst Current: 55A</li>
<li>BEC: No</li>
<li>Current Sensor: Yes</li>
</ul>
Caddx Air Unit
<ul>
<li>Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V</li>
<li>Transmitter Power: FCC/SRRC: &lt30dBm CE: &lt14dBm</li>
<li>I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD</li>
<li>Output Power: 25mW3200mW/500mW/700mW</li>
<li>Video Transmission: 28ms Low Latency</li>
<li>Dimensions:</li>
<ul>
<li>Air Unit: 44x37.8x14.4mm</li>
<li>Camera:20.7x19x19mm</li>
</ul>
<li>Flight Control System: BetaFlight</li>
<li>Max Transmission Range: 4km</li>
<li>Coaxial Cable Length: 100mm</li>
<li>FOV: 150(D) 122(H) 93(V)</li>
<li>Goggle Compatibility: DJI</li>
<li>Closed Loop 4-in-1: Yes</li>
<li>Frequency Channels: 8</li>
<li>Shutter: Rolling Shutter</li>
<li>Sensor: 1/3.2" CMOS</li>
<li>Effective Pixels: 4 M</li>
<li>Image: 720p/120fps</li>
<li>Video Format: MP4</li>
<li>Video: 1080p/60fps</li>
<li>Lens: 2.1mm, F/21</li>
<li>ISO: 100-256000</li>
</ul>
<h3 data-mce-fragment="1">Includes</h3>
<ul data-mce-fragment="1">
<li>1x GepRC BNF Mk5 Quad</li>
<li>4x Freestyle 4S propellers (pair)</li>
<li>1x Battery strap M15x250mm</li>
<li>2x Battery strap M20x220mm</li>
<li>2x Battery Silicone Pads</li>
<li>1x Camera cage carbon top plate</li>
<li>1x 3D print mountings combination</li>
<li>2x Action camera mount holder</li>
<li>1x Set of screws</li>
<li>1x Set of screwdrivers</li>
<li>1x Antenna fixed tube</li>
</ul>

The GEPRC BNF Mark5 HD Quad w/ Caddx Air Unit Micro is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also

GEPRC BNF Mark5 HD 6S 5" Quad w/ Caddx Air Unit Micro - Choose Version

The GEPRC BNF Mark5 HD Quad w/ DJI Camera is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce we

GEPRC BNF Mark5 HD 5

The GEPRC BNF Mark5 HD Quad w/ Caddx Vista and Nebula Pro is developed specifically for freestyle with its squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce weight and add more endurance.
<a title="geprc tpu gopro case for Sale at RaceDayQuads" href="https://www.racedayquads.com/products/geprc-mark5-gopro-hero-mount-choose-version" data-mce-fragment="1" target="_blank" data-mce-href="https://www.racedayquads.com/products/geprc-mark5-gopro-hero-mount-choose-version">Gopro case</a> available separately.
Check out all our <a href="https://www.racedayquads.com/collections/pre-built-quads-1" title="all pre-built quads for Sale at RaceDayQuads" data-mce-fragment="1" target="_blank" data-mce-href="https://www.racedayquads.com/collections/pre-built-quads-1">pre-built quads</a>, and all our <a href="https://www.racedayquads.com/collections/geprc-products" title="all geprc FPV Products for Sale at RaceDayQuads" data-mce-fragment="1" target="_blank" data-mce-href="https://www.racedayquads.com/collections/geprc-products">GEPRC selection</a>!
<iframe width="560" height="315" src="https://www.youtube.com/embed/JKIGDlbjyLs" title="YouTube video player" data-mce-fragment="1" frameborder="0" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" allowfullscreen="" data-mce-src="https://www.youtube.com/embed/JKIGDlbjyLs"></iframe>
<iframe title="YouTube video player" src="https://www.youtube.com/embed/M2YX2AQ86i4" height="315" width="560" data-mce-fragment="1" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0" data-mce-src="https://www.youtube.com/embed/M2YX2AQ86i4"></iframe>
<h3 data-mce-fragment="1"><iframe width="560" height="315" src="https://www.youtube.com/embed/4FUuDogNRMQ" title="YouTube video player" data-mce-fragment="1" frameborder="0" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" allowfullscreen="" data-mce-src="https://www.youtube.com/embed/4FUuDogNRMQ"></iframe></h3>
<h3 data-mce-fragment="1">Specifications</h3>
<ul data-mce-fragment="1">
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Input Voltage: 6S
</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Wheelbase: 225mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Top plate: 2.5mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Bottom plate: 2.5mm</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Arm: 5mm</li>
<li data-mce-fragment="1">Charge connector: XT60</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Motor: 2107.5 1960Kv
</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Weight: 385.5g</li>
</ul>
SPAN F722-HD-BT FC
<ul data-mce-fragment="1">
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">MCU: STM32F722</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">IMU: MPU6000(SPI)</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">OSD: BetaFlight OSD w/AT7456E chip</li>
<li class="paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt" data-mce-fragment="1">Blackbox: 16Mb Flash</li>
<li>BEC: 5V, 9V
</li>
<li>LC Filter: Yes</li>
</ul>
G50A ESC
<ul>
<li>MCU: STM32F051K86</li>
<li>Max Continuous Current: 50A</li>
<li>Max Burst Current: 55A</li>
<li>BEC: No</li>
<li>Current Sensor: Yes</li>
</ul>
Vista Module
<ul>
<li data-mce-fragment="1">Input Voltage: 7.4-26.4V
</li>
<li data-mce-fragment="1">Output Power: 25mW / 200mW / 500mW / 700mW</li>
<li data-mce-fragment="1">Dimensions:</li>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Vista: 30x29x13mm</li>
<li data-mce-fragment="1">Coaxial Cable: 120mm</li>
<li data-mce-fragment="1">Antenna: 105x11.2mm</li>
</ul>
<li data-mce-fragment="1">Weight: 28g (+1.5g for Antenna)</li>
</ul>
<ul></ul>
<h3 data-mce-fragment="1">Includes</h3>
<ul data-mce-fragment="1">
<li>1x GepRC BNF Mk5 Quad</li>
<li>4x Freestyle 4S propellers (pair)</li>
<li>1x Battery strap M15x250mm</li>
<li>2x Battery strap M20x220mm</li>
<li>2x Battery Silicone Pads</li>
<li>1x Camera cage carbon top plate</li>
<li>1x 3D print mountings combination</li>
<li>2x Action camera mount holder</li>
<li>1x Set of screws</li>
<li>1x Set of screwdrivers</li>
<li>1x Antenna fixed tube</li>
</ul>

The GEPRC BNF Mark5 HD Quad w/ Caddx Vista and Nebula Pro is developed specifically for freestyle with its squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning

GEPRC BNF Mark5 HD 6S 5" Quad w/ Vista & Nebula Pro - Choose Version

iFlight BNF Nazgul Evoque F5D HD 5" Deadcat Quadcopter

This iFlight BNF Nazgul Evoque F5D HD features the Nebula Pro Camera.
We also carry the <a href="https://www.racedayquads.com/products/iflight-bnf-nazgul-evoque-f5x-hd-squashed-x-5-quad-w-caddx-vista-and-polar-camera-6s-choose-receiver?_pos=2&amp_sid=14873965f&amp_ss=r" title="iFlight Evoque HD for Sale at RaceDayQuads" data-mce-href="https://www.racedayquads.com/products/iflight-bnf-nazgul-evoque-f5x-hd-squashed-x-5-quad-w-caddx-vista-and-polar-camera-6s-choose-receiver?_pos=2&amp_sid=14873965f&amp_ss=r" target="_blank" data-mce-fragment="1">iFlight BNF Nazgul Evoque F5X HD</a>.
The new iFlight Nazgul Evoque is a true work of art. They have added stack protectors to make sure you never have unwanted debris on your stack. The XT60 connector is mounted to the body, meaning that it cannot shift in flight leading to a cut lead. It also sports built-in LEDs to make sure your drone is always the center of attention.
Check out our other <a href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" data-mce-href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" target="_blank" data-mce-fragment="1">pre-built quads</a>, as well as the rest of our <a title="all iflight products for Sale at RaceDayQuads" href="https://www.racedayquads.com/collections/iflight-products?sort_by=created-descending" data-mce-href="https://www.racedayquads.com/collections/iflight-products?sort_by=created-descending" target="_blank" data-mce-fragment="1">iFlight selection</a>!
<iframe width="560" height="315" src="https://www.youtube.com/embed/yyvH1jj5iyM" title="YouTube video player" frameborder="0" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" allowfullscreen=""></iframe>
<iframe title="YouTube video player" src="https://www.youtube.com/embed/D5aXjri_1js" height="315" width="560" allowfullscreen="" allow="accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture" frameborder="0"></iframe>
<h3 data-mce-fragment="1">Features
</h3>
<ul>
<li>Lightweight Side Panels - Keep Your Rig Clean</li>
<li>Secured Integrated XT60 Battery Plug - As Safe, It Can Be</li>
<li>High-Performance Electronics - New Blitz Mini Stack
</li>
<li>XING2 Performance Motors - The Best Motors Just Got Better</li>
<li>Illumination - Let It Be Green!</li>
<li>Digital HD Experience - DJI FPV Camera</li>
</ul>
<h3 data-mce-fragment="1">Specifications</h3>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Weight: 412g</li>
<li data-mce-fragment="1">Propeller Size: 5"</li>
</ul>
iFlight Blitz Mini F7 V1.1 FC
<ul>
<li>MCU: STM32 F722</li>
<li>Gyro: BMI270</li>
<li>Baro: DPS310</li>
<li>OSD: IFLIGHT OSD （AT7456）</li>
<li>BlackBox: 16MB</li>
<li>
UARTS: 6
</li>
<li>1x I2C    SDA / SLA pads</li>
<li>WS2812 LED Strip：Yes</li>
<li>Beeper：Yes</li>
<li>Firmware: IFRC-IFLIGHT_BLITZ_F722</li>
<li>Dimensions: 30.5*27mm / 20*20mm φ4 mounting</li>
<li>Weight: 5.0g  </li>
</ul>
iFlight Blitz Mini E55A 4in1 ESC
<ul>
<li>Input: 2-6s LiPo</li>
<li>
Constant: 55 Amps (per channel)</li>
<li>Burst: 60 Amps (per channel)</li>
<li>MCU: BB21
</li>
<li>Target: QH-50 16.7</li>
<li>BEC: No</li>
<li>Dimensions: 35x42mm </li>
<li>Mounting Dimensions: 20x20mm, 3mm (2mm w/ grommets)</li>
<li>Weight: 10.4g    </li>
</ul>
<ul data-mce-fragment="1"></ul>
Vista Module
<ul>
<li data-mce-fragment="1">Input Voltage: 7.4-26.4V
</li>
<li data-mce-fragment="1">Output Power: 25mW / 200mW / 500mW / 700mW</li>
<li data-mce-fragment="1">Dimensions:</li>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Vista: 30x29x13mm</li>
<li data-mce-fragment="1">Coaxial Cable: 120mm</li>
<li data-mce-fragment="1">Antenna: 105x11.2mm</li>
</ul>
<li data-mce-fragment="1">Weight: 28g (+1.5g for Antenna)</li>
</ul>
<h3 data-mce-fragment="1">Includes</h3>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">1x iFlight BNF Nazgul Evoque F5D Deadcat 5" Quad w/ Caddx Vista and Nebula Pro Camera</li>
</ul>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">
<img src="https://cdn.shopify.com/s/files/1/1285/4651/files/1_53db57be-c118-4c58-8f75-96b05754bd7a_2048x2048.jpg?v=1638898386" alt="" data-mce-src="https://cdn.shopify.com/s/files/1/1285/4651/files/1_53db57be-c118-4c58-8f75-96b05754bd7a_2048x2048.jpg?v=1638898386" data-mce-fragment="1">
</li>
</ul>

This iFlight BNF Nazgul Evoque F5D HD features the Nebula Pro Camera.  We also carry the iFlight BNF Nazgul Evoque F5X HD. The new iFlight Nazgul Evoque is a true work of art. They have added stack protectors to make sure you never have unwanted debris on your stack. The XT60 connector is mounted to the body, meaning t

iFlight BNF Nazgul Evoque F5D HD Deadcat 5" Quad w/ Caddx Vista and Nebula Pro Camera - Choose Version

iFlight BNF Nazgul Evoque F5D HD Deadcat 5" Quad w/ Caddx Vista and Ne

GEPRC BNF CineLog 25 HD 2.5" Cinewhoop

The GEPRC CineLog 25 2.5" CineWhoop with RunCam Wasp has action camera stability, a 5.5-minute flight time, and long-range shooting capabilities perfect for cinematic flights.

#html-body [data-pb-style=H85NFAL],#html-body [data-pb-style=YWQN7C9]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body

GEPRC CineLog 25 2.5" 4S HD CineWhoop Drone w/ RunCam Wasp

GEPRC CineLog 25 2.5&quot 4S HD CineWhoop Drone w/ RunCam Wasp

The GEPRC CineLog HD Pro Drone has action camera stability, a 5.5 minute flight time, and long-range shooting capabilities perfect for cinematic flights.

The GEPRC Team is excited to release the GEPRC CineLog25 HD Pro CineWhoop drone! All innovations are disruptive for GEPRC CineLog25.
The most noteworthy feature of CineLog25 is that this lightweight quadcopter can shoot video with GoPro Lite. It ado

GEPRC CineLog 25 2.5" 4S HD Pro CineWhoop Drone w/ Caddx Nebula Pro

GEPRC CineLog 25 2.5&quot 4S HD Pro CineWhoop Drone w/ Caddx Nebula Pro

The GEPRC CineLog 25 2.5" CineWhoop with Caddx Polar Vista has action camera stability, a 5.5 minute flight time, and long-range shooting capabilities perfect for cinematic flights.

The GEPRC Team is excited to release the GEPRC CineLog25 HD Pro CineWhoop featuring the Caddx Polar Vista! All innovations are disruptive for GEPRC CineLog25.
The most noteworthy feature of CineLog25 is that this lightweight quadcopter can shoo

GEPRC CineLog 25 2.5" 4S HD CineWhoop Drone w/ Caddx Polar Micro

GEPRC CineLog 25 2.5&quot 4S HD CineWhoop Drone w/ Caddx Polar Micro

GEPRC Team Really Excitedly to released the GEPRC CineLog25 CineWhoop drone . All innovations are disruptive for GEPRC CineLog25. The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GoPro Lite. It adopts the most popular backward push design on the FPV field at present. It

GEPRC CineLog 25 HD 2.5

The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GoPro Lite. It adopts the most popular backward push design on the FPV field at present. It can effectively use the thrust weight ratio of the propeller to obtain higher flight efficiency. In the overall layout of the drone, we put VISTA HD in the center of the quadcopter, so that the center of gravity of the quadcopter is in the middle, The propeller Inlet is smoother and the noise is lower. Redesigned the shock absorption structure of the camera mount and GoPro Lite, Eliminated the jelly of the camera and FPV camera, and we can use 3, 4, and 5 damping rings according to the flight state to obtain the best stability in vibration and noise.
Be sure to choose the version for your radio setup.
Find the recommended <a href="https://www.racedayquads.com/products/cnhl-450mah-4s-70c-ministar-14-8v-li-po-fpv-battery-for-2-and-3-quads-xt30?_pos=2174&amp_sid=88dd9ddcc&amp_ss=r" data-mce-href="https://www.racedayquads.com/products/cnhl-450mah-4s-70c-ministar-14-8v-li-po-fpv-battery-for-2-and-3-quads-xt30?_pos=2174&amp_sid=88dd9ddcc&amp_ss=r" target="_blank">4S 450</a>-750mAh batteries here!
Check out our other <a href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" data-mce-href="https://www.racedayquads.com/collections/all-pre-built-quads-wings" target="_blank">pre-built quads</a>, as well as the rest of our <a href="https://www.racedayquads.com/collections/geprc-products" target="_blank">GEPRC selection</a>.
<h3>Features</h3>
<ul>
<li>The New camera damping system basically eliminates the video’s jelly and FPV camera’s vibration in terms of design, The damping construction can be adjusted the harder or softer to suit the Flight State. There are Three, Four and Five damping rings that can be used to provide sufficient stability in vibration and noise.</li>
<li>The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design, Including ultra-light carbon plate and new material, strength increases by 20%, efficiency increased by 15%</li>
<li>Cinelog Whoop Quadcopter Increases the Air Inlet volume and it with the EVA foam cushioning, Reduce the Airflow Resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations</li>
<li>High-efficiency power matching, The latest GR1404 4500kv(Upgraded Version) motor power output scheme and Brilliant Tune have further Improved the flight time</li>
<li>The CADDX VISTA was placed at the bottom, Optimized Design for the Air Inlet Structure. It’s a point of the greatest importance is a low center of gravity “pusher-style” inverted frame, increased efficiency of at least 15%</li>
</ul>
<h3>Specifications</h3>
<ul>
<li>Motors: GR1404 4500kv
</li>
<li>Propellor: <a href="https://www.racedayquads.com/products/gemfan-d63-ducted-durable-tri-blade-63mm-prop-8-pack?_pos=993&amp_sid=88dd9ddcc&amp_ss=r" data-mce-href="https://www.racedayquads.com/products/gemfan-d63-ducted-durable-tri-blade-63mm-prop-8-pack?_pos=993&amp_sid=88dd9ddcc&amp_ss=r" target="_blank">Gemfan D63-3</a>
</li>
<li>Weight: 145.5g
</li>
</ul>
GEPRC GEP-CL25 Frame
<ul>
<li>Wheelbase: 109mm</li>
<li>Main Plate Thickness: 2.5mm</li>
<li>Arm Thickness: 2.5mm</li>
<li>Stack Size: 25x25mm</li>
<li>Motor Mount: 9mm Φ</li>
<li>Camera Mount: Nano</li>
<li>Weight: 47.8g</li>
</ul>
GEPRC GEP-35A-F411 AIO FC
<ul>
<li>
Input Voltage: 2-4S LiPo
</li>
<li>
MCU: STM32F411
</li>
<li>Gyro: BMI270</li>
<li>
OSD: Yes</li>
<li>
ESC Connections: Yes</li>
<li>
Firmware: MATEKF411
</li>
<li>
BEC: 5V 1A
</li>
<li>
Current Sensor: Yes</li>
<li>
Buzzer: Yes</li>
<li>
Barometer: No</li>
<li>Stack Size: 25x25mm</li>
<li>
Dimensions: 32x32xmm
</li>
<li>
Weight: 7.3g
</li>
</ul>
Polar Camera
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Sensor: 1/1.8" Starlight CMOS</li>
<li data-mce-fragment="1">Min. Illumination: 0.00003Lux</li>
<li data-mce-fragment="1">Shutter: Rolling Shutter</li>
<li data-mce-fragment="1">ISO: 100-25600</li>
<li data-mce-fragment="1">S/N Ratio: &gt65dB (AGC Off)</li>
<li data-mce-fragment="1">Lens: F1.6 8MP</li>
<li data-mce-fragment="1">FoV: 162° Diag.
</li>
<li data-mce-fragment="1">Aspect Ratio 16:9
</li>
<li data-mce-fragment="1">Image Menu: Supported</li>
<li data-mce-fragment="1">Dimensions: 24x19x19mm
</li>
<li data-mce-fragment="1">Weight: 9g</li>
</ul>
Vista Module
<ul>
<li data-mce-fragment="1">Input Voltage: 7.4-26.4V
</li>
<li data-mce-fragment="1">Output Power: 25mW / 200mW / 500mW / 700mW</li>
<li data-mce-fragment="1">Dimensions:</li>
<ul data-mce-fragment="1">
<li data-mce-fragment="1">Vista: 30x29x13mm</li>
<li data-mce-fragment="1">Coaxial Cable: 120mm</li>
<li data-mce-fragment="1">Antenna: 105x11.2mm</li>
</ul>
<li data-mce-fragment="1">Weight: 28g (+1.5g for Antenna)</li>
</ul>
<h3>Includes</h3>
<ul>
<li>1x GEPRC BNF CineLog 25 HD 2.5" Cinewhoop w/ Caddx Vista &amp Polar Camera - Choose RX</li>
</ul>

The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GoPro Lite. It adopts the most popular backward push design on the FPV field at present. It can effectively use the thrust weight ratio of the propeller to obtain higher flight efficiency. In the overall layout of the drone, we put VISTA HD in the center of the quadcopter, so that the center of gravity of the quadcopter is in the middle, The propeller Inlet is smoother and the noise is lower. Redesigned the shock absorption structure of the camera mount and GoPro Lite, Eliminated the jelly of the camera and FPV camera, and we can use 3, 4, and 5 damping rings according to the flight state to obtain the best stability in vibration and noise.

GEPRC BNF CineLog 25 HD 2.5" Cinewhoop w/ Caddx Vista & Polar Camera - Choose RX

GEPRC CineLog 25 HD 2.5" Cinewhoop w/ Caddx Vista & Polar Camera - For Sale At RaceDayQuads

BetaFPV

BetaFPV BNF Meteor75 Brushless Whoop

BETAFPV

The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight.

#html-body [data-pb-style=DSQXOLU],#html-body [data-pb-style=TRX14H9]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body

BetaFPV Meteor75 1S Brushless Whoop HD w/ Walksnail Avatar Mini VTX

Stepping into HD world with 1S whoop quadcopter! The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle, bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight. Together wi

BetaFPV Meteor75 1S Walksnail Digital VTX Brushless Whoop Quadcopter - Choose Receiver

Meteor75, a better approach to the 75mm micro drone which features high KV motors - 1102 18000KV motors & BT2.0 450mAH battery, giving pilots plenty of power to use both indoor and outdoor spaces as a small scale acro playground.

Meteor75, a better approach to the 75mm micro drone which features high KV motors - 1102 18000KV motors & BT2.0 450mAH battery, giving pilots plenty of power to use both indoor and outdoor spaces as a small scale acro playground.
Note: Now avail

BetaFPV Meteor75 1S Brushless Whoop Quadcopter

The classical Meteor75 Brushless Whoop Quadcopter comes with HDZero Lite VTX bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight.

#html-body [data-pb-style=B33RHNB],#html-body [data-pb-style=JLA97CG]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body

BetaFPV Meteor75 1S Brushless Whoop HD w/ HDZero


Stepping into HD world with 1S whoop quadcopter! The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle, bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight. Together with 1102 18000KV motors that feature strong propulsion, it gives pilots powerful and impressive results. Enjoy an immersive flight experience, and get the perfect shots with the new HD VTX system indoors and outdoors.

Tons of ExpressLRS items are available now!
Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.

Bullet Points

Powerful propulsion capabilities combined with Walksnail HD VTX or HDZero VTX give pilots an immersive flight experience and impactful visuals.
Ultralight weight for 40.5g (Walksnail)/ 36.4g (HDZero). With BT2.0 connector, it effectively decreases internal connector resistance for good conductive performance.

Equipped with 40mm 3-blade props and upgraded 1102 18000KV motors. The upgraded motors not only take abilities as good as before to provide strong propulsion in 1S whoop drone but also come with a new look. And simultaneously its black and red motor bell fully matches the Meteror75 frame.

Reserve two UART ports on F4 1S 5A FC(SPI Frsky) V3.0 board. The Frsky version also can be used as the PNP version. Therefore, pilots can connect the external receiver to it.
F4 1S 5A FC (Serial ELRS 2.4G) V2.0 is flexible in upgrading and has great potential. It supports being upgraded to ELRS V3.0 separately without flashing Betaflight flight controller firmware.


Specification

Item: Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX)
Flight Time: 3.5 mins (HDZero)/3 mins (Walksnail)
Camera Adjustable Angle: 0-45°
Motors: 1102 18000KV Motor

Battery: BT2.0 450mAh 1S 30C Battery

Frame: Meteor75 Micro Brushless Whoop Frame

Propellers: 40mm 3-Blade Propellers (1.5mm Shaft)

Weight Without Battery: 40.5g (Walksnail)/36.4g (HDZero)
Receiver: Serial ELRS 2.4G/SPI Frsky/TBS
FC&ampESC: F4 1S 5A FC (Serial ELRS 2.4G) V2.0/F4 1S 5A FC (SPI Frsky) V3.0
VTX Power Output: 350mW (Walksnail), 25mW/200mW (HDZero)
VTX: 1S Walksnail Avatar Mini HD VTX/HDZero Whoop Lite Bundle
Camera: Wanlksnail Avatar Nano Camera/HDZero Nano Lite Camera


Note: F4 1S 5A FC (Serial ELRS 2.4G) V2.0 does not support external receivers. F4 1S 5A FC (SPI Frsky) V3.0 is available to connect an external receiver and can be used as PNP. Please make sure that the battery voltage must be 3V at least when flying, otherwise, the HD digital VTX would stop working.
HD Digital VTX System
There are two HD versions to choose from. Based on Walksnail Avatar, the Walksnail Avatar Mini HD VTX also uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/60FPS image recording with 22ms ultra-low latency. It is specially designed for 3.1-5V power input and 10g lightweight, which is compatible with 1S whoop drone. Build-in 8 GB storage, the Avatar Mini HD VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode on Avatar Mini HD VTX, Betaflight full OSD display is supported and can be adjusted easily by remote control.

HDZero Nano Lite Camera is designed for feather-lite drones where every gram counts. At a weight as low as 1.5g, combined with the new Whoop Lite VTX at 4.5g with 0.4g dipole antenna enables a world’s-first production digital FPV solution of about 7g. The HDZero Whoop lite Bundle supports 1-3S power input with 25mW/200mW RF power and is capable of recording in 720P/60FPS with super low latency of less than 19ms. What's more, pilots can activate and configure its OSD function on Betaflight Configurator.

Injection Molded Canopy for HD Camera
Micro Canopy for HD Camera is specially designed to be compatible with Walksnail or HDZero HD digital VTX and has an adjustable camera lens of 0-45°. With the injection molding technique, the canopy is very durable and flexible for crash resistant. Besides, the hollow-out design not only reduces the influence of heat on electronic parts but also is available to be armed with decorative parts we prepared.

New 1102 18000KV Motors
1102 18000KV motors have a great balance between weight and power on 75mm 1S whoop drones. Only 2.9g with connectors. With the high 18000KV, it could have a great punch power even with only 1S battery. Also, it adopts a PCB connector to allow you to repair it easier once cables are disconnected.

Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75 HD. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP. The ESC on the new board is powered by BB51 hardware in place of BB21. Last but not least, we update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.





Meteor75 HD (ELRS)

Meteor75 HD (Frsky, PNP, TBS)


FC Inside
F4 1S 5A FC (Serial ELRS 2.4G) V2.0
F4 1S 5A FC (SPI Frsky) V3.0


Gyro
BMI270
BMI270


FC Firmware
BETAFPVF411
BETAFPVF411RX


UART Port
One UART Port
Two UART Ports


External RX
Not Supported
Supported



Note: Pay attention, ONLY the newest Betaflight firmware 4.3.1 start to support this BMI270 gyrometer. Please check the below link to download the firmware and CLI dump file. If you update the 4.3.1 firmware from Betaflight official site, please flash the CLI dump file for Meteor75 HD.
Download the FC firmware and CLI dump file for Walksnail and HDZero version.
Recommended Parts

Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
Battery: BT2.0 450mAh 1S 30C Battery, BT2.0 550mAh 1S Battery
Props: 40mm 3-Blade Propellers (1.5mm Shaft)
Colorful Frame: Meteor75 Micro Brushless Whoop Frame

Colorful Canopy: Micro Canopy for HD Camera

Sticker: BETAFPV Waterslide Decals

Charger: 6 Ports 1S Battery Charger &amp Adapter

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

BT2.0 Series Accessories

FAQ

Pilots can read and export the recording videos from Walksnail VTX by a 4-pin connector. Below is the diagram picture. For more information, please refer to the manual for it.



Click to download the manual for Walksnail Avatar Mini VTX.
Click to download the manual for HDZero Whoop Lite Bundle.

Package

1 * Meteor75 Brushless Whoop Quadcopter (Walksnail or HDZero HD Digital VTX)
2 * 450mAh 1S 30C Battery with BT2.0 Connector
1 * Type-C USB Cable
1 * BT2.0 Battery Charger and Voltage Tester
4 * 40mm 3-Blade Props (1.5mm Shaft)
1 * Screwdriver
1 * Walksnail VTX USB Cable (For Walksnail Version)
1 * HDZero VTX USB Cable (For HDZero Version)
1 * Pack of Screws

Note: The propellers in the package were modified from three holes to one hole.



Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX)

BetaFPV Meteor75 1S HDZero Digital VTX Brushless Whoop Quadcopter - Choose Receiver

BetaFPV BNF Cetus X Brushless Whoop

Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that

BetaFPV Cetus X 2S Brushless Quadcopter - ELRS 2.4GHz

BETAFPV Hobby

Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC versions provide different functions to pilots but all help pilots to the next level.
Cetus X RTF FPV Kit is available now! Please click here to buy.
Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.


Bullet Point

An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoors.
The drone with Frsky receiver protocol version is also provided for customers who used to have LiteRadio 2 SE radio transmitter in Cetus Pro or Cetus RTF Kit.

Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2*BT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.
The Betaflight FC comes with the most popular firmware in the FPV community. Beginners are able to learn and understand more about FPV, which is an essential way to get drone experience.
The Cetus FC version offers an auxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop &amp impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specification

Item: Cetus X Brushless Quadcopter
Weight: 55g
Wheelbase: 95mm
FC: F4 1S 12A FC (Betaflight FC Version)/Cetus BL V3 Flight Controller (Cetus FC Version)

Motors: 1103 11000KV Motor

Props: Gemfan 2020 4-Blades Props

Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Frame: Cetus X Brushless Whoop Frame

Receiver Protocol: ELRS 2.4G (Betaflight FC Version only)/Frsky D8
VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
Battery: 2*BT2.0 450mAh 1S 30C Battery

Flight time: 5 mins


ExpressLRS 2.4G or Frsky D8

Equipped with F4 1-2S 12A flight controller, Cetus X brushless quadcopter supports ELRS 2.4G or Frsky D8 RX protocol. Both RX versions support the Betaflight configurator and have great performance in maneuverability, power, and flight time. Pilots who had Cetus Pro or Cetus RTF Kit can continue to use LiteRadio 2 SE radio transmitter to fly Cetus X Frsky D8 version.

Cetus FC or Betaflight FC

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to learn and understand the drone configuration. Both FC versions perform great in power and speed and have higher-grade flight modes for pilots to get advanced.




Cetus FC Version
Betaflight FC Version



Flight Controller
Cetus BL V3 Flight Controller
F4 1S 12A Flight Controller


Receiver Protocol
Frsky D8
ExpressLRS 2.4G/Frsky D8


Flight Mode
N/S/M/Turtle Mode
Angle/Horizon/Air/Turtle Mode


VTX
25-350mW
25-400mW


Position Hold
Support
Not Support


Configuration Software

BETAFPV Configurator

Betaflight Configurator




Note: Pilots who have LiteRadio 2 SE in Cetus or Cetus Pro FPV Kit can bind and fly the Cetus X Cetus FC version.
Auxiliary Flight Function
Built-in highly precise barometer to detect the height, the version with Cetus FC benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function also ensures an emergency landing of the drone whenever loses control or is on low battery. Meanwhile, its stable flight allows you to catch the best footage with the FPV Goggles. It really does an immense amount of fun and ease of flight for all pilots. Recommend flying it with BETAFPV VR03 Goggles.
Powered by 2S, Cetus X has loads of punch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, the Cetus Pro with 1S power, which has the same auxiliary flight function, is easier for initial pilots to control and fly.

Note: The position hold function is only available in N mode.
Improved Video Transmission

Cetus X Brushless Quadcopter comes with M04 25-400mW VTX and C04 FPV camera. The VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G/Frsky D8, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with C02 FPV camera.

Powerful Propulsion System

Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props. 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Besides, Cetus X quadcopter adopts 2020 4-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

Primary Choice for Next Level
Cetus X Brushless Qaducopter Betaflight FC version supports configuring on Betaflight configurator. It is a primary choice for beginners who start to learn drone configuring, which helps beginners to get advanced level. With the Betaflight configurator, you can calibrate accelerometer, custom OSD content, adjust the video transmitter and etc.

Note: Please DO NOT configure ESC or Motor settings on Betaflight configurator.
Betaflight Flight Controller
Cetus X brushless quadcopter is built-in F4 1S 12A FC board, supporting ELRS 2.4G, or default Frsky D8 protocol. The ELRS 2.4G version comes with betaflight 4.3.1 FC firmware so it supports ELRS V2.0. The Frsky version can be switched to the Futaba SFHSS protocol through the Betaflight configurator. The ESC on the new board powered by BB51 hardware comes with Bluejay 48k ESC firmware, allowing 1103 11000KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1-2S 12A FC.




Cetus X (ELRS 2.4G)
Cetus X (Frsky D8)


FC Inside
F4 1S 12A FC SPI ELRS 2.4G
F4 1S 12A FC SPI Frsky


Gyro

BMI270
BMI270


FC Firmware
BETAFPVF411SX1280
BETAFPVF411RX


ESC Firmware
C_X_30_48_ for Bluejay BB51 hardware
C_X_30_48_ for Bluejay BB51 hardware



Click here to know more information about F4 1S 12A Flight Controller ELRS or Frsky.
For Cetus X ELRS 2.4G version, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For Frsky D8 version, we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by BETAFPV.
The default flight controller firmware enables bidirectional D-shot and is compatible with Bluejay ESC firmware. If you update the 4.3.0 and up firmware for ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Cetus X.
Download the firmware and CLI dump file for Cetus X ELRS 2.4G or Frsky.
The Bluejay firmware could support the BB51 hardware now. Both ELRS and Frsky boards are powered by BB51 hardware. If you want to setup the ESC specification, please use the BLHeliSuite16714902A_Beta or ESC-Configurator.

ESC-Configurator: https://preview.esc-configurator.com/

Download BLHeliSuite16714902A_Beta here.
Download the Bluejay ESC firmware. Please choose C_X_30.HEX.

Note: Only ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).
Recommended Parts

Radio Transmitter: LiteRadio3, LiteRadio 2 SE
Goggles: VR02 FPV Goggles, VR03 FPV Goggles
Battery: BT2.0 450mAh 1S 30C Battery, BT2.0 550mAh 1S Battery
Props: Gemfan 2020 4-Blade Propellers

FAQ

ExpressLRS 2.4G is the most popular radio link now. Know more about ExpressLRS here.
The frame and props are visible when the camera's angle is 0°. Adjust it to about 25°, then the frame and props are invisible when flying.

Click to download the CLI dump file for Cetus X (Betaflight FC version).
Click to download the CLI dump file for Cetus X (Cetus FC version).
Click to download the Manual for Cetus X (Betaflight FC version).

Click to download the Manual for Cetus X (Cetus FC version).

Cetus X Brushless Quadcopter should work with two 1S batteries. Do not recommend using different brand batteries. Highly recommend the original batteries BT2.0 450mAh 1S 30C Battery.
Cetus X Brushless Quadcopter is similar to Meteor85 Brushless Whoop Quadcopter (2S) in many ways. For flying maneuverability and more battery choices, Meteor85 is a good alternative choice.

Package

1 * Cetus X Brushless Quadcopter
1 * BT2.0 Battery Charger and Voltage Tester
2 * BT2.0 450mAh 1S 30C Battery
1 * Phillips Screwdriver
1 * Prop Removal Tool
1 * Type-C Adapter
4 * Gemfan 2020 4-Blades Props



Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC ve

Cetus X Brushless Quadcopter

BetaFPV BNF Pavo25 HD 2.5" Cinewhoop

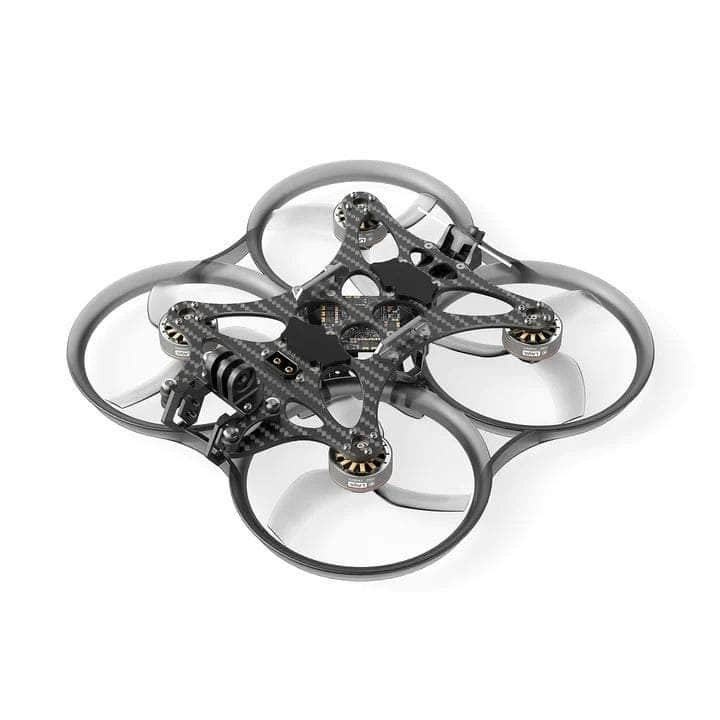

The Pavo25 Whoop Quadcopter is a 2.5-inch pusher drone developed by BETAFPV.

#html-body [data-pb-style=IRX449R],#html-body [data-pb-style=O6SIW8Q],#html-body [data-pb-style=PGPDDCL],#html-body [data-pb-style=Y7OIUR6]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cov

BETAFPV Pavo25 2.5" Cinewhoop Drone - HD

BETAFPV Pavo25 2.5&quot Cinewhoop Drone - HD

The Pavo25 Whoop Quadcopter is a 2.5-inch FPV pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mo

BetaFPV Pavo25 2.5

The Pavo25 Whoop Quadcopter is a 2.5-inch FPV pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mold frame for durable use. What's more, it supports carrying many FPV cameras available in the market for FPV shots. Also, it adopts Caddx Nebula Pro Nano Vista Kit for the HD Digital version, and Caddx Baby Ratel2+A03 400mW 5.8G for the Analog VTX version. Pavo25 is the cinewhoop for you to fly both indoors and outdoors!
Note: Walksnail HD Digitial VTX version is released now. It should be used with Walksnail goggles, which you need to buy separately.

Bullet Point

Only 6 screws to assemble the whoop duct and drone, convenient to build. The Pavo25 whoop quadcopter sports a reasonable design of structure assembly that is optimized to decrease complex components, making the build easy.
Equipped with a CNC Vista Adapter. It effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, ensuring a flight in a safe VTX RF power, especially which is important for long-distance flight.
The Pavo25 whoop quadcopter adopts an innovative pusher frame with a duct design, which generates more lift for the whole quadcopter, improving the ability of endurance and propulsion.
Made of high-quality PA12 material and 2.5mm carbon fiber. With a strong and durable frame kit, the Pavo25 whoop quadcopter grants more stable flight and optimizes the vibration damping structure for the camera mount, allowing pilots to get an excellent experience.
User-friendly designs. The USB port on the top of the frame makes it convenient to configure the quadcopter. Pavo25 whoop quadcopter features a rear LED with colorful lights, giving a cool and visual performance in the dark.
Balance layout for the whole quadcopter. When carrying an action camera like SMO 4K, or DJI Action 2, you can move the battery position and add the second battery strap to keep the center of gravity, preventing it from tilting to one side.
The HD digital VTX version boasts a colorful and excellent image with 720P/120FPS high frame rate video in Nebula Pro Nano camera, bringing the feast for the eyes.
The Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/18" inch starlight HDR sensor with 1200TVL resolution, and A03 400mW VTX which is an open-source video transmitter with PIT/RCE/100mW/400mW adjustable output power.
Walksnail HD VTX version equips with Walksnail Avatar HD Kit. Provides 1080P recording with 22ms ultra-low latency. Dual-antenna design for up to 4 km long-range transmission. Build-in 8 GB storage, it is convenient for recording video and can be exported by USB cable. Supports Betaflight full OSD display through Canvas Mode on Avatar VTX.


Specification

Weight: 153.3g (Caddx HD), 146g (Walksnail HD), 140g (Analog), Without battery and action camera
Wheelbase: 108mm
Frame: Pavo25 Frame Kit

Motor: 1404 4500KV Brushless motor

Battery Connector: XT30
Props: Gemfan D63-3B (Gray)

Flight Controller: F405 AIO 20A Toothpick V4 BMI270

VTX: Caddx Nebula Pro Nano Vista Kit (HD Digital)/Caddx Baby Ratel2+A03 400mW 5.8G (Analog), Walksnail Avatar HD Digital Kit (HD Digital)
Camera Adjustable Angle: 0°-50°
Receiver Version: PNP/ELRS 2.4G/TBS (Optional)
Recommend Battery: 4S 750mAh/4S 850mAh (Not included)
Recommend Mounted Cam: SMO 4K, DJI Action 2
Flight Time (Reference Only): 7.5 mins (HD)/8.5 mins (Analog), using 4S 750mAh battery without an action camera

Note: The actual flight time depends on the flight environment and the flight mode.
Comparison to Beta95X V3

Let's see what has changed in the updates for Pavo25 Whoop Quadcopter. Compared with the Beta95X V3, Pavo25 is made of PA12 material with injected molding, which improves the stability of the flight, dampening the noise and eliminating the Jelly Effect. Besides, with an optimized damping structure and no need for rubber dumpers, it is able to carry more heavy action cameras like DJI Action 2. What's more, large capacity batteries like 4S 750mAh/850mAh are supported, which ensures a long-time flight and endurance.




Pavo25 Whoop Quadcopter

Beta95X V3 Whoop Quadcopter


Wheelbase
108mm
95mm


Weight (No Battery)
153g/146g (Caddx/Walksnail HD), 140g (Analog)
116.7g (HD), 99.1g (Analog)


Battery

4S 750mAh/850mAh (Excluded)

4S 450mAh (Excluded)


Receiver
PNP/ELRS 2.4G/TBS
Frsky FCC/Frsky LBT/TBS/PNP


HD VTX


Caddx Nebula Pro Nano Vista Kit
Walksnail Avatar HD Digital Kit

Caddx Nebula Nano HD


Analog VTX

Caddx Baby Ratel2+A03 400mW 5.8G
Caddx Ant Camera+M02 25-350mW 5.8G



FPV Camera Degree
0°-50°
25°- 45°


FPV Camera

SMO 4K, DJI Action 2
SMO 4K, other weighs about 50g


Flight Time (HD)
7.5 mins (No cam, 4S 750mAh)
3.5 mins (No cam, 4S 450mAh)


Flight Time (Analog )
8.5 mins (No cam, 4S 750mAh)
4.5 mins (No cam, 4S 450mAh)



Assembly

Whoop duct and drone connected by 6 screws, easy to disassemble
Each electronic accessory should be screwed to the mount and then covered by the top plate




Camera &amp VTX System

Pavo25 Whoop Quadcopter Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/1.8 inch starlight HDR sensor with 1200TVL resolution, and an A03 400mW OpenVTx video transmitter which supports SmartAudio&ampTramp protocol with PIT/RCE/100/400mW adjustable output power. Therefore, pilots can customize the output power and frequency to explore more possibilities and have fun.

Pavo25 Whoop Quadcopter HD Digital version equips with Caddx Nebula Pro Nano Vista Kit that perfectly supports DJI goggles. With DJI goggles, it can provide 720p/120FPS digital high-definition picture and a transmission output range up to 4km. Users can select 25mW/200mW/500mW/700mW from DJI goggle settings. The total weight (excluding the antenna) is 23g only. Besides, it is smaller and designed for whoop drones.

Walksnail HD Digital VTX
Pavo25 Whoop Quadcopter Walksnail HD Digital VTX version features Avatar HD Kit with Avatar HD system that uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/720P resolution image recording with 22ms ultra-low latency. The signals are stronger and more stable with a dual-antenna design for up to 4 km long-range transmission. Build-in 8 GB storage, the Avatar VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode on Avatar VTX, Betaflight full OSD display is supported and can be adjusted easily by remote control.

Pavo25 Frame Kit
Pavo25 frame is made of high-quality PA12 material with strong and durable injected molding, which grants more stable flight and no fear of damage. The whole frame with pusher and duct design can generate more lift for the whole quadcopter, improving the ability of endurance and propulsion. Besides, the vibration damping structure for the camera mount is optimized to carry an action camera easily, allowing pilots to have an excellent experience.

What's more, it comes with a CNC Vista Adapter, which effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX.
Note: If you need to buy CNC Vista Adapter separately, please click here. This CNC Vista Adapter is not suitable for Walksnail Avatar VTX. The Walksnail HD VTX version includes a CNC adapter designed for Walksnail Avatar VTX.

FC &amp ESC
Pavo25 whoop quadcopter is equipped with the Toothpick F405 AIO 20A FC V4 BMI270, it extremely reduces the weight while improving the ability of the ESC to continuous current 20A, and brings pilots more power to fly the Pavo25 quad! Meanwhile, 20A FC V4 has 2 pin connector ports for DJI Digital VTX and RX, just plug &amp play, less solder work needed, and super easy to install.

Motor &amp Props
Gemfan D63 3-Blades Props is designed for inverted installation, and it brings pilots a smooth flight! It is more durable and more powerful and offers pilots a high-efficiency flight experience. Equipped with the 1404 4500KV Brushless motor, it brings a stronger power and lower noise, which will give pilots an unprecedented flying experience.

The Pavo25 Whoop Quadcopter also comes with "props out" by default. Why do we need "Props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.
Know more about "Props Out".
FAQ
First of all, Many thanks to UAV Tech and Gal Kremer who devoted their time and energies to the testing of Pavo25 Whoop Quadcopter.
CLI files for Pavo25 Whoop Quadcopter are published, including stable and flexible versions for choice. The flexible version provides more agile flight experience while the stable version features a better balance flight experience.
STL file for Pavo25 Series. If you need 3D printing parts to custom your Pavo25.
Click here to download Walksnail Avatar VTX Kit manual.






Package

1 * Pavo25 Whoop Quadcopter (HD Digital VTX, Walksnail HD Digital VTX, or Analog VTX)
4 * Gemfan D63 (2CW+2CCW) 3-Blades Props
1 * Spare 180mm Battery Strap
2 * Spare EVA Foam Tape (Black)
2 * Spare EVA Foam Tape (Red)
4 * 3M Double-Sided Tapes
1 * SMO4K Camera Mount
1 * SMO4K Power Cable
1 * M5*18 Screws
1 * M5 Anti-slip Nut
10 * M2*7 Screws
1 * Walksnail VTX USB Cable (only included in Walksnail HD VTX version)

Note: Currently, A03 5.8G VTX for the Analog version is out of stock. We temporarily changed the A03 5.8G VTX to A02 5.8G VTX. Please feel free to contact us if you have any questions.


Batteries and SMO 4K Camera are not included in the package. You can get it here for 750mAh 4S battery/ 850mAh 4S battery and SMO 4K camera.


Pavo25 Whoop Quadcopter

BetaFPV BNF Pavo360 HD Quadcopter

Pavo360, the newest generation of 360 FPV quadcopter, generated by BETAFPV, has superb performance in its recording, flying performance, stability, and design. The drone comes with landing gear, protecting the camera lens when the quadcopter lands on the surface, giving the Pavo360 ability to land anywhere. The ultra-t

BetaFPV Pavo360 FPV Quadcopter HD Vista Polar - Choose RX

Pavo360, the newest generation of 360 FPV quadcopter, generated by BETAFPV, has superb performance in its recording, flying performance, stability, and design. The drone comes with landing gear, protecting the camera lens when the quadcopter lands on the surface, giving the Pavo360 ability to land anywhere. The ultra-thin and flat frame design made sure the drone is completely invisible when recording a video with the SMO360 panoramic camera.



Bullet Points

The Pavo360 is the first 360 FPV drone with landing gear generated by BETAFPV. Compared with X-Knight 360 FPV Quadcopter, it protects the camera lens when the quadcopter takes down from air to surface, the Pavo360 is able to land on most flat surfaces.
Both analog and HD Digital VTX versions come with Toothpick F722 AIO 35A FC, 2204-2400KV motor &amp Gemfan D76 5-Blades props, this highly efficient propulsion system lays the foundation for powerful and stable flight.
Equipped with a newly developed Pavo360 frame, which is made of PA12 material, it has higher abrasion resistance, toughness, and shows excellent impact resistance in drop &amp impact tests.
The ultra-thin and flat frame design with SMO 360 Camera (not included) makes it possible to record and enjoy the 360 videos without any unseen areas. Pavo360 is perfectly called an invisible drone.
There are two versions for Pavo360 FPV Quadcopter. Both versions support the SMO360 Camera. Please note that the Pavo360 camera mount is suitable for the SMO360 Camera only and other cameras can not be installed. We highly recommend buying BETAFPV SMO 360 Camera together.



BETAFPV SMO 360 Camera
A high-degree ultralight action panoramic camera designed for Pavo360 FPV Drones! Developed by BETAFPV using Insta360 technology, SMO 360 camera only weighs 55g and is perfectly fitted for Pavo360 FPV drones. The distance between the 2 lenses is 40mm, giving more room to the drone height. Meanwhile, with the FlowState stabilization function, pilots can shoot panoramic video and get an ultra-smooth and stable video, which makes the SMO 360 camera the best choice for pilots in search of high-quality 360 videos with FPV drones!
The Pavo360 drone set does not come with the SMO 360 Camera. Therefore, to better enjoy the Pavo360 FPV quadcopter, we highly recommend buying BETAFPV SMO 360 Camera together.


HD Digital &amp Analog VTX

Caddx Polar Vista Camera is an HD digital FPV camera with excellent performance. It is lightweight, only 28g (Camera and VTX). The camera has a large wide camera angle. The video quality reaches 720p / 60fps. Low delay HD image transmission and brilliant night photography are the highlights of it as an FPV camera. Together with Pavo360's unique frame design and strong propulsion system, the camera can give full play to FPV racing and bring you a hearty flight experience.
The Caddx Ratel is a great camera choice for both night flights as well as during the day! Equipped with a high-quality 1/1.18" HDR sensor, it provides up to 0.0001 Sensitivity of lux. It is very versatile in that you can switch between PAL and NTSC video and also between 4:3 and 16:9 video formats. Latency is super low at only 8ms.
A02 5.8G VTX is a lightweight, small size, and high-quality 25-800mW VTX, it offers a selectable 25/200/500/800mW output power for extreme range FPV flight. With 800mW output power, pilots can fly drones up to 1100 meters away to explore more possibilities and fun.



Landing Gear
New and incredible design for the Pavo360. BETAFPV efforts to improve the durability, performance, and creativity of drones. With the landing gear, which protects the camera lens when the quadcopter takes down from air to surface, the Pavo360 is able to land on most flat surfaces.
Note: Although the Pavo360 equips with landing gear that is designed for protecting the SMO 360 camera lens, further protection is necessary. Strongly recommend buying lens guard together.

After binding, you can control the extension or retraction of the landing gear on the 8th channel toggle switch (default settings) of your transmitter. This function setting is available to be changed on your transmitter or flight controller.



Flight controller setting for landing gear

Open Betaflight Configurator and connect the flight controller. Enable Expert mode.
Select Configuration and enable SERVO_TILT





Go to Servos tab on the left list of the Betaflight Configurator.
Change the channel for landing gear. The default channel is A4 on Servo 0.



Finally, enter the CLI commands via Betaflight configurator.

resource SERVO 1 A08resource LED_STRIP 1 NONEsave
Note: Only the Servo 0 is available. Other servos like Servo 1, 2, or 3 are not active. Please do not set the channel on other servos. Otherwise, the landing gear will not work.


Pavo360 Frame Kit
This frame kit is a new, ultra-thin, and flat frame design for Pavo360, which perfectly invisible the drones when recording a video. With the material of high-quality carbon fiber, the frame is not only secured and well built but also weighs light. Response very fast with F722 AIO Brushless FC 35A(BLHeli_S) and 2204-2400KV Motor. Pilots will enjoy a flight experience with Pavo360.



Wiring Diagram for Electronic Parts
Below is the connection diagram for the HD Digital VTX version.
Click here to download the CLI for Pavo360 FPV Quadcopter.

Below is the connection diagram for the Analog VTX version.
Click here to download the CLI for Pavo360 FPV Quadcopter.



Note: The remote recording and power cables for SMO 360 camera are not soldered on FC board when the the factory. Please solder it if you want to use this function.
SMO 360 Camera Mounting Instruction
The SMO 360 Camera is designed for Pavo360 quadcopter. Pilots can remove the top plate cover and directly install it on the drone.


Motors &amp Props
Pavo360 analog VTX and HD Digital VTX version come with 2204-2400KV motor &amp Gemfan D76 5-Blades props, these 2 configurations achieve a perfect dynamic balance, which gives the drone more flexible and longer flying time. Pilots can enjoy powerful and stable flights with less noise.


Specification

Item: Pavo360 FPV Quadcopter
Motor: Black 2204-2400KV (6S)

Power connection: XT30 double-end aircraft model power connector, red and black wire plus subboard
Propeller: transparent grey GF D76-5B

Flight Controller: F7 6S AIO 35A Toothpick Flight Controller

Battery: 3S 850mAh 75C battery

FPV Camera&ampVTX (HD digital version): Caddx Polar Vista Kit

FPV Camera&ampVTX (Analog version): Caddx Ratel+A02 800MW

FPV Camera tilt angle: 0-60°
Weight: 326g
Wheelbase: 168mm
Receiver: PNP/TBS Crossfire receiver
Flight time: Smooth flight about 5 minutes


Package

1 * Pavo360 FPV Quadcopter (Without SMO 360 Camera)
2 * CW Gemfan D76 5-Blades Propellers

2 * CCW Gemfan D76 5-Blades Propellers

1 * Pavo360 Sticker
2 * 3S 850mAh 75C XT30 Battery



Pavo360 FPV Quadcopter

BetaFPV BNF Cetus Pro Quadcopter

Cetus Pro is a brushless quadcopter with a Lite 1-2S Pro brushless Flight Controller and a 12A ESC. Equipped with 1102-18000KV brushless motors and 40mm 3-blade props, which is capable of performing diverse freestyle tricks. Highly beginner-friendly and training-friendly, turtle mode and three power modes help pilots capture the fun of FPV racing more easily!

Bullet Point

The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.
Cetus Pro quadcopter comes with a brushless power system, it's more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train.
With the self-protection of emergency landing when out of control or in low battery, to ensure a safer flight.
Made of PA12 material, the frame has an excellent impact resistance in drop &amp impact. Meanwhile, the 360° protection of the whoop frame ensures safe flights both indoors and outdoors.
Turtle mode and three flight modes make FPV training much convenient and accessible.


Specification

Positioning system: Optical flow/ Barometer/ Laser
Height positioning: Laser/ Barometer
Position locating: Optical flow (effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
Flight controller: Lite 1-2S Pro brushless FC
VTX: 25mW
Camera tilt degree: 30°
Camera: C02 FPV Micro Camera

TX mode: Mode 1 &amp Mode 2 optional
Motor: 1102-18000KV Brushless motor

Propellers: 40mm 3-blade 1.5mm shaft hole

Frame: Cetus Pro Brushless Whoop Frame

Takeoff weight: 33.19g (without battery)
Power system: 1S
Battery: BT2.0 450mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)


Altitude Hold, Easy to Fly
The altitude hold function enables Auto-Hover. This quadcopter can stay at a current height when pilots' hands are off the transmitter. Barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner!
The altitude hold function is only available in N mode.

Self-protection, No More Dangers
The quadcopter comes with an excellent self-protection function. It can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once there is a strong collision with the object. Let's say goodbye to loss and crash!


Turtle Mode, No Burden to Fly Away
When the quadcopter falls to the ground and upside down, we can active turtle mode by LiteRadio2 SE transmitter to flip it over and resume flying. With this function, there is no need to walk away to correct the position manually.
Turtle mode will not work effectively if something gets stuck in the motor/prop. Please push down switch SD on the LiteRadio2 SE transmitter immediately in this situation to exit turtle mode.

3 Flight Modes, From Zero to Hero
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus Pro Brushless Quadcopter helps anyone fly confidently from day one.  When using the LiteRadio2 SE transmitter, the 3 flight modes can be switched by one SB switch on the transmitter, which is simple and convenient. Meanwhile, all modes support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Recommended Parts

Radio Transmitter -- LiteRadio2 SE Radio Transmitter
FPV Goggles -- VR02 FPV Goggles


Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.


Note: Pilots should remove the battery plate if installing the 550mAh battery on Cetus Pro.
FAQ
How can I bind this quad when not using LiteRadio2 SE Transmitter?
You can only bind the Cetus Pro quad with radio transmitters that support the Frsky D8 protocol. After binding, you can use AUX 1 to arm and disarm the quad. Using AUX 2 to switch different flight modes, using AUX 3 to switch SLOW/MID/FAST speed, and using AUX 4 to switch FPV frequency. Check detailed binding process in the Cetus Pro quad user manual.

Package

1 * Cetus Pro Brushless Quadcopter
2 * BT2.0 450mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 40mm 3-blade Props

2 * User Manual
1 * Phillips Screwdriver

Note: The propellers in the package were modified from three holes to one hole.


Cetus Pro is a brushless quadcopter with a Lite 1-2S Pro brushless Flight Controller and a 12A ESC. Equipped with 1102-18000KV brushless motors and 40mm 3-blade props, which is capable of performing diverse freestyle tricks. Highly beginner-friendly and training-friendly, turtle mode and three power modes help pilots c

Cetus Pro Brushless Quadcopter

BetaFPV BNF X-Knight 35 HD 3.5" Quadcopter

X-Knight 35 FPV Quadcopter - a unique freestyle VTX FPV quadcopter with 3.5 inch propellers and Caddx Polar Vista Kit. The excellent night vision function brings you a flexible flight experience whether in daytime or nighttime. It can flight all kinds of FPV freestyle tricks. Let the show get started! Check out all our

BetaFPV X-Knight 35 FPV Quadcopter - BNF

X-Knight 35 FPV Quadcopter - a unique freestyle VTX FPV quadcopter with 3.5 inch propellers and Caddx Polar Vista Kit. The excellent night vision function brings you a flexible flight experience whether in daytime or nighttime. It can flight all kinds of FPV freestyle tricks. Let the show get started!

Bullet Points

Caddx Polar Vista Kit provides a premium and lightweight HD FPV camera system with a large wide camera angle, 162°. With video clarity and transmission intensity comparable to the DJI Air Unit, and enhanced night vision. Pilots can give full credit to the high-quality image connection under any circumstances. GoPro can be also equipped on this quadcopter.
HQ and Gemfan 3520 3-blade propellers are both put in the package. They are capable of providing linear throttle response in the flight time and control efficiency suite. With 3.5-inch props, the X-Knight 35 has enough lift power while performing a variety of freestyle and acrobatic flying tricks perfectly and efficiently. Besides, it is less noisy than those 5-inch props quads.
The unique frame design makes it suitable for photography, the lens position is forward with a protective shell. You don't have to worry about seeing the props or the frame itself in the flight video, which is great for making cinematic shots and vlogging.
Equipped with an F4 AIO 20A and 1404-3800KV motor, this great combination of power systems enables the X-Knight 35 to maintain magnificent energy and less noise in flight.


Specification

Item: X-Knight 35 FPV Quadcopter
Weight: 142.9g (Without battery)
Motor: 1404 3800KV Brushless Motors

Power Connection: XT30, black&ampred wires
Props: HQ 3520 3-Blade Propellers (Gray) / Gemfan 3520 3-Blade Propellers (Gray)

FC&ampESC: F4 AIO 20A Brushless Flight Controller V3

Battery: 750mAh 4S 95C Lipo Battery

VTX&ampCamera: Caddx Polar Vista Kit (HD Digital VTX)
FPV Camera Degree: 0°-60°
Diameter: 155m
Receiver: ELRS 2.4GHz Receiver / TBS Receiver
Flight time: 11~13 min smooth flight or 4~6 min flight of FPV freestyle tricks with 4S 750mAh battery

Caddx Polar Vista Kit (HD Digital VTX)
Caddx Polar Vista Camera is an HD digital FPV camera with excellent performance. It is lightweight, only 28g (Camera and VTX). The camera has a large wide camera angle, 162°. The video quality reaches 720p / 60fps. Low delay HD image transmission and brilliant night photography are the highlights of it as an FPV camera. Together with X-Knight 35 unique frame design and strong power system, the camera can give full play to FPV racing and bring you a hearty flight experience.

X-Knight 35 Frame Kit
X-Knight 35 Frame is special-designed for creating great flexibility on the camera degree ranging from 0°-60°. The camera position extends outward so that the props won't be seen under the sight, making a clean HD FPV flying view a possibility.
FC &amp ESC
F4 AIO 20A Brushless FC V3 has upgraded to 3 full UARTs and an 8M flash chip for Blackbox. 3 full UARTS Support DJI Digital VTX. It also extremely reduces the weight while improving the ability of the ESC to continuous current 20A, and brings pilots more power to fly the X-knight 35 drone! Compared to FC / ESC Stacks design, this board provides massive levels of performance capability, while still maintain ultralight at only 6.63g. Just plug &amp play, less solder work needed, super easy to install.

Motors &amp Props
1404 3800KV Brushless Motors are lightweight 3-4S motors. It only weighs 9.66g / 1pc. Best matched with the HQ 3520 3-Blade Props and GF 3520 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with F4 20A AIO Brushless FC, it will provide you enough output power. The frame is made of T700 Carbon Fiber, which has good crashworthiness and durability.

Battery
4S 750mAh Lipo Battery is the best option to power the X-Knight 35 FPV Freestyle Drone and the high-efficiency performance will satisfy all of the desires of Long-Range Flight. With the flat design, the battery is only 25mm in height. With a 4S (14.8V) high voltage and 95C discharge rate, this battery allows pilots to accelerate to the full speed in a short time, and perform more actions during the flight.

FAQ
Please click here to download the CLI file for X-Knight 35.
Package
1 * X-Knight 35 FPV Quadcopter4 * HQ 3520 3-Blade Propellers (2CW+2CCW)4 * QF 3520 3-Blade Propellers (2CW+2CCW)1 * Camera Base Print

X-Knight 35 FPV Quadcopter - a unique freestyle VTX FPV quadcopter with 3.5 inch propellers and Caddx Polar Vista Kit. The excellent night vision function brings you a flexible flight experience whether in daytime or nighttime. It can flight all kinds of FPV freestyle tricks. Let the show get started! Bullet Points Cad

X-Knight 35 FPV Quadcopter (HD Digital VTX)

BetaFPV RTF Cetus Pro FPV Kit - Cetus Pro Whoop, Goggles, Transmitter, Batteries, Charger & Case

The BETAFPV Cetus Pro FPV Kit has everything a beginner needs to advance their flight experience!

The BETAFPV Cetus Pro FPV Kit has everything a beginner needs to advance their flight experience!
The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. The Cetus Pro FPV Racing Kit comes with th

BETAFPV Cetus Pro FPV Brushless Whoop Racing Kit

The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor. Check out all our

BetaFPV Cetus PRO FPV RTF Kit W/Goggles & Controller

The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor.
Bullet Point

The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.
Cetus Pro quadcopter comes with a brushless power system, it's more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train.
With the self-protection of emergency landing when out of control or in low battery, to ensure a more safe flight.
Made of PA12 material, the frame has an excellent impact resistance in drop &amp impact. Meanwhile, the 360° protection of the whoop frame ensures safe flights both indoors and outdoors.
All items needed for the flight are packed in an EVA portable storage bag. Better to protect and convenient to carry.

Package Includes

1 * Cetus Pro Brushless Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 450mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 40mm 3-blade Props

2 * User Manual
1 * Portable Storage Bag






Altitude Hold, Easy to Fly
The altitude hold function enables Auto-Hover. This quadcopter can stay at a current height when pilots' hands are off the transmitter. Barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner!
The altitude hold function is only available in N mode.

Self-protection, No More Dangers
The quadcopter comes with an excellent self-protection function. It can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once there is a strong collision with the object. Let's say goodbye to loss and crash!

Turtle Mode, No Burden to Fly Away
When the quadcopter falls to the ground and upside down, we can active turtle mode by LiteRadio2 SE transmitter to flip it over and resume flying. With this function, there is no need to walk away to correct the position manually.
Turtle mode will not work effectively if something gets stuck in the motor/prop. Please push down switch SD on the transmitter immediately in this situation to exit turtle mode.

3 Flight Modes, From Zero to Hero
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus Pro FPV Kit helps anyone fly confidently from day one. These 3 flight modes can be switched by one SB switch on transmitter, which is simple and convenient. Meanwhile, all modes support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Cetus Pro Brushless Quadcopter
Equipped Lite 1-2S Pro brushless flight controller with 12A ESC, matching with 1102 18000KV brushless motors and 40mm 3-blade props, which is absolutely more powerful and maneuverable. Turtle mode greatly makes FPV racing training smooth and convenient.

FPV Simulator Supported
LiteRadio2 SE radio transmitter can be used as a USB Joystick when connected to the computer. So it's available to play FPV simulators like EREADRONE. More convenient for practicing and charging at the same time. Besides, the transmitter is more ergonomic with a hobby-grade gimbal and adopted the rubber coat.

VR02 FPV Goggles
VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, it fits your face and head perfectly.

Specification

Positioning system: Optical flow/ Barometer/ Laser
Height positioning: Laser/ Barometer
Position locating: Optical flow (effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
Quad: Cetus Pro Brushless Quadcopter

Flight controller: Lite 1-2S Pro brushless FC
VTX: 25mW
Camera tilt degree: 30°
Camera: C02 FPV Micro Camera

Transmitter: Literadio2 SE Transmitter

TX mode: Mode 1 &amp Mode 2 optional
Goggles: VR02 Goggles

Motor: 1102-18000KV Brushless motor

Propeller: 40mm 3-blade 1.5mm shaft hole
Takeoff weight: 33.19g (without battery)
Power system: 1S
Battery: BT2.0 450mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)

FAQ

For more info and instructions, please check the User Manual for Cetus Pro FPV Kit


The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor.

Cetus PRO FPV Flight Kit

The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor. Bullet Point The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.  Cetus Pro quadcopter comes with a brushless power system, it's more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train. With the self-protection of emergency landing when out of control or in low battery, to ensure a more safe flight.  Made of PA12 material, the frame has an excellent impact resistance in drop &amp; impact. Meanwhile, the 360° protection of the

The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor.

Bullet Point

The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.
Cetus Pro quadcopter comes with a brushless power system, it's more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train.
With the self-protection of emergency landing when out of control or in low battery, to ensure a more safe flight.
Made of PA12 material, the frame has an excellent impact resistance in drop &amp impact. Meanwhile, the 360° protection of the whoop frame ensures safe flights both indoors and outdoors.
All items needed for the flight are packed in an EVA portable storage bag. Better to protect and convenient to carry.




Altitude Hold, Easy to Fly
The altitude hold function enables Auto-Hover. This quadcopter can stay at a current height when pilots' hands are off the transmitter. Barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner!
The altitude hold function is only available in N mode.

Self-protection, No More Dangers
The quadcopter comes with an excellent self-protection function. It can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once there is a strong collision with the object. Let's say goodbye to loss and crash!

Turtle Mode, No Burden to Fly Away
When the quadcopter falls to the ground and upside down, we can active turtle mode by LiteRadio2 SE transmitter to flip it over and resume flying. With this function, there is no need to walk away to correct the position manually.
Turtle mode will not work effectively if something gets stuck in the motor/prop. Please push down switch SD on the transmitter immediately in this situation to exit turtle mode.

3 Flight Modes, From Zero to Hero
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus Pro FPV Kit helps anyone fly confidently from day one. These 3 flight modes can be switched by one SB switch on transmitter, which is simple and convenient. Meanwhile, all modes support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Cetus Pro Brushless Quadcopter
Equipped Lite 1-2S Pro brushless flight controller with 12A ESC, matching with 1102 18000KV brushless motors and 40mm 3-blade props, which is absolutely more powerful and maneuverable. Turtle mode greatly makes FPV racing training smooth and convenient.

FPV Simulator Supported
LiteRadio2 SE radio transmitter can be used as a USB Joystick when connected to the computer. So it's available to play FPV simulators like EREADRONE, LIFTOFF. More convenient for practicing and charging at the same time. Besides, the transmitter is more ergonomic with a hobby-grade gimbal and adopted the rubber coat.

New to FPV? No worries. Our new Cetus Pro FPV Kit will take you from zero to hero in no time.This is a very different drone from BETAFPV. It's a brushless whoop drone designed from the ground up for FPV beginners. With three modes, you can start your FPV journey at a stable, basic level – and then progress. If you’ve ever felt that FPV is too difficult to tackle, this is the solution for you.
Click here to know more about LIFTOFF.
Download LIFTOFF.

VR02 FPV Goggles
VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, it fits your face and head perfectly.

Specification

Positioning system: Optical flow/ Barometer/ Laser
Height positioning: Laser/ Barometer
Position locating: Optical flow (effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
Quad: Cetus Pro Brushless Quadcopter

Frame: Cetus Pro Brushless Whoop Frame

Flight controller: Lite 1-2S Pro brushless FC
VTX: 25mW
Camera tilt degree: 30°
Camera: C02 FPV Micro Camera

Transmitter: Literadio2 SE Transmitter

TX mode: Mode 1 &amp Mode 2 optional
Goggles: VR02 Goggles

Motor: 1102-18000KV Brushless motor

Propeller: 40mm 3-blade 1.5mm shaft hole
Takeoff weight: 33.19g (without battery)
Power system: 1S
Battery: BT2.0 450mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)

FAQ


Top questions that customers frequently asked about Cetus Pro.

For more info and instructions, please check the User Manual for Cetus Pro FPV Kit

Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.

Note: Pilots should remove the battery plate if installing the 550mAh battery on Cetus Pro.
Package

1 * Cetus Pro Brushless Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 450mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 *  40mm 3-blade Props

2 * User Manual
1 * Portable Storage Bag
1 * Phillips Screwdriver

Note: The propellers in the package were modified from three holes to one hole.


Recommended by 5000+ experts and reviews, one of the most popular fpv kits for beginners.Best price and stable quality for fpv drone. The Cetus Pro FPV Kit FPV drone is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles

Cetus Pro FPV Kit

BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case

BetaFPV Cetus FPV Whoop Racing Kit - Brushed Version

The BETAFPV Cetus FPV Kit has everything you need to begin your flying experience! The highly anticipated Cetus FPV Kit is the best choice for FPV beginners to explore the FPV world and bring your family and friends into this hobby. The Cetus FP

BETAFPV RTF Cetus Beginner FPV Kit - Brushed Version

The highly anticipated Cetus FPV Kit comes! It will be the best choice for FPV beginners to explore the FPV world and bring their family and friends into this hobby. Cetus brushed quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, everything you need is in a pack!

Bullet Points

Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly!
Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments.

Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included.
Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging.
All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry.

Altitude Hold Function
The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner.
The altitude hold function is only available in N mode.
Self-protection Function
The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once it has a strong collision with the object.  Since then, let's say goodbye to loss and crash!

3 Flight Modes, One Key Switch
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Self-developed LiteSilver System
Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers).

Literadio2 SE Transmitter
It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance which can up to 8 hours, brings pilots a better flight experience. With the hobby-grade gimbal and adopted the rubber coat, it is more ergonomic.

VR02 FPV Goggles
VR02 FPV Goggles - the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Specification


Positioning system: Optical flow / Barometer / Laser


Height Positioning: Laser / Barometer

Angle Locating: Optical flow ( effective height 0.3-3m)

Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)

Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW

Camera tilt degree: 25°

Camera: C02 FPV Micro Camera
Transmitter: Literaio2 SE Transmitter

TX mode: Mode 2 (Left stick throttle)

Goggles: VR02 Goggles

Motor: 716-19000KV Brushed motor

Propeller: 31mm 4-blade 0.8mm shaft hole

Takeoff weight: 35g(with battery)
Power system: 1S
Battery: BT2.0 300mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)

Cetus Pro Brushless Quadcopter
Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system.

FAQ

Top questions that customers frequently asked about Cetus.
For more info and instructions please check the User Manual for the Cetus FPV kit


Package

1 * Cetus Brushed Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 300mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 31mm 4-Blade Props
2 * User Manual
1 * Portable Storage Bag
1 * Phillips Screwdriver



Recommended by 5000+ experts and reviews, one of the most popular fpv kits for beginners.Best price and stable quality for fpv drone. These are the RTF Whoop FPV racing kits FPV drone for beginners or training. It will be the best choice for FPV beginners to explore the FPV world

Cetus FPV Kit

The highly anticipated Cetus FPV Kit comes! It will be the best choice for FPV beginners to explore the FPV world and bring your family and friends into this hobby. With Cetus brushed quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, everything you need is in a pack! Check out all our Analog BNF/PNP/RTF Kits

BetaFPV Cetus FPV RTF Kit W/Goggles & Controller

BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit!
Kit Includes

1 * Cetus Brushed Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 300mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 31mm 4-Blade Props
2 * User Manual
1 * Portable Storage Bag

Bullet Points

Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly!
Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments.

Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included.
Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging.
All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry.


Specification


Positioning system: Optical flow / Barometer / Laser


Height Positioning: Laser / Barometer

Angle Locating: Optical flow ( effective height 0.3-3m)

Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)

Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW

Camera tilt degree: 25°

Camera: C02 FPV Micro Camera
Transmitter: Literaio2 SE Transmitter

TX mode: Mode 2 (Left stick throttle)

Goggles: VR02 Goggles

Motor: 716-19000KV Brushed motor

Propeller: 31mm 4-blade 0.8mm shaft hole

Takeoff weight: 35g(with battery)
Power system: 1S
Battery: BT2.0 300mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)


Altitude Hold Function
The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner.
The altitude hold function is only available in N mode.
Self-protection Function
The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once it has a strong collision with the object. Since then, let's say goodbye to loss and crash!

3 Flight Modes, One Key Switch
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Self-developed LiteSilver System
Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers).

Literadio2 SE Transmitter
It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance which can up to 8 hours, brings pilots a better flight experience. With the hobby-grade gimbal and adopted the rubber coat, it is more ergonomic.

VR02 FPV Goggles
VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Cetus Pro Brushless Quadcopter
Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system.

FAQ
1. What is the maximum Flight distance of the Cetus FPV kit?
With 25mW VTX, the quadcopter can fly 80m in a wide &amp undisturbed environment.2. Do you recommend flying this RTF kit indoors or outdoors?
We highly recommend pilot fly this kit indoors. For more info and instructions please check the User Manual for the Cetus FPV kit


BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit! Kit Includes 1 * Cetus Brushed Quadcopter 1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol) 1 * VR02 FPV Goggles 2 * BT2.0 300mAh 1S Lipo Battery 1 * BT2.0 Battery Charger and Voltage Tester 1 * USB Charging Cable (Type-C) 1 * Type-C Adapter 1 * Prop Removal Tool 4 * 31mm 4-Blade Props 2 * User Manual 1 * Portable Storage Bag Bullet Points Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly! Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments. Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included. Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging. All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry. Specification Positioning system: Optical flow / Barometer / Laser Height Positioning: Laser / Barometer Angle Locating: Optical flow ( effective height 0.3-3m) Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment) Receiver protocol: Frsky D8 Flight controller: Lite 1S Pro brushed FC VTX: 25mW Camera tilt degree: 25° Camera: C02 FPV Micro Camera Transmitter: Literaio2 SE Transmitter TX mode: Mode 2 (Left stick throttle) Goggles: VR02 Goggles Motor: 716-19000KV Brushed motor Propeller: 31mm 4-blade 0.8mm shaft hole Takeoff weight: 35g(with battery) Power system: 1S Battery: BT2.0 300mah 1S Battery (external) Flight time: 4-5min Flight distance: 80m (in wide & undisturbed environment) Altitude Hold Function The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner. The altitude hold function is only available in N mode. Self-protection Function The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once it has a strong collision with the object. Since then, let's say goodbye to loss and crash! 3 Flight Modes, One Key Switch Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter. cetus fpv kit N/S/M mode Self-developed LiteSilver System Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers). cetus fpv kit for beginners Literadio2 SE Transmitter It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance which can up to 8 hours, brings pilots a better flight experience. With the hobby-grade gimbal and adopted the rubber coat, it is more ergonomic. literadio2 transmitter VR02 FPV Goggles VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly. VR02 goggle Cetus Pro Brushless Quadcopter Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system. Cetus family FAQ 1. What is the maximum Flight distance of the Cetus FPV kit? With 25mW VTX, the quadcopter can fly 80m in a wide & undisturbed environment. 2. Do you recommend flying this RTF kit indoors or outdoors? We highly recommend pilot fly this kit indoors. For more info and instructions please check the User Manual for the Cetus FPV kit

Cetus FPV Flight Kit

BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit! Kit Includes 1 * Cetus Brushed Quadcopter                              1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)                         1 * VR02 FPV Goggles    2 * BT2.0 300mAh 1S Lipo Battery      1 * BT2.0 Battery Charger and Voltage Tester 1 * USB Charging Cable (Type-C) 1 * Type-C Adapter 1 * Prop Removal Tool 4 * 31mm 4-Blade Props 2 * User Manual 1 * Portable Storage Bag Bullet Points Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly! Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments. Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included.  Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging. All items are stored in an EVA portable storage bag, which provides better protection and is easy to

BetaFPV BNF Pavo30 3" Cinewhoop

The Pavo30 Whoop Quadcopter is a 3-inch pusher drone developed by BETAFPV.

The Pavo30 Whoop Quadcopter is a 3-inch pusher drone developed by BETAFPV. The Pavo30 is powerful enough to carry an SMO 4K camera, a customized Naked camera for all FPV freestyle tricks, and a GoPro for some simple action flying!  Thi

BETAFPV Pavo30 3" CineWhoop Drone (Analog)

BETAFPV Pavo30 3&quot CineWhoop Drone (Analog)

Pavo30 whoop quadcopter, a new concept of 3-inch pusher drone developed by BETAFPV, is going further in performance, durability and power with brand new power system. It's powerful enough to carry SMO 4K camera or a customized Naked Camera for all FPV freestyle tricks, and also can carry a GoPro for some simple action

BetaFPV Pavo30 3

The Pavo30 Whoop Quadcopter is a 3-inch pusher drone developed by BETAFPV. The Pavo30 is powerful enough to carry an SMO 4K camera, a customized Naked camera for all FPV freestyle tricks, and a GoPro for some simple action flying!  This 3-inch whoop drone can meet high-quality shooting needs! Pilots can enjoy an incred

Pavo30 whoop quadcopter, a new concept of a 3-inch pusher drone developed by BETAFPV, is going further in performance, durability, and power with a brand new power system. It's powerful enough to carry SMO 4K camera or a customized Naked Camera for all FPV freestyle tricks, and also can carry a GoPro for some simple action flying. Hence this 3-inch whoop drone can meet more high-quality shooting needs. Pilots can enjoy an incredibly stable and clear HD footage video while on the FPV flight!
Note: Back in stock now! Now Pavo30 Whoop Quadcopter Analog VTX version adopts A03 5.8G VTX instead of M02 5.8G VTX. Both VTX features similar performance for FPV transmission.

Bullet Point

Pavo30 is the first 3-inch pusher whoop drone developed by BETAFPV. Compared with the Beta95X V3 pusher whoop drone, it's going further in performance and durability with a brand new power system.
Both analog and HD Digital VTX versions come with Toothpick F722 AIO 35A FC, 1506-3000KV motor &amp Gemfan D76 5-Blades props, this highly efficient power system lays the foundation for powerful and stable flight.
Pavo30 whoop drone can do both freestyle and cinematic shot both. Not only can support carrying SMO 4K camera or a customized Naked Camera for more maneuverable to achieve all FPV freestyle tricks, but it can also carry a GoPro for some simple action flying.
Equipped with a newly developed Pavo30 frame, which is made of PA12 material, it has higher abrasion resistance, toughness, and shows excellent impact resistance in drop &amp impact tests.
Centering the drone's gravity by reversed-motor design and more compact structure to make the drone more maneuverable to achieve all FPV freestyle.
The shock mitigation system with cushion makes cameras more stable on the flight, which ensures pilots can capture all the beautiful moments of flight with the stabilized and clear video.
Pavo30 whoop drone (HD Digital VTX) comes with Nebula micro HD camera and Vista VTX system. The drone can support the DJI FPV Goggles. Pilots can enjoy superb FPV pictures and long transmission distances.


Specification




Pavo30 Whoop Drone(Analog VTX)
Pavo30 Whoop Drone(HD Digital VTX)




Weight


145g (without battery)
173g (without battery)




Wheelbase


118mm
118mm




FC



F722 AIO 35A FC (MPU6000)
F722 AIO 35A FC (MPU6000)




Frame


Pavo30 Frame Kit
Pavo30 Frame Kit




Motor


1506- 3000KV motor
 1506- 3000KV motor




Propeller


Gemfan D76 5-Blade props with 5/1.5mm shaft hole
 Gemfan D76 5-Blade props with 5/1.5mm shaft hole




Receiver Option


Frsky FCC/Frsky LBT/TBS/FUTABA/PNP
Frsky FCC/Frsky LBT/TBS/PNP




FPV Camera


ANT Nano camera
Nebula Nano camera




FPV Camera Tilt Degree



0°- 60°


0°- 60°





VTX


A03 400mW 5.8G
VISTA HD Digital VTX




Camera Mount


SMO 4K camera Mount
SMO 4K camera Mount




SMO 4K Tilt Degree


5°- 45°

5°- 45°





Battery



750mAh 4S battery /850mAh 4S battery (Not included)

750mAh 4S battery /850mAh 4S battery (Not included)





Charge Connector


XT30
XT30




Flight time


About 6-8 minutes
About 6-8 minutes






BETAFPV SMO 4K Camera
SMO 4K camera, a high-degree lightweight action camera for FPV drones that are developed by BETAFPV using Insta360 technology. SMO 4K camera only weighs 30g and is perfectly fit for FPV drones, and brings pilots an extraordinary flying experience and a strong visual impact. It will be the perfect action camera for pilots in search of high-quality video with FPV racing drones. In addition to SMO 4k, the Pavo30 whoop drone also supports carrying a customized Naked Camera and a whole GoPro.
Comes with input power connector for SMO 4K camera in default (Pre-soldered)
Pavo30 Frame Kit
Equipped with a newly developed Pavo30 frame made of PA12 material, it has higher abrasion resistance, toughness, and shows excellent impact resistance in drop &amp impact tests. So the whole drone will be a more durable flight and no fear of a crash. The reversed pusher style puts all the cameras and batteries on the top of the drone, coupled with a more compact frame structure, the center of gravity of Pavo30 is right in the middle, which makes the flight more flexible.

Analog Camera &amp VTX
Pavo30 whoop drone analog VTX version comes with Caddx ant camera, which is an analog FPV micro camera with 1200TVL Global WDR, only weight 2g.  In addition, A03 400mW OpenVTx video transmitter which supports SmartAudio&ampTramp protocol with PIT/RCE/100/400mW adjustable output power. Therefore, pilots can customize the output power and frequency to explore more possibilities and have fun.

Nebula Micro HD System
Pavo30 whoop Drone HD Digital VTX version comes with Caddx Digital HD Camera Nebula Nano, which can perfectly support DJI goggles. With DJI goggles, it can provide 720p/60fps digital high-definition picture and a transmission range up to 4km. Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings. It is smaller and designed for whoop drones.

FC &amp ESC
Equipped with the updated F722 2-6S 35A AIO FC(BLHeli_S), the Pavo30 whoop drone totally supports a 4S battery for a stable and flexible flight experience. Come with a BETAFPVF722 processor FC, BetaFlight OSD, and 35A BLHeli_S ESC, this AIO flight controller offers more powerful flight performance that can push your FPV racer to the max. We highly recommend a 750mAh 4S battery for the drone, Pavo30 can get 6-8min flight time with it.

Motor &amp Props
Pavo30 analog VTX and HD Digital VTX version come with 1506-3000KV motor &amp Gemfan D76 5-Blades props, these 2 configurations achieve a perfect dynamic balance, which gives the drone more flexible and longer flying time. Pilots can enjoy powerful and stable flights with less noise.

The Pavo30 Whoop Quadcopter also comes with "props out" by default. Why do we need "props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.
Know more about "Props Out".

FAQ
1. Cli Dump of Pavo30 Whoop Quadcopter(Click here to find the details).
2. Cli Dump of Pavo30 Whoop Quadcopter(HD Digital VTX) (Click here to find the details).
3. STL File for the Base of Naked Camera for Pavo30 Pusher Drone Series (Click here to find the details.)
4. How to power the Naked Camera on Pavo30 or Pavo30 HD Digital VTX.
One adapter 3-pin GH1.25 power cable for Customized Naked Camera is offered in the package, pilots can use it to power the Naked Camera.
5. How to Connect the External Rx to Toothpick F722 35A AIO FC (Click here to find the details).




Package

1 * Pavo30 Whoop Quadcopter (HD Digital VTX or Analog VTX)
1 * Gemfan D76 5-Blade props(2CW+2CCW)
1 * 20mm FPV Camera Mount
1 * USB Adapter Board for FC
1 * Adapter Cable for Customized Naked Camera

Now Pavo30 Whoop Quadcopter Analog VTX version adopts A03 5.8G VTX instead of M02 5.8G VTX. Both VTX features similar performance for FPV transmission.


Batteries and SMO 4K Camera are not included in the package. You can get it here for 750mAh 4S battery/ 850mAh 4S battery and SMO 4K camera.

Pavo30 whoop quadcopter, a new concept of a 3-inch pusher drone developed by BETAFPV, is going further in performance, durability, and power with a brand new power system. It's powerful enough to carry SMO 4K camera or a customized Naked Camera for all FPV freestyle tricks, and also can carry a GoPro for some simple ac

Pavo30 Whoop Quadcopter

BetaFPV BNF X-Knight HD Insta360 One R Quadcopter

BETAFPV X-Knight Insta360 One R Quadcopter w/ Caddx Nebula Nano Digital HD System

The X-Knight 360 FPV Quadcopter (HD Digital VTX) is an invisible FPV drone that supports the Insta360 ONE R Camera.
360 drones are known to capture airborne 360 views and hide the drone entirely from sight, and what makes the X-Knight 360 FPV Quadco

X-Knight 360 FPV Quadcopter(HD Digital VTX) - Special-designed invisible FPV Digital VTX drone that supports the Insta360 ONE R Camera. X-Knight 360 FPV Quadcopter (HD Digital VTX) not only can support Insta360 ONE R Camera to capture airborne 360 views and hide the drone entirely from sight but also comes with the Cad

BetaFPV X-Knight 360 FPV Quadcopter (HD Digital VTX)


X-Knight 360 FPV Quadcopter(HD Digital VTX) - Special-designed invisible FPV Digital VTX drone that supports the Insta360 ONE R Camera.
X-Knight 360 FPV Quadcopter (HD Digital VTX) not only can support Insta360 ONE R Camera to capture airborne 360 views and hide the drone entirely from sight but also comes with the Caddx Nebula Nano HD Digital VTX system, Pilots can now enjoy both superb image quality and minimum latency. What's more, come with the F722 35A AIO FC, matched with the lightweight 2004 3000KV 4S motor and HQ 5025 3-Blade Props, X-Knight 360 HD Digital VTX can fly more smoothly, which makes the camera shoot more HD glorious videos stably in flight.
We also release the Insta360 Sticky Lens Guard to help pilots protect your Insta360 ONE R Camera. With this lens guard, pilots can enjoy their flight without fear of scratching. Meanwhile, this lens would bring you more choice on flight landing.



Bullet Point



X-Knight 360 HD Digital VTX is an invisible FPV Digital VTX drone that is specially designed to carry an Insta360 ONE R Camera. Combined with the ONE R camera, this drone can capture airborne 360 views and hide the drone entirely from sight.
Equipped with the nebula Nano HD System, it brings a stable FPV picture and long transmission distance. Pilots can enjoy both superb image quality and minimum latency.
X-Knight 360 adopts a flat design, combined with the customized 4S 1000mAh that is only 23mm in height, when paired with the Insta360 ONE R, you simply won’t see the X-Knight 360 in the sight, just like a flying camera.
BETAFPV specially designed the BEC board to build a direct charge power system, not only convenient to power the Insta360 ONE R Camera during the flight, but also reduced the huge weight of the quad, pilots can feel a better FPV flying experience.
Specially designed this innovative, versatile and functional X-knight 360 frame, and is made of carbon fiber, and is durable and maintaining lightweight, which provides you more durable and smoother flight experience.
With the perfect match of lightweight 2004 3000KV motor and HQ 5025 3-Blade Props, pilots can get an excellent racing flight experience.




Specification

Item: X-Knight 360 FPV Quadcopter (HD Digital VTX)

Weight: 211.9g (without battery)
FC&ampESC: F722 2-6S 35A AIO FC(BLHeli_S)

Motors: 2004 3000KV Brushless Motors

Props: HQ 5025 3-Blade Props


HD digital camera &amp VTX: Caddx Nebula Nano HD System

FPV Camera Degree: 25°-45°
Battery: 4S 1000mAh Battery(Not Including)
Connector: XT60
Frame: X-Knight 360 Carbon Frame Kit
Receiver Option: Frsky XM+ / TBS Crossfire

Flight time: 7min smooth flight or 5min flight of FPV freestyle tricks with 4S 1000mAh battery




Insta360 ONE R Camera
Insta360 ONE R brings innovative modular design, AI editing and the best quality footage yet, which makes the Insta360 a must-buy for action camera and 360 fans. It offers the resolution of a high-end action camera and the versatility and ability to reframe clips after shooting that you can only get from a 360-degree camera. It is a highly capable and versatile camera that’d be a great companion for vloggers and digital content creators.  What's more, Insta360 ONE R provides brand-new unobstructed and impossible angles, perfectly fit the needs of 360 FPV filming shooting. Meanwhile, we also release the Insta360 Sticky Lens Guard to help pilots protect your camera.

Caddx Nebula Digital VTX
The Caddx Nebula Nano HD System can perfectly support with DJI goggles. With DJI goggles, it can provide 720p/60fps digital high-definition picture and a transmission range up to 4km. Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings. The total weight (excluding antenna) is 24g only, about 26g lighter than the DJI FPV unit. Besides, it is smaller and designed for whoop drones.

Flight Controller
Equipped with the updated F722 2-6S 35A AIO FC(BLHeli_S), X-knight 360 FPV Quadcopter totally supports a 4s battery for the stable-flying experience, providing a stable flight experience. Come with a BETAFPVF722 processor FC, BetaFlight OSD, and 35A BLHeli_s ESC, this board gives the brushless toothpick quad a more powerful flight performance that can push your FPV racer to the max.

Motors &amp Props
2004 3000KV Brushless Motors is a lightweight 4S motor. It only weighs 16.4g / 1pc. Best matched with the HQ 5025 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with F4 35A AIO Brushless FC, it will provide you enough output power.



Recommended Battery
4S 1000mAh Battery with XT60 connector is the best option to power the X-Knight 360 FPV Quadcopter. This battery is specially customized for X-Knight 360 FPV Quadcopter. With the flat design, the battery is only 23mm height, perfectly hides the battery from the camera's sight. With a 4S(14.8V) high voltage and 75C discharge rate, it gives the drone a stronger flight performance for short bursts.

X-Knight 360 Carbon Frame Kit
X-Knight 360 Carbon Frame Kit is an innovative, versatile and functional design frame, which adopts carbon material becomes ultimate durability while maintaining minimal weight. With this special-designed frame, pilots can capture an aerial 360 video without any limitation - hide the drone entirely from sight.
FAQ

Cli Dump of X-Knight 360 FPV Quadcopter (HD Digital VTX)  ( Click here to find the details.)
How to assemble the Insta360 ONE R on the X-Knight 360 FPV Quadcopter (HD Digital VTX).



Package

1 * X-Knight 360 FPV Quadcopter (HD Digital VTX)

1 * Spare HQ 5025 3-Blade Props (2CW+2CCW)

1 * Screw Pack

Batteries and Insta360 ONE R Camera are not included in the package. You can get it here, 4S 1000mAh Battery and Insta360 ONE R.


X-Knight 360 FPV Quadcopter (HD Digital VTX)

BetaFPV BNF X-Knight Insta360 One R Quadcopter

BETAFPV X-Knight Insta360 One R Quadcopter w/ Caddx Ant Nano Camera

To create a better FPV cinematic experience, BETAFPV & Insta360 team up to release the X-Knight 360 FPV Quadcopter (HD Digital VTX), which is an invisible FPV drone that supports the Insta360 ONE R Camera and will take your FPV cinematic exp

X-Knight 360 FPV Quadcopter - Special-designed invisible FPV drone that supports the Insta360 ONE R Camera, which will take FPV cinematic to a higher level.


To create a better FPV cinematic experience, BETAFPV &amp Insta360 released the second bundle product - X-Knight 360 FPV Quadcopter. It is a special-designed invisible FPV drone that supports Insta360 ONE R Camera. This quad is designed to capture airborne 360 views and hides the drone entirely from sight, which brings more possibility for aerial photography.
If you have the DJI FPV goggles, you can also choose the X-knight 360 HD Digital VTX. We also release the Insta360 Sticky Lens Guard to help pilots protect your Insta360 ONE R Camera. With this lens guard, pilots can enjoy their flight without fear of scratching. Meanwhile, this lens would bring you more choice on flight landing.


Bullet Point


X-knight360 is an invisible FPV drone with 5-inch props and a 4S battery, which is designed to carry an Insta360 One R. It is made to capture the aerial 360 views and hide the drone entirely from sight.

 Combined with the ONE R camera's latest 360-degree camera techniques, pilots can not only use the quad for FPV racing and freestyle tricks but also for cinematic and vlogging.
X-Knight 360 adopts a flat design, combined with the customized 4S 1000mAh that is only 23mm in height, when paired with the Insta360 ONE R, you simply won’t see the X-Knight 360 in the sight, just like a flying camera.
BETAFPV specially designed the BEC board to build a direct charge power system, not only convenient to power the Insta360 ONE R Camera during the flight, but also reduced the huge weight of the quad, pilots can feel a better FPV flying experience.
Specially designed this innovative, versatile and functional X-knight 360 frame, is made of carbon fiber, and is durable and maintaining lightweight, which provides you a more durable and smoother flight experience.
With the perfect match of lightweight 2004 3000KV motor and HQ 5025 3-Blade Props, pilots can get an excellent racing flight experience.




Specification

Item: X-Knight 360 FPV Quadcopter

Weight: 194.4g (without battery)
FC&ampESC: F722 2-6S 35A AIO FC(BLHeli_S)

Motors: 2004 3000KV Brushless Motors

Props: HQ 5025 3-Blade Props

Camera: Caddx ANT Nano Camera
VTX: M02 5.8G VTX

Battery: 4S 1000mAh Battery(Not Including)
Frame: X-Knight 360 Carbon Frame Kit
Receiver Option: Frsky XM+ / TBS Crossfire

Connector: XT60
FPV Camera Degree: 25°-45°
Flight time: 7min smooth flight or 5min flight of FPV freestyle tricks with 4S 1000mAh battery



Insta360 ONE R Camera
Insta360 ONE R brings innovative modular design, AI editing and the best quality footage yet, which makes the Insta360 a must-buy for action camera and 360 fans. It offers the resolution of a high-end action camera and the versatility and ability to reframe clips after shooting that you can only get from a 360-degree camera. It is a highly capable and versatile camera that’d be a great companion for vloggers and digital content creators.  What's more, Insta360 ONE R provides brand-new unobstructed and impossible angles, perfectly fit the needs of 360 FPV filming shooting. We also release the Insta360 Sticky Lens Guard to help pilots protect your Camera.

Flight Controller
Equipped with the updated F722 2-6S 35A AIO FC(BLHeli_S), X-knight360 FPV Quadcopter totally supports a 4s battery for the stable-flying experience, providing a stable flight experience. Come with a BETAFPVF722 processor FC, BetaFlight OSD, and 35A BLHeli_s ESC, this board gives the brushless toothpick quad a more powerful flight performance that can push your FPV racer to the max.

Motors &amp Props
2004 3000KV Brushless Motors is a lightweight 4S motor. It only weighs 16.4g / 1pc. Best matched with the HQ 5025 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with the F405 Brushless Flight Controller &amp 35A BLHeli_32 ESC, it will provide you enough output power for stable flying.

M02 5.8G VTX
M02 5.8G VTX board is a high-quality 5.8GHz VTX has 4 adjustable power including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun.

Only weight 1.7g.
Smart Audio function is included
Frequency: 5.8GHz 6 bands 40 channels


Caddx ANT Camera
Comes with an ANT Nano FPV camera, a full-featured nano camera, which allows the drone to be flown with FPV goggles. It is ultralight only 2g, supports 1200TVL and Global WDR, 25°-45° adjustable degrees, perfect fit the X-Knight 360 FPV Quadcopter.



Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200TVL
FOV: 165 Degree
TV System: NTSC or PAL
Image: 16:9 or 4:3
WDR: Super Global WDR

Recommended Battery
4S 1000mAh Battery with XT60 connector is the best option to power the X-Knight 360 FPV Quadcopter. This battery is specially customized for X-Knight 360 FPV Quadcopter. With the flat design, the battery is only 23mm height, perfectly hides the battery from the camera's sight. With a 4S(14.8V) high voltage and 75C discharge rate, it gives the drone a stronger flight performance for short bursts.




X-Knight 360 Carbon Frame Kit
X-Knight 360 Carbon Frame Kit is an innovative, versatile and functional design frame, which adopts carbon material becomes ultimate durability while maintaining minimal weight. With this special-designed frame, pilots can capture an aerial 360 video without any limitation - hide the drone entirely from sight.

FAQ


Cli Dump of X-Knight 360 FPV Quadcopter ( Click here to find the details.)
How to assemble the Insta360 ONE R on the X-Knight 360 FPV Quadcopter.



Package

1 * X-Knight 360 FPV Quadcopter
1 * Spare HQ 5025 3-Blade Props (2CW+2CCW)

1 * Screw Pack

Batteries and Insta360 ONE R Camera are not included in the package. You can get it here, 4S 1000mAh Battery and Insta360 ONE R.

X-Knight 360 FPV Quadcopter - Special-designed invisible FPV drone that supports the Insta360 ONE R Camera, which will take FPV cinematic to a higher level. To create a better FPV cinematic experience, BETAFPV &amp; Insta360 released the second bundle product - X-Knight 360 FPV Quadcopter. It is a special-designed invi

X-Knight 360 FPV Quadcopter

BetaFPV BNF X-Knight 5" HD Toothpick Quadcopter

X-Knight 5'' Toothpick Quad (HD Digital VTX) is the first ultralight 6S toothpick drone with HD digital VTX released on BETAFPV! With this vista kit, pilots can get a long transmission range with stable and clear HD video.

The X-Knight 5'' Toothpick Quad (HD Digital VTX) is the first ultralight 6S toothpick drone with HD digital VTX released on BETAFPV! The X-Knight 5'' comes with the Caddx Vista Digital HD System, so pilots can get a long transmiss

BETAFPV X-Knight 5" Toothpick Quadcopter w/ Caddx Vista HD System

BETAFPV X-Knight 5&quot Toothpick Quadcopter w/ Caddx Vista HD System


X-Knight 5'' Toothpick Quad (HD Digital VTX) is the first ultralight 6S toothpick drone with HD digital VTX released on BETAFPV! With this vista kit, pilots can get a long transmission range with stable and clear HD video. Featured with F4 35A AIO FC, brand-new 2004 motor, and HQ 5025 props, this toothpick drone is made in its best condition with insane flight power, supporting all kinds of FPV freestyle tricks, you will have fun with it!

Bullet Point


X-Knight 5'' Toothpick Quad (HD Digital VTX) equipped with Caddx Vista VTX, which can record 720P 120fps video. With this vista kit, the max range is up to 4 km, pilots can get a stable and clean HD video on the flight.
Equipped with BETAFPV brand-new 2004 1700KV motors and HQ 5025 propellers, X-Knight 5'' HD Digital VTX can be flight powerful, it supports kind of FPV freestyle tricks.
X-Knight 5'' Toothpick Quad (HD Digital VTX) is an ultralight 176.8g 6S toothpick drone. With the lightweight, this toothpick drone is made in its best condition with insane flight power.
Using 5'' toothpick frame V2 version, which adopts T800 carbon fiber material becomes ultimate durability while maintaining minimal weight 26.44g.

Highly recommended using the 550mAh 6S battery, it will give your drone more power and speed.  X-Knight 5'' HD Digital VTX can get 11 min smooth flight or 4min flight of FPV freestyle tricks with this battery.



Specification

Item: X-Knight 5'' Quad(HD Digital VTX)
Weight: 176.8g (without battery)
Power system: 6S
FC&ampESC: F4 35A AIO Brushless FC

Motors: 2004 1700KV Brushless Motors

Props: HQ 5025 3-Blade Props

HD Digital Camera &amp VTX: Caddx Vista

Battery: 550mAh 6S 75C Battery (Not included)
Frame: X-Knight Carbon Fiber 5'' V2 Frame Kit（T800）

Canopy: Canopy for Mini Camera V3

Receiver Option: Frsky FCC/Frsky LBT/TBS/PNP
Flight time: 11min smooth flight or 4min flight of FPV freestyle tricks with 550mAh 6S battery


Flight Controller
Toothpick F4 35A AIO Brushless FC - The board is the first BLHeli_32 ESC 35A All-in-one toothpick FC on the current market. It can handle 35A continuous current(40A burst) and provide with massive levels of performance capability, but it still maintains ultralight only 7g. In addition, this board supports a 2-6S Lipo battery, perfectly suitable for the 4''-5'' toothpick drone.

Caddx Vista
The Caddx Vista HD digital video transmitter can work with DJI FPV camera, goggles, and remote controller. The total weight (with camera and antenna) is 35g only, about 20g lighter than the DJI FPV unit. Besides, it is smaller and designed to suit for whoop drones. With this vista kit, the max range is up to 4 kilometers. BETAFPV mini canopy V3  is suitable for the Caddx Vista greatly. With injection molded process and PE material. The canopy will perfectly protect the Caddx Vista camera.

Motors
2004 1700KV Brushless Motors is a lightweight 6S motor. It only weights 16.4g / 1pc. Best matched with the HQ 5025 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with Toothpick 35A AIO Brushless FC, it will provide you enough output power.

X-Knight Carbon Fiber 5'' Frame V2 Kit
X-Knight Carbon Fiber 5'' V2 Frame Kit - Our first assembled 5'' frame kit, which adopts T800 carbon material becomes ultimate durability while maintaining minimal weight 26.44g. It consists of arms, bottom plate, and top plate, which allows you to replace the damaged part. Meanwhile, the top plate comes with press nuts to make the installation process easier.

FAQ

Cli Dump of X-knight 5'' Toothpick Quad  (HD Digital VTX) ( Click here to find the details.)

STL file for the RX holder


Package

1 * X-Knight 5'' Quad (HD Digital VTX)
1 * HQ 5025 3-Blade Props(2CW+2CCW)

1 * Set of M2*7 Screws

There are no batteries included in the package. High recommend the 550mAh 6S 75C Battery.

X-Knight 5'' Toothpick Quad (HD Digital VTX) is the first ultralight 6S toothpick drone with HD digital VTX released on BETAFPV! With this vista kit, pilots can get a long transmission range with stable and clear HD video. Featured with F4 35A AIO FC, brand-new 2004 motor, and HQ 5025 props, this toothpick drone is mad

X-Knight 5'' Toothpick Quad  (HD Digital VTX)

BetaFPV BNF Beta65S Lite Micro Whoop Quadcopter

The BETAFPV Beta65S Lite is a new version of whoops that comes with the BETAFPV Lite Brushed Flight Controller.

The BETAFPV Beta65S Lite is a new version of whoops that comes with the BETAFPV Lite Brushed Flight Controller. Powered by Silverware firmware, which is simpler and affordable, and the  Silverware software does not require switch settings as Bet

BETAFPV Beta65S Lite Micro Whoop Quadcopter - BNF

Beta65S with 7x16mm brushed motors have upgraded F4 Brushed FC with M01 AIO Camera 5.8G VTX. The table below shows the FC and RX that come with the drone according to the version you choose. Please note the SPI Frsky RX is the FCC version.
Note: There are some changes to the Beta65S BNF Micro Whoop Quadcopter. First, the new F4 1S AIO flight controller uses MPU6500 gyro instead of MPU6000 gyro. BT2.0 battery and cable take the place of PH2.0. Finally, the Frsky protocol version is modified from Frsky FCC to Frsky D8.




Frsky Version
DSMX Version
Flysky Version
Futaba Version
No RX Version


FC
F4 Brushed FC
F4 Brushed FC
F3 Flysky FC
F4 Brushed FC
F4 No RX FC


RX
SPI Frsky RX
Native DSMX RX
SPI Flysky RX
SPI FUTABA RX
None





Note: If you are a Spektrum DXe radio transmitter or OrangeRX RF module user and find that you can't bind successfully, please create a ticket to contact us.
Bullet Point

The latest Beta65S has been updated with the newest canopy which is more durable.
More punch on the throttle with faster 19000KV 7x16mm motors and 3-blade propellers.
A great alternative to the popular regular whoop drone.
Provide 3 receiver versions for choice, including SPI Frsky Rx, DSMX Rx, SPI FUTABA Rx, and Flysky Rx.
BETAFPV M01 AIO VTX camera with 48 channels in total.

Comparison
Here is the size comparison between Beta65/65S, Beta75/75S, and Beta85 drones.


Specification

Frame: 65s frame V4

Weight: 25g (without battery)
Flight Controller: BETAFPV F4 Brushed FC / F4 Brushed NO RX FC /  F3 Flysky FC / F4 Brushed FC (DSMX RX)

Motor: 7x16mm Coreless Brush Motor, 19000KV

Receiver: SPI Frsky D16 protocol / SPI FUTABA RX / SPI Flysky RX /  Native DSMX RX

Cam: M01 AIO Camera 5.8G VTX

Canopy: Canopy for micro camera / Canopy for Micro Camera 2022

Power connector: JST-PH 2.0 connector, AKA PowerWhoop connector (old version) / BT2.0 connector, BT2.0-PH2.0 Adapter Cable, BT2.0 1S Whoop Cable Pigtail (new version)

Battery: 300mAh 1S Lipo Battery (old version) / BT2.0 300mAh 1S 30C Battery (new version)

Propeller: HQ 31mm 3-Blade Propellers (0.8mm Shaft 4PCS)

Flight time: 3 min 30 second


Package

1 * Beta65S Micro FPV Quad
2 * 300mAh 1S Lipo Battery

1 * Carry-on bag
1 * Screwdriver
3 * Decorative Parts


Beta65S with 7x16mm brushed motors have upgraded F4 Brushed FC with M01 AIO Camera 5.8G VTX. The table below shows the FC and RX that come with the drone according to the version you choose. Please note the SPI Frsky RX is the FCC version. Note: There are some changes to the Beta65S BNF Micro Whoop Quadcopter. First, t
