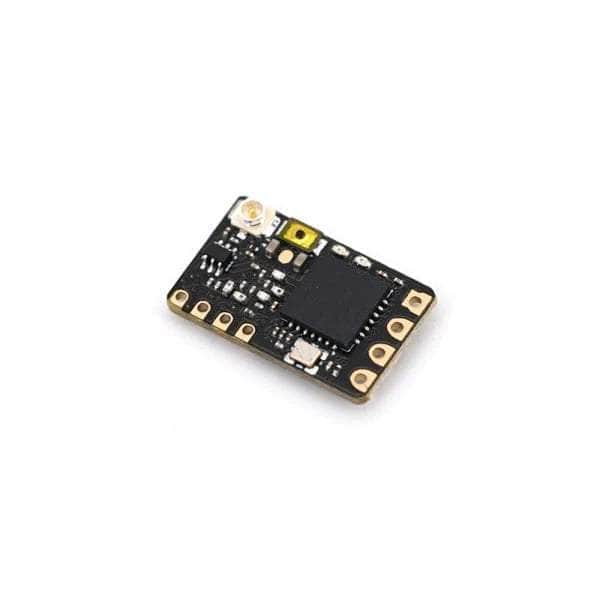

TBS Crossfire Nano RX PRO Long Range Receiver

Team BlackSheep

The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry.
Team Blacksheep is stepping up the Long Range / UHF game once again, with no competition in sight! The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry. With the Pro version, TBS boosts the telemetry output power (downlink), without sacrificing compactness. Same form factor, same pinout, with 20x the power! The end result is a full range receiver, at the smallest size of any receiver in the industry with an incredibly increased output!
Features

500mW Output Power (downlink)
20x Power of standard Nano Rx
Higher Telemetry Output
Full Range Receiver




Specifications

Output Power: Up to 500mW
Weight: 0.5g (receiver only)
Input Power: +3.3V to 8.4V
Requires: Firmware V6.14
Size: 11mm x 18mm

Manual

TBS Crossfire - RED Declaration of Conformity
Quickstart Guide / Manual

Includes

6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
1x TBS Crossfire Immortal T Antenna
1x TBS Crossfire Nano Receiver Pro
1x Spare Shrink Tube
1x Pin header (1x4)


The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry. Team Blacksheep is stepping up the Long Range / UHF game once again, with no competition in sigh

TBS Crossfire Nano RX Pro

The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry.

Team Blacksheep is stepping up the Long Range / UHF game once again, with no competition in sight! The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and

TBS Crossfire Nano Rx Pro

Team Black Sheep

TBS Crossfire Nano RX Pro. Boost the telemetry output power (downlink), without sacrificing compactness. Same form factor, same pinout, 20x the power!

TBS Crossfire Nano RX Pro FPV Long Range Drone Receiver shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Crossfire Nano RX Pro FPV Long Range Drone Receiver - RMRC

TBS Crossfire Nano RX Pro FPV Long Range Drone Receiver

Team Blacksheep is stepping up the Long Range / UHF game once again, with no competition in sight! The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetr

TBS Crossfire Nano RX PRO FPV Long Range Drone Receiver

Receiver Type

The radio receiver takes the inputs from your radio and sends them to your flight controller. Your receiver will need to be compatible with your radio or radio module. Beginners should get an ELRS receiver for the best range and price point. Learn more about radios and receivers.

Receivers

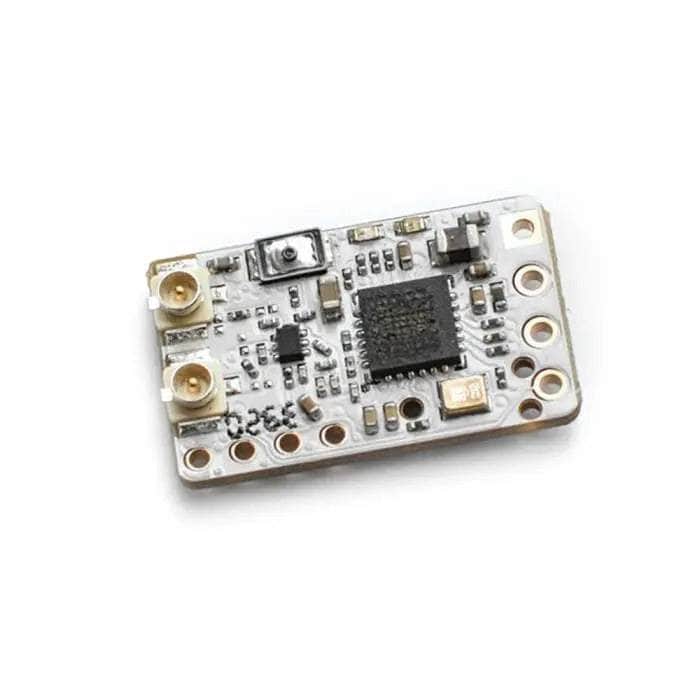

TBS Tracer Nano RX

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for day

Team Blacksheep TBS Tracer Nano RX

The next generation of crossfire with 2.4GHz technology. Smaller and faster than ever with diversity antennas.

The next generation of crossfire with 2.4GHz technology. Smaller and faster than ever with diversity antennas.
Features

250Hz: Fastest available radio and telemetry link!
Next-generation 2.4GHz technology meets robust Crossfire radio engine
3ms

TBS TRACER NANO RX FEATURES:

 	250Hz: Fastest available radio and telemetry link!
 	Next generation 2.4GHz technology meets robust Crossfire radio engine
 	3ms end to end latency
 	Nano-sized receiver with antenna diversity
 	15mi+/25km+ range
 	For drones, planes, helicopters, cars and boats

TBS TRACER NANO RX SPECIFICATIONS:

 	Antnna ports: 2x u.FL / IPEX (diversity)
 	Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
 	Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)
 	Weight: 0.5g (receiver only)
 	Size: 11mm x 18mm

TBS TRACER NANO RX | Five33

TBS TRACER NANO RX

TBS TRACER NANO RX FEATURES250Hz: Fastest available radio and telemetry link!Next generation 2.4GHz technology meets robust Crossfire radio engine3ms end to end latency&quotJR&quot and &quotLITE&quot form factor transmittersNano-sized receiver with antenna diversityUp to 50km range. enough for most.For drones, planes, helicopters, cars and boats

Get the TBS Tracer Nano RX 2.4GHz Crossfire shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Tracer Nano RX 2.4GHz Crossfire - RMRC

TBS Tracer Nano RX 2.4GHz Crossfire


TBS TRACER NANO RX FEATURES:

250Hz: Fastest available radio and telemetry link!
Next generation 2.4GHz technology meets robust Crossfire radio engine
3ms end to end latency
Nano-sized receiver with antenna diversity
15mi+/25km+ range
For drones, planes, helicopters, cars and boats

TBS TRACER NANO RX SPECIFICATIONS:


Antnna ports: 2x u.FL / IPEX (diversity)

Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables

Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)

Weight: 0.5g (receiver only)

Size: 11mm x 18mm


TBS TRACER NANO RX FEATURES: 250Hz: Fastest available radio and telemetry link! Next generation 2.4GHz technology meets robust Crossfire radio engine 3ms end to end latency Nano-sized receiver with antenna diversity 15mi+/25km+ range For drones, planes, helicopters, cars and boats TBS TRACER NANO RX SPECIFICATIONS: Ant

TBS Tracer Nano Rx

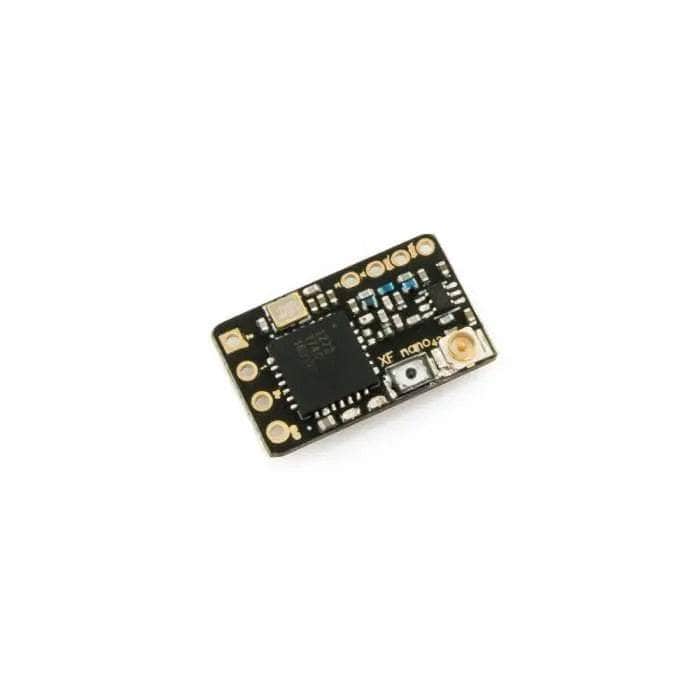

TBS Crossfire Nano RX

The TBS Crossfire Nano Rx (Special Edition).

TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX, we condense two years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case

TBS Crossfire Nano Rx (SE) w/ Immortal T V2 Antenna

<p>TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX, we condense two years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in

TBS Crossfire Nano Rx

Team BlackSheep TBS Crossfire Nano RX - 3 Pack TBS Crossfire nano RX for people who want to save space and solder. Full range, designed specifically for mini- and micro-quads! TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX we condense 2 years of engineering ex

3 Pack Team BlackSheep TBS Crossfire Nano RX

TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX, we condense two years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver, at the smallest size of any receiver in the industry (yes, it's smaller than the XM+).
Specifications

Weight: 0.5g (receiver only)
Size: 11mm x 18mm
Requires: Firmware V2.24

Includes

1x TBS Crossfire Nano Receiver
1x TBS Crossfire Micro Receiver Antenna
1x TBS Immortal-T Antenna
1x Spare shrink tube
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
1 x pin header 1x4

Resources

TBS Crossfire - RED Declaration of Conformity
Quickstart Guide / Manual


TBS Crossfire Nano Rx (Special Edition) TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX, we condense two years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The

TBS Crossfire Nano Rx (Special Edition)

TBS Crossfire Nano Rx (Special Edition) DroneRacingParts.com

Welcome one of the best reliable link receivers you will find on the market today! The TBS Crossfire Nano RX! TeamBlackSheep has taken the crossfire receiver and slammed it down in to the smallest receiver we have ever seen for a long range system. Pair this receiver with your mini quad your micro quad your whoop quad or any of your fixed wing airplanes and go further than you have ever have before! Get yours today!
Specifications

Weight: 0.5g (receiver only)
Size: 11mm x 18mm
Requires: Firmware V2.25

Includes

1x TBS Crossfire Nano Receiver
1x TBS Crossfire Micro Antenna
1x Spare shrink tube
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
1 x pin header 1x4

Wiring Diagram


Welcome one of the best reliable link receivers you will find on the market today! The TBS Crossfire Nano RX! TeamBlackSheep has taken the crossfire receiver and slammed it down in to the smallest receiver we have ever seen for a long range system. Pair this receiver with your mini quad your micro quad your whoop quad

Nano 915MHz Receiver For Crossfire Protocol

Happymodel

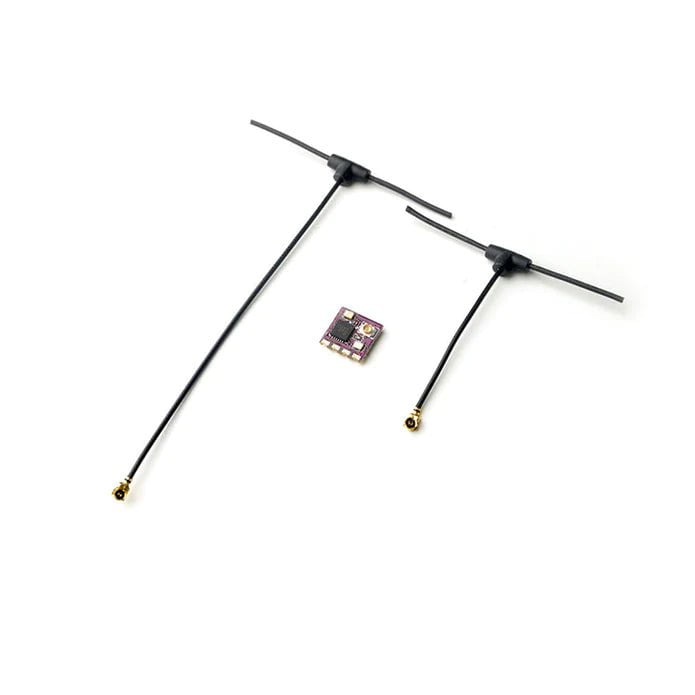

Happymodel ELRS EP1 RX 2.4GHz Receiver

HAPPYMODEL

The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2.  The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that’s too simple. Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for whoop because of the ultra light and Nano size.
Check out our other great receivers, and the rest of our Happymodel offerings.
Specifications

Packet Rate: 25/50/150/250/500Hz
RF Frequency: 2.4GHz
Antenna: Ipex 4
Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX

Includes

1x HappyModel EP1 RX Express LRS Receiver
1x Short antenna
1x Long antenna


The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2. The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that’s too simple. Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for Tiny whoop because of the ultra light and Nano size.

HappyModel 2.4GHz EP1 RX ELRS Receiver

HappyModel 2.4GHz EP1 RX Express LRS Receiver - For Sale At RaceDayQuads

HappyModel


The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2.  The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that’s too simple. Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for whoop because of the ultra light and Nano size.
Specifications

Packet Rate: 25/50/150/250/500Hz
RF Frequency: 2.4GHz
Antenna: Ipex 4
Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX

Includes

1x HappyModel EP1 RX Express LRS Receiver



The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2.  The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you ca

HappyModel 2.4GHz EP1 RX Express LRS Receiver

The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS, we have 3 types rx module released.

The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is super light and small in size.

On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2.  The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that’s too simple .

Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for Tiny whoop because of the ultra light and Nano size.

Check out our ExpressLRS Collection, all our Receivers and the rest of our Happymodel Products!
SPECIFICATIONS:

 	Type: ISM
 	ESP8285 MCU
 	SX1280IMLTRT RF Module
 	Omnidirectional antenna
 	Frequency Range: 2400 MHz to 2500 MHz
 	Maximum receive refresh rate: 500Hz
 	Minimum receiver refresh rate: 25Hz
 	Working voltage: 5v
 	Weight: 0.42gram(without antenna)
 	Dimension: 10mm*10mm*3mm
 	Peak gain: 2.23dB
 	Package include 1pcs 40mm and 1pcs 90mm Omnidirectional antenna

PACKAGE INCLUDES:

 	1 x Happymodel 2.4g ExpressLRS EP1 RX Receiver module

Notes:
Since the Official Perfect version of ELRS firmware has not been released yet, currently our PP_RX, EP1/EP2 RX and ES24TX pre-loaded firmware are all beta versions, you can upgrade the official firmware when Official perfect target available.

More details
https://github.com/ExpressLRS/ExpressLRS

Bind procedure:

 	Supply power to the PP/EP1/EP2 rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode
 	Insert the ES24TX module or other DIY 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.
 	Receiver LED status meanings:
PP RX: LED solid means bind successful or Connection established LED double-flash means in bind mode LED flash slowly means no signal connection from the TX module
EP1/EP2 RX: LED solid means bind successful or Connection established LED double-flash means in bind mode LED flash slowly means no signal connection from the TX module LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

HAPPYMODEL 2.4G EXPRESSLRS EP1 RX RECEIVER MODULE | Five33

HAPPYMODEL 2.4G EXPRESSLRS EP1 RX RECEIVER MODULE

TBS Crossfire Diversity Nano RX

Welcome the newest edition to TeamBlackSheeps receiver lineup, the TBS Crossfire Diversity Nano RX. This is the upgraded version to the nano receiver we all know and love, now with a bit longer range and included diversity! Never worry about your receiver link again! Now including beacon mode and FLARM! The TBS Crossfire Diversity Nano RX is the perfect choice to add to your long range arsenal. Get yours today!

Get the TBS Crossfire Diversity Nano RX shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Crossfire Diversity Nano RX - Get Yours Today! - RMRC


Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!)
TRUE DIVERSITY, FULL RANGE

The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.

BEACON MODE
Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane. The backup battery (1s) will also be charged as soon as you apply power to the rig.

SPECIFICATIONS

Weight: 1.8g (receiver only)
Size: 24mm x 18mm
Requires: Firmware V2.87

INCLUDES

1x TBS Crossfire Diversity Nano Receiver
2x TBS Crossfire Micro Receiver Antenna
1x Spare shrink tube
14x 30awg silicon connection wires

DOWNLOADS

TBS Crossfire - RED Declaration of Conformity
Quickstart Guide / Manual
TBS Crossfire Nano Diversity RX - FCC Certification

UPDATE YOUR CROSSFIRE TRANSMITTER TO V2.88 OR ABOVE BEFORE BINDING!


Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!) TRUE DIVERSITY, FULL RANGE   The TBS CROS

Nano Diversity 915MHz Receiver For Crossfire Protocol

Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!) TRUE DIVERSITY, FULL RANGE   The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems. BEACON MODE  Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver running for a

Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!)
TRUE DIVERSITY, FULL RANGE
The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.
BEACON MODE
Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port. It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane.
FLARM IS HERE!
FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX's will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).
This allows safe navigation in crowded airspace or nailbiting proximity formation flights with your buddies! Fullscale aviation will be alerted if your drone is on a collision course with them, and vice versa.
SPECIFICATIONS

Weight: 1.8g (receiver only)
Size: 24mm x 18mm
Requires: Firmware V2.87

INCLUDES

1x TBS Crossfire Diversity Nano Receiver
2x TBS Crossfire Micro Receiver Antenna
1x Spare shrink tube
14x 30awg silicon connection wires

DOWNLOADS

TBS Crossfire - RED Declaration of Conformity
Quickstart Guide / Manual


TBS CROSSFIRE DIVERSITY NANO RX | Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even bo

TBS CROSSFIRE DIVERSITY NANO RX | Team BlackSheep

A full-capability TBS Crossfire Diversity receiver in nano form factor. Ideal for long range miniquads or smaller wings.



Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy cir

Foxeer

Foxeer ELRS 900MHz Receiver

FOXEER

Note: For use with 900MHz ELRS Transmitters. Not compatible with 2.4GHz ELRS.
The Foxeer ELRS 915Mhz/868MHz  receiver offers superior ELRS reception with its T-shaped antenna, giving you reliable and secure control over your aircraft. Enjoy worry-free communication with top of the line reception.
Check out the rest of our ELRS accessories, as well as the rest of our Foxeer Collection!
Features

50mW Telemetry RF Power
Improved RF Design
200Hz High Refresh Rate


Specifications

Processor: ESP8285+SX1276

Work Frequency: 915MHz/868MHz

Flash Frequency: 25~200Hz

Telemetry RF Power: 50mW Max

FW Version: V3.2.0 pre-installed

FW Target: Foxeer 900 RX

Bus Interface: CRSF

Indicator: Blue LED

Antenna Connector: U.FL

Input: 4~5.5V

Weight: 1g without antenna

Size: 11x18.5mm


Includes

Foxeer ELRS 915/868MHz Receiver


Note: For use with 900MHz ELRS Transmitters. Not compatible with 2.4GHz ELRS. The Foxeer ELRS 915Mhz/868MHz  receiver offers superior ELRS reception with its T-shaped antenna, giving you reliable and secure control over your aircraft. Enjoy worry-free communication with top of the line reception. Check out the rest of

For use with 915MHz ELRS Transmitters. Not compatible with 2.4GHz ELRS.
Foxeer had dipped their toe into the ELRS game with their new receivers. This version includes T shaped antenna giving fantastic ELRS reception.
Specifications

Processor: ESP8285+SX1276
Work Frequency: 915/868MHz

Flash Frequency: 25~500Hz
Telemetry RF Power: 50mW Max
FW Version: 3.2.0

Firmware Target: Foxeer 900 RX

Bus Interface: CRSF
Indicator: Blue LED
Antenna Connector: U.fl
Input Voltage: 4-5.5V
Weight: 1g (without antenna)
Dimensions: 11x18.5mm

Includes

1x T Antenna 915/868MHz Receiver For ELRS Protocol
1x Antenna
1x Heat Shrink Tube
1x Cable
1x 4-Pin Header

Wiring Diagram



Foxeer had dipped their toe into the ELRs game with their new receivers. This version includes T shaped antenna giving fantastic ELRS reception.

T Antenna 915/868MHz Receiver For ELRS Protocol

Foxeer ELRS Lite 2.4GHz Receiver with T Antenna

Another addition to our evergrowing ELRS receiver line up! Check out our ExpressLRS Collection, all our Receivers and the rest of our Foxeer Products! Specifications: Processor: ESP8285+SX1280 Work Frequency: 2400GHz-2500GHz Flash Frequency: 25~500Hz FW Version: 3.0.1 Antenna: UFL T Shape Indicator: RGB LED input Volta

Foxeer ELRS 2.4G Receiver LNA - T-Antenna

Foxeer had dipped their toe into the ELRS game with their new receivers. This receiver features low noise amplifier (LNA), power amplifier (PA) and includes a T antenna giving fantastic ELRS reception.
Specifications

Processor: ESP8285+SX1280
Work Frequency: 2400GHz-2500GHz

Flash Frequency: 25~500Hz
FW Version: 3.0.1

Firmware Target: Foxeer 2.4GHz RX

Antenna: UFL T Shape
Indicator: RGB LED
input Voltage: 5V
Weight: 0.7g
Dimension: 10.5x19mm


Includes

1x T Antenna 2.4GHz Receiver For ELRS Protocol

Wiring Diagram



T Antenna 2.4GHz Receiver with LNA & PA For ELRS Protocol

Another addition to our evergrowing ELRS receiver line up!This tiny and lightweight ELRS receiver from Foxeer features an onboard ceramic antenna making it very easy to fit in pretty much any size frame you build.
Check out all our receivers, and our entire Foxeer line-up!

Specifications

Processor: ESP8285+SX1280
Work Frequency: 2400GHz-2500GHz

Flash Frequency: 25~500Hz
FW Version: 3.0.1

Firmware Target: Foxeer 2.4GHz RX

Antenna: UFL T Shape
Indicator: RGB LED
input Voltage: 5V
Weight: 0.7g
Dimension: 10.5mmx19mm

Includes

1x Foxeer ELRS Lite 2.4GHz Receiver - T Antenna


Another addition to our evergrowing ELRS receiver line up!This tiny and lightweight ELRS receiver from Foxeer features an onboard ceramic antenna making it very easy to fit in pretty much any size frame you build. Check out all our receivers, and our entire Foxeer line-up! Specifications Processor: ESP8285+SX1280 Work

Foxeer ELRS 2.4GHz Receiver - T Antenna

Foxeer ELRS Lite 2.4GHz Receiver with Ceramic SMD Antenna

Foxeer had dipped their toe into the ELRs game with their new receivers. This version includes an ultra-low profile ceramic antenna to fit in even the more cramped builds while still giving fantastic ELRS reception.
Specifications

Processor: ESP8285+SX1280
Work Frequency: 2400GHz-2500GHz

Flash Frequency: 25~500Hz


SMD Ceramic antenna

FW Version: 3.0.1
Firmware Target: Foxeer 2.4GHz RX
Indicator: RGB LED
input Voltage: 5V
Weight: 0.5g
Dimension: 10.6x11.5mm

Includes

1x Lite 2.4GHz Receiver For ELRS Protocol

Wiring Diagram



Foxeer had dipped their toe into the ELRs game with their new receivers. This version includes an ultra-low profile ceramic antenna to fit in even the more cramped builds while still giving fantastic ELRS reception.

Lite 2.4GHz Receiver For ELRS Protocol

Another addition to our evergrowing ELRS receiver line up!This tiny and lightweight ELRS receiver from Foxeer features an onboard ceramic antenna making it very easy to fit in pretty much any size frame you build. Check out our ExpressLRS Collection, all our Receivers and the rest of our Foxeer Products! Specifications

Foxeer ELRS Lite 2.4G Receiver - SMD Ceramic Antenna

Another addition to our evergrowing ELRS receiver line up!This tiny and lightweight ELRS receiver from Foxeer features an onboard ceramic antenna making it very easy to fit in pretty much any size frame you build.
Check out all our receivers, and our entire Foxeer line-up!

Specifications

Processor: ESP8285+SX1280
Work Frequency: 2400GHz-2500GHz

Flash Frequency: 25~500Hz


SMD Ceramic antenna

FW Version: 3.0.1
Firmware Target: Foxeer 2.4GHz RX
Indicator: RGB LED
input Voltage: 5V
Weight: 0.5g
Dimension: 10.6mmx11.5mm

Includes

1 x Foxeer ELRS Lite 2.4GHz Receiver - Ceramic SMD Antenna


Foxeer ELRS Lite 2.4GHz Receiver - Ceramic Antenna

RadioMaster

RadioMaster RP1 V2 2.4GHz ELRS Nano Receiver

HOBBYPORTER










Note: The packaging in this product will mention V2, however the software is confirmed ELRS V3.
The Nano receivers, developed by Jye Smith of ExpressLRS, have ESP8285 MCU and SX1280 RF chip. RP1 has a UFL antenna socket while RP2 has a built-in ceramic antenna, making it super light and small. Both have WIFI built in, allowing you to upgrade firmware and configure the Receiver via WebUI. Both RP1 and RP2 have low-latency, high-refresh-rate RF module, making them ideal for FPV and long-range. Furthermore, their ultra-light Nano size allows you to fit them anywhere, from whoops to fixed-wing models. The EP1 comes with ELRS Firmware V3 pre-installed and a TCXO oscillator for solid connection &amp reliability.









Check out the RP2 if that fits your needs more!
Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!
Features


TCXO oscillator for solid connection &amp reliability.
Improved PCB design is better for heat dissipation.
ELRS Firmware V3 (pre-installed)

LED on the top side of PCB.

Solder pads are improved and easier to solder to.
Open-source receiver based on ExpressLRS
Upgraded rigid antenna with greater durability and performance










Specifications

Item: RP1 Nano ExpressLRS 2.4ghz Receiver
Type: ISM
Antenna: 65mm 2.4ghz T Antenna
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 2.2g (Including antenna)
Dimension: 13mmx11mmx3mm
Firmware Version: ExpressLRS v3.0 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF

User Manual

RP1 Receiver User Manual

Includes

1x RadioMaster RP1 V2 2.4GHz ELRS Nano Receiver
1x 65mm UFL 2.4Ghz T Antenna
1x User Manual



Note: The packaging in this product will mention V2, however the software is confirmed ELRS V3. The Nano receivers, developed by Jye Smith of ExpressLRS, have ESP8285 MCU and SX1280 RF chip. RP1 has a UFL antenna socket while RP2 has a built-in ceramic antenna, making it super light and small. Both have WIFI built in, allowing you to upgrade firmware and configure the Receiver via WebUI. Both RP1 and RP2 have low-latency, high-refresh-rate RF module, making them ideal for FPV and long-range. Furthermore, their ultra-light Nano size allows you to fit them anywhere, from whoops to fixed-wing models. Check out the RP2 if that fits your needs more! Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories! Features Improved PCB design is better for heat dissipation. ELRS Firmware V3 (pre-installed) LED on the top side of PCB. Solder pads are improved and easier to solder to. Open-source receiver based on ExpressLRS Upgraded rigid antenna with greater durability and performance Specifications Item: RP1 Nano ExpressLRS 2.4ghz Receiver Type: ISM Antenna: 65mm 2.4ghz T Antenna Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 2.2g (Including antenna) Dimension: 13mmx11mmx3mm Firmware Version: ExpressLRS v3.0 pre-installed FW Target: RadioMaster RP1/2 2400 RX Bus interface: CRSF User Manual RP1 Receiver User Manual Includes 1x RadioMaster RP1 V2 2.4GHz ELRS Nano Receiver 1x 65mm UFL 2.4Ghz T Antenna 1x User Manual

The RadioMaster RP1 ExpressLRS 2.4ghz Nano Receiver w/ 65mm UFL T-Antenna is an open-source receiver based on ExpressLRS.

#html-body [data-pb-style=UX2NAEC]{display:none}#html-body [data-pb-style=QJIDK79]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scro

RadioMaster RP1 ExpressLRS 2.4GHz Nano Receiver w/ 65mm UFL T-Antenna

The RP1 2.4GHz ELRS nano series receivers are open-source receivers based on the ExpressLRS receiver protocol. It features WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone. Thanks to the low-latency and high-refresh-rate RF module, the RP1 is ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Specifications

Antenna: 65mm 2.4ghz T Antenna
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 2.2g (Including antenna)
Dimension: 13x11x3mm
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF

Includes

1x RP1 2.4GHz Receiver For ELRS Protocol

Wiring Diagram



The RP1 2.4GHz ELRS nano series receivers are open-source receivers based on the ExpressLRS receiver protocol. It features WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone. Thanks to the low-latency and high-refresh-rate RF module, the RP1 is ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!

RP1 2.4GHz Receiver For ELRS Protocol

RadioMaster RP1 ExpressLRS 2.4ghz Nano Receiver

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

RadioMaster RP1 ExpressLRS 2.4ghz Nano Receiver - RMRC

RadioMaster R81 2.4GHz Micro Receiver

Radiomaster R81 is a FrSky D8 compatible receiver with dual antennas, SBUS out, and a tiny size.  Very similar to the FrSky XM+.
Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!
Specifications

Channels: 8CH
Frequency range: 2400-2483.5Mhz
Power input range: 4.5-6V
Signal format: FrSky D8 Compatible
Output format: SBUS (Inverted)
Support return: support return RSSI
Control distance: more than 1km
Antenna length: Approximaltly 6cm
Size: 17x11 mm
Weight: 2g

Includes

1x RadioMaster R81 SBUS D8 2.4GHz Nano Receiver

Bind method:
1. Press and hold the BIND button on the receiver then connect power. After approximately 3 seconds, the receiver LED will be RED, the receiver is now in bind mode
2. Select the D8 protocol for the multi-protocol menu of your remote control, and press the [BIND] option, the red light of the receiver will flash indicating successful bind
3. Exit bind mode on your remote control and disconnect power to the receiver then power the receiver once more. The LED will now be solid RED indicated the bind is now done. If not please repeat step 1 and 2

Fail-safe Protection:
1. Press the BIND button once within 10 seconds of th eceiver being powered on, and the receiver will save all the current channel values of the remote control as the fail-safe value
2. 10 seconds after the receiver is powered on, the BIND button function will be disabled to prevent accidental changes to to the fail-safe settings while preparing the model for flight

RSSI output:
This receiver has a total of 9 channels. 8 channels + an RSSI output channel.
Channels 1-8 are controlled by the remote controller, the 9th channel is the signal strength RSSI value output by the receiver itself, which can be read by the flight controller and sent to the OSD device Show
signal strength.








The RadioMaster R81 8CH SBUS 2.4GHz Nano Receiver features FrSky D8 compatibility and dual antennas to take advantage of its small size. See this tiny powerhouse today!

RadioMaster R81 2.4GHz Frsky D8 Protocol Micro Receiver

RadioMaster R81 8CH SBUS 2.4GHz Nano Receiver for Sale - RaceDayQuads

RadioMaster R81 8 Channel ReceiverThe R series receivers are Frsky D8 and D16 Compatible and offer a range suitable to drones and RC modelers.Product Support: www.radiomasterrc.com/support#a04Channels: 8Frequency range: 2400-2483.5MhzPower input range: 4.5-6VSignal format: Frsky D8 CompatibleOutput format: SBUSSupport return: support return RSSIControl distance: more than 1kmAntenna length: Approximaltly 6cmSize: 17x11mmWeight: 2 grams

RadioMaster R81 8 Channel Receiver D8 D16 Compatible - RMRC

RadioMaster R81 8 Channel Receiver

Introducing the Radiomaster R-Series! This R81 Nano Receiver (with Sbus Output) has 8 channels and is Frsky D8 compatible, offering a range suitable for both drone and RC modelers.

Introducing the Radiomaster R-Series! This R81 Nano Receiver (with Sbus Output) has 8 channels and is Frsky D8 compatible, offering a range suitable for both drone and RC modelers. These R series receivers are either compatible with Frsky D8 or

Radiomaster R81 8CH Frsky D8 / D16 Compatible Nano Receiver w/Sbus

Introducing the Radiomaster R-Series! This R81 Nano Receiver (with Sbus Output) has 8 channels and is Frsky D8 compatible, offering a range suitable for both drone and RC modelers. These R series receivers are either compatible with Frsky D8 or D16 modes and are suitable for RC drones and aircraft, etc.
Note: This version is not pre-soldered.
Features

Frsky D8 Compatible
8 Channels


Specifications

Antenna length: Approximately 6cm
Signal format: Frsky D8 Compatible
RSSI: RSSI on Ch9 of Sbus Output
Frequency range: 2400-2483.5Mhz
Power input range: 4.5-6V
Range: more than 1km
Output format: SBUS
Weight: 2 grams
Size: 17x11mm
Channels: 8

Manuals

R81 Receiver User manual


Includes

1x Radiomaster R81 Nano Receiver w/ Sbus
1x Connecting Wire


Introducing the Radiomaster R-Series! This R81 Nano Receiver (with Sbus Output) has 8 channels and is Frsky D8 compatible, offering a range suitable for both drone and RC modelers. These R series receivers are either compatible with Frsky D8 or D16 modes and are suitable for RC drones and aircraft, etc. Note: This vers

R81 2.4GHz Receiver For FrSky Protocol

ImmersionRC

ImmersionRC Ghost Atto 2.4GHz Micro Receiver w/ qT Antenna

Size matters. The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor.

Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k) and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.

Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).

Editor’s Note: Should we mention that the Átto is the ‘Big’receiver?… more on that later.

Check out our Receivers, IRC Ghost Products and all our ImmersionRC Products!
FEATURES:

 	2.4GHz ISM Band
 	‘JR’ Compatible Transmitter with Diversity Transmission
 	One Of The Smallest Receivers On the Market
 	Chirp Spread Spectrum, with Adaptive FHSS
 	Crazy Race Performance, 222.22Hz updates
 	~4ms End to End Latency, with OpenTx Integration
 	More range than most pilots will ever need

SPECIFICATIONS:

 	Downlink RF Power: +13dBm
 	Sensitivity: -117dBm in Long Range mode
 	Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
 	Firmware: Over-the-air (OTA) upgradable
 	Power Supply: 5V recommended, as low as 3.3V tolerated
 	vTx Control: Tramp control from ‘T’ pin on Rx, regardless of selected serial format
 	Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
 	Rx Noise Floor Analysis: Auto on power-up, or on demand from the Tx

PACKAGE INCLUDES:

 	1 x Atto Receiver
 	1 x qTee Antenna
 	Silicone Cables
 	Heat Shrink

ORQA GOGGLE INTEGRATION:
That space on the FPV.Connect board… yeah, that is for a Ghost receiver, the Átto.

Ghost transmitters and receivers can form a network, without the need to use bluetooth or wifi, and communicate between themselves without sacrificing critical control performance.

Clear channel scan with automatic channel assignment, auto-start DVR recording when throttle stick is raised, and a bunch of other cool features planned for 2020.
PROTON PACKS FOR DAYS:
Simple PCBs designed to dramatically simplify wiring, mounting, and cooling of Tramp Nano + Ghost combinations.
36x36 single-sided, 20x20 double sided, 20x20 single sided, ‘Toothpick style’, and a special version designed for the Five33 Tiny Trainer.
QTEE ANTENNAS:
qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.
Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad
SYSTEMS INTEGRATORS/MANUFACTURERS:
ImmersionRC is open to discuss with manufacturers who wish to embed Ghost into other systems (Hobby, Industrial, Law Enforcement, etc.). An embedded Ghost 2.4GHz Rx occupies approx. 10mm x 10mm of PCB space.

For use on sub-GHz bands, the ‘Red Ghost’ product line can be custom ordered for use on licensed bands from 140MHz to 1GHz.
GPS + NOISE:
Another advantage of running 2.4GHz instead of the more traditional sub-GHz frequencies for long range is that 2.4GHz has no harmonics that can desensitize GPS receivers (which are in the 1.5GHz band), so GPS position fixes become more precise.
In addition, Drone/Quad/UAV electrical noise due to fast switching signals is broadband, and also sub-GHz (typically sub-500MHz), and doesn’t desensitize the 2.4GHz Ghost receiver.

IMMERSIONRC GHOST ÁTTO 2.4GHZ RECEIVER | Five33

IMMERSIONRC GHOST ÁTTO 2.4GHZ RECEIVER

IMMERSIONRC

All Ghost receivers currently have multiple binding methods. We recommend binding via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4.
Please refer to the Manual for more information about binding.
Size matters. The Ghost Atto receiver weighs in at about 0.6g and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor.
Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.
Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).
Buy an extra antenna here.
Check out all our RC transmitters, modules and accessories as well as our ImmersionRC selection, and the rest of our Ghost products.
Features

2.4GHz ISM Band
‘JR’ Compatible Transmitter with Diversity Transmission
One Of The Smallest Receivers On the Market
Chirp Spread Spectrum, with Adaptive FHSS
Crazy Race Performance, 222.22Hz updates
~4ms End to End Latency, with OpenTx Integration
More range than most pilots will ever need

Specifications

Downlink RF Power: +13dBm
Sensitivity: -117dBm in Long Range mode
Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted
Firmware: Over-the-air (OTA) upgradable
Power Supply: 5V recommended, as low as 3.3V tolerated
vTx Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format
Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
Rx Noise Floor Analysis: Auto on power-up, or on-demand from the Tx

Includes

1x ImmersionRC Ghost Atto 2.4GHz Micro Receiver
1x qT Antenna for Atto

Manual

All Ghost receivers currently have multiple binding methods. We recommend binding via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4. Please refer to the Manual for more information about binding. Size matters. The Ghost Atto receiver weighs in at about 0.6g and is only 14.

The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor.


Size matters. The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor.
Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k) and an

ImmersionRC Ghost Átto 2.4Ghz Rx


The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, SUPER SMALL.
Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.
Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).
Features

2.4GHz ISM Band
JR Compatible Transmitter with Diversity Transmission
One Of The Smallest Receivers On the Market
Chirp Spread Spectrum, with Adaptive FHSS
Crazy Race Performance, 222.22Hz updates
~4ms End to End Latency, with OpenTx Integration
More range than most pilots will ever need

Specifications

Downlink RF Power: +13dBm
Sensitivity: -117dBm in Long Range mode
Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
Firmware: Over-the-air (OTA) upgradable
Power Supply: 5V recommended, as low as 3.3V tolerated
VTX Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format
Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
Rx Noise Floor Analysis: Auto on power-up, or on-demand from the Tx


For the latest firmware and or manuals please click here

The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, SUPER SMALL. Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs. Deja-Vu binding ensures that receivers alr

Átto 2.4Ghz Receiver For Ghost Protocol

The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, SUPER SMALL. Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs. Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button). Features 2.4GHz ISM Band JR Compatible Transmitter with Diversity Transmission One Of The Smallest Receivers On the Market Chirp Spread Spectrum, with Adaptive FHSS Crazy Race Performance, 222.22Hz updates ~4ms End to End Latency, with OpenTx

This ImmersionRC Ghost Atto Receivers + qT Antennas Bundle includes three Ghost Atto Receivers and three qT Dipole Antennas!

<p>This&nbsp;<strong>ImmersionRC Ghost Atto Receivers + qT Antennas Bundle</strong>&nbsp;is designed&nbsp;for both reliable control at extreme range, and extremely low latency with a best-in-class frame rate for the Race

ImmersionRC Ghost Atto Receivers + qT Antennas Bundle

Size matters. The Ghost Átto RX weighs in at about 0.6g, and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor. Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k) and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs. Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button). Editor’s Note: Should we mention that the Átto is the ‘Big’receiver?… more on that later.Check out our Receivers, IRC Ghost Products and all our ImmersionRC Products! Features: 2.4GHz ISM Band ‘JR’ Compatible Transmitter with Diversity Transmission One Of The Smallest Receivers On the Market Chirp Spread Spectrum, with Adaptive FHSS Crazy Race Performance, 222.22Hz updates ~4ms End to End Latency, with OpenTx Integration More range than most pilots will ever need Specifications: Downlink RF Power: +13dBm Sensitivity: -117dBm in Long Range mode Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted Firmware: Over-the-air (OTA) upgradable Power Supply: 5V recommended, as low as 3.3V tolerated vTx Control: Tramp control from ‘T’ pin on Rx, regardless of selected serial format Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna) Rx Noise Floor Analysis: Auto on power-up, or on demand from the Tx Package Includes: 1 x Atto Receiver 1 x qTee Antenna Silicone Cables Heat Shrink Orqa Goggle Integration: That space on the FPV.Connect board… yeah, that is for a Ghost receiver, the Átto. Ghost transmitters and receivers can form a network, without the need to use bluetooth or wifi, and communicate between themselves without sacrificing critical control performance. Clear channel scan with automatic channel assignment, auto-start DVR recording when throttle stick is raised, and a bunch of other cool features planned for 2020. Proton Packs for Days: Simple PCBs designed to dramatically simplify wiring, mounting, and cooling of Tramp Nano + Ghost combinations.36x36 single-sided, 20x20 double sided, 20x20 single sided, ‘Toothpick style’, and a special version designed for the Five33 Tiny Trainer. qTee Antennas: qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad Systems Integrators/Manufacturers: ImmersionRC is open to discuss with manufacturers who wish to embed Ghost into other systems (Hobby, Industrial, Law Enforcement, etc.). An embedded Ghost 2.4GHz Rx occupies approx. 10mm x 10mm of PCB space. For use on sub-GHz bands, the ‘Red Ghost’ product line can be custom ordered for use on licensed bands from 140MHz to 1GHz. GPS + Noise: Another advantage of running 2.4GHz instead of the more traditional sub-GHz frequencies for long range is that 2.4GHz has no harmonics that can desensitize GPS receivers (which are in the 1.5GHz band), so GPS position fixes become more precise.In addition, Drone/Quad/UAV electrical noise due to fast switching signals is broadband, and also sub-GHz (typically sub-500MHz), and doesn’t desensitize the 2.4GHz Ghost receiver.

ImmersionRC Ghost Átto 2.4Ghz Receiver

FlySky

FlySky FS-X14S 2.4GHz Micro Receiver

Flysky





Specifications


Product Model: FS-X14S
PWM channel: None
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 2A
Range: 500 ～ 1500m (in the air)
Antenna type: dual antenna (92.5mm * 2)
Power: 3.5-8.4V
RSSI: Not supported
Data port: PPM / s.bus
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online update: No
Dimensions: 20mm * 12mm * 3.5mm
Weight: 2.5g
Certification: CE, RCM, FCC















Specifications   Product Model: FS-X14S PWM channel: None Wireless frequency: 2.4GHz Wireless protocol: AFHDS 2A Range: 500 ～ 1500m (in the air) Antenna type: dual antenna (92.5mm * 2) Power: 3.5-8.4V RSSI: Not supported Data port: PPM / s.bus Temperature range: -10 ℃ — + 60 ℃ Humidity range: 20% -95% Online update: No

FS-X14S 2.4GHz Receiver For FlySky Protocol

The Flysky X14S is one of the featured-filled AFHSD 2A receivers. Compatible with NV14, FS-TH9X, FS-I6, FS-i6X, FS-i4, and FS-i4X transmitters.

The Flysky X14S is one of the featured-filled AFHSD 2A receivers. Compatible with NV14, FS-TH9X, FS-I6, FS-i6X, FS-i4, and FS-i4X transmitters. The super lightweight FS-X14S receiver supports PPM/S.BUS data output.
Note: Do

Flysky FS-X14S AFHDS 2A Receiver

FrSky

FrSky R-XSR 2.4GHz Micro Receiver

This is the smallest full telemetry SBUS receiver from FrSky. FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM.

Frsky R-XSR receivers are now coming installed with ACCESS firmware. To bind with ACCST only radios, a firmware update is required. Firmware can be found here: https://www.frsky-rc.com/r-xsr/ (Select history firmware download for ACCST 1.0

FrSky R-XSR 2.4GHz 16CH ACCESS/ACCST Micro Receiver w/ S-Bus & CPPM

FrSky R-XSR 2.4GHz 16CH ACCESS/ACCST Micro Receiver w/ S-Bus &amp CPPM


This is the new version with pads for uninverted telemetry and smart port!
Love the compact design of the XM+ but need full telemetry like with the X4R-SB?  FrSky listened and released the R-XSR to have the best of both worlds!  The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thing...
The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The RXSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.
Features

Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function
IPEX connector, replaceable antennas

Specifications

Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode


This receiver comes pre-loaded with ACCESS firmware, Non-FrSky Radios and FrSky radios with older ACCST versions will be rendered unable to bind. Please flash your RX with the legacy firmware in this link to remedy this issue.


THIS IS THE NEW VERSION WITH PADS FOR UNINVERTED TELEMETRY AND SMART PORT! Love the compact design of the XM+ but need full telemetry like with the X4R-SB? FrSky listened and released the R-XSR to have the best of both worlds! The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thin

R-XSR 2.4GHz Receiver For FrSky Protocol

This is the new version with pads for uninverted telemetry and smart port! Love the compact design of the XM+ but need full telemetry like with the X4R-SB?  FrSky listened and released the R-XSR to have the best of both worlds!  The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thing...  The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The RXSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas. Features Ultra mini size and light weight Support telemetry and Smart Port enabled Full range

FRSKY

Legacy 2.0 firmware available here
Love the compact design of the XM+ but need full telemetry? FrSky listened and released the R-XSR to have the best of both worlds!  The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thing...
The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The RXSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.
Check out all our RC receivers, and all our FrSky products!
Features

Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function
IPEX connector, replaceable antennas

Specifications

Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode

Includes

1x FrSky R-XSR SBUS 2.4GHz Micro Receiver



Legacy 2.0 firmware available here  Love the compact design of the XM+ but need full telemetry? FrSky listened and released the R-XSR to have the best of both worlds!  The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thing...  The FrSky ultra mini receiver R-XSR is the evolution

  The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The R-XSR also has an integrated diversity with 2x antennas for a solid RC

FrSky R-XSR S.Bus/CPPM 8/16 Channel Micro Receiver

BetaFPV

BetaFPV ELRS Lite 2.4GHz Receiver

BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance. New lite receiv

BetaFPV ELRS Lite Receiver Flat Antenna V1.1 - 2.4GHz

BETAFPV

BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.Message from BETAFPV regarding Flat antenna range issues:The ELRS Lite Receiver flat antenna V1.1 is coming to see you again. Range issues and failsafe at around 100 meters have been resolved compared with V1.0. Now, the V1.1 flat antenna receiver can reach 600 meters with BetaFPV Moxon antenna. Please feel free to email support@betafpv.com and our support team will help you if you have any issues.
Check out all our receivers, and our entire BetaFPV selection!
Specifications

Input voltage: 5V
Frequency bands: 2.4GHz ISM

MCU: ESP8285
Telemetry power: 17mW
Antenna: Integrated SMD ceramic antenna

Size: 10*10mm

Weight: 0.47g tower or .53g flat (with SMD ceramic antenna)



Note: The firmware version of the Lite receiver manufactured by our company is ELRS 1.1.0 ELRS Innovative team has officially released version 1.2.0, which is not compatible with the 1.1.0 version. We suggest our customers upgrade this receivers' ELRS version to 1.2.0 if needed. Significantly, the TX module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully.
Includes

1x BETAFPV ELRS Lite receiver
2x Spare shrink tube

4x 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)


BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.Message from BET

BetaFPV ELRS Lite 2.4GHz Receiver - Choose Version

BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance. Check out all o

BetaFPV ELRS Lite Receiver - 2.4GHz

BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.


A ton of ExpressLRS items are available now!
Nano RX or Lite RX
What is the major difference between Nano receiver and Lite receiver?
Nano receiver (2.4G version) is the first and (so far) the only receiver with power amplifier (PA+LNA). It has 100mW telemetry output and better sensitivity when longer range. Lite receiver doesn't have a PA/LNA on them, so its telemetry power is as what the RF chip SX1280 came with 17mW.
Beside, Nano receiver comes with normal external Dipole T antenna. Lite receiver has SMD ceramic antenna and in theory it is not so long range.
High recommend the Nano receiver if the space is enough. On 65-85mm whoop drones with limited space and need light weight, Lite receiver is a better choice.
Tower Antenna or Flat Antenna

New lite receiver with a flat antenna features a 3mm extra-thin board and 0.53g lightweight, which requires less assembly space on drones with limited space. Besides, solid flat antenna without irregular parts can withstand crashes, making the receiver not so fragile.

Whatever tower antenna or flat antenna, both versions perform well in control, range and stability, bringing a good flight experience to pilots. Below chart is the basic information for two antennas. It is shown that both antennas have almost the same performance in gain. However, the efficiency for flat antenna is better than tower antenna. In spite of that, tower antenna and flat antenna V1.1 can reach about 600 meters by equal conditions.




Tower Antenna
Flat Antenna V1.1


Weight
0.47g
0.53g


Size

10mm*10mm*6mm
11mm*10mm*3mm



Gain
3.3dBi
3.2dBi


Radio Efficiency
&gt70%
&gt80%


Return Loss
&lt-7
&lt-7


Recommend Drone
Whoop Drone
Whoop Drone


Range
About 600 meters
About 600 meters




Flat Antenna V1.0 &amp V1.1
The ELRS Lite Receiver flat antenna V1.1 is coming to see you again. Range issues and failsafe at around 100 meters have been resolved compared with V1.0. Now, the V1.1 flat antenna receiver can reach 600 meters with BETAFPV Moxon TX Antenna (using BETAFPV Nano TX module).
Previously, the flat antenna V1.0 led to the failsafe at around 100 meters with an RSSI of -95dBm of this receiver, which did not reach the expected range compared with the beta version. However, it works great for indoor whooping and racing.

For customers who bought this receiver before March 2022 and have issues with it, we will refund you or send you a new one that fixes range issues.
Please feel free to email support@betafpv.com and our support team will help you.
BETAFPV ExpressLRS Receivers
Choosing a suitable receiver to fly quadcopter or other RC models is very important. BETAFPV ExpressLRS Receivers including ELRS Lite, Nano, Micro, and the newest SuperD, greatly fulfill pilots' requirements for FPV flying.




SuperD RX
Micro RX
Nano RX
Lite RX


Weight
1.1g (RX only)
3.5g (RX only)
0.7g (RX only)
0.47g (Tower), 0.53g (Flat)



Antenna
IPEX MHF + T antenna
IPEX MHF + T antenna
IPEX MHF + T antenna
SMD ceramic antenna



MCU
ESP32-PICO-D4, dual SX1280
ESP8285

ESP8285

ESP8285



RF Chip
Dual SX1280 + Dual PA
SX128X
SX1280 + PA, SX1276 + PA
SX128X


Frequency
2.4GHz ISM
2.4GHz ISM
2.4GHz ISM, 915MHz (FCC), 868MHz (EU)

2.4GHz ISM



Telemetry Power
100mW
17mW
100mW
17mW


Serial Output Protocol
CRSF
PWM or CRSF
CRSF
CRSF


Model Type
FPV Drone, Fixed-wing aircraft
Fixed-wing aircraft, Helicopter, RC Cars, RC Boats
FPV Drone
Whoop Drone





Specification

Weight: 0.47g (with Tower SMD ceramic antenna), 0.53g (with Flat SMD ceramic antenna)
Size: 10mm*10mm*6mm (Tower), 11mm*10mm*3mm (Flat)
MCU: ESP8285
Telemetry power: 17mW
Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
Input voltage: 5V

Antenna: Integrated SMD ceramic antenna

Diagram
Lite receiver with tower antenna 2.4G version diagram as shown below.

Lite receiver with flat antenna 2.4G version diagram as shown below.

Note: For orders before April 2022, the firmware version of the Lite receiver tower antenna or flat antenna v1.1 manufactured by our company is ELRS 2.0.0 ELRS Innovative team has officially released version 2.4.0. If you want to flash ELRS official firmware, please download the latest ExpressLRS-Configurator or read our manual for flashing it. Significantly, the TX module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully.
Download the latest ExpressLRS-Configurator.
Manual for flashing ExpressLRS official firmware.

Know More About ExpressLRS
ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.
ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.

Configuration &amp Bind
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.
The connection between the ELRS Lite receiver and the FC board is shown below.

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.

On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.

The Lite receiver comes with offically major release V2.0.0 protocol and no Binding Phrase inlcuded. Lite receiver could enter binding status by power on/off three times.

Plugin and unplug Lite receiver three times
Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode
Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse
If the receiver has a solid light, it's bound.

Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.
Note: If you reflash firmware of the receiver with your own Binding Phrase, please make sure the TX module has the same Binding Phrase. The RF TX module and the receiver will bind automatically in this situation.
FAQ
BETAFPV ELRS Nano receiver user manual download. (use the same manual of Nano Receiver).
Recommend ExpressLRS Recovery Dongle for unbricking the receiver.
Considering customers who fly whoop drones indoors or with a short range, less than 100m, the Lite Receiver Flat Antenna V1.0 will be compatible with their needs. If you would like to fly drones with long-range, please choose Tower Antenna or V1.1 Flat Antenna.
Package

1 * BETAFPV ELRS Lite receiver (tower antenna or flat antenna V1.1)
2 * Spare shrink tube

4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)


or


BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance. A ton of Expres

ELRS Lite Receiver

Spektrum

Spektrum SPM4650 V2 DSMX SRXL2 Serial Micro Receiver

The Spektrum SPM4650 DSMX SRXL2 Serial Micro Receiver takes the original SPM4648 receiver and adds more value, functionality, and fly-by telemetry while decreasing the size and weight of the already micro-sized Spektrum serial receiver.

The Spektrum SPM4650 DSMX SRXL2 Serial Micro Receiver takes the original SPM4648 receiver and adds more value, functionality, and fly-by telemetry while decreasing the size and weight of the already micro-sized Spektrum serial receiver. The SPM4

Spektrum SPM4650 DSMX SRXL2 Serial Micro Receiver V2

The SPM4650 DSMX SRXL2 Serial Micro Receiver takes the original SPM4648 receiver and adds more value, functionality and fly-by telemetry, while decreasing the size and weight of the already micro sized Spektrum serial receiver. The SPM4650 uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data c
