SpeedyBee

SpeedyBee Adapter 3 - Multi-Function Mobile FPV Tool

The third iteration of the useful SpeedyBee Adapter is the best yet! Configure, charge, check, analyze, flash, you name it, the Adapter 3 probably does it. And all from your smartphone, no need for a laptop! With so many ways to use this tool, it will become standard in your FPV bags. Check out all our FC Adapters and

SpeedyBee Adapter 3

RUNCAM

This is your mobile FPV swiss army knife! You can flash and configure your FC &amp BLHeli_S ESCs, download and analyze your blackbox logs, check your 1-6S LiPo voltages, and fast charge your mobile device from a LiPo! Featuring WiFi &amp Bluetooth radios, XT60 &amp PH2.0 power inputs and Micro USB, USB-C &amp USB-A connectivity, there's not much this little device can't do!
Download the App for Android and iOS
Check the rest of our tools &amp building supplies and our SpeedyBee products!

Features

Wireless Firmware Flasher &amp Configurator
30W Fast USB Charger
Wireless Blackbox Analyser
Wireless ESC Flasher
1-6S LiPo Checker
iOS &amp Android Compatible
USB-C &amp Micro USB

Specifications

Input Voltage: 1-6S(3.8V+ for 1S)
Power Input Connector: XT60-Male, PH2.0 male
Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android
Maximum Output Current for flight controllers: 700mA @5V
Fast Charging Output interface: USB A Port
Minimum Input Voltage for Charging output: 7.4V(2S LiPo)
Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
Max Fast Charging Current: 3.5A
Max Fast Charging Power: 30W
Case Material: ABS + PC
Liquid Silicone Cable Length: 12.4cm
Dimension(Main Body): 24.8x21.8x53.6mm
Net Weight: 35g


Manual Download
Includes

1x Speedy Bee Adapter 3


The SpeedyBee Adapter 3 is the perfect multi-function mobile FPV tool for your kit. Take this compact lifesaver everywhere with ease thanks to its small size.

SpeedyBee Adapter 3 - Multi-Function Mobile FPV Tool for Sale

This is your mobile FPV swiss army knife! You can flash and configure your FC &ampamp BLHeli_S ESCs, download and analyze your blackbox logs, check your 1-6S LiPo voltages, and fast charge your mobile device from a LiPo! Featuring WiFi &ampamp Bluetooth radios, XT60 &ampamp PH2.0 power inputs and Micro USB, USB-C &ampamp USB-A connectivity, there&#39s not much this little device can&#39t do!
Download the App for Android and iOS
Check the rest of our tools &ampamp building supplies and our SpeedyBee products!

Features

Wireless Firmware Flasher &ampamp Configurator
30W Fast USB Charger
Wireless Blackbox Analyser
Wireless ESC Flasher
1-6S LiPo Checker
iOS &ampamp Android Compatible
USB-C &ampamp Micro USB

Specifications

Input Voltage: 1-6S(3.8V+ for 1S)
Power Input Connector: XT60-Male, PH2.0 male
Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android
Maximum Output Current for flight controllers: 700mA @5V
Fast Charging Output interface: USB A Port
Minimum Input Voltage for Charging output: 7.4V(2S LiPo)
Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
Max Fast Charging Current: 3.5A
Max Fast Charging Power: 30W
Case Material: ABS + PC
Liquid Silicone Cable Length: 12.4cm
Dimension(Main Body): 24.8x21.8x53.6mm
Net Weight: 35g


Manual Download
Includes

1x Speedy Bee Adapter 3


This is your mobile FPV swiss army knife! You can flash and configure your FC &amp; BLHeli_S ESCs, download and analyze your blackbox logs, check your 1-6S LiPo voltages, and fast charge your mobile device from a LiPo! Featuring WiFi &amp; Bluetooth radios, XT60 &amp; PH2.0 power inputs and Micro USB, USB-C &amp; USB-A

SpeedyBee Adapter 3 - Multi-Function Mobile FPV Tool from WREKD Co.

The third iteration of the useful SpeedyBee Adapter is the best yet! Configure, charge, check, analyze, flash, you name it, the Adapter 3 probably does it.

Speedybee

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

SpeedyBee Adapter 3 - www.readymaderc.com

Tool Type

Tools

FrSky

FrSky XSR-SIM Wireless USB Dongle For Simulators

FRSKY

The FrSky Wireless USB Dongle For Simulator allows you to wirelessly connect your FrSky transmitter to computer to use simulator. Just install the pre-loaded HID driver to your PC (Mac users will need to download the correct HID drivers). Then bind your transmitter to it, now you can move freely while using a simulator.
See our full FrSky selection here!
 Specification: MANUAL Brand Name: Frsky Model: XSR-SIM Item Name: USB Dongle Wireless Simulation Application: for Frsky Radio Transmitter Compatibilty: compatible for DRL, LiftOff, Freerider, HotProps, etc. Size: 48.2*19.1*9.2mm (L*W*H) Weight: 6.2g  Features:
- Compact design
- Low power requirements: typically 55mA
- Compatible with FrSky transmitters and module systems (Mode D16)
- Compatible with popular simulators (DRL, LiftOff, Freerider, HotProps, etc.)
- 8 proportional channel and 8 switch channel output (set on the transmitter side)
- Firmware upgradable (through the S.Port)  Package Included: 1x Frsky XSR-SIM Simulator





Use your own FrSky transmitter while flying simulations with the FrSky XSR-SIM Wireless USB Dongle For Simulators. The continuity of using the same transmitter is very important!

FrSky XSR-SIM Wireless USB Dongle For Simulators for Sale

The FrSky Wireless USB Dongle For Simulator allows you to wirelessly connect your FrSky transmitter to computer to use simulator. Just install the pre-loaded HID driver to your PC (Mac users will need to download the correct HID drivers). Then bind your transmitter to it, now you can move freely while using a simulator

FRSKY XSR-SIM WIRELESS USB DONGLE FOR SIMULATORS

The FrSky Wireless USB Dongle For Simulator allows you to wirelessly connect your FrSky transmitter to a computer to use a simulator.  Then bind your transmitter to it, now you can move freely while using a simulator.

ImmersionRC

ImmersionRC Tramp TNR Wand Personal Edition

ImmersionRC's unique 'TNR Wand'. An invaluable tool for programming TrampHV Video Transmitters via touch-free NFC.

ImmersionRC's unique 'TNR Wand'. An invaluable tool for programming TrampHV Video Transmitters via touch-free NFC. Just as at home programming a few quads for a blast around the local park, or being an integral part of a major race event. The wand is capable of reading and writing the frequency, and power level of a Tr

FrSky S.Port Tool Kit - STK

HDZero

HDZero Video Transmitter Programmer

HDZERO











Take control of your HD video transmission with the HDZero VTX Programmer. This easy to use programmer allows you to make adjustments directly to your video transmitter.










Check out the rest of our HDZero gear and the rest of our other FPV goggles and accessories!

Includes

1x HDZero Goggle Analog Expansion Module V2 w/ WIFI


Take control of your HD video transmission with the HDZero VTX Programmer. This easy to use programmer allows you to make adjustments directly to your video transmitter.  Check out the rest of our HDZero gear and the rest of our other FPV goggles and accessories! Includes 1x HDZero Goggle Analog Expansion Module V2 w/

HDZero VTX Programmer

 The HDZero VTX Programmer will help you to Update your HDZero VTX using your PC, Get the firmware online and Easily detect the VTX type, Use your USB-C cable as an extension cable, This programmer supports two update sockets. Check out our HDZero Compatible Gear and the rest of our HDZero Products! Specifications: Get

Update your HDZero VTX by PC &#009Get VTX firmware online&#009Auto-detect VTX type&#009Use your USB-C cable as an extension cable&#009Two update sockets are supported Software Download Tool for Fast HDZero VTX Updates from a PC - Youtube

Update your HDZero VTX by PC 	Get VTX firmware online	Auto-detect VTX type	Use your USB-C cable as an extension cable	Two update sockets are supported Software Download Tool for Fast HDZero VTX Updates from a PC - Youtube

HDZero VTX Programmer | HDZERO

BetaFPV

BetaFPV ExpressLRS ELRS Recovery Dongle

BETAFPV

This ELRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ampampESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when failed in updating or flashing firmware by UART.
Check out our Express LRS collection and all our BetaFPV products!

Features

Unbrick and recover an ELRS receiver when having a failed update such as missing bootloader
Solder Free! This dongle features spring probe pins for more convenient use
Comes inside of a plastic case that is more durable and portable compared with the naked board version on the market.
USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Specifications

Operating Voltage: 5V
Logic Voltage: 5V
3.3V Power Supply Output Current: 400mA
Pins Output Method: 2x4P-2.54mm pin header
Serial Baud Rate: Up to 921600bps.
USB Connector: USB-C

Includes

1x ExpressLRS Recovery Dongle
1x 4 Pin Cable
1x Probe Converter Board



This ELRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&amp;ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market and FPV goggles backpack. It will be a good choice to unbrick the ELRS

BetaFPV ExpressLRS Recovery Dongle from WREKD Co.

BetaFPV ExpressLRS Recovery Dongle

This ELRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&amp;ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market and FPV goggles backpack. It will be a good choice to unbrick the ELRS

This ELRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ampESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when failed in updating or flashing firmware by UART.
Check out our Express LRS collection and all our BetaFPV products!

Features

Unbrick and recover an ELRS receiver when having a failed update such as missing bootloader
Solder Free! This dongle features spring probe pins for more convenient use
Comes inside of a plastic case that is more durable and portable compared with the naked board version on the market.
USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Specifications

Operating Voltage: 5V
Logic Voltage: 5V
3.3V Power Supply Output Current: 400mA
Pins Output Method: 2x4P-2.54mm pin header
Serial Baud Rate: Up to 921600bps.
USB Connector: USB-C

Includes

1x ExpressLRS Recovery Dongle
1x 4 Pin Cable
1x Probe Converter Board



SkyRC

SkyRC GSM020 GNSS Performance Analyzer

Track how fast your RC vehicle at any time with this small device that pairs with your smartphone!




The collected data gets transfered to your Phone with the next Blutooth connection.
 GNSS Performance Analyzer (GSM020 allows you to measure and analyze many aspects of your RC car &ampamp airplane&#39s performance using the latest GNSS engine (GPS, GLONASS) which gives you Acceleration, G-force, Speed, Time, Distance, High and Vertical Speed.


Check out all our GPS modules while you&#39re here!


Features


3 different Modes for every opportunity (Drag Race, Track Race, Flying Mode)
Built-in 1M flash (for up to 50 data records)
Built-in rechargeable, LiPo bettery 200mAh (for more than 5 hours)
In the App recorded data turns into useful analysis
GPS Coordinator
Support both Metric and Imperial system of measurements
Free App is compatible with iOS 9.0 and Android 5.0 (or above)




Specifications


3 Modes : Drag Race/Track Race/Flying Mode
Receiver: L1, 1575.42 MHz
Update frequency: 10 Hz
Antenna: built-in
Sensitivity of satellite signal reception: -167dBm
Operating temperature: 0 ° to + 40 °
Temperature at rest: -10 ° to + 70 °
Operating mode humidity: 5% to 90%
Case Size: 40 x 39 x 16mm
Weight: 38g

Includes

1x SkyRC GSM020 GNSS Performance Analyzer


Track how fast your RC vehicle at any time with this small device that pairs with your smartphone! The collected data gets transfered to your Phone with the next Blutooth connection.  GNSS Performance Analyzer (GSM020 allows you to measure and analyze many aspects of your RC car &amp; airplane's performance using the l

SkyRC GSM020 GNSS Performance Analyzer from WREKD Co.

CHEN

Track how fast your RC vehicle at any time with this small device that pairs with your smartphone!




The collected data gets transfered to your Phone with the next Blutooth connection.
 GNSS Performance Analyzer (GSM020 allows you to measure and analyze many aspects of your RC car &amp airplane's performance using the latest GNSS engine (GPS, GLONASS) which gives you Acceleration, G-force, Speed, Time, Distance, High and Vertical Speed.


Check out all our GPS modules while you're here!


Features


3 different Modes for every opportunity (Drag Race, Track Race, Flying Mode)
Built-in 1M flash (for up to 50 data records)
Built-in rechargeable, LiPo bettery 200mAh (for more than 5 hours)
In the App recorded data turns into useful analysis
GPS Coordinator
Support both Metric and Imperial system of measurements
Free App is compatible with iOS 9.0 and Android 5.0 (or above)




Specifications


3 Modes : Drag Race/Track Race/Flying Mode
Receiver: L1, 1575.42 MHz
Update frequency: 10 Hz
Antenna: built-in
Sensitivity of satellite signal reception: -167dBm
Operating temperature: 0 ° to + 40 °
Temperature at rest: -10 ° to + 70 °
Operating mode humidity: 5% to 90%
Case Size: 40 x 39 x 16mm
Weight: 38g

Includes

1x SkyRC GSM020 GNSS Performance Analyzer


The SkyRC GSM020 GNSS Performance Analyzer is a small device that tracks the speed of your RC vehicle with ease! Pair with your smartphone and see the speeds you reach today!

SkyRC GSM020 GNSS Performance Analyzer for Sale - RaceDayQuads

Generic / No Brand

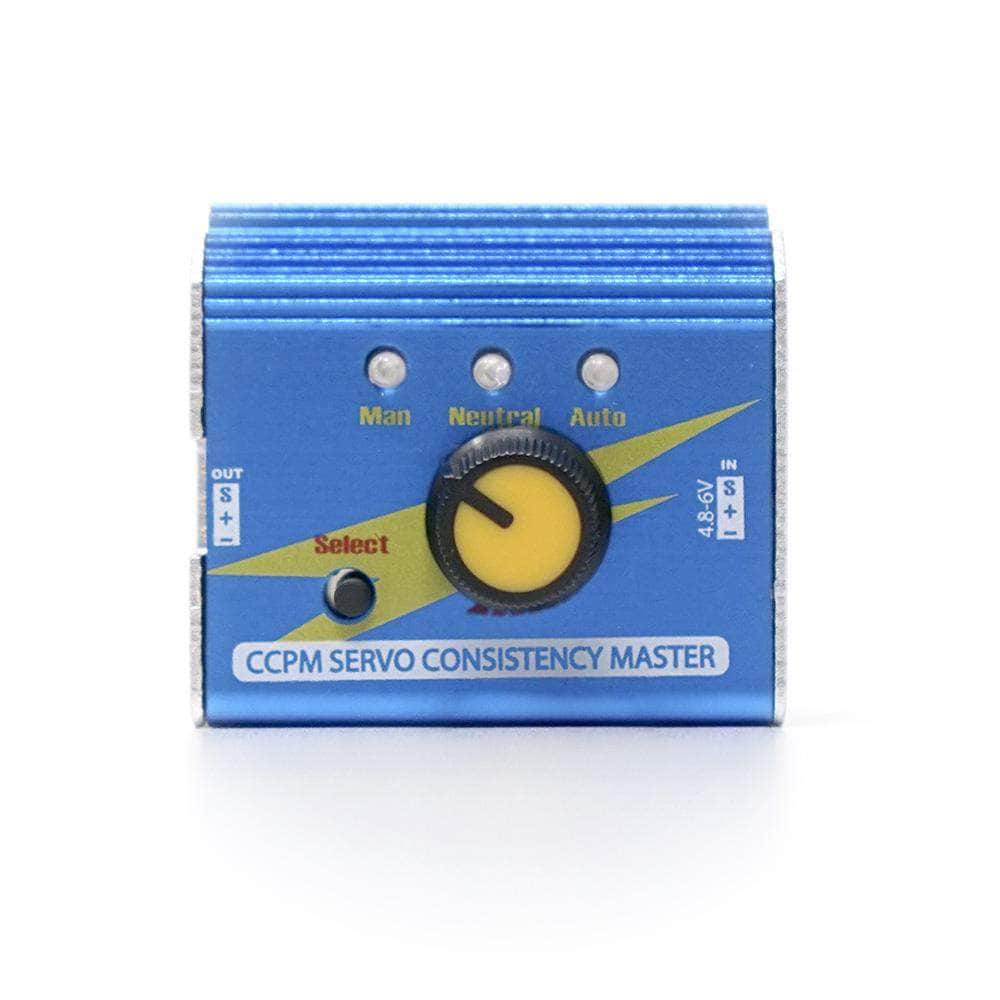

Multi-Function 3CH Servo Tester & Centering Tool

WREKD General

The Multi-Function 3CH Servo Tester &ampamp Centering Tool is a simple 3-servo, 3-function tester. It is handy for centering and checking the deflection of your control linkages. You can compare up to 3 servos (digital or analog) at once.
Check out the rest of our servos, linkages &ampamp accessories and all our tools &ampamp building supplies!
Features


Full aluminum alloy shell
Compatible with analog and digital servos
Can control ESCs and simultaneously test whether up to three servos are synchronized.


Functions


Three modes to check servos or ESC:

Manual mode: Turn the knob with different speed. Check reaction time.
Neutral mode: Make the servo go back to the neutral point.
Automatic: &quotwindow wiper&quot mode makes the servo swing full range.

Connect 1-3 servos simultaneously to test consistency, reaction time and so on.

Specifications


Input Voltage: 4.8-6V
Size: 48 x 42 x 17mm
Weight: 31.5 g




Includes

1x Multi-Function 3CH Servo Tester &ampamp Centering Tool


Test & center servos effortlessly with the Multi-Function 3CH Servo Tester. Compare up to 3 servos at once. Get yours now!

Multi-Function 3CH Servo Tester & Centering Tool from WREKD Co.

FPVELITE

The Multi-Function 3CH Servo Tester &amp Centering Tool is a simple 3 servo, 3 function tester. Handy for centering and checking deflection of your control linkages. Compare up to 3 servos (digital or analog) at once.
Check out the rest of our servos, linkages &amp accessories and all our tools &amp building supplies!
Features


Full aluminum alloy shell
Compatible with analog and digital servos
Can control ESCs and simultaneously test whether up to three servos are synchronized.


Functions


Three modes to check servos or ESC:

Manual mode: Turn the knob with different speed. Check reaction time.
Neutral mode: Make the servo go back to the neutral point.
Automatic: "window wiper" mode makes the servo swing full range.

Connect 1-3 servos simultaneously to test consistency, reaction time and so on.

Specifications


Input Voltage: 4.8-6V
Size: 48 x 42 x 17mm
Weight: 31.5 g




Includes

1x Multi-Function 3CH Servo Tester &amp Centering Tool


The Multi-Function 3CH Servo Tester & Centering Tool is a simple, 3 servo, 3 function option. Add this handy tool to your kit today!

Multi-Function 3CH Servo Tester & Centering Tool for Sale – RaceDayQuads

CLRacing

CLRacing Bluetooth USB Adapter

The CLRACING Bluetooth adapter allows you to use the Speedybee app that's compatible with both Android and IOS to tune your flight controller.This module really shines when being used with Pyrodrone F4 RACE FC as no external power will be needed!The module will get power once plugged to the FC USB.   Features 2s-8s pow
