BetaFPV

BetaFPV BNF Pavo25 Analog 2.5" Cinewhoop

BETAFPV

The Pavo25 Whoop Quadcopter is a 2.5-inch pusher drone developed by BETAFPV.

BETAFPV Pavo25 2.5" Cinewhoop Drone - Analog

BETAFPV Pavo25 2.5&quot Cinewhoop Drone - Analog

Pre-Built Quad Kit Type

Pre-Built Quads and Kits

Quad Frame Size

Quad Type

BetaFPV BNF Pavo25 HD 2.5" Cinewhoop

The Pavo25 Whoop Quadcopter is a 2.5-inch FPV pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mold frame for durable use. What's more, it supports carrying many FPV cameras available in the market for FPV shots. Also, it adopts Caddx Nebula Pro Nano Vista Kit for the HD Digital version, and Caddx Baby Ratel2+A03 400mW 5.8G for the Analog VTX version. Pavo25 is the cinewhoop for you to fly both indoors and outdoors!
Note: Walksnail HD Digitial VTX version is released now. It should be used with Walksnail goggles, which you need to buy separately.

Bullet Point

Only 6 screws to assemble the whoop duct and drone, convenient to build. The Pavo25 whoop quadcopter sports a reasonable design of structure assembly that is optimized to decrease complex components, making the build easy.
Equipped with a CNC Vista Adapter. It effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, ensuring a flight in a safe VTX RF power, especially which is important for long-distance flight.
The Pavo25 whoop quadcopter adopts an innovative pusher frame with a duct design, which generates more lift for the whole quadcopter, improving the ability of endurance and propulsion.
Made of high-quality PA12 material and 2.5mm carbon fiber. With a strong and durable frame kit, the Pavo25 whoop quadcopter grants more stable flight and optimizes the vibration damping structure for the camera mount, allowing pilots to get an excellent experience.
User-friendly designs. The USB port on the top of the frame makes it convenient to configure the quadcopter. Pavo25 whoop quadcopter features a rear LED with colorful lights, giving a cool and visual performance in the dark.
Balance layout for the whole quadcopter. When carrying an action camera like SMO 4K, or DJI Action 2, you can move the battery position and add the second battery strap to keep the center of gravity, preventing it from tilting to one side.
The HD digital VTX version boasts a colorful and excellent image with 720P/120FPS high frame rate video in Nebula Pro Nano camera, bringing the feast for the eyes.
The Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/18" inch starlight HDR sensor with 1200TVL resolution, and A03 400mW VTX which is an open-source video transmitter with PIT/RCE/100mW/400mW adjustable output power.
Walksnail HD VTX version equips with Walksnail Avatar HD Kit. Provides 1080P recording with 22ms ultra-low latency. Dual-antenna design for up to 4 km long-range transmission. Build-in 8 GB storage, it is convenient for recording video and can be exported by USB cable. Supports Betaflight full OSD display through Canvas Mode on Avatar VTX.


Specification

Weight: 153.3g (Caddx HD), 146g (Walksnail HD), 140g (Analog), Without battery and action camera
Wheelbase: 108mm
Frame: Pavo25 Frame Kit

Motor: 1404 4500KV Brushless motor

Battery Connector: XT30
Props: Gemfan D63-3B (Gray)

Flight Controller: F405 AIO 20A Toothpick V4 BMI270

VTX: Caddx Nebula Pro Nano Vista Kit (HD Digital)/Caddx Baby Ratel2+A03 400mW 5.8G (Analog), Walksnail Avatar HD Digital Kit (HD Digital)
Camera Adjustable Angle: 0°-50°
Receiver Version: PNP/ELRS 2.4G/TBS (Optional)
Recommend Battery: 4S 750mAh/4S 850mAh (Not included)
Recommend Mounted Cam: SMO 4K, DJI Action 2
Flight Time (Reference Only): 7.5 mins (HD)/8.5 mins (Analog), using 4S 750mAh battery without an action camera

Note: The actual flight time depends on the flight environment and the flight mode.
Comparison to Beta95X V3

Let's see what has changed in the updates for Pavo25 Whoop Quadcopter. Compared with the Beta95X V3, Pavo25 is made of PA12 material with injected molding, which improves the stability of the flight, dampening the noise and eliminating the Jelly Effect. Besides, with an optimized damping structure and no need for rubber dumpers, it is able to carry more heavy action cameras like DJI Action 2. What's more, large capacity batteries like 4S 750mAh/850mAh are supported, which ensures a long-time flight and endurance.




Pavo25 Whoop Quadcopter

Beta95X V3 Whoop Quadcopter


Wheelbase
108mm
95mm


Weight (No Battery)
153g/146g (Caddx/Walksnail HD), 140g (Analog)
116.7g (HD), 99.1g (Analog)


Battery

4S 750mAh/850mAh (Excluded)

4S 450mAh (Excluded)


Receiver
PNP/ELRS 2.4G/TBS
Frsky FCC/Frsky LBT/TBS/PNP


HD VTX


Caddx Nebula Pro Nano Vista Kit
Walksnail Avatar HD Digital Kit

Caddx Nebula Nano HD


Analog VTX

Caddx Baby Ratel2+A03 400mW 5.8G
Caddx Ant Camera+M02 25-350mW 5.8G



FPV Camera Degree
0°-50°
25°- 45°


FPV Camera

SMO 4K, DJI Action 2
SMO 4K, other weighs about 50g


Flight Time (HD)
7.5 mins (No cam, 4S 750mAh)
3.5 mins (No cam, 4S 450mAh)


Flight Time (Analog )
8.5 mins (No cam, 4S 750mAh)
4.5 mins (No cam, 4S 450mAh)



Assembly

Whoop duct and drone connected by 6 screws, easy to disassemble
Each electronic accessory should be screwed to the mount and then covered by the top plate




Camera &amp VTX System

Pavo25 Whoop Quadcopter Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/1.8 inch starlight HDR sensor with 1200TVL resolution, and an A03 400mW OpenVTx video transmitter which supports SmartAudio&ampTramp protocol with PIT/RCE/100/400mW adjustable output power. Therefore, pilots can customize the output power and frequency to explore more possibilities and have fun.

Pavo25 Whoop Quadcopter HD Digital version equips with Caddx Nebula Pro Nano Vista Kit that perfectly supports DJI goggles. With DJI goggles, it can provide 720p/120FPS digital high-definition picture and a transmission output range up to 4km. Users can select 25mW/200mW/500mW/700mW from DJI goggle settings. The total weight (excluding the antenna) is 23g only. Besides, it is smaller and designed for whoop drones.

Walksnail HD Digital VTX
Pavo25 Whoop Quadcopter Walksnail HD Digital VTX version features Avatar HD Kit with Avatar HD system that uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/720P resolution image recording with 22ms ultra-low latency. The signals are stronger and more stable with a dual-antenna design for up to 4 km long-range transmission. Build-in 8 GB storage, the Avatar VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode on Avatar VTX, Betaflight full OSD display is supported and can be adjusted easily by remote control.

Pavo25 Frame Kit
Pavo25 frame is made of high-quality PA12 material with strong and durable injected molding, which grants more stable flight and no fear of damage. The whole frame with pusher and duct design can generate more lift for the whole quadcopter, improving the ability of endurance and propulsion. Besides, the vibration damping structure for the camera mount is optimized to carry an action camera easily, allowing pilots to have an excellent experience.

What's more, it comes with a CNC Vista Adapter, which effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX.
Note: If you need to buy CNC Vista Adapter separately, please click here. This CNC Vista Adapter is not suitable for Walksnail Avatar VTX. The Walksnail HD VTX version includes a CNC adapter designed for Walksnail Avatar VTX.

FC &amp ESC
Pavo25 whoop quadcopter is equipped with the Toothpick F405 AIO 20A FC V4 BMI270, it extremely reduces the weight while improving the ability of the ESC to continuous current 20A, and brings pilots more power to fly the Pavo25 quad! Meanwhile, 20A FC V4 has 2 pin connector ports for DJI Digital VTX and RX, just plug &amp play, less solder work needed, and super easy to install.

Motor &amp Props
Gemfan D63 3-Blades Props is designed for inverted installation, and it brings pilots a smooth flight! It is more durable and more powerful and offers pilots a high-efficiency flight experience. Equipped with the 1404 4500KV Brushless motor, it brings a stronger power and lower noise, which will give pilots an unprecedented flying experience.

The Pavo25 Whoop Quadcopter also comes with "props out" by default. Why do we need "Props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.
Know more about "Props Out".
FAQ
First of all, Many thanks to UAV Tech and Gal Kremer who devoted their time and energies to the testing of Pavo25 Whoop Quadcopter.
CLI files for Pavo25 Whoop Quadcopter are published, including stable and flexible versions for choice. The flexible version provides more agile flight experience while the stable version features a better balance flight experience.
STL file for Pavo25 Series. If you need 3D printing parts to custom your Pavo25.
Click here to download Walksnail Avatar VTX Kit manual.






Package

1 * Pavo25 Whoop Quadcopter (HD Digital VTX, Walksnail HD Digital VTX, or Analog VTX)
4 * Gemfan D63 (2CW+2CCW) 3-Blades Props
1 * Spare 180mm Battery Strap
2 * Spare EVA Foam Tape (Black)
2 * Spare EVA Foam Tape (Red)
4 * 3M Double-Sided Tapes
1 * SMO4K Camera Mount
1 * SMO4K Power Cable
1 * M5*18 Screws
1 * M5 Anti-slip Nut
10 * M2*7 Screws
1 * Walksnail VTX USB Cable (only included in Walksnail HD VTX version)

Note: Currently, A03 5.8G VTX for the Analog version is out of stock. We temporarily changed the A03 5.8G VTX to A02 5.8G VTX. Please feel free to contact us if you have any questions.


Batteries and SMO 4K Camera are not included in the package. You can get it here for 750mAh 4S battery/ 850mAh 4S battery and SMO 4K camera.


The Pavo25 Whoop Quadcopter is a 2.5-inch FPV pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mo

Pavo25 Whoop Quadcopter

BETAFPV Pavo25 2.5" Cinewhoop Drone - HD

BETAFPV Pavo25 2.5&quot Cinewhoop Drone - HD

iFlight

iFlight BNF ProTek25 Pusher Analog 2.5" Cinewhoop

After big success with the iFlight ProTek series, iFlight is now happy to announce another member. The&nbspAnalog&nbspProTek25 Pusher!

After big success with the iFlight ProTek series, iFlight is now happy to announce another member. The Analog ProTek25 Pusher!

iFlight ProTek25 Pusher 2.5" 4S Analog BNF CineWhoop w/ RaceCam R1 Camera

iFlight ProTek25 Pusher 2.5&quot 4S Analog BNF CineWhoop w/ RaceCam R1 Camera

iFlight BNF ProTek25 Pusher HD 2.5" Cinewhoop

After big success with the iFlight ProTek series, iFlight is now happy to announce another member. The&nbspProTek25 Pusher!

After big success with the iFlight ProTek series, iFlight is now happy to announce another member. The ProTek25 Pusher!

iFlight ProTek25 Pusher 2.5" 4S HD BNF CineWhoop w/ Caddx Polar Vista Digital HD System

iFlight ProTek25 Pusher 2.5&quot 4S HD BNF CineWhoop w/ Caddx Polar Vista Digital HD System

GEPRC

GEPRC BNF CineLog 25 HD 2.5" Cinewhoop

The GEPRC CineLog HD Pro Drone has action camera stability, a 5.5 minute flight time, and long-range shooting capabilities perfect for cinematic flights.

GEPRC CineLog 25 2.5" 4S HD Pro CineWhoop Drone w/ Caddx Nebula Pro

GEPRC CineLog 25 2.5&quot 4S HD Pro CineWhoop Drone w/ Caddx Nebula Pro

GEPRC BNF CineLog 25 2.5" Cinewhoop

The GEPRC CineLog Analog Drone has action camera stability, a 5.5 minute flight time, and long-range shooting capabilities perfect for cinematic flights.

GEPRC CineLog 25 4S Analog CineWhoop Drone

For the shooting needs of complex indoor environments, GEPRC has recently released the 2&quot Cinewhoop CineLog20. Available in Link Wasp, O3 Air Unit, Walksnail, and Analog the four mainstream video transmission systems on the market.
The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 Air Unit shooting, which can achieve an excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 60fps video without mounting any camera. It is lighter in weight and has a longer battery life.
It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, a reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GoPro 8/9/10/11 cameras, Action2, insta360 Go2, Peanut, and other light and small action cameras.
Find the recommended 4S 450-750mAh batteries here!
Check out our other pre-built quads, as well as the rest of our GEPRC selection.


Features

Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
Provide mainstream Link Wasp, O3 AIR Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
2-inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
Continuing the vibration-dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GoPro mounted.
The GEPRC Team’s splendid tuning and overall flight feel are delicate and flexible.

Specifications

Model: GEPRC BNF Cinelog20 HD 4S 2&quot Cinewhoop w/ Walksnail Avatar &ampamp Micro Cam - ELRS 2.4GHz
Frame: GEP-CL20
Wheelbase: 100mm
Gimbal plate: 2.0mm
Top plate: 2.5mm
Bottom plate: 1.5mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 35A
VTX: GEPRC 5.8GHz@600mW
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP MMCX

Motor: GR1303.5 5500KV
Propeller: EMAX Avan Micro 2×2.4×4
Receiver: ELRS2.4G
Recommended battery: LiHv 4S 450mah-660mah
Flight time: 4-6min

Includes

1x CineLog20 Analog
2x 2-inch propellers (pairs)
1x Naked GoPro Base
2x M15×150mm battery strap
2x Battery Silicone Pads
2x EVA Landing Pads
1x Set of screws
1x L-shaped screwdriver (1.5mm)
1x Antenna fixed tube
1x 4S Naked GoPro power cable (with balanced terminal head)
2x EVA damping rings of guards
1x TBS Antenna mount (Vertical Type)
1x TBS Antenna mount (Horizontal Type)
1x TBS Antenna printed parts

The screw package includes:

3x M2×12mm cup head screws
2x M2×5mm round head screws
1x M2×8mm round head screw with pad
3x M2×7mm round head screws
2x M2×8mm round head screws
2x M2 iron nuts
1x self-clinching nut


For the shooting needs of complex indoor environments, GEPRC has recently released the 2" Cinewhoop CineLog20. Available in Link Wasp, O3 Air Unit, Walksnail, and Analog the four mainstream video transmission systems on the market. The CineLog20 continues the CineLog series with a lightweight pusher design, and the red

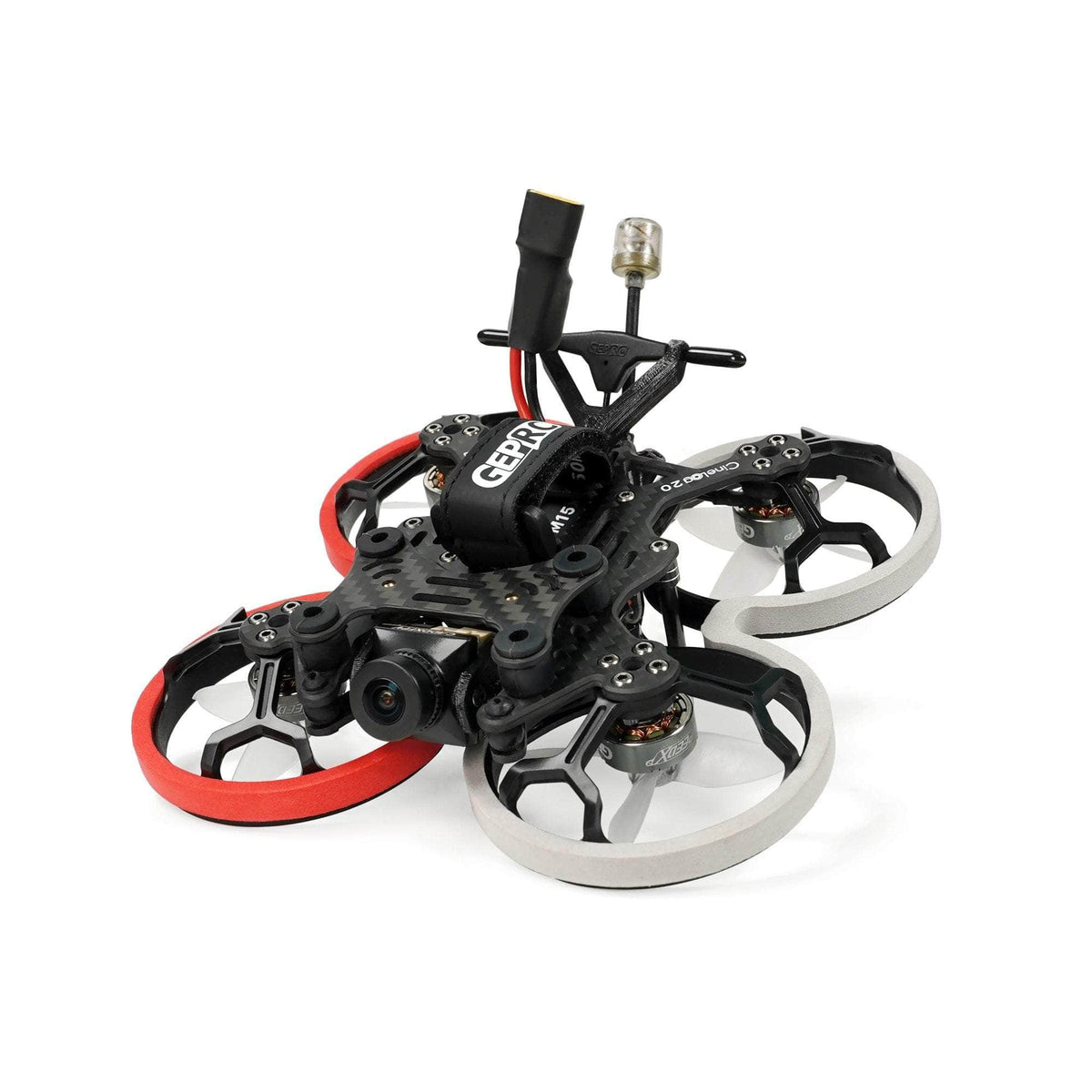

GEPRC BNF CineLog20 4S 2" Cinewhoop w/ Analog & Micro Cam - ELRS 2.4GHz from WREKD Co.

GEPRC BNF CineLog20 4S 2

GEPRC BNF CineLog20 4S 2" Cinewhoop w/ Analog & Micro Cam - ELRS 2.4GHz

Summary:
GEPRC Team Really Excitedly to released the GEPRC CineLog25 CineWhoop drone . All innovations are disruptive for GEPRC CineLog25.

CineLog25 will be available in three versions: CineLog25 HD PRO, CineLog25 HD Nano, CineLog25 Analog.

The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GP Lite camera. It adopts the most popular backward push design on the FPV field at present. It can effectively use the thrust weight ratio of propeller to obtain higher flight efficiency. In the overall layout of the drone, we put VISTA HD in the center of the quadcopter, so that the center of gravity of the quadcopter is in the middle, The propeller Inlet is smoother and the noise is lower. Redesigned the shock absorption structure of the camera mount and GP Lite camera, Eliminated the jello of the camera and FPV camera, and we can use 3, 4 and 5 damping rings according to the flight state to obtain the best stability in vibration and noise.

The F411-35A AIO and GEPRC GR1404 4500kv(Upgraded Version) motors are used in flight system and power system. The power battery can be compatible with 450mah ~ 750mah.

The flight time of CineLog25 is around 5.5 minutes (it depends on the flying habits). The stable electronic equipment and advanced frame materials make the quadcopter stable and can achieve all FPV freestyle tricks easily. The customized EVA protective foam cushioning around the frame is more elastic and can effectively protect the fuselage while crash happening!

The CineLog25 is assembled and debugged by GEPRC Team. It has smooth flight experience and excellent performance. It has every attribute you could want.
Changelog:
July 13th,2022: CineLog 25 HD flight controller changed from GEP-20A-F4 to F411-35A AIO.
Feature:
1.New camera damping system
The New camera damping system basically eliminates the video's jelly and FPV camera's vibration in terms of designing, The damping construction can be adjusted the harder or softer to suit the Flight State. There are Three, Four and Five damping rings can be used to provide sufficient stability in vibration and noise.

2.Brand-new exclusive pusher frame
The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design, Including ultra-light carbon plate and new material, strength increases by 20%, efficiency increased by 15%

3.Low noise optimization
Cinelog Whoop Quadcopter Increases the Air Inlet volume and it with the EVA foam cushioning,Reduce the Airflow Resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations

4.Long range flight
High efficiency power matching, The GR1404 4500kv(Upgraded Version) power output scheme and Brilliant Tune have further Improved the flight time

5.Low center of gravity design
The CADDX VISTA was placed at the bottom, Optimized Design for the Air Inlet Structure. It's a point of the greatest importance is a low center of gravity "pusher-style" inverted frame, increased efficiency at least 15%

6.Perfectly Compatible with most of mainstream cameras
Compatible with SMO 4K, GP6 lite and GP8 Lite, etc...

7.Adjustable lens angle
The flight angle of 0-40 degrees can be adjusted according to the flight requirements, The camera's angle can be adjusted to meet your variety of Shooting needs

8.With EVA foam cushioning
Integrated EVA design, the overall shape look more coordinated, better strength.

9.Optimized bottom design
The bottom part increases the strength of landing and perfectly protects all electronic equipment

10.Camera power line output
With its own power cable output to the camera (GP6 &ampamp GP8),It has its own Video Recording Wire,The camera can be turned off or on directly Via Remote controller
Specifications：

 	Brand: GEPRC
 	Frame: GEP-CL25
 	Wheelbase: 109mm
 	Flight Controller: F411-35A AIO
 	MCU: STM32F411
 	Gyro: 6-Axis
 	OSD: BetaFlight OSD w/ AT7456E chip
 	ESC: BLheli_S 20A
 	VTX: 5.8G 600mW VTX
 	Camera: Caddx EOS2/Runcam Nano2
 	Props: GEMFAN D63-3
 	Motors: GR1404 4500kv(Upgraded Version)
 	Antenna: GEPRC Momoda 5.8g RHCP
 	CineLog25 Analog Weight: 128g（Without battery）
 	Battery: Recommended 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery

Include:

 	1x CineLog Quadcopter
 	4x D63-3 Props(Pairs)
 	1x GP Lite camera 3D TPU Seat
 	2x EVA Pad
 	2x Battery non-slip mat
 	2x Batterystrap
 	1x screwdriver

&ampnbsp

https://www.youtube.com/watch?v=_RbPfgDhq6o

&ampnbsp

https://www.youtube.com/watch?v=xIqwt7cBN60

https://www.youtube.com/watch?v=DQ-WC6UzrYU&ampampt=622s

https://www.youtube.com/watch?v=cXWWcOfBpxc&ampampt=720s

&ampnbsp

https://www.youtube.com/watch?v=QjH185kbpTM

https://www.youtube.com/watch?v=4bIb0sgitVc&ampampt=219s

&ampnbsp

Summary: GEPRC Team Really Excitedly to released the GEPRC CineLog25 CineWhoop drone . All innovations are disruptive for GEPRC CineLog25. CineLog25 will be available in three versions: CineLog25 HD PRO, CineLog25 HD Nano, CineLog25 Analog. The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GP Lite camera. It [...]

GEPRC CineLog 25 Analog CineWhoop Drone - GEPRC

GEPRC CineLog 25 Analog CineWhoop Drone

For the shooting needs of complex indoor environments, GEPRC has recently released the 2" Cinewhoop CineLog20. Available in Link Wasp, O3 Air Unit, Walksnail, and Analog the four mainstream video transmission systems on the market.
The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 Air Unit shooting, which can achieve an excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 60fps video without mounting any camera. It is lighter in weight and has a longer battery life.
It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, a reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GoPro 8/9/10/11 cameras, Action2, insta360 Go2, Peanut, and other light and small action cameras.
Find the recommended 4S 450-750mAh batteries here!
Check out our other pre-built quads, as well as the rest of our GEPRC selection.


Features

Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
Provide mainstream Link Wasp, O3 AIR Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
2-inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
Continuing the vibration-dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GoPro mounted.
The GEPRC Team’s splendid tuning and overall flight feel are delicate and flexible.

Specifications

Model: GEPRC BNF Cinelog20 HD 4S 2" Cinewhoop w/ Walksnail Avatar &amp Micro Cam - ELRS 2.4GHz
Frame: GEP-CL20
Wheelbase: 100mm
Gimbal plate: 2.0mm
Top plate: 2.5mm
Bottom plate: 1.5mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 35A
VTX: GEPRC 5.8GHz@600mW
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP MMCX

Motor: GR1303.5 5500KV
Propeller: EMAX Avan Micro 2×2.4×4
Receiver: ELRS2.4G
Recommended battery: LiHv 4S 450mah-660mah
Flight time: 4-6min

Includes

1x CineLog20 Analog
2x 2-inch propellers (pairs)
1x Naked GoPro Base
2x M15×150mm battery strap
2x Battery Silicone Pads
2x EVA Landing Pads
1x Set of screws
1x L-shaped screwdriver (1.5mm)
1x Antenna fixed tube
1x 4S Naked GoPro power cable (with balanced terminal head)
2x EVA damping rings of guards
1x TBS Antenna mount (Vertical Type)
1x TBS Antenna mount (Horizontal Type)
1x TBS Antenna printed parts

The screw package includes:

3x M2×12mm cup head screws
2x M2×5mm round head screws
1x M2×8mm round head screw with pad
3x M2×7mm round head screws
2x M2×8mm round head screws
2x M2 iron nuts
1x self-clinching nut


GEPRC BNF CineLog20 4S 2" Cinewhoop w/ Analog & Micro Cam - ELRS 2.4GH

FullSpeedRC

FullSpeedRC BNF MiniPusher Cinewhoop

The FullSpeedRC MiniPusher Brushless FPV CineWhoop is an amazing option for those looking to record smooth cinematic footage in a tiny build!&nbsp

The FullSpeedRC MiniPusher Brushless FPV CineWhoop is an amazing option for those looking to record smooth cinematic footage in a tiny build!

FullSpeedRC MiniPusher Brushless 3-4S CineWhoop w/ Caddx Turbo EOS2 V2 FPV Camera - BNF

BetaFPV BNF Pavo25 V2 HD DJI O3 2.5" Cinewhoop


Please note that this version is a kit and does NOT come with an O3 air unit, O3 camera and SanDisk Card.
At just 150g, Pavo 25 V2 is an optimal 2.5&quot DJI O3 cinewhoop. It&#39s compatible with the Caddx Vista and RunCam Link, Walksnail Avatar HD Pro Kit, and features an innovative PA12 thickened cross-section whoop duct, ideal for 4S power for unbeatable thrust. The camera mount is redesigned for superior protection and boasts COB LED strip for a stylish look. From indoors to out, it&#39s the ultimate DJI O3-compatible quadcopter.
Check out pre-built quads, and the rest of our BetaFPV gear!

Features

Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.

Support to carry DJI O3, Walksnail, and HD VTX installations but also works seamlessly with lightweight cameras such as Naked GoPro 12, DJI Action 2, and InstaGo 3.

Innovative Y-shaped CNC Y-shaped CNC metal support structure.Comes with F722 35A FC support great performance capability and high processing speed.

Comes with COB light strip.


 Specifications

Weight: 153g ( no battery)
Recommended Input Voltage: 4S
Recommended battery: 4S 650mah/850mah/930mah
Prop: GF D63-3B
Motor: 1506 4600KV

F722 35A AIO Brushless Flight Controller

Item: F722 35A AIO Brushless Flight Controller
Weight: 9.00g (BLHeli_32)
CPU: STM32F722RET6
Six-Axis: ICM42688
Mounting hole size: 26mmx26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor
Blackbox: 16MB (V2 with BLHeli_32 ESC included)

Includes

1x BetaFPV BNF Pavo25 V2 HD 4S 2.5&quot Cinewhoop for DJI O3 (without O3 Unit) - Choose Your Receiver


Please note that this version is a kit and does NOT come with an O3 air unit, O3 camera and SanDisk Card.  At just 150g, Pavo 25 V2 is an optimal 2.5" DJI O3 cinewhoop. It's compatible with the Caddx Vista and RunCam Link, Walksnail Avatar HD Pro Kit, and features an innovative PA12 thickened cross-section whoop duct,

BetaFPV BNF Pavo25 V2 HD 4S 2.5" Cinewhoop for DJI O3 (without O3 Unit) - Choose Your Receiver from WREKD Co.

BetaFPV BNF Pavo25 V2 HD 4S 2.5

BetaFPV BNF Pavo25 V2 HD 4S 2.5" Cinewhoop for DJI O3 (without O3 Unit) - Choose Your Receiver


Please note that this version is a kit and does NOT come with an O3 air unit, O3 camera and SanDisk Card.
At just 150g, Pavo 25 V2 is an optimal 2.5" DJI O3 cinewhoop. It's compatible with the Caddx Vista and RunCam Link, Walksnail Avatar HD Pro Kit, and features an innovative PA12 thickened cross-section whoop duct, ideal for 4S power for unbeatable thrust. The camera mount is redesigned for superior protection and boasts COB LED strip for a stylish look. From indoors to out, it's the ultimate DJI O3-compatible quadcopter.
Check out pre-built quads, and the rest of our BetaFPV gear!

Features

Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.

Support to carry DJI O3, Walksnail, and HD VTX installations but also works seamlessly with lightweight cameras such as Naked GoPro 12, DJI Action 2, and InstaGo 3.

Innovative Y-shaped CNC Y-shaped CNC metal support structure.Comes with F722 35A FC support great performance capability and high processing speed.

Comes with COB light strip.


 Specifications

Weight: 153g ( no battery)
Recommended Input Voltage: 4S
Recommended battery: 4S 650mah/850mah/930mah
Prop: GF D63-3B
Motor: 1506 4600KV

F722 35A AIO Brushless Flight Controller

Item: F722 35A AIO Brushless Flight Controller
Weight: 9.00g (BLHeli_32)
CPU: STM32F722RET6
Six-Axis: ICM42688
Mounting hole size: 26mmx26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor
Blackbox: 16MB (V2 with BLHeli_32 ESC included)

Includes

1x BetaFPV BNF Pavo25 V2 HD 4S 2.5" Cinewhoop for DJI O3 (without O3 Unit) - Choose Your Receiver


EMAX

EMAX BNF Tinyhawk III Plus Analog Freestyle Drone - 2.4GHz ELRS

Emax


All products containing batteries must be shipped by a ground shipping method.













Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan Rush 2.5&quot propellers for exceptional grip and thrust. Durability is elevated with an upgraded 3K Carbon Fiber-blend frame. The analog system is optimized for signal strength and stability so that you can fly with confidence in challenging environments.
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.












Check out all our pre-built quads, and all our EMAX gear!




Specifications
TINYHAWK 3 PLUS FREESTYLE ANALOG BNF

Wheelbase: 110mm

Weight: 62.5g

Motor: 12025 7000KV

Propellers: AVAN Rush 2.5

Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)

Camera: Runcam Nano

VTX: 32Bit 40Ch 0/25mW/100mW/400mW

Battery: 1S 650mAh

Includes


1x Tinyhawk 3 Plus Freestyle Analog BNF

2x EMAX 1S HV 650mAh Battery

1x Hardware Kit

1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)

1x USB Battery Charger




All products containing batteries must be shipped by a ground shipping method. Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan Rush 2.5" propellers for e

EMAX BNF Tinyhawk III Plus Freestyle 1-2S Analog Racing Drone w/ RunCam Nano  - ELRS 2.4 GHz from WREKD Co.

EMAX BNF Tinyhawk III Plus Freestyle 1-2S Analog Racing Drone w/ RunCam Nano  - ELRS 2.4 GHz


All products containing batteries must be shipped by a ground shipping method.













Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan Rush 2.5" propellers for exceptional grip and thrust. Durability is elevated with an upgraded 3K Carbon Fiber-blend frame. The analog system is optimized for signal strength and stability so that you can fly with confidence in challenging environments.
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.












Check out all our pre-built quads, and all our EMAX gear!




Specifications
TINYHAWK 3 PLUS FREESTYLE ANALOG BNF

Wheelbase: 110mm

Weight: 62.5g

Motor: 12025 7000KV

Propellers: AVAN Rush 2.5

Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)

Camera: Runcam Nano

VTX: 32Bit 40Ch 0/25mW/100mW/400mW

Battery: 1S 650mAh

Includes


1x Tinyhawk 3 Plus Freestyle Analog BNF

2x EMAX 1S HV 650mAh Battery

1x Hardware Kit

1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)

1x USB Battery Charger




Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan Rush 2.5" propellers for exceptional grip and thrust. Durability is elevated with an upgraded 3K Carbon Fiber-blend frame. The analog system is optimized for signal strength and stability, so you can fly with confidence in challenging environments. The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision. Check out all our pre-built quads, and all our EMAX gear! Specifications TINYHAWK 3 PLUS FREESTYLE ANALOG BNF Wheelbase: 110mm Weight: 62.5g Motor: 12025 7000KV Propellers: AVAN Rush 2.5 Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G) Camera: Runcam Nano VTX: 32Bit 40Ch 0/25mW/100mW/400mW Battery: 1S 650mAh Includes 1x Tinyhawk 3 Plus Freestyle Analog BNF 2x EMAX 1S HV 650mAh Battery 1x Hardware Kit 1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW) 1x USB Battery Charger

EMAX BNF Tinyhawk III Plus Freestyle 1-2S Analog Racing Drone w/ RunCam Nano - ELRS 2.4 GHz

EMAX Tinyhawk III Plus Analog Freestyle Bind-N-Fly BNF ELRS

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

EMAX Tinyhawk III Plus Freestyle Bind-N-Fly BNF ELRS - RMRC

EMAX BNF Tinyhawk III Plus Analog Whoop - 2.4GHz ELRS

EMAX Tinyhawk III Plus HDZero Bind-N-Fly BNF ELRS

EMAX Tinyhawk III Plus Analog Bind-N-Fly BNF ELRS - RMRC

EMAX Tinyhawk III Plus Analog Bind-N-Fly BNF ELRS

All products containing batteries must be shipped by a ground shipping method.
The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers' feedback and made significant enhancements, including the incorporation of ExpressLRS technology and an optional variant with HDZero advancements in transmission. This is truly the ideal way to try out FPV!
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.
Check out all our pre-built quads, and all our EMAX gear!



Specifications

Wheelbase: 76mm
Weight: 32.5g
Motor: TH0802 II - 15000KV
Propellers: Avia Tinyhawk

Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)

Camera: Runcam Nano
VTX: 32Bit 40Ch 0/25mW/100mW/400mW
Battery: 1S 650mAh

Includes

1x Tinyhawk 3 Plus Analog BNF
1x EMAX 1S HV 650mAh Battery
1x Hardware Kit
1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)
1x USB Battery Charger


The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers' feedback and made significant enhancements, including the incorporation of ExpressLRS technology and HDZero advancements in transmission. This is truly the ideal way to try out FPV! The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision. Check out all our pre-built quads, and all our EMAX gear! Specifications Wheelbase: 76mm Weight: 32.5g Motor: TH0802 II - 15000KV Propellers: Avia Tinyhawk Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G) Camera: Runcam Nano VTX: 32Bit 40Ch 0/25mW/100mW/400mW Battery: 1S 650mAh Includes 1x Tinyhawk 3 Plus Analog BNF 1x EMAX 1S HV 650mAh Battery 1x Hardware Kit 1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW) 1x USB Battery Charger

EMAX BNF Tinyhawk III Plus Whoop 1-2S Analog Racing Drone w/ RunCam Nano  - ELRS 2.4 GHz

EMAX BNF Tinyhawk III Plus Whoop 1-2S Analog Racing Drone w/ RunCam Nano - ELRS 2.4 GHz

All products containing batteries must be shipped by a ground shipping method.
The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers&#39 feedback and made significant enhancements, including the incorporation of ExpressLRS technology and an optional variant with HDZero advancements in transmission. This is truly the ideal way to try out FPV!
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.
Check out all our pre-built quads, and all our EMAX gear!



Specifications

Wheelbase: 76mm
Weight: 32.5g
Motor: TH0802 II - 15000KV
Propellers: Avia Tinyhawk

Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)

Camera: Runcam Nano
VTX: 32Bit 40Ch 0/25mW/100mW/400mW
Battery: 1S 650mAh

Includes

1x Tinyhawk 3 Plus Analog BNF
1x EMAX 1S HV 650mAh Battery
1x Hardware Kit
1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)
1x USB Battery Charger


All products containing batteries must be shipped by a ground shipping method. The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers' feedback and made significant enhancements, including the incorporation of ExpressLRS technology and an optional variant

EMAX BNF Tinyhawk III Plus Whoop 1-2S Analog Racing Drone w/ RunCam Nano  - ELRS 2.4 GHz from WREKD Co.

Happymodel

Happymodel BNF Mobula8 HD DJI O3 85mm Whoop - 2.4GHz ELRS

HAPPYMODEL

Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with an amazing DJI O3 Air Unit and Micro Cam, as well as Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance. Get the perfect HD experience with the Mobula8!



Be sure to check out all our pre-built quads, and all our Happymodel products!





Specifications


Camera/VTX: DJI O3 Air Unit
Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Size: 120mmx120mmx50mm
Brand Name: Happymodel
Wheelbase: 85mm

FLIGHT CONTROLLER

Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
Power supply: 1-2S battery input (DC 2.9V-8.7V)
GYRO Sensor: BMI270  (SPI connection)
Built-in 12A(each) Blheli_S 4in1 ESC
Mount hole size: 25.5mm x 25.5mm
Built-in Serial ExpressLRS 2.4G
Model: Crazy F405 ELRS HD
Built-in BMP280 Barometer
Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
Could update firmware via ExpressLRS configurator
Antenna: enameled copper wire 31mm length
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Telemetry output Power: &lt12dBm
RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

Current: 12A continuous peak 15A (3 seconds)
Factory firmware: Bluejay ESC V0.19
Support BLHeli_S Bluejay firmware
Power supply: 1-2S LiPo/LiPo HV
Default protocol: DSHOT300
Firmware target: Z-H-30

MOTORS

Motor Dimension(Dia.xLen):Φ13.5mmx15.5mm
Mode: EX1103 11000Kv
Shaft Diameter:Φ1.5mm
No.of Cells(Lipo):1-2S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Weight(g):3.8g

PROPELLERS

Center Hole Dia:1.5mm
Center Thickness:5mm
Props Dia:52.17mm
Weight:0.88g
Pitch:2.3inch
Material: PC


Includes

1x HappyModel BNF Mobula8 1-2S HD 85mm w/ DJI O3 Air Unit &amp Micro Cam - ELRS 2.4GHz


Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with an amazing DJI O3 Air Unit and Micro Cam, as well as Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance. Get the perfec

HappyModel BNF Mobula8 1-2S HD 85mm Whoop w/ DJI O3 Air Unit & Micro Cam - ELRS 2.4GHz

HappyModel BNF Mobula8 1-2S HD 85mm Whoop w/ DJI O3 Air Unit & Micro C

Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with an amazing DJI O3 Air Unit and Micro Cam, as well as Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance. Get the perfect HD experience with the Mobula8!



Be sure to check out all our pre-built quads, and all our Happymodel products!





Specifications


Camera/VTX: DJI O3 Air Unit
Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Size: 120mmx120mmx50mm
Brand Name: Happymodel
Wheelbase: 85mm

FLIGHT CONTROLLER

Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
Power supply: 1-2S battery input (DC 2.9V-8.7V)
GYRO Sensor: BMI270  (SPI connection)
Built-in 12A(each) Blheli_S 4in1 ESC
Mount hole size: 25.5mm x 25.5mm
Built-in Serial ExpressLRS 2.4G
Model: Crazy F405 ELRS HD
Built-in BMP280 Barometer
Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
Could update firmware via ExpressLRS configurator
Antenna: enameled copper wire 31mm length
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Telemetry output Power: &amplt12dBm
RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

Current: 12A continuous peak 15A (3 seconds)
Factory firmware: Bluejay ESC V0.19
Support BLHeli_S Bluejay firmware
Power supply: 1-2S LiPo/LiPo HV
Default protocol: DSHOT300
Firmware target: Z-H-30

MOTORS

Motor Dimension(Dia.xLen):Φ13.5mmx15.5mm
Mode: EX1103 11000Kv
Shaft Diameter:Φ1.5mm
No.of Cells(Lipo):1-2S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Weight(g):3.8g

PROPELLERS

Center Hole Dia:1.5mm
Center Thickness:5mm
Props Dia:52.17mm
Weight:0.88g
Pitch:2.3inch
Material: PC


Includes

1x HappyModel BNF Mobula8 1-2S HD 85mm w/ DJI O3 Air Unit &ampamp Micro Cam - ELRS 2.4GHz


HappyModel BNF Mobula8 1-2S HD 85mm Whoop w/ DJI O3 Air Unit & Micro Cam - ELRS 2.4GHz from WREKD Co.

Please note that this version is a kit and AP! does NOT come with an O3 air unit, O3 camera and SanDisk Card.
Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance.



Be sure to check out all our pre-built quads, and all our Happymodel products!


Specifications

Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Size: 120mmx120mmx50mm
Brand Name: Happymodel
Wheelbase: 85mm

FLIGHT CONTROLLER

Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
Power supply: 1-2S battery input (DC 2.9V-8.7V)
GYRO Sensor: BMI270  (SPI connection)
Built-in 12A(each) Blheli_S 4in1 ESC
Mount hole size: 25.5mm x 25.5mm
Built-in Serial ExpressLRS 2.4G
Model: Crazy F405 ELRS HD
Built-in BMP280 Barometer
Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
Could update firmware via ExpressLRS configurator
Antenna: enameled copper wire 31mm length
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Telemetry output Power: &lt12dBm
RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

Current: 12A continuous peak 15A (3 seconds)
Factory firmware: Bluejay ESC V0.19
Support BLHeli_S Bluejay firmware
Power supply: 1-2S LiPo/LiPo HV
Default protocol: DSHOT300
Firmware target: Z-H-30

MOTORS

Motor Dimension(Dia.xLen):Φ13.5mmx15.5mm
Mode: EX1103 11000Kv
Shaft Diameter:Φ1.5mm
No.of Cells(Lipo):1-2S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Weight(g):3.8g

PROPELLERS

Center Hole Dia:1.5mm
Center Thickness:5mm
Props Dia:52.17mm
Weight:0.88g
Pitch:2.3inch
Material: PC


Includes

1x HappyModel BNF Mobula8 1-2S HD 85mm w/ DJI O3 Air Unit &amp Micro Cam - ELRS 2.4GHz





Please note that this version is a kit and AP! does NOT come with an O3 air unit, O3 camera and SanDisk Card. Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade

HappyModel BNF Mobula8 HD 85mm Whoop (without DJI O3 Air Unit) - ELRS 2.4GHz

HappyModel BNF Mobula8 HD 85mm Whoop (without DJI O3 Air Unit) - ELRS

Please note that this version is a kit and AP! does NOT come with an O3 air unit, O3 camera and SanDisk Card.
Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance.



Be sure to check out all our pre-built quads, and all our Happymodel products!


Specifications

Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Size: 120mmx120mmx50mm
Brand Name: Happymodel
Wheelbase: 85mm

FLIGHT CONTROLLER

Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
Power supply: 1-2S battery input (DC 2.9V-8.7V)
GYRO Sensor: BMI270  (SPI connection)
Built-in 12A(each) Blheli_S 4in1 ESC
Mount hole size: 25.5mm x 25.5mm
Built-in Serial ExpressLRS 2.4G
Model: Crazy F405 ELRS HD
Built-in BMP280 Barometer
Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
Could update firmware via ExpressLRS configurator
Antenna: enameled copper wire 31mm length
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Telemetry output Power: &amplt12dBm
RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

Current: 12A continuous peak 15A (3 seconds)
Factory firmware: Bluejay ESC V0.19
Support BLHeli_S Bluejay firmware
Power supply: 1-2S LiPo/LiPo HV
Default protocol: DSHOT300
Firmware target: Z-H-30

MOTORS

Motor Dimension(Dia.xLen):Φ13.5mmx15.5mm
Mode: EX1103 11000Kv
Shaft Diameter:Φ1.5mm
No.of Cells(Lipo):1-2S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Weight(g):3.8g

PROPELLERS

Center Hole Dia:1.5mm
Center Thickness:5mm
Props Dia:52.17mm
Weight:0.88g
Pitch:2.3inch
Material: PC


Includes

1x HappyModel BNF Mobula8 1-2S HD 85mm w/ DJI O3 Air Unit &ampamp Micro Cam - ELRS 2.4GHz





HappyModel BNF Mobula8 HD 85mm Whoop (without DJI O3 Air Unit) - ELRS 2.4GHz from WREKD Co.

DarwinFPV

DarwinFPV BNF CineApe 25 Analog 2.5" Cinewhoop

ELRS version in stock and shipping SAME DAY! PNP Pre-Orders shipping ASAP!
CineApe25 is DarwinFPV’s first cinematic whoop FPV drone. The frame is composed of upper and lower carbon plates and a high-strength injection guard, which is very strong and crash-resistant, and easy to disassemble. The motor adopts a 1504-3600KV long-life motor we abandoned the traditional AIO solution and adopted the split design of the F4, 30A stack to reduce the maintenance cost in the future. The accessories adopt mature and stable solutions to maximize the durability and reliability of the drone.
Be sure to check out our Cinewhoop Collection as well as all DarwinFPV products we have for sale at RaceDayQuads!
CineApe25 is a very cost-effective whoop FPV drone. It not only solves the worries of beginners about the high-risk factors and high threshold of assembly but also improves the after-sales experience. If you are still struggling with which FPV drone to buy, DarwinFPV CineApe25 may be your best choice!


Features

Comes with high-strength one-piece injection-molded propeller guard, which has higher safety, and a stronger and more durable frame, also reduces the probability of risk, so you have more confidence to fly.
The new ducted aerodynamic design greatly optimizes power efficiency, and with the 1504-3600KV long-endurance motor, the CineApe 25 has a battery life of up to 9mins.
Compared with traditional stacks, we have treated the CineApe 25 stack with glue to protect it, which greatly reduces the risk of damage to the stack due to contact with metal particles, fine sand and gravel, weeds or dewdrops, etc.
The external Type-C parameter adjustment port is convenient for parameter adjustment.
It comes with quick-release design only needs to remove 7 screws to separate the top plate and the injection molding guard, which can easily deal with the scene in which accessories need to be replaced urgently.
The stack has built-in barometer and SD card slot, and reserves rich interfaces resource, which is facilitate upgrade and DIY in the future.
There are optional versions and HD VTX solutions can be provided.

Specifications

Brand: DarwinFPV
Model: CineApe 25 Cinematic FPV Drone
Frame Structure: True-X
Wheelbase: 112mm
Dimension: 160x160x43mm
Motor: 1504-3600KV
Propeller: HQProp T63MMX6
Recommend Battery: LiPo 4S 850mAh

Hovering Time: 9mins (4S 850mAh Battery)
Weight: 144g (Without Battery)
Flight Controller: F411 MPU6500 AT7456E
Reserved Connector: 1x SBUS (RX1 inverter), 2x Uarts 2x Softserial, 1x I2C, 1x RGB, 1x Buzzer, 1x USER (A15), 1x USB
ESC: BlueJay 3-4S 30A
Analog Version: CADDX ANT Analog CAM + 600mW Analog VTX

Includes

1x CineApe 25 Cinematic FPV Drone
4x HQProp T63MMX6 propeller (2L2R)
2x battery strap 10x170mm
1x EVA crashproof foam
1x EVA bottom plate shock-absorbing pad
1x Spare Screw Kit
1x Sticker
1x Manual





ELRS version in stock and shipping SAME DAY! PNP Pre-Orders shipping ASAP! CineApe25 is DarwinFPV’s first cinematic whoop FPV drone. The frame is composed of upper and lower carbon plates and a high-strength injection guard, which is very strong and crash-resistant, and easy to disassemble. The motor adopts a 1504-3600

DarwinFPV BNF CineApe25 4S Analog 2.5" Cinewhoop Quad - Choose Your Receiver

DarwinFPV BNF CineApe25 4S Analog 2.5" Cinewhoop Quad - Choose Your Re

iFlight BNF Defender 25 HD 2.5" Cinewhoop - DJI O3

All batteries must be shipped by a ground shipping method.
Introducing iFlight&#39s Defender 25, a sub-250 drone featuring the DJI O3 Air Unit. At 249g weight, Defender 25 doesn&#39t require registration in most countries. The compact and lightweight design also make it easy to carry and store. It will be your best travel buddy to redefine your FPV adventure. The built-in 2.5-inch propeller guards were designed to fly boldly. You’ll experience a completely new creative freedom to fly whenever and wherever. The durable injection molded frame not only prevents damage to your motors or propellers but also protects the environment from small flight errors.
Equipped with the latest tech from DJI, the O3 Air Unit HD transmission system, the Defender 25 supports 4K video and shoots up to 155° super-wide FOV footage for stunning visuals. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to edit and adjust your footage.
They’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the built-in or in-post camera stabilization.











Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!












Features


Optimized Landing Gear for Take-Off in Complex Environments
Built-in High-Performance video and Receiver Antennas
4K Stabilized Video with 155° Ultra-Wide Angle
Crash-Protected Quick-Release Battery
Countless Easy-to-Use Features
Ultralight and Free to Fly
Small and Mighty

Specifications
Defender 25

Product Name: Defender 25 4S HD
Flight Electronics: BLITZ D25 F7 AIO
Video Transmission: DJI O3 Air Unit
Frame: 112±2mm
Motor: Defender25 1404
Prop: Defender25 2525 props (2.5-inch)
Weight of the Aircraft: 180g
Takeoff Weight incl. 550mAh battery: ≤249g
Dimensions (L×W×H)：158x155x69mm
Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Speed: 100Km/H (Manual Mode)
Maximum Takeoff Altitude: 200 m
Max Hover Time: Approx. 6 mins (with 550mAh battery), 10mins (with 900mAh battery)
Max Flight Distance: 2-3 km
Max Wind Speed Resistance: 80 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmission Power (EIRP): FCC: &amplt 33 dBm / CE: &amplt 14 dBm / SRRC: &amplt 30 dBm
Antennas: Dual Antennas
GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit
Weight: Approx. 36.4grams
Dimensions (L×W×H): L16.7×W103.9×H 81.3mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: &amplt 30 dBm (FCC), &amplt 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: &amplt 30 dBm (FCC), &amplt 23 dBm (SRRC), &amplt 14 dBm (CE/KC)
Max Video Transmission Bitrate: 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)



Recommended (Not Included)


iFlight Defender 25 Battery - 900mAh






Includes

1x iFlight BNF Defender 25 HD 4S 2.5&quot Cinewhoop w/ DJI O3 Air Unit and DJI Camera (Pre-Built, Tuned, and Tested)
1x Defender 25 550mAh Battery
1x Charging Adapter Board
2x Defender 25 2525 Props (pairs)





All batteries must be shipped by a ground shipping method. Introducing iFlight's Defender 25, a sub-250 drone featuring the DJI O3 Air Unit. At 249g weight, Defender 25 doesn't require registration in most countries. The compact and lightweight design also make it easy to carry and store. It will be your best travel bu

iFlight BNF Defender 25 HD 4S 2.5" Cinewhoop w/ DJI O3 Air Unit and DJI Camera - Choose Receiver from WREKD Co.

iFlight BNF Defender 25 HD 4S 2.5

iFlight BNF Defender 25 HD 4S 2.5" Cinewhoop w/ DJI O3 Air Unit and DJI Camera - Choose Receiver

IFLIGHT

All batteries must be shipped by a ground shipping method.
*Defender 25 4S HD BNF comes with GPS installed by default.
Introducing iFlight's Defender 25, a sub-250 drone featuring the DJI O3 Air Unit. At 249g weight, Defender 25 doesn't require registration in most countries. The compact and lightweight design also make it easy to carry and store. It will be your best travel buddy to redefine your FPV adventure. The built-in 2.5-inch propeller guards were designed to fly boldly. You’ll experience a completely new creative freedom to fly whenever and wherever. The durable injection molded frame not only prevents damage to your motors or propellers but also protects the environment from small flight errors.
Equipped with the latest tech from DJI, the O3 Air Unit HD transmission system, the Defender 25 supports 4K video and shoots up to 155° super-wide FOV footage for stunning visuals. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to edit and adjust your footage.
They’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the built-in or in-post camera stabilization.











Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!












Features


Optimized Landing Gear for Take-Off in Complex Environments
Built-in High-Performance video and Receiver Antennas
4K Stabilized Video with 155° Ultra-Wide Angle
Crash-Protected Quick-Release Battery
Countless Easy-to-Use Features
Ultralight and Free to Fly
Small and Mighty

Specifications
Defender 25

Product Name: Defender 25 4S HD
Flight Electronics: BLITZ D25 F7 AIO
Video Transmission: DJI O3 Air Unit
Frame: 112±2mm
Motor: Defender25 1404
Prop: Defender25 2525 props (2.5-inch)
Weight of the Aircraft: 180g
Takeoff Weight incl. 550mAh battery: ≤249g
Dimensions (L×W×H)：158x155x69mm
Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Speed: 100Km/H (Manual Mode)
Maximum Takeoff Altitude: 200 m
Max Hover Time: Approx. 6 mins (with 550mAh battery), 10mins (with 900mAh battery)
Max Flight Distance: 2-3 km
Max Wind Speed Resistance: 80 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmission Power (EIRP): FCC: &lt 33 dBm / CE: &lt 14 dBm / SRRC: &lt 30 dBm
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O3 Air Unit
Weight: Approx. 36.4grams
Dimensions (L×W×H): L16.7×W103.9×H 81.3mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: &lt 30 dBm (FCC), &lt 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: &lt 30 dBm (FCC), &lt 23 dBm (SRRC), &lt 14 dBm (CE/KC)
Max Video Transmission Bitrate: 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)



Recommended (Not Included)


iFlight Defender 25 Battery - 900mAh






Includes

1x iFlight BNF Defender 25 HD 4S 2.5" Cinewhoop w/ DJI O3 Air Unit and DJI Camera (Pre-Built, Tuned, and Tested)
1x Defender 25 550mAh Battery
1x Charging Adapter Board
2x Defender 25 2525 Props (pairs)





All batteries must be shipped by a ground shipping method. *Defender 25 4S HD BNF comes with GPS installed by default. Introducing iFlight's Defender 25, a sub-250 drone featuring the DJI O3 Air Unit. At 249g weight, Defender 25 doesn't require registration in most countries. The compact and lightweight design also mak

iFlight BNF Defender 25 HD 4S 2.5" Cinewhoop w/ DJI O3 Air Unit and DJ

GEPRC BNF CineBot 30 HD 3" Cinewhoop - Caddx Vista

Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage.
Cinebot30 is a new generation of Cinematic FPV drones developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, a combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2, and other cameras. The image is stable and clear, and it’s easy to film.
Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!
Cinebot30 will be equipped with a powerful 1804 motor with an optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Check out our other pre-built quads, as well as the rest of our GEPRC selection.

Features

Design that combines engineering and aesthetics.
Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
Selected high-toughness and impact-resistant PC material for injection molding.
Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.
Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
The newly developed gimbal shock absorption structure can disintegrate high-frequency jitter and jello effect. Easily carry a variety of action cameras.
Powerful 1804 motor, surging torque to deal with ultra-low altitude flight at will.
With the new GEP-F722-45A AIO V2, stable performance, more secure flight
Four kinds of FPV systems with the program, choose to belong to your first-person view
Tuned by GEPRC professionals, delicate and silky flying feel

Specifications

Input Voltage: 3-4S
Frame: GEP-CT30

Wheelbase: 127mm

Isolation Plate: 2mm

Main plate: 3mm

Bottom plate: 1.5mm

FC: GEP-F722-45A AIO V2

MCU: STM32F722RET6

IMU: ICM-42688-P

VTX: Caddx Vista

Camera: Caddx Nebula Pro

Propeller: HQ prop T76mm

Antenna: Peano 5.8G 110mm LHCP UFL Antenna

Charger connector: XT60H-M

Motor: SPEEDX2 1804-3450KV

Weight: Nebula Pro version 222.5g



GEPRC GEP-F722-45A AIO

Model: Cinebot30 HD Nebula PRO Quadcopter
Gyro: BMI270/42688 gyro/accelerometer(SPI)

OSD: Yes

ESC Connections: Yes
Firmware: GEP-F722-45A AIO

BEC: 5V 1A


Current Sensor: Yes
Buzzer: no
Barometer: No

Input Voltage: 2-4S LiPo

MCU: STM32F722RET6

IMU: ICM-42688-P
Stack Size: 25x25mm

Dimensions: 32x32xmm


Weight: 8.8g



Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)

Includes

1x GEPRC BNF CineBot30 HD 3&quot 4S Cinewhoop w/ Caddx Vista &ampamp Nebula Pro - PNP (DJI RX)
2x  HQProp T76MM（pair）
1x  Battery strap M15x200mm
1x  Battery strap M15x220mm
2x  Battery Silicone Pads
1x  Set of screws
1x  Set of screwdrivers
1x  GoPro camera mount holder
1x  Set of screws
1x  Set of screwdrivers
1  x  Antenna fixed tube


Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage. Cinebot30 is a new generation of Cinematic FPV drones developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, a combination of classic eng

GEPRC BNF CineBot30 HD 3" 4S Cinewhoop w/ Caddx Vista & Nebula Pro - PNP (DJI RX) from WREKD Co.

GEPRC BNF CineBot30 HD 3

GEPRC BNF CineBot30 HD 3" 4S Cinewhoop w/ Caddx Vista & Nebula Pro - PNP (DJI RX)

Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage.
Cinebot30 is a new generation of Cinematic FPV drones developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, a combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2, and other cameras. The image is stable and clear, and it’s easy to film.
Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!
Cinebot30 will be equipped with a powerful 1804 motor with an optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Check out our other pre-built quads, as well as the rest of our GEPRC selection.

Features

Design that combines engineering and aesthetics.
Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
Selected high-toughness and impact-resistant PC material for injection molding.
Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.
Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
The newly developed gimbal shock absorption structure can disintegrate high-frequency jitter and jello effect. Easily carry a variety of action cameras.
Powerful 1804 motor, surging torque to deal with ultra-low altitude flight at will.
With the new GEP-F722-45A AIO V2, stable performance, more secure flight
Four kinds of FPV systems with the program, choose to belong to your first-person view
Tuned by GEPRC professionals, delicate and silky flying feel

Specifications

Input Voltage: 3-4S
Frame: GEP-CT30

Wheelbase: 127mm

Isolation Plate: 2mm

Main plate: 3mm

Bottom plate: 1.5mm

FC: GEP-F722-45A AIO V2

MCU: STM32F722RET6

IMU: ICM-42688-P

VTX: Caddx Vista

Camera: Caddx Nebula Pro

Propeller: HQ prop T76mm

Antenna: Peano 5.8G 110mm LHCP UFL Antenna

Charger connector: XT60H-M

Motor: SPEEDX2 1804-3450KV

Weight: Nebula Pro version 222.5g



GEPRC GEP-F722-45A AIO

Model: Cinebot30 HD Nebula PRO Quadcopter
Gyro: BMI270/42688 gyro/accelerometer(SPI)

OSD: Yes

ESC Connections: Yes
Firmware: GEP-F722-45A AIO

BEC: 5V 1A


Current Sensor: Yes
Buzzer: no
Barometer: No

Input Voltage: 2-4S LiPo

MCU: STM32F722RET6

IMU: ICM-42688-P
Stack Size: 25x25mm

Dimensions: 32x32xmm


Weight: 8.8g



Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)

Includes

1x GEPRC BNF CineBot30 HD 3" 4S Cinewhoop w/ Caddx Vista &amp Nebula Pro - PNP (DJI RX)
2x  HQProp T76MM（pair）
1x  Battery strap M15x200mm
1x  Battery strap M15x220mm
2x  Battery Silicone Pads
1x  Set of screws
1x  Set of screwdrivers
1x  GoPro camera mount holder
1x  Set of screws
1x  Set of screwdrivers
1  x  Antenna fixed tube


GEPRC BNF CineBot30 HD 3" 4S Cinewhoop w/ Caddx Vista & Nebula Pro - P

SpeedyBee

SpeedyBee PNP Flex25 Analog Cinewhoop

 Check out all our Analog BNF/PNP/RTF Drones and the rest of our SpeedyBee Products!  Don't forget to get the LED Lighting Kit to add some bling to your drone! Specifications: Wheelbase: 78mm Flight Controller &amp; ESC SpeedyBee: F745 35A AIO Gyro: MPU6000 OSD Chip: AT7456E VTX SpeedyBee: TX800 Camera: RunCam Phoenix

SpeedyBee Flex25 Analog 2.5

SpeedyBee PNP Flex25 HD Falcon/Runcam Link Cinewhoop

 Check out all our Digital BNF/PNP/RTF Drones and the rest of our SpeedyBee Products!  Don't forget to get the LED Lighting Kit to add some bling to your drone! Specifications: Wheelbase: 78mm Flight Controller &amp; ESC SpeedyBee: F745 35A AIO Gyro: MPU6000 OSD Chip: AT7456E VTX &amp; Camera: RunCam Falcon 120fps Digi

SpeedyBee Flex25 HD 2.5

Axis Flying

Axis Flying BNF AirForce Pro X8 HD 2.5" Cinewhoop

The AxisFlying Air Force Pro Cinewhoop is the Ultimate 2.5" Shooting Solution, fly's like a 5"! Perfect for indoor filming with high power and low noise, it is agile and highly maneuverable and it can easily carry full GoPros though various obstacles.  it can even do freestyle with a full gopro!  Check out all our Cine

AxisFlying Air Force HD Pro Cinewhoop - Caddx Nebula

EMAX RTF Tinyhawk III Plus Freestyle Kit - HDZero, ELRS 2.4GHz

Pre-Orders shipping ASAP!  All products containing batteries must be shipped by a ground shipping method.
Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan Rush 2.5&quot propellers for exceptional grip and thrust. Durability is elevated with an upgraded 3K Carbon Fiber-blend frame.
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.
This HDZero variant elevates the FPV video experience to the next level. This cutting-edge digital transmission technology ensures crystal-clear video with low interference, providing a truly immersive and cinematic view while piloting Tinyhawk 3 Plus.
This is an ideal way for beginners to enter the FPV scene. With this RTF kit, you will get a Tinyhawk 3 Plus Freestyle HDZero BNF, EMAX E8 Transmitter (ELRS-2.4G), EMAX Transporter 2 HDZero Goggles, 2  EMAX 1S HV 650mAh battery, USB Battery charger prop, and hardware.
Check out our other RTF combos, all our pre-built quads, all things Tinyhawk, and our EMAX selection!



Specifications
TINYHAWK 3 PLUS FREESTYLE HDZERO BNF

Wheelbase: 110mm
Weight: 65.5g
Motor: 12025 7000KV
Propellers: AVAN Rush 2.5
Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)
Camera: RunCam HDZero Nano Lite
VTX: HDZero Whoop Lite 0/25mW/200mW
Battery: 1S 650mAh

E8 TRANSMITTER (ELRS-2.4G)

Dimensions: LxWxH=150x140x45mm
Weight: 260g
Channels: 8
Protocol: ELRS 2.4G
Band: 2.4gHz（2400-2483.5MHz）
Power Levels: 10mW/25mW/50mW/100mW
Battery: 800mAh 18650
Charging: USB-C 1A Recommended
Operating Voltage: 3.7-4.2V
Input: Type-C, 3.5mm

TRANSPORTER 2 HDZERO GOGGLES:

Dimensions: LxWxH=155x100x90mm
Weight: 425g
Screen Resolution: 720x1080
Screen Size: 4.45 Inch
Battery: 2200mAh Integrated
Operating Voltage: 3.7V-4.2V
Band: Digital HDZero 5.8GHz（5658-5945MHz）
Charging: USB-C 1A Recommended
DVR: 32GB Micro SD Recommended


Includes

1x Tinyhawk 3 Plus Freestyle HDZero BNF

1x EMAX E8 Transmitter (ELRS-2.4G)

1x EMAX Transporter 2 HDZero Goggles

2x EMAX 1S HV 650mAh Battery

1x Hardware Kit

1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)

1x USB Battery Charger

1x Monitor to Transmitter Mounting Kit

1x HDZero Firmware Update Cable Kit


Pre-Orders shipping ASAP!  All products containing batteries must be shipped by a ground shipping method. Ready to take outdoor FPV quadcopter flight to the next level? Embark on the future with the all-new Tiny Hawk 3 Plus Freestyle-- precision-engineered for extended airtime. It features a 1225 7000 KV motor and Avan

EMAX RTF Tinyhawk III Plus Freestyle Ready-to-Fly ELRS 2.4GHz HDZero Kit w/ Goggles, Radio Transmitter, Batteries, Charger, Case and Drone from WREKD Co.

(PRE-ORDER) EMAX RTF Tinyhawk III Plus Freestyle Ready-to-Fly ELRS 2.4GHz HDZero Kit w/ Goggles, Radio Transmitter, Batteries, Charger, Case and Drone

EMAX Tinyhawk 3 Plus Freestyle HDZero RTF Drone with RC/GogglesIMPROVEMENTEmbark on the future of outdoor FPV quadcopters with the all-new Tinyhawk III Plus Freestyle, tailor-made for those ready to embrace the excitement of outdoor drone flights.INCREDIBLE DURABILITYCrafted from an upgraded aerospace-grade 3k woven carbon fiber blend, durability reaches new heights. This advanced blend ensures the Tinyhawk III Plus Freestyle can confidently endure high-impact situations while maintaining its lightweight agility. The frame proudly displays an eye-catching designer pattern, setting it apart with its unique charm.IMPROVED VTXWith increased transmission power, the Tinyhawk III Plus Freestyle punches through interference and obstacles with ease. You&#39ll experience a more robust signal, allowing you to fly with confidence even in challenging environments. Our engineers have fine-tuned the analog system to optimize signal strength while maintaining stability, so you can f...

EMAX Tinyhawk 3 Plus Freestyle HDZero RTF Drone - RMRC

EMAX Tinyhawk 3 Plus Freestyle HDZero RTF Drone with RC/Goggles

EMAX RTF Tinyhawk III Plus Analog Whoop - 2.4GHz ELRS

All products containing batteries must be shipped by a ground shipping method.
The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers&#39 feedback and made significant enhancements, including the incorporation of ExpressLRS technology. This is truly the ideal way to try out FPV!
The Tinyhawk 3 Plus series drones now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently, knowing that commands will be executed with the utmost precision.
This is an ideal way for beginners to enter the FPV scene. With this RTF kit, you will get a Tinyhawk 3 Plus Analog BNF, EMAX E8 Transmitter (ELRS-2.4G), EMAX Transporter 2 Analog Goggles, 2  EMAX 1S HV 650mAh battery, USB Battery charger prop, and hardware.
Check out our other RTF combos, all our pre-built quads, all things Tinyhawk, and our EMAX selection!




Specifications
TINYHAWK 3 PLUS ANALOG

Wheelbase: 76mm

Weight: 32.5g

Motor: TH0802 II - 15000KV

Propellers: Avia Tinyhawk

Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)

Camera: Runcam Nano

VTX: 32Bit 40Ch 0/25mW/100mW/400mW

Battery: 1S 650mAh

E8 TRANSMITTER (ELRS-2.4G)

Dimensions: LxWxH=150x140x45mm

Weight: 260g

Channels: 8

Protocol: ELRS 2.4G

Band: 2.4gHz（2400-2483.5MHz）

Power Levels: 10mW/25mW/50mW/100mW

Battery: 800mAh 18650

Charging: USB-C 1A Recommended

Operating Voltage: 3.7-4.2V

Input: Type-C, 3.5mm

TRANSPORTER 2 ANALOG GOGGLES

Dimensions: LxWxH=155x100x90mm

Weight: 398g

Screen Resolution: 480x800

Screen Size: 4.3 Inch

Battery: 1300mAh Integrated

Operating Voltage: 3.7V-4.2V

Band: 5.8GHz（5658-5945MHz）

Charging: USB-C 1A Recommended

DVR: 32GB Micro SD Recommended Modes: VGA/D1

Includes

1x Tinyhawk 3 Plus Analog BNF

1x EMAX E8 Transmitter (ELRS-2.4G)

1x EMAX Transporter 2 Analog Goggles

2x EMAX 1S HV 650mAh Battery

1x Hardware Kit

1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)

1x USB Battery Charger

1x Monitor to Transmitter Mounting Kit


All products containing batteries must be shipped by a ground shipping method. The Tinyhawk 3 Plus series, an FPV racing drone that takes micro performance to new heights. They listened to customers' feedback and made significant enhancements, including the incorporation of ExpressLRS technology. This is truly the idea

EMAX RTF Tinyhawk III Plus Whoop Ready-to-Fly ELRS 2.4GHz Analog Kit w/ Goggles, Radio Transmitter, Batteries, Charger, Case and Drone from WREKD Co.

EMAX RTF Tinyhawk III Plus Whoop Ready-to-Fly ELRS 2.4GHz Analog Kit w/ Goggles, Radio Transmitter, Batteries, Charger, Case and Drone

EMAX RTF Tinyhawk III Plus Analog Freestyle Kit - ELRS 2.4GHz

EMAX Tinyhawk 3 Plus Freestyle Analog RTF Drone with RC/GogglesIMPROVEMENTEmbark on the future of outdoor FPV quadcopters with the all-new Tinyhawk III Plus Freestyle, tailor-made for those ready to embrace the excitement of outdoor drone flights.INCREDIBLE DURABILITYCrafted from an upgraded aerospace-grade 3k woven carbon fiber blend, durability reaches new heights. This advanced blend ensures the Tinyhawk III Plus Freestyle can confidently endure high-impact situations while maintaining its lightweight agility. The frame proudly displays an eye-catching designer pattern, setting it apart with its unique charm.IMPROVED VTXWith increased transmission power, the Tinyhawk III Plus Freestyle punches through interference and obstacles with ease. You&#39ll experience a more robust signal, allowing you to fly with confidence even in challenging environments. Our engineers have fine-tuned the analog system to optimize signal strength while maintaining stability, so you can f...
