BetaFPV

BetaFPV RTF Aquila16 FPV Analog Kit

BETAFPV Hobby

The Aquila16 FPV kit is a more advanced kit for beginners. It's an inverted quadcopter with a modular aerodynamic design. Fly for up to 8 mins, covering a maximum distance of 200 meters. Enjoy stable hovering and enhanced frame protection, allowing for consistent flight practice and better control. The kit includes the VR03 FPV Goggles for recording your flying and a Literadio 2 SE Radio Transmitter with the latest ELRS 3.0 firmware. All you need is in one pack! Accelerate your FPV learning curve and become a pro sooner with this kit.

Bullet Point

The Aquila16 FPV Kit excels in hover capability for assisted flight, ensuring safe and effortless flight for worry-free learning.
Built with durable PA12 material, the Aquila16 frame has excellent impact resistance in drop &amp impact and reduces the risk of damage, providing you more peace learning of mind.
With a 1100mAh battery, it offers a flight time of 8 minutes and a maximum flight distance of 200 meters. For those seeking advanced flight modes like freestyle or racing, opting for a 650 battery is recommended.
This kit offers 3 fly and speed modes, catering from novice to pro and gradually unlocking advanced skills, all in one kit.

The VR03 FPV Goggles feature a Micro SD card slot for easy video recording and support compatibility with most Analog VTXs in the market.
The Literadio2 SE Transmitter supports the latest ELRS 3.0 firmware, enabling compatibility with popular FPV simulators like DRL/DCL/VelociDrone/Liftoff.

All components, including the quadcopter, radio transmitter, FPV goggles, and accessories, are conveniently packed in a portable EVA storage bag for easy transportation and enhanced equipment protection.

Specification

Item: Aquila16 FPV Kit
Battery: Aquila16 Special Battery|1100mAh (Default), 650mAh (Optional)
Camera: C02
Camera Angle Adjustment: 15°-30°
Charger Used: BT2.0 Battery Charger and Voltage Tester V2
Flight Controller: Aquila16 V1.0
Flight Modes: N/S/M Mode

Flight Time(4.35V-3.4V): 8 mins
Frame Material: Black PA12
Goggles: VR03 FPV Goggles
Motors: 1102|18000KV
Power Connector: BT2.0 Connector
Propellers: Beta-45mm 3-Blades Props
Radio Transmitter: LiteRadio 2 SE Radio Transmitter
Receiver: Serial ELRS 2.4G 3.0 Version
Receiver Binding: Power up 3 times
Video Transmitter(VTX): Aquila 25-350mW VTX
VTX Power and Range: 25mW (Range:80m), 350mW (Range:200m)
Wheelbase: 86mm
Weight(Without Battery): 47.1g
Takeoff Weight(With 1100mAh Battery): 72.5g

From Zero To Hero







Aquila16 FPV Kit
 Cetus Pro FPV Kit

Cetus X FPV Kit


Battery
Aquila16 Exclusive Battery|1100mAh (Default), 650mAh (Optional)
BT2.0 450mAh 1S 30C Battery


Flight Time(4.35V-3.4V)
8 mins (Default battery)
4-5min


Motors
1102|18000KV Brushless motor
1102|18000KV Brushless
1103|11000KV Brushless motor


Video Transmitter
Aquila 25-350mW VTX
25mW（AIO FC）
M04 25-400mW VTXCetus 25-350mW VTX V2


VTX Power and Range
25mW (Range:80m)350mW (Range:200m)
25mW (Range:80m)
M04 VTX: 25mW（Range:80m）400mW（Range:500m）Cetus VTX：25mW（Range:80m）350mW（Range:200m）


Recording Funtion
Support
Not Support
Support





Fly Further, Fly Longer

With an impressive 8 mins flight time, you can enjoy endless practice sessions and a flight distance of up to 200m indoors or outdoors. Enjoy uninterrupted flights, enabling you to concentrate on refining your piloting skills. The kit features a high-power, low-latency 350mW video transmission system, guaranteeing real-time video transmission with stable signals up to 200 meters. Say goodbye to lag and immerse yourself in the thrill of the flight.

Auxiliary Flight Function
The Aquila16 FPV Kit excels in hover capability for assisted flight, ensuring safe and effortless flight for worry-free learning. Built-in highly precise barometer to detect the height, it benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function guarantees emergency landing in situations of lost control or low battery. Meanwhile, its stable flight characteristics allow for capturing stunning footage with utmost precision using the VR03 FPV Goggles. Experience an immense amount of enjoyment and ease of flight.

Note: The position hold function is only available in N mode.
Designed to Make Flying Easier

Every aspect of its design embodies making flying easier for beginner-friendly. The inclusion of an inverted duct system enhances thrust and stability, enabling the drone to achieve superior flight performance with precision. The fixed configuration port and modular battery minimize redundancy designs, making installation simple and hassle-free. The duct guard design ensures safe flights by protecting the propellers, equipped to handle unexpected obstacles.

The receiver binding needs to power up 3 times and the battery's first power-up may result in a tight fit, requiring a certain technique for insertion and removal, please refer to this video.
Fly Indoor and Outdoor
The Aquila16 FPV Kit provides an exhilarating flying experience for all, regardless of age or skill level. The durable construction guarantees lasting performance, while intuitive controls offer precise maneuverability, ensuring a worry-free indoor and outdoor flying experience while capturing breathtaking moments with a high-quality camera and enjoying the thrill of real-time FPV. Effortless setup allows you to fully immerse yourself in the sheer joy of flight, unlocking boundless creative possibilities.

Various Modes, Accessible to All

The Aquila16 Brushless Quadcopter offers N/S/M 3 flight modes and supports 3 different speeds with SLOW/MID/FAST. With Turtle Mode, no burden to fly away, and there is no need to walk away to correct the position manually to flip it over and resume flying when the quadcopter falls to the ground and upside down. Whether you're a seasoned FPV pilot or a complete beginner, the Aquila16 FPV Kit empowers everyone to fly confidently from day one.

Below is the table for the different speeds under N modes maximum throttle.



SLOW
MID
FAST


1.25m/s
3.33m/s
5m/s




The Aquila16 FPV Kit comes with a default 1100mAh battery, ideal for beginners seeking a smooth flying experience in N/S mode. However, for those looking to advance their freestyle and racing flight skills in M Mode, the 650mAh version battery is more suitable, it needs to be purchased separately.
Recording Every Flight Moment

Pilots can record and save flying videos on a Micro SD card and easily replay them using the VR03 FPV Goggles which feature a high-quality 5.8G 3dBi antenna for stable video transmission and vivid images. Its omnidirectional design ensures equal signal radiation and reception in all 360-degree horizontal directions. The replaceable antenna allows pilots to experiment with different options and adjust the angle as needed. With 4.3 inches 800*480px HD high brightness LCD, VR03 Goggles will show you a bright world.

LiteRadio 2 SE Radio Transmitter
Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours. It comes preloaded with the factory default ELRS 3.0 firmware, offering a transmitting power of 100mW, which brings a wider operating range. Updates with BETAFPV self-developed LiteRadio System, enabling pilots to conveniently perform Joystick Calibration and Firmware Upgrades directly on the transmitter, enhancing usability and ease of use.

Note: This LR 2 SE radio TX mode of Aquila16 FPV Kit is Mode2 which is the left-hand throttle.
FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio2 SE radio transmitter can be used as a USB Joystick when connected to the computer. So it's available to play FPV simulators like DRL/DCL/VelociDrone/Liftoff. More convenient for practicing and charging at the same time. Here is the display of Liftoff. Download Liftoff here.  And this LiftOFF simulator has launched the Aquila16 quadcopter now. Click to learn more.

 Note: This radio transmitter isn't compatible with Windows 11/Windows 10 systems running on AMD CPUs. If you wanna connect to a simulator, you will need to revert it to the ELRS 2.0 firmware.


Recommended Parts


Quadcopter: Aquila16 Brushless Quadcopter
Battery: Aquila16 Exclusive Battery (2PCS)
Props: Beta-45mm 3-Blades Propellers (1.5mm Shaft 4PCS)
Adapter Cable: BT2.0 Female-Male Adapter Cable

FAQ


Download the Manual for the Aquila16 FPV Kit.

Donwload the Firmware for Aquila16 FPV Kit.

How to replace the VTX Module of Aquila16 FPV Kit.
There is a risk of battery detachment during severe crashes.
Camera angle adjustment: The canopy is fixed, and the camera angle can be adjusted by loosening or tightening the screws on both sides.


ExpressLRS is the popular radio link now. Know more about ExpressLRS here.

The LiteRadio 2 SE Radio Transmittercurrent factory default firmware is ELRS V2, and it can be upgraded to the beta version of ELRS V3 firmware. For detailed instructions, please visit: link to the update guide.

Package

1 * Aquila16 Brushless Quadcopter
1 * LiteRadio 2 SE Radio Transmitter
1 * VR03 FPV Goggles
4 * Beta-45mm 3-Blades Props (Spare Set)
2 * Aquila16 Exclusive Battery|1100mAh
2 * Charging Adapter Cable
1 * BT2.0 Battery Charger and Voltage Tester V2
1 * 4Pin Adapter Cable
1 * USB Charging Cable (Type-C)

1 * Cross Screwdriver
1 * Exclusive Screw Set (Spare)
1 * Prop Removal Tool

1 * Portable Storage Bag
1 * User Manual
1 * USB Type-C Adapter Board (Used in connection with the 4Pin adapter cable for FC to configuration)



The Aquila16 FPV kit is a more advanced kit for beginners. It's an inverted quadcopter with a modular aerodynamic design. Fly for up to 8 mins, covering a maximum distance of 200 meters. Enjoy stable hovering and enhanced frame protection, allowing for consistent flight practice and better control. The kit includes the

Aquila16 FPV Kit

The Aquila16 FPV kit is a more advanced kit for beginners. It's an inverted quadcopter with a modular aerodynamic design. Fly for up to 8 mins, covering a maximum distance of 200 meters. Enjoy stable hovering and enhanced frame protection, allowing for consistent flight practice and better control. The kit includes the

BetaFPV Aquila16 FPV RTF Kit ELRS 2.4GHz v3.0 with Goggles & Controller

BETAFPV

The BETAFPV Aquila16 FPV Kit is an advanced option for beginner pilots.&nbsp

The BETAFPV Aquila16 FPV Kit is an advanced option for beginner pilots.

BETAFPV Aquila16 FPV Kit

Five33

The Aquila16 FPV kit is a more advanced kit for beginners. It's an inverted quadcopter with a modular aerodynamic design. Fly for up to 8 mins, covering a maximum distance of 200 meters. Enjoy stable hovering and enhanced frame protection, allowing for consistent flight practice and better control. The kit includes the VR03 FPV Goggles for recording your flying and a Literadio 2 SE Radio Transmitter with the latest ELRS 3.0 firmware. All you need is in one pack! Accelerate your FPV learning curve and become a pro sooner with this kit.

Bullet Point

The Aquila16 FPV Kit excels in hover capability for assisted flight, ensuring safe and effortless flight for worry-free learning.
Built with durable PA12 material, the Aquila16 frame has excellent impact resistance in drop &amp impact and reduces the risk of damage, providing you more peace learning of mind.
With a 1100mAh battery, it offers a flight time of 8 minutes and a maximum flight distance of 200 meters. For those seeking advanced flight modes like freestyle or racing, opting for a 650 battery is recommended.
This kit offers 3 fly and speed modes, catering from novice to pro and gradually unlocking advanced skills, all in one kit.

The VR03 FPV Goggles feature a Micro SD card slot for easy video recording and support compatibility with most Analog VTXs in the market.
The Literadio2 SE Transmitter supports the latest ELRS 3.0 firmware, enabling compatibility with popular FPV simulators like DRL/DCL/VelociDrone/Liftoff.

All components, including the quadcopter, radio transmitter, FPV goggles, and accessories, are conveniently packed in a portable EVA storage bag for easy transportation and enhanced equipment protection.

Specification

Item: Aquila16 FPV Kit
Battery: Aquila16 Special Battery|1100mAh (Default), 650mAh (Optional)
Camera: C02
Camera Angle Adjustment: 15°-30°
Charger Used: BT2.0 Battery Charger and Voltage Tester V2
Flight Controller: Aquila16 V1.0
Flight Modes: N/S/M Mode

Flight Time(4.35V-3.4V): 8 mins
Frame Material: Black PA12
Goggles: VR03 FPV Goggles
Motors: 1102|18000KV
Power Connector: BT2.0 Connector
Propellers: Beta-45mm 3-Blades Props
Radio Transmitter: LiteRadio 2 SE Radio Transmitter
Receiver: Serial ELRS 2.4G 3.0 Version
Receiver Binding: Power up 3 times
Video Transmitter(VTX): Aquila 25-350mW VTX
VTX Power and Range: 25mW (Range:80m), 350mW (Range:200m)
Wheelbase: 86mm
Weight(Without Battery): 47.1g
Takeoff Weight(With 1100mAh Battery): 72.5g

From Zero To Hero








Aquila16 FPV Kit
 Cetus Pro FPV Kit

Cetus X FPV Kit


Battery
Aquila16 Exclusive Battery|1100mAh (Default), 650mAh (Optional)
BT2.0 450mAh 1S 30C Battery


Flight Time(4.35V-3.4V)
8 mins (Default battery)
4-5min


Motors
1102|18000KV Brushless motor
1102|18000KV Brushless
1103|11000KV Brushless motor


Video Transmitter
Aquila 25-350mW VTX
25mW（AIO FC）
M04 25-400mW VTXCetus 25-350mW VTX V2


VTX Power and Range
25mW (Range:80m)350mW (Range:200m)
25mW (Range:80m)
M04 VTX: 25mW（Range:80m）400mW（Range:500m）Cetus VTX：25mW（Range:80m）350mW（Range:200m）


Recording Funtion
Support
Not Support
Support






Fly Further, Fly Longer

With an impressive 8 mins flight time, you can enjoy endless practice sessions and a flight distance of up to 200m indoors or outdoors. Enjoy uninterrupted flights, enabling you to concentrate on refining your piloting skills. The kit features a high-power, low-latency 350mW video transmission system, guaranteeing real-time video transmission with stable signals up to 200 meters. Say goodbye to lag and immerse yourself in the thrill of the flight.

Auxiliary Flight Function
The Aquila16 FPV Kit excels in hover capability for assisted flight, ensuring safe and effortless flight for worry-free learning. Built-in highly precise barometer to detect the height, it benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function guarantees emergency landing in situations of lost control or low battery. Meanwhile, its stable flight characteristics allow for capturing stunning footage with utmost precision using the VR03 FPV Goggles. Experience an immense amount of enjoyment and ease of flight.

Note: The position hold function is only available in N mode.
Designed to Make Flying Easier

Every aspect of its design embodies making flying easier for beginner-friendly. The inclusion of an inverted duct system enhances thrust and stability, enabling the drone to achieve superior flight performance with precision. The fixed configuration port and modular battery minimize redundancy designs, making installation simple and hassle-free. The duct guard design ensures safe flights by protecting the propellers, equipped to handle unexpected obstacles.

The receiver binding needs to power up 3 times and the battery's first power-up may result in a tight fit, requiring a certain technique for insertion and removal, please refer to this video.
Fly Indoor and Outdoor
The Aquila16 FPV Kit provides an exhilarating flying experience for all, regardless of age or skill level. The durable construction guarantees lasting performance, while intuitive controls offer precise maneuverability, ensuring a worry-free indoor and outdoor flying experience while capturing breathtaking moments with a high-quality camera and enjoying the thrill of real-time FPV. Effortless setup allows you to fully immerse yourself in the sheer joy of flight, unlocking boundless creative possibilities.

Various Modes, Accessible to All

The Aquila16 Brushless Quadcopter offers N/S/M 3 flight modes and supports 3 different speeds with SLOW/MID/FAST. With Turtle Mode, no burden to fly away, and there is no need to walk away to correct the position manually to flip it over and resume flying when the quadcopter falls to the ground and upside down. Whether you're a seasoned FPV pilot or a complete beginner, the Aquila16 FPV Kit empowers everyone to fly confidently from day one.

Below is the table for the different speeds under N modes maximum throttle.




SLOW
MID
FAST


1.25m/s
3.33m/s
5m/s





The Aquila16 FPV Kit comes with a default 1100mAh battery, ideal for beginners seeking a smooth flying experience in N/S mode. However, for those looking to advance their freestyle and racing flight skills in M Mode, the 650mAh version battery is more suitable, it needs to be purchased separately.
Recording Every Flight Moment

Pilots can record and save flying videos on a Micro SD card and easily replay them using the VR03 FPV Goggles which feature a high-quality 5.8G 3dBi antenna for stable video transmission and vivid images. Its omnidirectional design ensures equal signal radiation and reception in all 360-degree horizontal directions. The replaceable antenna allows pilots to experiment with different options and adjust the angle as needed. With 4.3 inches 800*480px HD high brightness LCD, VR03 Goggles will show you a bright world.

LiteRadio 2 SE Radio Transmitter
Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours. It comes preloaded with the factory default ELRS 3.0 firmware, offering a transmitting power of 100mW, which brings a wider operating range. Updates with BETAFPV self-developed LiteRadio System, enabling pilots to conveniently perform Joystick Calibration and Firmware Upgrades directly on the transmitter, enhancing usability and ease of use.

Note: This LR 2 SE radio TX mode of Aquila16 FPV Kit is Mode2 which is the left-hand throttle.
FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio2 SE radio transmitter can be used as a USB Joystick when connected to the computer. So it's available to play FPV simulators like DRL/DCL/VelociDrone/Liftoff. More convenient for practicing and charging at the same time. Here is the display of Liftoff. Download Liftoff here.


Recommended Parts


Quadcopter: Aquila16 Brushless Quadcopter
Battery: Aquila16 Exclusive Battery (2PCS)

FAQ


Download the Manual for the Aquila16 FPV Kit.

Donwload the Firmware for Aquila16 FPV Kit.
There is a risk of battery detachment during severe crashes.
Camera angle adjustment: The canopy is fixed, and the camera angle can be adjusted by loosening or tightening the screws on both sides.


ExpressLRS is the popular radio link now. Know more about ExpressLRS here.

The LiteRadio 2 SE Radio Transmittercurrent factory default firmware is ELRS V2, and it can be upgraded to the beta version of ELRS V3 firmware. For detailed instructions, please visit: link to the update guide.

Package

1 * Aquila16 Brushless Quadcopter
1 * LiteRadio 2 SE Radio Transmitter
1 * VR03 FPV Goggles
4 * Beta-45mm 3-Blades Props (Spare Set)
2 * Aquila16 Exclusive Battery|1100mAh
2 * Charging Adapter Cable
1 * BT2.0 Battery Charger and Voltage Tester V2
1 * 4Pin Adapter Cable
1 * USB Charging Cable (Type-C)

1 * Cross Screwdriver
1 * Exclusive Screw Set (Spare)
1 * Prop Removal Tool

1 * Portable Storage Bag
1 * User Manual
1 * USB Type-C Adapter Board (Used in connection with the 4Pin adapter cable for FC to configuration)



BETAFPV Aquila16 FPV Kit

Pre-Built Quad Kit Type

Pre-Built Quads and Kits

Quad Frame Size

Quad Type

BetaFPV RTF Cetus X FPV Analog Kit

Whether you're a skillful pilot or a new beginner, the Cetus X FPV Kit is an advanced 2S power whoop bundle, and a primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every FPV flight, there is simply nothing like Cetus X FPV Kit. With the combination of Cetus X Brushless Quadcopter, LiteRadio 3 Radio Transmitter, and VR03 FPV Goggles, get ready for the next level of flying FPV.
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 300mAh - BT2.0

Check out our other RTF combos, all our pre-built quads, and our BetaFPV selection!


Features

Nothing quite beats the experience of flying Cetus X with an enhanced propulsion system, and longer radio and video transmission. With a very functional and potential remote controller and FPV goggles, pilots can unlock more accomplishments to the next level.
Two FC versions are offered for pilots. With the support of the Betaflight configurator, beginners can learn quadcopter configuration through the Betaflight FC version. For pilots who prefer the classical Cetus, the Cetus FC version with an altitude hold function is also coming soon.
Classical white design inherited from Cetus Series and made of PA12 material, the Cetus X frame has an excellent impact resistance in drop &amp impact and reduces the risk of damage, giving you more peace of mind.
The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.
LiteRadio 3 reserves a nano bay that supports the external TX module for the compatibility of more quadcopters. And the VR03 FPV goggles which are newly added a Micro SD card slot to save the video with DVR recording, support most Analog VTXs in the market.
The quadcopter, radio transmitter, FPV goggles, and all of the accessories are packed in an EVA portable storage bag. It is convenient to carry outside and better to protect the equipment.

Powerful Propulsion System
Equipped with 1103 11000KV Brushless Motors and Gemfan 2020 4-blade props, the Cetus X Brushless Quadcopter delivers powerful propulsion, making it a 2S power whoop drone with some real punch to it. The whole quadcopter is light and durable enough, offering pilots a high-efficiency flight experience.

Recording Every Flight Moment
Newly developed by BETAFPV, and based on VR02 FPV Goggles, the VR03 FPV Goggles take features of VR02 and come with a DVR recording function. Pilots can enjoy the playback saved through the goggles or export the videos by Micro SD card. This exciting function allows pilots to catch the memorably breathtaking moment, greatly heightening the FPV flying experience.

Improved Video Transmission
Cetus X Brushless Quadcopter comes with M04 25-400mW VTX and C04 FPV camera. M04 25-450mW VTX features a lightweight and adjustable output power for long-distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, the C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with the C02 FPV camera.

LiteRadio 3 Radio Transmitter
This transmitter features an ergonomically designed handle and has superb performance in its working time, a newly updated gimbal. Besides, this version supports BETAFPV Configurator, which is a utility designed to simply update, configure, and tune the radio controller. Experience the thrill of total immersion with unrivaled control and capture the world around you.

FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio 1 supports playing FPV simulators like DRL/DCL/Uncrashed/Liftoff. LiteRadio 1 is capable of practicing and charging at the same time. Check out the Liftoff flying demonstration here. Download Liftoff here.

Various Modes, Accessible to All
Cetus X supports Angle/Horizon/Air Modes, which can satisfy the different needs of pilots and adapt to various flight environments. When the quadcopter falls to the ground and upside down, you can activate turtle mode by LiteRadio 3 transmitter to flip it over and resume flying. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus X FPV Kit helps anyone fly confidently from day one.

BETAFPV Cetus Series
The BETAFPV Cetus Series has been very popular since its release in 2021 and become the primary FPV choice for new beginners. Whether propulsion system, radio transmitter, VTX range, or other functions, BETAFPV never stops step to make the product better. From the initial Cetus to Cetus X so far, Cetus Series always satisfies customers' needs no matter new beginners or seasoned pilots.

Specification

Item: Cetus X FPV Kit
Weight: 55g
Wheelbase: 95mm

FC: F4 2S 15A V1.0 (Betaflight FC Version)

Motors: 1103 11000KV Motor
Props: Gemfan 2020 4-Blades Props
Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G (Betaflight)/Frsky D8 (Cetus)
VTX: M04 25-400mW VTX
Quadcopter: Cetus X Brushless Quadcopter
Transmitter: LiteRadio 3 Radio Transmitter
Goggles: VR03 FPV Goggles
Battery: 2x BT2.0 450mAh 1S 30C Battery
Flight time: 5 mins
Antennas: U.FL for Quad | RP-SMA for Goggles

Includes

1x Cetus X Brushless Quadcopter (Betaflight Firmware, ELRS 2.4G Receiver)
1x LiteRadio 3 Transmitter (ELRS 2.4G)
1x BETAFPV VR03 FPV Goggles
4x BT2.0 450 mAh 1S Lipo Battery
1x BT2.0 Battery Charger and Voltage Tester
1x USB Charging Cable (Type-C)
1x Type-C to FC Adapter
1x Prop Removal Tool
4x Gemfan 2020 4-Blades Prop (Spare Set)
1x Portable Storage Bag

FAQ

For more info and instructions, please check the User Manual for Cetus X FPV Kit.
Please DO NOT configure ESC or Motor settings on the Betaflight configurator.
The VR03 FPV goggles do not include a Micro SD card. You should prepare it before using the DVR recording function.
The External TX module for LiteRadio 3 should be bought separately. Recommend BETAFPV Nano TX Module.


Whether you're a skillful pilot or a new beginner, the Cetus X FPV Kit is an advanced 2S power whoop bundle, and a primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every FPV flight, there is simply nothing like Cetus X FPV Kit. Wi

BetaFPV RTF Cetus X FPV Analog Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case

BetaFPV RTF Cetus X FPV Analog Kit - Cetus Whoop, Goggles, Transmitter

All batteries must be shipped by a ground shipping method.
Whether you&#39re a skillful pilot or a new beginner, the Cetus X FPV Kit is an advanced 2S power whoop bundle, and a primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every FPV flight, there is simply nothing like Cetus X FPV Kit. With the combination of Cetus X Brushless Quadcopter, LiteRadio 3 Radio Transmitter, and VR03 FPV Goggles, get ready for the next level of flying FPV.
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 300mAh - BT2.0

Check out our other RTF combos, all our pre-built quads, and our BetaFPV selection!


Features

Nothing quite beats the experience of flying Cetus X with an enhanced propulsion system, and longer radio and video transmission. With a very functional and potential remote controller and FPV goggles, pilots can unlock more accomplishments to the next level.
Two FC versions are offered for pilots. With the support of the Betaflight configurator, beginners can learn quadcopter configuration through the Betaflight FC version. For pilots who prefer the classical Cetus, the Cetus FC version with an altitude hold function is also coming soon.
Classical white design inherited from Cetus Series and made of PA12 material, the Cetus X frame has an excellent impact resistance in drop &ampamp impact and reduces the risk of damage, giving you more peace of mind.
The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.
LiteRadio 3 reserves a nano bay that supports the external TX module for the compatibility of more quadcopters. And the VR03 FPV goggles which are newly added a Micro SD card slot to save the video with DVR recording, support most Analog VTXs in the market.
The quadcopter, radio transmitter, FPV goggles, and all of the accessories are packed in an EVA portable storage bag. It is convenient to carry outside and better to protect the equipment.

Powerful Propulsion System
Equipped with 1103 11000KV Brushless Motors and Gemfan 2020 4-blade props, the Cetus X Brushless Quadcopter delivers powerful propulsion, making it a 2S power whoop drone with some real punch to it. The whole quadcopter is light and durable enough, offering pilots a high-efficiency flight experience.

Recording Every Flight Moment
Newly developed by BETAFPV, and based on VR02 FPV Goggles, the VR03 FPV Goggles take features of VR02 and come with a DVR recording function. Pilots can enjoy the playback saved through the goggles or export the videos by Micro SD card. This exciting function allows pilots to catch the memorably breathtaking moment, greatly heightening the FPV flying experience.

Improved Video Transmission
Cetus X Brushless Quadcopter comes with M04 25-400mW VTX and C04 FPV camera. M04 25-450mW VTX features a lightweight and adjustable output power for long-distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, the C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with the C02 FPV camera.

LiteRadio 3 Radio Transmitter
This transmitter features an ergonomically designed handle and has superb performance in its working time, a newly updated gimbal. Besides, this version supports BETAFPV Configurator, which is a utility designed to simply update, configure, and tune the radio controller. Experience the thrill of total immersion with unrivaled control and capture the world around you.

FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio 1 supports playing FPV simulators like DRL/DCL/Uncrashed/Liftoff. LiteRadio 1 is capable of practicing and charging at the same time. Check out the Liftoff flying demonstration here. Download Liftoff here.

Various Modes, Accessible to All
Cetus X supports Angle/Horizon/Air Modes, which can satisfy the different needs of pilots and adapt to various flight environments. When the quadcopter falls to the ground and upside down, you can activate turtle mode by LiteRadio 3 transmitter to flip it over and resume flying. Whether you&#39re a seasoned FPV pilot or a complete beginner, the Cetus X FPV Kit helps anyone fly confidently from day one.

BETAFPV Cetus Series
The BETAFPV Cetus Series has been very popular since its release in 2021 and become the primary FPV choice for new beginners. Whether propulsion system, radio transmitter, VTX range, or other functions, BETAFPV never stops step to make the product better. From the initial Cetus to Cetus X so far, Cetus ..

All batteries must be shipped by a ground shipping method.  Whether you're a skillful pilot or a new beginner, the Cetus X FPV Kit is an advanced 2S power whoop bundle, and a primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every

BetaFPV RTF Cetus X FPV Analog Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case from WREKD Co.

Whether skillful pilots or new beginners, Cetus X FPV Kit, as the advanced 2S power whoop bundle, is a completely primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every FPV flight, there is simply nothing like Cetus X FPV Kit. With the combination of Cetus X Brushless Quadcopter, LiteRadio 3 Radio Transmitter, and VR03 FPV Goggles, get ready for the next level.
Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.

Bullet Point

Nothing quite beats the experience of flying Cetus X with an enhanced propulsion system, and longer radio and video transmission. With a very functional and potential remote controller and FPV goggles, pilots can unlock more accomplishments to the next level.
The Betaflight FC comes with the most popular firmware in the FPV community. Beginners are able to learn and understand more about FPV, which is an essential way to get drone experience.
The Cetus FC version offers an auxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
Classical white design inherited from Cetus Series and ade of PA12 material, the Cetus X frame has an excellent impact resistance in drop &amp impact and reduces the risk of damage, giving you more peace of mind.

The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.
LiteRadio 3 reserves a nano bay that supports the external TX module for the compatibility of more quadcopters. And the VR03 FPV goggles which are newly added a Micro SD card slot to save the video with DVR recording, support most Analog VTXs in the market.
The quadcopter, radio transmitter, FPV goggles, and all of the accessories are packed in an EVA portable storage bag. It is convenient to carry outside and better to protect the equipment.

Specification

Item: Cetus X FPV Kit
Weight: 55g
Wheelbase: 95mm
FC*: F4 2S 15A V1.0 FC (Betaflight FC Version)/Cetus BL V3 FC (Cetus FC Version)

Motors: 1103 11000KV Motor

Props: Gemfan 2020 4-Blades Props

Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G (Betaflight FC Version)/Frsky D8 (Cetus FC Version)

VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
Quadcopter: Cetus X Brushless Quadcopter

Transmitter: LiteRadio 3 Radio Transmitter

Goggles: VR03 FPV Goggles

Battery*: BT2.0 450mAh 1S 75C Battery

Flight time: 5 mins

Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 FC since Sep 2023. The battery will be upgraded from BT2.0 450mAh 1S 30C Battery to BT2.0 450mAh 1S 75C Battery from Feb 2024.

Cetus FC or Betaflight FC

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to get and learn tons of FPV knowledge via the popular open source Betaflight flight controller community. Both FC versions perform great in power and speed and feature higher-grade control modes for pilots to get advanced.




Cetus FC Version
Betaflight FC Version



Flight Controller
Cetus BL V3 FC
F4 2S 15A V1.0 FC


Receiver Protocol
Frsky D8
ExpressLRS 2.4G


Flight Mode
N/S/M/Turtle Mode
Angle/Horizon/Air/Turtle Mode


VTX
25-350mW
25-400mW


Position Hold
Support
Not Support


Configuration Software

BETAFPV Configurator

Betaflight Configurator



Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 FC since Sep 2023.

Auxiliary Flight Function
Built-in highly precise barometer to detect the height, the version with Cetus FC benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function also ensures an emergency landing of the drone whenever loses control or is on low battery. Meanwhile, its stable flight allows you to catch the best footage with the VR03 FPV Goggles very well. It really does an immense amount of fun and ease of flight for all pilots.
Powered by 2S, Cetus X has loads of punch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, the Cetus Pro with 1S power, which has the same auxiliary flight function, is easier for initial pilots to control and fly.

Note: The position hold function is only available in N mode.
Powerful Propulsion System

Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props, Cetus X Brushless Quadcopter delivers powerful propulsion, making it a 2S power whoop drone with some real punch to it. Besides, the whole quadcopter is light and durable enough, offering pilots a high-efficiency flight experience.

Recording Every Flight Moment

Newly developed by BETAFPV, and based on VR02 FPV Goggles, the VR03 FPV Goggles take features of VR02 and come with a DVR recording function. Pilots can enjoy the playback saved through the goggles or export the videos by Micro SD card. This exciting function allows pilots to catch the memorably breathtaking moment, greatly heightening the FPV flying experience.

Improved Video Transmission
Cetus X comes with M04 25-400mW VTX and C04 FPV camera. Both VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with C02 FPV camera.

LiteRadio 3 Radio Transmitter
This transmitter features an ergonomically designed handle and has superb performance in its working time, a newly updated gimbal. Besides, this version supports BETAFPV Configurator, which is a utility designed to simply update, configure, and tune the radio controller. Experience the thrill of total immersion with unrivaled control and capture the world around you.

FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio 3 is available to play FPV simulators like DRL/DCL/Uncrashed/Liftoff. More convenient for practicing and charging at the same time. Here is the display of Liftoff. Download Liftoff here.

Note: This radio transmitter isn't compatible with Windows 11/Windows 10 systems running on AMD CPUs. If you wanna connect to a simulator, you will need to revert it to the ELRS 2.0 firmware.
Various Modes, Accessible to All

Cetus X (Betaflight FC) supports Angle/Horizon/Air Modes, which can satisfy the different needs of pilots and adapt to various flight environments. When the quadcopter falls to the ground and upside down, you can activate turtle mode by LiteRadio 3 transmitter to flip it over and resume flying.

The version with Cetus FC has N/M/S three flight modes and supports 3 different speeds with SLOW/MID/FAST. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus X FPV Kit helps anyone fly confidently from day one.

Note: The slow speed of Cetus FC version is not available on its M mode.
BETAFPV Cetus Series
BETAFPV Cetus Series has been very popular since its release in 2021 and become the primary FPV choice for new beginners. Whether propulsion system, radio transmitter, VTX range, or other functions, BETAFPV never stops step to make the product better. From the initial Cetus to Cetus X so far, Cetus Series always satisfies customers' needs no matter new beginners or seasoned pilots.


Recommended Parts


Frame: Cetus X Brushless Frame
Battery: BT2.0 450mAh 1S 30C Battery, BT2.0 550mAh 1S Battery
Props: Gemfan 2020 4-Blade Propellers
Camera: C04 Camera and VTX Module


FAQ


Top questions that customers frequently asked about Cetus X.


Download the User Manual for Cetus X FPV Kit (Betaflight F4 1S 12A FC version)


Download the User Manual for Cetus X FPV Kit (Betaflight F4 2S 15A V1.0 FC version)


Download the User Manual for Cetus X FPV Kit (Cetus FC version)

Download the CLI dump file for Cetus X (Betaflight F4 1S 12A FC version)


Download the CLI dump file for Cetus X (Betaflight F4 2S 15A V1.0 FC version)


Download the CLI dump file for Cetus X (Cetus FC version)
Please DO NOT configure ESC or Motor settings on the Betaflight configurator.

The VR03 FPV goggles do not include a Micro SD card. You should prepare it before using the DVR recording function.
The External TX module for LiteRadio 3 should be bought separately. Recommend BETAFPV Nano TX Module.

Package

1 * Cetus X Brushless Quadcopter (Betaflight FC or Cetus FC Version)
1 * LiteRadio 3 Transmitter (ELRS 2.4G or Frsky)
1 * BETAFPV VR03 FPV Goggles
4 * BT2.0 450mAh 1S 75C Battery

1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C to FC Adapter
1 * Prop Removal Tool
4 * Gemfan 2020 4-Blades Prop (Spare Set)
2 * User Manual (Betaflight FC or Cetus FC Version)
1 * Portable Storage Bag






Whether skillful pilots or new beginners, Cetus X FPV Kit, as the advanced 2S power whoop bundle, is a completely primary choice to reach a higher stage. From its unparalleled control to its exciting flying that has you immersed your experience through every FPV flight, there is simply nothing like Cetus X FPV Kit. Wit

Cetus X FPV Kit

BetaFPV Cetus X FPV RTF Kit W/Betaflight FC, Goggles, & Controller

BetaFPV BNF Meteor75 Brushless Whoop

Meteor75, a better approach to the 75mm micro drone which features high KV motors - 1102 18000KV motors & BT2.0 450mAH battery, giving pilots plenty of power to use both indoor and outdoor spaces as a small scale acro playground.

BetaFPV Meteor75 1S Brushless Whoop Quadcopter

All products containing batteries must be shipped by a ground shipping method.
Want a 1S whoop for outdoor, around the house and the yard? Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022). The canopy has a special design and high-quality C03 FPV camera combined with 0802SE 19500KV motors make it perfectly balanced in all areas of performance.
Make sure to check out our other Pre-Built quads and the rest of our BetaFPV selection!
Features

Meteor75 is the first generation whoop powered by a brand-new BT2.0 connector 450mAh battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector
The power system uses the latest 0802SE 19500KV motors and 40mm 2-blade props, which provides pilots a powerful indoor and outdoor flight.
Built-in 1.45g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.
Adopt with injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
Reserve two UART ports on F4 1S 5A FC (SPI Frsky) board.
The various colors of the spare parts including the 75mm frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.


BT2.0 Connector
BETAFPV has exclusively designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. There is a graph of comparison between BT2.0 connector 1S 450mAh battery and Emax 1S 450mAh battery. The discharge current is 11A in this testing. You could see that it has a longer time and improvement in voltage sag with BT2.0 connector, which brings better flight performance.

Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP and can be switched to Futaba SFHSS protocol through Betaflight configurator. The ESC on the new board powered by BB51 hardware in place of BB21 comes with Bluejay 96k ESC firmware, allowing 0802SE 19500KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.
Meteor75: (Frsky)
FC Inside:F4 1S 5A FC (SPI Frsky)Gyro: BMI270FC Firmware: BETAFPVF411RXUART Port: Two UART PortsExternal RX: Supported
C03 Camera
C03 FPV Micro Camera is 1.45g ultralight weight and a great camera for indoor micro FPV quadcopters. It features a 1200TVL definition with 1/3&quot CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency, which boasts high-quality, clear and sharper images through your goggles.

Motors
0802SE 19500KV Motor motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight to only 1.88g/pc but ensures excellent performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time.


Frame
This frame is ultralight at only 5.68g and still durable. The battery slot is closer to the center of gravity for a smoother flying experience, and you will land on the motor screws instead of the battery. BETAFPV offers various colors of Meteor75 frames for options, making DIY easier.

Specifications

Item: Meteor75 Brushless Whoop Quadcopter (2022)
FC&ampampESC:F4 1S 5A FC (SPI Frsky)
Frame: Meteor75 Frame
Motors: 0802SE Brushless Motor
Props: 40mm 2-Blade Propellers (1.0mm Shaft)
Camera: C03 FPV Camera
Tilt: 30° (default)/20° (optional)
Canopy: Canopy for Micro Camera 2022 version
Receiver Option: Frsky
VTX: M03 25-350mW VTX
Battery: BT2.0 450mAh 1S 30C Battery
Flight time: 6 mins (stable flying) / 4.5 mins (acro flying)
Weight: 24.98g

Includes

1x BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY
2x 450mAh 1S 30C Battery with BT2.0 connector
1x BT2.0 Battery Charger and Voltage Tester
1x TypeC USB cable
1x Customized Carry Case
1x Spare 40mm 2-Blade props (1.0mm Shaft)
1x Screwdriver
3x Decorative Parts
1x 20° Lens Camera Mount for C03 Camera
1x 30° Lens Camera Mount for C02 Camera
1x Pack of Screws



All products containing batteries must be shipped by a ground shipping method. Want a 1S whoop for outdoor, around the house and the yard? Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022). The canopy has a special design and high-qua

BetaFPV BNF Meteor75 1S Analog Whoop (2022) - FRSKY from WREKD Co.

BetaFPV BNF Meteor75 1S Analog Whoop (2022) - FRSKY

Want a 1S whoop for outdoor, around the house and yard? The Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022), supporting serial ExpressLRS 2.4G, Frsky, or TBS RX for options. The new canopy with special style and high-quality C03 FPV camera combined with 0802SE 19500KV motors make it perfectly balanced in all areas of performance.
Make sure to check out our other Pre-Built quads and the rest of our BetaFPV selection!

Features

The Meteor75 is the first generation whoop powered by a brand-new BT2.0 connector 450mAh battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector.
The power system uses the latest 0802SE 19500KV motors and 40mm 2-blade props, which provides pilots a stronger experience of a powerful indoor and outdoor flight
Built-in 1.52g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.
Adopted with an injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
Reserved two UART ports on F4 1S 5A FC (SPI Frsky) board. The Frsky version also can be used as the PNP version. Therefore, pilots can connect the external receiver to it.
F4 1S 5A FC (Serial ELRS 2.4G) is flexible in upgrading and has great potential. It supports being upgraded to ELRS V3.0 separately without flashing Betaflight flight controller firmware.
The various colors of the spare parts including the 75mm frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.

BETAFPV Meteor Series
This is the new Meteor75 Analog VTX version with a new micro canopy, built-in serial ExpressLRS 2.4G instead of SPI ERLS 2.4G, and the new C03 FPV camera that ensures a high-quality and clear image. For pilots who want to fly 1S HD whoop drone, Meteor75 HD digital VTX is a good choice.




Meteor75 (2022)
Meteor75 (2021)
Meteor75 1S HD


FC&ampampESC
F4 1S 5A FC (2022)
F4 1S 5A FC
F4 1S 5A FC (2022)


RX
Serial ELRS, SPI FrSky/PNP, TBS
SPI ELRS, SPI FrSky, TBS
Serial ELRS, SPI FrSky/PNP, TBS


Camera
C03 FPV Camera
C02 FPV Camera
Walksnail/HDZero Camera


VTX
M03 Analog VTX
M03 Analog VTX
Walksnail Avatar or HD Zero Lite


Motors
0802SE 19500Kv Motor
1102 18000Kv or 0802SE 19500Kv Motors
1102 18000Kv Motors


Props
40mm 2-blade
40mm 3-blade, or 40mm 2-blade
40mm 3-blade


Canopy
New Micro Canopy (2022)
Micro Canopy
Micro Canopy for HD


Tilt
20° or 30°

30°

0-45°



Flight Time
6 mins (stable flying)
3-4 mins
3.5 mins (HDZero) or 3 mins (Walksnail)




BETAFPV upgraded all Meteor Series quadcopters like Meteor65, Meteor65 Pro, Meteor 75, and Meteor85 whoop quadcopters, through the new flight controller, motors, camera, frame, canopy, etc, to provide the best whoop quadcopters for pilots.
BT2.0 Connector
BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of the PH2.0 connector. There is a graph comparing between BT2.0 connector 1S 450mAh battery and the Emax 1S 450mAh battery. The discharge current is 11A in this testing. You could see that it has a long time and improvement in voltage sag with a BT2.0 connector, which brings better flight performance.

﻿Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP and can be switched to Futaba SFHSS protocol through Betaflight configurator. The ESC on the new board powered by BB51 hardware in place of BB21 comes with Bluejay 96k ESC firmware, allowing 0802SE 19500KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.




Meteor75 (ELRS)
Meteor75 (FrSky, PNP, TBS)


FC Inside
F4 1S 5A FC (Serial ELRS 2.4GHz)
F4 1S 5A FC (SPI FrSky)


Gyro
BMI270
BMI270


FC Firmware
BETAFPVF411
BETAFPVF411RX


UART Port
One UART Port
Two UART Port


External RX
Not Supported
Supported



﻿
Note: For F4 1S 5A FC (serial ELRS 2.4G), ONLY Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For F4 1S 5A FC (SPI Frsky), we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by BETAFPV. If you update the 4.3.0 and up firmware for serial ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Meteor75.
Download the FC firmware and CLI dump file for Meteor 75 ELRS2.4G, Frsky, or TBS.

﻿C03 Camera
C03 FPV Micro Cam..

Want a 1S whoop for outdoor, around the house and yard? The Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022), supporting serial ExpressLRS 2.4G, Frsky, or TBS RX for options. The new canopy with special style and high-quality C03 FPV

BetaFPV BNF Meteor75 1S Brushless Analog Whoop (BT2.0) - ELRS 2.4 GHz from WREKD Co.

BetaFPV BNF Meteor75 1S Brushless Analog Whoop (BT2.0) - ELRS 2.4 GHz

All products with batteries must be shipped by a ground shipping method.
Want a 1S whoop for outdoor, around the house and yard? The Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022), supporting serial ExpressLRS 2.4G, Frsky, or TBS RX for options. The new canopy with special style and high-quality C03 FPV camera combined with 0802SE 19500KV motors make it perfectly balanced in all areas of performance.
Make sure to check out our other Pre-Built quads and the rest of our BetaFPV selection!

Features

The Meteor75 is the first generation whoop powered by a brand-new BT2.0 connector 450mAh battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector.
The power system uses the latest 0802SE 19500KV motors and 40mm 2-blade props, which provides pilots a stronger experience of a powerful indoor and outdoor flight
Built-in 1.52g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.
Adopted with an injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
Reserved two UART ports on F4 1S 5A FC (SPI Frsky) board. The Frsky version also can be used as the PNP version. Therefore, pilots can connect the external receiver to it.
F4 1S 5A FC (Serial ELRS 2.4G) is flexible in upgrading and has great potential. It supports being upgraded to ELRS V3.0 separately without flashing Betaflight flight controller firmware.
The various colors of the spare parts including the 75mm frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.

BETAFPV Meteor Series
This is the new Meteor75 Analog VTX version with a new micro canopy, built-in serial ExpressLRS 2.4G instead of SPI ERLS 2.4G, and the new C03 FPV camera that ensures a high-quality and clear image. For pilots who want to fly 1S HD whoop drone, Meteor75 HD digital VTX is a good choice.




Meteor75 (2022)
Meteor75 (2021)
Meteor75 1S HD


FC&ampESC
F4 1S 5A FC (2022)
F4 1S 5A FC
F4 1S 5A FC (2022)


RX
Serial ELRS, SPI FrSky/PNP, TBS
SPI ELRS, SPI FrSky, TBS
Serial ELRS, SPI FrSky/PNP, TBS


Camera
C03 FPV Camera
C02 FPV Camera
Walksnail/HDZero Camera


VTX
M03 Analog VTX
M03 Analog VTX
Walksnail Avatar or HD Zero Lite


Motors
0802SE 19500Kv Motor
1102 18000Kv or 0802SE 19500Kv Motors
1102 18000Kv Motors


Props
40mm 2-blade
40mm 3-blade, or 40mm 2-blade
40mm 3-blade


Canopy
New Micro Canopy (2022)
Micro Canopy
Micro Canopy for HD


Tilt
20° or 30°

30°

0-45°



Flight Time
6 mins (stable flying)
3-4 mins
3.5 mins (HDZero) or 3 mins (Walksnail)




BETAFPV upgraded all Meteor Series quadcopters like Meteor65, Meteor65 Pro, Meteor 75, and Meteor85 whoop quadcopters, through the new flight controller, motors, camera, frame, canopy, etc, to provide the best whoop quadcopters for pilots.
BT2.0 Connector
BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of the PH2.0 connector. There is a graph comparing between BT2.0 connector 1S 450mAh battery and the Emax 1S 450mAh battery. The discharge current is 11A in this testing. You could see that it has a long time and improvement in voltage sag with a BT2.0 connector, which brings better flight performance.

Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP and can be switched to Futaba SFHSS protocol through Betaflight configurator. The ESC on the new board powered by BB51 hardware in place of BB21 comes with Bluejay 96k ESC firmware, allowing 0802SE 19500KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.




Meteor75 (ELRS)
Meteor75 (FrSky, PNP, TBS)


FC Inside
F4 1S 5A FC (Serial ELRS 2.4GHz)
F4 1S 5A FC (SPI FrSky)


Gyro
BMI270
BMI270


FC Firmware
BETAFPVF411
BETAFPVF411RX


UART Port
One UART Port
Two UART Port


External RX
Not Supported
Supported




Note: For F4 1S 5A FC (serial ELRS 2.4G), ONLY Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For F4 1S 5A FC (SPI Frsky), we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by BETAFPV. If you update the 4.3.0 and up firmware for serial ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Meteor75.
Download the FC firmware and CLI dump file for Meteor 75 ELRS2.4G, Frsky, or TBS.

C03 Camera
C03 FPV Micro Camera is 1.52g ultralight weight and a great camera for indoor micro FPV quadcopters. It features a 1200TVL definition with 1/3" CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency, which boasts high-quality, clear and sharper images through your goggles.

Motors
0802SE 19500KV Motor motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight which is only 1.88g/pc but also ensures excellent performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time.

Frame
This frame is ultralight only 5.68g and durable enough. The battery slot is closer to the center of gravity for a smoother flying experience, and you will land on the motor screws instead of the battery. BETAFPV offers various colors of Meteor75 frames for options, making DIY easier.

Specification

Item: Meteor75 Brushless Whoop Quadcopter (2022)
FC&ampESC: F4 1S 5A FC (Serial ELRS 2.4G)/F4 1S 5A FC (SPI Frsky)
Frame: Meteor75 Frame
Motors: 0802SE 19500KV Motor
Props: 40mm 2-Blade Propellers (1.0mm Shaft)
Camera: C03 FPV Camera
Tilt: 30° (default)/20° (optional)
Canopy: Canopy for Micro Camera 2022 version
Receiver Option: ELRS2.4G, Frsky/PNP, TBS Crossfire
VTX: M03 25-350mW VTX
Battery: BT2.0 450mAh 1S 30C Battery
Flight time: 6 mins (stable flying) / 4.5 mins (acro flying)
Weight: 24.98g

Includes

1x Meteor75 Brushless Whoop Quadcopter (1S)
2x 450mAh 1S 30C Battery with BT2.0 connector
1x BT2.0 Battery Charger and Voltage Tester
1x TypeC USB cable
1x Customized Carry Case
1x Spare 40mm 2-Blade props (1.0mm Shaft)
1x Screwdriver
3x Decorative Parts
1x 20° Lens Camera Mount for C03 Camera
1x 30° Lens Camera Mount for C02 Camera

FAQ

Download the FC firmware and CLI dump file for Meteor75.

ExpressLRS is the most popular radio link in 2021. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. Know more about the ExpressLRS project on Github or join the discussion in the Facebook Group.



All products with batteries must be shipped by a ground shipping method. Want a 1S whoop for outdoor, around the house and yard? The Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022), supporting serial ExpressLRS 2.4G, Frsky, or TBS R

The classical Meteor75 Brushless Whoop Quadcopter comes with HDZero Lite VTX bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight.

BetaFPV Meteor75 1S Brushless Whoop HD w/ HDZero

All products containing batteries must be shipped by a ground shipping method.
Want a 1S whoop for outdoor, around the house and the yard? Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022). The canopy has a special design and high-quality C03 FPV camera combined with 0802SE 19500KV motors make it perfectly balanced in all areas of performance.
Make sure to check out our other Pre-Built quads and the rest of our BetaFPV selection!
Features

Meteor75 is the first generation whoop powered by a brand-new BT2.0 connector 450mAh battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector
The power system uses the latest 0802SE 19500KV motors and 40mm 2-blade props, which provides pilots a powerful indoor and outdoor flight.
Built-in 1.45g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.
Adopt with injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
Reserve two UART ports on F4 1S 5A FC (SPI Frsky) board.
The various colors of the spare parts including the 75mm frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.


BT2.0 Connector
BETAFPV has exclusively designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. There is a graph of comparison between BT2.0 connector 1S 450mAh battery and Emax 1S 450mAh battery. The discharge current is 11A in this testing. You could see that it has a longer time and improvement in voltage sag with BT2.0 connector, which brings better flight performance.

Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP and can be switched to Futaba SFHSS protocol through Betaflight configurator. The ESC on the new board powered by BB51 hardware in place of BB21 comes with Bluejay 96k ESC firmware, allowing 0802SE 19500KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.
Meteor75: (Frsky)
FC Inside:F4 1S 5A FC (SPI Frsky)Gyro: BMI270FC Firmware: BETAFPVF411RXUART Port: Two UART PortsExternal RX: Supported
C03 Camera
C03 FPV Micro Camera is 1.45g ultralight weight and a great camera for indoor micro FPV quadcopters. It features a 1200TVL definition with 1/3" CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency, which boasts high-quality, clear and sharper images through your goggles.

Motors
0802SE 19500KV Motor motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight to only 1.88g/pc but ensures excellent performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time.


Frame
This frame is ultralight at only 5.68g and still durable. The battery slot is closer to the center of gravity for a smoother flying experience, and you will land on the motor screws instead of the battery. BETAFPV offers various colors of Meteor75 frames for options, making DIY easier.

Specifications

Item: Meteor75 Brushless Whoop Quadcopter (2022)
FC&ampESC:F4 1S 5A FC (SPI Frsky)
Frame: Meteor75 Frame
Motors: 0802SE Brushless Motor
Props: 40mm 2-Blade Propellers (1.0mm Shaft)
Camera: C03 FPV Camera
Tilt: 30° (default)/20° (optional)
Canopy: Canopy for Micro Camera 2022 version
Receiver Option: Frsky
VTX: M03 25-350mW VTX
Battery: BT2.0 450mAh 1S 30C Battery
Flight time: 6 mins (stable flying) / 4.5 mins (acro flying)
Weight: 24.98g

Includes

1x BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY
2x 450mAh 1S 30C Battery with BT2.0 connector
1x BT2.0 Battery Charger and Voltage Tester
1x TypeC USB cable
1x Customized Carry Case
1x Spare 40mm 2-Blade props (1.0mm Shaft)
1x Screwdriver
3x Decorative Parts
1x 20° Lens Camera Mount for C03 Camera
1x 30° Lens Camera Mount for C02 Camera
1x Pack of Screws



Stepping into HD world with 1S whoop quadcopter! The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle, bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight. Together wi

BetaFPV Meteor75 1S Walksnail Digital VTX Brushless Whoop Quadcopter - Choose Receiver


Stepping into HD world with 1S whoop quadcopter! The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX or HDZero Whoop Lite Bundle, bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight. Together with 1102 18000KV motors that feature strong propulsion, it gives pilots powerful and impressive results. Enjoy an immersive flight experience, and get the perfect shots with the new HD VTX system indoors and outdoors.

Tons of ExpressLRS items are available now!
Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.

Bullet Points

Powerful propulsion capabilities combined with Walksnail HD VTX or HDZero VTX give pilots an immersive flight experience and impactful visuals.
Ultralight weight for 40.5g (Walksnail)/ 36.4g (HDZero). With BT2.0 connector, it effectively decreases internal connector resistance for good conductive performance.

Equipped with 40mm 3-blade props and upgraded 1102 18000KV motors. The upgraded motors not only take abilities as good as before to provide strong propulsion in 1S whoop drone but also come with a new look. And simultaneously its black and red motor bell fully matches the Meteror75 frame.

Reserve two UART ports on F4 1S 5A FC(SPI Frsky) V3.0 board. The Frsky version also can be used as the PNP version. Therefore, pilots can connect the external receiver to it.
F4 1S 5A FC (Serial ELRS 2.4G) V2.0 is flexible in upgrading and has great potential. It supports being upgraded to ELRS V3.0 separately without flashing Betaflight flight controller firmware.


Specification

Item: Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX)
Flight Time: 3.5 mins (HDZero)/3 mins (Walksnail)
Camera Adjustable Angle: 0-45°
Motors: 1102 18000KV Motor

Battery: BT2.0 450mAh 1S 30C Battery

Frame: Meteor75 Micro Brushless Whoop Frame

Propellers: 40mm 3-Blade Propellers (1.5mm Shaft)

Weight Without Battery: 40.5g (Walksnail)/36.4g (HDZero)
Receiver: Serial ELRS 2.4G/SPI Frsky/TBS
FC&ampESC: F4 1S 5A FC (Serial ELRS 2.4G) V2.0/F4 1S 5A FC (SPI Frsky) V3.0
VTX Power Output: 350mW (Walksnail), 25mW/200mW (HDZero)
VTX: 1S Walksnail Avatar Mini HD VTX/HDZero Whoop Lite Bundle
Camera: Wanlksnail Avatar Nano Camera/HDZero Nano Lite Camera


Note: F4 1S 5A FC (Serial ELRS 2.4G) V2.0 does not support external receivers. F4 1S 5A FC (SPI Frsky) V3.0 is available to connect an external receiver and can be used as PNP. Please make sure that the battery voltage must be 3V at least when flying, otherwise, the HD digital VTX would stop working.
HD Digital VTX System
There are two HD versions to choose from. Based on Walksnail Avatar, the Walksnail Avatar Mini HD VTX also uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/60FPS image recording with 22ms ultra-low latency. It is specially designed for 3.1-5V power input and 10g lightweight, which is compatible with 1S whoop drone. Build-in 8 GB storage, the Avatar Mini HD VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode on Avatar Mini HD VTX, Betaflight full OSD display is supported and can be adjusted easily by remote control.

HDZero Nano Lite Camera is designed for feather-lite drones where every gram counts. At a weight as low as 1.5g, combined with the new Whoop Lite VTX at 4.5g with 0.4g dipole antenna enables a world’s-first production digital FPV solution of about 7g. The HDZero Whoop lite Bundle supports 1-3S power input with 25mW/200mW RF power and is capable of recording in 720P/60FPS with super low latency of less than 19ms. What's more, pilots can activate and configure its OSD function on Betaflight Configurator.

Injection Molded Canopy for HD Camera
Micro Canopy for HD Camera is specially designed to be compatible with Walksnail or HDZero HD digital VTX and has an adjustable camera lens of 0-45°. With the injection molding technique, the canopy is very durable and flexible for crash resistant. Besides, the hollow-out design not only reduces the influence of heat on electronic parts but also is available to be armed with decorative parts we prepared.

New 1102 18000KV Motors
1102 18000KV motors have a great balance between weight and power on 75mm 1S whoop drones. Only 2.9g with connectors. With the high 18000KV, it could have a great punch power even with only 1S battery. Also, it adopts a PCB connector to allow you to repair it easier once cables are disconnected.

Flight Controller
The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75 HD. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP. The ESC on the new board is powered by BB51 hardware in place of BB21. Last but not least, we update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.





Meteor75 HD (ELRS)

Meteor75 HD (Frsky, PNP, TBS)


FC Inside
F4 1S 5A FC (Serial ELRS 2.4G) V2.0
F4 1S 5A FC (SPI Frsky) V3.0


Gyro
BMI270
BMI270


FC Firmware
BETAFPVF411
BETAFPVF411RX


UART Port
One UART Port
Two UART Ports


External RX
Not Supported
Supported



Note: Pay attention, ONLY the newest Betaflight firmware 4.3.1 start to support this BMI270 gyrometer. Please check the below link to download the firmware and CLI dump file. If you update the 4.3.1 firmware from Betaflight official site, please flash the CLI dump file for Meteor75 HD.
Download the FC firmware and CLI dump file for Walksnail and HDZero version.
Recommended Parts

Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
Battery: BT2.0 450mAh 1S 30C Battery, BT2.0 550mAh 1S Battery
Props: 40mm 3-Blade Propellers (1.5mm Shaft)
Colorful Frame: Meteor75 Micro Brushless Whoop Frame

Colorful Canopy: Micro Canopy for HD Camera

Sticker: BETAFPV Waterslide Decals

Charger: 6 Ports 1S Battery Charger &amp Adapter

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

BT2.0 Series Accessories

FAQ

Pilots can read and export the recording videos from Walksnail VTX by a 4-pin connector. Below is the diagram picture. For more information, please refer to the manual for it.



Click to download the manual for Walksnail Avatar Mini VTX.
Click to download the manual for HDZero Whoop Lite Bundle.

Package

1 * Meteor75 Brushless Whoop Quadcopter (Walksnail or HDZero HD Digital VTX)
2 * 450mAh 1S 30C Battery with BT2.0 Connector
1 * Type-C USB Cable
1 * BT2.0 Battery Charger and Voltage Tester
4 * 40mm 3-Blade Props (1.5mm Shaft)
1 * Screwdriver
1 * Walksnail VTX USB Cable (For Walksnail Version)
1 * HDZero VTX USB Cable (For HDZero Version)
1 * Pack of Screws

Note: The propellers in the package were modified from three holes to one hole.



Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX)

The classical Meteor75 Brushless Whoop Quadcopter comes with Walksnail Avatar Mini HD VTX bringing conspicuous images and exceptional visuals to your eyes and capturing details that make the footage look as exciting as the flight.

BetaFPV Meteor75 1S Brushless Whoop HD w/ Walksnail Avatar Mini VTX

Sub250

Sub250 BNF Nanofly16 1S 40mm Quad

We are very happy to introduce our first Ultra-light Freestyle FPV Drone Sub250 1s Nanofly16 to you. it is very quiet, and suitable for both indoors and outdoors. Currently available in 2 versions: ELRS 2.4G, TBSNanoRX-TBS 915 Mhz. The design concept of Nanofly16 quad is lightweight, small in size, has good hand feels,

Sub250 Nanofly16 1S 1.6'' Analog Micro BNF Freestyle Quadcopter - Choose Receiver

Happymodel

Happymodel BNF Mobula 7 Whoop

HAPPYMODEL

Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1S Will be the best choice in the whoop season.  This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX ranges by using this flight controller. The new RS0802 motors come with a new unibell design, uses a 1.5mm shaft, and includes a PCB bottom plate, which means high efficiency, and much more reliability.
Check out the rest of pre-built quads and our HappyModel selection!
Due to Runcam Nano3 camera was discontinued, now the Mobula7 1s comes with Caddx ant camera since May 2024. The Mobula7 1s with Caddx ant camera we called V2 version.
Features

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx

VTX Power up to 400mw

ELRS V2.0 Support

NEW RS0802 KV20000 motors

Caddxfpv ANT 1/3 CMOS 1200TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications

Item Name: HappyModel BNF 1S Mobula7 Analog Whoop - Choose Receiver Type
Wheelbase: 75mm

Size: 99mm x 99mm x 40mm

Weight: 24g
Receiver option:-2.4G ELRS SPI-SPI Frsky D8/D16  not compatible with EMAX E6 radio-TBS version(with external TBS CRSF NANO RX)

Motor

Mode: RS0802 KV20000

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.xLen):Φ10.5mm x 13.5mm

Weight(g):2.0g

No.of Cells(Lipo):1S only

Propellers

Weight:0.24g

Material:PC

Pitch:1 inchProps Dia:40mm

Center Thickness:5mm

Center Hole Dia:1.5mm

Flight Controller

X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280

X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR

X12 PNP V1.0 flight controller with external TBS CRSF Nano receiver Target: CRAZYBEEF4DX

X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)

Mount hole size: 25.5mm x 25.5mm

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G OpenVTX 0mw~400mw

Built-in ExpressLRS 2.4G,Frsky D8/D16

Built-in voltage detection

Built-in current sensor

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: Z_H_30_REV16_7.HEX

Default protocol: DSHOT300

Support Bluejay firmware

When use Blujay firmware with 48khz, should set startup power to 1100/1200

Receiver

ExpressLRS 2.4GHz

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS Firmware version: V2.0

RF Frequency: 2.4GHz

Antenna : SMD antenna

Telemetry output Power: &lt12dBm

Receiver protocol:  SPI ExpressLRS

Compatible with ExpressLRS V2.0 TX Module

Couldn’t flash separately ExpressLRS firmware


Frsky SPI D8/D16

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 modelChannels: 8ch

No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support


Onboard 5.8 OPENVTX

Firmware version: OPENVTX

Smartaudio v2.1

PIT Mode support

RCE Mode support

Channels:48ch

Transmitting Power: 0/RCE/25mw/100mw/400mw

Power supply: DC 5V

Current (5v):650ma~1000ma


CaddxFPV ANT Camera

Image Sensor: 1/3″ CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000 NTSC: 1/60~100,000

S/N Ratio : &gt52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14x14mm(with bracket to 19x19mm)

Wide Power Input: DC 3.7-18V

Weight: 2g (N.W.)



Includes

1x HappyModel BNF 1S Mobula 7 Whoop



The all-new HappyModel BNF 1S Mobula 7 Whoop features the latest parts to bring you a fun, exciting whoop to fly. Get it shipped fast and free from RDQ!

HappyModel BNF 1S Mobula7 Analog Whoop - Choose Receiver Type

HappyModel BNF 1S Mobula 7 Whoop for Sale - RaceDayQuads

Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1S Will be the best choice in the whoop season.  This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX ranges by using this flight controller. The new RS0802 motors come with a new unibell design, uses a 1.5mm shaft, and includes a PCB bottom plate, which means high efficiency, and much more reliability.
Check out the rest of pre-built quads and our HappyModel selection!
Features

X12 5-IN-1 AIO flight controller w/ built-in receiver and OpenVTX
VTX Power up to 400mw
RS0802 20000KV motors
RunCam Nano 3. The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible with 1S Lipo/LIHV

Specifications

Input Voltage: 1S
Max Continuous Current: 12A
Motors: 0802 20000KV
Camera: RunCam Nano 3
Wheelbase: 75mm
Dimensions: 99x99x40mm
Weight: 24g

Includes

1x HappyModel BNF 1S Mobula 7 Whoop



Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1S Will be the best choice in the whoop season.  This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX ranges by using this flight controller. The new RS0802 motors come

HappyModel BNF 1S Mobula7 Analog Whoop - Choose Receiver Type from WREKD Co.

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season. The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENV

Happymodel Mobula7 1s 75mm Analog FPV Brushless Whoop Drone - Choose Receiver

This&nbspHappymodel Mobula7&nbspis a 1S micro whoop with a RunCam Nano 3 Camera. This whoop features the first 5-in-1 AIO with three different receiver options and 0802 20000KV motors with a unibell design.

This Happymodel Mobula7 is a 1S micro whoop with a RunCam Nano 3 Camera. This whoop features the first 5-in-1 AIO with three different receiver options and 0802 20000KV motors with a unibell design.

Happymodel Mobula7 1S 75mm Analog Whoop

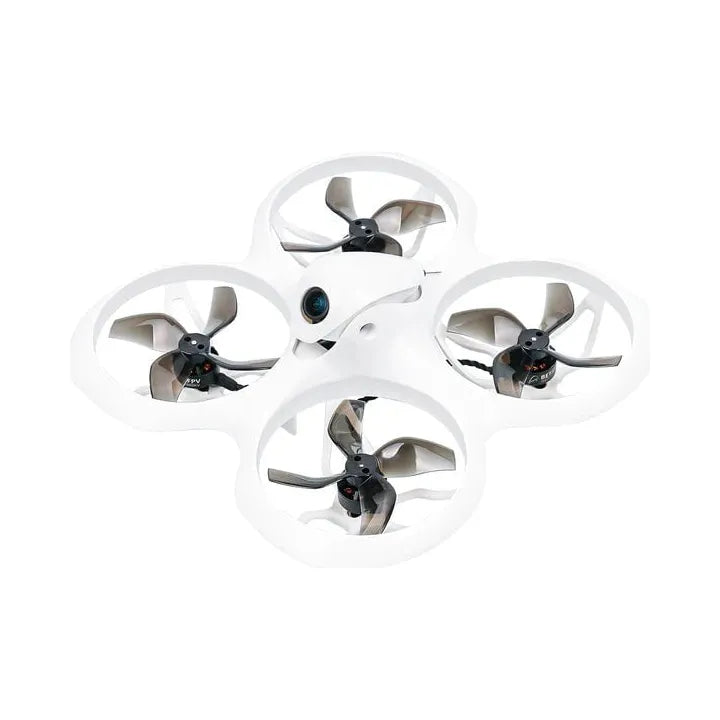

BetaFPV BNF Cetus X Brushless Whoop

All batteries must be shipped by a ground shipping method.
Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Meanwhile, it supports the Betaflight configurator which is a popular application to configure RC aircraft.
Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!
Features

An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoor.

Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2xBT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.

Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop &amp impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specifications

Item: Cetus X Brushless Quadcopter
Weight: 55g
Wheelbase: 95mm
FC*: F4 2S 15A V1.0 (Betaflight FC Version)

Motors: 1103 11000KV Motor

Props: Gemfan 2020 4-Blades Props
Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G
VTX: M04 25-400mW VTX
Battery: 2*BT2.0 450mAh 1S 30C Battery
Flight time: 5 mins





Downloads
FC Firmware and ESC download

Includes


1 x Cetus X Brushless Quadcopter
1 x BT2.0 Battery Charger and Voltage Tester
2 x BT2.0 450mAh 1S 30C Battery
1 x Phillips Screwdriver
1 x Prop Removal Tool
1 x Type-C Adapter
4 x Gemfan 2020 4-Blades Props




Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Meanwhile, it supports the Betaflight configurator which is a popular application to configure RC aircraft. Check out our other RTF combos, all our pre-built quads and our BetaFPV selection! Features An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system. Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoor. Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2xBT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight. Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop & impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots. Specifications Item: Cetus X Brushless Quadcopter Weight: 55g Wheelbase: 95mm FC*: F4 2S 15A V1.0 (Betaflight FC Version) Motors: 1103 11000KV Motor Props: Gemfan 2020 4-Blades Props Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4) Camera Adjustable Angle: 0°-40° Receiver Protocol: ELRS 2.4G VTX: M04 25-400mW VTX Battery: 2*BT2.0 450mAh 1S 30C Battery Flight time: 5 mins Downloads FC Firmware and ESC download Includes 1 x Cetus X Brushless Quadcopter 1 x BT2.0 Battery Charger and Voltage Tester 2 x BT2.0 450mAh 1S 30C Battery 1 x Phillips Screwdriver 1 x Prop Removal Tool 1 x Type-C Adapter 4 x Gemfan 2020 4-Blades Props

BetaFPV BNF Cetus X Brushless Analog Whoop - ELRS 2.4G

Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that

BetaFPV Cetus X 2S Brushless Quadcopter - ELRS 2.4GHz

All batteries must be shipped by a ground shipping method.
Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Meanwhile, it supports the Betaflight configurator which is a popular application to configure RC aircraft.
Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!

Features

An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoor.

Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2xBT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.

Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop &ampamp impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specifications

Item: Cetus X Brushless Quadcopter
Weight: 55g
Wheelbase: 95mm
FC*: F4 2S 15A V1.0 (Betaflight FC Version)

Motors: 1103 11000KV Motor

Props: Gemfan 2020 4-Blades Props
Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G
VTX: M04 25-400mW VTX
Battery: 2*BT2.0 450mAh 1S 30C Battery
Flight time: 5 mins



Downloads
FC Firmware and ESC download

Includes


1 x Cetus X Brushless Quadcopter
1 x BT2.0 Battery Charger and Voltage Tester
2 x BT2.0 450mAh 1S 30C Battery
1 x Phillips Screwdriver
1 x Prop Removal Tool
1 x Type-C Adapter
4 x Gemfan 2020 4-Blades Props




All batteries must be shipped by a ground shipping method. Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle t

BetaFPV BNF Cetus X Brushless Analog Whoop - ELRS 2.4G from WREKD Co.

RaceDayQuads

All batteries must be shipped by a ground shipping method.
Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Meanwhile, it supports the Betaflight configurator which is a popular application to configure RC aircraft.

Features

An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoor.

Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2xBT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.

Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop &amp impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specifications

Item: Cetus X Brushless Quadcopter
Weight: 55g
Wheelbase: 95mm
FC: F4 1S 12A FC V2.2 (ELRS 2.4G)
Motors: 1103 11000KV Motor
Props: Gemfan 2020 4-Blades Props
Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G
VTX: M04 25-400mW VTX
Battery: 2*BT2.0 450mAh 1S 30C Battery
Flight time: 5 mins



Downloads
FC Firmware and ESC download

Includes


1 x Cetus X Brushless Quadcopter
1 x BT2.0 Battery Charger and Voltage Tester
2 x BT2.0 450mAh 1S 30C Battery
1 x Phillips Screwdriver
1 x Prop Removal Tool
1 x Type-C Adapter
4 x Gemfan 2020 4-Blades Props




BETAFPV Hobby

Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC versions provide different functions to pilots but all help pilots to the next level.
Cetus X RTF FPV Kit is available now! Please click here to buy.
Recommend the newest BT2.0 550mAh 1S Battery. More flight time and higher discharge rate.


Bullet Point

An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoors.
The drone with Frsky receiver protocol version is also provided for customers who used to have LiteRadio 2 SE radio transmitter in Cetus Pro or Cetus RTF Kit.

Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and BT2.0 450mAh 1S 75C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.
The Betaflight FC comes with the most popular firmware in the FPV community. Beginners are able to learn and understand more about FPV, which is an essential way to get drone experience.
The Cetus FC version offers an auxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop &amp impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specification

Item: Cetus X Brushless Quadcopter
Weight: 55g
Wheelbase: 95mm
FC*: F4 2S 15A V1.0 (Betaflight FC Version)/Cetus BL V3 Flight Controller (Cetus FC Version)

Motors: 1103 11000KV Motor

Props: Gemfan 2020 4-Blades Props

Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Frame: Cetus X Brushless Whoop Frame

Receiver Protocol: ELRS 2.4G (Betaflight FC Version)/Frsky D8 (Cetus FC Version)

VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
Battery*: BT2.0 450mAh 1S 75C Battery

Flight time: 5 mins

Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 since Sep 2023. The battery will be upgraded from BT2.0 450mAh 1S 30C Battery to BT2.0 450mAh 1S 75C Battery from Feb 2024.


ExpressLRS 2.4G

Equipped with F4 2S 15A V1.0 FC and Cetus BL V3 FC, Cetus X brushless quadcopter supports ELRS 2.4G RX protocol. And F4 2S 15A V1.0 FC RX version supports Betaflight configurator, while Cetus BL V3 FC does not. Pilots who had Cetus Pro or Cetus RTF Kit can continue to use LiteRadio 2 SE radio transmitter to fly Cetus X Frsky D8 version.

Cetus FC or Betaflight FC

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to learn and understand the drone configuration. Both FC versions perform great in power and speed and have higher-grade flight modes for pilots to get advanced.




Cetus FC Version
Betaflight FC Version



Flight Controller
Cetus BL V3 FC
F4 2S 15A V1.0 FC


Receiver Protocol
Frsky D8
ExpressLRS 2.4G


Flight Mode
N/S/M/Turtle Mode
Angle/Horizon/Air/Turtle Mode


VTX
25-350mW
25-400mW


Position Hold
Support
Not Support


Configuration Software

BETAFPV Configurator

Betaflight Configurator



Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 since Sep 2023.

Note: Pilots who have LiteRadio 2 SE in Cetus or Cetus Pro FPV Kit can bind and fly the Cetus X Cetus FC version.
Auxiliary Flight Function
Built-in highly precise barometer to detect the height, the version with Cetus FC benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function also ensures an emergency landing of the drone whenever loses control or is on low battery. Meanwhile, its stable flight allows you to catch the best footage with the FPV Goggles. It really does an immense amount of fun and ease of flight for all pilots. Recommend flying it with BETAFPV VR03 Goggles.
Powered by 2S, Cetus X has loads of punch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, the Cetus Pro with 1S power, which has the same auxiliary flight function, is easier for initial pilots to control and fly.

Note: The position hold function is only available in N mode.
Improved Video Transmission

Cetus X Brushless Quadcopter comes with M04 25-400mW VTX and C04 FPV camera. The VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G/Frsky D8, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with C02 FPV camera.

Powerful Propulsion System

Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props. 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Besides, Cetus X quadcopter adopts 2020 4-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

Primary Choice for Next Level
Cetus X Brushless Qaducopter Betaflight FC version supports configuring on Betaflight configurator. It is a primary choice for beginners who start to learn drone configuring, which helps beginners to get advanced level. With the Betaflight configurator, you can calibrate accelerometer, custom OSD content, adjust the video transmitter and etc.

Note: Please DO NOT configure ESC or Motor settings on Betaflight configurator.
Betaflight Flight Controller
Cetus X brushless quadcopter is built-in F4 2S 15A V1.0 FC, supporting ELRS 2.4G protocol. The ELRS 2.4G version comes with betaflight 4.3.1 FC firmware so it supports ELRS V2.0. The ESC on the new board powered by BB51 hardware comes with Bluejay 48k ESC firmware, allowing 1103 11000KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 2S 15A V1.0 FC.




Cetus X (ELRS 2.4G)
Cetus X (Frsky D8)


FC Inside
F4 2S 15A V1.0
F4 1S 12A FC SPI Frsky


Gyro

BMI270
BMI270


FC Firmware
BETAFPVF411SX1280
BETAFPVF411RX


ESC Firmware
C_X_70_48_ for Bluejay BB51 hardware
C_X_30_48_ for Bluejay BB51 hardware



Click here to know more information about F4 1S 12A Flight Controller ELRS or Frsky.
Since Sep 2023, FC (Betaflight FC version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0. Here are the differences between them.




F4 1S 12A FC
F4 2S 15A V1.0 FC


Built-in ESC
12A continuous and peak 25A current
15A continuous and peak 25A current


Version
ELRS, Frsky
ELRS


ESC Input Voltage
1S-2S

2S


ESC Firmware
C_X_30_48_V0.18.1.hex for BB51 Bluejay hardware
C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware


RGB Light
0
2


USB Port Position
Middle of the board
Tail of the board



Click here to know more information about F4 1S 12A Flight Controller ELRS or Frsky.
For Cetus X ELRS 2.4G version, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For Frsky D8 version, we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by BETAFPV.
The default flight controller firmware enables bidirectional D-shot and is compatible with Bluejay ESC firmware. If you update the 4.3.0 and up firmware for ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Cetus X.
Download the firmware and CLI dump file for Cetus X ELRS 2.4G or Frsky.
The Bluejay firmware could support the BB51 hardware now. Both ELRS and Frsky boards are powered by BB51 hardware. If you want to setup the ESC specification, please use the BLHeliSuite16714902A_Beta or ESC-Configurator.

ESC-Configurator: https://preview.esc-configurator.com/

Download BLHeliSuite16714902A_Beta here.
Download the Bluejay ESC firmware here.

Note: Only ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).
Recommended Parts

Radio Transmitter: LiteRadio3, LiteRadio 2 SE
Goggles: VR02 FPV Goggles, VR03 FPV Goggles
Battery: BT2.0 450mAh 1S 30C Battery, BT2.0 550mAh 1S Battery
Props: Gemfan 2020 4-Blade Propellers
Camera: C04 Camera and VTX Module


FAQ

ExpressLRS 2.4G is the most popular radio link now. Know more about ExpressLRS here.
The frame and props are visible when the camera's angle is 0°. Adjust it to about 25°, then the frame and props are invisible when flying.


Download the CLI dump file for Cetus X (Betaflight F4 1S 12A FC version).

Download the CLI dump file for Cetus X (Betaflight F4 2S 15A V1.0 FC version).


Download the CLI dump file for Cetus X (Cetus FC version).

Download the Manual for Cetus X (Betaflight F4 1S 12A FC version).


Download the Manual for Cetus X (Betaflight F4 2S 15A V1.0 FC version).


 Download the Manual for Cetus X (Cetus FC version).

Cetus X Brushless Quadcopter should work with two 1S batteries. Do not recommend using different brand batteries. Highly recommend the original batteries BT2.0 450mAh 1S 30C Battery.
Cetus X Brushless Quadcopter is similar to Meteor85 Brushless Whoop Quadcopter (2S) in many ways. For flying maneuverability and more battery choices, Meteor85 is a good alternative choice.

Package

1 * Cetus X Brushless Quadcopter
1 * BT2.0 Battery Charger and Voltage Tester
2 * BT2.0 450mAh 1S 75C Battery
1 * Phillips Screwdriver
1 * Prop Removal Tool
1 * Type-C Adapter
4 * Gemfan 2020 4-Blades Props



Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC ve

Cetus X Brushless Quadcopter

EMAX

EMAX RTF EZ Pilot Pro Kit - Goggles, Radio Transmitter, 75mm Whoop

All products containing batteries must be shipped by a ground shipping method.
Consistent improvement is the goal of EMAX but this comes at a cost. With more upgrades to the micro indoor racing drones which cater to more experienced pilots, they further alienate potential budding pilots looking to explore the world of FPV. This is why their engineers have come up with a solution through the EZ Pilot Pro.


The all new EZ Pilot Pro is EMAX's ultimate solution for beginner FPV pilots which factors in a budget conscious design without any sacrifices in overall quality. Utilizing powerful brushless motors, beginners can expect racing performance in an indoor ducted drone with extreme durability over other competing variants in the field.
With durability in mind, the EZ Pilot Pro features a reimagined frame centered around the proven original Tinyhawk design which established itself as the baseline for all brushless indoor racing drones in its class. Taking the design to the next level involved more overall thickness and increased structural integrity making this drone the most indestructible design ever produced by our engineers.
Included in the Ready To Fly Kit is the reimagined Transporter 2 FPV Goggle Non-DVR Version, featuring a detachable screen which can optionally be paired to the brand new E8 transmitter allowing pilots to customize their flying experience to suit their needs. Built into the Transporter 2 is a powerful receiver in order to give pilots the cleanest video feed possible. Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over the drone, providing smoothness and precision over previous generations.
In their ever expanding effort to introduce FPV to the masses, the EZ Pilot was engineered with STEM programs in mind by making the kit more user friendly for budding pilots under adult supervision, while keeping the price of the kit affordable so schools across the country will be able to inspire a new generation of aviators regardless of their program's budget.
The EZ Pilot Pro combines the past and future in order to create the ultimate beginner FPV flying experience possible.
We recommend the following RDQ Series LiPo Batteries for this quad:

1S 450mAh - PH2.0

Check out our other RTF combos, all our pre-built quads, as well as the rest of our Emax selection!

Specifications

Wheelbase: 75mm
Voltage Input: 1S
AIO: F411 FC w/ 6A ESC
VTX: 25,100,200Mw Switchable
Stator Size: 8x2.5mm
Motor Kv: 15000

Includes

1x EZ Pilot Pro Drone
1x E8 Transmitter
1x Transporter 2 Non-DVR Version
1x Monitor Mounting Hardware
1x EMAX 1S 450 mAh LiPo battery
1x 6-Port 1S USB LiPo Battery Charger
1x USB Cable for Charging + Programming
1x Set Spare Turtlemode Propellers
1x Set Spare Hardware



You're going to love the EMAX RTF EZ Pilot Pro Kit, complete with goggles, radio transmitter, and 75mm whoop. This easy to fly drone kit is ready for any beginner pilot.

EMAX RTF EZ Pilot Pro Analog Kit w/ Goggles, Radio Transmitter and 75mm Whoop

EMAX RTF EZ Pilot Pro Kit for Sale -Goggles, Radio Transmitter and 75mm Whoop

        Drone Specs: Wheelbase: 75mm Dry weight: 32.5g AIO: MATEKF411 FC w/ 6A ESC and  25/100/200mw switchable video transmitter Motor: 08025 II KV15000 RX Protocol: FrSky D8 SPI Includes: 1x EZ Pilot Pro Drone 1x E8 Transmitter 1x Transporter 2 Non-DVR Version 1x Monitor Mounting Hardware 1x EMAX 1S 450 mAh LiPo batt

EZ Pilot Pro Ready-To-Fly RTF FPV Drone w/ Controller & Goggles

Emax

All products containing batteries must be shipped by a ground shipping method.
Consistent improvement is the goal of EMAX but this comes at a cost. With more upgrades to the micro indoor racing drones which cater to more experienced pilots, they further alienate potential budding pilots looking to explore the world of FPV. This is why their engineers have come up with a solution through the EZ Pilot Pro.


The all new EZ Pilot Pro is EMAX&#39s ultimate solution for beginner FPV pilots which factors in a budget conscious design without any sacrifices in overall quality. Utilizing powerful brushless motors, beginners can expect racing performance in an indoor ducted drone with extreme durability over other competing variants in the field.
With durability in mind, the EZ Pilot Pro features a reimagined frame centered around the proven original Tinyhawk design which established itself as the baseline for all brushless indoor racing drones in its class. Taking the design to the next level involved more overall thickness and increased structural integrity making this drone the most indestructible design ever produced by our engineers.
Included in the Ready To Fly Kit is the reimagined Transporter 2 FPV Goggle Non-DVR Version, featuring a detachable screen which can optionally be paired to the brand new E8 transmitter allowing pilots to customize their flying experience to suit their needs. Built into the Transporter 2 is a powerful receiver in order to give pilots the cleanest video feed possible. Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over the drone, providing smoothness and precision over previous generations.
In their ever expanding effort to introduce FPV to the masses, the EZ Pilot was engineered with STEM programs in mind by making the kit more user friendly for budding pilots under adult supervision, while keeping the price of the kit affordable so schools across the country will be able to inspire a new generation of aviators regardless of their program&#39s budget.
The EZ Pilot Pro combines the past and future in order to create the ultimate beginner FPV flying experience possible.
We recommend the following RDQ Series LiPo Batteries for this quad:

1S 450mAh - PH2.0

Check out our other RTF combos, all our pre-built quads, as well as the rest of our Emax selection!

Specifications

Wheelbase: 75mm
Voltage Input: 1S
AIO: F411 FC w/ 6A ESC
VTX: 25,100,200Mw Switchable
Stator Size: 8x2.5mm
Motor Kv: 15000

Includes

1x EZ Pilot Pro Drone
1x E8 Transmitter
1x Transporter 2 Non-DVR Version
1x Monitor Mounting Hardware
1x EMAX 1S 450 mAh LiPo battery
1x 6-Port 1S USB LiPo Battery Charger
1x USB Cable for Charging + Programming
1x Set Spare Turtlemode Propellers
1x Set Spare Hardware



All products containing batteries must be shipped by a ground shipping method. Consistent improvement is the goal of EMAX but this comes at a cost. With more upgrades to the micro indoor racing drones which cater to more experienced pilots, they further alienate potential budding pilots looking to explore the world of

EMAX RTF EZ Pilot Pro Analog Kit w/ Goggles, Radio Transmitter and 75mm Whoop from WREKD Co.

Consistent improvement is the goal of our team at EMAX but this comes at a cost. With more upgrades to our micro indoor racing drones which cater to more experienced pilots, we further alienate potential budding pilots looking to explore the world of FPV. This is why our engineers have come up with a solution through t

EMAX EZ Pilot Pro Indoor Racing Drone - RTF

The EZ Pilot Pro drone features an improved frame, 200mw VTX capabilities, and a solid pin PH2.0 connector over the original.

EMAX EZ Pilot Pro Beginner FPV Drone RTF Kit w/ Transporter 2 Goggles + E8 Transmitter

Emax USA






Drone Specs:

Wheelbase: 75mm
Dry weight: 32.5g
AIO: MATEKF411 FC w/ 6A ESC and  25/100/200mw switchable video transmitter
Motor: 08025 II KV15000
RX Protocol: FrSky D8 SPI

Includes:

1x EZ Pilot Pro Drone
1x E8 Transmitter
1x Transporter 2 Non-DVR Version
1x Monitor Mounting Hardware
1x EMAX 1S 450 mAh LiPo battery
1x 6-Port 1S USB LiPo Battery Charger
1x USB Cable for Charging + Programming
1x Set Spare Turtlemode Propellers
1x Set Spare Hardware

EZ Pilot Pro Ready-To-Fly RTF FPV Drone w/ Controller & Goggles from WREKD Co.

EMAX RTF TinyHawk III Ready to Fly Kit w/ Goggles, Radio Transmitter, Case and 76mm Racing Whoop Drone





Size class: 76mm
Weight (without battery): 32 grams
Motors: TH0802 II 15000kv
Flight Controller / ESC: F4 STM32 (MATEKF411RX), 1-2S Input, 5A 4-in-1 BLHeli_S ESC
Receiver:  SPI / FrSky D8/D16
Camera: RunCam Nano 4
Video Transmitter: 25-100-200mw Switchable 37CH w/ Smart Audio.



      Size class: 76mm Weight (without battery): 32 grams Motors: TH0802 II 15000kv Flight Controller / ESC: F4 STM32 (MATEKF411RX), 1-2S Input, 5A 4-in-1 BLHeli_S ESC Receiver:  SPI / FrSky D8/D16 Camera: RunCam Nano 4 Video Transmitter: 25-100-200mw Switchable 37CH w/ Smart Audio.

Tinyhawk III FPV Racing Drone - Ready To Fly (RTF) w/ Controller and Goggles from WREKD Co.

Tinyhawk III FPV Racing Drone - Ready To Fly (RTF) w/ Controller and Goggles

Introducing... the&nbspEMAX TinyHawk III RTF Bundle!! This bundle features the EMAX TinyHawk III Quadcopter, EMAX E8 Transmitter, EMAX Transporter 2 Goggles, and RunCam Nano 4 Camera!

Introducing... the EMAX TinyHawk III RTF Bundle!! This bundle features the EMAX TinyHawk III Quadcopter, EMAX E8 Transmitter, EMAX Transporter 2 Goggles, and RunCam Nano 4 Camera!

EMAX TinyHawk III FPV Racing Drone RTF Bundle

EMAX Tinyhawk III FPV Racing Drone RTF with Controller/Goggles

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

EMAX Tinyhawk III FPV Racing Drone RTF with Controller/Goggl - RMRC

Self-improvement is a core trait for the engineers at EMAX, which is why when approached about a new successor to the Tinyhawk series, they designed the Tinyhawk III to build upon all the strengths of previous generations while improving any shortcomings. First is a drastically redesigned body frame centered around dur

Emax Tinyhawk 3 FPV Racing Drone - Ready To Fly (RTF) w/ Controller and Goggles

EMAX BNF TinyHawk III 76mm Whoop

Emax Tinyhawk 3 FPV Racing Drone - FrSky Bind N Fly (BNF)

        Size class: 76mm Weight (without battery): 32 grams Motors: TH0802 II 15000kv Flight Controller / ESC: F4 STM32 (MATEKF411RX), 1-2S Input, 5A 4-in-1 BLHeli_S ESC Receiver:  SPI / FrSky D8/D16 Camera: RunCam Nano 4 Video Transmitter: 25-100-200mw Switchable 37CH w/ Smart Audio.

Tinyhawk III FPV Racing Drone - FrSky Bind N Fly (BNF)

EMAX Tinyhawk III FPV Racing Drone - FrSky Bind N Fly (BNF)

EMAX Tinyhawk III FPV Racing Drone - FrSky Bind N Fly (BNF) - RMRC

Introducing... the EMAX TinyHawk III BNF Quadcopter!! This BNF features the RunCam Nano 4 Camera.

EMAX TinyHawk III FPV Racing Drone BNF

BetaFPV RTF Cetus Pro FPV Kit - Cetus Pro Whoop, Goggles, Transmitter, Batteries, Charger & Case

All batteries must be shipped by a ground shipping method.
The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles. It&#39s more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor.
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 450mAh - BT2.0

Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!

Features

The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.

Cetus Pro quadcopter comes with a brushless power system, it&#39s more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train.

With the self-protection of emergency landing when out of control or in low battery, to ensure a more safe flight.

Made of PA12 material, the frame has an excellent impact resistance in drop &ampamp impact. Meanwhile, the 360° protection of the whoop frame ensures safe flights both indoors and outdoors.

All items needed for the flight are packed in an EVA portable storage bag. Better to protect and convenient to carry.

Specifications
BetaFPV LiteRadio 2

Frequency Range: 2.4GHz (2403MHz-2447MHz)
2.4G System: NRF24L01 or CC2500
Channel: 8
Support Protocol: Bayang / Futaba S-FHSS / Frsky D16 FCC/ Frsky D16 LBT/ Frsky D8
Power: ≤100mw
Adapted Drone Type: Multirotor
Support USB Charging / Firmware Update
Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: Built-in 1000mAh 1S Battery
Charging Connector: Type-C

BetaFPV VR02 Goggles

Screen Size: 4.3&quot
Screen Resolution: 800x480p
Screen Brightness: 300cd/m2
Field of View: 55°
Charging Port: USB-C
Input Voltage: 3.7V 500mA
Internal Battery: 3.7V 2000mAH
Dimensions: 143x126x86.3mm
Weight: 300g

BetaFPV RTF Cetus Pro

Positioning system: Optical flow / Barometer / Laser
Height Positioning: Laser / Barometer
Angle Locating: Optical flow ( effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
VTX: 25mW
Camera tilt degree: 25°
Camera: C02 FPV Micro Camera
Propeller: 40mm 3-blade 1.5mm shaft hole
Power system: 1S
Battery: BT2.0 450mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (Clear line of site)

Includes

1x Cetus Pro Brushless Quadcopter
1 LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1x VR02 FPV Goggles
2x BT2.0 450mAh 1S Lipo Battery
1x BT2.0 Battery Charger and Voltage Tester
1x USB Charging Cable (Type-C)
1x Type-C Adapter
1x Prop Removal Tool
1x Portable Storage Bag


All batteries must be shipped by a ground shipping method. The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles. It's more powerful and maneuverable for all starters as well as

BetaFPV RTF Cetus Pro FPV Analog Kit - Cetus Pro Whoop, Goggles, Transmitter, Batteries, Charger & Case from WREKD Co.

BetaFPV RTF Cetus Pro FPV Analog Kit - Cetus Pro Whoop, Goggles, Transmitter, Batteries, Charger & Case

All batteries must be shipped by a ground shipping method.
The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles. It's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor.
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 450mAh - BT2.0

Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!

Features

The auxiliary flight function is greatly reducing the threshold of operating. This is the lightest key to open the door to advanced FPV.

Cetus Pro quadcopter comes with a brushless power system, it's more powerful and maneuverable in flight. Pilots can achieve more FPV freestyle actions to train.

With the self-protection of emergency landing when out of control or in low battery, to ensure a more safe flight.

Made of PA12 material, the frame has an excellent impact resistance in drop &amp impact. Meanwhile, the 360° protection of the whoop frame ensures safe flights both indoors and outdoors.

All items needed for the flight are packed in an EVA portable storage bag. Better to protect and convenient to carry.

Specifications
BetaFPV LiteRadio 2

Frequency Range: 2.4GHz (2403MHz-2447MHz)
2.4G System: NRF24L01 or CC2500
Channel: 8
Support Protocol: Bayang / Futaba S-FHSS / Frsky D16 FCC/ Frsky D16 LBT/ Frsky D8
Power: ≤100mw
Adapted Drone Type: Multirotor
Support USB Charging / Firmware Update
Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: Built-in 1000mAh 1S Battery
Charging Connector: Type-C

BetaFPV VR02 Goggles

Screen Size: 4.3"
Screen Resolution: 800x480p
Screen Brightness: 300cd/m2
Field of View: 55°
Charging Port: USB-C
Input Voltage: 3.7V 500mA
Internal Battery: 3.7V 2000mAH
Dimensions: 143x126x86.3mm
Weight: 300g

BetaFPV RTF Cetus Pro

Positioning system: Optical flow / Barometer / Laser
Height Positioning: Laser / Barometer
Angle Locating: Optical flow ( effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
VTX: 25mW
Camera tilt degree: 25°
Camera: C02 FPV Micro Camera
Propeller: 40mm 3-blade 1.5mm shaft hole
Power system: 1S
Battery: BT2.0 450mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (Clear line of site)

Includes

1x Cetus Pro Brushless Quadcopter
1 LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1x VR02 FPV Goggles
2x BT2.0 450mAh 1S Lipo Battery
1x BT2.0 Battery Charger and Voltage Tester
1x USB Charging Cable (Type-C)
1x Type-C Adapter
1x Prop Removal Tool
1x Portable Storage Bag


The BetaFPV RTF Cetus Pro FPV Kit comes with whoop, goggles, transmitter, batteries, charger, and case. Enjoy this amazing complete drone kit today!

BetaFPV RTF Cetus Pro FPV Kit - RaceDayQuads

The Cetus Pro FPV Kit is finally here! It is the best ideal choice for beginners to advance currently. Comes with a Cetus Pro brushless quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, it's more powerful and maneuverable for all starters as well as FPV pros to practice indoor and outdoor. Check out all our

BetaFPV Cetus PRO FPV RTF Kit W/Goggles & Controller

BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case

The highly anticipated Cetus FPV Kit comes! It will be the best choice for FPV beginners to explore the FPV world and bring their family and friends into this hobby. Cetus brushed quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, everything you need is in a pack!

Bullet Points

Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly!
Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments.

Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included.
Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging.
All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry.

Altitude Hold Function
The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner.
The altitude hold function is only available in N mode.
Self-protection Function
The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop to the ground once it has a strong collision with the object.  Since then, let's say goodbye to loss and crash!

3 Flight Modes, One Key Switch
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Self-developed LiteSilver System
Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers).

Literadio2 SE Transmitter
It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance that can up to 8 hours, bringing pilots a better flight experience. With the hobby-grade gimbal and the rubber coat, it is more ergonomic.

VR02 FPV Goggles
VR02 FPV Goggles - the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Specification


Positioning system: Optical flow / Barometer / Laser


Height Positioning: Laser / Barometer

Angle Locating: Optical flow ( effective height 0.3-3m)

Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)

Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW

Camera tilt degree: 25°

Camera: C02 FPV Micro Camera
Transmitter: Literaio2 SE Transmitter

TX mode: Mode 2 (Left stick throttle)

Goggles: VR02 Goggles

Motor: 716-19000KV Brushed motor

Propeller: 31mm 4-blade 0.8mm shaft hole

Takeoff weight: 35g(with battery)
Power system: 1S
Battery*: BT2.0 300mAh 1S 75C Battery
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)

Note: The battery will be upgraded from BT2.0 300mAh 1S 30C Battery to BT2.0 300mAh 1S 75C Battery from Feb 2024.
Cetus Pro Brushless Quadcopter
Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system.

FAQ

Top questions that customers frequently asked about Cetus.
For more info and instructions please check the User Manual for the Cetus FPV kit

Download the Firmware for Cetus FPV Kit


Package

1 * Cetus Brushed Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 300mAh 1S 75C Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 31mm 4-Blade Props
2 * User Manual
1 * Portable Storage Bag
1 * Phillips Screwdriver



Recommended by 5000+ experts and reviews, one of the most popular fpv kits for beginners.Best price and stable quality for fpv drone. These are the RTF Whoop FPV racing kits FPV drone for beginners or training. It will be the best choice for FPV beginners to explore the FPV world

Cetus FPV Kit

The BETAFPV Cetus FPV Kit has everything you need to begin your flying experience!&nbspThe highly anticipated Cetus FPV Kit is the best choice for FPV beginners to explore the FPV world and bring your family and friends into this hobby. The Cetus FPV Racing comes with the Cetus brushed whoop quadcopter,&nbspLiteRadio2 SE transmitter, and&nbspVR02 FPV Goggles, which is everything you need to get up in the air!

The BETAFPV Cetus FPV Kit has everything you need to begin your flying experience! The highly anticipated Cetus FPV Kit is the best choice for FPV beginners to explore the FPV world and bring your family and friends into this hobby. The Cetus FP

BETAFPV RTF Cetus Beginner FPV Kit - Brushed Version

The highly anticipated Cetus FPV Kit comes! It will be the best choice for FPV beginners to explore the FPV world and bring your family and friends into this hobby. With Cetus brushed quadcopter, LiteRadio2 SE transmitter, and VR02 FPV Goggles, everything you need is in a pack! Check out all our Analog BNF/PNP/RTF Kits

BetaFPV Cetus FPV RTF Kit W/Goggles & Controller

Brush up on your FPV skills with the BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger &ampamp Case. You have everything needed to get into FPV, including the LiteRadio 2 SE Transmitter, VR02 FPV Goggles, and the Cetus Whoop.
Easy to carry on and ready to fly. What are you waiting for?
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 300mAh - BT2.0

Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!

Features

3 Flight modes
Altitude hold and emergency landing functions
Storage case
FrSky D8 protocol drone and radio
Brushed drone, easy to fly

Specifications

Positioning system: Optical flow / Barometer / Laser
Height Positioning: Laser / Barometer
Angle Locating: Optical flow ( effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW
Camera tilt degree: 25°
Camera: C01 FPV Micro Camera
Transmitter: Literadio2 SE Transmitter
TX mode: Mode 2 (Left stick throttle)
Goggles: VR02 Goggles
Motor: 716-19000KV Brushed motor
Propeller: 31mm 4-blade 0.8mm shaft hole
Takeoff weight: 35g(with battery)
Power system: 1S
Battery: BT2.0 300mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (Clear line of site)

Includes

1x Cetus Brushed Quadcopter
1 LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1x VR02 FPV Goggles
2x BT2.0 300mAh 1S Lipo Battery
1x BT2.0 Battery Charger and Voltage Tester
1x USB Charging Cable (Type-C)
1x Type-C Adapter
1x Prop Removal Tool
4x 31mm 4-Blade Props
1x Portable Storage Bag

User Manual


Brush up on your FPV skills with the BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger &amp; Case. You have everything needed to get into FPV, including the LiteRadio 2 SE Transmitter, VR02 FPV Goggles, and the Cetus Whoop. Easy to carry on and ready to fly. What are you waiting for? Be

BetaFPV RTF Cetus FPV Analog Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case from WREKD Co.

BetaFPV RTF Cetus FPV Analog Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case

All batteries must be shipped by a ground shipping method.
Brush up on your FPV skills with the BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger &amp Case. You have everything needed to get into FPV, including the LiteRadio 2 SE Transmitter, VR02 FPV Goggles, and the Cetus Whoop.
Easy to carry on and ready to fly. What are you waiting for?
Be sure to pick up some extra batteries so that you can fly all day! We recommend the following 1S batteries for this quad:

BetaFPV 1S 300mAh - BT2.0

Check out our other RTF combos, all our pre-built quads and our BetaFPV selection!

Features

3 Flight modes
Altitude hold and emergency landing functions
Storage case
FrSky D8 protocol drone and radio
Brushed drone, easy to fly

Specifications

Positioning system: Optical flow / Barometer / Laser
Height Positioning: Laser / Barometer
Angle Locating: Optical flow ( effective height 0.3-3m)
Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)
Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW
Camera tilt degree: 25°
Camera: C01 FPV Micro Camera
Transmitter: Literadio2 SE Transmitter
TX mode: Mode 2 (Left stick throttle)
Goggles: VR02 Goggles
Motor: 716-19000KV Brushed motor
Propeller: 31mm 4-blade 0.8mm shaft hole
Takeoff weight: 35g(with battery)
Power system: 1S
Battery: BT2.0 300mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (Clear line of site)

Includes

1x Cetus Brushed Quadcopter
1 LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1x VR02 FPV Goggles
2x BT2.0 300mAh 1S Lipo Battery
1x BT2.0 Battery Charger and Voltage Tester
1x USB Charging Cable (Type-C)
1x Type-C Adapter
1x Prop Removal Tool
4x 31mm 4-Blade Props
1x Portable Storage Bag

User Manual


BetaFPV RTF Cetus FPV Kit - Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case is the perfect starter kit! This kit travels well and is perfect for your flying needs. Get yours today!

BetaFPV RTF Cetus FPV Kit. Cetus Whoop, Goggles, Transmitter, Batteries, Charger & Case For Sale

BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit!
Kit Includes

1 * Cetus Brushed Quadcopter
1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)
1 * VR02 FPV Goggles
2 * BT2.0 300mAh 1S Lipo Battery
1 * BT2.0 Battery Charger and Voltage Tester
1 * USB Charging Cable (Type-C)
1 * Type-C Adapter
1 * Prop Removal Tool
4 * 31mm 4-Blade Props
2 * User Manual
1 * Portable Storage Bag

Bullet Points

Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly!
Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments.

Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included.
Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging.
All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry.


Specification


Positioning system: Optical flow / Barometer / Laser


Height Positioning: Laser / Barometer

Angle Locating: Optical flow ( effective height 0.3-3m)

Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment)

Receiver protocol: Frsky D8
Flight controller: Lite 1S Pro brushed FC
VTX: 25mW

Camera tilt degree: 25°

Camera: C02 FPV Micro Camera
Transmitter: Literaio2 SE Transmitter

TX mode: Mode 2 (Left stick throttle)

Goggles: VR02 Goggles

Motor: 716-19000KV Brushed motor

Propeller: 31mm 4-blade 0.8mm shaft hole

Takeoff weight: 35g(with battery)
Power system: 1S
Battery: BT2.0 300mah 1S Battery (external)
Flight time: 4-5min
Flight distance: 80m (in wide &amp undisturbed environment)


Altitude Hold Function
The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner.
The altitude hold function is only available in N mode.
Self-protection Function
The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once it has a strong collision with the object. Since then, let's say goodbye to loss and crash!

3 Flight Modes, One Key Switch
Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter.

Self-developed LiteSilver System
Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers).

Literadio2 SE Transmitter
It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance which can up to 8 hours, brings pilots a better flight experience. With the hobby-grade gimbal and adopted the rubber coat, it is more ergonomic.

VR02 FPV Goggles
VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Cetus Pro Brushless Quadcopter
Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system.

FAQ
1. What is the maximum Flight distance of the Cetus FPV kit?
With 25mW VTX, the quadcopter can fly 80m in a wide &amp undisturbed environment.2. Do you recommend flying this RTF kit indoors or outdoors?
We highly recommend pilot fly this kit indoors. For more info and instructions please check the User Manual for the Cetus FPV kit


BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit! Kit Includes 1 * Cetus Brushed Quadcopter 1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol) 1 * VR02 FPV Goggles 2 * BT2.0 300mAh 1S Lipo Battery 1 * BT2.0 Battery Charger and Voltage Tester 1 * USB Charging Cable (Type-C) 1 * Type-C Adapter 1 * Prop Removal Tool 4 * 31mm 4-Blade Props 2 * User Manual 1 * Portable Storage Bag Bullet Points Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly! Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments. Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included. Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging. All items are stored in an EVA portable storage bag, which provides better protection and is easy to carry. Specification Positioning system: Optical flow / Barometer / Laser Height Positioning: Laser / Barometer Angle Locating: Optical flow ( effective height 0.3-3m) Accuracy of auto-hover: Horizontal ±0.2m, vertical ±0.3m (under no wind environment) Receiver protocol: Frsky D8 Flight controller: Lite 1S Pro brushed FC VTX: 25mW Camera tilt degree: 25° Camera: C02 FPV Micro Camera Transmitter: Literaio2 SE Transmitter TX mode: Mode 2 (Left stick throttle) Goggles: VR02 Goggles Motor: 716-19000KV Brushed motor Propeller: 31mm 4-blade 0.8mm shaft hole Takeoff weight: 35g(with battery) Power system: 1S Battery: BT2.0 300mah 1S Battery (external) Flight time: 4-5min Flight distance: 80m (in wide & undisturbed environment) Altitude Hold Function The altitude hold function enables the Cetus quadcopter to Auto-Hover. The quadcopter can stay at a current height when pilots' hands are off the transmitter. The barometer/laser achieves accurate and stable positioning, which makes the quad hovering indoors very stable. The flight has never been so easy for a beginner. The altitude hold function is only available in N mode. Self-protection Function The Cetus quadcopter has an excellent self-protection function. Which can make an emergency landing whenever loses control or is in low battery. It will also automatically disarm and drop on the ground once it has a strong collision with the object. Since then, let's say goodbye to loss and crash! 3 Flight Modes, One Key Switch Three modes those N/ S/ M are available, which can satisfy the different needs of pilots and adapt to various flight environments. Whether you're a seasoned FPV pilot or a complete beginner, Cetus FPV Kit lets anyone fly confidently from day one. 3 flight modes can be switched by one SB switch on transmitter, simple and convenient. Meanwhile, these 3 modes all support 3 different speeds with SLOW/MID/FAST, pilots can switch it by one SC switch on the transmitter. cetus fpv kit N/S/M mode Self-developed LiteSilver System Cetus brushed quadcopter equipped with lite 1S pro FC. which using LiteSilver system and integrated Frsky D8, Rx 25mW VTX, barometer, laser, and optical flow sensor. LiteSilver is a self-developed flight control system based on Silverware and FreeRTOS real-time operating system. It supports customers to adjust parameters as they prefer in the host computers (not yet open to customers). cetus fpv kit for beginners Literadio2 SE Transmitter It is designed for FPV racing starters, the LiteRadio 2 SE transmitter comes with a built-in 1000mah 1S battery, having an excellent endurance performance which can up to 8 hours, brings pilots a better flight experience. With the hobby-grade gimbal and adopted the rubber coat, it is more ergonomic. literadio2 transmitter VR02 FPV Goggles VR02 FPV Goggles- the First-Person-View Goggles with the simpler operation and powerful function, is specially designed for FPV starters. It comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly. VR02 goggle Cetus Pro Brushless Quadcopter Cetus Pro Brushless Quadcopter has been released! Pilots who have Cetus FPV Kit or LiteRadio2 SE Transmitter can consider upgrading to the Cetus Pro quad and enjoy a more exclusive FPV racing experience. The Cetus Pro quad has great features like turtle mode and a more powerful brushless system. Cetus family FAQ 1. What is the maximum Flight distance of the Cetus FPV kit? With 25mW VTX, the quadcopter can fly 80m in a wide & undisturbed environment. 2. Do you recommend flying this RTF kit indoors or outdoors? We highly recommend pilot fly this kit indoors. For more info and instructions please check the User Manual for the Cetus FPV kit

Cetus FPV Flight Kit

BetaFPV's Ready-To-Fly Cetus FPV Kit is the perfect starter kit! Kit Includes 1 * Cetus Brushed Quadcopter 1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol) 1 * VR02 FPV Goggles 2 * BT2.0 300mAh 1S Lipo Battery 1 * BT2.0 Battery Charger and Voltage Tester 1 * USB Charging Cable (Type-C) 1 * Type-C Adapter 1 * Prop Removal Tool 4 * 31mm 4-Blade Props 2 * User Manual 1 * Portable Storage Bag Bullet Points Auxiliary flight function is suitable for beginners, greatly reducing the threshold of operating. Now everyone can fly! Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments. Cetus brushed quadcopter, LiteRadio2 SE transmitter, VR02 FPV Goggles, batteries, charger, etc., everything needed for flight is included. Equipped with Type-C port charging cable, unified charging port for all parts,

iFlight

iFlight BNF Alpha A75 HD Whoop

Let's welcome the iFlight Alpha series, a new way to fly FPV. Ever wanted to try Digital FPV on the smallest possible whoop size quad? We sticked the caddx Vista and the new caddx Nebula cam to one of our new 1.6inch whoop frames, did some tuning and tried to find the optimal ratio between weight and power. This is wha

Alpha A75 HD Whoop w/Caddx Polar Nano Vista Digital HD System - Choose Receiver

T-Motor

T-Motor BNF TRON 80 HD 1.6" Cinewhoop

Tiger Motors

The TRON 80 Whoop HD is an FPV racing drone by T-Motor that is equipped with 4 RGB LED lights to bring cool visual effects to your flying experience!&nbspExcellent for indoor racing, small cinematic rigs, freestyle, and endless opportunities!

The TRON 80 Whoop HD is an FPV racing drone by T-Motor that is equipped with 4 RGB LED lights to bring cool visual effects to your flying experience! Excellent for indoor racing, small cinematic rigs, freestyle, and endless opportunities!

T-Motor TRON 80 3S HD CineWhoop 1.6" FPV Racing Drone

T-Motor TRON 80 3S HD CineWhoop 1.6&quot FPV Racing Drone

TRON 80 Whoop HD comes with a pusher frame design for stability, efficiency, and easy control. Also 4 RGB LED lights bring cool visual effects to your flying experience! This HD whoop also comes with the Caddx Nebula Nano and Vista VTX, F1103 8000KV motors, 13A AIO, and 40mm 4-blade props. You can also mount a Naked Go

T-Motor Tron 80 Whoop w/ HD Digital VTX

EMAX BNF Nanohawk Micro Quadcopter

Introducing the Nanohawk, a nano-sized FPV drone designed to offer an immersive flight experience on a new scale.

EMAX Nanohawk 1S Micro Brushless FPV Drone (FrSky - BNF)

In an effort to push the boundaries of miniaturizing the FPV experience, EMAX took to the drawing board to design the smallest quadcopter possible in their history. Introducing the NanoHawk, a nano sized FPV drone designed to offer an immersive flight experience in a new scale.Weighing in at just 20 grams, the NanoHawk

Emax Nanohawk 1S Ultralight Brushless FPV Drone

EMAX RTF TinyHawk II  Ready to Fly Kit - Googles, Radio Transmitter, Case and 75mm Indoor Racing Whoop Drone

Great beginner RTF kit by EMAX! Comes with everything you need to rip! See our Tinyhawk II collection! Check out all our BNF-PNP-RTF quads and Emax collection!Recommended Batteries : 1S: GNB 1S 450MAH HIGH VOLTAGE 80C PH 2.0 GNB 1S 450MAH 80C PH 2.0. AULINE 450MAH HV 3.8V 1S LIPO 80C PH2.0 - 4PCS 2S: GNB 300MAH 2S 7.6V

EMAX TINYHAWK II RACING DRONE RTF WITH RUNCAM NANO2 RTF

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk II quadcopter! This bundle is the perfect solution for anyone to learn the basic of FPV flying, beginners and pros alike.

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk II quadcopter! This bundle is the perfect solution for anyone to learn the basic of FPV flying, beginners

EMAX TinyHawk II Micro Brushless FPV Drone (RTF Bundle)

Tinyhawk II 2 Indoor FPV Racing Drone F4 5A 16000KV RunCam Nano2 700TVL 37CH 25/100/200mW VTX 1S-2S - RTF

Tinyhawk II RTF Kit - With Controller & Goggles

Our TinyHawk II Freestyle RTF Bundle is the best way to get into FPV! The quality products in this bundle have been handpicked and pre-bound together by our team to give you the best micro experience.

EMAX TinyHawk II Freestyle 2S Micro FPV RTF Bundle w/ BETAFPV LiteRadio 2 + EMAX Transporter Goggles

Happymodel BNF Mobula 6 Micro Whoop

The Happymodel Mobula6 1S Whoop is a great racing FPV drone! The Mobula6 is a smooth and agile brushless drone that comes with the RunCam Nano 3, 0802 19000KV Motors, and many other cool features and specs that make this whoop a must-have! Now with Built-In ELRS Receivers!

The Happymodel Mobula6 1S Whoop is a great racing FPV drone! The Mobula6 is a smooth and agile brushless drone that comes with the RunCam Nano 3, 0802 19000KV Motors, and many other cool features and specs that make this whoop a must-have! Now with

Happymodel Mobula6 1S 65mm Brushless Whoop w/ RunCam Nano 3 - ELRS

All products containing batteries must be shipped by a ground shipping method.
The Mobula6 Micro FPV Whoop features the Runcam Nano3, Onboard Frsky Receiver, 5A BLheli_S 4-in-1 ESC, and more! This mini and lightweight whoop (65mm) will take you hard-to-get places!
Pick a motor: Race (25000Kv) or Standard (19000Kv).
Check out our other pre-built quads, as well as the rest of our HappyModel selection!
Features

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible with 1S Lipo/LIHV
Camera Angle adjustable

Specifications

Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mmx80mmx37mm
Weight: 20g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Motor speed option:
SE0802 KV25000(Race Edition)
SE0802 KV19000(Regular Edition)

Motors

Model: SE0802 19000KV or KV25000
Configuration:9N12P
Stator Diameter:8mm
Stator Length:2mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only

Propellers

Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM42688P
Board size: 28.5x28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to ICM42688P
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m


Onboard 5.8g VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race bandSmartaudio ready

Runcam Nano3

Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: NTSC
S/N Ratio: &gt50dBElectronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mmxW14mmxH9mm

Lipo Battery

Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8gConnector: PH2.0

Includes

1x Mobula6 1S 65mm whoop Drone Frame
1x SPI Receiver: Crazybee F4 Lite FC built-in Frsky SPI D8 RX
4x SE0802 KV19000 or KV25000 brushless motor
1x Gemfan 1219-3 Propellers(4cw+4ccw)
1x Runcam Nano3 1/3 CMOS 800TVL camera
1x 5.8G 25mw 40ch VTX (Flight controller built-in)
4x 1S 300mah 30C LiHV Battery
1x 1S Lipo/LIHV USB Charger
1x Propeller disassemble tool


All products containing batteries must be shipped by a ground shipping method. The Mobula6 Micro FPV Whoop features the Runcam Nano3, Onboard Frsky Receiver, 5A BLheli_S 4-in-1 ESC, and more! This mini and lightweight whoop (65mm) will take you hard-to-get places! Pick a motor: Race (25000Kv) or Standard (19000Kv). Che
