Stator Width

Stator Length

BetaFPV

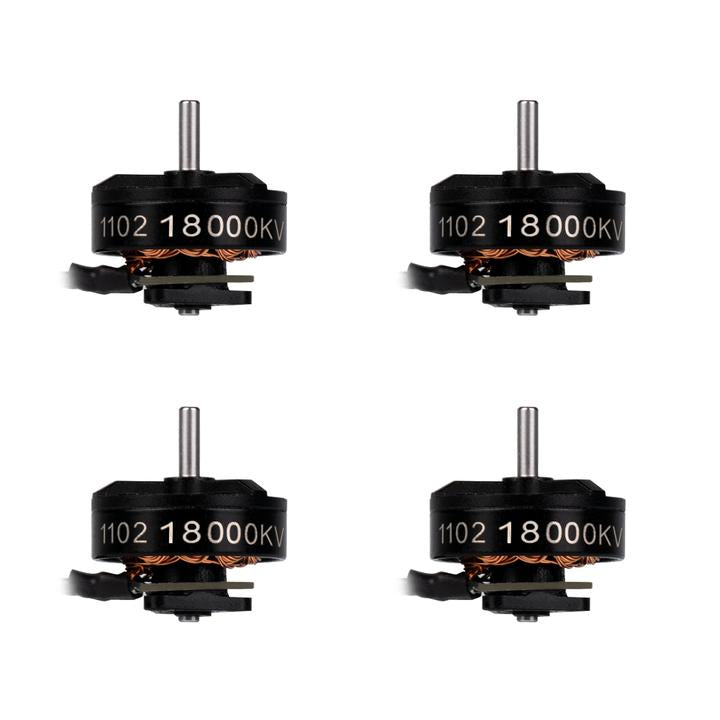

BetaFPV 1102 Motor - 18000Kv

For providing stronger thrust in 1S whoop drone, 1102 18000KV motor has been released. It is suitable for most 75mm 1s frames. Paired with BT2.0 series battery, the flight time will be longer. Check out all our 11XX Motors and the rest of our BetaFPV Products! Features: Adopts the technology of ball bearing, which effe

BetaFPV 1102 18000KV Brushless Motors (2022 Version) - 4PCS

The 18000KV with 37mm cable length.
PACKAGE

4 * 1102 18000KV Brushless Motor


1 * Pack of M1.4*4 Screws



By using the technology of ball bearing, effectively reduced the friction between the bearing surfaces, increased its durability and improved its efficiency.

BULLET POINTS

Adopts the technology of ball bearing, which effectively reduced the friction between the bearing surfaces, increased the duration of motor and improved its efficiency.


Lead wire soldered to the PCB, which allows you to repair it easier once disconnection.


With exquisite workmanship, provides the most incredible power and thrust in the lightest weight of 3.01g, sturdy structure, and high-quality materials make it performs like a beast.

Possesses dynamic balance, crush-resistant damping bearing, which can eliminate vibration effectively

SPECIFICATION

Height: 15.2mm
Weight: 2.95g /pc
Shaft: φ1.5mm
Motor Mount Holes: 6.6mm

KV (rpm/V): 18000KV
Input Voltage: 1-2S lipo
Plug and cables: Micro JST-1.25 3-pin connector with 30AWG cables






The 18000KV with 37mm cable length. BULLET POINTS Adopts the technology of ball bearing, which effectively reduced the friction between the bearing surfaces, increased the duration of motor and improved its efficiency. Lead wire soldered to the PCB, which allows you to repair it easier once disconnection. With exquisite workmanship, provides the most incredible power and thrust in the lightest weight of 3.01g, sturdy structure, and high-quality materials make it performs like a beast. Possesses dynamic balance, crush-resistant damping bearing, which can eliminate vibration effectively SPECIFICATION Height: 15.2mm Weight: 2.95g /pc Shaft: φ1.5mm Motor Mount Holes: 6.6mm KV (rpm/V): 18000KV Input Voltage: 1-2S lipo Plug and cables: Micro JST-1.25 3-pin connector with 30AWG cables

1102 18000kv Motors - 4 Pack

BETAFPV

1102 18000KV Brushless Motors 2022 version comes with a new appearance of the black and red motor bell. Not only is it the stock motor for the Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX) but also available for other 1S whoop drones. Whatever classical 1102 18000KV or new version, they have the same performance.
Check out the rest of our Micro Motors, as well as the rest of our BetaFPV gear!

Specifications

Input Voltage: 1S
Kv Rating: 18000Kv
Configuration: 9N12P

Shaft Diameter: 1.5mm

Shaft Length: 5mm
Weight (Incl. Cable): 2.9g

Mounting Pattern: 6x6mm TRI

Includes

4x 1102 18000KV Brushless Motor
1x Pack of M1.4x4 Screws



1102 18000KV Brushless Motors 2022 version comes with a new appearance of the black and red motor bell. Not only is it the stock motor for the Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX) but also available for other 1S whoop drones. Whatever classical 1102 18000KV or new version, they have the same performa

BetaFPV 2022 Series 1102 18000Kv Micro/Whoop Motor 4 Pack

Coming with a new appearance of the black and red motor bell. New 1102 Brushless Motors have been released for stronger thrust in 1S whoop drone with two RPM (revolutions per minute) versions 18000KV or 22000KV, which meets pilots' needs for different flying purposes. This motor is lightweight at 2.79g/pc and is suitable for most 75mm 1S frames like Meteor75 Frame.

Bullet Points

Adopts the technology of ball bearing, which effectively reduced the friction between the bearing surfaces, increased the duration of the motor, and improved its efficiency.
Lead wire is soldered to the PCB, which allows you to repair it easier once disconnected.
With exquisite workmanship, provides the most incredible power and thrust in the lightest weight of 2.79g, sturdy structure, and high-quality materials make it performs like a beast.
Possesses dynamic balance, and crush-resistant damping bearing, which can eliminate vibration effectively.

The classical 1102 18000KV brushless motors have 37mm/50mm cable length versions. 1102 18000KV motors have a good performance in efficiency and the 22000KV version with higher KV value can provide more thrust for aggressive indoor FPV racing. Whether the classical 1102 18000KV or the new 18000KV version, they have the same performance.



Specification

Height: 15.2mm/13.6mm (2022 version)
Weight: 2.95g/pc (18000KV) / 2.79g/pc (22000KV)
Shaft Diameter: 1.5mm
Shaft Length: 5mm
Motor Mount Holes: 3-M1.4-φ6.6
KV (rpm/V): 18000KV/22000KV
Input Voltage: 1S Lipo
Plug and cables: Micro JST-1.25 3-pin connector with 28AWG cables


1102 18000KV or 22000KV Brushless Motors
The 1102 18000KV Brushless motors are the stock motor for Cetus Pro and Meteor75 (1S HD Digital VTX). It features great work efficiency for flying endurance, very suitable for FPV cruising flying. The 1102 22000KV has a higher RPM and faster response, which allows the quadcopter to take off with more punch at less throttle. More aggressive and powerful for FPV racing. For pilots who fly 75mm whoop drones with 1102 18000KV motors, it is a good choice to upgrade motors to 22000KV.



1102 Motor

18000KV Brushless Motors
22000KV Brushless Motors


Application
Cruising, Racing
More powerful for racing


Weight
2.95g/pc
2.79g/pc


Thrust

40.6g (GF-1635-3B)
46.3g (GF-1635-3B)



Efficiency
2.11g/w (GF-1635-3B)

1.90g/w (GF-1635-3B)





Recommend Parts

Battery: BT2.0 450mAh 1S Battery

Frame: Meteor75 Frame

Propellers:  40mm 3-Blade Props

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Flight Controller: F4 1S 5A FC / F4 1S 12A AIO Flight Controller




Package


4 * 1102 Brushless Motors (18000KV or 22000KV)
1 * Pack of M1.4*4 Screws



Rated at 5000kv, 1106 Brushless Motor hits the sweet spot for high-powered 4s power. This motor has been designed and built for your 4S 85-120mm racing or freestyle drone, resulting in incredible power and performance.

1102 Brushless Motors

BetaFPV 2022 Series 1102 18000Kv Micro/Whoop Motor 4 Pack from WREKD Co.

The BETAFPV 1102 18000KV Brushless Motors are suitable for most of the 75mm 1s frames. Paired with BT2.0 connector 300/450mAh battery, the flight time will be longer!

BETAFPV 1102 18000KV Brushless Motors (4pcs)

The BETAFPV 1102 18000KV 37mm Brushless Motor version is the original all-black version with a cable length of 37mm.

BETAFPV 1102 18000KV 37mm Brushless Motor (4Pcs)

4 Pack of BetaFPV 1102 Brushless Motors for providing stronger thrust in 1S whoop drone, 1102 18000KV motor has released. It is suitable for most of 75mm 1s frame. Paired with BT2.0 connector 300/450mAh battery, the flight time will be longer. Also, It is stock motor of Meteor75. Check out all our 11XX Motors and the r

BetaFPV 1102 Brushless Motor - 18000KV - 4PC

Brushless or Brushed

The motors spin with the propellers to lift your quad off the ground. If you’ve picked a frame already, we show you which motors are appropriate for your frame. Beginners can choose motors with a similar stator size that others have used for the frame you’ve selected. Alternatively, calculate the thrust required for a particular thrust-to-weight ratio and learn to read motor thrust tables to select the best motors for your needs.

Motors

Motor KV

Motor Stator Size

NewBeeDrone

NewBeeDrone Gold Edition 0802 Motor - 18000Kv

NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level. These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs. These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs! Specifications:  - 0802 Motor Size- 18,000kv (Designed for 1s)- 1mm Shaft size- Lead wire solder pads- JST-1.0 Plugs installed - 24mm cable length

NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level. These motors come w

NewBeeDrone 0802 18000kv Brushless Motors - Gold Edition (Set of 4)



NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level.


These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!


Spare motor plugs can be found here.
Spare motor screws can be found here.




Specifications:


- 0802 Motor Size
- 18,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 2.05g each


What does that mean in terms of performance?

Check out this video from team pilot DZ flying outdoors on 1s using our Nectar gold 300 packs and BeeBrain BL FC.




NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set of 4)

NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set



NewBeeDrone has gone brushless! These 0802 18000kv motors were tested and then selected from many different KV and size options to give you the best overall flying experience. With more punch and more top end than traditional brushed motors, these brushless motors bring everything to the next level.


These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25&#39s. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!


Spare motor plugs can be found here.
Spare motor screws can be found here.




Specifications:


- 0802 Motor Size
- 18,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 2.05g each


What does that mean in terms of performance?

Check out this video from team pilot DZ flying outdoors on 1s using our Nectar gold 300 packs and BeeBrain BL FC.




NewBeeDrone 0802 18000kv Brushless Motors - Unibell Gold Edition (Set of 4) from WREKD Co.

NewBeeDrone Silver Edition 0703 Motor - 16420Kv

Introducing the next addition to the NewBeeDrone Brushless Whoop motor series, the 0703 16,420kv Silver Edition! This option is for those looking for a lighter, smoother feel for their brushless 1s FPV drone. These motors are POWERHOUSES on 2s with NBD Azi Props also!These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!Spare motor plugs can be found here.Spare motor screws can be found here.Specifications: - 0703 Motor Size- 16,420kv- 1mm Shaft size- Lead wire solder pads- JST-1.0 Plugs installed- 24mm cable length- 1.85g each

Introducing the next addition to the NewBeeDrone Brushless Whoop motor series, the 0703 16,420kv Silver Edition! This option is for those looking for a lighter, smoother feel for their brushless 1s FPV drone. These motors are POWERHOUSES on 2s with NBD Azi Props also!These motors come with JST-1.0 plugs installed but a

NewBeeDrone 0703 16420kv Brushless Motors - Silver Edition (Set of 4)

Introducing the next addition to the NewBeeDrone Brushless Whoop motor series, the 0703 16,420kv Silver Edition! This option is for those looking for a lighter, smoother feel for their brushless 1s FPV drone. These motors are POWERHOUSES on 2s with NBD Azi Props also!



These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25&#39s. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!



Spare motor plugs can be found here.
Spare motor screws can be found here.


Review Video:



Specifications:

- 0703 Motor Size
- 16,420kv

- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 1.85g each

Introducing the next addition to the NewBeeDrone Brushless Whoop motor series, the 0703 16,420kv Silver Edition! This option is for those looking for a lighter, smoother feel for their brushless 1s FPV drone. These motors are POWERHOUSES on 2s with NBD Azi Props also! These motors come with JST-1.0 plugs installed but

NewBeeDrone 0703 16420kv Brushless Motors - Silver Edition (Set of 4) from WREKD Co.

Introducing the next addition to the NewBeeDrone Brushless Whoop motor series, the 0703 16,420kv Silver Edition! This option is for those looking for a lighter, smoother feel for their brushless 1s FPV drone. These motors are POWERHOUSES on 2s with NBD Azi Props also!



These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

These packs are designed for 1s packs such as the Nitro Nectar Gold 300mah HV 1s packs!



Spare motor plugs can be found here.
Spare motor screws can be found here.


Review Video:



Specifications:

- 0703 Motor Size
- 16,420kv

- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 24mm cable length
- 1.85g each

NewBeeDrone Flow 0802 Motor - 19000Kv

Specifications:
- 0802 Motor Size
- 19,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 50mm cable length
- 2.16g each
 Includes:
4* JST1.25 Whoop Motor Plug Replacement
16* M1.4*3 Screws

Specifications: - 0802 Motor Size - 19,000kv (Designed for 1s) - 1mm Shaft size - Lead wire solder pads - JST-1.0 Plugs installed - 50mm cable length - 2.16g each  Includes: 4* JST1.25 Whoop Motor Plug Replacement   16* M1.4*3 Screws

NewBeeDrone Flow 0802 19000kv Brushless Motors (Set of 4)

Specifications:

- 0802 Motor Size
- 19,000kv (Designed for 1s)
- 1mm Shaft size
- Lead wire solder pads
- JST-1.0 Plugs installed
- 50mm cable length
- 2.16g each
 Includes:
4* JST1.25 Whoop Motor Plug Replacement
16* M1.4*3 Screws

Specifications:   - 0802 Motor Size - 19,000kv (Designed for 1s) - 1mm Shaft size - Lead wire solder pads - JST-1.0 Plugs installed - 50mm cable length - 2.16g each  Includes: 4* JST1.25 Whoop Motor Plug Replacement   16* M1.4*3 Screws

NewBeeDrone Flow 0802 19000kv Brushless Motors (Set of 4) from WREKD Co.

NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 19000kv (Set of 4)

 Spec:material: 7075 AluminumBearing: NSK Ball Bearing Weight: with cable and plug -2.15g without cable -1.95gInclude4x flow 0802 Double ball bearing motor 19000kv with JST1.0 plug 4x extra JST1.25 plug cable for compatible with other flight controllers

NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 19000kv (Set of 4)  Spec:material: 7075 AluminumBearing: NSK Ball Bearing Weight: with cable and plug -2.15g without cable -1.95gInclude4x flow 0802 Double ball bearing motor 19000kv with JST1.0 plug 4x extra JST1.25 plug cable for compatible with other flight control

NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 19000kv (Set of 4) from WREKD Co.

NewBeeDrone Flow 0802 Dual Ball Bearing Whoop motor 19000kv (Set of 4)

NEWBEEDRONE

NewBeeDrone's FLOW series now gets a 0802 motor. These 0802 19,000kv motors were selected to give an option to those who want that "FULL SEND" raw power on their 1s whoops. These brushless motors bring everything to the next level.
Check out our other 0802 motors, and all our NewBeeDrone selection!
Specifications

0802 Motor Size
19,000kv (Designed for 1s)
1mm Shaft size
Lead wire solder pads
JST-1.0 Plugs installed
50mm cable length
2.16g each

Includes

4x NewBeeDrone Flow 0802 19000Kv Micro Motors
4x JST1.25 Whoop Motor Plug Replacement
16x M1.4x3 Screws


NewBeeDrone's FLOW series now gets a 0802 motor. These 0802 19,000kv motors were selected to give an option to those who want that "FULL SEND" raw power on their 1s whoops. These brushless motors bring everything to the next level.  Check out our other 0802 motors, and all our NewBeeDrone selection! Specifications 0802

NewBeeDrone Flow 0802 19000Kv Micro Motor 4 Pack

Happymodel

Happymodel EX1202.5 Motor - 11500Kv

Give your micro quad maximum power with the Happymodel EX1202.5 CCW motor!

Happymodel EX1202.5 Motor (CCW) - 11500KV

Give your micro quad maximum power with the Happymodel EX1202.5 motor! Check out our 1202.5 Motors, the Happymodel Crux3 Collection, and the rest of our Happymodel Products! Features This motor is the stock motor on the Crux3. Specifications Dimension(Dia.*Len):15mm*15mm Inner Shaft Diameter: 2mm Out Shaft Diameter:1.5

Happymodel EX1202.5 Motor - 11500KV

Happymodel EX1103 Motor - 11000Kv

This is a replacement motor for the Happymodel Baseline 2" FPV Drone Frame. It will also work great one any 2" Toothpick style drone. Check out the rest of our 11XX Motors and Happymodel Products! Specifications: Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):

Happymodel EX1103 11000KV Brushless FPV Drone Motor for Happymodel Baseline (1 Pc.)

HAPPYMODEL

The Happymodel SE0702 11000KV are the direct replacement motors for the Bassline 2S, so RDQ has you covered! It will also work great one any 2" Toothpick style drone.
Check out our other micro motors, and all our HappyModel selection!

Specifications

Kv: 11000Kv

Input Voltage: 1SS LiPo


Configuration: 9N12P


Motor Dimensions: Φ13.5mm x 15.5mm


Stator Dimensions: Φ11mm x 3mm

Shaft Diameter: Φ1.5mm
Mounting Pattern: Φ7mm

Weight: 3.8g


Includes

1x HappyModel EX1103 11000Kv Micro Motor
4x Motor Screws

Note: this motor is sold by HappyModel as a mix of CW &amp CCW options. These should be interchangeable, but if for some reason the rotation of the motor is not going the direction you desire, then you can simply reverse the settings in BLHeli or swap any two motor wires to reverse the direction.

The Happymodel SE0702 11000KV are the direct replacement motors for the Bassline 2S, so RDQ has you covered! It will also work great one any 2" Toothpick style drone.  Check out our other micro motors, and all our HappyModel selection! Specifications Kv: 11000Kv Input Voltage: 1SS LiPo Configuration: 9N12P Motor Dimens

HappyModel EX 1103 11000Kv Micro Motor

The Happymodel EX1103 11000KV motor is a replacement or spare motor for the Happymodel Bassline 2S. Great for toothpick builds!

Happymodel EX1103 Bassline Motor - 11000KV (CW)

NewBeeDrone Espresso Edition 0802 Motor - 14000Kv

NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (Set of 4)

This is our second generation motor design, we use unibell on this motor at the same time we switch to double step shaft. Without the C-Clips on top of the bell will make the motor balance to the next level.  This motor is design to operate under 2S voltage ( 7.4V)

These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

Note: These motors require a high performance battery such as the Nitro Nectar Gold 300mah HV 1s packs!




Spare motor plugs can be found here.
Spare motor screws can be found here.



Specifications:


- 0802 Motor Size
- 14,000KV (Designed for 2s)
- 1mm double step Shaft
- Lead wire solder pads
- JST-1.0 Plugs installed
- 50mm cable length
- 2.08 grams each with wire and plug



NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (Set of 4) This is our second generation motor design, we use unibell on this motor at the same time we switch to double step shaft. Without the C-Clips on top of the bell will make the motor balance to the next level.  This motor is design to operate

NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (Set of 4)

NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (

NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (Set of 4)

This is our second generation motor design, we use unibell on this motor at the same time we switch to double step shaft. Without the C-Clips on top of the bell will make the motor balance to the next level.  This motor is design to operate under 2S voltage ( 7.4V)

These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25&#39s. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

Note: These motors require a high performance battery such as the Nitro Nectar Gold 300mah HV 1s packs!




Spare motor plugs can be found here.
Spare motor screws can be found here.



Specifications:


- 0802 Motor Size
- 14,000KV (Designed for 2s)
- 1mm double step Shaft
- Lead wire solder pads
- JST-1.0 Plugs installed
- 50mm cable length
- 2.08 grams each with wire and plug



NewBeeDrone 0802 14000KV Brushless Motors - Unibell Espresso Edition (Set of 4) from WREKD Co.

NewBeeDrone Flow 1102 Motor - 19000Kv


The NewBeeDrone FLOW 1102 Motors fill the gap between 0802 and 1202 motors. It brings extra power to the Acrobee75 and MosquitoXL Frame. If you need to carry an HD System on both of the frame, this motor is a good option for the setup.
Specifications:
- 3.47g w/ wire
- Titanium Alloy TC4 Shaft
- NSK  Ball Bearing
- 0.2mm Silicon Steel Sheets Core
- 50mm cable length with JST1.0 Plug to work with all BeeBrainBL Flight Controller
- 7075 Aluminum Alloy
- 10000KV for 2S battery / 19000KV for 1S battery
- 1.5mm shaft
- Whoop motor mount that can fit in with all Cockroach Frame and the Mosquito frame.

The NewBeeDrone FLOW 1102 Motors fill the gap between 0802 and 1202 motors. It brings extra power to the Acrobee75 and MosquitoXL Frame. If you need to carry an HD System on both of the frame, this motor is a good option for the setup. Specifications: - 3.47g w/ wire - Titanium Alloy TC4 Shaft - NSK  Ball Bearing - 0.2

NewBeeDrone FLOW 1102 Motor - 19000KV (4 Pack)

NewBeeDrone FLOW 1102 Motor - 19000KV (4 Pack) from WREKD Co.

NewBeeDrone Flow 0804 Motor - 12000Kv

Introducing the first Dual Ball Bearing 08 size motor. It is also the smallest motor under our Flow motor product line. Making a double Ball bearing whoop motor had been a challenge in our industry. High RPM, Limited space from the motor stators, Heat, all of these factor had been stopping people to make whoop size motor with dual ball bearing. We had been trying to prototyping and testing dual ball bearing 08 size motor back in 2020. Finally we find a way to make it work. We are using two 681XZZ ball bearing on this design. The Flow motor design gives this motor a better performance on cooling also structure strength. We are also using 7075 Aluminum Alloy on this motor. This is probably the first 08 size motor to use 7075 aluminum Alloy. The Motor still comes with PCB Board on the bottom to have the ability to swap motor wire. It also comes with more different KV option. 12000KV is good for 2S setup. 19000KV is the best balance KV we prefer everyone to use. 25000KV is crazy fast and perfect for racing.
These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25&#39s. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

Note: These motors require a high performance battery such as the Nitro Nectar Gold



Spare motor plugs can be found here.
Spare motor screws can be found here.

Recommend setup
Frame: Cockroach75 and Mosquito and MosquitoXL
Props: 40mm Azi Prop  or Gemfan 65mmS prop




Specifications:




- 0804 Motor Size
- 7075 Aluminum Alloy
- 12,000KV (Designed for 2s) 19,000KV for best efficient and balance
- 25,000KV for Racing
- 1mm double step Shaft
- Lead wire solder pads
- JST-1.0 Plugs installed also come with spare 1.25 plug with 50mm wire
- 50mm cable length
- 2.85 grams each without wire and plug


Introducing the first Dual Ball Bearing 08 size motor. It is also the smallest motor under our Flow motor product line. Making a double Ball bearing whoop motor had been a challenge in our industry. High RPM, Limited space from the motor stators, Heat, all of these factor had been stopping people to make whoop size mot

NewBeeDrone Flow 0804 Dual Ball-Bearing Whoop Motor 12000KV&19000KV&25000KV (4PACK) from WREKD Co.

NewBeeDrone Flow 0804 Dual Ball-Bearing Whoop Motor 12000KV&19000KV&25000KV (4PACK)

Introducing the first Dual Ball Bearing 08 size motor. It is also the smallest motor under our Flow motor product line. Making a double Ball bearing whoop motor had been a challenge in our industry. High RPM, Limited space from the motor stators, Heat, all of these factor had been stopping people to make whoop size motor with dual ball bearing. We had been trying to prototyping and testing dual ball bearing 08 size motor back in 2020. Finally we find a way to make it work. We are using two 681XZZ ball bearing on this design. The Flow motor design gives this motor a better performance on cooling also structure strength. We are also using 7075 Aluminum Alloy on this motor. This is probably the first 08 size motor to use 7075 aluminum Alloy. The Motor still comes with PCB Board on the bottom to have the ability to swap motor wire. It also comes with more different KV option. 12000KV is good for 2S setup. 19000KV is the best balance KV we prefer everyone to use. 25000KV is crazy fast and perfect for racing.
These motors come with JST-1.0 plugs installed but also come with a set of Micro JST-1.25's. The BeeBrain Brushless uses Flight controller uses JST-1.0 plugs.

Note: These motors require a high performance battery such as the Nitro Nectar Gold



Spare motor plugs can be found here.
Spare motor screws can be found here.

Recommend setup
Frame: Cockroach75 and Mosquito and MosquitoXL
Props: 40mm Azi Prop  or Gemfan 65mmS prop




Specifications:




- 0804 Motor Size
- 7075 Aluminum Alloy
- 12,000KV (Designed for 2s) 19,000KV for best efficient and balance
- 25,000KV for Racing
- 1mm double step Shaft
- Lead wire solder pads
- JST-1.0 Plugs installed also come with spare 1.25 plug with 50mm wire
- 50mm cable length
- 2.85 grams each without wire and plug


NewBeeDrone Flow 0804 Dual Ball-Bearing Whoop Motor 12000KV&19000KV&25

Sub250

Sub250 M1 0803 Motor - 19000Kv

Sub250&#39s Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames out! Check out the motor intended for this frame with matching color!!
Check out our vast motor selection as well as the rest of our Sub250 selection!
Specifications

Input Voltage: 1S
Kv Rating: 19000Kv
Configuration: 9N12P

Shaft Diameter: 1.5mm

Weight (Incl. Cable): 2.2g

Mounting Pattern: 6x6mm TRI

Includes

4x Sub250 M1 0803 19000Kv Micro/Whoop Motor



Sub250's Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames out! Check out the motor intended for this frame with matching color!! Check out our vast motor selection as well as the rest of our Sub250 selection! Specifications Input Voltage: 1S Kv Rating: 19000Kv Configuration: 9N12P Shaft Dia

Sub250 M1 0803 19000Kv Micro/Whoop Motor 4 Pack from WREKD Co.

Sub250 M1 0803 19000Kv Micro/Whoop Motor 4 Pack

SUB250

Sub250's Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames out! Check out the motor intended for this frame with matching color!!
Check out our vast motor selection as well as the rest of our Sub250 selection!
Specifications

Input Voltage: 1S
Kv Rating: 19000Kv
Configuration: 9N12P

Shaft Diameter: 1.5mm

Weight (Incl. Cable): 2.2g

Mounting Pattern: 6x6mm TRI

Includes

1x Sub250 M1 0803 19000Kv Micro/Whoop Motor



Sub250 M1 0803 19000Kv Micro/Whoop Motor

Sub250&#39s Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames out! Check out the motor intended for this frame with matching color!!
Check out our vast motor selection as well as the rest of our Sub250 selection!
Specifications

Input Voltage: 1S
Kv Rating: 19000Kv
Configuration: 9N12P

Shaft Diameter: 1.5mm

Weight (Incl. Cable): 2.2g

Mounting Pattern: 6x6mm TRI

Includes

1x Sub250 M1 0803 19000Kv Micro/Whoop Motor



Sub250 M1 0803 19000Kv Micro/Whoop Motor from WREKD Co.

Sub250's Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames out! Check out the motor intended for this frame with matching color!!
Check out our vast motor selection as well as the rest of our Sub250 selection!
Specifications

Input Voltage: 1S
Kv Rating: 19000Kv
Configuration: 9N12P

Shaft Diameter: 1.5mm

Weight (Incl. Cable): 2.2g

Mounting Pattern: 6x6mm TRI

Includes

4x Sub250 M1 0803 19000Kv Micro/Whoop Motor

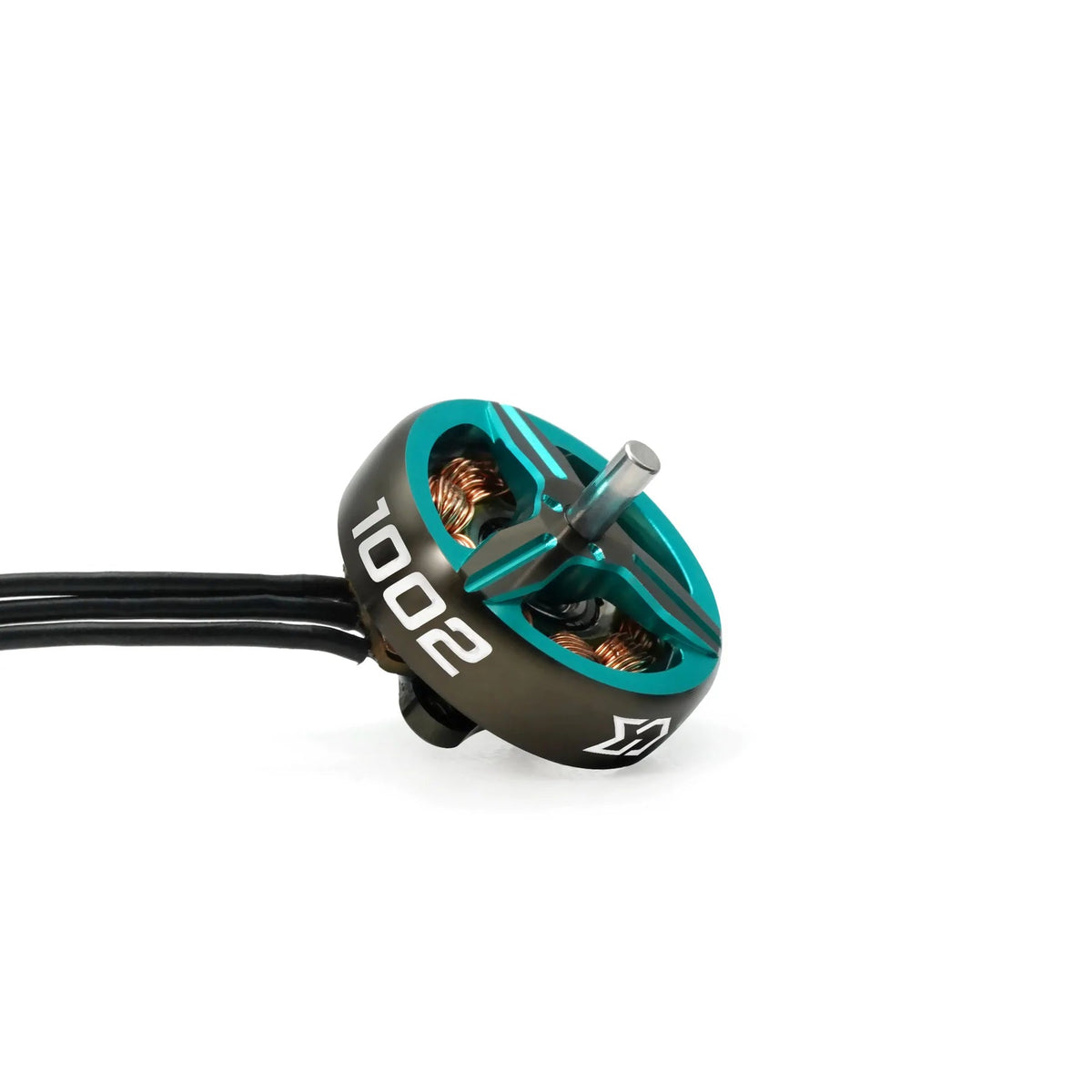

Sub250 1002 Motor - 14000Kv











Sub250&#39s M2 1002 brushless motor is specially designed for 1.6-2 inch FPV Drones, with strong power, small size and lightweight design. It uses imported N52H magnetic steel and high-temperature resistant coil, ball bearings, and a three-blade rotor for good structural rigidity and heat dissipation.










Check out the rest of our pre-built quads, as well as the rest of our Sub250 selection!

Features

Small in size and lightweight, only 2.6g.
N52H strong magnetic magnet, high-temperature resistant coil, full of power.
Using imported ball bearings, the motor has high efficiency and long service life.
Low loss stator, low heat generation, and high efficiency.
With fine motor dynamic balance adjustment, the motor runs smoothly and stably.
Suitable for 1.6 -2 inch mini FPV drones.
The 1.5mm shaft diameter is suitable for most propellers on the market.

Specifications


Brand Name: Sub250


Product: M2 1002 Brushless Motor


KV value: 14000


Working voltage: 4.35V (1S)


Configuration: 9N12P


Stator diameter: 10mm


Stator height: 2mm


Outlet diameter: Φ1.5mm


Dimensions: Φ13.83mm x 7.75mm


Magnet: N52H


Weight: 2.6g (5cm wire)


Applicable model: 1.6- 2-inch FPV drones


Recommended battery: 1S 380mAh-530mAh LiPo


Includes

1x Sub250 1002 14000Kv Micro Motor - Black/Blue (1.5mm Shaft)
4x M1.4 x 3mm screw


Sub250's M2 1002 brushless motor is specially designed for 1.6-2 inch FPV Drones, with strong power, small size and lightweight design. It uses imported N52H magnetic steel and high-temperature resistant coil, ball bearings, and a three-blade rotor for good structural rigidity and heat dissipation.  Check out the rest

Sub250 1002 14000Kv Micro Motor - Black/Blue (1.5mm Shaft) from WREKD Co.

Sub250 1002 14000Kv Micro Motor - Black/Blue (1.5mm Shaft)

Sub250 independently developed the M2 1002 brushless motor for the 1.6 -2inch FPV Drones. This motor has strong power, is small in size and lightweight, and is specially designed for mini quads.We choose imported N52H magnetic steel with a high-temperature resistant coil, the motor has strong power. And we use ball bea

Sub250 M2 1002 14000KV Brushless FPV Drone Motor (1 Pc.) - Choose Color

Sub250 M2 1002 14000KV Brushless FPV Drone Motor Set (4 Pc.) - Choose Color











Sub250's M2 1002 brushless motor is specially designed for 1.6-2 inch FPV Drones, with strong power, small size and lightweight design. It uses imported N52H magnetic steel and high-temperature resistant coil, ball bearings, and a three-blade rotor for good structural rigidity and heat dissipation.










Check out the rest of our pre-built quads, as well as the rest of our Sub250 selection!

Features

Small in size and lightweight, only 2.6g.
N52H strong magnetic magnet, high-temperature resistant coil, full of power.
Using imported ball bearings, the motor has high efficiency and long service life.
Low loss stator, low heat generation, and high efficiency.
With fine motor dynamic balance adjustment, the motor runs smoothly and stably.
Suitable for 1.6 -2 inch mini FPV drones.
The 1.5mm shaft diameter is suitable for most propellers on the market.

Specifications


Brand Name: Sub250


Product: M2 1002 Brushless Motor


KV value: 14000


Working voltage: 4.35V (1S)


Configuration: 9N12P


Stator diameter: 10mm


Stator height: 2mm


Outlet diameter: Φ1.5mm


Dimensions: Φ13.83mm x 7.75mm


Magnet: N52H


Weight: 2.6g (5cm wire)


Applicable model: 1.6- 2-inch FPV drones


Recommended battery: 1S 380mAh-530mAh LiPo


Includes

1x Sub250 1002 14000Kv Micro Motor - Black/Blue (1.5mm Shaft)
4x M1.4 x 3mm screw


Flywoo

Flywoo ROBO 1002 Motor - 19800Kv

Replacement motor for the Firefly DC16 or a new motor to style out your next micro build with this purple and gold micro motor from Flywoo. Rated with a stator 1002 and Kv of 19,800, giving you great power for your whoop builds.
Check out our Micro Motors and Flywoo gear selection!

Specifications


KV: 19800
Stator: 1002
Motor Bolt Pattern: 6mm Tri-Mount
Configuration: 9N12P
Stator Diameter: 10mm
Stator Length: 2mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.xLen): Φ13.5x7.75mm

Weight(g): 2.5(5cm wire)
Idle current(5)@5V(A): 1.3
No.of Cells(Lipo): 1S
Max Continuous Power(W)3S: 44
Internal Resistance: 89mΩ
Max Current(3S): 11.8A

Max Efficiency Current: (2-4A)&ampgt84%

Includes

1x Flywoo Robo 1002 19800Kv Micro Motor



Replacement motor for the Firefly DC16 or a new motor to style out your next micro build with this purple and gold micro motor from Flywoo. Rated with a stator 1002 and Kv of 19,800, giving you great power for your whoop builds.  Check out our Micro Motors and Flywoo gear selection! Specifications  KV: 19800 Stator: 10

Flywoo Robo 1002 19,800Kv Micro Motor from WREKD Co.

Flywoo Robo 1002 19,800Kv Micro Motor

FLYWOO

Replacement motor for the Firefly DC16 or a new motor to style out your next micro build with this purple and gold micro motor from Flywoo. Rated with a stator 1002 and Kv of 19,800, giving you great power for your whoop builds.
Check out our Micro Motors and Flywoo gear selection!

Specifications


KV: 19800
Stator: 1002
Motor Bolt Pattern: 6mm Tri-Mount
Configuration: 9N12P
Stator Diameter: 10mm
Stator Length: 2mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.xLen): Φ13.5x7.75mm

Weight(g): 2.5(5cm wire)
Idle current(5)@5V(A): 1.3
No.of Cells(Lipo): 1S
Max Continuous Power(W)3S: 44
Internal Resistance: 89mΩ
Max Current(3S): 11.8A

Max Efficiency Current: (2-4A)&gt84%

Includes

1x Flywoo Robo 1002 19800Kv Micro Motor



Flywoo ROBO 1003 Motor - 14800Kv

The Flywoo Robo 1003 Motor adopts a new structural design with dual bearings, 7075 aviation aluminum material, a high-efficiency magnetic circuit, dual-color oxidation, wire soldering pad design, and a weight of only 3.3g.&nbsp

The Flywoo Robo 1003 Motor adopts a new structural design with dual bearings, 7075 aviation aluminum material, a high-efficiency magnetic circuit, dual-color oxidation, wire soldering pad design, and a weight of only 3.3g.

Flywoo ROBO 1003 Motor for FlyLens 85 - 14800KV

、Description: The FLYWOO RB1003 motor adopts a new structural design with a dual bearing design, 7075 aviation aluminum material, high-efficiency magnetic circuit design, dual-color oxidation appearance, wire soldering pad design, a weight of only 3.3g, efficient power, smooth operation, and stable control. It is very

ROBO 1003 14800KV Fpv Motor














The Flywoo Robo 1003 motor provides an efficient power output and smooth operation in a lightweight package. It's constructed of top-grade 7075 aviation aluminum and boasts a dual bearing design, high-efficiency magnetic circuit design, dual color oxidation, and wire soldering pad for reliable control. It's an ideal choice for whoop and toothpick models.














Check out our Micro Motors and Flywoo gear selection!









Specifications

Brand: FLYWOO

Model: RB1003 Brushless motor

Configuration: 9N12P

Magnet: N52H

Stator Diameter: 10MM

Stator Height: 3MM

Output Shaft Diameter: 1.50MM

Dimensions: 13.5mm x 9.2mm

Rated Voltage: 1-2S

Mounting Hole: 3xM1.4-D6.6

Weight: 3.3g (4cm wire)

Includes

1x Flywoo Robo 1003 14,800Kv Micro Motor - Gold/Purple


The Flywoo Robo 1003 motor provides an efficient power output and smooth operation in a lightweight package. It's constructed of top-grade 7075 aviation aluminum and boasts a dual bearing design, high-efficiency magnetic circuit design, dual color oxidation, and wire soldering pad for reliable control. It's an ideal ch

Flywoo Robo 1003 14800Kv Micro Motor - Gold/Purple














The Flywoo Robo 1003 motor provides an efficient power output and smooth operation in a lightweight package. It&#39s constructed of top-grade 7075 aviation aluminum and boasts a dual bearing design, high-efficiency magnetic circuit design, dual color oxidation, and wire soldering pad for reliable control. It&#39s an ideal choice for whoop and toothpick models.














Check out our Micro Motors and Flywoo gear selection!









Specifications

Brand: FLYWOO

Model: RB1003 Brushless motor

Configuration: 9N12P

Magnet: N52H

Stator Diameter: 10MM

Stator Height: 3MM

Output Shaft Diameter: 1.50MM

Dimensions: 13.5mm x 9.2mm

Rated Voltage: 1-2S

Mounting Hole: 3xM1.4-D6.6

Weight: 3.3g (4cm wire)

Includes

1x Flywoo Robo 1003 14,800Kv Micro Motor - Gold/Purple


Flywoo Robo 1003 14800Kv Micro Motor - Gold/Purple from WREKD Co.

BetaFPV 1103 Motor - 11000Kv

4 Pack of BetaFPV 1103 Brushless Motors : Incredible power, smooth and quiet operation, and light enough for even the smallest builds. Get it while you can!  11000KV - Customized for Beta75X 2S, powerful and durable. Note: The 1103 11000KV motors are NOT recommended for 3S power, 2S max. If you try on 3S the motors wil

BetaFPV 1103 11000KV 2S Brushless Motor (4Pcs)

Lightest 1103 motors in the world. Only 3.2g with connector. This motor was made custom for the Beta75X 2S Whoop.
A 1.5mm header pins connector is include. So no soldering needed, just plug and play.
Check out our ever-growing selection of Whoop products!

Features


1103 11000KV brushless motors is customed for 2S brushless whoop drone.
Fit with 1735, 1935, 2030, 3020 propellers
Shaft Diameter: 1.5mm, Weight: 3.2g
Compatible with 2S lipo battery

Specifications

Height: 14mm
Weight: about 3.2g
Shaft: φ1.5mm
Motor Mount Holes: M1.6 on Dia 8.5mm
KV (rpm/V): 11000
Voltage: 7.4V, 2S Lipo battery
Plug: Micro JST-1.25 3-pins connector

Includes


4x BetaFPV 1103 11000Kv Micro/Whoop Motor



Get the lightest motors in their class with the BetaFPV 1103 11000KV Brushless Motors. These motors, designed for the BetaFPV75X, weigh just 3.2g including connector.

BetaFPV 1103 11000Kv Micro/Whoop Motor 4 Pack

BetaFPV 1103 11000KV Brushless Motors for Sale - RaceDayQuads

Lightest 1103 motors in the world. Only 3.2g with connector. This motor was made custom for the Beta75X 2S Whoop. A 1.5mm header pins connector is include. So no soldering needed, just plug and play. Check out our ever-growing selection of Whoop products! Features 1103 11000KV brushless motors is customed for 2S brushl

BetaFPV 1103 11000Kv Micro/Whoop Motor 4 Pack from WREKD Co.

These motors are some of the lightest 1103 motors in the world. Weighing only 3.2g with the connector. This motor is customed for Beta75X 2S Whoop drone.

BETAFPV 1103 11000KV Brushless Motor (4 Pcs)

BetaFPV 0802SE Motor - 19500Kv

BetaFPV 0802SE 19500KV motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight which is only 1.88g/pc but also ensures excellent performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexibility and long

BETAFPV 0802 SE Brushless Motor Set (2022 Version) - 19500KV - (4 Pc.)

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.
Take a look at all of our micro motor selections and our BetaFPV products!

Features

0802SE 19500KV Brushless Motors (2022 version) comes with a completely new look. The whole motors are silver in the air, looking very bright.
0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.
19500KV and 23000KV options greatly meet the pilots' needs for different flying purposes.
Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.


Specification

Item: 0802SE 19500KV brushless motor
Weight: 1.83g/pc
Kv: 19500KV
Color: Black/Ice Blue
Shaft length: 5mm
Shaft diameter: 1mm
Hole distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cables: 35mm long, 30AWG cables
Dimensions: 10.5x10.5x13.8mm (2022 version)
Bearings: Brass Bushings




Includes

4x BETAFPV 0802SE Brushless Motors 19500Kv
1x Pack of M1.4x3 Screws


0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones. Take a look at all of our micro motor selections and our BetaFPV products! Features 0802SE 19

BetaFPV 0802SE 0802 19500Kv Micro Motor Set of 4

BETAFPV 0802SE Brushless Motors have an awesome performance on power and thrust,  perfect design on dynamic balance and are highly recommend for brushless whoop drones!

BETAFPV 0802SE Brushless Motors (4 Pcs) - 19500KV/22000KV

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.

Bullet Point

0802SE 19500KV/23000KV Brushless Motors (2022 version) come with a completely new look. The whole motors are silver in the air, looking very bright.
0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.
19500KV and 23000KV options greatly meet the pilots' needs for different flying purposes. The 23000KV motors which provide more punch on the throttle with higher KV value are suitable for indoor FPV racing, making aggressive flying come true.
Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.



Specification

Item: 0802SE 19500KV brushless motor
Weight: 1.83g/pc (19500KV) / 1.80g/pc (23000KV)
KV: 19500KV/23000KV
Color: Black/Ice Blue
Shaft length: 5mm
Shaft diameter: 1mm
Hole distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cables: 35mm long, 30AWG cables
Dimensions: 10.5*10.5*13.6mm, 10.5*10.5*13.8mm(2022 version)
Bearings: Brass Bushings



19500KV or 23000KV Motors
Choose 0802SE 19500KV or 23000KV motors. The 0802SE 19500KV motors have a better performance in efficiency and flying endurance. With higher RPM (revolutions per minute), the 0802SE 23000KV requires less throttle for the stronger thrust that has a faster response time, improving the speed of the whoop drone, suitable for aggressive indoor FPV racing. For pilots who fly 65/75mm whoop drones with 19500KV motors, it is a good choice to upgrade motors to 23000KV.



0802SE Motor

19500KV Brushless Motors
23000KV Brushless Motors


Weight
1.83g/pc
1.80g/pc


Endurance
4.5 mins (Meteor65 Pro)
4 mins (Meteor65 Pro)


Application
Cruising, Racing
More powerful for racing


FC

BETAFPV F4 1S 5A Brushless FC
BETAFPV F4 1S 5A Brushless FC




Recommended Parts

Propellers: 31mm 3-blade, 31mm 4-blade, 35mm 3-blade, 40mm 2-blade
Frame: Meteor65 frame, Meteor65 Pro frame, Meteor75 frame

FC: BETAFPV F4 1S 5A Brushless FC

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Battery: 1S Battery



Package

4 * BETAFPV 0802SE Brushless Motors (19500KV or 23000KV)
1 * Pack of M1.4*3 Screws



0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones. Bullet Point 0802SE 19500KV/23000KV Brushless Motors (2022 version) come with a completely ne

0802SE Brushless Motors

0802SE Brushless Motors is a lightweight of only 1.8g/pc for 1S whoop drones. It ensures excellent performance of power and thrust and makes the perfect dynamic balance, providing flexibility and longer flying time for drones.
Take a look at all of our micro motor selections and our BetaFPV products!

Features

0802SE 19500KV Brushless Motors (2022 version) comes with a completely new look. The whole motors are silver in the air, looking very bright.
0802SE Motor makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time. With its lightweight of 1.8g/pc, it is ideal for the weight-sensitive 65mm brushless whoop drone.
19500KV and 23000KV options greatly meet the pilots&#39 needs for different flying purposes.
Lead wire is soldered to the PCB, allowing you to repair it easier once disconnected.


Specification

Item: 0802SE 19500KV brushless motor
Weight: 1.83g/pc
Kv: 19500KV
Color: Black/Ice Blue
Shaft length: 5mm
Shaft diameter: 1mm
Hole distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cables: 35mm long, 30AWG cables
Dimensions: 10.5x10.5x13.8mm (2022 version)
Bearings: Brass Bushings




Includes

4x BETAFPV 0802SE Brushless Motors 19500Kv
1x Pack of M1.4x3 Screws


BetaFPV 0802SE 0802 19500Kv Micro Motor Set of 4 from WREKD Co.

EMAX

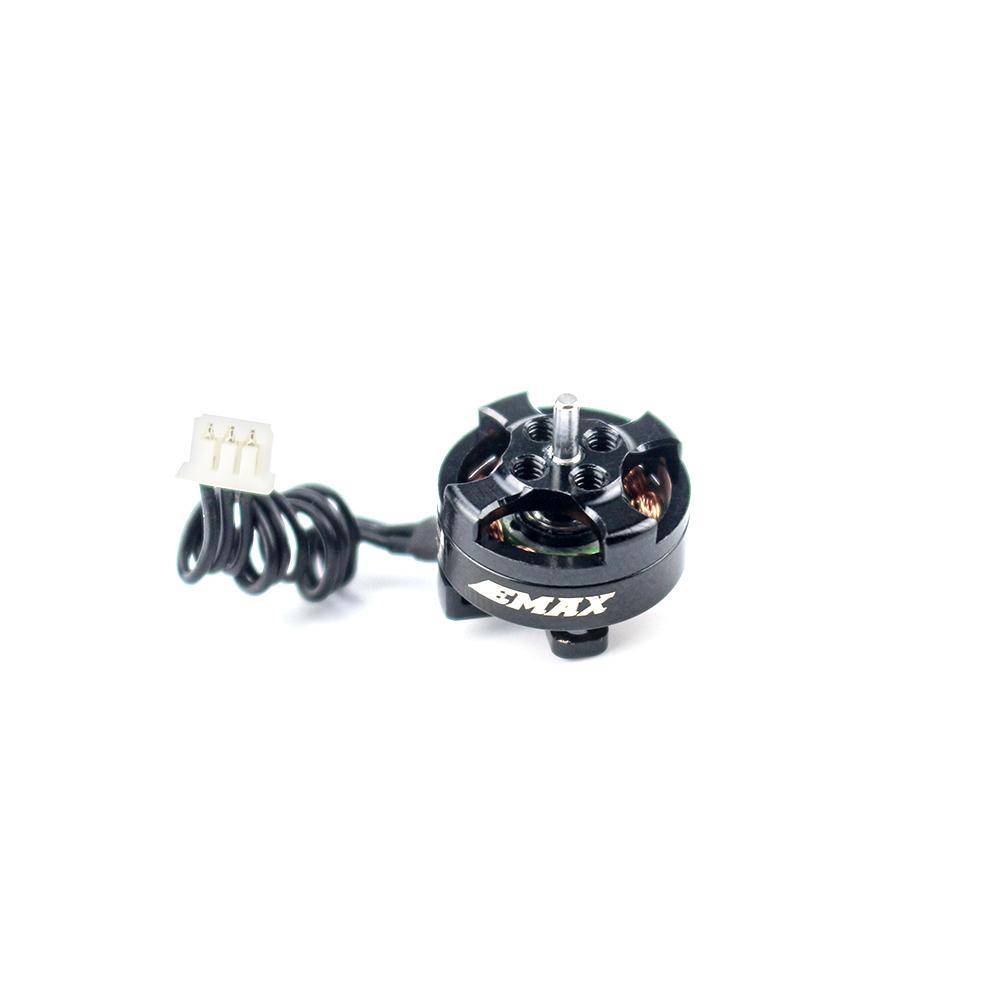

EMAX 0802 Motor - 16000Kv

Tinyhawk II Parts - Brushless Motor 0802 16000KV

Replacement motor for Emax Tinyhawk II Checkout all our 0802 motors and our Emax Collection! Compatibility Tinyhawk II Tinyhawk II RTF Includes 1x EMAX 0802 16000Kv Micro Motor

EMAX 0802 16000kv Tinyhawk II Replacement Brushless Motor

Emax

Spare replacement motor for the EMAX Tiny Hawk II.
Tinyhawk II 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk II more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while also giving better flight times by 20% depending on flight feel and use.
This motor has a plug
Check out all our TinyHawk parts, and EMAX gear!
Includes


1x EMAX 0802 16000Kv Micro Motor w/ Plug


Spare replacement motor for the EMAX Tiny Hawk II. Tinyhawk II 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk II more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while als

EMAX 0802 16000Kv Micro Motor w/ Plug from WREKD Co.

EMAX 0802 16000Kv Micro Motor w/ Plug

EMAX 0802 16000Kv Micro Motor for TinyHawk II for Sale RaceDayQuads

Emax USA

Replacement 0802 16000kv motor for Tinyhawk II or upgrade for Tinyhawk, Tinyhawk S.
Comes with connector but may be cut off for models with soldered motors.

Replacement 0802 16000kv motor for Tinyhawk II or upgrade for Tinyhawk, Tinyhawk S. Comes with connector but may be cut off for models with soldered motors.

Tinyhawk II Parts - Brushless Motor 0802 16000KV from WREKD Co.

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

EMAX Tinyhawk II Parts - Brushless Motor 0802 16000KV - RMRC

EMAX Tinyhawk II Parts - Brushless Motor 0802 16000KV

EMAX 0802 Motor - 15500Kv

Spare replacement motor for the EMAX Tiny Hawk S.
Tinyhawk S 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk S more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while also giving better flight times by 20% depending on flight feel and use.
This motor is great for the Tinyhawk S and can also be used to upgrade the original Tinyhawk for similar performance.
Check out all our TinyHawk parts, and EMAX gear!
Specifications


Input Voltage: 1-2S
Compatibility

Tinyhawk
Tinyhawk RTF
Tinyhawk S


Includes

1x EMAX 0802 15500Kv Micro Motor


Spare replacement motor for the EMAX Tiny Hawk S. Tinyhawk S 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk S more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while also g

EMAX 0802 15500Kv Micro Motor

Replacement 15000kv motor for Tinyhawk 3.  Check out all Tinyhawk 3 Related Collection and the rest of our Emax Gear! Package Includes: 1 x EMAX 0802-15000KV Spare Motor For Tinyhawk 3

EMAX 0802-15000KV Spare Motor For Tinyhawk 3

Replacement OEM Brushless motor for Tinyhawk S. Tinyhawk S 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk S more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while also giv

EMAX 0802 15500kv Brushless Motor For Indoor Racing Drone Tinyhawk S

EMAX 0802 Brushless Motor For Indoor Racing Drone/ Tinyhawk S Performance Part

EMAX 0802 15500kv Brushless Motor For Indoor Racing Drone/ Tinyhawk S Performance Part

EMAX 0802 15500Kv Micro Motor from WREKD Co.

Replacement OEM Brushless motor for Tinyhawk S.
Tinyhawk S 0802 Brushless motor was updated from the original 08025 to be lighter weight and give greater performance. Giving the Tinyhawk S more control and lighter overall weight. This resulted in better flight characteristics and a more efficient system, while also giving better flight times by 20% depending on flight feel and use.
This motor is great for the Tinyhawk S and can also be used to upgrade the original Tinyhawk for similar performance.
Motor is capable of use for 1-2 LiPo operation.

Compatibility:
Tinyhawk S
Tinyhawk RTF
Tinyhawk
