ImmersionRC

ImmersionRC Tramp/Ghost Hybrid DUO V2 2.4GHz Rx & 25-600mW 5.8GHz VTX - U.FL

There is nothing like the experience of flying an FPV drone, but building these marvelous machines is more complex than it needs to be. With Tramp, we set out to raise the bar on video transmitter technology. With Ghost, we set out to redefine the norms in receivers for R/C control. And now we have fused these two toge

Immersion RC Tramp/Ghost Hybrid V2 DUO 5.8GHz vTx/2.4GHz Rx

FPV drone flyers understand the need for complex builds, but fortunately, Tramp and Ghost have revolutionized boundaries of video transmitter and receiver technology respectively. Now, these pioneering components have been merged into the remarkable Ghost Hybrid - designed, constructed and supported by pilots, for pilots.

Features


Two full receiver channels (not just dual antenna)
Only 2.2g, perfect for the popular sub-250g class
Extreme Range AND Low Latency
500Hz R/C Link Updates (HW is 1kHz ready)
2.4GHz Lora OR FLRC control modes, for the best performance in any environment
Integrated 5.8GHz 25mW - 600mW Video Transmitter
Thermally Regulated, Factory Calibrated

Specifications


Input Voltage: 5V


VTX Output Power: 25-600mW


Antenna Connector: U.FL

Power/Video Connection: Solder Pads / Plug
Frequency Range : 2406 - 2479MHz
Modulation: Chirp Spread Spectrum + Adaptive FHSS
Binding: Bidirectional with confirmation and protocol negotiation
RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
Downlink Tx Power: +13dBm
Sensitivity: -117dBm in Long Range mode
Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
Firmware: Over-the-air (OTA) upgradable

Stack Size: 20x20mm, 25x25mm


Dimensions: 31.5x30mm


Weight: 2.2g


Includes

1x ImmersionRC Ghost Hybrid DUO V2 2.4GHz Receiver &ampamp 20-600mW 5.8GHz VTX



FPV drone flyers understand the need for complex builds, but fortunately, Tramp and Ghost have revolutionized boundaries of video transmitter and receiver technology respectively. Now, these pioneering components have been merged into the remarkable Ghost Hybrid - designed, constructed and supported by pilots, for pilo

Immersion RC Tramp/Ghost Hybrid V2 DUO 5.8GHz vTx/2.4GHz Rx from WREKD Co.

The new ImmersionRC Tramp/Ghost Hybrid DUO V2 is a high-end analog 5.8GHz 25mW - 600mW video transmitter and 2.4GHz diversity receiver!

ImmersionRC Tramp/Ghost Hybrid DUO V2 2.4GHz Rx & 25-600mW 5.8GHz VTX

ImmersionRC Tramp/Ghost Hybrid DUO V2 2.4GHz Rx &amp 25-600mW 5.8GHz VTX

VTX Frequency

The VTX processes the image from your FPV camera and sends it to your goggle’s video receiver (VRX). If you chose as digital video system, you need a VTX that matches the system. Most analog VTXs and VRXs are compatible with each other, and your biggest consideration will be how much output power you need. The more output power, the more range and better signal you’ll get. Learn more about VTXs.

Video Transmitters

VTX Stack Mount

VTX Antenna Connector

Max Transmission Power

Digital / Analog VTX

FPV Camera Included

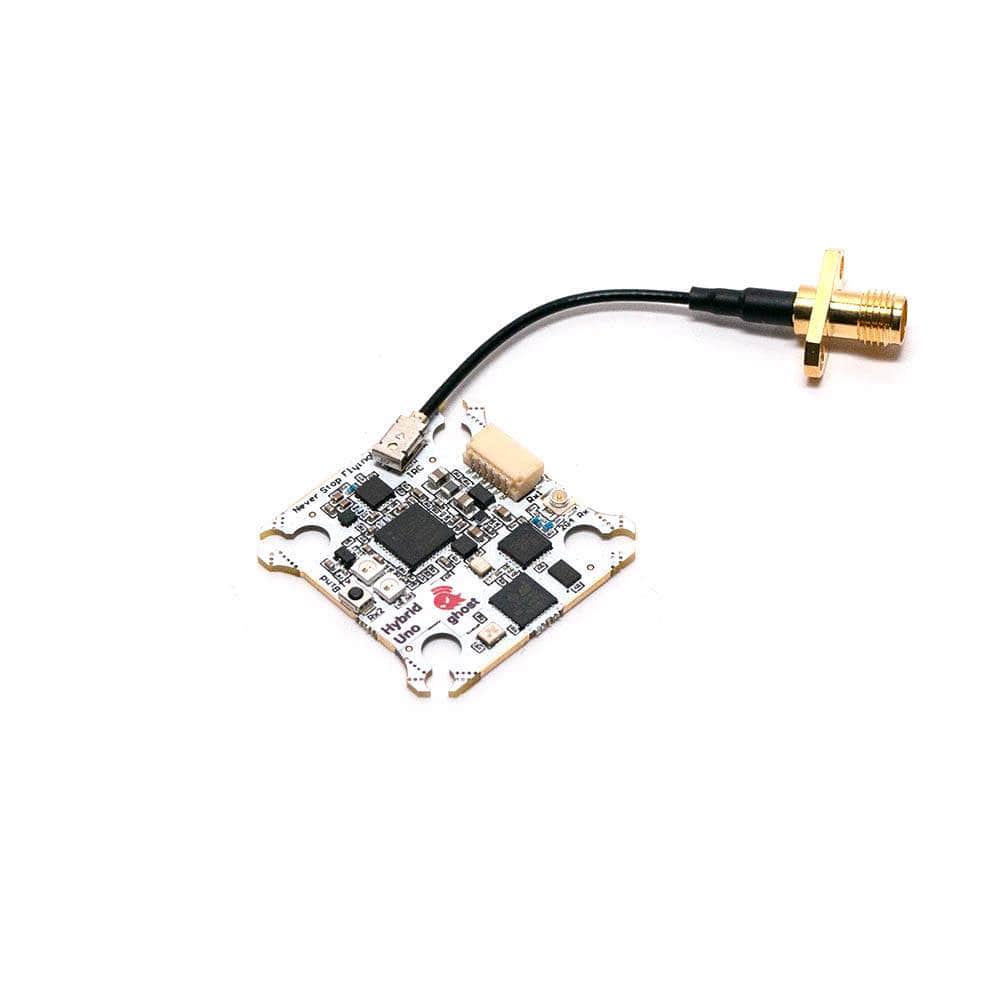

ImmersionRC Tramp/Ghost Hybrid UNO V2 2.4GHz Rx & 25-600mW 5.8GHz VTX - U.FL

Immersion RC Tramp/Ghost Hybrid V2 UNO 5.8GHz vTx/2.4GHz Rx


Experiencing FPV flight is unparalleled, yet constructing those extraordinary vehicles can be intricate. We sought to advance video transmitter technology with Tramp and re-invent receiver norms with Ghost. Today, we are proud to introduce Ghost Hybrid, an unprecedented melding of the two. Developed by pilots, engineered by pilots, and backed by pilots.
Features

Only 2.2g, perfect for the popular sub-250g class
Extreme Range AND Low Latency
500Hz R/C Link Updates (HW is 1kHz ready)
2.4GHz Lora OR FLRC control modes, for the best performance in any environment
Integrated 5.8GHz 25mW - 600mW Video Transmitter
Thermally Regulated, Factory Calibrated

Specifications


Input Voltage: 5V


VTX Output Power: 25-600mW


Antenna Connector: U.FL

Power/Video Connection: Solder Pads / Plug
Frequency Range : 2406 - 2479MHz
Modulation: Chirp Spread Spectrum + Adaptive FHSS
Binding: Bidirectional with confirmation and protocol negotiation
RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
Downlink Tx Power: +13dBm
Sensitivity: -117dBm in Long Range mode
Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted
Firmware: Over-the-air (OTA) upgradable

Stack Size: 20x20mm, 25x25mm


Dimensions: 31.5x30mm


Weight: 2.2g


Includes

1 x ImmersionRC Ghost Hybrid UNO V2 2.4GHz Receiver &ampamp 20-600mW 5.8GHz VTX


Experiencing FPV flight is unparalleled, yet constructing those extraordinary vehicles can be intricate. We sought to advance video transmitter technology with Tramp and re-invent receiver norms with Ghost. Today, we are proud to introduce Ghost Hybrid, an unprecedented melding of the two. Developed by pilots, engineer

Immersion RC Tramp/Ghost Hybrid V2 UNO 5.8GHz vTx/2.4GHz Rx from WREKD Co.

The new ImmersionRC Tramp/Ghost Hybrid UNO V2 is a high-end analog 5.8GHz 25mW - 600mW video transmitter and 2.4GHz diversity receiver!

ImmersionRC Tramp/Ghost Hybrid UNO V2 2.4GHz Rx & 25-600mW 5.8GHz VTX

ImmersionRC Tramp/Ghost Hybrid UNO V2 2.4GHz Rx &amp 25-600mW 5.8GHz VTX

TBS Unify Pro 5G8 HV - RP-SMA

Team BlackSheep

A Unify Pro 5G8 HV transmitter from Team Black Sheep.

TBS Unify Pro 5G8 HV (RP-SMA)

AKK FX3 Ultimate Mini 20x20 25-600mW 5.8GHz VTX - MMCX & U.FL

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.
Details:

Support Pit Mode
25mW, 200mW, 400mW and 600mW power switchable
One button frequency and power setup
OSD configuration using Smart audio
7-24V input with 5V output
MMCX+UFL connector
MIC
Note: Smart Audio is not compatible with KISS flight controllers.



FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a &quotHAM&quot amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government&#39s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government&#39s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.  Details: Support Pit Mode 25mW, 200mW, 400mW and 600mW power switchable One button frequency and power setup OSD co

AKK FX3 Ultimate Mini 20x20 25-600mW 5.8GHz VTX - MMCX & U.FL from WREKD Co.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.
Details:

Support Pit Mode
25mW, 200mW, 400mW and 600mW power switchable
One button frequency and power setup
OSD configuration using Smart audio
7-24V input with 5V output
MMCX+UFL connector
MIC
Note: Smart Audio is not compatible with KISS flight controllers.



FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a hig...

PandaRC

PandaRC VT5807 4in1 5.8GHz 25-600mW VTX - MMCX

This is the latest VTX offering from PandaRC tailored specifically towards pilots who like using individual speed controllers.It is a 4in1 board that Feaures a 25-600mW VTX , Buzzer , Led Controller and PDB Checkout our PandaRC products and the rest of our VTX Collection!Specifications:Input: 6-26V (2S-6S)Continuous Cu

Antenna Connector

Antennas send signals to and from your VRX/VTX and RX/TX. Many video transmitters and radio receivers come with antennas. Ensure if you need them. Or choose upgrades to increase range and penetration. Select appropriate antennas based on connector, radio frequency, and polarization (if circularly polarized).

Antennas

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
