SpeedyBee

SpeedyBee TX800 20x20 25-850mW 5.8GHz VTX - MMCX

RUNCAM

The SpeedyBee TX800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.
Check out our other MMCX VTXs, as well as the rest of our SpeedyBee products!
Specifications


Input Voltage: 3.7-5V


RF Output Power: 25 / 200 / 400 / 800mW

Control Protocol: IRC Tramp Protocol

Output Voltage: 5V


Antenna Connector: MMCX


Power/Video Connection: 4 Pin JST / Solder Pads


Stack Size: 20x20mm m3


Weight: 5.6g





Includes

1x SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX
1x SMA to MMCX Pigtail
1x MMCX Dipole Antenna
1x Wiring Harness

Manual
Speedybeetx800

The SpeedyBee TX800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations. Check out our other MMCX VTXs, as well as the rest of our SpeedyBee products!  Specifications Input Voltage: 3.7-5V RF Output Power: 25 / 200 / 400 / 800mW Control Protocol: IR

SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX

The SpeedyBee TX800 is a max 800mW output, high-efficiency video transmitter, perfect in a stack with 20x20mm M2 mounting holes.  This vtx has IRC Tramp support for easy setting changes, Pit Mode, and only measures 28x28mm in size.   Check out all our Analog Video Transmitters and the rest of our Speedybee products! In

SpeedyBee TX800 5.8GHZ Video Transmitter - 20x20mm

RunCam

WREKD is a family-owned & operated, leading online FPV super-store based in the United States specializing in FPV racing / freestyle / tiny / micro whoop drones, parts, gear, and accessories. We offer fast, domestic, same-day shipping with the quickest delivery to anywhere in the U.S.A.

Speedy Bee TX800 5.8GHZ Video Transmitter - 20x20mm from WREKD Co.

Speedy Bee TX800 5.8GHZ Video Transmitter - 20x20mm

The Speedybee TX800 is a small, yet powerful VTX. Capable of 800mW output all while fitting in a 20x20mm mounting pattern. The integrated heatsink keeps dangerous heat away from sensitive electronics.

Speedybee TX800 5.8GHz VTX

SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX from WREKD Co.

VTX Frequency

The VTX processes the image from your FPV camera and sends it to your goggle’s video receiver (VRX). If you chose as digital video system, you need a VTX that matches the system. Most analog VTXs and VRXs are compatible with each other, and your biggest consideration will be how much output power you need. The more output power, the more range and better signal you’ll get. Learn more about VTXs.

Video Transmitters

VTX Stack Mount

VTX Antenna Connector

Max Transmission Power

Digital / Analog VTX

FPV Camera Included

TBS Tracer Sixty9 5.8GHz VTX + RX Receiver AIO Board

Team Black Sheep

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all. Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame - without any stacking necessity.Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

TBS Tracer Sixty9 - RMRC

TBS Tracer Sixty9

Team BlackSheep

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

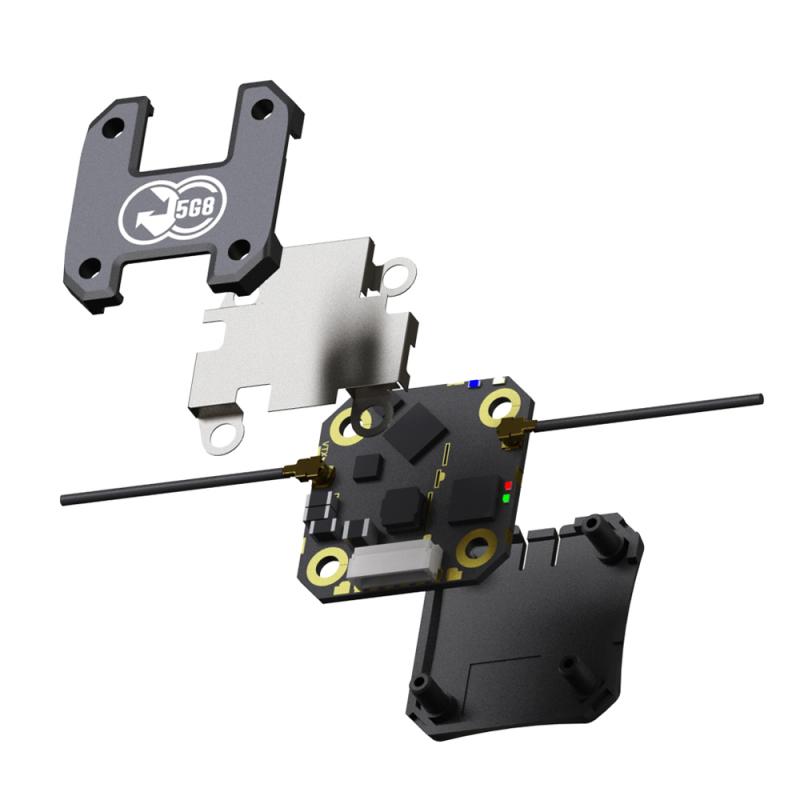

TBS Tracer Sixty9 5.8GHz VTX + RX AIO Board

What could be better than a Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

TBS TRACER SIXTY9 | Five33

TBS TRACER SIXTY9

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.  Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer s

TBS Tracer SIXTY9 - RX+VTX

BetaFPV

BetaFPV A02 25x25 25-800mW 5.8GHz VTX - MMCX

BETAFPV

The BETAFPV is an A02 5.8G VTX is a lightweight, small size, and high-quality 25-800mW VTX.

BETAFPV A02 25-800mW 5.8Ghz VTX

A02 5.8G VTX is a lightweight, small size and high-quality 25-800mW VTX, it offers a selectable 25/200/500/800mW output power for extreme range FPV flight. With 800mW output power, pilots can fly drones up to 1100 meters away to explore more possibilities and fun. Featuring a fixed mounting hole and 6-pin connector, which makes it’s super easy to install. It's a perfect choice for Whoop &amp Toothpick drones with 26*26mm mounting hole, like the X-Knight series, Beta85X/95X series and TWIG series drone, the A02 25-800mW 5.8G VTX is ready to push your FPV range to the horizons and beyond.

Bullet Point

A02 VTX is a high-quality 5.8GHz VTX with strong anti-interference ability and stable transmission. Comes with adjustable 25mW/200mW/500mW/800mW output power, allowing the perfect amount of output power to be selected based upon your FPV needs.
With the 800mW output power, pilots can fly drones up to 1100 meters away, which offers a perfect FPV solution for pilots in search of long-range flight.

At 5.26g of overall weight with a small-size layout, A02 VTX is perfectly suitable for Whoop and Toothpick Quad with a 26*26mm mounting hole, like X-Knight series, Beta85X/95X series and TWIG series drones without any reduction in performance or power.

Come with a built-in microphone, A02 VTX provides a real-time sound transmission, pilots can get a more vivid flight experience.
Featuring a fixed mounting hole and 6-pin connector, less solder work needed, which makes it’s super easy to install.



Specification

Item: A02 5.8G VTX

Output power: 25/200/500/800mW (adjustable)
Supply voltage range: 7-35V
Weight: 5.26g (excluding antenna)

VTX size: 27.3x27.3x4.5mm

Antenna: Air Antenna(MMCX Straight)
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

Channel SEL: SmartAudio
Modulation type: FM
Channel Indicate: 3 LEDs
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~+60℃


A02 VTX is suitable for both Whoop and Toothpick Quad with a 26*26mm mounting hole. Pilots can assemble the A02 VTX on the X-Knight Carbon Fiber 5'' V2 Frame Kit and Beta95X Frame Kit.




Diagram for A02 VTX

Noticed: When you solder the VTX, pls follow the diagram for A02 VTX, in which the second port under ANT(MMCX) is GND, and it corresponds to the black wire of the 6-Pin FC Cable. If you have received the VTX with a diagram of "SW" or just black in the GND place, Please don't worry, it's just the typographical error, we have corrected it in the next batch.
How to Connect with FC
Here is the diagram about how to connect the VTX to Toothpick F722 2-6S AIO Brushless Flight Controller 35A(BLHei_32). The color of the lines in the diagram is the same as the 6-pin connector's wires' color.

How to Use the PitMode &amp Change the Frequency and Power

PitMode allows racers to power up their video transmitters during race events without interfering with other racers, and it still has the ability to change VTX settings or do some testing. The range is limited to 2-3m and transmission happens on the selected frequency.
The PitMode is active when the Red/Green/Blue Power LED flash.

How to active and exit the PitMode
Press the Button on the VTX twice to active Pitmode, double-press again to return to the previous power state.
How to Change Frequency &amp Channel &amp Power
Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES -&gt VTX SA to change the frequency and power.

Switchable power includes 25mW, 200mW, 500mW and 800mW, and the PitMode is supported on this VTX.



RGB
Flash
Green
R+G(Yellow)
Red
B+R(Purple)


Power
Pit Mode
25mW
200mW
500mW
 800mW



Here are the 40CH frequency band and channel indicator status. Please follow the number of LED flashes to adjust your channel.

Package

1 * BETAFPV A02 5.8G VTX
1 * 6-Pin FC Cable

1 * Air Antenna(MMCX Straight)
3 * Anti-vibration rubber dampers



A02 5.8G VTX is a lightweight, small size and high-quality 25-800mW VTX, it offers a selectable 25/200/500/800mW output power for extreme range FPV flight. With 800mW output power, pilots can fly drones up to 1100 meters away to explore more possibilities and fun. Featuring a fixed mounting hole and 6-pin connector, wh

A02 25-800mW 5.8G VTX

TBS Unify EVO 5.8GHz Video Transmitter

Introducing the latest technology in TBS video transmitters! It comes with a built-in graphical OSD and microphone, talks all the protocols and transmits all the power levels! This makes it a perfect companion for any situation where you don't have any OSD, or want to benefit from the simplicity and clarity that the TB

TBS Unify Evo VTX

The EVO comes with a built-in graphical OSD and microphone, talks all the protocols and transmits all the power levels! This makes it a perfect companion for any situation where you don't have any OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for.
Check out the rest of out TBS Products and all our VTXs!
Features
THE SWISS ARMY KNIFE OF VIDEO TRANSMITTERSWe packed all the features that we could into the smallest form factor possible. When we set out to make this video transmitter we were looking to make something that would fit all use cases for analog video transmitters ever envisioned. Long range, racing, freestyle, wings, cars. You name it, the VTx will shine in this application! More features are still under development and they can be loaded via the TBS AgentX with the onboard USB port.BARCODES? BARCODES!! (PATENT PENDING)The VTx is capable of processing the camera image. So we taught it to read barcodes! This means the VTx no longer needs to be transmitting to set channels, and setting channels can be done in the pits. It also means no more guesswork what channel the VTx is on, simply point it at the barcode of your choice and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode on!CRSF, SMARTAUDIO 2.1, PWM, PITMODECRSF is the defacto standard in FPV and racing drones, so it makes sense that this video transmitter can both understand as well as speak CRSF. For compatibility, the VTx also speaks SA 2.1 and has the teamrace-friendly pitmode feature. PWM controls allow you to use the VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles or other devices that don't have flight controllers or Crossfire and control the VTx button with a switch or button you have on the radio.

Specifications

Operating Voltage: 6V - 26V (2S - 6S)
Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A
Operating Temperature: watch for normal airflow
Video Input Impedance: 75 Ohm
Weight: 7g
Dimensions: 30 x 23 x 5.5mm
Antenna Connector: u.FL socket
Video Format: NTSC/PAL
Audio: Microphone included
Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

Includes

1x TBS UNIFY EVO 5G8 Video transmitter
1x u.FL pigtail SMA
1x Power, Camera and CRSF cables

Wiring Diagram


The EVO comes with a built-in graphical OSD and microphone, talks all the protocols and transmits all the power levels! This makes it a perfect companion for any situation where you don't have any OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for. Check out the rest of out TBS Produc

TBS Unify EVO 25-800mW 5.8GHz VTX - SMA

TBS knows video transmitters, and their latest creation merges the best qualities of multiple VTX's into one. The Unify EVO aims to satisfy the video needs of every pilot!

TBS Unify Pro 5G8 V3 - SMA

A video transmitter just for racers. 5g weight, 25 - 800mW output power (user adjustable). Cutting weight and flying far has never been this easy and affordable.Antenna Connector: SMA Female Socket

TBS Unify Pro 5G8 V3 (SMA)

This is the TBS Unify PRO 5G8 V3 SMA video transmitter for FPV. The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It runs off a filtered 5V power supply, so it's perfect when being connected to a TBS CORE PRO or TBS PowerCube.
New in V3: Improved Voltage spikes acceptance from 6.5Vmax. on V2 to 13Vmax.
Check out the rest of out TBS Products and all our VTXs!
Features

Smallest, lightest video transmitter on the market
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified

PitMode - Made to raceZero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels. SmartAudio V2 - Full controlSmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!CleanSwitch - Neighbor friendlyCleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)Say NO! to DipswitchesEven though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.
Specifications

Operating Voltage: 4.5 - 5.5V
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 5g (with SMA, without antenna)
Antenna Connector: SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW)

Includes

1x TBS Unify Pro V3 25-800mW 5.8GHz VTX - SMA
1x 5V Video Transmitter pigtail cable


This is the TBS Unify PRO 5G8 V3 SMA video transmitter for FPV. The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It runs

TBS Unify Pro V3 25-800mW 5.8GHz VTX - SMA






This is the TBS Unify PRO 5G8 V3 SMA video transmitter for FPV. The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It runs off a filtered 5V power supply, so it's perfect when being connected to a TBS CORE PRO or TBS PowerCube (*)
New in V3:

Improved Voltage spikes acceptance from 6.5Vmax. on V2 to 13Vmax. on V3

Main features

Smallest, lightest video transmitter on the market
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified

PitMode - Made to race
Zero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.
SmartAudio V2 - Full control
SmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!
CleanSwitch - Neighbor friendly
CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)
Say NO! to Dipswitches
Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.
Specifications

Operating Voltage: 4.5 - 5.5V
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 5g (with SMA, without antenna)
Antenna Connector: SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

Included

TBS UNIFY 5G8 Video transmitter
5V Video Transmitter pigtail cable
TBS UNIFY Pro Manual
CE Certification
Declaration of Conformity

* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.






FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

TBS Unify Pro 5G8 V3 (SMA) This is the TBS Unify PRO 5G8 V3 SMA video transmitter for FPV. The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other me

TBS Unify Pro 5G8 V3 (SMA) DroneRacingParts.com

TBS Unify Pro 5G8 HV - SMA

A Unify Pro 5G8 HV transmitter from Team Black Sheep.

TBS Unify Pro 5G8 HV (SMA)

TBS Unify Pro 5G8 V3 - RP-SMA

The smallest, lightest 40ch video transmitter on the market!

TBS Unify Pro 5G8 V3 (RP-SMA)

TBS Unify Pro HV 25-800mW 5.8GHz VTX - SMA

The most popular, most powerful video transmitter on the market just got a "bigger" brother. It can be connected directly to up to 6S of battery-juice and do 5V output for your camera. It will filter the power and make sure you get clean video, even without being connected to a TBS CORE or TBS PowerCube. With a brand new active output power monitor, we ensure that you'll always meet the race requirements while giving you the best possible picture. With only 7g and a 31x22x6mm form factor, your quad will barely notice it's there. The 25mW - 800mW adjustable output power allows you to race with friends and penetrate serious concrete with just a few pushes of a button. The 40CH coverage gives you the freedom to fly at any race without having to resort to video transmitter swapping practices.
Check out the rest of out TBS Products and all our VTXs!
Features
Pitmode - Made to RaceZero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels. SmartAudio - Full ControlSmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels, and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external Bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in the air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!CleanSwitch - Neighbor FriendlyCleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)Say no! to DipswitchesEven though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.
Specifications

Operating Voltage: 2S - 6S
Supply current: up to 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 7g (with SMA, without antenna)
Input Connector: JST GH 7pin (after July 2018)
Antenna Connector: SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW)

Includes
1x TBS Unify Pro HV 25-800mW 5.8GHz VTX - SMA1x 7Pin Video Transmitter pigtail cable1x TBS UNIFY Pro Manual

The most popular, most powerful video transmitter on the market just got a "bigger" brother. It can be connected directly to up to 6S of battery-juice and do 5V output for your camera. It will filter the power and make sure you get clean video, even without being connected to a TBS CORE or TBS PowerCube. With a brand n

T-Motor

T-Motor FT800 25-800mW 20x20 5.8GHz VTX - MMCX

The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.Check out all of our video transmitters and our T-Motor Products! Specs: Input Voltage: 7~36V Channels: 37CH Power Output: Pit/25mW/200mW/500mW/800mW Weight: 7.58g Output Voltage:

T-Motor FT800 800mW 5.8GHz 37CH Adjustable Analog VTX

The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.
Check out our other MMCX VTXs, and all our T-Motor products!
Specifications


Input Voltage: 7-36V


RF Output Power: 25 / 200 / 500 / 800mW

Control Protocol: Smartaudio2.1

Output Voltage: 5V


Antenna Connector: MMCX


Power/Video Connection: 4 Pin JST / Solder Pads


Stack Size: 20x20mm m3


Weight: 7.58g





VTX table: T-Motor FT800
Includes

1x T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX
1x SMA to MMCX Pigtail
1x MMCX Dipole Antenna
1x Wiring Harness



The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations. Check out our other MMCX VTXs, and all our T-Motor products! Specifications Input Voltage: 7-36V RF Output Power: 25 / 200 / 500 / 800mW Control Protocol: Smartaudio2.1 Output Vo

T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX from WREKD Co.

T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX

TMOTOR

T-Motor Hobby

T-Motor FT800 800mW 5.8GHz 37CH Adjustable Analog VTX from WREKD Co.

PandaRC

PandaRC VT5804 Q1 5.8GHz 25-800mW VTX - MMCX

Features Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode. Frequency lock fast, boot does not interfere with companions. Comes with output power self-test function. Full format video format: NTSC / PAL. Wide input voltage range and low power consumption: 6V-26V Fully enclosed met

Antenna Connector

Antennas send signals to and from your VRX/VTX and RX/TX. Many video transmitters and radio receivers come with antennas. Ensure if you need them. Or choose upgrades to increase range and penetration. Select appropriate antennas based on connector, radio frequency, and polarization (if circularly polarized).

Antennas

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
