Caddx

Caddx Air Unit Micro Kit for DJI

DJI revolutionized FPV with the development of their digital HD technology. This resulted in a huge upgrade from the original analog resolution to a fully digital 720p signal right in your goggles.
The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and eight frequency channels to allow up to eight pilots to fly simultaneously.






Specifications

WeightAir Unit (Camera included): 45.8 g3.9 g (MMCX elbow each)
DimensionsAir Unit: 44 × 37.8 × 14.4 mmCamera: 27.4 × 21.1 × 20.1 mmCoaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHzTransmitter Power (EIRP): FCC/SRRC: &lt30 dBm CE: &lt14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): &lt28 msHigh-Quality Mode (720p/60fps): &lt40 ms
Max. Transmission Distance: FCC/SRRC: &lt4 km CE: &lt0.7 kmVideo Format: MP4 (Video format: H.264 Audio format: ACC-LC)I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slotOperating Temperature Range: 32° to 104°F (0° to 40°C)Input Power: 7.4-17.6 V, about 4-9 WSensor: 1/3.2'' CMOS Effective Pixels: 4 MLens: 2.1 mm, f/2.1Shutter: Rolling shutterISO: 100-25600FOV: 150°(D) 122°(H) 93°(V)Dimension: 22.1 × 21.1 × 20.1 mmWeight: 8.2 g
Channels: 8Channels InfoFCCChannel 1: 5660Channel 2: 5695Channel 3: 5735Channel 4: 5770Channel 5: 5805Channel 6: 5878Channel 7: 5914Channel 8: 5839
Compatibility

DJI FPV Goggles
DJI FPV Remote Controller

Tips
The air unit may become hot during or after operation.DO NOT touch the air unit before it cools down.DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode. Keep the antennas of the air unit at least 40 mm apart.Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
Includes

DJI FPV Air Unit (with camera and four M2 screws) × 1
Three-in-one cable × 1
Antenna (MMCX elbow) × 2



DJI revolutionized FPV with the development of their digital HD technology. This resulted in a huge upgrade from the original analog resolution to a fully digital 720p signal right in your goggles.  The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and ei

Caddx DJI FPV Air Unit

FPV through the DJI Digital HD Air Unit. The way FPV is meant to be.&nbspThis is the Caddx DJI air unit with 120fps HD camera.

FPV through the DJI Digital HD Air Unit. The way FPV is meant to be. This is the Caddx DJI air unit with 120fps HD camera.

Caddx DJI Digital HD FPV Air Unit Kit

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas.Also see the&nbspCaddx Polar Micro Digital FPV Air Unit Camera Kit here.

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibil

Caddx Air Unit Micro Version for DJI Digital HD FPV System

The Original DJI Digital HD FPV Air Unit Kit is back - Limited Quantities Available! This is&nbspthe original DJI Air Unit with 120fps HD camera.

The Original DJI Digital HD FPV Air Unit Kit is back - Limited Quantities Available! This is the original DJI Air Unit with 120fps HD camera.

DJI Digital HD FPV Air Unit Kit - Original Version

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas. Modern innovations, like a strong transmission system embedded remote controller receiver, and multi-antenna technology, is why the Air Unit can perform remarkably.

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

Caddx Air Unit Micro Version For DJI Digital HD FPV System - www.readymaderc.com

CADDXFPV

<div style="text-align: left"><span style="color: #000000">Only <a href="https://caddxfpv.com/collections/digital-cameras-1/products/air-unit-micro-camera" target="_blank" rel="noopener noreferrer">Caddx air unit micro camera</a> + cable left in stock (excluding Air Unit)</span></div>
<div style="text-align: left"><span style="color: #000000">Note: The camera will be packed in a static bag.</span></div>
<div style="text-align: left">
<div class="YQaNob" data-cp="1" data-is-ver="false" data-nnttsvi="1" data-sm="1" data-sugg-time="500" data-sugg-url="https://clients1.google.com/complete/search" data-uilc="zh-CN" id="tw-container">
<div jsname="gI9xcc" jsslot="1">
<div jscontroller="geqCid" jsdata="SANFE_B8xgqs" jsaction="uQxhTd:d4hecblWUBqb:TO5MWbIcWBXe:hLaFAeKFlBO:UuREqbM2HAEc:eNrnOdrcuQ6b:npT2md">
<div class="tw-src-ltr" id="tw-ob">
<div class="oSioSc">
<div id="tw-target">
<div id="kAz1tf" class="g9WsWb">
<h1 class="tw-ta-container hide-focus-ring tw-nfl" id="tw-target-text-container" tabindex="0">
<span style="color: #362121"></span><br>
</h1>
<br>
</div>
</div>
</div>
</div>
<h1 class="dURPtb"><br></h1>
<div jsname="gI9xcc" jsslot="1"><br></div>
</div>
</div>
</div>
<div class="KFFQ0c"><br></div>
<br>
</div>
<div style="text-align: left">
<img src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order1_7c954fb1-6449-435b-93fc-8449b19a648e.jpg?v=1619604267" alt=""><img data-mce-fragment="1" src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order2_6c5fb1fe-b49f-4d65-8023-7dbad644f266.jpg?v=1619604291" style="float: none" data-mce-src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order2_6c5fb1fe-b49f-4d65-8023-7dbad644f266.jpg?v=1619604291">
</div>

The Caddx Air Unit Micro Version is a 19*19mm micro sized camera. Which is with 28ms Low-Latency, 720p/120fps Video Transmission. Anti- Interference Digital Transmission.

CaddxFPV Air Unit Micro Version for DJI Digital HD FPV System – CADDX FPV

Only Caddx air unit micro camera + cable left in stock (excluding Air Unit)
Note: The camera will be packed in a static bag.




























CADDXFPV Air Unit Micro Version

VTX Frequency

The VTX processes the image from your FPV camera and sends it to your goggle’s video receiver (VRX). If you chose as digital video system, you need a VTX that matches the system. Most analog VTXs and VRXs are compatible with each other, and your biggest consideration will be how much output power you need. The more output power, the more range and better signal you’ll get. Learn more about VTXs.

Video Transmitters

VTX Stack Mount

VTX Antenna Connector

Max Transmission Power

Digital / Analog VTX

FPV Camera Included

RunCam

RunCam Link Phoenix HD FPV Camera Kit for DJI

Another great option for your DJI Digital FPV Goggles at a great price! Runcam Link Digital FPV VTX8 Channels, 8 DronesThe HDL FPV Transmission system and the Link FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience. Embedded Remote Control ReceiverUsers can wirelessly connect their Link DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly. Runcam Phoenix HD CameraUses 1/2 inch sensor, with up to 10650mV/Lux-sec ultra-high sensitivity sensor. Provides excellent night vision performance!At 1280x720 60fps resolution, the delay is as low as 32ms, which is suitable for freestyle flying.

Great HD FPV performance at a great price! Get this and all your other FPV products from RMRC, the leader in FPV since 2009!

RunCam Link Phoenix HD Nano Kit for DJI FPV Goggles - RMRC

RunCam Link Phoenix HD Nano Kit for DJI FPV Goggles

RunCam Link Phoenix HD Kit for DJI Digital FPV Goggles - RMRC

RunCam Link Phoenix HD Kit for DJI Digital FPV

The new HD system from Runcam combines a digital HD transceiver, the Link Digital Air Unit, and the&nbspRunCam Phoenix HD Camera.&nbsp

The new HD system from Runcam combines a digital HD transceiver, the Link Digital Air Unit, and the RunCam Phoenix HD Camera.

RunCam Link Phoenix HD FPV Camera Kit

SpeedyBee

SpeedyBee TX800 20x20 25-850mW 5.8GHz VTX - MMCX

The SpeedyBee TX800 is a max 800mW output, high-efficiency video transmitter, perfect in a stack with 20x20mm M2 mounting holes.  This vtx has IRC Tramp support for easy setting changes, Pit Mode, and only measures 28x28mm in size.   Check out all our Analog Video Transmitters and the rest of our Speedybee products! In

SpeedyBee TX800 5.8GHZ Video Transmitter - 20x20mm

The SpeedyBee TX800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.
Check out our other MMCX VTXs, as well as the rest of our SpeedyBee products!
Specifications


Input Voltage: 3.7-5V


RF Output Power: 25 / 200 / 400 / 800mW

Control Protocol: IRC Tramp Protocol

Output Voltage: 5V


Antenna Connector: MMCX


Power/Video Connection: 4 Pin JST / Solder Pads


Stack Size: 20x20mm m3


Weight: 5.6g





Includes

1x SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX
1x SMA to MMCX Pigtail
1x MMCX Dipole Antenna
1x Wiring Harness

Manual
Speedybeetx800

The SpeedyBee TX800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations. Check out our other MMCX VTXs, as well as the rest of our SpeedyBee products!  Specifications Input Voltage: 3.7-5V RF Output Power: 25 / 200 / 400 / 800mW Control Protocol: IR

SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX from WREKD Co.

SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX

WREKD is a family-owned & operated, leading online FPV super-store based in the United States specializing in FPV racing / freestyle / tiny / micro whoop drones, parts, gear, and accessories. We offer fast, domestic, same-day shipping with the quickest delivery to anywhere in the U.S.A.

Speedy Bee TX800 5.8GHZ Video Transmitter - 20x20mm from WREKD Co.

Speedy Bee TX800 5.8GHZ Video Transmitter - 20x20mm

RUNCAM

The Speedybee TX800 is a small, yet powerful VTX. Capable of 800mW output all while fitting in a 20x20mm mounting pattern. The integrated heatsink keeps dangerous heat away from sensitive electronics.

Speedybee TX800 5.8GHz VTX

Caddx Polar Micro Digital FPV Air Unit Camera Kit

Caddx Air Unit Polar Starlight Digital HD DJI FPV System

Caddx Air Unit Polar Starlight Digital HD DJI FPV System - RMRC

The Caddx Air Unit Polar Starlight supports brightness and saturation adjustment. 1/1.8-Inch HD Digital Starlight Sensor. Excellent Image Quality and Brilliant True Colors.

CADDXFPV Polar Starlight Digital Camera | HD FPV Drones Camera System – CADDX FPV

CADDXFPV Polar Starlight Air Unit

Caddx Polar Micro Digital FPV Air Unit Camera Kit - Coffee

Caddx Polar Micro Digital FPV Air Unit Camera Kit - Silver

BetaFPV

BetaFPV A02 25x25 25-800mW 5.8GHz VTX - MMCX

BETAFPV

A02 5.8G VTX is a lightweight, small size and high-quality 25-800mW VTX, it offers a selectable 25/200/500/800mW output power for extreme range FPV flight. With 800mW output power, pilots can fly drones up to 1100 meters away to explore more possibilities and fun. Featuring a fixed mounting hole and 6-pin connector, which makes it’s super easy to install. It's a perfect choice for Whoop &amp Toothpick drones with 26*26mm mounting hole, like the X-Knight series, Beta85X/95X series and TWIG series drone, the A02 25-800mW 5.8G VTX is ready to push your FPV range to the horizons and beyond.

Bullet Point

A02 VTX is a high-quality 5.8GHz VTX with strong anti-interference ability and stable transmission. Comes with adjustable 25mW/200mW/500mW/800mW output power, allowing the perfect amount of output power to be selected based upon your FPV needs.
With the 800mW output power, pilots can fly drones up to 1100 meters away, which offers a perfect FPV solution for pilots in search of long-range flight.

At 5.26g of overall weight with a small-size layout, A02 VTX is perfectly suitable for Whoop and Toothpick Quad with a 26*26mm mounting hole, like X-Knight series, Beta85X/95X series and TWIG series drones without any reduction in performance or power.

Come with a built-in microphone, A02 VTX provides a real-time sound transmission, pilots can get a more vivid flight experience.
Featuring a fixed mounting hole and 6-pin connector, less solder work needed, which makes it’s super easy to install.



Specification

Item: A02 5.8G VTX

Output power: 25/200/500/800mW (adjustable)
Supply voltage range: 7-35V
Weight: 5.26g (excluding antenna)

VTX size: 27.3x27.3x4.5mm

Antenna: Air Antenna(MMCX Straight)
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

Channel SEL: SmartAudio
Modulation type: FM
Channel Indicate: 3 LEDs
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~+60℃


A02 VTX is suitable for both Whoop and Toothpick Quad with a 26*26mm mounting hole. Pilots can assemble the A02 VTX on the X-Knight Carbon Fiber 5'' V2 Frame Kit and Beta95X Frame Kit.




Diagram for A02 VTX

Noticed: When you solder the VTX, pls follow the diagram for A02 VTX, in which the second port under ANT(MMCX) is GND, and it corresponds to the black wire of the 6-Pin FC Cable. If you have received the VTX with a diagram of "SW" or just black in the GND place, Please don't worry, it's just the typographical error, we have corrected it in the next batch.
How to Connect with FC
Here is the diagram about how to connect the VTX to Toothpick F722 2-6S AIO Brushless Flight Controller 35A(BLHei_32). The color of the lines in the diagram is the same as the 6-pin connector's wires' color.

How to Use the PitMode &amp Change the Frequency and Power

PitMode allows racers to power up their video transmitters during race events without interfering with other racers, and it still has the ability to change VTX settings or do some testing. The range is limited to 2-3m and transmission happens on the selected frequency.
The PitMode is active when the Red/Green/Blue Power LED flash.

How to active and exit the PitMode
Press the Button on the VTX twice to active Pitmode, double-press again to return to the previous power state.
How to Change Frequency &amp Channel &amp Power
Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES -&gt VTX SA to change the frequency and power.

Switchable power includes 25mW, 200mW, 500mW and 800mW, and the PitMode is supported on this VTX.



RGB
Flash
Green
R+G(Yellow)
Red
B+R(Purple)


Power
Pit Mode
25mW
200mW
500mW
 800mW



Here are the 40CH frequency band and channel indicator status. Please follow the number of LED flashes to adjust your channel.

Package

1 * BETAFPV A02 5.8G VTX
1 * 6-Pin FC Cable

1 * Air Antenna(MMCX Straight)
3 * Anti-vibration rubber dampers



A02 5.8G VTX is a lightweight, small size and high-quality 25-800mW VTX, it offers a selectable 25/200/500/800mW output power for extreme range FPV flight. With 800mW output power, pilots can fly drones up to 1100 meters away to explore more possibilities and fun. Featuring a fixed mounting hole and 6-pin connector, wh

A02 25-800mW 5.8G VTX

The BETAFPV is an A02 5.8G VTX is a lightweight, small size, and high-quality 25-800mW VTX.

BETAFPV A02 25-800mW 5.8Ghz VTX

TBS Unify Pro32 HV 5.8GHz Video Transmitter - MMCX

Team BlackSheep

With the TBS UNIFY PRO32 HV we have boosted the output power, improved the robustness, decreased the power consumption, added capability for insane features and perfected the way it is installed in your multirotor.

TBS Unify Pro32 HV 5.8GHz Video Transmitter (MMCX)

With the TBS UNIFY PRO32 HV (MMCX) we have boosted the output power, improved the robustness, decreased the power consumption, added capability for insane features and perfected the way it is installed in your multirotor. In a nutshell, it’s the most comprehensive, future proof, highest quality and overall best HV VTx

TBS Unify Pro32 HV (MMCX) VTx Video Transmitter

T-Motor

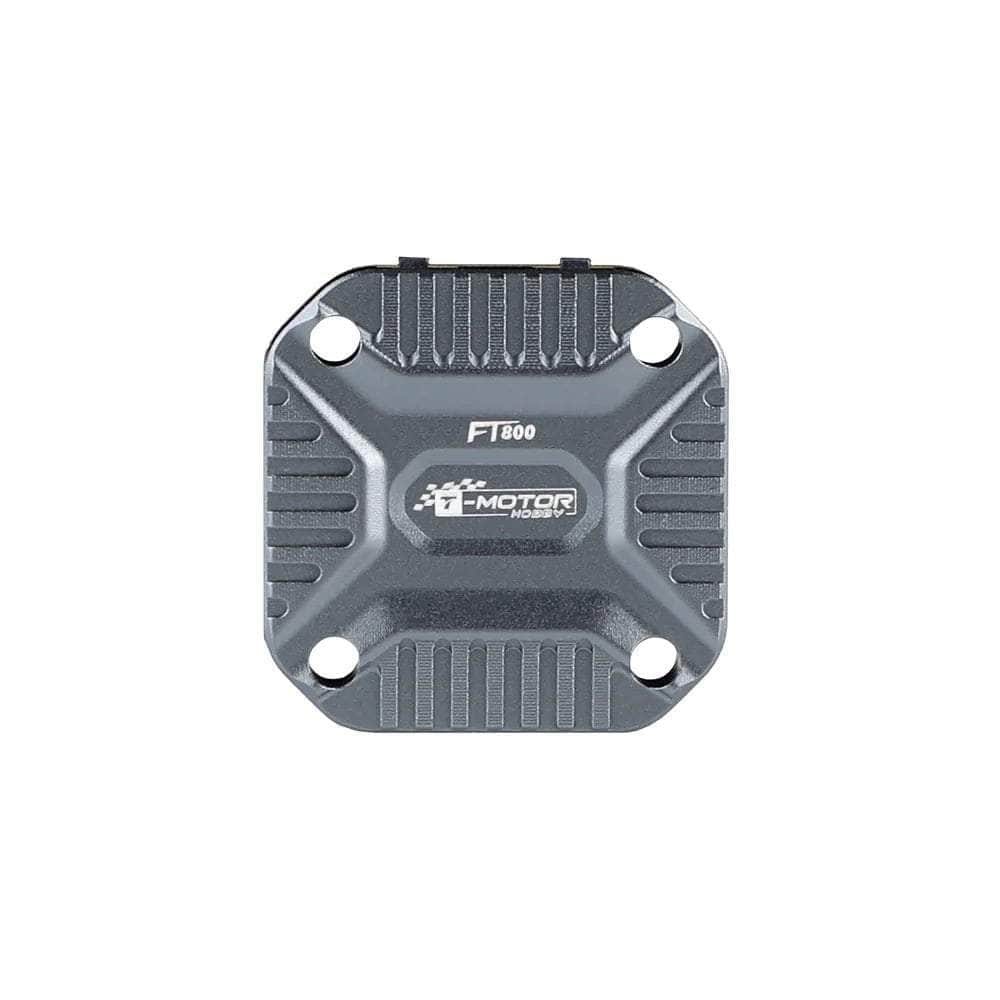

T-Motor FT800 25-800mW 20x20 5.8GHz VTX - MMCX

The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.Check out all of our video transmitters and our T-Motor Products! Specs: Input Voltage: 7~36V Channels: 37CH Power Output: Pit/25mW/200mW/500mW/800mW Weight: 7.58g Output Voltage:

T-Motor FT800 800mW 5.8GHz 37CH Adjustable Analog VTX

The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.
Check out our other MMCX VTXs, and all our T-Motor products!
Specifications


Input Voltage: 7-36V


RF Output Power: 25 / 200 / 500 / 800mW

Control Protocol: Smartaudio2.1

Output Voltage: 5V


Antenna Connector: MMCX


Power/Video Connection: 4 Pin JST / Solder Pads


Stack Size: 20x20mm m3


Weight: 7.58g





VTX table: T-Motor FT800
Includes

1x T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX
1x SMA to MMCX Pigtail
1x MMCX Dipole Antenna
1x Wiring Harness



The T-Motor FT800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations. Check out our other MMCX VTXs, and all our T-Motor products! Specifications Input Voltage: 7-36V RF Output Power: 25 / 200 / 500 / 800mW Control Protocol: Smartaudio2.1 Output Vo

T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX from WREKD Co.

T-Motor FT800 20x20 25-800mW 5.8GHz VTX - MMCX

T-Motor Hobby

T-Motor FT800 800mW 5.8GHz 37CH Adjustable Analog VTX from WREKD Co.

TMOTOR

iFlight

iFlight BLITZ 5.8GHz 1.6W Adjustable VTX

The new iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX is capable of blasting over 1000mW from a super durable machined aluminum case!
Check out all our VTXs as well as our entire iFlight selection!
Features

Stable output power
4 Power levels up to 1600mW*
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol

Specifications

Input voltage: 7V～36V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
VTX telemetry: IRC Tramp

IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Weight: 18.9g

*VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you&#39re flying legal frequencies and use iFlight&#39s prepared Betaflight VTX tables according to your region.
Betaflight IRC Tramp Configuration: Please download VTX tables here
Includes

1x iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX

Wiring Diagram


The new iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX is capable of blasting over 1000mW from a super durable machined aluminum case!  Check out all our VTXs as well as our entire iFlight selection! Features Stable output power 4 Power levels up to 1600mW* 40 Channels (including Raceband) Fast frequency lock, no sta

iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX from WREKD Co.

iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX

The iFlight Blitz 1.6W VTX is a great choice for the Long Range guys or for those who need high power VTX to fly in video power demanding locations.Check out all of our video transmitters and our iFlight Collection!  Features: Stable output power 4 Power levels up to 1600mW; 37 Channels (including Raceband) Fast freque

iFlight Blitz 5.8GHz 1.6W Adjustable VTX

IFLIGHT

The new iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX is capable of blasting over 1000mW from a super durable machined aluminum case!
Check out all our VTXs as well as our entire iFlight selection!
Features

Stable output power
4 Power levels up to 1600mW*
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol

Specifications

Input voltage: 7V～36V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
VTX telemetry: IRC Tramp

IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Weight: 18.9g

*VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use iFlight's prepared Betaflight VTX tables according to your region.
Betaflight IRC Tramp Configuration: Please download VTX tables here
Includes

1x iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX

Wiring Diagram


The iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX is meant to provide you with high power output while mitigating startup interference with other pilots. Get your new VTX today!

iFlight Blitz 30x30 25-1000mW+ 5.8GHz VTX - MMCX For Sale

AKK Infinite DVR 30x30 25-1000mW 5.8GHz VTX - MMCX

in AKK's newest VTX which has built-in DVR, Smart Audio, up to 6s (7 - 26v) direct Lipo input, adjustable power output (25, 200, 600 &amp 1000 mW) w/ pit mode, and a 5v cam power output.
Check out the rest of our selection of VTX's!
Specifications

Brand name: AKK
Item name: Infinite DVR VTX
Input voltage: 7V to 26V
Extra features: Smart audio DVR
Power supply: 5V output for camera
Output power: 25/200/600mW/1000mW
Antenna connector: MMCX
Cable connector: Solder pads
Records Video Size: VGA (640*480)
Max Support TF Card: 32G
Dimension: 36x36mm, 30.5 stackable hole
Weight: 8.8g (excluding antenna)

Features


Support Smart audio
25/200/600/1000mW power switchable
One button frequency and power setupOSD configuration using smart audio
7-26V input with 5V output for camera
With MIC



Notice: 5645/5925/5945 (E4/E7/E8) are not available due to FCC regulation. Selecting 5645/5925/5945 (E4/E7/E8) will be invalid action.


             Note: 37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCC’s amateur radio rules.
Operators must require amateur radio license to operator legally in
the US. Use of amateur equipment without a license or use of
equipment on restricted frequencies could subject the operator to
significant fines by the FCC.By purchasing this equipment, the user is
agreeing that they understand these responsibilities and will operate
the equipment legally. More information related to ARL, please go to

http://www.arrl.org/getting-licensed.Pacakge Included:
1x VTX
1x pigtail


1x cable

FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

in ﻿AKK's newest VTX which has built-in DVR, Smart Audio, up to 6s (7 - 26v) direct Lipo input, adjustable power output (25, 200, 600 &amp; 1000 mW) w/ pit m...

in AKK&#39s newest VTX which has built-in DVR, Smart Audio, up to 6s (7 - 26v) direct Lipo input, adjustable power output (25, 200, 600 &ampamp 1000 mW) w/ pit mode, and a 5v cam power output.
Check out the rest of our selection of VTX&#39s!
Specifications

Brand name: AKK
Item name: Infinite DVR VTX
Input voltage: 7V to 26V
Extra features: Smart audio DVR
Power supply: 5V output for camera
Output power: 25/200/600mW/1000mW
Antenna connector: MMCX
Cable connector: Solder pads
Records Video Size: VGA (640*480)
Max Support TF Card: 32G
Dimension: 36x36mm, 30.5 stackable hole
Weight: 8.8g (excluding antenna)

Features


Support Smart audio
25/200/600/1000mW power switchable
One button frequency and power setupOSD configuration using smart audio
7-26V input with 5V output for camera
With MIC



Notice: 5645/5925/5945 (E4/E7/E8) are not available due to FCC regulation. Selecting 5645/5925/5945 (E4/E7/E8) will be invalid action.


             Note: 37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCC’s amateur radio rules.
Operators must require amateur radio license to operator legally in
the US. Use of amateur equipment without a license or use of
equipment on restricted frequencies could subject the operator to
significant fines by the FCC.By purchasing this equipment, the user is
agreeing that they understand these responsibilities and will operate
the equipment legally. More information related to ARL, please go to

http://www.arrl.org/getting-licensed.Pacakge Included:
1x VTX
1x pigtail


1x cable

FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a &quotHAM&quot amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government&#39s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government&#39s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

in AKK's newest VTX which has built-in DVR, Smart Audio, up to 6s (7 - 26v) direct Lipo input, adjustable power output (25, 200, 600 &amp; 1000 mW) w/ pit mode, and a 5v cam power output.  Check out the rest of our selection of VTX's!  Specifications Brand name: AKK Item name: Infinite DVR VTX Input voltage: 7V to 26V

AKK Infinite DVR 30x30 25-1000mW 5.8GHz VTX - MMCX from WREKD Co.

AKK FX3 Ultimate Mini 20x20 25-600mW 5.8GHz VTX - MMCX & U.FL

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.
Details:

Support Pit Mode
25mW, 200mW, 400mW and 600mW power switchable
One button frequency and power setup
OSD configuration using Smart audio
7-24V input with 5V output
MMCX+UFL connector
MIC
Note: Smart Audio is not compatible with KISS flight controllers.



FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a &quotHAM&quot amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government&#39s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government&#39s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.  Details: Support Pit Mode 25mW, 200mW, 400mW and 600mW power switchable One button frequency and power setup OSD co

AKK FX3 Ultimate Mini 20x20 25-600mW 5.8GHz VTX - MMCX & U.FL from WREKD Co.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a high max output power and Smart Audio capability.
Details:

Support Pit Mode
25mW, 200mW, 400mW and 600mW power switchable
One button frequency and power setup
OSD configuration using Smart audio
7-24V input with 5V output
MMCX+UFL connector
MIC
Note: Smart Audio is not compatible with KISS flight controllers.



FPV REGULATORY NOTICE
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

The AKK FX3 Ultimate is essentially the mini version of the AKK FX2. With a 20x20 profile, it can easily fit into any of your 20x20 builds while having a hig...

GEPRC

GEPRC RAD Mini 5.8GHz 1W Video Transmitter

https://www.youtube.com/watch?v=cpiqj_dWA3o&ampampt=1s

https://www.youtube.com/watch?v=Q38hvowuXe8

https://www.youtube.com/watch?v=Y2krtM-bKW8

https://www.youtube.com/watch?v=lsSJNwo6KzU



&ampnbsp

GEPRC RAD MINI 5.8G 1W VTX - GEPRC

GEPRC RAD MINI 5.8G 1W VTX

RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC. It has 4 adjustable power levels and a maximum power of 1000mW, with a stable transmission signal, suitable for short and medium-range flight to ensure image transmission quality. RAD MINI adopts 6061 high-strength aluminum alloy housing to assist in heat

GEPRC RAD Mini 1W 5.8GHz VTX

GEPRC RAD 5.8GHz 1.6W Video Transmitter

 Summary:

I'm glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of  1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB  design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input,  uses the mainstream MMCX connector ,and the mounting hole is 30.5x30.5mm.

https://www.youtube.com/watch?v=isRetR1_uRo


Feature:



 	1600mW Super power ,Suitable for Long Range flight with good stability.
 	Five power channel: PIT mode/25mW/200mW/600mW/1600mW.
 	Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.
 	Temperature control protection function that can prevent high temperature burning
 	Wide voltage input, Supports 7V-36V Voltage input.
 	VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
 	VTX built in microphone,Real-time transmission of Drone's sounds.
 	Has 3 regional frequency tables to meet the needs of various regions.
 	Two function buttons, three indicator lights, easy to control.
 	Mounting hole is 30.5mmx30.5mm.







Specifications:

 	Model: GEPRC RAD VTX 5.8G 1.6W
 	Input voltage: DC 7-36V(2-8S Battery)
 	Output: 5V@600mA(power 5V to Camera)
 	Input impedance: 75Ω
 	Protocol: IRC Tramp
 	Antenna interface: MMCX
 	Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE
 	Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)
 	Video format: PAL / NTSC
 	Microphone: Built in microphone
 	Size: 36x36.5x5.5mm
 	Weight: 9.7g(without cable)
 	Mounting hole: 30X30mm(M3)








Warning：

 	Install Antenna before use.
 	To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
 	The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.




Connector definition description:

 	DC 7-36V: Input 2-8s Battery power
 	GND: Common ground wire
 	Video: connect to the video output port of FC or Camera
 	IRC: Connect to UART TX port of FC
 	5V OUT: output 5V power to the Camera
 	GND: Common ground wire

Description of button and indicator light:

 	Two function button are parallel in the VTX circuit, and the operation and function are the same
 	Blue light: Ch indicator
 	Green light: Band indicator
 	Red light: Power indicator

Includes:

 	1 x GEPRC RAD VTX 5G8 1.6W
 	1 x 72mm MMCX Copper tube antenna
 	1 x GH 1.25*6P 150mm Connecting cable
 	1 x MMCX to SMA（Internal foramen）connector
 	1 x Matching screw package.

Size:

Include:


&ampnbsp
Manual
RAD VTX 5.8G 1.6W Manual.pdf
FAQ
Click here to View Possible problems in use

 Summary: I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of  1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB  design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in [...]

GEPRC RAD VTX 5.8G 1.6W - GEPRC

GEPRC RAD VTX 5.8G 1.6W

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC. It is a super-power VTX with a maximum power of  1600mW and five adjustable power settings: Pit/25mW/200mW/600mW/1600mW. The RAD adopts a double-layer PCB  design to separate the power supply from the main-board, which can reduce and shield interference.

GEPRC RAD VTX 1.6W 5.8GHz

PandaRC

PandaRC VT5807 4in1 5.8GHz 25-600mW VTX - MMCX

This is the latest VTX offering from PandaRC tailored specifically towards pilots who like using individual speed controllers.It is a 4in1 board that Feaures a 25-600mW VTX , Buzzer , Led Controller and PDB Checkout our PandaRC products and the rest of our VTX Collection!Specifications:Input: 6-26V (2S-6S)Continuous Cu

PandaRC VT5804 Q1 5.8GHz 25-800mW VTX - MMCX

Features Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode. Frequency lock fast, boot does not interfere with companions. Comes with output power self-test function. Full format video format: NTSC / PAL. Wide input voltage range and low power consumption: 6V-26V Fully enclosed met

BetaFPV A03 400mW 5.8GHz VTX

A03 400mW 5.8G VTX, a video transmitter with OpenVTx firmware, supports both the SmartAudio and Tramp protocols. It features PIT/RCE/25mW/100mW/400mW adjustable output power for different use. With the 26*26mm mounting hole size, it is suitable for whoop or toothpick drones like X-Knight series, Beta85X/95X series, TWIG series and Pavo series.

Know More About OpenVTx
Big thanks to Jye Smith and all contributors for their time and energies to OpenVTx project.
OpenVTx refers to open source video transmitter firmware for the FPV community, which aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx. For more information, you can know it from OpenVTx GitHub.
Bullet Point

An open-source video transmitter with OpenVTx firmware. The A03 VTX supports SmartAudio and Tramp protocols. Through these protocols, the flight controller is able to adjust the video transmitter settings, which are the power, the band, and the channel of the transmission.
A03 VTX is a high-quality 5.8GHz VTX with strong anti-interference ability and stable transmission. Comes with PIT/RCE/25mW/100mW/400mW adjustable output power, allowing the perfect amount of output power to be selected based on your FPV needs.
Overall weighing 4.9g with a small-size layout, A03 VTX comes with a 26*26mm mounting hole and is perfectly suitable for whoop or toothpick drones like the X-Knight series, Beta85X/95X series, TWIG series, and Pavo series drones.
Featuring a fixed mounting hole and 6-pin connector, less solder work needed, which makes it’s super easy to install.





Specification

Item: A03 5.8G VTX
Output power: PIT/RCE/25mW/100mW/400mW (10-26dBm)
Supply voltage range: 7-35V
Current (8v): &lt300mA (400mW)
Weight: 4.9g (excluding antenna)
VTX size: 30.34*30.34*4.6mm
Mounting Hole Size: 26*26mm
Antenna: Air Antenna (MMCX Straight)
Frequency: 5.8GHz 48 channels
Raceband: 5658~5917MHz
Channel SEL: SmartAudioV2.0 &amp Tramp
Modulation type: FM
Antenna port: 50 Ω
Operating temperature: -10℃~+60℃
Recommend drones: 26*26mm mounting hole, Pavo series, X-Knight series, Beta85X/95X series, and TWIG series



Comparison to BETAFPV VTX Series
One of the best VTX on BETAFPV VTX Series. A03 400mW 5.8G VTX is a video transmitter with OpenVTx firmware and supports both the SmartAudio and Tramp protocols. Besides, A03 VTX sports a better cost performance and comes with OpenVTx firmware, which supports adjustable output power and frequency, in contrast to A02 VTX. In a word, A03 VTX works perfectly without any reduction in performance or power.





A03 VTX
M02 VTX
M03 VTX
A02 VTX


Mounting Hole
26*26mm
26*26mm or 14*18mm
14*18mm
26*26mm


Max Output Power
400mW
350mW
350mW
800mW


Supply Voltage Power
7-35V
4.5-5.5V
4.5-5.5V
7-35V


Protocol
SA&ampTramp
SmartAudio


Firmware
OpenVTx
BETAFPV VTX System



Compatible Drones
Whoop &amp Toothpick Drones
3-5 inch Drones
65-85mm Whoop Drones
Whoop &amp Toothpick Drones





Diagram for A03 VTX
Below is the diagram picture for A03 400mW 5.8G VTX.



Below is the instruction diagram for connecting the VTX with Toothpick F722 2-6S AIO Brushless Flight Controller 35A(BLHei_32). The line color in the diagram matches the 6-pin connector wires' color.


Band &amp Channel &amp Power Settings for A03
The band, channel and power for A03 400mW 5.8G VTX can be changed by the OSD menu only. Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left), then select FEATURES -&gt VTX SA to change the frequency and power.

LED status is shown below. VTX mode (band/channel/power) LED indication is similar to TBS's approach.

Below is the frequency table for A03 400mW 5.8G VTX.


Betaflight CLI for SmartAudio or Tramp protocols can be obtained from here:
https://github.com/OpenVTx/OpenVTx
Active and Exit the PitMode
Set PIT ON or OFF on OSD menu.

Active and Exit the RACE Mode
When at a race event and using pitmode on a switch with Betaflight, select the RCE VTx power level. It will force pitmode on boot and only use 25mW. Select POWER and set RCE mode on OSD menu.



Package

1 * BETAFPV A03 5.8G VTX
1 * 6-Pin FC Cable

1 * Air Antenna(MMCX Straight)
3 * Anti-Vibration Rubber Dampers



A03 400mW 5.8G VTX, a video transmitter with OpenVTx firmware, supports both the SmartAudio and Tramp protocols. It features PIT/RCE/25mW/100mW/400mW adjustable output power for different use. With the 26*26mm mounting hole size, it is suitable for whoop or toothpick drones like X-Knight series, Beta85X/95X series, TWI

A03 400mW 5.8G VTX

Antenna Connector

Antennas send signals to and from your VRX/VTX and RX/TX. Many video transmitters and radio receivers come with antennas. Ensure if you need them. Or choose upgrades to increase range and penetration. Select appropriate antennas based on connector, radio frequency, and polarization (if circularly polarized).

Antennas

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
