iFlight

iFlight BLITZ Mini M10 GPS, Compass V2

The newly upgraded iFlight BLITZ Mini M10 GPS V2  has arrived, offering faster and more stable satellite search with the 10th generation chipset.

iFlight BLITZ Mini M10 GPS V2

IFLIGHT











The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search with the 10th generation chipset. This advancement in technology provides users with a more reliable and efficient GPS experience. This GPS also has a compass built-in.










Check out our other GPS modules, as well as the rest of our iFlight Products
Features

UBLOX M10 chip
Compass module QMC5883L integrated
Built-in farad capacitor for faster hot start
18.2x18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.
Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
10 Hz Refresh rate
Built-in Flash

Specifications

Compass module: QMC5883L
Baud Rate: 9600bps-460800bps (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Includes

1x iFlight Mini M10 GPS V2
1 x Cable set



The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search with the 10th generation chipset. This advancement in technology provides users with a more reliable and efficient GPS experience. This GPS also has a compass built-in. Check out our other GPS modules, as well as the

iFlight BLITZ Mini M10 GPS & Compass V2

Flight Controller Part Type

Flight Controller Parts and Other Electronics

HolyBro

Holybro DroneCAN M8N GPS

Holybro

The DroneCAN M8N GPS is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification, and multiple open implementations.

Holybro H-RTK F9P Rover Lite GNSS 2nd GPS w/ 6-Pin Cable

The H-RTK F9P 2nd GPS is the latest differential high-precision GNSS positioning system series from Holybro.&nbsp

The H-RTK F9P 2nd GPS is the latest differential high-precision GNSS positioning system series from Holybro.

Holybro H-RTK F9P Rover Lite GNSS w/ 10-Pin Cable

The H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro.

Matek

Matek AP Periph GNSS, M10-L4-3100 GPS Module

Matek AP_PERIPH GNSS M10-L4-3100 (GPS+Compass+Barometer) M10-L4-3100 is based on ArudPilots’ AP_Periph firmware,  It is a GNSS+COMPASS+BAROMETER peripheral with CAN/DroneCAN and UART/MSP interfaces. M10-L4-3100 uses multi-constellation GNSS powered by u-blox MAX-M10S , MAX-M10S is a concurrent GNSS receiver which can r

Matek AP_PERIPH GNSS M10-L4-3100 (GPS+Compass+Barometer)

Matek Systems

The MATEKSYS AP Periph GNSS, M10-L4-3100 GPS is equipped with AP_Periph L431 CAN node, MAX-M10S, RM3100, SPL06-001, DroneCAN protocol &amp UART_MSP, and many other cool specs that make this GPS a winner in the wing game!

The MATEKSYS AP Periph GNSS, M10-L4-3100 GPS is equipped with AP_Periph L431 CAN node, MAX-M10S, RM3100, SPL06-001, DroneCAN protocol & UART_MSP, and many other cool specs that make this GPS a winner in the wing game!

MATEKSYS AP Periph GNSS, M10-L4-3100 GPS Module

MATEK

The Matek AP_Periph Drone CAN GNSS - M10-L4-3100 has a GPS, Compass, and Barometer! Ready for whatever your aircraft can throw at it!
Check out our GPSs, BECs, PDBs, Sensors and all of our Matek Products!
Features

M10-L4-3100 is based on ArudPilots’ AP_Periph firmware, It is a GNSS+COMPASS+BAROMETER peripheral with CAN/DroneCAN and UART/MSP interfaces.
M10-L4-3100 uses multi-constellation GNSS powered by u-blox M10 series , It is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
M10-L4-3100 integrates an industrial-grade compass PNI RM3100 which provides high resolution, low power consumption, no hysteresis, large dynamic range, and high sampling rates.


Specifications

ublox GNSS M10 series (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass: RM3100
Barometer: SPL06-001
Patch GNSS Antenna: 25x25x4mm
MCU STM32L431RCT6
UART3, onboard M10 GNSS module
UART2(TX2 RX2), MSP Protocol
CAN, DroneCAN Protocol
I2C JST-GH connector for external AirSpeed sensor
CAN bootloader LED, Blue

Fast blinking, Booting
Slow blinking, working

GNSS PPS LED, Green

solid on after powering on
blinking(1Hz) when GNSS has 3D fixed

3.3V LED, Red
Input voltage range: 4.5~5.3V (5V pad/pin)
Power consumption: 60mA
Operating Temperatures: -20~80 °C
Dimensions: 36mm*36mm*12mm
Weight:16g

Firmware

ArduPilot AP_Periph: MatekL431-GPS or MatekL431-Periph

Tips &amp Notes

on M10-F4-3100, The 3 magnetic coils have little solder paste to avoid the excess to “tilt” them, resulting in some reading inaccuracies of the compass. Any strong impacts will definitely separate them, especially the “tall coil” Sen-Z-f. Please use this precision module with care.
The default configuration on MAX-M10S with ublox FW5.1 is concurrent reception of GPS, Galileo, and BeiDou B1I with QZSS and SBAS enabled. GLONASS is disabled by default.
Beidou B1I (1561.098 MHz) and GLONASS can’t be enabled at the same time. Beidou B1C (1575.42 MHz) and GLONASS can be enabled at the same time. Flight controller firmware(INAV, Betaflight, ArduPilot) don’t support enable Beidou B1C for now.
with GPS, Galileo, and BeiDou B1I with QZSS and SBAS enabled, MAX-M10s can receive more than 30 Sats with HDOP down to 0.55.
Start with u-blox GNSS FW3.01, timepulse is aligned with UTC time and that time is set valid only after leap second is downloaded. That could take up to 12.5 min. Probably PPS LED will not blink immediately after GPS has 3D fixed.

Includes

1x Matek AP_Periph Drone CAN GNSS - M10-L4-3100
2x JST-GH-4P to JST-GH-4P 20cm silicon wire
1x Mounting base (1x PCB plate, 4x silicon grommets, 4x Nylon standoffs M3x7, 4x Nylon screws M3x8)


The Matek AP_Periph Drone CAN GNSS - M10-L4-3100 has a GPS, Compass, and Barometer! Ready for whatever your aircraft can throw at it! Check out our GPSs, BECs, PDBs, Sensors and all of our Matek Products! Features M10-L4-3100 is based on ArudPilots’ AP_Periph firmware, It is a GNSS+COMPASS+BAROMETER peripheral with CAN

Matek AP_Periph Drone CAN GNSS - M10-L4-3100 - GPS

ViFly

ViFly GPS Mate - GPS Power Module

Most drone pilots have a problem when using the GPS on their drones. GPS modules are slow and get interference. A pilot must wait many minutes for a GPS fix. To do this, everything must be powered, which drains the battery and causes extra interference. It also has the potential risk to cause overheating issues to your

VIFLY

Most drone pilots have a problem when using the GPS on their drones. GPS modules are slow and get interference. A pilot must wait many minutes for a GPS fix. To do this, everything must be powered, which drains the battery and causes extra interference. It also has the potential risk to cause overheating issues to your quad components. In addition, when you finish a flight cycle and change the quad battery, the GPS needs to get a hot-start fix as the quad battery disconnected. ViFly wants to ease the pain of this process, and to this end designed and produced GPS-mate. The external power module just for your GPS. ViFly also embedded the VIFLY Finder 2 functions into this device, so it can work as a standard buzzer that controlled via your radio when the quad battery is connected, it also can work as a standalone buzzer that help you find the lost drone when the main battery has been ejected.
Check out the rest of our gps gear, and other great Vifly products.

Features

Acts as a power source for your GPS unit
Acts as a lost model buzzer
Recharges during normal use
On/Off switch for when you don't need it

Specifications

Weight: 3.5g
Size: 26x20x8mm
LiPo size: 3.7V 50mAH
Buzzer Working Time: Up to 4 hours
Input Voltage: 0.5-5.5V
Charging Time: 1.5 Hours
Output Current: Up to 80mA
Buzzer Volume: up to 90dB

Includes

1x ViFly GPS Mate
1x 4 Pin Cable
1x 5 Pin Cable
1x Manual

Wiring Diagram


Most drone pilots have a problem when using the GPS on their drones. GPS modules are slow and get interference. A pilot must wait many minutes for a GPS fix. To do this, everything must be powered, which drains the battery and causes extra interference. It also has the potential risk to cause overheating issues to your quad components. In addition, when you finish a flight cycle and change the quad battery, the GPS needs to get a hot-start fix as the quad battery disconnected. ViFly wants to ease the pain of this process, and to this end designed and produced GPS-mate. The external power module just for your GPS. ViFly also embedded the VIFLY Finder 2 functions into this device, so it can work as a standard buzzer that controlled via your radio when the quad battery is connected, it also can work as a standalone buzzer that help you find the lost drone when the main battery has been ejected.

ViFly GPS Mate - For Sale At RaceDayQuads

Most drone pilots have a problem when using the GPS on their drones. GPS modules are slow and get interference. A pilot must wait many minutes for a GPS fix. To do this, everything must be powered, which drains the battery and causes extra interference. It also has the potential risk to cause overheating issues to your quad components. In addition, when you finish a flight cycle and change the quad battery, the GPS needs to get a hot-start fix as the quad battery disconnected. ViFly wants to ease the pain of this process, and to this end designed and produced GPS-mate. The external power module just for your GPS. ViFly also embedded the VIFLY Finder 2 functions into this device, so it can work as a standard buzzer that controlled via your radio when the quad battery is connected, it also can work as a standalone buzzer that help you find the lost drone when the main battery has been ejected.
Check out the rest of our gps gear, and other great Vifly products.

Features

Acts as a power source for your GPS unit
Acts as a lost model buzzer
Recharges during normal use
On/Off switch for when you don&#39t need it

Specifications

Weight: 3.5g
Size: 26x20x8mm
LiPo size: 3.7V 50mAH
Buzzer Working Time: Up to 4 hours
Input Voltage: 0.5-5.5V
Charging Time: 1.5 Hours
Output Current: Up to 80mA
Buzzer Volume: up to 90dB

Includes

1x ViFly GPS Mate
1x 4 Pin Cable
1x 5 Pin Cable
1x Manual

Wiring Diagram


ViFly GPS Mate - GPS Power Module from WREKD Co.

The VIFLY GPS-mate is an external power module for your GPS. This power module is equipped with an on/off switch and a built-in VIFLY Finder 2 lost drone alarm. The GPS never loses power until the switch is turned off, so pilots never need to complete another fix for the whole flying session.

The VIFLY GPS-mate is an external power module for your GPS. This power module is equipped with an on/off switch and a built-in VIFLY Finder 2 lost drone alarm. The GPS never loses power until the switch is turned off, so pilots never need to complet

VIFLY GPS-mate External GPS Power Module w/ Built-In Finder 2 Buzzer

HGLRC

HGRLC M80 GPS Module

Compact GPS Module from HGLRC.
Check out our GPS selection and all our HGLRC products!

Specifications

Chip: M8030
Power Supply: 5V
Antenna: Ceramic Antenna
Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel: 72 Searching Channel
Support Rate: 115200dps
Output Protocol: UBLOX
Output Frequency: 1Hz-10Hz,Default 10Hz
Speed Precison: 0.05 m/s
Level Positioning Precison: 2D Acc1.5m(ln Open Sky)
Receiving Sensitivity: Trace -167dBm
Capture-160dBm
Dynamic Characteristics: Max Height:50000m
Max Speed: 500m/s
Max Acceleration: 4G
Working Temperature: -40℃-+85℃
Storage Temperature: -40℃-+105℃
Size: 18.5mm x 18.5mm x 7.1mm
Weight: 9.4g

Includes

1x HGRLC M80 GPS Module


Compact GPS Module from HGLRC. Check out our GPS selection and all our HGLRC products! Specifications Chip: M8030 Power Supply: 5V Antenna: Ceramic Antenna Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS Receiving Channel: 72 Searching Channel Support Rate: 115200dps Output Protocol: UBLOX Output Frequency: 1Hz-10H

HGRLC M80 GPS Module from WREKD Co.

Get precise location data for your drone with the&nbspHGLRC M80 GPS Module!

Get precise location data for your drone with the HGLRC M80 GPS Module!

HGLRC M80 GPS Module for FPV Drone Racing

The&nbspHGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Ideal for FPV racing drones!&nbsp

The HGLRC M80 PRO GPS Module comes with a QMC5883 chip to help identify the location of your drone quickly. Ideal for FPV racing drones!

HGLRC M80 Pro GPS Module for FPV Drone Racing

Matek M9N-5883 GPS GNSS w/ Compass

The Matek System M9N-5883 GNSS & Compass GPS uses multi-constellation GNSS powered by u-Blox NEO-M9N, and the NEO-M9N is a concurrent GNSS receiver that can receive and track multiple GNSS systems.

MATEKSYS M9N-5883 GNSS & Compass GPS

MATEKSYS M9N-5883 GNSS &amp Compass GPS

TBS M8.2 GPS Glonass

Precision TBS branded GPS / Glonass module for Betaflight or Pixhawk.
Specifications

Chipset - ublox UBX-M8030
Flash memory for saving configuration.
Frequency - L1, 1575.42MHz  L2,1561.10MHZ；L3,1602.00MHZ
Baud Rate - 4800bps-921600bps (Default - 9600bps)
Channel - 72ch
Sensitivity - (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start - 147dBm)
Cold start - Average 26 seconds
Warm start - Average 24 seconds
Hot start - Average 1 second
Accuracy - (HorizontalPosition:Autonomous&lt2m average) | (SBAS &lt 2.0m average) | (Timepulse signal: RMS 30 ns)
Maximum height - 50000m
Maximum speed - 500 m/s
Maximum acceleration - ≦ 4G
Refresh Rate - 1-10 Hz
Size - 20 x 22 x 6 mm
Weight - 5.2g
Input Voltage - 3.3V-5V

Includes

1x TBS M8.2 GPS


Precision TBS branded GPS / Glonass module for Betaflight or Pixhawk. Specifications Chipset - ublox UBX-M8030 Flash memory for saving configuration. Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ Baud Rate - 4800bps-921600bps (Default - 9600bps) Channel - 72ch Sensitivity - (Tracking: -164dBm) | (Capture: -1

TBS M8.2 GPS

Team BlackSheep

Precision GPS / Glonass module for betaflight or pixhawk.

Axis Flying

Axis Flying M80Q GPS

AXIS FLYING

The M80Q GPS with GLONASS, Galileo, QZSS and SBAS receiver technology and built-in micro patch antenna. For your UAV systems, Robots, RC, FPV or other projects. Electronic compass IST8310 integrated.
Features

Industry leading -166 dBm navigation sensitivity
Navigation update rate up to 18 Hz, default 1Hz
Cold starts: 27s
72 Searching Channels
Data Protocol: NEMA, UBX
Support Rate: 4800bps-921600bps, default 38400bps
Rechargeable 3V lithium backup battery
Power and fix indicator LEDs
Protective case
15cm PIXFALCONµAPM compatible 6-pin cable included


Specifications

Size : 25 x 25 x 6 mm
Weight: 7.5g
Ceramic patch antenna

Includes

1x AxisFlying M80Q GPS


The M80Q GPS with GLONASS, Galileo, QZSS and SBAS receiver technology and built-in micro patch antenna. For your UAV systems, Robots, RC, FPV or other projects. Electronic compass IST8310 integrated. Features Industry leading -166 dBm navigation sensitivity Navigation update rate up to 18 Hz, default 1Hz Cold starts: 2

AxisFlying M80Q GPS

Rush FPV

Rush FPV GNSS Micro GPS

RUSHFPV

Toward the Sky! With an even smaller GPS module from RUSHFPV! Small enough to fit on almost any drone, but with updated engines &amp more power!
Check out our other GPS modules or our other RUSHFPV products!
Features

Compact design for small FPV drones
New uBlox M10 engine supports many different navigation systems
Link up to 3x navigation systems with 10Hz refresh rate
Built-in Backup battery &amp memory support fast hot start
Antenna has anti-fouling coating &amp the circuit is sealed for a more durable reliable GPS system


Specifications

Recieve Frequency Band: GPSL1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Receiving channel: 72CH
Receiving sensitivity: -162dBm
Output protocol: UBLOX
Output refresh rate: 1HZ-10Hz
Baud rate: 115200dps
Power input: 5V 30mA
Speed accuracy: 0.05m/s
Positioning accuracy: 2D ACC 1.5m
Maximum working height: 50000m
Maximum moving speed: 500m/s
Size: 12 x 15 x 4.8mm
Weight: 2.4g

Includes

1x RUSHFPV GNSS Micro GPS


Toward the Sky! With an even smaller GPS module from RUSHFPV! Small enough to fit on almost any drone, but with updated engines &amp; more power! Check out our other GPS modules or our other RUSHFPV products!  Features Compact design for small FPV drones New uBlox M10 engine supports many different navigation systems L

RUSHFPV GNSS Micro GPS

Rush FPV GNSS Mini GPS

 Toward the Sky! With this mini GPS module from RUSHFPV. Small enough to fit on almost any drone, but with updated engines &amp more power!
Check out our other GPS modules or our other RUSHFPV products!
Features

Compact design for small FPV crafts
New uBlox M10 engine supports many different navigation systems
Link up to 3x navigation systems with 10Hz refresh rate
Built-in Backup battery &amp memory support fast hot start
Antenna has anti-fouling coating &amp the circuit is sealed for a more durable reliable GPS system


Specifications

Recieve Frequency Band: GPSL1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Receiving channel: 72CH
Receiving sensitivity: -162dBm
Output protocol: UBLOX/NMEA
Output refresh rate: 1HZ-10Hz
Baud rate: 115200dps
Power input: 5V 30mA
Speed accuracy: 0.05m/s
Positioning accuracy: 2D ACC 1.5m
Maximum working height: 50000m
Maximum moving speed: 500m/s
Size: 18 x 18 x 4.8mm
Weight: 4.2

Includes

1x RushFPV GNSS Mini GPS


 Toward the Sky! With this mini GPS module from RUSHFPV. Small enough to fit on almost any drone, but with updated engines &amp; more power! Check out our other GPS modules or our other RUSHFPV products!  Features Compact design for small FPV crafts New uBlox M10 engine supports many different navigation systems Link u

RUSHFPV GNSS Mini GPS

NewBeeDrone

NewBeeDrone M10Q Micro GPS with Compass - 10th Gen

Introducing the NewBeeDrone Tiny GPS Module, the perfect solution for applications where size and weight are critical. With a compact size of just 17MMx12MMx5MM and a weight of only 2.16g, this GPS module is incredibly small and lightweight. Tiny GPS Module is the perfect choice for any project where space and weight a

NewBeeDrone M10Q Micro GPS Module with Compass

NEWBEEDRONE

Introducing the NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)'s advanced navigation capabilities, featuring wide-range precision GPS/compass technology. Improved accuracy, compact size, and lightweight design (17mmx12mmx5mm, 2.16g) make it ideal for navigating difficult terrain. Perfect for projects requiring space and weight conservation. The NewBeeDrone M10Q Micro GPS (10th Gen) is the ideal outdoor navigation tool. With its built-in compass, you'll be able to track your location while navigating remote areas with confidence accurately. Grab one of the newest, smallest, and most powerful FPV GPS on the market right now, brought to you by great people at NewBeeDrone.
Check out our other GPS options and all our NewBeeDrone products!
Features

10th generation GPS
Only weighing 2.16g
Super tiny







 Specifications

Ceramic Antenna 2DB
Frequency: GPS L1, GLONASSL1, BDS B1, GALILEOE1, SBAS L1, QZSS L1
Compass: QMC5883
Baud Rate: 115200DPS
Output Frequency: 1HZ-10HZ, Default 10HZ
Power Supply: 5V
Speed Accuracy: 005M/S
Weight: ~2.61g

Includes

1x NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)
1x JST 0.8 6pin cable


Introducing the NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)'s advanced navigation capabilities, featuring wide-range precision GPS/compass technology. Improved accuracy, compact size, and lightweight design (17mmx12mmx5mm, 2.16g) make it ideal for navigating difficult terrain. Perfect for projects requiring space

NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)

NewBeeDrone M10Q Micro GPS Module with Compass
Introducing the NewBeeDrone Tiny GPS Module, the perfect solution for applications where size and weight are critical. With a compact size of just 17MMx12MMx5MM and a weight of only 2.16g, this GPS module is incredibly small and lightweight.
Tiny GPS Module is the perfect choice for any project where space and weight are at a premium.

Including：
1* NewBeeDrone Tiny GPS Module
1* JST 0.8 6pin cable


NewBeeDrone M10Q Micro GPS Module with Compass Introducing the NewBeeDrone Tiny GPS Module, the perfect solution for applications where size and weight are critical. With a compact size of just 17MMx12MMx5MM and a weight of only 2.16g, this GPS module is incredibly small and lightweight. Tiny GPS Module is the perfect

Introducing the NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)&#39s advanced navigation capabilities, featuring wide-range precision GPS/compass technology. Improved accuracy, compact size, and lightweight design (17mmx12mmx5mm, 2.16g) make it ideal for navigating difficult terrain. Perfect for projects requiring space and weight conservation. The NewBeeDrone M10Q Micro GPS (10th Gen) is the ideal outdoor navigation tool. With its built-in compass, you&#39ll be able to track your location while navigating remote areas with confidence accurately. Grab one of the newest, smallest, and most powerful FPV GPS on the market right now, brought to you by great people at NewBeeDrone.
Check out our other GPS options and all our NewBeeDrone products!
Features

10th generation GPS
Only weighing 2.16g
Super tiny







 Specifications

Ceramic Antenna 2DB
Frequency: GPS L1, GLONASSL1, BDS B1, GALILEOE1, SBAS L1, QZSS L1
Compass: QMC5883
Baud Rate: 115200DPS
Output Frequency: 1HZ-10HZ, Default 10HZ
Power Supply: 5V
Speed Accuracy: 005M/S
Weight: ~2.61g

Includes

1x NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen)
1x JST 0.8 6pin cable


NewBeeDrone M10Q Micro GPS w/ Compass (10th Gen) from WREKD Co.

NewBeeDrone M10Q Micro GPS Module with Compass
Introducing the NewBeeDrone Tiny GPS Module, the perfect solution for applications where size and weight are critical. With a compact size of just 17MMx12MMx5MM and a weight of only 2.16g, this GPS module is incredibly small and lightweight.
Tiny GPS Module is the perfect choice for any project where space and weight are at a premium.

Including：
1* NewBeeDrone Tiny GPS Module
1* JST 0.8 6pin cable
3D File


NewBeeDrone M10Q Micro GPS Module with Compass from WREKD Co.

HGLRC M100-5883 Micro GPS w/ Compass - 10th Gen

A compact GPS Module from HGLRC. When you get this GPS, expect extremely fast positioning with a stable signal. All on a small form factor, you&#39ll get accurate positioning with this new 10th Gen GPS running off the Ublox protocol.
Check out our GPS selection and all our HGLRC products!









Specifications

Chip: M10 (tenth generation chip)
Antenna: ceramic antenna
Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS
GLONASS L1OF, BDS B1I, Galileo E1B/C
Receive channel: 72ch
Baud rate: 115200bps.
Output protocol: UBLOX
Output frequency: 10Hz
Power input: 3.3-5V
Size: 21x21x8.02mm
Weight: 7.73g

Includes

1x HGLRC M100-5883 Micro GPS w/ Compass (10th Gen)

Wiring Diagram and Betaflight





A compact GPS Module from HGLRC. When you get this GPS, expect extremely fast positioning with a stable signal. All on a small form factor, you'll get accurate positioning with this new 10th Gen GPS running off the Ublox protocol.  Check out our GPS selection and all our HGLRC products! Specifications  Chip: M10 (tenth

HGLRC M100-5883 Micro GPS w/ Compass (10th Gen) from WREKD Co.

HGLRC M100-5883 Micro GPS w/ Compass (10th Gen)

A compact GPS Module from HGLRC. When you get this GPS, expect extremely fast positioning with a stable signal. All on a small form factor, you'll get accurate positioning with this new 10th Gen GPS running off the Ublox protocol.
Check out our GPS selection and all our HGLRC products!









Specifications

Chip: M10 (tenth generation chip)
Antenna: ceramic antenna
Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS
GLONASS L1OF, BDS B1I, Galileo E1B/C
Receive channel: 72ch
Baud rate: 115200bps.
Output protocol: UBLOX
Output frequency: 10Hz
Power input: 3.3-5V
Size: 21x21x8.02mm
Weight: 7.73g

Includes

1x HGLRC M100-5883 Micro GPS w/ Compass (10th Gen)

Wiring Diagram and Betaflight





YMZFPV

YMZFPV M10-5883 GPS w/Compass - 10th Gen













Experience superior navigation performance with the YMZFPV M10-5883 GPS (10th gen). Fast positioning, high accuracy, and strong signal reception lets you stay on course in any environment. Take the worry out of navigation with this reliable, 10th-generation GPS.











Check out our other GPS options and the rest of our YMZFPV Products
Features

Based on the new generation of M10050 chip, this product has a fast speed for star search and high positioning accuracy.
Using Nissan's LNA amplifier and custom the fine-tuned antenna of ceramic and three-frequency
This product can support: GPS Galileo, BDS three kinds of satellite system positioning to meet the positioning needs of users in different countries and regions
Built-in Flash chip, allowing you to use the U-CENTER software for personalized settings
The onboard electronic compass provides accurate orientation
The LED indicator of the side
High safety, and the protection circuit is designed in 5V and GND
The on-board farad capacitor can save the current satellite information for about 45-90min for a fast hot start




Specifications

Model: M10-5883
MCU-Ublox-M10050
GNSS: GPS, Galileo, BDS

Protocol Ublox
Frequency: 5Hz (Max. 10Hz)
Flash: Onboard FLASH (Modifiable)
Tracking sensitivity: -167dBm
Speed precision: 0.05m/s
Maximum speed: 500m/s
Maximum acceleration: 50000m
Positioning accuracy: 1.5m CEP (ideal environment)
Cold start: 26s
Hot start: 1s
Input voltage: 3.3V-5V
Dimension: 29 x 29 x 8.4mm
Weight: 12.8g

Includes

1xYMZFPV M10-5883 GPS w/Compass (10th gen)



Experience superior navigation performance with the YMZFPV M10-5883 GPS (10th gen). Fast positioning, high accuracy, and strong signal reception lets you stay on course in any environment. Take the worry out of navigation with this reliable, 10th-generation GPS. Check out our other GPS options and the rest of our YMZFP

YMZFPV M10-5883 GPS w/Compass (10th gen)













Experience superior navigation performance with the YMZFPV M10-5883 GPS (10th gen). Fast positioning, high accuracy, and strong signal reception lets you stay on course in any environment. Take the worry out of navigation with this reliable, 10th-generation GPS.











Check out our other GPS options and the rest of our YMZFPV Products
Features

Based on the new generation of M10050 chip, this product has a fast speed for star search and high positioning accuracy.
Using Nissan&#39s LNA amplifier and custom the fine-tuned antenna of ceramic and three-frequency
This product can support: GPS Galileo, BDS three kinds of satellite system positioning to meet the positioning needs of users in different countries and regions
Built-in Flash chip, allowing you to use the U-CENTER software for personalized settings
The onboard electronic compass provides accurate orientation
The LED indicator of the side
High safety, and the protection circuit is designed in 5V and GND
The on-board farad capacitor can save the current satellite information for about 45-90min for a fast hot start




Specifications

Model: M10-5883
MCU-Ublox-M10050
GNSS: GPS, Galileo, BDS

Protocol Ublox
Frequency: 5Hz (Max. 10Hz)
Flash: Onboard FLASH (Modifiable)
Tracking sensitivity: -167dBm
Speed precision: 0.05m/s
Maximum speed: 500m/s
Maximum acceleration: 50000m
Positioning accuracy: 1.5m CEP (ideal environment)
Cold start: 26s
Hot start: 1s
Input voltage: 3.3V-5V
Dimension: 29 x 29 x 8.4mm
Weight: 12.8g

Includes

1xYMZFPV M10-5883 GPS w/Compass (10th gen)



YMZFPV M10-5883 GPS w/Compass (10th gen) from WREKD Co.

Holybro M9N Micro GPS w/ IST8310 Compass - 10th Gen

HOLYBRO

Holybro M9N Micro GPS w/ IST8310 Compass is the perfect navigation solution for professionals looking for maximum precision. This 10th gen GNSS module is built on the reliable u-blox M9N chip for exceptional sensitivity and acquisition times. It supports concurrent reception of four GNSS systems which maximizes accuracy under difficult conditions.
Check out our other GPS options and the rest of our HolyBro selection!
Features

Ublox M9N GNSS Receiver
Fast &ampamp Accurate Positioning
IST8310 Compass
Small Form Factor
Maximum position availability with concurrent reception of 4 GNSS
Ultra-robust GNSS positioning
Excellent RF interference mitigation


Specifications

GNSS Receiver: Ublox M9N Receiver
Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)
Compass: IST8310
Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Output Protocol: UBX (U-blox), NMEA

Nav. Update Rate: Up to 25 Hz
GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
GNSS Augmentation System (QZSS): L1S (SLAS)
Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m
Speed Accuracy: 0.05 m/s
Port Type: JST-GH-6P
Antenna: 25 x 25 x 4mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V
Port Type: JST-GH-6P
Operating Temperature: -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance,
Rechargeable Farah capacitance

Includes

1x Holybro M9N Micro GPS w/ IST8310 Compass (10th gen)

Wiring Diagram


Holybro M9N Micro GPS w/ IST8310 Compass is the perfect navigation solution for professionals looking for maximum precision. This 10th gen GNSS module is built on the reliable u-blox M9N chip for exceptional sensitivity and acquisition times. It supports concurrent reception of four GNSS systems which maximizes accurac

Holybro M9N Micro GPS w/ IST8310 Compass (10th gen) from WREKD Co.

Holybro M9N Micro GPS w/ IST8310 Compass (10th gen)

Holybro M9N Micro GPS w/ IST8310 Compass is the perfect navigation solution for professionals looking for maximum precision. This 10th gen GNSS module is built on the reliable u-blox M9N chip for exceptional sensitivity and acquisition times. It supports concurrent reception of four GNSS systems which maximizes accuracy under difficult conditions.
Check out our other GPS options and the rest of our HolyBro selection!
Features

Ublox M9N GNSS Receiver
Fast &amp Accurate Positioning
IST8310 Compass
Small Form Factor
Maximum position availability with concurrent reception of 4 GNSS
Ultra-robust GNSS positioning
Excellent RF interference mitigation


Specifications

GNSS Receiver: Ublox M9N Receiver
Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)
Compass: IST8310
Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Output Protocol: UBX (U-blox), NMEA

Nav. Update Rate: Up to 25 Hz
GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
GNSS Augmentation System (QZSS): L1S (SLAS)
Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m
Speed Accuracy: 0.05 m/s
Port Type: JST-GH-6P
Antenna: 25 x 25 x 4mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V
Port Type: JST-GH-6P
Operating Temperature: -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance,
Rechargeable Farah capacitance

Includes

1x Holybro M9N Micro GPS w/ IST8310 Compass (10th gen)

Wiring Diagram


Holybro M10 Micro GPS w/ IST8310 Compass - 10th Gen












Small and precise, the Holybro M10 Micro GPS with IST8310 Compass provides fast and accurate positioning with its Ublox 10th Gen GNSS. Get the most accurate navigation, and enjoy precise tracking during your travels.











Check out our other GPS options and the rest of our HolyBro selection!

Features


Newest Ublox 10th Gen GNSS
Fast &amp Accurate Positioning
IST8310 Compass
Small Form Factor
Plug and Play


Specifications

GNSS Receiver: Ublox M10 Receiver

Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)

Compass: IST8310

Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1

Output Protocol: UBX (U-blox), NMEA

Nav. Update Rate: Up to 25 Hz (single GNSS) and Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
GNSS Augmentation System (QZSS): L1S (SLAS)

Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m

Speed Accuracy: 0.05 m/s

Port Type: JST-GH-6P
Antenna: 25 x 25 x 4mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V

Port Type: JST-GH-6P
Operating Temperature:  -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance, Rechargeable Farah capacitance


Includes

1x Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen)

Wiring Diagram



Small and precise, the Holybro M10 Micro GPS with IST8310 Compass provides fast and accurate positioning with its Ublox 10th Gen GNSS. Get the most accurate navigation, and enjoy precise tracking during your travels. Check out our other GPS options and the rest of our HolyBro selection! Features Newest Ublox 10th Gen G

Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen)












Small and precise, the Holybro M10 Micro GPS with IST8310 Compass provides fast and accurate positioning with its Ublox 10th Gen GNSS. Get the most accurate navigation, and enjoy precise tracking during your travels.











Check out our other GPS options and the rest of our HolyBro selection!

Features


Newest Ublox 10th Gen GNSS
Fast &ampamp Accurate Positioning
IST8310 Compass
Small Form Factor
Plug and Play


Specifications

GNSS Receiver: Ublox M10 Receiver

Number of Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)

Compass: IST8310

Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1

Output Protocol: UBX (U-blox), NMEA

Nav. Update Rate: Up to 25 Hz (single GNSS) and Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System (SBAS): WAAS, EGNOS, MSAS
GNSS Augmentation System (QZSS): L1S (SLAS)

Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m

Speed Accuracy: 0.05 m/s

Port Type: JST-GH-6P
Antenna: 25 x 25 x 4mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V

Port Type: JST-GH-6P
Operating Temperature:  -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Other Notes: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance, Rechargeable Farah capacitance


Includes

1x Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen)

Wiring Diagram



Holybro M10 Micro GPS w/ IST8310 Compass (10th Gen) from WREKD Co.

Flywoo

Flywoo GOKU GM10 Mini V3 GPS with Compass - 10th Gen

FLYWOO

The GOKU GM10 Mini V3 GPS w/compass has the same size as the GOKU GM10 Mini V3 GPS, but with the addition of a compass. It is lightweight, weighing only 4.1g. The satellite search speed and maximum search for up to 32 satellites are the same as the GOKU GM10 Mini V3 GPS. If you need a compass function, then the GOKU GM

GOKU GM10 Mini V3 GPS w/compass

Note: The chip of GOKU GM10 V3 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.
Check out our other GPS options, as well as the rest of our Flywoo selection!

Features

GPS Module, Three Module
1.0mm spacing between the 4pins patch seat


Specifications

Brand: FLYWOO
Model: GM10 MINI V3 GPS
Dimension: 18x18x4.8mm
Weight: 4.7g
Connector: 1.00mm spacing between the 4pins patch seat
Chipset: M10050 (Tenth Generation Chip)
Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Default Protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72 Searching Channel
Tracking: -162dBm
Reacquisition: -160dBm
Support Rate: 4800bps to 921600bps, Default 115200bps
Data Level: TTL or RS-232, Default TTL level
Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
Output frequency: 1Hz-10Hz，Default 10Hz
Altitude: 50,000m Max
Velocity: 500m/s Max
Acceleration: Less than 4g
VCC: DC Voltage 5V
Operating temp:　-40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
PPS LED: yellow .PPS LED is not bright when GPS is not fixed, flashing when fixed
The Module’s Pins: GND TX RX 5V

Includes

1x Flywoo GOKU GM10 Mini V3 GPS
1x 100mm Cable
1x Copper Foil

Wiring Diagram


Note: The chip of GOKU GM10 V3 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous ge

Flywoo GOKU GM10 Mini V3 GPS from WREKD Co.

Flywoo GOKU GM10 Mini V3 GPS











Experience a reliable and lightweight GPS system with the Flywoo GOKU GM10 Mini V3 GPS with Compass. This system provides accurate guidance and fast satellite search speed, allowing you to reach your destination with ease. Get ready to navigate with confidence and accuracy. Expect to see up to 32 satellites with a quick search speed.










Check out our other GPS options, as well as the rest of our Flywoo selection!
Features:

GPS Module,Three Module Compass
With electronic compass IC QMC5883L
1.0mm spacing between the 6pins patch seat
Integrated compass


Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of satellite search is faster.




Specification

Chipset : M10050(Tenth Generation Chip)
Dimension: 18mmx18mmx4.8mm
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity

Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits

Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption

VCC : DC Voltage ：5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator

PPS LED: Yellow. The PPS LED remains unlit when the GPS signal has not been fixed, but starts flashing once the GPS signal has beensuccessfully fixed.
The Module’s Pins: TX RX GND 5V SCL SDA


Includes

1x Flywoo GOKU GM10 Mini V3 Micro GPS w/ Compass (10th Gen)


Experience a reliable and lightweight GPS system with the Flywoo GOKU GM10 Mini V3 GPS with Compass. This system provides accurate guidance and fast satellite search speed, allowing you to reach your destination with ease. Get ready to navigate with confidence and accuracy. Expect to see up to 32 satellites with a quic

Flywoo GOKU GM10 Mini V3 GPS w/ Compass (10th Gen)

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2 the positioning is more accurate and the speed of star search is faster.   Description Brand: FLYWOO Model: GM10 MINI V3 GPS Dimension :18mm*18mm*4.8mm Weight : 4.7g Connector : 1.00mm spacing between the 4pins patch seat Features: GPS Module Three Module 1.0mm spacing between the 4pins patch seat Specification Electrical Characteristics Chipset : M10050(Tenth Generation Chip) Receiving Format : GPS GLONASS Galileo BeiDou QZSS and SBAS Default Protocol : GPS Galileo BeiDou Frequency : GPS L1 GLONASS L1 BeiDou B1 SBAS L1 Galileo E1 Channels : 72 Searching Channel Sensitivity Tracking : -162dBm Reacquisition : -160dBm Data and Update Rate Support Rate : 480

GOKU GM10 Mini V3 GPS

Flywoo GOKU GM10 Nano V3 GPS with Compass - 10th Gen

Note: The chip of GOKU GM10 V3 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.
Check out our other GPS options, as well as the rest of our Flywoo selection!

Features

GPS Module, Three Module
4pins Pad, ultra-lightweight


Specifications

Chipset: M10050 (Tenth Generation Chip)
Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Default Protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72 Searching Channel
Tracking: -162dBm
Reacquisition: -160dBm
Support Rate: 4800bps to 921600bps, Default 115200bps
Data Level: TTL or RS-232, Default TTL level
Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
Output frequency: 1Hz-10Hz，Default 10Hz
Altitude: 50,000m Max
Velocity: 500m/s Max
Acceleration: Less than 4g
VCC: DC Voltage 3.3-5V
Operating temp:　-40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
PPS LED: Yellow .PPS LED is not bright when GPS is not fixed, flashing when fixed
The Module’s Pins: RX TX 3.3-5V GND

Includes

1x Flywoo GOKU GM10 Nano V3 GPS
1x 100mm Cable
1x Copper Foil

Wiring Diagram


Flywoo GOKU GM10 Nano V3 GPS

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols GOKU GM10 V3 GPS series is here! Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2 the positioning is more accurate and the speed of star search is faster. Description Brand: FLYWOO Model: GM10 NANO V3 GPS Dimension :12mm*16mm*4.5mm Weight : 2.2g Connector : 4pins Pad Features: GPS Module Three Module 4pins Pad，ultra light weight Specification Electrical Characteristics Chipset : M10050(Tenth Generation Chip) Receiving Format : GPS GLONASS Galileo BeiDou QZSS and SBAS Default Protocol : GPS Galileo BeiDou Frequency : GPS L1 GLONASS L1 BeiDou B1 SBAS L1 Galileo E1 Channels : 72 Searching Channel Sensitivity Tracking : -162dBm Reacquisition : -160dBm Data and Update Rate Support Rate : 4800bps to 921600bps Default 115200bps Data Level :

GOKU GM10 Nano V3 GPS w/compass

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2 the positioning is more accurate and the speed of star search is faster.   Description Brand: FLYWOO Model: GM10 NANO V3 GPS Dimension :12mm*16mm*4.5mm Weight : 2.2g Connector : 4pins Pad Features: GPS Module Three Module 4pins Pad，ultra light weight Specification Electrical Characteristics Chipset : M10050(Tenth Generation Chip) Receiving Format : GPS GLONASS Galileo BeiDou QZSS and SBAS Default Protocol : GPS Galileo BeiDou Frequency : GPS L1 GLONASS L1 BeiDou B1 SBAS L1 Galileo E1 Channels : 72 Searching Channel Sensitivity Tracking : -162dBm Reacquisition : -160dBm Data and Update Rate Support Rate : 4800bps to 921600bps Default 115200bps Data Level :

GOKU GM10 Nano V3 GPS

The Flywoo GOKU GM10 Nano V3 Micro GPS with Compass (10th Gen) is the perfect choice for reliable navigation. This GPS weighs in at just 2.8g, and its smaller design allows for increased portability and easier mounting. Enjoy precise navigation with cutting edge 10th generation technology brought you by the experts at Flywoo!










Check out our other GPS options, as well as the rest of our Flywoo selection!










Feature

Integrated compass
Using the latest M10050 GNSS chip
Plug and play, no need for soldering.


Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of satellite search is faster.







Specifications


Model: GM10 NANO V3 GPS w/compass


Dimension: 12mmx17mmx5mm


Weight: 2.6g

Connector: 4pins Pad


Electrical Characteristics

Chipset: M10050(Tenth Generation Chip)
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol: GPS,Galileo,BeiDou
Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels: 72 Searching Channel

Sensitivity

Tracking: -162dBm
Reacquisition: -160dBm

Data and Update Rate


Support Rate: 4800bps to 921600bps,Default 115200bps
Data Level: TTL or RS-232,Default TTL level
Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency: 1Hz-10Hz，Default 10Hz

Operational Limits


Altitude: 50,000m Max
Velocity: 500m/s Max
Acceleration: Less than 4g

Power consumption

VCC: DC Voltage：3.3-5V
Operating temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C

Indicator

PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
The Module’s Pins: RX TX 3.3-5V GND


Includes

1x Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)

1x 150mm Cable

1x Copper Foil

Wiring Diagram

GPS Rescue Mode Settings
Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
BETAFLIGHT：Use firmware above 4.3.0INAV：Use the latest 6.0.0 configurator, the latest firmware above 5.0.0



The Flywoo GOKU GM10 Nano V3 Micro GPS with Compass (10th Gen) is the perfect choice for reliable navigation. This GPS weighs in at just 2.8g, and its smaller design allows for increased portability and easier mounting. Enjoy precise navigation with cutting edge 10th generation technology brought you by the experts at

Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)

Flywoo GOKU GM10 Nano V3 GPS from WREKD Co.

Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen) from WREKD Co.

FlyFishRC

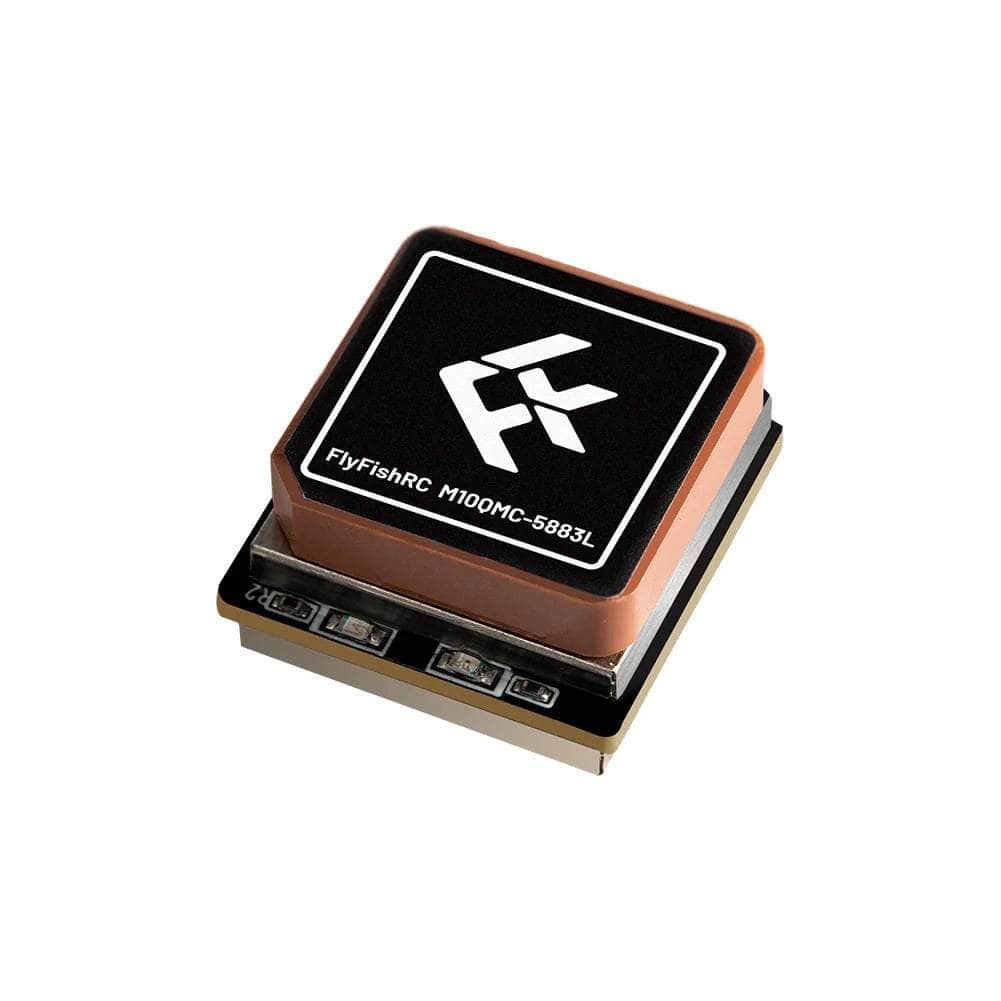

FlyFishRC M10QMC-5883L GPS Module

FLYFISH











The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18x18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allows subtle altitude changes to be skipped for more stability. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.










Check out our other GPS and our FlyFishRC product selection!
Features

72 channel 10 Hz Refresh rate
Built-in TCXO crystal and farad capacitor for faster hot start
High sensitivity 18x18mm GPS patch antenna
SH1.0-6Pin terminal design, no soldering required
QMC5883L Magnetometer chip, Precise pointing


Specifications

GPS module: FlyFishRC M10QMC-5883L GPS Module
Frequencies: 72 channel
Refresh Rate: 10 Hz
Compass module: QMC5883L
Baud Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Accuracy: Horizontal &lt2.5m average), SBAS &lt 2.0m average, Timepulse: RMS 30 ns
Cold start: &lt24s
Hot start: &lt2s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Input Voltage: 3.3V-5V，current 25mA
Output Connector: SH1.0-6P
Weight: 8.8g
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GPS patch antenna size: 18 x 18 mm
Total dimensions：20 x 20 x 11 mm

Includes

1x FlyFishRC M10QMC GPS Module
1x SH1.0-6Pin Cable
1x SH1.0 Connector
1x GPS Manual


The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18x18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allow
