Diatone

Diatone 2-6S Mamba Micro BEC 2A 5V/9V for DJI Air Unit

Diatone Mamba Micro 2A SWITCHABLE BEC 5V/9V for DJI Air Unit! This unit conveniently switches between a 5v and 9v output at 2 Amps!  Check out all our FC Accessories and the rest of our Diatone Products! Specifications: Output: 5V/2A  and 9V/2A switchable Output 5v: input 7~25.2v Output9v: input 12~25.2v Weight: 1.6g P

Diatone Mamba Micro 2A BEC 5V/9V for DJI Air Unit

Diatone Micro BEC for 5v, 0.5A applications!Check out all our FC Accessories and the rest of our Diatone Products! Specifications: Voltage: 5v Amperage: 500mA Package Includes: 1 x Diatone Micro BEC 5v 500mah

Diatone Micro BEC 5v 500mah

DIATONE


Diatone Mamba Micro 2A SWITCHABLE BEC 5V/9V for DJI Air Unit! This unit conveniently switches between a 5v and 9v output at 2 Amps!
Check out all our BECs and our Diatone products!

Specifications


Output: 5V/2A  and 9V/2A switchable

Output 5V: input 7~25.2v
Output 9V: input 12~25.2v

Product Size：16×10mm

Weight: 1.6g


Includes


1x Diatone 2-6S Mamba Micro BEC 2A 5V/9V for DJI Air Unit




Switch between 5V and 9V at 2 Amps with the all-new Diatone 2-6S Mamba Micro BEC 2A 5V/9V for DJI Air Unit! Order today for fast shipping from the USA!

Diatone 2-6S Mamba Micro BEC 2A 5V/9V for DJI Air Unit for Sale

Diatone Mamba Micro 2A SWITCHABLE BEC 5V/9V for DJI Air Unit! This unit conveniently switches between a 5v and 9v output at 2 Amps!  Check out all our BECs and our Diatone products! Specifications Output: 5V/2A  and 9V/2A switchable Output 5V: input 7~25.2v Output 9V: input 12~25.2v Product Size：16×10mm Weight: 1.6g In

Diatone 2-6S Mamba Micro BEC 2A 5V/9V for DJI Air Unit from WREKD Co.

Flight Controller Part Type

Flight Controller Parts and Other Electronics

Matek

Matek Micro BEC 6-60V to 5V/9V/12V

MATEK

Get the voltage you need with this Matek BEC, convert 6-60V to either 5V, 9V, or 12V.
This BEC defaults to 5V, select either 9V or 12V by soldering the respective jumper.
Check out all our BECs and PDBs, as well as the entire Matek selection!
Specifications

Wide 6V to 60V Operating Input Range
Start-up Voltage &gt=6.7V
VOut 5V, 9V or 12V Adj. Default is 5V.
Maximum Duty Cycle: 100%,   when input voltage&lt setting value,  Regulator output voltage = Input voltage
Continuous load current: Depends on input voltage and heat dissipation.
Standby current: &lt5mA
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (3 seconds/minute)
No protection for reversed input polarity
Pins distance: 2.54mm
Size &amp Weight: 18x15x4.5mm, 2g

Includes

1x Matek Micro BEC 6-60V to 5V/9V/12V



The Matek Micro BEC 6-60V to 5V/9V/12V is a flexible component for your build! No matter your voltage needs, you can handle them by soldering the correct jumper!

Matek Micro BEC 6-60V to 5V/9V/12V for Sale - RaceDayQuads

Get the voltage you need with this Matek BEC, convert 6-60V to either 5V, 9V, or 12V.
This BEC defaults to 5V, select either 9V or 12V by soldering the respective jumper.
Check out all our BECs and PDBs, as well as the entire Matek selection!
Specifications

Wide 6V to 60V Operating Input Range
Start-up Voltage &ampgt=6.7V
VOut 5V, 9V or 12V Adj. Default is 5V.
Maximum Duty Cycle: 100%,   when input voltage&amplt setting value,  Regulator output voltage = Input voltage
Continuous load current: Depends on input voltage and heat dissipation.
Standby current: &amplt5mA
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (3 seconds/minute)
No protection for reversed input polarity
Pins distance: 2.54mm
Size &ampamp Weight: 18x15x4.5mm, 2g

Includes

1x Matek Micro BEC 6-60V to 5V/9V/12V



Get the voltage you need with this Matek BEC, convert 6-60V to either 5V, 9V, or 12V. This BEC defaults to 5V, select either 9V or 12V by soldering the respective jumper. Check out all our BECs and PDBs, as well as the entire Matek selection! Specifications Wide 6V to 60V Operating Input Range Start-up Voltage &gt;=6.7

Matek Micro BEC 6-60V to 5V/9V/12V from WREKD Co.

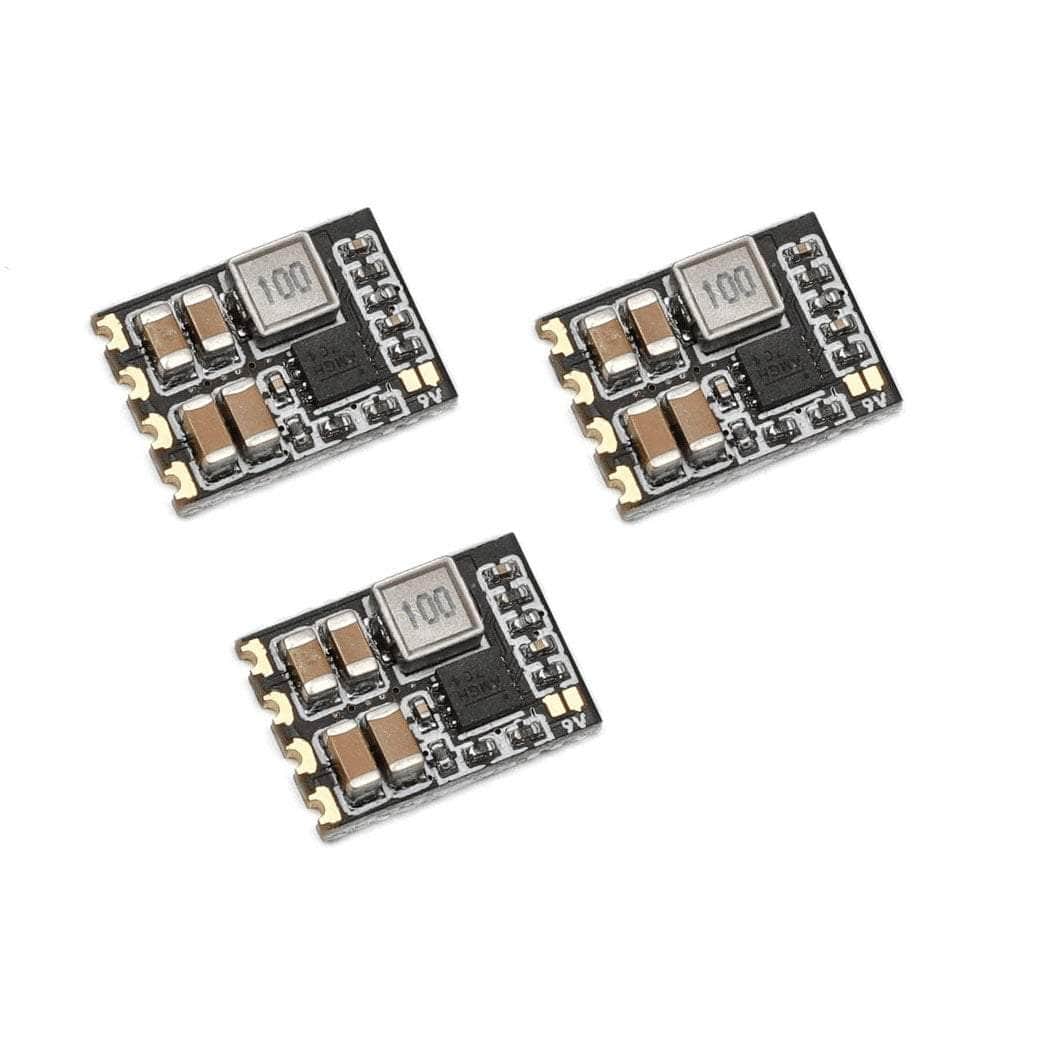

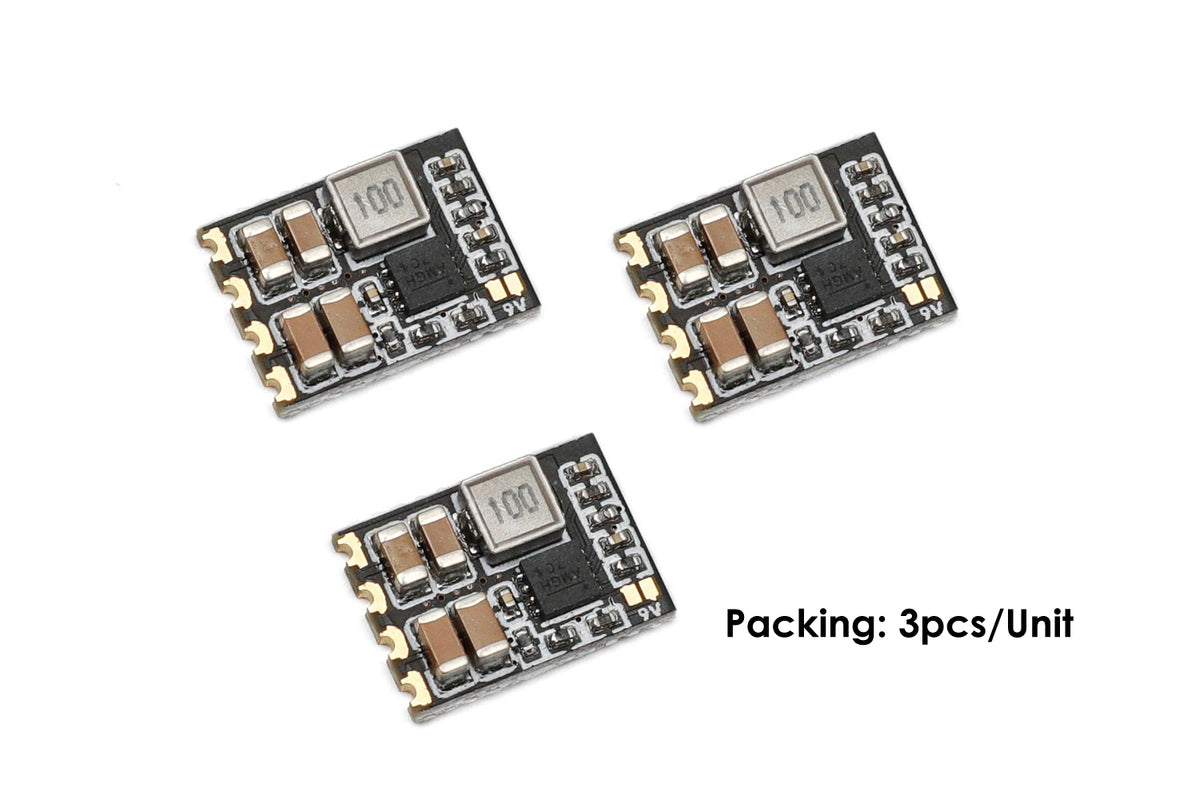

Matek 2-8S Micro 5V or 9V BEC 3 Pack

The latest Micro BEC from Matek. These thins are tiny! Great for adding powering your 5 or 9V accessories without adding any meaningful weight to your build.
Check out the rest of our BECs and PDBs!
 Features



High Efficiency Synchronous Step-down regulator
Wide 2-8S (6-30V) Operating Input Range
Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
VOut 5V or 9V Adj. Default is 5V.
VOut Load Regulation: 2%
Standby current: &lt5mA
Maximum Duty Cycle: 95%
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (5 seconds/minute)
Pins distance: 2.54mm
Dimensions: 10x14x3mm
Weight: 1g



Includes


3x Matek 2-8S Micro 5V or 9V BEC



The latest Micro BEC from Matek. These thins are tiny! Great for adding powering your 5 or 9V accessories without adding any meaningful weight to your build. Check out the rest of our BECs and PDBs!     Features High Efficiency Synchronous Step-down regulator Wide 2-8S (6-30V) Operating Input Range Continuous load curr

The latest Micro BEC from Matek. These thins are tiny! Great for adding powering your 5 or 9V accessories without adding any meaningful weight to your build.
Check out the rest of our BECs and PDBs!
 Features



High Efficiency Synchronous Step-down regulator
Wide 2-8S (6-30V) Operating Input Range
Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
VOut 5V or 9V Adj. Default is 5V.
VOut Load Regulation: 2%
Standby current: &amplt5mA
Maximum Duty Cycle: 95%
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (5 seconds/minute)
Pins distance: 2.54mm
Dimensions: 10x14x3mm
Weight: 1g



Includes


3x Matek 2-8S Micro 5V or 9V BEC



Matek 2-8S Micro 5V or 9V BEC 3 Pack from WREKD Co.

iFlight

iFlight 2-8S Micro 5V or 12V BEC

IFLIGHT

The iFlight 5V/12V Step Down Micro BEC features high-efficiency synchronous rectification and the ability to step down from a wide input voltage range of 2-8S(5-36V) and provide a lower stable output voltage. It's an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts.
For those looking for something even smaller and only needing 5V 2A output from 3-6S input, may we suggest the iFlight 3-6S Micro 5V 2A BEC.
Check out the Rest of our iFlight product range and PDB/BEC selection while you're at it!

 Features


 Step-down Switch Mode
High-efficiency Synchronous Rectification
Wide Input voltage range
Voltage output can be 5V or 12V* (default 5V)

*When the "ON-12" Jumper pads are shorted, the output voltage is 12V 2A. When open, the output voltage is 5V 3A. See enlarged image below.
Specifications

Input voltage: 2-8S(5-36V)
BEC Output: 5V/2A, 12V/3A (default 5V/2A)
Dimensions: 12x14x4.5mm
Pin Spacing: 2.55mm
Weight: 1.8g

Includes

1x iFlight Micro 2-8S BEC - 5V/12V Output
1x Connecting Cables Set

Voltage Switch Jumper:





The iFlight 5V/12V Step Down Micro BEC features high-efficiency synchronous rectification and the ability to step down from a wide input voltage range of 2-8S(5-36V) and provide a lower stable output voltage. It's an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts.

The iFlight 5V/12V Step Down Micro BEC features high-efficiency synchronous rectification and the ability to step down from a wide input voltage range of 2-8S(5-36V) and provide a lower stable output voltage. It&#39s an incredibly compact solution for still being able to provide 3 amps at 5 volts, and 2 amps at 12 volts.
For those looking for something even smaller and only needing 5V 2A output from 3-6S input, may we suggest the iFlight 3-6S Micro 5V 2A BEC.
Check out the Rest of our iFlight product range and PDB/BEC selection while you&#39re at it!

 Features


 Step-down Switch Mode
High-efficiency Synchronous Rectification
Wide Input voltage range
Voltage output can be 5V or 12V* (default 5V)

*When the &quotON-12&quot Jumper pads are shorted, the output voltage is 12V 2A. When open, the output voltage is 5V 3A. See enlarged image below.
Specifications

Input voltage: 2-8S(5-36V)
BEC Output: 5V/2A, 12V/3A (default 5V/2A)
Dimensions: 12x14x4.5mm
Pin Spacing: 2.55mm
Weight: 1.8g

Includes

1x iFlight Micro 2-8S BEC - 5V/12V Output
1x Connecting Cables Set

Voltage Switch Jumper:





iFlight 2-8S Micro 5V or 12V BEC from WREKD Co.

Diatone Mamba Micro 2A BEC 5V/9V for DJI Digital FPV System

Diatone Mamba Micro 2A switchable BEC 5V/9V for the&nbspDJI Digital FPV System! This unit conveniently switches between a 5v and 9v output at 2 Amps!

Diatone Mamba Micro 2A switchable BEC 5V/9V for the DJI Digital FPV System! This unit conveniently switches between a 5v and 9v output at 2 Amps!

Matek BEC12S-Pro 9-55V to 5/8/12V-5A

This full size BEC from Matek is great for powering your 5, 9, or 12V accessories without adding any meaningful weight to your build.
Check out the rest of our BECs and PDBs as well as the entire Matek selection!

Features


Wide operating input range: 9-55V
Continuous 5A output
Peak 9A output



Specifications

Wide 9V to 55V Operating Input Range with TVS protection
3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
Supports continuous output current of up to 5A, peak current of 9A.
Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
Standby current: 5~10mA
No reverse-input voltage protection
Thermal Shutdown
Output Short-circuit tolerant (2 seconds)
Overcurrent protection &amp self-recovery
Dropout voltage: 2V (Input&gt=14V is required for stable 12V output)
Pins distance: 3.81mm
Size: 35 x 24 x 5.5mm
Weight: 5g



Includes

Matek BEC12S-Pro 9-55V to 5/8/12V-5A



This full size BEC from Matek is great for powering your 5, 9, or 12V accessories without adding any meaningful weight to your build. Check out the rest of our BECs and PDBs as well as the entire Matek selection!  Features Wide operating input range: 9-55V Continuous 5A output Peak 9A output Specifications Wide 9V to 5
