Continuous Amp Rating

T-Motor

T-Motor Pacer Alpha G4 3-6S 30x30 Flight Controller

TMOTOR

What if the best electronics company in FPV, T-Motor was to start making Fettec Alpha Flight Controllers? Well here it is, T-Motor Pacer Alpha G4 Flight Controller. HD version allows you to plug your O3 Air Unit in to the FC without the need for soldering.
Check out all our 30x30 Flight Controllers, and all our T-Motor products!
Features


New Alpha Firmware, lets you super fly
Supports Dshot2400
Directly Plug into DJI 03 Air Unit (HD only)


Specifications

MCU: STM32G473
Gyro: IIM-42652
BEC: [Standard=5V2A] [HD=5V2A / 10V2A]
OSD: HD OSD
Firmware: Fettec Alpha
Weight 7g
Input Voltage 3-6S
Size: 37x37x4.6mm
Mounting 30.5x30.5mm/M3 (including gummy)
Supports DShot2400
UART2: RX

UART4: MSP

Includes

1x T-Motor Pacer Alpha G4 HD 3-6S 30x30 Flight Controller
1x Accessory Kit



What if the best electronics company in FPV, T-Motor was to start making Fettec Alpha Flight Controllers? Well here it is, T-Motor Pacer Alpha G4 Flight Controller. HD version allows you to plug your O3 Air Unit in to the FC without the need for soldering. Check out all our 30x30 Flight Controllers, and all our T-Motor

T-Motor Pacer Alpha G4 3-6S 30x30 Flight Controller - Choose Your Version

T-Motor Pacer Alpha G4 3-6S 30x30 Flight Controller - Choose Your Vers

T-Motor Hobby

T-Motor Pacer Alpha G4 3-6S 30x30 Flight Controller - Choose Your Version from WREKD Co.

Tiger Motors

The T-Motor Pacer Alpha G4 is a flight controller with a 30.5x30.5 mounting pattern. This HD version allows plug-and-play with the O3 Air unit for a no-solder build.

T-Motor Pacer Alpha G4 Flight Controller - HD 30.5x30.5

The T-Motor Pacer Alpha G4 is a flight controller with a 30.5x30.5 mounting pattern.

T-Motor Pacer Alpha G4 Flight Controller - Analog 30.5x30.5

Processor (MCU)

The FC is the brain or the CPU of your quad. It has a processor and other components that allow it to listen to your inputs and tells the quad what to do. FCs are commonly sold together with other components integrated or stacked (like ESCs and video transmitters). For beginners, choose a FC with a F4 or F7 processor that has a compatible mount with your frame.

Flight Controllers

FC Stack Mount

Built-in VTX

Built-in ESC

SpeedyBee

SpeedyBee F405 V4 Flight Controller Stack - 55A 3-6S 4in1 ESC

Elevate your drone's performance with the SpeedyBee F405 V4 Stack, featuring STM32F405 MCU and ICM42688P gyro for precise control.&nbsp

Elevate your drone's performance with the SpeedyBee F405 V4 Stack, featuring STM32F405 MCU and ICM42688P gyro for precise control.

SpeedyBee F405 V4 Stack - F4 V4 FC + 55A BLHeli_S ESC - 30x30

Richer features, unbelievable price!












The SpeedyBee F405 V4 BLS 3-6S 30x30 Stack/Combo is a powerhouse of features at a remarkably competitive price. It boasts a wireless FC &ampamp ESC configuration, dual gyroscope power supply filtering, onboard 4-level battery indicators, 8 motor support, 4x LED strips soldering pads, 3A output 5V &ampamp 9V BECs, fixed SD card compatibility issue, wireless motor direction change, a DJI Air Unit plug-and-play, and a built-in barometer. Get it now and enjoy an unparalleled performance!
The powerful 55A (70A burst) 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + Japan made TDK SMT capacitors + external 1000uF low ESR capacitor, everything is for a durable build and smooth flight.
All of that for only $69.99! Top-shelf spec at a crazy low price, what are you waiting for?
Interested in the SpeedyBee BLS 8Bit 55A 3-6S 30x30 4in1 ESC?
Interested in the SpeedyBee F405 V4 3-6S 30x30 Flight Controller?
Check out all our 30x30 stacks &ampamp combos, and all our Speedy Bee products!












Features

User manual
Wireless FC &ampamp ESC full configuration
ESC upgraded to 55A with heat sink
Dual gyroscope power supply filtering
Onboard 4-level battery indicators
Supports up to 8 Motors
4x LED strips soldering pads
5V &ampamp 9V BECs upgraded to 3A output
Fixed SD card compatibility issue
Change motor direction wirelessly
1000uF huge filtering capacitor
DJI Air Unit plug-and-play
Built-in barometer









































Specifications
SpeedyBee F405 V4 30x30 Flight Controller

MCU: STM32F405

IMU(Gyro): ICM42688P

USB Port Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E chip

BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI: Not supported

DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Blackbox MicroSD Card Slot: Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.

Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.

Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.

9V Output: 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.

3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output: Supported. Designed for a receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.

UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6

ESC Telemetry: UART R5(UART5)

I2C: Supported. SDA &ampamp SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.

Buzzer: BZ+ and BZ- pad used for 5V Buzzer

BOOT Button: Supported.[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input: Supported. Named as RS on the front side.

Smart Port / F.Port: Not supported

Supported Flight Controller Firmware: BetaFlight(Default), INAV

Firmware Target Name: SPEEDYBEEF405V4

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm

Weight: 10.5g

SpeedyBee BLS 55A 30x30 4-in-1 ESC

Firmware: BLHeli_S J-H-40

Wireless Configuration: Full Configuration Supported in the SpeedyBee app

PC Configurator Download Link: https://esc-configurator.com/
Continu..

Richer features, unbelievable price! The SpeedyBee F405 V4 BLS 3-6S 30x30 Stack/Combo is a powerhouse of features at a remarkably competitive price. It boasts a wireless FC &amp; ESC configuration, dual gyroscope power supply filtering, onboard 4-level battery indicators, 8 motor support, 4x LED strips soldering pads,

SpeedyBee F405 V4  BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1 ESC) from WREKD Co.

SpeedyBee F405 V4  BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1 ESC)

RUNCAM

Richer features, unbelievable price!












The SpeedyBee F405 V4 BLS 3-6S 30x30 Stack/Combo is a powerhouse of features at a remarkably competitive price. It boasts a wireless FC &amp ESC configuration, dual gyroscope power supply filtering, onboard 4-level battery indicators, 8 motor support, 4x LED strips soldering pads, 3A output 5V &amp 9V BECs, fixed SD card compatibility issue, wireless motor direction change, a DJI Air Unit plug-and-play, and a built-in barometer. Get it now and enjoy an unparalleled performance!
The powerful 55A (70A burst) 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + Japan made TDK SMT capacitors + external 1000uF low ESR capacitor, everything is for a durable build and smooth flight.
All of that for only $69.99! Top-shelf spec at a crazy low price, what are you waiting for?
Interested in the SpeedyBee BLS 8Bit 55A 3-6S 30x30 4in1 ESC?
Interested in the SpeedyBee F405 V4 3-6S 30x30 Flight Controller?
Check out all our 30x30 stacks &amp combos, and all our Speedy Bee products!












Features

User manual
Wireless FC &amp ESC full configuration
ESC upgraded to 55A with heat sink
Dual gyroscope power supply filtering
Onboard 4-level battery indicators
Supports up to 8 Motors
4x LED strips soldering pads
5V &amp 9V BECs upgraded to 3A output
Fixed SD card compatibility issue
Change motor direction wirelessly
1000uF huge filtering capacitor
DJI Air Unit plug-and-play
Built-in barometer









































Specifications
SpeedyBee F405 V4 30x30 Flight Controller

MCU: STM32F405

IMU(Gyro): ICM42688P

USB Port Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E chip

BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI: Not supported

DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Blackbox MicroSD Card Slot: Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.

Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.

Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.

9V Output: 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.

3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output: Supported. Designed for a receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.

UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6

ESC Telemetry: UART R5(UART5)

I2C: Supported. SDA &amp SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.

Buzzer: BZ+ and BZ- pad used for 5V Buzzer

BOOT Button: Supported.[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input: Supported. Named as RS on the front side.

Smart Port / F.Port: Not supported

Supported Flight Controller Firmware: BetaFlight(Default), INAV

Firmware Target Name: SPEEDYBEEF405V4

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm

Weight: 10.5g

SpeedyBee BLS 55A 30x30 4-in-1 ESC

Firmware: BLHeli_S J-H-40

Wireless Configuration: Full Configuration Supported in the SpeedyBee app

PC Configurator Download Link: https://esc-configurator.com/
Continuous Current: 55A x 4
Burst Current: 70(10 seconds)
TVS Protective diode: Yes
External Capacitor: 1000uF Low ESR Capacitor(In the package)
ESC Protocol: DSHOT300/600
Power Input: 3-6S LiPo
Power Output: VBAT
Current Sensor: Support (Scale=400 Offset=0)
ESC Telemetry: Not supported
Mounting: 30.5 x 30.5mm( 4mm hole diameter)
Dimension: 45.6(L) x 44(W) x 8mm(H)
Weight: 23.5g

Includes

1x SpeedyBee F405 V4  BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1 ESC)


 Wiring Diagram




SpeedyBee F405 V4 BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1

With only $69.99, you will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth for wireless configuration on the SpeedyBee app. Don't forget abou

SpeedyBee F405 V4 Stack w/ 55A 3-6S BLS 4in1 ESC - 30x30mm

SpeedyBee F405 V4 Flight Controller

Introducing the SpeedyBee F405 V4 flight controller with dual gyroscope power supply filtering, 4-level battery indicators, support for up to 8 motors, 4x LED strip soldering pads, 3A 5V &ampamp 9V BECs, and fixed SD card compatibility issue. Change motor direction wirelessly and quickly get set up with the DJI Air Unit plug-and-play set up. Plus, onboard barometer is included.












Interested in the SpeedyBee F405 V4  BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1 ESC)?
Interested in the SpeedyBee BLS 8Bit 55A 3-6S 30x30 4in1 ESC?
Check out all our 30x30 stacks &ampamp combos, and all our Speedy Bee products!
Features














User manual
Wireless FC &ampamp ESC full configuration
Dual gyroscope power supply filtering

Onboard 4-level battery indicators
Supports up to 8 Motors
4x LED strips soldering pads
5V &ampamp 9V BECs upgraded to 3A output
Fixed SD card compatibility issue
Change motor direction wirelessly
DJI Air Unit plug-and-play

Built-in barometer








































Specifications
SpeedyBee F405 V4 30x30 Flight Controller

MCU: STM32F405

IMU(Gyro): ICM42688P

USB Port Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E chip

BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI: Not supported

DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Blackbox MicroSD Card Slot: Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.

Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.

Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.

9V Output: 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.

3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.

UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6

ESC Telemetry: UART R5(UART5)

I2C: Supported. SDA &ampamp SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.

Buzzer: BZ+ and BZ- pad used for 5V Buzzer

BOOT Button: Supported.[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input: Supported. Named as RS on the front side.

Smart Port / F.Port: Not supported

Supported Flight Controller Firmware: BetaFlight(Default), INAV

Firmware Target Name: SPEEDYBEEF405V4

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm

Weight: 10.5g


Includes

1x SpeedyBee F405 V4 3-6S 30x30 Flight Controller


 Wiring Diagram



Introducing the SpeedyBee F405 V4 flight controller with dual gyroscope power supply filtering, 4-level battery indicators, support for up to 8 motors, 4x LED strip soldering pads, 3A 5V &amp; 9V BECs, and fixed SD card compatibility issue. Change motor direction wirelessly and quickly get set up with the DJI Air Unit

SpeedyBee F405 V4 3-6S 30x30 Flight Controller from WREKD Co.

SpeedyBee F405 V4 3-6S 30x30 Flight Controller

Speedybee

Introducing the SpeedyBee F405 V4 BLS 55A 30x30 FC&ampESC Stack – a high-performance flight controller and ESC combination that redefines value for money. Packed with top-shelf features, this stack offers exceptional performance at an unbeatable price of $69.99.Key Features:Powerful STM32F405 FC: Outclassing the F411, the STM32F405 FC ensures precise and responsive flight control.Onboard Battery Life Indicator: Stay informed with the 4-level battery life indicator, eliminating the need for additional tools.4GB Blackbox SD Card Slot: Capture and review your flight logs effortlessly with the onboard 4GB Blackbox SD card slot.DJI Plug Compatibility: Seamlessly connect your digital quad with the DJI plug, compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1.Built-in Bluetooth: Configure your setup wirelessly using the SpeedyBee app, enhancing user convenience.Robust 55A 4-in-1 ESC: The ESC features an aluminum alloy heat sink, TVS protective diode, Jap...

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack - RMRC

SpeedyBee F405 V4 BLS 55A 30x30 FC&ampESC Stack

Introducing the SpeedyBee F405 V4 flight controller with dual gyroscope power supply filtering, 4-level battery indicators, support for up to 8 motors, 4x LED strip soldering pads, 3A 5V &amp 9V BECs, and fixed SD card compatibility issue. Change motor direction wirelessly and quickly get set up with the DJI Air Unit plug-and-play set up. Plus, onboard barometer is included.












Interested in the SpeedyBee F405 V4  BLS 3-6S 30x30 Stack/Combo (F405 FC / 8Bit 55A 4in1 ESC)?
Interested in the SpeedyBee BLS 8Bit 55A 3-6S 30x30 4in1 ESC?
Check out all our 30x30 stacks &amp combos, and all our Speedy Bee products!
Features














User manual
Wireless FC &amp ESC full configuration
Dual gyroscope power supply filtering

Onboard 4-level battery indicators
Supports up to 8 Motors
4x LED strips soldering pads
5V &amp 9V BECs upgraded to 3A output
Fixed SD card compatibility issue
Change motor direction wirelessly
DJI Air Unit plug-and-play

Built-in barometer








































Specifications
SpeedyBee F405 V4 30x30 Flight Controller

MCU: STM32F405

IMU(Gyro): ICM42688P

USB Port Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E chip

BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI: Not supported

DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Blackbox MicroSD Card Slot: Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.

Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.

Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.

9V Output: 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.

3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.

UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6

ESC Telemetry: UART R5(UART5)

I2C: Supported. SDA &amp SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.

Buzzer: BZ+ and BZ- pad used for 5V Buzzer

BOOT Button: Supported.[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input: Supported. Named as RS on the front side.

Smart Port / F.Port: Not supported

Supported Flight Controller Firmware: BetaFlight(Default), INAV

Firmware Target Name: SPEEDYBEEF405V4

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm

Weight: 10.5g


Includes

1x SpeedyBee F405 V4 3-6S 30x30 Flight Controller


 Wiring Diagram



Elevate your drone's performance with the SpeedyBee F405 V4 Flight Controller, featuring STM32F405 MCU and ICM42688P gyro for precise control.&nbsp

Elevate your drone's performance with the SpeedyBee F405 V4 Flight Controller, featuring STM32F405 MCU and ICM42688P gyro for precise control.

SpeedyBee F405 V4 Flight Controller - 30x30

SpeedyBee F405 V4 FC uses the STM32F405 chip (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth for wireless configuration on the SpeedyBee app. * The DJI Air Unit

SpeedyBee F405 V4 Flight Controller - 30x30mm

T-Motor Velox F7 SE 3-6S 30x30 Flight Controller

Introducing the T-Motor Velox F7 SE Flight Controller, engineered for precision and performance in aerial applications.&nbsp

Introducing the T-Motor Velox F7 SE Flight Controller, engineered for precision and performance in aerial applications.

T-Motor Velox F7 SE Flight Controller

Experience the full functionality of VELOX F7 SE flight controller. Enhanced safety with Betaflight wiring standard. Precise control, seamless compatibility, and wireless parameter adjustment. Upgrade your FPV experience now!
Browse our 30x30 Flight Controllers and all our T-Motor products!
Features

Experience the full functionality of VELOX F7 SE flight controller. Enhanced safety with Betaflight wiring standard. Precise control, seamless compatibility, and wireless parameter adjustment. Upgrade your FPV experience now!
Simplified Wire Order: VELOX F7 SE flight controller ensures easy and standardized wire connections, compatible with V50A SE ESC.
Enhanced Performance: Experience stable flight with low latency using the second-generation power solution.
Wireless Bluetooth Control: Adjust settings wirelessly using SpeedyBee software on your mobile phone, eliminating the need for cables.
Ample Memory Capacity: 128M storage, allowing for efficient recording of flight data.
Versatile Solder Pads: Conveniently connect various devices without soldering, including video receivers, cameras, LEDs, and GPS.
Multi-Motor Control: Control up to 8 motors for diverse configurations, expanding the capabilities of your drone.



Specifications

 Firmware: STM32F7X2
Unified Target: TMTR-TMOTOR VELOX F7
MCU: STM32F722
Gyroscope: IMC-42688-P(SPI)
BEC: 5V2A &amp 12V1.5A
Uarts: 6
Bluetooth: TMFC
OSD: AT7456E&ampHD
Black Box: 128MB
USB: Type C
Weight: 9g
Size: 37.5x40x6.4mm
Installation Hole: 30.5x30.5/⌀4mm
Input voltage: 12-27V(3-6S)
Typical application: 170-450multi-rotor

Includes
1x T-Motor Velox F7 SE 3-6S 30x30 Flight Controller

Experience the full functionality of VELOX F7 SE flight controller. Enhanced safety with Betaflight wiring standard. Precise control, seamless compatibility, and wireless parameter adjustment. Upgrade your FPV experience now! Browse our 30x30 Flight Controllers and all our T-Motor products! Features Experience the full

Diatone

Diatone Mamba F722 APP MK4 30x30 Flight Controller

Diatone MAMBA MK4 F722 APP Flight Controller - 30x30mmCheck out all our 30x30 Flight Controllers and our full Diatone collection!. Package Includes:  1 x Diatone MAMBA MK4 F722 APP Flight Controller - 30x30mm

Diatone MAMBA MK4 F722 APP Flight Controller - 30x30mm








The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro.





Features


30.5 x 30.5mm Mounting Pattern
16M Flash Memory Blackbox
3~6S Lipo (12.6~25.2V) Input
WiFI SpeedyBee Capabilities
MAMBA MK4 F722 APP FC
ICM42688P GYRO
6 Uarts
Buzzer
OSD











Specifications


Receiver: TBS/SBUS/|IBUS/DSM
Mounting: 30.5x 30.5mm/M3
Receiver Protection: Yes
Blackbox: 16M Memory
Size: 38.0x40.5x8mm
WIFI: SpeedyBee APP
Frequency: 216MHz
Software: Betaflight
BEC Protection: Yes
TVS Protection: Yes
AIR UNIT Port: Yes
MCU: STM32F722
Gyro: IMC42688P
ESC Signal: 8 Set
Buzzer Pad: Yes
VTX Switch: Yes
OSD: AT 7456E
BEC 3.3V: 0.5A
CURR Pad: Yes
Input: 6S Lipo
MB LED: Yes
Weight: 10g
BF LED: Yes
Uarts: 6 Set
BEC 9V: 3A
BEC 5: 3A
F.Port: Yes
12C: Yes






Includes


1x Diatone MAMBA MK4 F722 APP (WiFi) Flight Controller - IMC42688P
5x M3 ESC Isolation Dampers
5x M3 Silicone Dampers
1x 6-Pin Air Unit Cable
2x 8-Pin Cable




















The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro. Features 30.5 x 30.5mm Mounting Pattern 16M Flash Memory Blackbox 3~6S Lipo (12.6~25.2V) Input WiFI SpeedyBee Capabilities MAMBA

MAMBA MK4 F722 APP Flight Controller 30mm/M3

DiatoneUSA





The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro.





Check out all our 30x30 FCs and all our Diatone Gear!




Specifications





MCU: STM32F722
GYRO: IMC42688P
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED

F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3-6S Lipo
TVS Protection: Yes
BEC: 3.3V/0.5A, &ampamp 5V/3A, and 9V/3A

Mounting: 30.5x30.5mm, M3


Includes

1x Diatone Mamba DJI F722 APP MK4 30x30 Flight Controller
5x M3 ESC Isolation Dampers
5x M3 Silicone Dampers
1x 6-Pin Air Unit Cable
2x 8-Pin Cable

Wiring Diagram











The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro. Check out all our 30x30 FCs and all our Diatone Gear! Specifications MCU: STM32F722 GYRO: IMC42688P Barometer: Yes OSD: Yes Blac

Diatone Mamba DJI F722 APP MK4 30x30 Flight Controller from WREKD Co.

Diatone Mamba DJI F722 APP MK4 30x30 Flight Controller

The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro.

Diatone MAMBA MK4 F722 APP (WiFi) Flight Controller - ICM42688P

DIATONE





The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro.





Check out all our 30x30 FCs and all our Diatone Gear!




Specifications





MCU: STM32F722
GYRO: IMC42688P
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED

F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3-6S Lipo
TVS Protection: Yes
BEC: 3.3V/0.5A, &amp 5V/3A, and 9V/3A

Mounting: 30.5x30.5mm, M3


Includes

1x Diatone Mamba DJI F722 APP MK4 30x30 Flight Controller
5x M3 ESC Isolation Dampers
5x M3 Silicone Dampers
1x 6-Pin Air Unit Cable
2x 8-Pin Cable

Wiring Diagram











RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2

IFLIGHT







The new JBF7 V2 takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it's got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It's got a flexible pad layout that can handle almost any combination of peripherals you could want. Pads are large and heavy--easy for beginners to solder to and reduce the risk of lifted pads. With the new JBF7 V2, we switched to USB-C we added a VTX pit switch we added plugs for all of the major features, and we included pre-made plugs for common peripherals, to allow a no-solder or less-solder build for people using those peripherals. We also added small status LEDs for major components, to make troubleshooting easier. For those who like autonomous flight, the board now includes a barometer.







Check out all our 30x30 FCs and the full range of RDQ Products!

If you have any issues accessing the Black Box features please type out this text in the CLI to get black box data to your SD card "set sdcard_detect_inverted=on" press ENTER, then type "save" and press ENTER.
Features


Manual written and feature set selected by Joshua Bardwell.
Board layout focused on flexibility and resilience. You can build what you want, how you want, without stress.
ESC 4-in-1 plug also has solder pads, for troubleshooting, or if you want to direct-solder the ESC.
Plug-and-play support for DJI Air Unit. Voltage regulator allows up to 6S input.
Eight motor pads for easy resource remapping or for that octo cinelifter you're thinking of building.
SD card slot for blackbox logging.
All major functions available in SH plugs, and pre-made wire set included for most common peripherals
USB-C plug
VTX pit switch built-in (9v rail only) allows you to power down the video transmitter using a controller switch

Barometer on board (no iNav target at release date, but possible for the future)
Status LEDs for major components allow easier troubleshooting
9v regulator rated for 3A. Verified to power HDZero Freestyle and DJI VTX.


Joshua Bardwell's Comprehensive Manual
Specifications

Input Voltage: 3-6S LiPo
MCU: STM32F722
Gyro: BMI270

Barometer: DPS310
Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
BF Target: JBF7 V2

UARTs: 5 (I2C SDA/SCL shared with UART 3)

Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
Mounting Pattern: 30.5x30.5mm
Weight: 8.3g (w/ gummies &amp USB Protector)


Includes

1x RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2
1x 4in1 ESC Cable
1x DJI Air Unit / HD Camera Cable

1x Analog Camera Cable

1x Analog VTX Cable
1x LED / Buzzer Cable
1x Receiver Cable
1x USB-C Protector
1x Set of Gummies


Wiring Diagram
For in depth wiring instructions, see Joshua Bardwell's Comprehensive Manual



The new JBF7 V2 takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it's got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It's got a flexible pad layout that can handle almost any combination of peripherals you could want. P

Joshua Bardwell







The new JBF7 V2 takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it&#39s got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It&#39s got a flexible pad layout that can handle almost any combination of peripherals you could want. Pads are large and heavy--easy for beginners to solder to and reduce the risk of lifted pads. With the new JBF7 V2, we switched to USB-C we added a VTX pit switch we added plugs for all of the major features, and we included pre-made plugs for common peripherals, to allow a no-solder or less-solder build for people using those peripherals. We also added small status LEDs for major components, to make troubleshooting easier. For those who like autonomous flight, the board now includes a barometer.







Check out all our 30x30 FCs and the full range of Products!

If you have any issues accessing the Black Box features please type out this text in the CLI to get black box data to your SD card &quotset sdcard_detect_inverted=on&quot press ENTER, then type &quotsave&quot and press ENTER.
Features


Manual written and feature set selected by Joshua Bardwell.
Board layout focused on flexibility and resilience. You can build what you want, how you want, without stress.
ESC 4-in-1 plug also has solder pads, for troubleshooting, or if you want to direct-solder the ESC.
Plug-and-play support for DJI Air Unit. Voltage regulator allows up to 6S input.
Eight motor pads for easy resource remapping or for that octo cinelifter you&#39re thinking of building.
SD card slot for blackbox logging.
All major functions available in SH plugs, and pre-made wire set included for most common peripherals
USB-C plug
VTX pit switch built-in (9v rail only) allows you to power down the video transmitter using a controller switch

Barometer on board (no iNav target at release date, but possible for the future)
Status LEDs for major components allow easier troubleshooting
9v regulator rated for 3A. Verified to power HDZero Freestyle and DJI VTX.


Joshua Bardwell&#39s Comprehensive Manual
Specifications

Input Voltage: 3-6S LiPo
MCU: STM32F722
Gyro: BMI270

Barometer: DPS310
Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
BF Target: JBF7 V2

UARTs: 5 (I2C SDA/SCL shared with UART 3)

Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
Mounting Pattern: 30.5x30.5mm
Weight: 8.3g (w/ gummies &ampamp USB Protector)


Includes

1x Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2
1x 4in1 ESC Cable
1x DJI Air Unit / HD Camera Cable

1x Analog Camera Cable

1x Analog VTX Cable
1x LED / Buzzer Cable
1x Receiver Cable
1x USB-C Protector
1x Set of Gummies


Wiring Diagram
For in depth wiring instructions, see Joshua Bardwell&#39s Comprehensive Manual



Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2 from WREKD Co.

Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2

The Bardwell F7 V2 Flight Controller (JBF7 V2) features an F7 processor, ICM20602 Gyro, several DC power outputs, and 8 motor pads. The V2 now features USB-C, a VTX pit switch, solderless plugs, a barometer, iNav support, and LEDs.

iFlight

iFlight BLITZ F7 Pro V1.1 Flight Controller

The iFlight BLITZ F722 Pro V1.1 flight controller features an improved circuit design, better components, and lower electrical noise. This FC is plug-and-play with DJI and has FC LED indicators, a 512Mb Black box, and an LC filter.

iFlight BLITZ F7 Pro V1.1 Flight Controller - 35x35

Zeez

Zeez F7 3030 V3 Flight Controller

Zeez Design

The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug-and-play configuration and 5V@3A regulator to power all the peripheral.

SpeedyBee F7 V3 Flight Controller

RunCam

The SpeedyBee F7 V3 Flight Controller is an F722 FC featuring a BMP280 barometer, OSD, 500MB Memory Blackbox, a built-in FC LiPo monitoring system, and many more features.

NewBeeDrone

NewBeeDrone Infinity V2 F7 3-6S 30x30 AIO Flight Controller - 55A 32Bit ESC

NewBeeDrone Infinity AIO V2 Pro is Upgraded from AIO V2. Now it comes with Dual BMI270 Gyro. Better performance on handling noise and better reliability. Any requests from the V1, we have them on the V2.Our first-generation board was fully covered in heatsink and the components were sealed completely to provide better

NewBeeDrone Infinity AIO V2 Pro F7 BLHeli32 55A AIO Flight Controller - 30x30mm

The&nbspNewBeeDrone Infinity AIO V2&nbspis designed to be the board that can last forever. This updated version has optimized hardware and even better weather protection than the V1. This AIO packs in requested features such as OSD Chips and more UART Ports.&nbsp

The NewBeeDrone Infinity AIO V2 is designed to be the board that can last forever. This updated version has optimized hardware and even better weather protection than the V1. This AIO packs in requested features such as OSD Chips and more U

NewBeeDrone Infinity AIO V2 - F745 FC + 55A BLHeli_32 3-6S ESC

Lumenier

Lumenier LUX F4 HD Ultimate 30x30 Flight Controller

The Lumenier LUX F4 HD Ultimate Flight Controller is full of features including a plug for DJI HD system, 3rd generation IMU ICM42688-P, dual plug-and-play 4in1 ESC ports, 12x PWM outputs, barometer, OSD, 6x UARTs, 9-16V BEC, dual analog camera inputs, easy soldering layout and much more...LUX H7 is compatible with:BetaflightArduPilotiNav (comes pre-loaded by default from factory)

The Lumenier LUX F4 HD Ultimate Flight Controller is full of features including a plug for DJI HD system, 3rd generation IMU ICM42688-P, dual plug-and-play 4in1 ESC ports, 12x PWM outputs, barometer, OSD, 6x UARTs, 9-16V BEC, dual analog camera input

Lumenier LUX F4 HD Ultimate Flight Controller

T-Motor F7 Pro Full Function 30x30 Flight Controller - Wifi, Bluetooth

T-Motor has come out with one of the most advanced F7 flight controllers on the market. With 8 motor outputs, built-in Wi-Fi and Bluetooth, this FC is ready to take on even the most demanding of FPV tasks.
Browse our 30x30 Flight Controllers and all our T-Motor products!

Features

Wi-Fi
Bluetooth
Built-in blackbox for data logging
8 PWM outputs
DJI air unit plug

Specifications

MCU: STM32F722 RET6
IMU: BMI270
Barometer: BMP280
Input Voltage: 3-8S
BEC: 10V/2A, 5V/3A
OSD: AT7456
Blackbox: 16MB Flash
Motor Outputs: 8
UARTS: 6
Target: TMOTOR F7 V2
Dimensions: 37x37x7.5mm
Mounting Pattern: 30x30mm
Weight: 8.1g

Includes

1x T-Motor F7 Pro Full Function 30x30 Flight Controller







T-Motor has come out with one of the most advanced F7 flight controllers on the market. With 8 motor outputs, built-in Wi-Fi and Bluetooth, this FC is ready to take on even the most demanding of FPV tasks. Browse our 30x30 Flight Controllers and all our T-Motor products! Features Wi-Fi Bluetooth Built-in blackbox for d

T-Motor F7 Pro Full Function 30x30 Flight Controller w/ Wifi & Bluetooth from WREKD Co.

T-Motor F7 Pro Full Function 30x30 Flight Controller w/ Wifi & Bluetooth

T-Motor has come out with one of the most advanced F7 flight controllers on the market. With 8 motor outputs, built-in Wi-Fi and Bluetooth, this FC is ready to take on even the most demanding of FPV tasks.
Browse our 30x30 Flight Controllers and all our T-Motor products!

Features

Wi-Fi
Bluetooth
Built-in blackbox for data logging
8 PWM outputs
DJI air unit plug

Specifications

MCU: STM32F722 RET6
IMU: ICM42688
Barometer: BMP280
Input Voltage: 3-8S
BEC: 10V/2A, 5V/3A
OSD: AT7456
Blackbox: 16MB Flash
Motor Outputs: 8
UARTS: 6
Target: TMOTOR F7 V2
Dimensions: 37x37x7.5mm
Mounting Pattern: 30x30mm
Weight: 8.1g

Includes

1x T-Motor F7 Pro Full Function 30x30 Flight Controller







The T-Motor F7 Pro Full Function 30x30 Flight Controller w/ Wifi & Bluetooth is a high performance FC packed with features and convenience. This powerful FC is ready for anything.

T-Motor F7 Pro Full Function 30x30 Flight Controller w/ Wifi & Bluetooth for Sale

T-Motor's F7 Pro Flight Controller has arrived! Enjoy full function in a wireless state! Great for cinematic professional use. This FC features 8 UARTS, WiFi and Bluetooth capabilites, and a 30.5x30.5 mounting pattern.Now with ICM42688 gyro.

T-Motor's F7 Pro Flight Controller has arrived! Enjoy full function in a wireless state! Great for cinematic professional use. This FC features 8 UARTS, WiFi and Bluetooth capabilites, and a 30.5x30.5 mounting pattern.
Now with ICM42688 gyro.

T-Motor F7 PRO Flight Controller w/ WiFi + Bluetooth

T-Motor's F7 Pro flight controller has arrived! This flight controller is full featured and designed with Cinelifter quads in mind. It has eight PWM outputs all on one convenient connector and is plug and play with the DJI Air Unit using the included cable. The flight controller has built in Wi-Fi and Bluetooth so you

T-Motor F7 Pro Flight Controller - 30x30mm

Diatone Mamba F405 DJI MK2 40A 3-6S 30x30 Flight Controller Stack - F405 HD FC, F40 40A ESC






Description



MAMBA F405MK2 V2 Flight Controller ICM42688P
MCU: 168MHz STM32F405GYRO: ICM-42688-PTarget：FURYF4OSDOSD: YesBlacbox: 16M Flash MemoryBarometer: NoUarts: 3 SetI2C: YesF.Port: NoRSSI: YesBuzzer Pad: YesCURR Pad: YesESC Signal: 4 SetESC Soft: Dshot300/600ESC Telemetry: YesPower Led: YesLED Controller:BF LEDAIR UNIT Port: YesWIFI: NoVTX Switch: NoReceiver Protection: YesBEC Protection: YesTVS Protection: YesBEC:3.3V 0.5A&amp 5V 3A&amp 9V 3AInput: 3~6S Lipo (12.6~25.2V)Mounting size: 30.5mm/M3ESC SpecificationsMAMBA F40MK2Input voltage: 3~6S Lipo (12.6V~25.2V)Continue current:40A×4Burst current 50A (10S)BEC: NoTarget：BLHeli_S CH40SOFT: Dshot300/600TVS Protection: NoMOUNTING: 30.5mm/M3
MAMBA F50_BLSInput voltage: 3~6S Lipo (12.6V~25.2V)Continue current:50A×4Burst current 50A (10S)BEC: NoTarget：BLHeli_S CH40SOFT: Dshot300/600TVS Protection: NoMOUNTING: 30.5mm/M3












Description MAMBA F405MK2 V2 Flight Controller ICM42688P MCU: 168MHz STM32F405GYRO: ICM-42688-PTarget：FURYF4OSDOSD: YesBlacbox: 16M Flash MemoryBarometer: NoUarts: 3 SetI2C: YesF.Port: NoRSSI: YesBuzzer Pad: YesCURR Pad: YesESC Signal: 4 SetESC Soft: Dshot300/600ESC Telemetry: YesPower Led: YesLED Controller:BF LEDAIR

Diatone Mamba Stack - F405 MK2 FC + F40 40A BLHeli_S ESC Gyro: ICM42688P

Diatone Mamba Stack - F405 MK2 FC + F40 40A BLHeli_S ESC Gyro: ICM4268

The&nbspDiatone Mamba F405 DJI Mini&nbspStack&nbspbrings BIG power all in a mini 20x20 mounting size! This stack can push 40A all while bringing you the latest features!&nbspThe built-in plug-in allows you to easily connect to the&nbspDJI FPV Air System.&nbsp

The Diatone Mamba F405 DJI Mini Stack brings BIG power all in a mini 20x20 mounting size! This stack can push 40A all while bringing you the latest features! The built-in plug-in allows you to easily connect to the DJI FPV Ai

Diatone Mamba Stack - DJI F405 MK2 FC + F40 40A 128K ESC - Mini 20x20

HolyBro

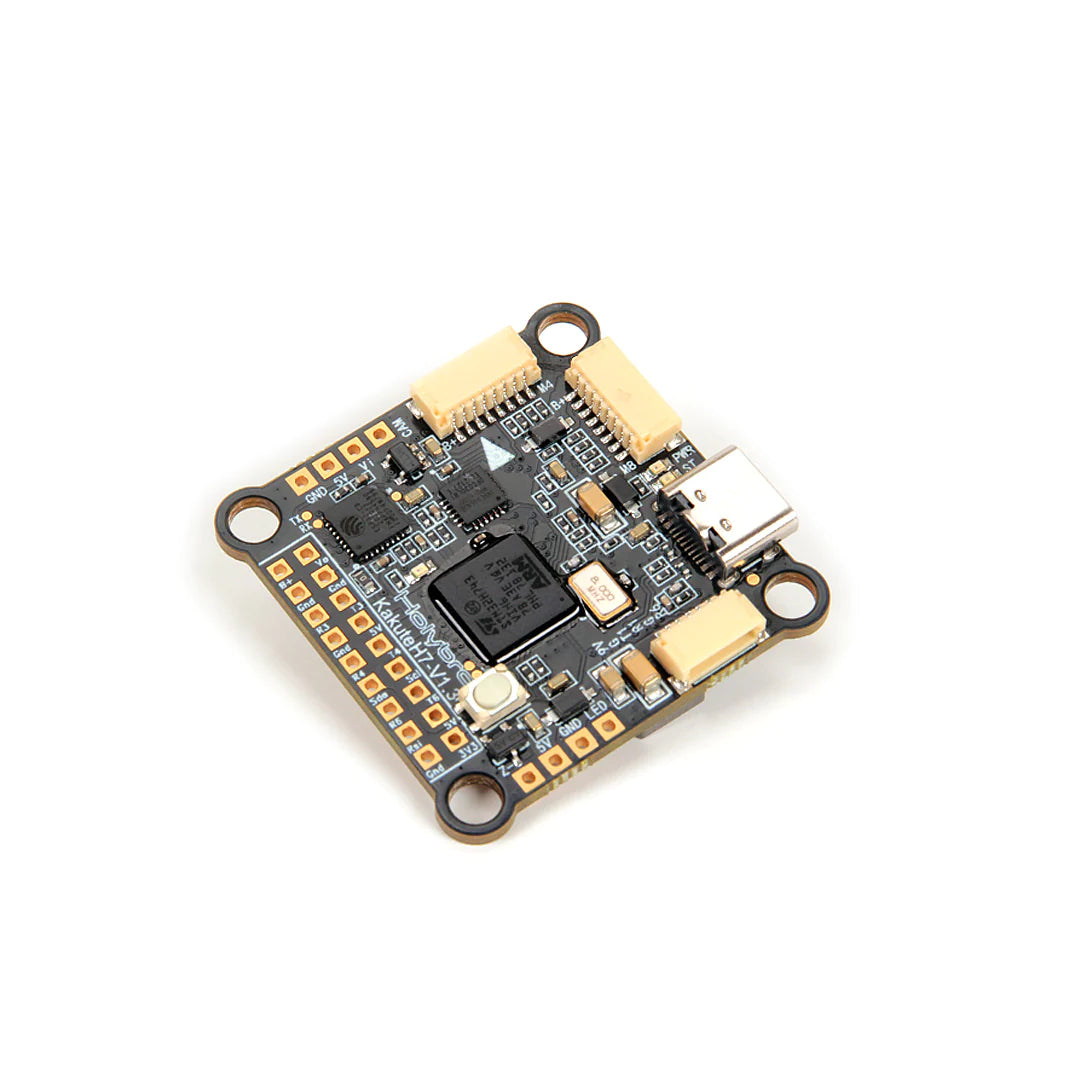

Holybro Kakute H7 30x30 Flight Controller Stack - Tekko32 F4 50A ESC

The Holybro Kakute H7 Flight Controller is full of features including integrated Bluetooth, dual plug-and-play 4in1 ESC ports, HD camera plug, barometer, OSD, 6x UARTs, full Blackbox MicroSD card slot, 5V and 9V BEC, easy soldering layout and much more.The Kakute H7 builds upon the best features of its F7 predecessor a

Holybro Kakute H7 BT W/Tekko32 F4 4in1 50A ESC & Atlatl HV V2 STACK - 30x30mm

Holybro

The Holybro Kakute H7 BT + Tekko32 F4 50A 4-in-1 ESC stack brings lots of power all in a 30.5x30.5 mounting size! This stack can push&nbsp50A all while bringing you the latest features!

The Holybro Kakute H7 BT + Tekko32 F4 50A 4-in-1 ESC stack brings lots of power all in a 30.5x30.5 mounting size! This stack can push 50A all while bringing you the latest features!

Holybro Kakute H7 BT - Tekko32 F4 50A BLHeli32 4-in-1 ESC Stack

Hobbywing

Hobbywing XRotor F722 3-6S 30x30 Flight Controller Stack - F7 FC, 60A 32Bit ESC

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system.

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring,

Hobbywing XRotor Micro Combo Stack - F7 FC + 60A 4-in-1 BLHeli_32 ESC












The Hobbywing XRotor F722 Stack/Combo packs in the latest tech: 65A (x4) ESCs, BLHeli_32 DShot 1200 support, two 5V BECs, plus a voltmeter module that lets your FC know your battery&#39s voltage and amperage in real-time! The F7 Flight Controller offers OSD, voltage monitoring, two BECs, and an interface for the DJI image transmission system. Build the perfect multirotor with this feature-packed, powerful combo!











Check out all our 30x30 stacks &ampamp combos, and our Hobbywing selection!

Features


Manual for the FC

Manual for the ESC


XRotor 65A 4in1 ESC


High performance 32-bit microprocessor with the running frequency of up to 120MHz for excellent performance.


Third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.


All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.


Code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.


The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).


Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.


Also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost aircraft.


F7 Flight Controller Features


STM32 F722 MCU allows the FC to run the PID looptime and gyro with higher frequency.


Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)


The FC supports Betaflight firmware and allows parameter adjustment via Betaflight software is more applicable to FPV racing.


Onboard Flash chip can record and save flight/black box data allowing users to adjust the setup of their aircraft easily.


Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS and etc.


LED strip signal output port allows users to adjust the color and flash mode of the LED strip via the FC.


Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port, extra current meter is needed).


Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.


Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters.

Board load 5V and 10V BEC, both can output 2A. It can supply power for receiver, VTX, LED lamp and others devices.


 Specifications

XRotor F7 FC

Compatible with (Multirotors) Quadcopters

Firmware HOBBYWING_XROTORF7CONV

FC Programming Supported

Programming via Betaflight/ Cleanflight-configurator

Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150,
Dshot300, Dshot600, PROSHOT1000

Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Voltage Monitoring Supported

Current Monitoring Supported

External Buzzer Supported

LED Control Supported

BEC 5V @ 1.5A  10V @ 1.5A

Size 32x32mm

Weight 3.3g

XRotor 65A BLHeli_32 ESC

LiPo Power input: 3-6S

Cont.Current: 65Ax4

Burst Current: 80Ax4

BEC Output: 5V@ 0.5A

Input wires: 12AWG-130mm* (Red/Black)

Output Wire: No wires but solder tabs

Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no

Weight / Size: 15.0g / 32.7x18.4x6.2mm

Mounting holes: 30.5x30.5mm

Throttle Calibration: Supported

ESC Programming: BLHeliSuite32

Includes

1x Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 65A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


The Hobbywing XRotor F722 Stack/Combo packs in the latest tech: 65A (x4) ESCs, BLHeli_32 DShot 1200 support, two 5V BECs, plus a voltmeter module that lets your FC know your battery's voltage and amperage in real-time! The F7 Flight Controller offers OSD, voltage monitoring, two BECs, and an interface for the DJI image

Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 65A 4in1 ESC) (20x20 Mounting Option) from WREKD Co.

Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 65A 4in1 ESC) (20x20 Mounting Option)

Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 60A ESC this stack is truly something to behold.
Check out all our 30x30 stacks &ampamp combos, and our Hobbywing selection!
Specifications
Hobbywing XRotor F7 FC

MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting: 20x20mm M3 / 30x30mm M3
Target:

Hobbywing XRotor 60A 32Bit ESC

LiPo Power input: 3S-6S
Cont.Current: 60Ax4
Burst Current: 80Ax4
BEC Output: 5V@ 1.5A
Input wires: 12AWG-130mm* (Red/Black)
Output Wire: No wires but solder tabs
Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
Weight / Size: 15.0g / 32.7x18.4x6.2mm
Mounting holes: 30.5x30.5mm
Throttle Calibration: Supported
ESC Programming: BLHeliSuite32

Includes

1x Hobbywing XRotor F7 FC
1x Hobbywing XRotor 60A 32Bit ESC
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 60A ESC this stack is truly something to behold. Check out all our 30x30 stacks &amp; combos, and our Hobbywing selection! Specifications Hobbywing XRotor F7 FC MCU: STM32F722 Gyro: ICM20602 Barometer

Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 60A 4in1 ESC) from WREKD Co.

Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 60A 4in1 ESC)

HOBBYWING












The Hobbywing XRotor F722 Stack/Combo packs in the latest tech: 65A (x4) ESCs, BLHeli_32 DShot 1200 support, two 5V BECs, plus a voltmeter module that lets your FC know your battery's voltage and amperage in real-time! The F7 Flight Controller offers OSD, voltage monitoring, two BECs, and an interface for the DJI image transmission system. Build the perfect multirotor with this feature-packed, powerful combo!











Check out all our 30x30 stacks &amp combos, and our Hobbywing selection!

Features


Manual for the FC

Manual for the ESC


XRotor 65A 4in1 ESC


High performance 32-bit microprocessor with the running frequency of up to 120MHz for excellent performance.


Third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.


All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.


Code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.


The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).


Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.


Also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost aircraft.


F7 Flight Controller Features


STM32 F722 MCU allows the FC to run the PID looptime and gyro with higher frequency.


Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)


The FC supports Betaflight firmware and allows parameter adjustment via Betaflight software is more applicable to FPV racing.


Onboard Flash chip can record and save flight/black box data allowing users to adjust the setup of their aircraft easily.


Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS and etc.


LED strip signal output port allows users to adjust the color and flash mode of the LED strip via the FC.


Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port, extra current meter is needed).


Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.


Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters.

Board load 5V and 10V BEC, both can output 2A. It can supply power for receiver, VTX, LED lamp and others devices.


 Specifications

XRotor F7 FC

Compatible with (Multirotors) Quadcopters

Firmware HOBBYWING_XROTORF7CONV

FC Programming Supported

Programming via Betaflight/ Cleanflight-configurator

Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150,
Dshot300, Dshot600, PROSHOT1000

Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Voltage Monitoring Supported

Current Monitoring Supported

External Buzzer Supported

LED Control Supported

BEC 5V @ 1.5A  10V @ 1.5A

Size 32x32mm

Weight 3.3g

XRotor 65A BLHeli_32 ESC

LiPo Power input: 3-6S

Cont.Current: 65Ax4

Burst Current: 80Ax4

BEC Output: 5V@ 0.5A

Input wires: 12AWG-130mm* (Red/Black)

Output Wire: No wires but solder tabs

Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no

Weight / Size: 15.0g / 32.7x18.4x6.2mm

Mounting holes: 30.5x30.5mm

Throttle Calibration: Supported

ESC Programming: BLHeliSuite32

Includes

1x Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 65A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 65A 4in1 E

Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 60A ESC this stack is truly something to behold.
Check out all our 30x30 stacks &amp combos, and our Hobbywing selection!
Specifications
Hobbywing XRotor F7 FC

MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting: 20x20mm M3 / 30x30mm M3
Target:

Hobbywing XRotor 60A 32Bit ESC

LiPo Power input: 3S-6S
Cont.Current: 60Ax4
Burst Current: 80Ax4
BEC Output: 5V@ 1.5A
Input wires: 12AWG-130mm* (Red/Black)
Output Wire: No wires but solder tabs
Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
Weight / Size: 15.0g / 32.7x18.4x6.2mm
Mounting holes: 30.5x30.5mm
Throttle Calibration: Supported
ESC Programming: BLHeliSuite32

Includes

1x Hobbywing XRotor F7 FC
1x Hobbywing XRotor 60A 32Bit ESC
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing XRotor F722 3-6S 30x30 Stack/Combo (F7 FC / 32Bit 60A 4in1 E

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp 12V dual BEC Circuit and a special interface for the DJI image transmission system.
he XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 60A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp 12V dual BEC Circuit and a special interface for the DJI image transmission system.
Make your electronics stack work for you, not the other way around!

VIDEO: Xrotor F7 Convertible Flight Controller

Features
F7 FC

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &amp 12V dual BEC circuit.
On-board Pit Switch module.

60A 4-in-1 BLHeli_32 ESC

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.
Onboard 5V BEC, powering different accessories such as FC, VTX, Camera and LED lights and etc.
BLHeli_32 firmware is the third generation BLHeli.


Specifications
F7 FC

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
Mounting Holes: Convertible 20x20mm / 30.5x30.5mm
Programming via: Betaflight/Cleanflight-configurator
Firmware: HOBBYWING_XROTORF7CONV
Voltage Monitoring: Supported
Current Monitoring: Supported
FC Programming: Supported
External Buzzer: Supported
BEC: 5V@1.5: 10V@1.5A
LED Control: Supported
USB Port: MicroUSB
Size: 32x32mm
OSD: Built-in
Weight: 3.3g

60A 4-in-1 ESC

Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
Input wires: 12AWG-130mm* (Red/Black)
Output Wire: No wires but solder tabs
Weight / Size: 15.0g / 52x42x6.6mm
ESC Programming: BLHeliSuite32
Throttle Calibration: Supported
Mounting holes: 30.5x30.5mm
LiPo Power input: 3S-6S
BEC Output: 5V@ 0.6A
Burst Current: 80Ax4
Cont.Current: 60Ax4

Manual

Hobbywing XRotor 60A 4-in-1 BLHeli_32 ESC
Hobbywing XRotor F7 FC

Includes

1x Hobbywing XRotor Micro Combo Stack - F7 FC + 60A 4-in-1 BLHeli_32 ESC
1x Soft Mounting Grommets Set
1x Signal Cable


Hobbywing XRotor Nano F4 Flight Controller w/ OSD | Bringing all the features from their larger FC, the Nano is a high power F4 Processor which is compatible with all common ESC protocols, as well as incredibly fast loop times! Compatible with DShot 1200

Hobbywing XRotor Nano F4 Flight Controller w/ OSD | Hobbywing

HobbyWing

HobbyWing FPV Stack Micro 60A ESC + FC F7 Convertible

HobbyWing FPV Stack Micro 60A ESC + FC F7 Convertible - RMRC

Hobbywing XRotor F722 3-6S 20x20/30x30 Flight Controller Stack - F7 FC, 40A 32Bit 4in1 ESC

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 40A 4-in-1 ESC along with an updated F7 Flight Controller.

Hobbywing XRotor Micro Combo Stack - F7 FC + 40A 4-in-1 BLHeli_32 ESC

Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC this stack is truly something to behold.
Check out all our 20x20 stacks, and our Hobbywing selection!
Specifications
XRotor F7 FC

MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting Pattern: 20x20mm M3 / 30x30mm M3

XRotor 40A BLHeli_32 ESC

Input Voltage: 3-6S
Max Continuous Current: 40A
Max Burst Current: 60A
BEC Output: NO
Firmware: Hobbywing_XRotor_BLHeli-32 Version
Throttle Calibration: Supported
ESC Programming: Stick Programming, BLHeliSuite32
DEO: Supported
OneShot Mode: Supported
Timing: Supported
Motor Rotation: Supported
Mounting Pattern: 20x20mm

Weight: 12g

Includes

1x Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC; this stack is truly something to behold. Check out all our 20x20 stacks, and our Hobbywing selection! Specifications XRotor F7 FC MCU: STM32F722 Gyro: ICM20602 Barometer: No OSD: Yes Blackbox

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 E


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC this stack is truly something to behold.
Specifications
XRotor F7 FC


MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting Pattern: 20x20mm M3 / 30x30mm M3

XRotor 40A BLHeli_32 ESC

Input Voltage: 3-6S
Max Continuous Current: 40A
Max Burst Current: 60A
BEC Output: NO
Firmware: Hobbywing_XRotor_BLHeli-32 Version
Throttle Calibration: Supported
ESC Programming: Stick Programming, BLHeliSuite32
DEO: Supported
OneShot Mode: Supported
Timing: Supported
Motor Rotation: Supported
Mounting Pattern: 20x20mm

Weight: 12g

Includes

1x Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC; this stack is truly something to behold. Specifications XRotor F7 FC MCU: STM32F722 Gyro: ICM20602 Barometer: No OSD: Yes Blackbox: Onboard UARTS: 4 Sets ESC Software: DShot300/600/12000 ESC

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC) from WREKD Co.

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible - RMRC

Hobbywing XRotor F7 Convertible Flight Controller

Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &ampamp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor, built-in 5V &ampamp 12V double BEC, integrated OSD, and a pitch module.
Check out our other flight controllers, and our Hobbywing selection!
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &ampamp 12V dual BEC circuit.
On-board Pit Switch module.










Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1x Soft Mounting Grommets Set
1x Signal Cable
1x User Manual


Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp; 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight control

Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller from WREKD Co.

Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller


Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &ampamp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity MPU6500 six-axis motion sensor, built-in 5V &ampamp 12V double BEC, integrated OSD, and a pitch module.
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &ampamp 12V dual BEC circuit.
On-board Pit Switch module.


 



Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1 x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1 x Soft Mounting Grommets Set
1 x Signal Cable
1 x User Manual


Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor, built-in 5V &amp 12V double BEC, integrated OSD, and a pitch module.
Check out our other flight controllers, and our Hobbywing selection!
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &amp 12V dual BEC circuit.
On-board Pit Switch module.










Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1x Soft Mounting Grommets Set
1x Signal Cable
1x User Manual


The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. The F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The mounting pattern is convertible between 20x20 and 30.5x30.5!

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. The F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The mounting pattern

With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.

HobbyWing Convertible F7 Flight Controller - RMRC

HobbyWing Convertible F7 Flight Controller

The new Hobbywing convertable F7 flight controller is equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional D-Shot digital throttle communication. The integrated OSD chip can adjust and set ea

HobbyWing XRotor Convertible F7 Flight Controller HD DJI Plug and Play - 30x30 & 20x20mm

NewBeeDrone Infinity F7 3-6S AIO Flight Controller - 45A 32Bit 45A ESC


NewBeeDrone Infinity AIO 255 Flight Controller F7 MPU6000 45A 2-6S




Introducing the NewBeeDrone InfinitvAl0 255 F7 Flight Controller MPU6000 45A 2-6S. This all-in-one controller features a 25.5x25.5 mounting base, ideal for 3-4 inch lightweight builds. With motor solder pads on both sides and a traditional layout, it&#39s perfect for seamless integration into your setup. Plus, its MPU6000 and 45A 2-6S capability ensures superior performance and reliability. Ideal for drone enthusiasts looking for top-notch quality and seamless integration.




Specifications



MCU: STM32F745VEH6
Gyro: MPU6000
Blackbox:128MB
6-Pin DJI FPV Air Unit Connector
Micro USB Connector
UART1 - SBUS on DJI Connector (RX only)
UART2 - DJI Connector
UART3 – Free
UART5 – ESC
UART7 - Free
UART8 - Free
4x SMT32G071 BLHELI32 ESC MCU
Continous Current 45A and 55A Burst ESC
3-6S Battery Input
12V 3A 30W Design for DJI FPV Air Unit
37x32mm with 25.5x25.5 Mounting Holes
Weight: 10.2gr. without grommets
Betaflight OSD support Analog build
I2C_SCL I2C_SDA Ready
Buzzer Ready
LED Ready
5V 3A Power supply for external LED or GPS module



Includes



1x Infinity 255 AIO Flight Controller + ESC
1x DJI O3 Cable 100mm (Silicon wire)
2x 16Pin Cable 150mm (Teflon wire)
13x Nylon Lock Nut
5x Steel Screw M2x14
4x Grommets Short, 4x Grommets Long
1x 470uf 35v Electrolytic Capacitor
1x XT30 Cable



Media and Videos



Manuals and Downloads



Product Short Description





NewBeeDrone Infinity AIO 255 Flight Controller F7 MPU6000 45A 2-6S Introducing the NewBeeDrone InfinitvAl0 255 F7 Flight Controller MPU6000 45A 2-6S. This all-in-one controller features a 25.5x25.5 mounting base, ideal for 3-4 inch lightweight builds. With motor solder pads on both sides and a traditional layout, it's

NewBeeDrone Infinity AIO 255 Flight Controller F7 MPU6000 45A 2-6S from WREKD Co.

NewBeeDrone Infinity AIO 255 Flight Controller F7 MPU6000 45A 2-6S


NewBeeDrone Infinity AIO 255 Flight Controller F7 MPU6000 45A 2-6S




Introducing the NewBeeDrone InfinitvAl0 255 F7 Flight Controller MPU6000 45A 2-6S. This all-in-one controller features a 25.5x25.5 mounting base, ideal for 3-4 inch lightweight builds. With motor solder pads on both sides and a traditional layout, it's perfect for seamless integration into your setup. Plus, its MPU6000 and 45A 2-6S capability ensures superior performance and reliability. Ideal for drone enthusiasts looking for top-notch quality and seamless integration.




Specifications



MCU: STM32F745VEH6
Gyro: MPU6000
Blackbox:128MB
6-Pin DJI FPV Air Unit Connector
Micro USB Connector
UART1 - SBUS on DJI Connector (RX only)
UART2 - DJI Connector
UART3 – Free
UART5 – ESC
UART7 - Free
UART8 - Free
4x SMT32G071 BLHELI32 ESC MCU
Continous Current 45A and 55A Burst ESC
3-6S Battery Input
12V 3A 30W Design for DJI FPV Air Unit
37x32mm with 25.5x25.5 Mounting Holes
Weight: 10.2gr. without grommets
Betaflight OSD support Analog build
I2C_SCL I2C_SDA Ready
Buzzer Ready
LED Ready
5V 3A Power supply for external LED or GPS module



Includes



1x Infinity 255 AIO Flight Controller + ESC
1x DJI O3 Cable 100mm (Silicon wire)
2x 16Pin Cable 150mm (Teflon wire)
13x Nylon Lock Nut
5x Steel Screw M2x14
4x Grommets Short, 4x Grommets Long
1x 470uf 35v Electrolytic Capacitor
1x XT30 Cable



Media and Videos



Manuals and Downloads



Product Short Description
