Continuous Amp Rating

HGLRC

HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller

The HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller boasts a powerful STM32F722 processor with up to 216 MHz of computing power for more seamless control, improved feel, and fast response times. It also features a high-performance MPU6000 gyroscope with 42688 pads for optimum stability and a 16MB black box for plenty of flight data storage. Plus, bluetooth parameter adjustment with the SpeeyBee APP allows you to adjust serial port, PID and other flight control parameters anytime and anywhere. There's even a 10V electronic switch for hassle-free power-on/off and nano-scale coating on both sides to protect against water, moisture, and corrosion.
Interested in the HGLRC F760 Mini F722 3-6S 20x20 Stack/Combo (F7 FC / G071 32Bit 60A 4in1 ESC) - MPU6000?
Interested in just the HGLRC SPECTER G071 128K 32Bit 60A 3-6S 20x20 4in1 ESC?
Check out all our 20x20 FCs, and all of our HGLRC products!

Specifications
HGLRC SPECTER F722 mini FC

FC Firmware: HGLRC F722 Mini
MCU: STM32F722
Gyro: MPU6000
OSD: AT7456E
Barometer: BMP280
Blackbox 16MB
UARTS:5
Input Voltage: 7.4V-22.8V/2-6S LiPO
BEC: 10V2A/5V2.5A
Size: 37mmx34mmx9.8mm
Mounting: 20x20, M3
Weight: 18g

Includes

1x HGLRC SPECTER F722 mini flight controller

1x 30AWG 25mm double-ended SH1.0-8P cable

1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable

1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable

1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable

1x 30AWG 100mm single-head SH1.0-4P receiver cable

4x M3x20 hexagon socket screws


The HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller boasts a powerful STM32F722 processor with up to 216 MHz of computing power for more seamless control, improved feel, and fast response times. It also features a high-performance MPU6000 gyroscope with 42688 pads for optimum stability and a 16MB black box for ple

HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller - MPU6000

The HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller boasts a powerful STM32F722 processor with up to 216 MHz of computing power for more seamless control, improved feel, and fast response times. It also features a high-performance MPU6000 gyroscope with 42688 pads for optimum stability and a 16MB black box for plenty of flight data storage. Plus, bluetooth parameter adjustment with the SpeeyBee APP allows you to adjust serial port, PID and other flight control parameters anytime and anywhere. There&#39s even a 10V electronic switch for hassle-free power-on/off and nano-scale coating on both sides to protect against water, moisture, and corrosion.
Interested in the HGLRC F760 Mini F722 3-6S 20x20 Stack/Combo (F7 FC / G071 32Bit 60A 4in1 ESC) - MPU6000?
Interested in just the HGLRC SPECTER G071 128K 32Bit 60A 3-6S 20x20 4in1 ESC?
Check out all our 20x20 FCs, and all of our HGLRC products!

Specifications
HGLRC SPECTER F722 mini FC

FC Firmware: HGLRC F722 Mini
MCU: STM32F722
Gyro: MPU6000
OSD: AT7456E
Barometer: BMP280
Blackbox 16MB
UARTS:5
Input Voltage: 7.4V-22.8V/2-6S LiPO
BEC: 10V2A/5V2.5A
Size: 37mmx34mmx9.8mm
Mounting: 20x20, M3
Weight: 18g

Includes

1x HGLRC SPECTER F722 mini flight controller

1x 30AWG 25mm double-ended SH1.0-8P cable

1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable

1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable

1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable

1x 30AWG 100mm single-head SH1.0-4P receiver cable

4x M3x20 hexagon socket screws


HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller - MPU6000 from WREKD Co.

The HGLRC Specter F722 Mini HD Flight Controller - MPU6000 is a culmination of over a year's technology development, offering an optimized design and improved circuitry for a refined flying experience.

HGLRC Specter F722 Mini HD Flight Controller - MPU6000 - 20x20

Processor (MCU)

The FC is the brain or the CPU of your quad. It has a processor and other components that allow it to listen to your inputs and tells the quad what to do. FCs are commonly sold together with other components integrated or stacked (like ESCs and video transmitters). For beginners, choose a FC with a F4 or F7 processor that has a compatible mount with your frame.

Flight Controllers

FC Stack Mount

Built-in VTX

Built-in ESC

JHEMCU

JHEMCU NOXE F4 V2 Deluxe 20x20 Flight Controller For DJI

WREKD General

JHEMCU had a new flight controller aimed at those DJI pilots. This board comes feature-packed and ready for your next build.  The 20x20 form factor makes it a perfect fit for nearly any size drone and the 6s capability means that it will be able to keep up with your power needs. The deluxe version supports 16MB black box recording and features a barometer.
Check out our other 20x20 flight controllers, as well as the rest of our JHEMCU selection!
Specifications


Input Voltage: 3-6S LiPo


MCU: STM32F411


Gyro: MPU6000

OSD: Yes

UARTs: 2 Sets

ESC Connections: Yes

Firmware: JHEF411


BEC: 5V 3A, 10V 2A

Current Sensor: Yes
Buzzer: Yes
Barometer: Yes
Black Box: 16MB
DJI Compatible: Yes
Stack Size: 20x20

Dimensions: 27x27xmm


Weight: 4.5g


Includes

1x JHEMCU NOXE F4 V2 Deluxe 3-6S 20x20 Flight Controller


JHEMCU had a new flight controller aimed at those DJI pilots. This board comes feature-packed and ready for your next build.  The 20x20 form factor makes it a perfect fit for nearly any size drone and the 6s capability means that it will be able to keep up with your power needs. The deluxe version supports 16MB black b

JHEMCU NOXE F4 V2 Deluxe HD 3-6S 20x20 Flight Controller from WREKD Co.

JHEMCU NOXE F4 V2 Deluxe HD 3-6S 20x20 Flight Controller

The&nbspJHEMCU NOXE F4 V2 Flight Controller&nbspis made with DJI Pilots in mind. This Deluxe FC packs a 16MB Blackbox, Barometer, 2 UARTs, and BEC into a mini-sized 20x20 board with 3-6S capabilities!

The JHEMCU NOXE F4 V2 Flight Controller is made with DJI Pilots in mind. This Deluxe FC packs a 16MB Blackbox, Barometer, 2 UARTs, and BEC into a mini-sized 20x20 board with 3-6S capabilities!

JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Deluxe

FPVELITE

JHEMCU had a new flight controller aimed at those DJI pilots. This board comes feature-packed and ready for your next build. The 20x20 form factor makes it a perfect fit for nearly any size drone and the 6s capability means that it will be able to keep up with your power needs. The deluxe version supports 16MB black box recording and features a barometer.

JHEMCU NOXE F4 V2 Deluxe 3-6S 20x20 Flight Controller For DJI - For Sale At RaceDayQuads

SpeedyBee

SpeedyBee F7 Mini 35A 3-6S 20x20 Flight Controller Stack - F7 FC, 35A 8Bit ESC

RUNCAM

The ultimate 20x20 stack for on the go tuning! With integrated bluetooth, this stack allows you to access Betaflight and even BLHeli through the Speedy Bee app.
Check our other Stacks and our SpeedyBee products!
Specifications
SpeedyBee F7 Mini

Input Voltage: 3-6S
MCU: STM32F722
Gyro: BMI270

Barometer: No
OSD Chip: AT7456E
Bluetooth: Yes
DJI Air Unit Soldering Pads: Supported
BlackBox: 8MB Flash
Current Sensor: Yes
BEC: Yes
ESC Signal Pads: 4
UARTs: 3(UART1, UART2, UART3)
ESC Telemetry: R4(UART4)
LED Pad: Used for WS2812 LED
Buzzer: Yes
Firmware: BetaFlight(Default), EMUFlight, INAV
Firmware Target: SPEEDYBEEF7MINI
Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
Weight 5.7g

SpeedyBee 35A BLHeli_S ESC

Power Input: 3-6S
Firmware: BLHeli_S JH40
Max Continuous Current: 35A
Max Burst Current: 45A
ESC Protocol: DSHOT300/600
Current Sensor: Yes
Mounting Dimensions: 20 x 20mm, 3.6mm hole diameter
Weight: 7g

Includes

1x SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo


The ultimate 20x20 stack for on the go tuning! With integrated bluetooth, this stack allows you to access Betaflight and even BLHeli through the Speedy Bee app. Check our other Stacks and our SpeedyBee products!  Specifications SpeedyBee F7 Mini Input Voltage: 3-6S MCU: STM32F722 Gyro: BMI270 Barometer: No OSD Chip: AT

SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo (F7 FC / 35A 8bit 4in1 ESC)

SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo (F7 FC / 35A 8bit 4in1 ES

SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo (F7 FC / 35A 8bit 4in1 ESC) from WREKD Co.

Introducing SpeedyBee's new 20x20mm flight controller and ESC stack. Now featuring a 20x20mm version of their F7 Flight Controller with onboard Bluetooth tuning options available via the SpeedyBee app. Plus a true 35A Electronic Speed Controller! No BS, they even have video proof to back up their claims. The ESC also c

SpeedyBee F7 Mini Stack w/ 35A 3-6S 8-bit ESC - 20x20mm

The popular SpeedyBee F7 stack has shrunk into a mini 20x20 stack! With the same features as wireless FC and ESC tuning, change motor directions and more through the SpeedyBee app!

SpeedyBee F7 Mini 35A 3-6S 8-bit Flight Controller Stack

Matek

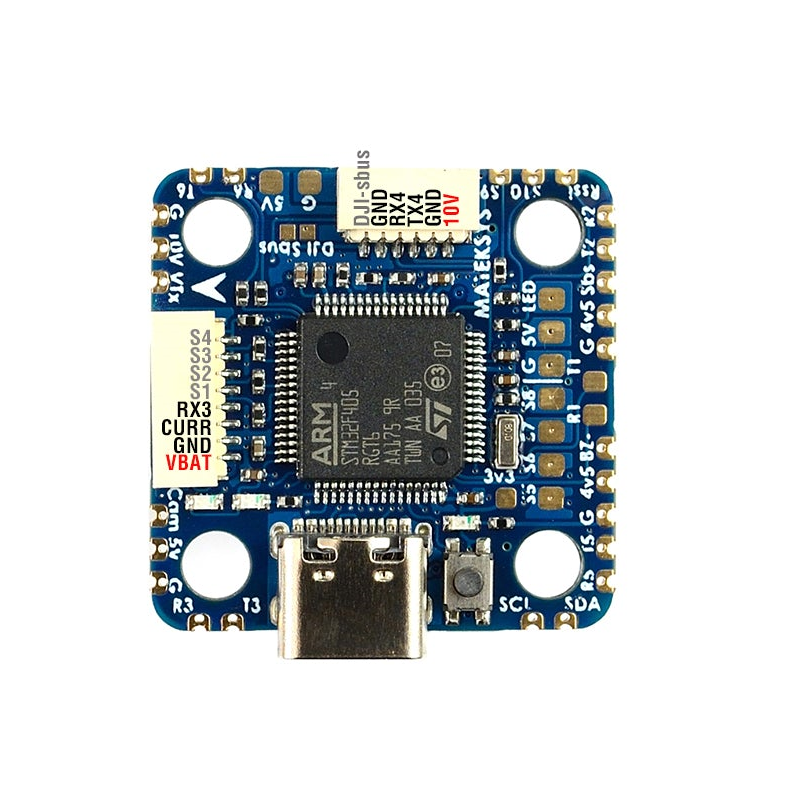

Matek F405-miniTE 20x20 Flight Controller

Matek Systems

The&nbspF405 MiniTE Flight Controller&nbspwas designed to be smaller and lighter than its bigger brother, and the 20x20mm mount allows for more space to work with on your build.

The F405 MiniTE Flight Controller was designed to be smaller and lighter than its bigger brother, and the 20x20mm mount allows for more space to work with on your build.

MATEKSYS F405-MiniTE Flight Controller - Mini 20x20

This new F405 board from Matek is packed with a 3rd Gen. 8K Gyro, Barometer, BFOSD, 16M Blackbox Flash Memory, and a convenient 20x20mm to 30x30mm adapter board which supports M2 or M3 hardware. It also has Dual BEC 5V and 10V to properly supply power to more amp hungry devices like the DJI Air Unit. And for those that

Matek F405-MINITE - 30x30mm or 20x20mm w/ 32K Gyro, Barometer, and BetaFlight OSD

MATEK

Another solid choice in the Matek F405-miniTE 20x20 Flight Controller by a company that leads the pack when it comes to quality and performance.
Check out all our 20x20 FCs as well as the entire Matek selection!
Features

F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware.
Redesigned target MATEKF405TE support 8x bi-directional DSHOT.
Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE supports 8motors+3servos in INAV/BF multirotor mixer
Convertible 20mm to 30.5mm mounting

Specifications

Input: 6~30V (2~6S LiPo)
MCU: STM32F405RGT6
IMU: ICM42688-P

OSD: AT7456E
Baro: Goertek SPL06-001 (I2C)
Blackbox: 16M-byte Flash memory
UARTs: 6
PWM outputs: 12 (8 Dshot)
I2C: 1
ADC: 4 (VBAT, Current, RSSI, Airspeed)
Current Sensor: No
PINIO: 2
BEC: 5V 1.7A &amp 10V 1.4A
Mounting Pattern: 20x20 M2/M3, 30X30 M3
Weight: 5g

Includes

1x Matek F405-miniTE 20x20 Flight Controller
1x 20mm to 30mm conversion plate(blue PCB)
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit


The Matek F405-miniTE 20x20 Flight Controller is yet another solid addition to our 20x20 lineup. Matek leads the pack when it comes to 20x20 quality and performance.

Matek F405-miniTE 20x20 Flight Controller for Sale - RaceDayQuads

Another solid choice in the Matek F405-miniTE 20x20 Flight Controller by a company that leads the pack when it comes to quality and performance.
Check out all our 20x20 FCs as well as the entire Matek selection!
Features

F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware.
Redesigned target MATEKF405TE support 8x bi-directional DSHOT.
Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE supports 8motors+3servos in INAV/BF multirotor mixer
Convertible 20mm to 30.5mm mounting

Specifications

Input: 6~30V (2~6S LiPo)
MCU: STM32F405RGT6
IMU: ICM42688-P

OSD: AT7456E
Baro: Goertek SPL06-001 (I2C)
Blackbox: 16M-byte Flash memory
UARTs: 6
PWM outputs: 12 (8 Dshot)
I2C: 1
ADC: 4 (VBAT, Current, RSSI, Airspeed)
Current Sensor: No
PINIO: 2
BEC: 5V 1.7A &ampamp 10V 1.4A
Mounting Pattern: 20x20 M2/M3, 30X30 M3
Weight: 5g

Includes

1x Matek F405-miniTE 20x20 Flight Controller
1x 20mm to 30mm conversion plate(blue PCB)
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit


Another solid choice in the Matek F405-miniTE 20x20 Flight Controller by a company that leads the pack when it comes to quality and performance. Check out all our 20x20 FCs as well as the entire Matek selection! Features F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware. Redesigned target MATEKF

Matek F405-miniTE 20x20 Flight Controller from WREKD Co.

FETtec

FETtec G4 35A AIO Flight Controller

The next generation of FETtec's popular AIO flight controller has arrived! This board with 20x20 mm mounting holes features the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs, and ESC with full sine wave control. A tr

FETTEC AIO 35A-N G4 FLIGHT CONTROLLER 4-IN-1 ESC

A powerful AIO board from FETtec in a small 20x20 mounted package.

T-Motor

T-Motor Mini Racer F7 20x20 Flight Controller

T-Motor Hobby

T-Motor enters the world of Flight Controllers yet again with another that is sure to impress!
Check out all our 20x20 FCs and all our T-Motor products!
Specifications

Input Voltage: 3-6S
MCU: STM32F722RET6
OSD: AT7456E
Uarts: 4
BEC: 5V/2A(Peak 2.5A)
Blackbox: 16MB
Gyro: BMI270
Dimensions: 31*30mm
Stack Size: 20*20mm

Includes

1x T-Motor Mini Racer F7 20x20 Flight Controller





Wiring Diagram


T-Motor enters the world of Flight Controllers yet again with another that is sure to impress!  Check out all our 20x20 FCs and all our T-Motor products! Specifications Input Voltage: 3-6S MCU: STM32F722RET6 OSD: AT7456E Uarts: 4 BEC: 5V/2A(Peak 2.5A) Blackbox: 16MB Gyro: BMI270 Dimensions: 31*30mm Stack Size: 20*20mm

T-Motor Mini Racer F7 20x20 Flight Controller from WREKD Co.

TMOTOR

Tiger Motors

The&nbspT-Motor Mini Racer F7&nbspis a 3-6S 20x20 mini flight controller with a 16MB Blackbox flash memory, 5V.2A BEC, and an MPU6000 gyro. Designed for easy maintenance and low interference.&nbsp

The T-Motor Mini Racer F7 is a 3-6S 20x20 mini flight controller with a 16MB Blackbox flash memory, 5V.2A BEC, and an MPU6000 gyro. Designed for easy maintenance and low interference.

T-Motor Mini Racer 20x20 F7 Flight Controller

The new T-Motor F7 Racer FC is designed specifically for thight builds such as race frames, The front portion of the FC is recessed to provide clearance for the FPV Camera.Check out the 20x20mm Flight Controllers and all our T-Motor Products!     Specifications Input Voltage: 3-6S MCU: STM32F722RET6 OSD: AT7456E Uarts:

T-Motor Mini Racer F7 Flight Controller - 20x20mm

JHEMCU NOXE F4 V2 Standard 3-6S 20x20 Flight Controller For DJI

The&nbspJHEMCU NOXE F4 V2 Flight Controller&nbspis made with DJI Pilots in mind. This standard version FC packs 2 UARTs, and a BEC into a mini-sized 20x20 board with 3-6S capabilities!

The JHEMCU NOXE F4 V2 Flight Controller is made with DJI Pilots in mind. This standard version FC packs 2 UARTs, and a BEC into a mini-sized 20x20 board with 3-6S capabilities!

JHEMCU NOXE F411 V2 DJI Flight Controller - Mini 20x20 - Standard

New 20x20mm flight controller line from JHEMCU available as standard and deluxe.Deluxe verion features blackbox and barometer. Standard: No BarometerDeluxe: With Baromete Check out all our 20x20mm Flight Controllers and the rest of our JHEMCU Products! Specifications: JHEMCU F4 NOXE 3-6S 20*20 Flight Controller for DJI

JHEMCU NOXE F4 V2 Standard 3-6S V2 Flight Controller For DJI - 20x20mm

Hobbywing

Hobbywing XRotor F722 3-6S 20x20/30x30 Flight Controller Stack - F7 FC, 40A 32Bit 4in1 ESC

HobbyWing

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible - RMRC

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 40A 4-in-1 ESC along with an updated F7 Flight Controller.

Hobbywing XRotor Micro Combo Stack - F7 FC + 40A 4-in-1 BLHeli_32 ESC


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC this stack is truly something to behold.
Specifications
XRotor F7 FC


MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting Pattern: 20x20mm M3 / 30x30mm M3

XRotor 40A BLHeli_32 ESC

Input Voltage: 3-6S
Max Continuous Current: 40A
Max Burst Current: 60A
BEC Output: NO
Firmware: Hobbywing_XRotor_BLHeli-32 Version
Throttle Calibration: Supported
ESC Programming: Stick Programming, BLHeliSuite32
DEO: Supported
OneShot Mode: Supported
Timing: Supported
Motor Rotation: Supported
Mounting Pattern: 20x20mm

Weight: 12g

Includes

1x Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC; this stack is truly something to behold. Specifications XRotor F7 FC MCU: STM32F722 Gyro: ICM20602 Barometer: No OSD: Yes Blackbox: Onboard UARTS: 4 Sets ESC Software: DShot300/600/12000 ESC

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC) from WREKD Co.

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)

Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC this stack is truly something to behold.
Check out all our 20x20 stacks, and our Hobbywing selection!
Specifications
XRotor F7 FC

MCU: STM32F722
Gyro: ICM20602

Barometer: No
OSD: Yes
Blackbox: Onboard
UARTS: 4 Sets
ESC Software: DShot300/600/12000
ESC Telemetry: Yes
Led Controller: Yes
Input Voltage: 3-6s Lipo (12.6-25.2V)

BEC: 5V 2A / 10V 2A
Mounting Pattern: 20x20mm M3 / 30x30mm M3

XRotor 40A BLHeli_32 ESC

Input Voltage: 3-6S
Max Continuous Current: 40A
Max Burst Current: 60A
BEC Output: NO
Firmware: Hobbywing_XRotor_BLHeli-32 Version
Throttle Calibration: Supported
ESC Programming: Stick Programming, BLHeliSuite32
DEO: Supported
OneShot Mode: Supported
Timing: Supported
Motor Rotation: Supported
Mounting Pattern: 20x20mm

Weight: 12g

Includes

1x Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 ESC)
1x Hardware Set
1x AMASS XT60 Connector
1x Cable Set


Hobbywing has heard your requests, and answered with this new amazing stack. Featuring a new F7 FC with their signature 40A ESC; this stack is truly something to behold. Check out all our 20x20 stacks, and our Hobbywing selection! Specifications XRotor F7 FC MCU: STM32F722 Gyro: ICM20602 Barometer: No OSD: Yes Blackbox

HOBBYWING

Hobbywing XRotor F722 3-6S 20x20 Stack/Combo (F7 FC / 32Bit 40A 4in1 E

Hobbywing XRotor F7 Convertible Flight Controller

The new Hobbywing convertable F7 flight controller is equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional D-Shot digital throttle communication. The integrated OSD chip can adjust and set ea

HobbyWing XRotor Convertible F7 Flight Controller HD DJI Plug and Play - 30x30 & 20x20mm


Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &ampamp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity MPU6500 six-axis motion sensor, built-in 5V &ampamp 12V double BEC, integrated OSD, and a pitch module.
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &ampamp 12V dual BEC circuit.
On-board Pit Switch module.


 



Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1 x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1 x Soft Mounting Grommets Set
1 x Signal Cable
1 x User Manual


Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp; 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight control

Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller from WREKD Co.

Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller

Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &amp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor, built-in 5V &amp 12V double BEC, integrated OSD, and a pitch module.
Check out our other flight controllers, and our Hobbywing selection!
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &amp 12V dual BEC circuit.
On-board Pit Switch module.










Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1x Soft Mounting Grommets Set
1x Signal Cable
1x User Manual


With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.

HobbyWing Convertible F7 Flight Controller - RMRC

HobbyWing Convertible F7 Flight Controller

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. The F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The mounting pattern is convertible between 20x20 and 30.5x30.5!

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. The F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The mounting pattern

Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V &ampamp 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor, built-in 5V &ampamp 12V double BEC, integrated OSD, and a pitch module.
Check out our other flight controllers, and our Hobbywing selection!
Features

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V &ampamp 12V dual BEC circuit.
On-board Pit Switch module.










Specifications

Firmware: HOBBYWING_XROTORF7CONV

FC Programming: Supported
Programming via Betaflight/ Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Built-in

Input Voltage: 3-6S

Gyro: MPU6500
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A  10V @ 1.5A
Mounting Pattern: 20x20mm M3 / 30x30mm M3
Size 32x32mm
Weight 3.3g

 Manual Download

Includes

1x Hobbywing XRotor F7 3-6S 20x20 / 30x30 Convertible Flight Controller
1x Soft Mounting Grommets Set
1x Signal Cable
1x User Manual


Matek H743-Mini 20x20 Flight Controller

Matek H743-MINI Flight Controller features STM32H743VIT6, ICM20602 & MPU6000, DPS310, OSD, 5.5x UARTs, 2x I2C, 1x CAN, 11x PWM outputs, BEC5V and BEC8V.

MATEKSYS H743-MINI Flight Controller

Matek Flight Controller H743-MINI V3 - RMRC

Matek Flight Controller H743-MINI V3

Skystars

SkyStars F7 HD 20x20 & KM55A Mini 3-6S ESC Flight Controller Stack

SkyStars

The&nbspSkyStars F7 HD 20X20 Fly Stack comes with the&nbspSkyStars F7 3-6S 20x20 HD Flight&nbspController&nbspand&nbsp&nbspKM55A Mini 3-6S BLHeli_32 4-in-1 ESC, to give your multirotor full power!

The SkyStars F7 HD 20X20 Fly Stack comes with the SkyStars F7 3-6S 20x20 HD Flight Controller and  KM55A Mini 3-6S BLHeli_32 4-in-1 ESC, to give your multirotor full power!

SkyStars F7 HD 20X20 + KM55A Mini 3-6S BLHeli_32 4-in-1 ESC Stack

Skystars F722HD2020 Stack with 20x20 F7 Flight Controller &amp; KM55 55A ESC! Includes 6 UARTS, a 10V 2A Regulator for Caddx Vista or DJI Air Unit, Barometer and Blackbox! Plus it is stable for 6s in an incredibly small 20x20mm mounting platform. F1 Racing car looks for heat dissipation and style. Flashed with the late

Skystars F722HD Stack Flight Controller & KM55 55A ESC - 20x20

T-Motor Mini F7 HD 20x20 Flight Controller for DJI

T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, BMI270 gyroscope, Oneshot125/Oneshot42, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!
Paid this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!
Check out all our 20x20 FCs and all our T-Motor products!
Specification

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6s
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: BMI270
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)


Includes

1x T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch


T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, BMI270 gyroscope, Oneshot125/Oneshot42, Multishot, common PWM signals, PIT

T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - BMI270

T-Motor&#39s Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, MPU6000 gyroscope, Oneshot125, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!
Get this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!
Check out all our 20x20 FCs and all our T-Motor products!










Specification

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6S
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: MPU6000
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)

Includes

1x T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch


T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, MPU6000 gyroscope, Oneshot125, Multishot, common PWM signals, PIT switch fu

T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - MPU6000 from WREKD Co.

T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - MPU6000

 For the ultimate power stack, pair the Mini F7 HD Flight Controller with the T-Motor Mini F45A 6S ESC, the powerhouse of ESCs. Together, these two titans will give you the power you need to take your flying to new heights.
Don&#39t settle for anything less than the best. Check out all our 20x20 FCs and all our T-Motor products and elevate your flying to new heights.
Specifications:

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6s
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: MPU6000
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)

Includes:

1x T-Motor Mini 20x20 F7 Flight Controller w/ MPU6000


Power up your FPV drone with the T-Motor Mini F7 Flight Controller. Take your flying to new heights with this ultimate power stack!

T-Motor&#39s Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, BMI270 gyroscope, Oneshot125/Oneshot42, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!
Paid this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!
Check out all our 20x20 FCs and all our T-Motor products!
Specification

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6s
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: BMI270
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)


Includes

1x T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch


T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - BMI270 from WREKD Co.

The new T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions FC, this mini FC is lighter and stronger.

T-Motor Mini F7 20x20 Flight Controller (HD+VTX+ VTX Switch)

In a world of soaring heights and breathtaking views, only the best will do. T-Motor&#39s Mini 20x20 F7 Flight Controller is the ultimate tool for conquering the skies.
Loaded with power beyond your wildest dreams, this flight controller can be connected to the DJI Digital HD FPV System, allowing you to experience flight like never before. Compare to standard versions of this FC, the mini FC is lighter and stronger, giving you unparalleled control and precision.
Featuring F722 high-speed technology, noise reduction, and a BMI270 gyroscope, this flight controller is a true marvel of engineering. With Oneshot125/Oneshot42, Multishot, common PWM signals, and a PIT switch function, you&#39ll have all the tools you need to soar above the clouds.
For the ultimate power stack, pair the Mini F7 HD Flight Controller with the T-Motor Mini F45A 6S ESC, the powerhouse of ESCs. Together, these two titans will give you the power you need to take your flying to new heights.
Don&#39t settle for anything less than the best. Check out all our 20x20 FCs and all our T-Motor products and elevate your flying to new heights.
Specifications:

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6s
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: BMI270
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)

Includes:

1x T-Motor Mini 20x20 F7 Flight Controller


Conquer the skies with T-Motor Mini F7 Flight Controller. Unleash unparalleled control and precision for racing, freestyle, and cinema.

T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, MPU6000 gyroscope, Oneshot125, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!
Get this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!
Check out all our 20x20 FCs and all our T-Motor products!










Specification

Brand: T-Motor
Item Name: F722 MINI Flight Controller
Input Voltage: 3-6S
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: MPU6000
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20x20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)

Includes

1x T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch


T-Motor's MINI F7 HD Flight Controller! Enjoy the fast processing High Speed F722 and pair it with the T-Motor F45 ESC for a smooth, powerful flying experience. 41% smaller and 33% less weight! Dual BEC plug and play compatible with DJI HD VTX! Check out the full stack sold together here! (Mini F7+F45A) and all our T-M

T-Motor Mini F7 (HD+OSD+VTX SWITCH) - 20x20mm

T-Motor F7 Mini 3-6S 20x20 Flight Controller Stack for DJI - F7 FC, 45A ESC

Lightweight DJI plug and play ready 20x20 stack from T-Motor.
Check out our 20x20 Flight Controllers, our DJI compatible gear, and all our T-Motor products!
Features

Dual BEC, DJI Plug and Play Ready
45A ESC
F7 Flight Controller

Specifications
T-Motor F7 Mini Flight Controller

Input Voltage: 3-6S
Firmware: TMOTORF7 (STM32FX2)
BEC: 5V/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: BMI270
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting Pitch: 20*20mm
Weight: 5.1g

T-Motor Mini 45A ESC

Input Voltage: 3-6S
ESC Firmware: BLHeli32
Telemetry: Supported
Galvanometer: Supported
DSHOT 150/DSHOT 300/DSHOT 600/PROSHOT 1000
Backwards Compatible with Oneshot125/Oneshot42/Multishot
Betaflight Galvanometer Ratio: 200
Mounting Pitch: 20*20mm
Weight: 9.2g

Includes

1x T-Motor Mini F7 3-6S 20x20 Stack Combo (F7 FC / 45A ESC)


Lightweight DJI plug and play ready 20x20 stack from T-Motor. Check out our 20x20 Flight Controllers, our DJI compatible gear, and all our T-Motor products! Features Dual BEC, DJI Plug and Play Ready 45A ESC F7 Flight Controller Specifications T-Motor F7 Mini Flight Controller Input Voltage: 3-6S Firmware: TMOTORF7 (ST

T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A 4in1 ESC) from WREKD Co.

T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A 4in1 ESC)

Get a better flying experience out of this 20*20mm stack, with 33% less weight, and a 41% smaller stack featuring 32bit High Performance! Capable of DUAL BEC Plug and Play, can provide power for DJI Digital HD Video Transmitter! Check out our other Flight Controllers and all our T-Motor Products!   Supports Various Thr

T-Motor MINI F45A+ MINI F7 STACK 20*20mm

Get a better flying experience with the T-Motor Mini F45 + Mini F7 Stack! This stack brings lots of power all in a small package!

T-Motor Mini F7  Stack + F45A 3-6S BLHeli_32 4-in-1 ESC

T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A  - RMRC

EMAX

EMAX Mini Magnum 2 Flight Controller Stack - F4 32Bit 35A 2-6S VTX Stack

Emax USA

UPDATE: New batch has additional Uart pads for different setups of receiver or third party applications that require additional Uart.
Stack Height, from lowest componant on ESC board to highest point on VTX board: 22mm
UPC Code: 723668085485
OmnibusF4 Target



INSTRUCTION MANUAL







UPDATE: New batch has additional Uart pads for different setups of receiver or third party applications that require additional Uart. Stack Height, from lowest componant on ESC board to highest point on VTX board: 22mm UPC Code: 723668085485 OmnibusF4 Target INSTRUCTION MANUAL

Mini Magnum 2.5 - F4 BLHELI32 35amp 6S MMCX from WREKD Co.

Mini Magnum 2.5 - F4 BLHELI32 35amp 6S MMCX

Introducing the next generation of the famed Magnum line, the Mini Magnum 2.

Emax Mini Magnum 2 - F4 BLHeli32 35A 2-6s VTX Stack

Mini Magnum 2 - F4 BLHELI32 35amp 6S MMCX Version

Mini Magnum 2 - F4 BLHELI32 35amp 6S MMCX Version - 20x20mm

EMAX F3 Babyhawk Femto Flight Controller

The EMAX F3 Femto FC with pre-soldered wires and pin header for the Babyhawk.

Hobbywing XRotor Nano F4 Flight Controller

The Hobbywing XRotor Nano. A flight controller that works, period

Hobbywing XRotor Nano F4 Flight Controller w/ OSD

Bringing all the features from their larger FC, the Nano is a high power F4 Processor which is compatible with all common ESC protocols, as well as incredibly fast loop times! Compatible with DShot 1200 down to 150, Oneshot 125, Oneshot 42, &amp Multishot, XRotor F4 will not leave you in the dust by not offering the best features in the industry. Onboard OSD allows users to configure Betaflight OSD however they see fit and provide a lot or a little of information over their FPV feed for real-time data display. Additional adjustments can be made from the OSD once the aircraft is landed. Lastly, plug and play technology allow the XRotor F4 to be compatible with the Hobbywing 4in1 ESCs providing a clean and easy solution for your next build.
Features

STM32 F405 MCU allows the FC to run the PID loop time and gyro with higher frequency.
SPI Sensor MPU6000 includes an accelerometer and a gyro.
Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)
The FC which supports Betaflight firmware &amp allows parameter adjustment via Betaflight software is more applicable to FPV race.
TF-card which can record and save more flight/black box data allows users to adjust the setup of their aircraft easily.
Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc.
A LED strip signal output port allows users to adjust the color &amp flash mode of the LED strip via the FC.
Volt/Amp monitoring port allows users to check the battery voltage ( VBAT+ port ) and current (CRT port) (extra current meter is needed).
Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters)

Specifications

Model: Nano F4 Flight Controller F4
Application FPVs with 130 Diagonal Wheelbase or below
FC Programming supported: ProgrammingBetaflight/Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200, Proshot1000
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: 5V @ 1.5A
USB Port: Micro USB
Size/ weight: 27x27mm / 3.3g
Mounting pattern: 20x20mm

Includes

Hobbywing Xrotor Nano F4 Flight Controller
1x FC cable
1x 3pin cable
4x Anti-vibration standoffs and rubber grommets

Downloads
Downloads and setup information can be found here

Hobbywing XRotor Nano F4 Flight Controller w/ OSD | Bringing all the features from their larger FC, the Nano is a high power F4 Processor which is compatible with all common ESC protocols, as well as incredibly fast loop times! Compatible with DShot 1200

Hobbywing XRotor Nano F4 Flight Controller w/ OSD | Hobbywing

Happymodel

HappyModel CruxF405HD 2-4S F4 20x20 AIO Flight Controller - 20A 8Bit 4in1 ESC, 2.4GHz ELRS RX

HAPPYMODEL

The CruxF405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s battery. Bigger Mosfet could support high to 20A currents would be better for 2-4S toothpick drone or long range FPV drone. Reserved 6 pin socket for DJI HD equipment plug and play. It’s a great solution of build HD digital FPV drone .
Check out our other AIO flight controllers, and the rest of our Happymodel offerings.

NOTES: If upgrade firmware to betaflight 4.4.x , need to add custom Defines “GYRO_SPI_ICM42688P ACC_SPI_ICM42688P” from build configuration of Betaflight configurator otherwise gyro may not be recognized.
Features


Integrated UART 2.4GHz ExpressLRS receiver and
20A Blheli_s ESC(Bluejay firmware pre-installed)
Big Mosfets that support high 20A currents
Great for 2-4S toothpick
Reserved 6 pin socket for DJI HD equipment plug &amp play.


Specifications

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: ICM42688 (SPI connection)
Mount hole size: 20mm*20mm
Power supply: 2~4S battery input (DC 8.7V-17.4V)
Built-in 20A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G (Default connected to UART2)
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Flight controller firmware target: BETAFLIGHTF4

4in1 ESC (MCU upgraded to EFM8BB21)

Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Currents: 20A continuous peak 25A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay 0.19.2
Firmware target: F_H_40_48_v0.19.2
Default protocol: DSHOT150/DSHOT300/DSHOT600

UART ExpressLRS 2.4GHz

Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna plug: IPEX
Telemetry output Power: &lt12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1

Voltage and Amperage meters settings

Voltage meter scale setting 110
Amperage meter scale setting 470

Includes

1x HappyModel CruxF405HD 2-4S F4 AIO 20x20 Flight Controller (w/ 20A 8Bit 4in1 ESC &amp 2.4GHz ELRS RX)
1x XT30 Pigtail
1x ELRS T Antenna
4x Rubber Grommets
4x Motor Plugs


Binding
Binding procedure:

Supply power to the flight controller by plug USB, wait until the red LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the red LED light will start to double-flash, which means that the Receiver enters the binding mode
Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to ExpressLRS.lua from “TOOLS” menu of your radio transmitter. Then hit [Bind] to binding with the onboard ExpressLRS receiver. The red LED should blinking slowly first then turn to solid, that means binding was successfully. If the red led keep tri-flash after binding ,please change Model Match tab value from “off” to “on” or from “on” to “off”

Receiver LED status meanings:
Red LED solid means bind successful or RC link established Red LED double-flash means get into bind mode Red LED flash slowly means no RC signal input from TX module Red LED continuous flash fast means ExpressLRS wifi enabled Red LED tri-flash means model mismatch need to change model match from “off” to “on”.
UART description:ELRS receiver was connected to UART2 default out of factory.Usually UART1 or UART6 Could be used for MSP OSD with HD VTX.UART6 could be used for GPS or other serial equipment.IRX6 is an inverted serial RX6 for SBUS input.IRX6 and TX6/RX6 couldn’t be used at the same time.

The world’s first AIO 5in1 F4 flight controller with integrated SPI 2.4GHz ExpressLRS receiver has been launched. The flight controller integrates SPI controlled 2.4GHz ExpressLRS receiver, Dshot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. It is suitable for use in Tiny whoop Race or Toothpick Freestyle, and can also be used in 1S ultra-lightweight Nano Long Range platform.

HappyModel CruxF405HD 2-4S F4 AIO 20x20 Flight Controller (w/ 20A 8Bit 4in1 ESC & 2.4GHz ELRS RX)

HappyModel ELRS 2G4 Whoop Flight Controller - For Sale At RaceDayQuads

The CruxF405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s battery. Bigger Mosfet could support high to 20A currents would be better for 2-4S toothpick drone or long range FPV drone. Reserved 6 pin socket

Happymodel CruxF405 HD AIO Flight Controller 2-4S 20A ESC-UART ELRS 2.4GHz- 20x20mm

NewBeeDrone

NewBeeDrone Infinity200 RS RaceSpec Flight Controller

NewBeeDrone Infinity 200RS Flight Controller
Introducing the NewBeeDrone Infinity200 RS - the ultimate racing flight controller designed to take your FPV racing experience to the next level. This flight controller was developed with the help of our talented team pilot, Levi Jonson, who provided valuable input during the development phase and helped test the product to ensure that it meets the needs and expectations of serious FPV racers.
At the heart of the Infinity200 RS is the highly acclaimed MPU6000 gyro, which is widely regarded as the best gyro chip for FPV racing. Despite being a discontinued gyro chip, the MPU6000 is still highly sought after for its incredible performance in high-speed racing environments. With digital and analog compatibility, this gyro is capable of delivering highly accurate and stable flight performance, allowing you to push your drone to its limits without fear of destabilization.
The Infinity200 RS also boasts a powerful STM32F745VEH6 processor and a Blackbox memory of 128MB, providing you with plenty of processing power and storage space for all your racing needs. The 3-6S direct battery input and 5V 3A / 12V 2A outputs ensure that your drone is powered up and ready to go.
The compact form factor of the Infinity200 RS (measuring just 26.5x26.5MM with 20x20 mounting holes and weighing only 4.85g) makes it ideal for use in high-performance racing drones. It features six UARTS, including UART1, UART2, UART3 (TX only), UART5 (RX only for ESC telemetry), UART7, and UART8, and is also ready for I2C_SCL and I2C_SDA.
The JST1.0 8Pin ESC socket with ESC telemetry and external current sensor is designed to be plug-and-play compatible with the NBD Infinity200 ESC, but is also compatible with most other ESCs on the market.
Our team pilot Daniel Daylight played an important role in testing the Infinity200 RS flight controller, providing invaluable feedback and giving the product a very high grade. Daniel&#39s feedback confirmed that the Infinity200 RS is truly a top-of-the-line racing flight controller.
Overall, the NewBeeDrone Infinity200 RS is the ultimate racing flight controller, designed with advanced features and capabilities to help you dominate the competition. With its unmatched performance, precision, and stability, this flight controller is a must-have for serious FPV racers.

Specification:

MPU6000 Gyro
STM32F745VEH6
Blackbox:128MB
3-6S direct battery input
5V 3A
12V 2A
BetaFlight OSD
26.5x26.5MM with 20x20 mounting holes, weight: 4.85g
6 UARTS on board.
UART1 (Free)
UART2 (Free)
UART3 (only TX)
UART5 (Only RX, ESC Telemetry)
UART7 (Free)
UART8 (Free)
I2C_SCL I2C_SDA Ready
JST1.0 8Pin ESC socket (including ESC telemetry, External current sensor)
Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.



Includes

1x infinity 200RS Flight Controller
1x infinity 200RS JST1.0 4pin 145mm
1x infinity 200RS JST1.0 8pin 145mm
1x Infinity 200RS FC to Infinity20 ESC cable 30mm
4x Grommets Short (Pre-installed)
4x Grommets Long







NewBeeDrone Infinity 200RS Flight Controller Introducing the NewBeeDrone Infinity200 RS - the ultimate racing flight controller designed to take your FPV racing experience to the next level. This flight controller was developed with the help of our talented team pilot, Levi Jonson, who provided valuable input during th

NewBeeDrone Infinity200 RS Racing Flight Controller | RaceSpec from WREKD Co.

NewBeeDrone Infinity200 RS Racing Flight Controller | RaceSpec

NewBeeDrone Infinity 200RS Flight Controller
Introducing the NewBeeDrone Infinity200 RS - the ultimate racing flight controller designed to take your FPV racing experience to the next level. This flight controller was developed with the help of our talented team pilot, Levi Jonson, who provided valuable input during the development phase and helped test the product to ensure that it meets the needs and expectations of serious FPV racers.
At the heart of the Infinity200 RS is the highly acclaimed MPU6000 gyro, which is widely regarded as the best gyro chip for FPV racing. Despite being a discontinued gyro chip, the MPU6000 is still highly sought after for its incredible performance in high-speed racing environments. With digital and analog compatibility, this gyro is capable of delivering highly accurate and stable flight performance, allowing you to push your drone to its limits without fear of destabilization.
The Infinity200 RS also boasts a powerful STM32F745VEH6 processor and a Blackbox memory of 128MB, providing you with plenty of processing power and storage space for all your racing needs. The 3-6S direct battery input and 5V 3A / 12V 2A outputs ensure that your drone is powered up and ready to go.
The compact form factor of the Infinity200 RS (measuring just 26.5x26.5MM with 20x20 mounting holes and weighing only 4.85g) makes it ideal for use in high-performance racing drones. It features six UARTS, including UART1, UART2, UART3 (TX only), UART5 (RX only for ESC telemetry), UART7, and UART8, and is also ready for I2C_SCL and I2C_SDA.
The JST1.0 8Pin ESC socket with ESC telemetry and external current sensor is designed to be plug-and-play compatible with the NBD Infinity200 ESC, but is also compatible with most other ESCs on the market.
Our team pilot Daniel Daylight played an important role in testing the Infinity200 RS flight controller, providing invaluable feedback and giving the product a very high grade. Daniel's feedback confirmed that the Infinity200 RS is truly a top-of-the-line racing flight controller.
Overall, the NewBeeDrone Infinity200 RS is the ultimate racing flight controller, designed with advanced features and capabilities to help you dominate the competition. With its unmatched performance, precision, and stability, this flight controller is a must-have for serious FPV racers.

Specification:

MPU6000 Gyro
STM32F745VEH6
Blackbox:128MB
3-6S direct battery input
5V 3A
12V 2A
BetaFlight OSD
26.5x26.5MM with 20x20 mounting holes, weight: 4.85g
6 UARTS on board.
UART1 (Free)
UART2 (Free)
UART3 (only TX)
UART5 (Only RX, ESC Telemetry)
UART7 (Free)
UART8 (Free)
I2C_SCL I2C_SDA Ready
JST1.0 8Pin ESC socket (including ESC telemetry, External current sensor)
Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.



Includes

1x infinity 200RS Flight Controller
1x infinity 200RS JST1.0 4pin 145mm
1x infinity 200RS JST1.0 8pin 145mm
1x Infinity 200RS FC to Infinity20 ESC cable 30mm
4x Grommets Short (Pre-installed)
4x Grommets Long







NewBeeDrone Infinity200 F4 3-6S 20x20 Flight Controller for DJI

-Infinity200 Flight Controller Firmware NBD Infinity Flight Controller 4.1.0 ﻿The same power and smoovness you can get in the Infinity 30x30 stack but smaller! For those looking for a DJI plug and play system for those small frame builds, this is a great option! Flight Controller Spec:• MPU6000 Gyro • STM32F405 CPUE @

NewBeeDrone Infinity200 20x20 BetaFlight Flight Controller


Note: the Infinity200 FC now uses a USB-C connector.
-Infinity200 Flight Controller Firmware on Official BetaflightTarget name: NBD_INFINITYF4
Flight Controller Spec:

MPU6000 Gyro
STM32F405 CPUE @ 168mhz, can be overclocked
3-6S direct battery input
5V 2A
9V 2A 18W Design for DJI FPV Air Unit
5V Camera Power
betaflight OSD
31.5x27 CB with 20x20 mounting holes, weight: 5.85g
6 UARTS. UART1 (INVERTER FOR SBUS)
UART2 (FREE)
UART3 (INVERTED TELEMETRY)
UART4 (Free)
UART5 (Smart Audio)
UART6(Free)
Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.
Built-in solder pads for ESC signal output and power
Printed layout instructions ON the board - no need for instructions!
DJI FPV Air Unit socket (use UART1 and UART6)

Pinout for USB-C Version (Recent)


Pinout for Micro USB Version

Includes:

1x Infinity200 flight controller
4x Grommets short 4x Grommets Long
1x Infinity200 FC to DJI Air module cable 40mm
1x Infinity200 FC to DJI Air module cable 100mm
1x Infinity200 FC to DJI Air module cable 150mm

NOTE: We suggest running a Electrolytic capacitor on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
