Flywoo

Flywoo Explorer LR Walksnail Long Range 4" Frame Kit

The Explorer LR 4 Walksnail frame is perfectly designed for the Walksnail VTX and Camera , while keeping FLYWOO's signature compact design.

Flywoo Explorer LR 4" Walksnail Frame Kit

Flywoo Explorer LR 4&quot Walksnail Frame Kit

FLYWOO

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO&#x27s signature compact design. We&#x27ve also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance. NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts 1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO's signature compact design. We've also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance. NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts 1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

Explorer LR 4 Walksnail Frame kit











The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4&quot Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4&quot frames,  as well as other great products from Flywoo!











Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4" Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with

Flywoo Explorer LR Walksnail Long Range 4" Frame kit from WREKD Co.

Flywoo Explorer LR Walksnail Long Range 4

Flywoo Explorer LR Walksnail Long Range 4" Frame kit











The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4" Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4" frames,  as well as other great products from Flywoo!











Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


Frame Size

The frame is typically the first part to pick because it determines what kind of flying you’ll be doing the most. Start by picking a frame type, and narrow down the options by propeller size. The frame holds your quad parts together and heavily impacts what the quad can do.

Frames

Frame Kit

Frame Stack Mount

FPV Camera Mount

Frame Type

Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO&#x27s signature compact design. We&#x27ve also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance.  NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts  1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO's signature compact design. We've also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance.  NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts  1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

Explorer LR O3 Frame kit































The Flywoo Explorer LR HD O3 Deadcat Long Range 4&quot Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4&quot frames,  as well as other great products from Flywoo!































Includes

1x Flywoo Explorer LR HD O3 Deadcat Long Range 4&quot Frame Kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease

Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit from WREKD Co.

Flywoo Explorer LR HD O3 Deadcat Long Range 4































The Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4" frames,  as well as other great products from Flywoo!































Includes

1x Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module, while keeping FLYWOO's signature compact design.We've also designed a new camera canopy to protect the lens well, compatible with both 16X16 and 20X20 flight towers.

Flywoo Explorer LR 4" O3 Frame Kit

Flywoo Explorer LR 4&quot O3 Frame Kit

iFlight

iFlight BOB57 O3 6" Frame Kit

IFLIGHT

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot &amp videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.
Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories.
Don't feel like building it but one one now!? We also carry the BNF!
Features

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers
Solid antenna mount for less ocillations when using long antennas

H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
Front-mounting XT-60
Compatible with DJI O3 Air Unit and Vista

Specifications

Product Name: BOB57 O3 Frame Kit
Frame wheelbase: 278mm
Frame Dimension: L165 x W225 x H34 mm
Weight: 305g
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 1.5mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Motor Mounting: 16 x 16mm
VTX Mounting: 25.5 x 25.5/Φ1.6mm, 20 x 20/Φ2mm



Includes

1 x BOB57 O3 Frame Kit
1 x BOB57 TPU Parts
1 x 215mm MIPI Video Cable for DJI O3 Air Unit
4 x Motor Wire Shield Tube
1 x Battery Anti-Slip Pad
2 x Battery Strap
1 x Screw Bag


The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot &amp; videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights. Be sure

iFlight BOB57 O3 LR & Freestyle Cinematic 6" Frame Kit

NewBeeDrone

NewBeeDrone Whirligig V2 5" Frame

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit or Caddx Vista Unit) whoop board or 20x20 stack 3'' 4'' 5'' arms - the combination is endless - even long range light weight build.
Design to work best with 1404 3000kv motors, 850mah 4s and a 20x20 FC and ESC stack for ~ 15 minutes flight time!
The 20x20 used on this frame must use M3 hardware.

Slotted M3 stack mounting holes on the bottom plate
DJI mounts in center of quad near CoG in the NBD DJI AirUnit Standoffs, M3 stack mounts in rear of quad suggested use of wire pcbs for shorter motor wires.

frame can be used without DJI Air unit


DJI Camera Mounting holes: M2 Mounting slots DJI Camera that allow for 10-40deg of cam angle
A single M2 mounting hole for traditional micro cam mounting option.


Build Video:
FreeSytle Video:
Related Video:Recommend Build List:
LongRange 4inch with DJI HD DVR1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS Module
LongRange 4inch with Vista UnitHardware: 1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS ModuleLongRange 5inch with DJI HD DVR1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
LongRange 5inch with Vista Unit1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
Battery: GNB 650mAh 4S batteryGNB 750mAh 4S batteryGNB 850mAh 4S Battery
3D Print Parts:GoPro Hero8 3D FileFrame 3D Print PartsGo2 Mount 3D fileOther 3D printed Parts design by Jason
Buy the 3D printed Go2 Mount
Carbon Fiber Parts:Body: Top Plate&amp Bottom Plate with Battery padSide Camera Plate3inch Arm set include front and rear armOR4inch Arm set include front and rear armOR5inch Arm set include front and rear arm
Hardware include: Standoff M2 25mm X2 Standoff M2 20mm X4Screw M3 8mm X5Screw M3 6mm X7Screw M2 8mm X14
3D Printed parts Left DJI AirUnit Antenna MountRight DJI AirUnit Antenna MountBack Caddx Vista Antenna MountGPS + back antenna Mount
Parts for the Whirligig V2

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability; easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit o

NewBeeDrone Whirligig V2 Frame 3'' 4'' 5''

Introducing the Whirligig V2 Frame! This improved version is lighter while sacrificing no durability easy to service while sacrificing no sophistication. Near perfect center of gravity with DJI Air Unit and stack on board. Extremely versatile so you can build it however you like: analog or HD (fits both DJI Air Unit or Caddx Vista Unit) whoop board or 20x20 stack 3&#39&#39 4&#39&#39 5&#39&#39 arms - the combination is endless - even long range light weight build.
Design to work best with 1404 3000kv motors, 850mah 4s and a 20x20 FC and ESC stack for ~ 15 minutes flight time!
The 20x20 used on this frame must use M3 hardware.

Slotted M3 stack mounting holes on the bottom plate
DJI mounts in center of quad near CoG in the NBD DJI AirUnit Standoffs, M3 stack mounts in rear of quad suggested use of wire pcbs for shorter motor wires.

frame can be used without DJI Air unit


DJI Camera Mounting holes: M2 Mounting slots DJI Camera that allow for 10-40deg of cam angle
A single M2 mounting hole for traditional micro cam mounting option.


Build Video:
FreeSytle Video:
Related Video:Recommend Build List:
LongRange 4inch with DJI HD DVR1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS Module
LongRange 4inch with Vista UnitHardware: 1x Whirligig V2 4inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 1404 3000KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 4024 Hurricane Durable 2 Blade 1.5mm1x TBS M8-2 GPS ModuleLongRange 5inch with DJI HD DVR1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x DJI FPV AirUnit- Ultra low latency 720p 120fps digital HD1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
LongRange 5inch with Vista Unit1x Whirligig V2 5inch Frame1x NewBeeDrone Infinity200 Stack  Or 1x NewBeeDrone Cricket200 Stack 4x NewBeeDrone Flow 2004 2450KV Motors1x Caddx Vista with DJI FPV Camera1x XT30 Lipo Pigtail 16AWG1x Gemfan 5125 Hurricane Durable 3blade 1.5mm1x GNB 850mAh 4S Battery1x TBS M8-2 GPS Module
Battery: GNB 650mAh 4S batteryGNB 750mAh 4S batteryGNB 850mAh 4S Battery
3D Print Parts:GoPro Hero8 3D FileFrame 3D Print PartsGo2 Mount 3D fileOther 3D printed Parts design by Jason
Buy the 3D printed Go2 Mount
Carbon Fiber Parts:Body: Top Plate&ampamp Bottom Plate with Battery padSide Camera Plate3inch Arm set include front and rear armOR4inch Arm set include front and rear armOR5inch Arm set include front and rear arm
Hardware include: Standoff M2 25mm X2 Standoff M2 20mm X4Screw M3 8mm X5Screw M3 6mm X7Screw M2 8mm X14
3D Printed parts Left DJI AirUnit Antenna MountRight DJI AirUnit Antenna MountBack Caddx Vista Antenna MountGPS + back antenna Mount
Parts for the Whirligig V2

NewBeeDrone Whirligig V2 Frame 3'' 4'' 5'' from WREKD Co.

NewBeeDrone M-367 True-X 7" Frame

NewBeeDrone M-367 7inch True-X FPV Frame

Design Idea:



Simplicity in Construction: Designed for effortless assembly and minimal maintenance.

Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs.

Strategic Tactic Mounting Points: Featuring mounting points on both top and bottom plates, enabling users to securely fasten any accessory using straps.

Innovative Motor Arm Protection: Inspired by the Air Max concept, our motor arm protectors are crafted with a lightweight, hollow design, using durable TPU material. This not only reduces weight but also offers enhanced protection for the arm edges and motor. The snap-on installation eliminates the need for screws, ensuring the motor remains firmly attached to the frame, optimizing system performance.


Spec:

FC Mount: 20X20, 25.5X25.5, 30.5X30.5 mm
VTX Mount: 20X20
Camera Mount: 19mm wide
Motor Mount:19x19 M3 screw mount


What&#39s include: Carbon Fiber Parts:

Top plate 2mm x1

Mid plate 2.5mm x1
 Bottom plate 2.5m x1
Front arm 6mm x2
Rear arm 6mm x2

3D Printed Parts:

Motor arm protector TPU
TBS Crossfire nano receiver mount TPU
VTX Antenna Mount (two antenna) TPU
FPV Camera mount TPU

Hardware:

M3  High Tensile Carbon Steel 8mm x13
M3 High Tensile Carbon Steel 10mm x18
M3 High Tensile Carbon Steel 14mm x9
M3 High Tensile Carbon Steel 16mm x5
M3 High Tensile Carbon Steel 25mm x5
M3 Nylon Lock Nut x9
M3  7075 Aluminum Standoff 28mm x9

Accessory:

PU Battery mount sticker x1
Strap 20mm x 300mm x3
Nylon Zipties 3*100mm x5




NewBeeDrone M-367 7inch True-X FPV Frame   Design Idea:  Simplicity in Construction: Designed for effortless assembly and minimal maintenance. Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs. Strategic Tactic Mounting Points:

NewBeeDrone M-367 7inch True-X FPV Frame from WREKD Co.

NewBeeDrone M-367 7inch True-X FPV Frame

NewBeeDrone M-367 7inch True-X FPV Frame

Design Idea:



Simplicity in Construction: Designed for effortless assembly and minimal maintenance.

Versatile Hardware Mounting Solutions: Offers flexibility in mounting configurations, allowing for personalized setups tailored to your needs.

Strategic Tactic Mounting Points: Featuring mounting points on both top and bottom plates, enabling users to securely fasten any accessory using straps.

Innovative Motor Arm Protection: Inspired by the Air Max concept, our motor arm protectors are crafted with a lightweight, hollow design, using durable TPU material. This not only reduces weight but also offers enhanced protection for the arm edges and motor. The snap-on installation eliminates the need for screws, ensuring the motor remains firmly attached to the frame, optimizing system performance.


Spec:

FC Mount: 20X20, 25.5X25.5, 30.5X30.5 mm
VTX Mount: 20X20
Camera Mount: 19mm wide
Motor Mount:19x19 M3 screw mount


What's include: Carbon Fiber Parts:

Top plate 2mm x1

Mid plate 2.5mm x1
 Bottom plate 2.5m x1
Front arm 6mm x2
Rear arm 6mm x2

3D Printed Parts:

Motor arm protector TPU
TBS Crossfire nano receiver mount TPU
VTX Antenna Mount (two antenna) TPU
FPV Camera mount TPU

Hardware:

M3  High Tensile Carbon Steel 8mm x13
M3 High Tensile Carbon Steel 10mm x18
M3 High Tensile Carbon Steel 14mm x9
M3 High Tensile Carbon Steel 16mm x5
M3 High Tensile Carbon Steel 25mm x5
M3 Nylon Lock Nut x9
M3  7075 Aluminum Standoff 28mm x9

Accessory:

PU Battery mount sticker x1
Strap 20mm x 300mm x3
Nylon Zipties 3*100mm x5




Fractal Engineering

Fractal Engineering Fractal Wingman 1S 18650 Foldable 3" Micro Frame Kit












The first and only 3″ 1S 18650 quadcopter with foldable, soft-mounted arms and 20+ mins of flight time! Fractal Engineering&#39s foldable take on the 18650 1S 3&quot long-range trend. Introducing the Wingman, a quad like this is more known for having a powerband more suited for cruising/exploration/surveillance than freestyle/racing. Though this is still very capable of freestyle, as shown in Infinity Loops video on this quad.
Check out our other 3&quot frames, and our Fractal Engineering Products!













Here&#39s what Fractal has to say about this frame

Have you ever wished you had an extra sidekick quad to help you recover your main machine from a tree?
Or perhaps one you could deploy from the comfort of your car to recon a new spot without the hassle of going out and walking there?
Or maybe just an ultra-compact video rig to give your loved one an excuse to rip a few packs under the pretense of documenting your vacation?

Well, the Wingman is all of that, and much more!
The idea for this frame stemmed from Dave C’s nano long-range, concept -obviously!-
I was immediately hooked on the idea of being able to pop a single, general-purpose 18650 li-ion cell on a quad and cruise around longer than with any of my freestyle rigs
Back then the only frame option was the original 3D printed one
I knew I could greatly improve upon the concept by utilizing carbon fiber, but I also knew that by the time I would be ready to release, I wouldn’t be the only one with a CF arms nano LR
So I decided to up it a notch I’ve had this idea of folding arms in my head for a while, and the lightweight, low load use case of that format would be the best proving ground for it
Over a year in the making, after many iterations and countless hours of testing and tuning later what is the result?





The first-ever foldable and soft mounted arms in FPV
The major unique feature of this frame kit is obviously the folding arms
And the way it manages to achieve this feature in such an integrated manner is where the whole secret sauce resides
This 3″ 1S format offers the possibility to push incredibly intricate ideas down to an incredibly simple execution thanks to the low prop load
In this case, I’ve chosen to make the top and bottom plates clamped to the standoffs,
While using the same standoffs as pivots for the arms, themselves sandwiched between 2 TPU shims and a nylon spacer to press them down in position
Those TPU shims also serve 2 purposes at the same time they primarily provide friction for the quick deployment of the arms, while also dampening the junctions
This helps reduce the number of vibrations transmitted to the FPV and HD camera (more on that in a bit) and the FC gyro, enabling smooth footage and easy tuning


























Ultra-lightweight, durable and compact design
The spaceframe carbon fiber body was meticulously designed to only keep material where absolutely necessary
This includes protecting all the electronics and maintaining a rigid platform,
While pocketing everything else for lightweight and airflow
Making it only 24g frame only, or 60g ready to fly excl. battery
Quick-release arm mechanism
For being designed around ease of use and quick deployment, I went for a friction fit with a light detent to hold the arms open
Just simply pull the arms out until the detent clicks, and push them back in when you’re done
That means no manual latch, no thumbscrew, no positive lock
This also means that in the event of a crash the arms might fold and you would need to go get it…
…But you’re also more likely to be able to take off again without any damage, as I’ve found during testing that the folding appears to absorb a lot of energy that might have snapped something otherwise












In any event, let that be clear that this remains a stable and soft cruiser above all you won’t have much fun going bando bashing with it I can almost guarantee it
To sum it up
just a great tool to always have with you, just so many uses for it

Toss it in your bag when you’re going on vacation for drone videos (also a great excuse for your wife to bring a quad)
Use it to recon new spots to rip without going out of the car (walking? like with your legs?)
Search and rescue! Take advantage of the long flight time to look for a lost quad (I hope you find it brother/sister)
Attach a string to the back, fly around that branch you got your main quad stuck on, bring it back and give it a good tug (watch your head)
Or even get that whoop you got stuck on that roof (I know you could just climb up the gutter but come on it’s 2022)
Guerilla dive! pull it out of pocket, deploy it in a second, rip that huge building tower (you know which one), fold it back in your pocket and bail
Or simply just cruise around for a relaxing chill flight, perhaps to wind down after a hard charger sesh..

The first and only 3″ 1S 18650 quadcopter with foldable, soft-mounted arms and 20+ mins of flight time! Fractal Engineering's foldable take on the 18650 1S 3" long-range trend. Introducing the Wingman, a quad like this is more known for having a powerband more suited for cruising/exploration/surveillance than freestyle

Fractal Engineering Fractal Wingman 1S 18650 Foldable 3" Micro Frame Kit from WREKD Co.

Fractal Engineering Fractal Wingman 1S 18650 Foldable 3

FRACTALENGINEERING












The first and only 3″ 1S 18650 quadcopter with foldable, soft-mounted arms and 20+ mins of flight time! Fractal Engineering's foldable take on the 18650 1S 3" long-range trend. Introducing the Wingman, a quad like this is more known for having a powerband more suited for cruising/exploration/surveillance than freestyle/racing. Though this is still very capable of freestyle, as shown in Infinity Loops video on this quad.
Check out our other 3" frames, and our Fractal Engineering Products!













Here's what Fractal has to say about this frame

Have you ever wished you had an extra sidekick quad to help you recover your main machine from a tree?
Or perhaps one you could deploy from the comfort of your car to recon a new spot without the hassle of going out and walking there?
Or maybe just an ultra-compact video rig to give your loved one an excuse to rip a few packs under the pretense of documenting your vacation?

Well, the Wingman is all of that, and much more!
The idea for this frame stemmed from Dave C’s nano long-range, concept -obviously!-
I was immediately hooked on the idea of being able to pop a single, general-purpose 18650 li-ion cell on a quad and cruise around longer than with any of my freestyle rigs
Back then the only frame option was the original 3D printed one
I knew I could greatly improve upon the concept by utilizing carbon fiber, but I also knew that by the time I would be ready to release, I wouldn’t be the only one with a CF arms nano LR
So I decided to up it a notch I’ve had this idea of folding arms in my head for a while, and the lightweight, low load use case of that format would be the best proving ground for it
Over a year in the making, after many iterations and countless hours of testing and tuning later what is the result?





The first-ever foldable and soft mounted arms in FPV
The major unique feature of this frame kit is obviously the folding arms
And the way it manages to achieve this feature in such an integrated manner is where the whole secret sauce resides
This 3″ 1S format offers the possibility to push incredibly intricate ideas down to an incredibly simple execution thanks to the low prop load
In this case, I’ve chosen to make the top and bottom plates clamped to the standoffs,
While using the same standoffs as pivots for the arms, themselves sandwiched between 2 TPU shims and a nylon spacer to press them down in position
Those TPU shims also serve 2 purposes at the same time they primarily provide friction for the quick deployment of the arms, while also dampening the junctions
This helps reduce the number of vibrations transmitted to the FPV and HD camera (more on that in a bit) and the FC gyro, enabling smooth footage and easy tuning


























Ultra-lightweight, durable and compact design
The spaceframe carbon fiber body was meticulously designed to only keep material where absolutely necessary
This includes protecting all the electronics and maintaining a rigid platform,
While pocketing everything else for lightweight and airflow
Making it only 24g frame only, or 60g ready to fly excl. battery
Quick-release arm mechanism
For being designed around ease of use and quick deployment, I went for a friction fit with a light detent to hold the arms open
Just simply pull the arms out until the detent clicks, and push them back in when you’re done
That means no manual latch, no thumbscrew, no positive lock
This also means that in the event of a crash the arms might fold and you would need to go get it…
…But you’re also more likely to be able to take off again without any damage, as I’ve found during testing that the folding appears to absorb a lot of energy that might have snapped something otherwise












In any event, let that be clear that this remains a stable and soft cruiser above all you won’t have much fun going bando bashing with it I can almost guarantee it
To sum it up
just a great tool to always have with you, just so many uses for it

Toss it in your bag when you’re going on vacation for drone videos (also a great excuse for your wife to bring a quad)
Use it to recon new spots to rip without going out of the car (walking? like with your legs?)
Search and rescue! Take advantage of the long flight time to look for a lost quad (I hope you find it brother/sister)
Attach a string to the back, fly around that branch you got your main quad stuck on, bring it back and give it a good tug (watch your head)
Or even get that whoop you got stuck on that roof (I know you could just climb up the gutter but come on it’s 2022)
Guerilla dive! pull it out of pocket, deploy it in a second, rip that huge building tower (you know which one), fold it back in your pocket and bail
Or simply just cruise around for a relaxing chill flight, perhaps to wind down after a hard charger sesh (if you got the patience for it)
… or whatever else you want it to be!















Includes

1x Fractal Engineering Fractal Wingman 1S 18650 Foldable 3" Micro Frame Kit
1x Top plate
1x Bottom plate
2x Front plates
4x Arms
1x 18650 Tray
4x M2 x 10mm alu standoffs
4x M4 x 6mm nylon spacer
10x M2 x 5mm steel screw (for the standoffs)
4x M1.7 x 5mm steel self-threading screw (for the 18650 Tray)
1x TPU cam holder
2x TPU shim set
4x M2 x 10mm steel screw (for the stack)
10x M2 nylon nuts (for the stack)
10x M2 x 4mm socket screws (for the motors)



Fractal Engineering Fractal Wingman 1S 18650 Foldable 3" Micro Frame K

ImpulseRC

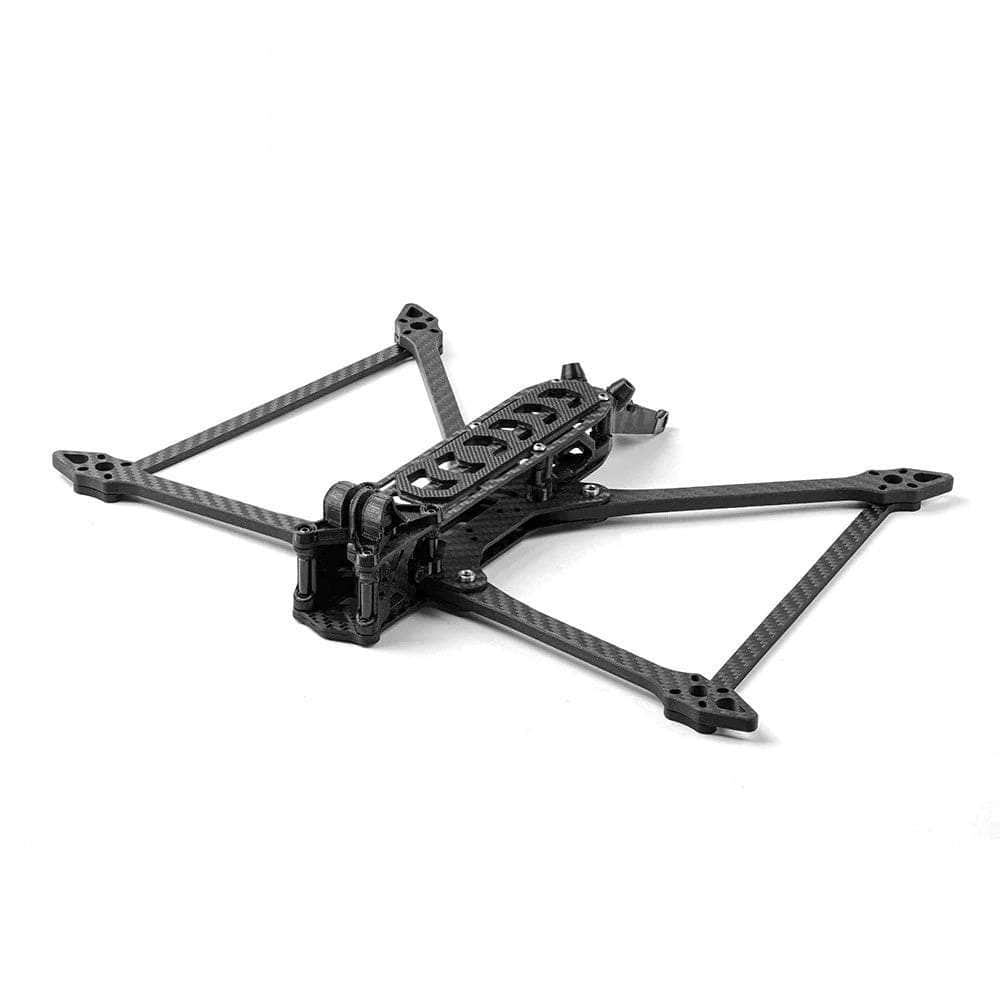

ImpulseRC ApexLR EVO HD O3 Deadcat Long Range 7" Frame Kit

IMPULSERC

The ApexLR EVO  7" Frame is the ideal companion for exploration and videography that demands extra range. It has special arm geometry for motors not usually found in deadcat-style frames, and a special design that keeps the DJI O3 Air Unit and HD Camera electrically isolated. This EVO version boasts an aluminum camera mount, video isolation, and TPU inserts to fit many HD and analog cameras.
Be sure to check out our 7" frame selection and all our ImpulseRC products!


TENSION BRACES

As prop size increases, the longer arms required cause vibration issues which negatively impact flight performance and video stability. The ApexLR EVO uses a unique tension brace design between the arms to increase stiffness and shift the resonant frequency of the assembly.
Pre-loading the arms in this way allows us to keep vibration to a manageable level while still using 5.5mm thick arms for a 7" prop. The new approach saves 20g in carbon weight alone compared to equivalent 8mm thick arms.
The ApexLR EVO is a variation on the typical 'dead cat' frame which have been modified to keep the front and rear motors aligned, allowing them to maintain the much loved compressed-x geometry in the motor layout.
This ensures the frame remains balanced and flight characteristics are not compromised, unlike the classic 'dead cat' design which moves the rear motors closer to the body and severely impacts handling.


CAMERA MOUNT

Included with the ApexLR EVO is a newly redesigned aluminium camera mount and 3D printed insulation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
With the many different HD and analog cameras on the market there is a large variation between models in the distance from the front of the lens to the mounting bolts. To give the camera the best possible protection, whilst also keeping the frame out of shot, it is critical to be able to adjust the position of the camera forwards and backwards within the frame.
By rotating the TPU inserts 180 degrees, as well as alternating between using the upper or lower bolt as the pivot point, the EVO camera mount has 4 possible mounting positions each 2mm apart.




HD VIDEO SYSTEM ISOLATION

A major drawback of the some modern HD video systems is that the body of the unit is grounded, this can cause the conductive carbon fiber plates and frame hardware to be grounded too. In an ideal world this is not necessarily a problem, however in the real world it's an accident waiting to happen.
Alongside the required M2 mounting hardware for the Caddx Vista and M1.6 hardware for the DJI O3, impluserc also include a die-cut mylar insulator and custom machined 'cone rivets' from non-conductive POM.
When installed your HD video system, and also the mounting hardware, is electrically isolated from the frame. This solution adds only 0.5g of extra weight compared to other designs using bulky and heavy 3D prints.




ANTENNA MOUNTING

Included in every kit is a 3D printed antenna mount for the your HD video system or other similar antennas.


APEXLR KIT CONTENTS

Carbon fiber frame parts
Hardware and standoffs
Aluminium and TPU camera mount
Mylar and POM HD video isolation parts
HD video antenna mount
Injection molded skids and bumper
Injection molded wire covers
Rubber and velcro battery pads
Diamond files
Battery strap

Specifications

Lower Main: 2mm
Upper Main: 2.5mm
Top: 2mm
Arm Brace: 3.5mm
Arms: 6mm

Arm Braces: 4mm
Motor Mounting Pattern: 16x16,19x19
Stack Mounting: 20x20mm &amp 30x30mm
VTX Mounting: 20x20mm and 25x25mm

Includes

1x ImpulseRC ApexLR EVO HD O3 Long Range 7" Frame Kit


The ApexLR EVO  7" Frame is the ideal companion for exploration and videography that demands extra range. It has special arm geometry for motors not usually found in deadcat-style frames, and a special design that keeps the DJI O3 Air Unit and HD Camera electrically isolated. This EVO version boasts an aluminum camera

The ApexLR 7" Frame for Longer-Range Exploration and Videography. Compatible with DJI O3, the EVO version brings improvements such as a redesigned aluminum camera mount, isolation of the HD video system or optimized protection for the many HD and analog cameras on the market thanks to the pivoting TPU inserts. Once ins

ImpulseRC ApexLR EVO (O3) 7

IMPULSE RC

The ApexLR EVO  7&quot Frame is the ideal companion for exploration and videography that demands extra range. It has special arm geometry for motors not usually found in deadcat-style frames, and a special design that keeps the DJI O3 Air Unit and HD Camera electrically isolated. This EVO version boasts an aluminum camera mount, video isolation, and TPU inserts to fit many HD and analog cameras.
Be sure to check out our 7&quot frame selection and all our ImpulseRC products!


TENSION BRACES

As prop size increases, the longer arms required cause vibration issues which negatively impact flight performance and video stability. The ApexLR EVO uses a unique tension brace design between the arms to increase stiffness and shift the resonant frequency of the assembly.
Pre-loading the arms in this way allows us to keep vibration to a manageable level while still using 5.5mm thick arms for a 7&quot prop. The new approach saves 20g in carbon weight alone compared to equivalent 8mm thick arms.
The ApexLR EVO is a variation on the typical &#39dead cat&#39 frame which have been modified to keep the front and rear motors aligned, allowing them to maintain the much loved compressed-x geometry in the motor layout.
This ensures the frame remains balanced and flight characteristics are not compromised, unlike the classic &#39dead cat&#39 design which moves the rear motors closer to the body and severely impacts handling.


CAMERA MOUNT

Included with the ApexLR EVO is a newly redesigned aluminium camera mount and 3D printed insulation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
With the many different HD and analog cameras on the market there is a large variation between models in the distance from the front of the lens to the mounting bolts. To give the camera the best possible protection, whilst also keeping the frame out of shot, it is critical to be able to adjust the position of the camera forwards and backwards within the frame.
By rotating the TPU inserts 180 degrees, as well as alternating between using the upper or lower bolt as the pivot point, the EVO camera mount has 4 possible mounting positions each 2mm apart.




HD VIDEO SYSTEM ISOLATION

A major drawback of the some modern HD video systems is that the body of the unit is grounded, this can cause the conductive carbon fiber plates and frame hardware to be grounded too. In an ideal world this is not necessarily a problem, however in the real world it&#39s an accident waiting to happen.
Alongside the required M2 mounting hardware for the Caddx Vista and M1.6 hardware for the DJI O3, impluserc also include a die-cut mylar insulator and custom machined &#39cone rivets&#39 from non-conductive POM.
When installed your HD video system, and also the mounting hardware, is electrically isolated from the frame. This solution adds only 0.5g of extra weight compared to other designs using bulky and heavy 3D prints.




ANTENNA MOUNTING

Included in every kit is a 3D printed antenna mount for the your HD video system or other similar antennas.


APEXLR KIT CONTENTS

Carbon fiber frame parts
Hardware and standoffs
Aluminium and TPU camera mount
Mylar and POM HD video isolation parts
HD video antenna mount
Injection molded skids and bumper
Injection molded wire covers
Rubber and velcro battery pads
Diamond files
Battery strap

Specifications

Lower Main: 2mm
Upper Main: 2.5mm
Top: 2mm
Arm Brace: 3.5mm
Arms: 6mm

Arm Braces: 4mm
Motor Mounting Pattern: 16x16,19x19
Stack Mounting: 20x20mm &ampamp 30x30mm
VTX Mounting: 20x20mm and 25x25mm

Includes

1x ImpulseRC ApexLR EVO HD O3 Long Range 7&quot Frame Kit


ImpulseRC ApexLR EVO HD O3 Deadcat Long Range 7" Frame Kit from WREKD Co.

ImpulseRC ApexLR EVO HD O3 Deadcat Long Range 7

Flywoo Explorer LR 4'' V2 HD Frame Kit





















Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4" frames, as well as other great products from Flywoo!


Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
"For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2x20: 4pcs

1x Aluminum Standoffs M2x25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( LHCP)


Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer L

Flywoo Explorer LR HD 4" Frame Kit V2 w/ Atomic LHCP Antenna





















Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4&quot frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4&quot frames, as well as other great products from Flywoo!


Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
&quotFor me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7&quot long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7&quot long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4&quot props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It&#39s incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2x20: 4pcs

1x Aluminum Standoffs M2x25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( LHCP)


Flywoo Explorer LR HD 4" Frame Kit V2 w/ Atomic LHCP Antenna from WREKD Co.

Flywoo Explorer LR HD 4

Flywoo Explorer LR V2 4" Frame w/ Atomic Antenna





















Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4&quot frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4&quot frames, as well as other great products from Flywoo!



Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
&quotFor me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7&quot long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7&quot long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4&quot props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It&#39s incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2*20: 4pcs

1x Aluminum Standoffs M2*25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( RHCP )


Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explor

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna from WREKD Co.

Flywoo Explorer LR Analog 4

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna





















Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4" frames, as well as other great products from Flywoo!



Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
"For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2*20: 4pcs

1x Aluminum Standoffs M2*25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( RHCP )


Axis Flying

AxisFlying Kolas 6" Long Range Folding Frame

AxisFlying

The Axisflying Kolas 6 is a 6&quot long-range FPV frame with up to 15 minutes of flight time. Axisflying has adopted an innovative folding design with the Kolas 6, allowing for easier storage and transport! This unique frame kit also includes all 3D printed parts.
Check out all our DJI-compatible frames, electronics, and accessories and all our Axis Flying Products!

Features

XT60 plug on the left side of the frame for flight safety
25MM top to bottom distance for Caddx Vista
Open right side design for quick tuning
20MM/25MM/26.5MM Mounting Holes
Independent receiver compartment
High-strength T700 carbon plate
Foldable drone for easy storage
Ability to carry GoPro Camera
16x16 motor mounting holes
Underslung navigation light
15 Minute flight time
6&quot Foldable arms

Specifications

Wheelbase: 245mm
Top plate: 2.5mm
Bottom plate: 32.5mm
Arm: 7.0mm
FC mounting holes: 25.5mm x 25.5mm M2 / 20mm x 20mm M3
VTX mounting holes: 25.5mm x 25.5mm / 20mm x 20mm
Motor mounting holes: 16mm x 16mm
Camera installation space: 19-20mm
Suitable propeller size: 6″propeller
Weight: 138g (without TPU)



Includes


4x Axisflying Kolas 6 Foldable 6&quot Arms
1x Battery Ant-Slip Pad
1x 3D Printed Parts Set
2x Camera Side Plates
1x Hardware Set
1x Main Plate
2x LiPo Strap
1x Top Plate




The Axisflying Kolas 6 is a 6" long-range FPV frame with up to 15 minutes of flight time. Axisflying has adopted an innovative folding design with the Kolas 6, allowing for easier storage and transport! This unique frame kit also includes all 3D printed parts. Check out all our DJI-compatible frames, electronics, and a

AxisFlying Kolas 6 Long Range Foldable 6" Frame Kit from WREKD Co.

AxisFlying Kolas 6 Long Range Foldable 6

AxisFlying Kolas 6 Long Range Foldable 6" Frame Kit

AXIS FLYING

The Axisflying Kolas 6 is a 6" long-range FPV frame with up to 15 minutes of flight time. Axisflying has adopted an innovative folding design with the Kolas 6, allowing for easier storage and transport! This unique frame kit also includes all 3D printed parts.
Check out all our DJI-compatible frames, electronics, and accessories and all our Axis Flying Products!

Features

XT60 plug on the left side of the frame for flight safety
25MM top to bottom distance for Caddx Vista
Open right side design for quick tuning
20MM/25MM/26.5MM Mounting Holes
Independent receiver compartment
High-strength T700 carbon plate
Foldable drone for easy storage
Ability to carry GoPro Camera
16x16 motor mounting holes
Underslung navigation light
15 Minute flight time
6" Foldable arms

Specifications

Wheelbase: 245mm
Top plate: 2.5mm
Bottom plate: 32.5mm
Arm: 7.0mm
FC mounting holes: 25.5mm x 25.5mm M2 / 20mm x 20mm M3
VTX mounting holes: 25.5mm x 25.5mm / 20mm x 20mm
Motor mounting holes: 16mm x 16mm
Camera installation space: 19-20mm
Suitable propeller size: 6″propeller
Weight: 138g (without TPU)



Includes


4x Axisflying Kolas 6 Foldable 6" Arms
1x Battery Ant-Slip Pad
1x 3D Printed Parts Set
2x Camera Side Plates
1x Hardware Set
1x Main Plate
2x LiPo Strap
1x Top Plate




Diatone

Diatone Roma F4 LR 4" Frame

DIATONE INNOVATIONS


Specification:
Wheelbase：175mmWeight：82gProp Siza：4 inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate4mmArm：4mmVolitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K


Specification:  Wheelbase：175mmWeight：82gProp Siza：4 inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate4mmArm：4mmVolitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K

Diatone Roma F4 Frame kit

DiatoneUSA

Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!
Check out our Diatone Roma F4 LR Collection!
Check out the rest of our 4&quot frames, our Diatone gear!
Specifications

Wheelbase：176mm
Weight：47g
Prop Size：4inch
FC Mounting: 20x20/26.5x26.5m（M2）
Motor Mounting: 9mm/12mm
Camera Spacing: 20mm
Top Plate: 1.5mm
Medium Plate: 1.5mm
Bottom Plate: 1.5mm
Arm: 3mm
Rated Voltage (Recommendation：4S~6S
Aluminum alloy：7075
Carbon fiber: T300 3K

Includes

1x Diatone Roma F4 LR 4&quot Frame


Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!  Check out our Diatone Roma F4 LR Collection! Check out the rest of our 4" frames, our Diatone gear! Specifications Wheelbase：176mm Weight：4

Diatone Roma F4 LR 4" Frame from WREKD Co.

Diatone Roma F4 LR 4

DIATONE

Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!
Check out our Diatone Roma F4 LR Collection!
Check out the rest of our 4" frames, our Diatone gear!
Specifications

Wheelbase：176mm
Weight：47g
Prop Size：4inch
FC Mounting: 20x20/26.5x26.5m（M2）
Motor Mounting: 9mm/12mm
Camera Spacing: 20mm
Top Plate: 1.5mm
Medium Plate: 1.5mm
Bottom Plate: 1.5mm
Arm: 3mm
Rated Voltage (Recommendation：4S~6S
Aluminum alloy：7075
Carbon fiber: T300 3K

Includes

1x Diatone Roma F4 LR 4" Frame


iFlight Chimera6 Deadcat 6" LR HD FPV Frame

iFlight Chimera6 Deadcat Long Range Frame Kit for FPV Drone Racing and Freestyle sold by Pyrodrone! Popular Deadcat style configuration, No prop in View.Optimized weight distribution: DJI unit and Stack centered.Fits both 30.5x and 20x stacks.Full 3K Carbon Fiber airframe with chamfered arm,164.8mm wheelbase Check out all our Frames and the rest of our iFlight Products! Specifications: Brand: iFlight Item Name: Chimera6 Frame Kit Wheelbase: 266.7mm Main body dimension: 200.1*168.3mm Bottom to top distance: 20-28mm Arm thickness: 5mm Bottom plate thickness: 2mm Top plate thickness: 2mm TPU Camera plate thickness: 2mm FC: 30.5*30.5mm/20*20mm FPV Cam: 19mm Micro / 20mm Weight: 213.4g Recommended motors: 22xx , 23xx Package Includes: 1 x iFlight Chimera 6 Deadcat Long Range Frame Kit

iFlight Chimera 6 Deadcat Long Range Frame Kit

Armattan

Armattan Bobcat 4" FPV Frame

Introducing the Armattan Bobcat. It's no secret that 4 inch models are making a comeback on the FPV scene. With the right power plant and with new technology available from Caddx and DJI, it is now possible to put together a lightweight 4 inch quad capable of very good endurance and HD recording. The Bobcat is our take

Armattan Bobcat 4

GEPRC

GEPRC GEP-CB4 Crocodile Baby 4" Frame

Summary:
GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and reliably flying and the Center of gravity extreme balanced,The sense of "Easy To Control "are literally breath-taking.With the New producing GEPRC 6S 3000mAh battery,It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience.The flight time and clarity are incredible!
Specifications：

 	Brand:GEPRC
 	Name:GEP-CB4
 	Motor to Motor:174mm
 	Camera position size:20mm
 	Props Size:4inch
 	Thickness of arms plate:2.5mm
 	Thickness of Bottom plate:2mm
 	Thickness of Top plate:1.5mm
 	Flight control hole distance:20x20mmAnd26.5x26.5mm
 	The hole position of motor:9mm
 	Weight:45g


Recommended：

 	Flight Controller:F4/F7
 	Motors:1206/1404
 	ESC:15A-30A

Feature:

 	Full 3K carbon plates,The solid and durable structure
 	Specially designed for Micro Long Range Flight,The frame tilts forward,The wide battery's position
 	The Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly
 	Support Various installation way of flight control's hole spacing
 	The Edge of the motor base is Specially Designed to protect the motor in case of crash
 	The GPS installation position is reserved inside frame,The rational layout bring perfect dimension deduct space aesthetics


GEP-CB4 Include：

 	1 x 2.0mm Bottom plate
 	1 x 1.5mm Top plate
 	2 x 2.5mm Front plate
 	2 x 2.5mm Back Plate
 	1 x 2.0mm Front Splint
 	1 x 2.0mm Back Splint
 	4 x（M2*25) Aluminum posts
 	2 x（M2*20.5) Aluminum posts
 	6 x（M2*6) Round head screws
 	14 x（M2*8) Round head screws
 	4 x（M2*10) Round head screws
 	4 x（M2*4) Round head screws
 	8 x（M2) Push block nuts
 	8 x（M2*2) Plastic nuts
 	8 x（M2*18) Plastic screws
 	1 x 3D print crush barrier of camera
 	1 x Fixing part of Antenna Red
 	1 x Fixing part of TBS Antenna Red
 	2 x Batteries pad
 	8 x Landing shock absorption pad
 	2 x Protective Tube of Antenna
 	4 x Rubber Shock Pad
 	2 x (M15*180mm) Batteries strap
 	2 x (M15*180mm) Batteries strap
 	1 x (1.5mm) L shape wrench
 	1 x Plastic matching plate

Summary: GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and [...]

GEP-CB4 Frame - GEPRC

GEP-CB4 Frame

Micro Long Range Drone for FPV Drone Racing and Freestyle sold by PyroDrone GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller. GEP-CB4 Frame is perfectly designed by GEPRC TEAM. Adopting the newly upgraded design of aerodynamics principle. The Light-weight design, The solid and durable structure, The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone, It can be stably and reliably flying and the Center of gravity extreme balanced, The sense of “Easy To Control “are literally breath-taking. With the New producing GEPRC 6S 3000mAh battery, It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience. The flight time and clarity are incredible!See the entire Crocodile Baby Collection, (BNFs, Frames and Replacement Parts)! Check out all our 4 inch Frames and the rest of our GEPRC Products! Specifications： Motor to Motor: 174mm Camera position size: 20mm Props Size: 4inch Thickness of arms plate: 2.5mm Thickness of Bottom plate: 2mm Thickness of Top plate: 1.5mm Flight control hole distance: 20x20mmAnd26.5×26.5mm The hole position of motor: 9mm Weight: 45g Recommended for Build (Not Included)： Flight Controller: F4/F7 Motors: 1206/1404 ESC: 15A-30A Feature: Full 3K carbon plates,The solid and durable structure Specially designed for Micro Long Range Flight,The frame tilts forward,The wide battery’s position The Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly Support Various installation way of flight control’s hole spacing The Edge of the motor base is Specially Designed to protect the motor in case of crash The GPS installation position is reserved inside frame,The rational layout bring perfect dimension deduct space aesthetics Package Includes： 1 x 2.0mm Bottom plate 1 x 1.5mm Top plate 2 x 2.5mm Front plate 2 x 2.5mm Back Plate 1 x 2.0mm Front Splint 1 x 2.0mm Back Splint 4 x（M2*25) Aluminum posts 2 x（M2*20.5) Aluminum posts 6 x（M2*6) Round head screws 14 x（M2*8) Round head screws 4 x（M2*10) Round head screws 4 x（M2*4) Round head screws 8 x（M2) Push block nuts 8 x（M2*2) Plastic nuts 8 x（M2*18) Plastic screws 1 x 3D print crush barrier of camera 1 x Fixing part of Antenna Red 1 x Fixing part of TBS Antenna Red 2 x Batteries pad 8 x Landing shock absorption pad 2 x Protective Tube of Antenna 4 x Rubber Shock Pad 2 x (M15*180mm) Batteries strap 2 x (M15*180mm) Batteries strap 1 x (1.5mm) L shape wrench 1 x Plastic matching plate

GEPRC Crocodile Baby 4

Pyrodrone

Pyrodrone Source One 7" Long Range Frame

This is the Pyrodrone version of the Source ONE frame.We used the same high quality carbon and manufacturer as our Floss 3.0 and Floss 3.0 Lite frames.The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits an

PYRODRONE SOURCE ONE 7

This is a replacement 7" arm for the Pyrodrone Source One frame.Check out all our Source One Frames And PartsIncludes1 x 6mm 7" Replacement arm

This is a replacement 7" arm for the Pyrodrone Source One frame.Check out all our Source One Frames And Parts Specifications: Max prop size supported: 7" Arm Thickness: 6mm Arm Width: 15mm Includes1 x 6mm 7" Replacement arm

Project 399

Project 399 Super G Plus Deadcat LR 7" Frame

Project399 introduces the last FPV freestyle frame you'll ever want. The Super G is built with 6mm carbon fiber arms, and 2mm carbon fiber body. Flight control isolation grommets and a rigid frame allow for the smoothest videos for those cinematic and long range flights. The second incarnation of the Super G, this time

Project 399 Super G Plus 7

Hyperlite

Hyperlite Floss 3.0 Long Range 7" Frame

Yess!Floss 3.0 is not only a racing frame any more.We made a small batch and sent it out to long range guys to test and every single one of them fell in love with this frame.We had to bring this to life and make it available to everyone who's been looking for a lightweight long range frame.Now comes with 16*19mm mounti

Hyperlite Floss 3.0 Long Range 7

Flywoo Hexplorer LR Analog 4" Hexacopter Frame

Description  As we said before we will explore more fun with Dave_C in the new field of #micro long range. We did it! After the success of Explorer LR 4 everyone has many new needs. For example: I hope it can carry a full-size gopro! I hope it is perfect for freestyle and cruising! I hope it has Bluetooth function! We

HEXplorer LR 4 Hexa-copter Frame kit

GEPRC GEP-CB5 Crocodile Baby 5" Frame

Summary:
The crocodile5 baby frame is an improved model from crocodile4 baby and crocodile7. Continue the consistent design of carbon plate + 3D print + aluminum column, ultra light weight, better operation feeling, less flight resistance, greatly reduce the vibration of the frame, better shooting effect. We have designed a wealth of matching prints. The frame has great strength and better texture. The center of gravity is designed in the middle, and the installation holes of FC and VTX are in the center of the frame. We are pursuing lower frame weight, more extended functions and better flight experience.
Speicification:

 	Model:GEP-CB5
 	Brand name: GEPRC
 	Wheelbase: 227mm
 	Top Plate: 2.0 mm
 	Bottom plate thickness: 3.0 mm
 	Arm: 4.0 mm
 	Reinforced arm: 3.0mm
 	FC mounting holes: 26.5mmx 26.5mm, 20.5mm x 20.5mm
 	VTX mounting holes: 20mm x 20mm,fixing groove
 	Camera Spaceing:20mm x 20mm
 	Motor mounting holes: 12mm x 12mm
 	Size:210mm*160mm*32mm
 	Weight: 84.8g (with 3D prints)

Features:

 	4mm super-strength arm, 3mm reinforced arm, the strength of a higher level.
 	Front and rear asymmetric arm design, better operation feeling, and lower wind resistance.
 	Carbon plate + print + aluminum column design, lower weight, more expansion function.
 	The center of gravity is designed in the middle, and the installation holes of flying tower and graphic transmission are designed in the center of the frame
 	A variety of mounting holes, including 26.5mm x 26.5mm and 20.5mm x 20.5mm FC mounting holes on the bottom plate, 20 mm x 20 mm Vista mounting holes on the top and fixing grooves .
 	12mm * 12mm motor mounting hole can be used to install mainstream 1507 / 1805 / 2004 motor,etc.

Include:
Frame:

 	1 x Bottom Plate
 	1 x Top Plate
 	2 x Front Arms
 	2 x Rear Arms
 	1 x Front Cover Plate
 	1 x Rear Cover Plate
 	2 x Reinforced Plates

Screw:

 	2 x M2 * 21mm Aluminum columns
 	4 x M2 * 27mm Aluminum columns
 	4 x M2 * 4mm cup head screws
 	10 x M2 * 6.5mm round head screws
 	10 x M2 * 8mm round head screws
 	22 x M2 * 9mm round head screws
 	6 x M2 * 11mm round head screws
 	5 x M2 * 12mm cup head screws
 	2 x M2 * 16mm cup head screws
 	4 x M2 * 18mm cup head screws
 	4 x M2 * 20mm cup head screws
 	7 x M2 Rivet nuts
 	8 x M2 * 4mm Damping Rings
 	4 x M2 * 6.5mm Damping Rings
 	4 x M2 Nylon Nuts
 	8 x M2 Lock Nuts

3D Prints:

 	1 x Camera mount
 	1 x Camera protector
 	1 x VTX Antenna mount
 	1 x TBS NanoRX Antenna mount
 	1 x Naked GP Camera mount
 	1 x 26.5mm26.5mm to 20mm*20mm mount Plate

Accessories:

 	1 x Battery Pad
 	1 x Air Unit Module  Pad
 	1 x EVA Landing pad
 	5 x Nylon Cable ties
 	1 x Battery strap(M15*150mm)
 	1 x Screwdriver(1.5mm)
 	1 x Antenna Wire ProtectionTube
 	4 x Motor Wire Protection Tubes

Summary: The crocodile5 baby frame is an improved model from crocodile4 baby and crocodile7. Continue the consistent design of carbon plate + 3D print + aluminum column, ultra light weight, better operation feeling, less flight resistance, greatly reduce the vibration of the frame, better shooting effect. We have designed a wealth of matching prints. The [...]

GEP-CB5 Frame - GEPRC

GEP-CB5 Frame

GEPRC GEP-LC7 Long Range 7" Frame

GEP-LC7 Frame - GEPRC

GEP-LC7 Frame

Propeller Size

The props work with the motors to lift your quad off the ground.  Choose a prop size that fits your frame.  Higher pitch props are efficient in fast environments and are less responsive in slow speeds. Lower pitch props are efficient in slower environments and are more responsive in slow speeds. Beginners should try various pitch props to see what works best for them.

Propellers

Motor Stator Size

The motors spin with the propellers to lift your quad off the ground. If you’ve picked a frame already, we show you which motors are appropriate for your frame. Beginners can choose motors with a similar stator size that others have used for the frame you’ve selected. Alternatively, calculate the thrust required for a particular thrust-to-weight ratio and learn to read motor thrust tables to select the best motors for your needs.

Motors

ESC Stack Mount

The ESC(s) controls your motors’ speed. It draws power from the battery to spin the motors based on what the FC tells it to do. Each motor needs an ESC. It’s common today to see 4-in-1 ESCs so you only need to buy a single part. For beginners, choose a 4-in-1 ESC that has a compatible mount with your frame and FC. The biggest consideration is amperage limit. We show you ESCs with appropriate amperage limits based on your frame size. You can calculate how much amperage you need based on your motor and prop choice.

ESCs

FC Stack Mount

The FC is the brain or the CPU of your quad. It has a processor and other components that allow it to listen to your inputs and tells the quad what to do. FCs are commonly sold together with other components integrated or stacked (like ESCs and video transmitters). For beginners, choose a FC with a F4 or F7 processor that has a compatible mount with your frame.

Flight Controllers

Camera Size

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
