Flywoo

Flywoo Explorer LR Walksnail Long Range 4" Frame Kit

FLYWOO

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO&#x27s signature compact design. We&#x27ve also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance. NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts 1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO's signature compact design. We've also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance. NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts 1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

Explorer LR 4 Walksnail Frame kit











The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4&quot Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4&quot frames,  as well as other great products from Flywoo!











Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4" Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with

Flywoo Explorer LR Walksnail Long Range 4" Frame kit from WREKD Co.

Flywoo Explorer LR Walksnail Long Range 4

Flywoo Explorer LR Walksnail Long Range 4" Frame kit











The Flywoo Explorer LR HD Walksnail Deadcat Long Range 4" Frame kit is designed to fit the Walksnail VTX and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4" frames,  as well as other great products from Flywoo!











Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Explorer LR 4 Walksnail frame is perfectly designed for the Walksnail VTX and Camera , while keeping FLYWOO's signature compact design.

Flywoo Explorer LR 4" Walksnail Frame Kit

Flywoo Explorer LR 4&quot Walksnail Frame Kit

Frame Size

The frame is typically the first part to pick because it determines what kind of flying you’ll be doing the most. Start by picking a frame type, and narrow down the options by propeller size. The frame holds your quad parts together and heavily impacts what the quad can do.

Frames

Frame Kit

Frame Stack Mount

FPV Camera Mount

Frame Type

Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit































The Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4" frames,  as well as other great products from Flywoo!































Includes

1x Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


The Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease































The Flywoo Explorer LR HD O3 Deadcat Long Range 4&quot Frame kit is designed to fit the DJI O3 Air unit and accommodate 16x16 and 20x20 flight towers. This compact frame allows you to enjoy the experience of long-range FPV flying without disturbing others or running into legal troubles. Cruise through landscapes with ease and explore with minimal noise.
Check out the rest of our 4&quot frames,  as well as other great products from Flywoo!































Includes

1x Flywoo Explorer LR HD O3 Deadcat Long Range 4&quot Frame Kit
1x Black TPU 3D Printed Parts
1x Top plate
1x Bottom plate
1x central plate
2x Front arms
2x Rear arms
2x Side plate
2x Battery straps
1x hardware sets
1x Battery pad
2x insulation sheet


Flywoo Explorer LR HD O3 Deadcat Long Range 4" Frame Kit from WREKD Co.

Flywoo Explorer LR HD O3 Deadcat Long Range 4

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module, while keeping FLYWOO's signature compact design.We've also designed a new camera canopy to protect the lens well, compatible with both 16X16 and 20X20 flight towers.

Flywoo Explorer LR 4" O3 Frame Kit

Flywoo Explorer LR 4&quot O3 Frame Kit

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO&#x27s signature compact design. We&#x27ve also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance.  NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts  1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

The Explorer LR O3 frame is perfectly designed for the DJI O3 Air unit module while keeping FLYWOO's signature compact design. We've also designed a new camera canopy to protect the lens well compatible with both 16X16 and 20X20 flight towers. The frame is made of durable high quality 3K carbon fiber board with excellent performance and fashionable appearance.  NOTE* The only parts compatible with the Explorer LR V2 frame are the front arms、 In the Box 1 X Black TPU 3D Printed Parts  1 X Top plate 1X Bottom plate 1x central plate 2x Front arms 2x Rear arms 2x Side plate 2x Battery straps 1x hardware sets 1x Battery pad 2x insulation sheet

Explorer LR O3 Frame kit

Armattan

Armattan Gecko 4" Frame

Armattan Gecko It's innovative.  It has grip.  It's got style.  And best of all?  It's Armattan. The Gecko is the latest addition to Armattan's family of mini-freestyle frames.  Designed around the best principals that brought the Japalura and the Rooster to the front of their fields, this frame gives you the best prot

Armattan Gecko 4

The Gecko is the latest addition to Armattan's family of mini-freestyle frames.  Designed around the best principals that brought the Japalura and the Rooster to the front of their fields, this frame gives you the best protection and quality that the multirotor kingdom has to offer.

The Gecko is the latest addition to Armattan's family of mini-freestyle frames.  Designed around the best principals that brought the Japalura and the Rooster to the front of their fields, this frame gives you the best protection and quality that the

Armattan Gecko 4&quot Frame

Replacement main plate for ARMATTAN GECKO 4" Frame

Flywoo Explorer LR 4'' V2 HD Frame Kit





















Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4&quot frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4&quot frames, as well as other great products from Flywoo!


Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
&quotFor me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7&quot long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7&quot long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4&quot props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It&#39s incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2x20: 4pcs

1x Aluminum Standoffs M2x25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( LHCP)


Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer L

Flywoo Explorer LR HD 4" Frame Kit V2 w/ Atomic LHCP Antenna from WREKD Co.

Flywoo Explorer LR HD 4

Flywoo Explorer LR HD 4" Frame Kit V2 w/ Atomic LHCP Antenna





















Experience long-range cruising with the Flywoo Explorer LR HD Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4" frames, as well as other great products from Flywoo!


Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
"For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2x20: 4pcs

1x Aluminum Standoffs M2x25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( LHCP)


Flywoo Explorer LR V2 4" Frame w/ Atomic Antenna





















Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4&quot frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4&quot frames, as well as other great products from Flywoo!



Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
&quotFor me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7&quot long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7&quot long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4&quot props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It&#39s incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4&quot Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2*20: 4pcs

1x Aluminum Standoffs M2*25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( RHCP )


Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explor

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna from WREKD Co.

Flywoo Explorer LR Analog 4

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna





















Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.










Check out the rest of our 4" frames, as well as other great products from Flywoo!



Specifications











Thickness of arms: 3mm

Thickness of top plate: 1.5mm

Thickness of bottom plate: 1.5mm

Weight: 41g
Electronic Mounting: 16x16mm, 20x20mm
VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
Motor Bolt Pattern: 9x9mm, 12x12mm
Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:
"For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”
                                                                        ----- Dave_C FPV
Includes

1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
1x Black TPU 3D Printed Parts
1x M2x5: 8pcs

1x M2x7: 8pcs

1x M2x8: 6pcs

1x M2x12:12pcs

1x Aluminum Standoffs M2*20: 4pcs

1x Aluminum Standoffs M2*25: 2pcs

1x TPU 3D Printed Parts :1 package

1x Flywoo Atomic 5.8G UFL Ant  1 ( RHCP )


Diatone

Diatone Roma F4 LR 4" Frame

DiatoneUSA

Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!
Check out our Diatone Roma F4 LR Collection!
Check out the rest of our 4&quot frames, our Diatone gear!
Specifications

Wheelbase：176mm
Weight：47g
Prop Size：4inch
FC Mounting: 20x20/26.5x26.5m（M2）
Motor Mounting: 9mm/12mm
Camera Spacing: 20mm
Top Plate: 1.5mm
Medium Plate: 1.5mm
Bottom Plate: 1.5mm
Arm: 3mm
Rated Voltage (Recommendation：4S~6S
Aluminum alloy：7075
Carbon fiber: T300 3K

Includes

1x Diatone Roma F4 LR 4&quot Frame


Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!  Check out our Diatone Roma F4 LR Collection! Check out the rest of our 4" frames, our Diatone gear! Specifications Wheelbase：176mm Weight：4

Diatone Roma F4 LR 4" Frame from WREKD Co.

Diatone Roma F4 LR 4

DIATONE

Diatone Roma F4 4 inch Long Range Frame Kit weighs only 47G with T300 3k carbon fiber, made for both 9 and 12mm motor mounting, in the deadcat configuration for props out of view!
Check out our Diatone Roma F4 LR Collection!
Check out the rest of our 4" frames, our Diatone gear!
Specifications

Wheelbase：176mm
Weight：47g
Prop Size：4inch
FC Mounting: 20x20/26.5x26.5m（M2）
Motor Mounting: 9mm/12mm
Camera Spacing: 20mm
Top Plate: 1.5mm
Medium Plate: 1.5mm
Bottom Plate: 1.5mm
Arm: 3mm
Rated Voltage (Recommendation：4S~6S
Aluminum alloy：7075
Carbon fiber: T300 3K

Includes

1x Diatone Roma F4 LR 4" Frame


DIATONE INNOVATIONS


Specification:
Wheelbase：175mmWeight：82gProp Siza：4 inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate4mmArm：4mmVolitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K


Specification:  Wheelbase：175mmWeight：82gProp Siza：4 inchFC Mounting:20×20（M2/M3）/30.5×30.5mm（M3）Motor Mounting:12mm（M2）/16mm(M3)Camera Spacing:19/20mmMax Stack Height: 25mmTop Plate:2mmBottom Plate4mmArm：4mmVolitage（Recommendation）：4S~6Sbai Aluminum alloy：7075carbon fiber: T300 3K

Diatone Roma F4 Frame kit

Ummagawd

Ummagawd 2Fiddy Ultra Light 3.5"/4" Frame

There’s no doubt that a 250g 3.5/4” Freestyle Drone is a new category, with very different design goals and limitations. We wanted to extract as much power, response, durability, and of course “fun”, while getting as CLOSE to an AUW of 250g as you can.  New V1.5 design fits DJI O3 System! "The final entry in this categ

Ummagawd 2FIDDY Ultra Light 3.5/4

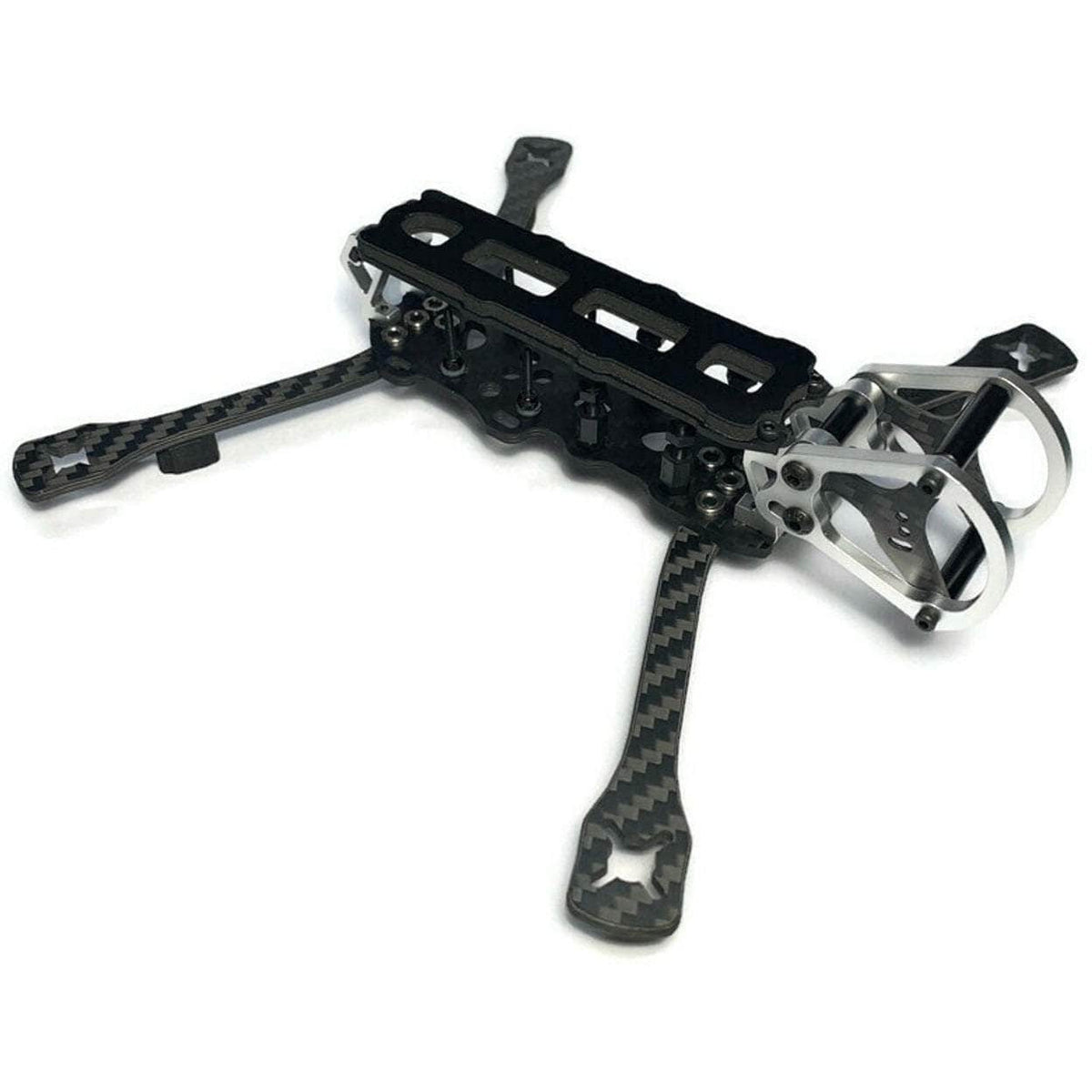

Armattan Bobcat 4" FPV Frame

Introducing the Armattan Bobcat. It's no secret that 4 inch models are making a comeback on the FPV scene. With the right power plant and with new technology available from Caddx and DJI, it is now possible to put together a lightweight 4 inch quad capable of very good endurance and HD recording. The Bobcat is our take

Armattan Bobcat 4

RobFPV

RobFPV Stealth Whoop 360 4" Invisible Drone Frame

frameThese are designed and manufactured in the U.S.A.  Like its bigger brother the original Stealth 360, this Cinewhoop version is made to be invisible with a smaller footprint. Can be built to fly with 4" or 3" props.  Using the awesome 360 camera technology RobFPV built a drone frame thin enough to fit in between th

RobFPV Stealth Whoop 360 4

GEPRC

GEPRC GEP-CB4 Crocodile Baby 4" Frame

Summary:
GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and reliably flying and the Center of gravity extreme balanced,The sense of "Easy To Control "are literally breath-taking.With the New producing GEPRC 6S 3000mAh battery,It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience.The flight time and clarity are incredible!
Specifications：

 	Brand:GEPRC
 	Name:GEP-CB4
 	Motor to Motor:174mm
 	Camera position size:20mm
 	Props Size:4inch
 	Thickness of arms plate:2.5mm
 	Thickness of Bottom plate:2mm
 	Thickness of Top plate:1.5mm
 	Flight control hole distance:20x20mmAnd26.5x26.5mm
 	The hole position of motor:9mm
 	Weight:45g


Recommended：

 	Flight Controller:F4/F7
 	Motors:1206/1404
 	ESC:15A-30A

Feature:

 	Full 3K carbon plates,The solid and durable structure
 	Specially designed for Micro Long Range Flight,The frame tilts forward,The wide battery's position
 	The Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly
 	Support Various installation way of flight control's hole spacing
 	The Edge of the motor base is Specially Designed to protect the motor in case of crash
 	The GPS installation position is reserved inside frame,The rational layout bring perfect dimension deduct space aesthetics


GEP-CB4 Include：

 	1 x 2.0mm Bottom plate
 	1 x 1.5mm Top plate
 	2 x 2.5mm Front plate
 	2 x 2.5mm Back Plate
 	1 x 2.0mm Front Splint
 	1 x 2.0mm Back Splint
 	4 x（M2*25) Aluminum posts
 	2 x（M2*20.5) Aluminum posts
 	6 x（M2*6) Round head screws
 	14 x（M2*8) Round head screws
 	4 x（M2*10) Round head screws
 	4 x（M2*4) Round head screws
 	8 x（M2) Push block nuts
 	8 x（M2*2) Plastic nuts
 	8 x（M2*18) Plastic screws
 	1 x 3D print crush barrier of camera
 	1 x Fixing part of Antenna Red
 	1 x Fixing part of TBS Antenna Red
 	2 x Batteries pad
 	8 x Landing shock absorption pad
 	2 x Protective Tube of Antenna
 	4 x Rubber Shock Pad
 	2 x (M15*180mm) Batteries strap
 	2 x (M15*180mm) Batteries strap
 	1 x (1.5mm) L shape wrench
 	1 x Plastic matching plate

Summary: GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and [...]

GEP-CB4 Frame - GEPRC

GEP-CB4 Frame

Micro Long Range Drone for FPV Drone Racing and Freestyle sold by PyroDrone GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller. GEP-CB4 Frame is perfectly designed by GEPRC TEAM. Adopting the newly upgraded design of aerodynamics principle. The Light-weight design, The solid and durable structure, The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone, It can be stably and reliably flying and the Center of gravity extreme balanced, The sense of “Easy To Control “are literally breath-taking. With the New producing GEPRC 6S 3000mAh battery, It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience. The flight time and clarity are incredible!See the entire Crocodile Baby Collection, (BNFs, Frames and Replacement Parts)! Check out all our 4 inch Frames and the rest of our GEPRC Products! Specifications： Motor to Motor: 174mm Camera position size: 20mm Props Size: 4inch Thickness of arms plate: 2.5mm Thickness of Bottom plate: 2mm Thickness of Top plate: 1.5mm Flight control hole distance: 20x20mmAnd26.5×26.5mm The hole position of motor: 9mm Weight: 45g Recommended for Build (Not Included)： Flight Controller: F4/F7 Motors: 1206/1404 ESC: 15A-30A Feature: Full 3K carbon plates,The solid and durable structure Specially designed for Micro Long Range Flight,The frame tilts forward,The wide battery’s position The Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly Support Various installation way of flight control’s hole spacing The Edge of the motor base is Specially Designed to protect the motor in case of crash The GPS installation position is reserved inside frame,The rational layout bring perfect dimension deduct space aesthetics Package Includes： 1 x 2.0mm Bottom plate 1 x 1.5mm Top plate 2 x 2.5mm Front plate 2 x 2.5mm Back Plate 1 x 2.0mm Front Splint 1 x 2.0mm Back Splint 4 x（M2*25) Aluminum posts 2 x（M2*20.5) Aluminum posts 6 x（M2*6) Round head screws 14 x（M2*8) Round head screws 4 x（M2*10) Round head screws 4 x（M2*4) Round head screws 8 x（M2) Push block nuts 8 x（M2*2) Plastic nuts 8 x（M2*18) Plastic screws 1 x 3D print crush barrier of camera 1 x Fixing part of Antenna Red 1 x Fixing part of TBS Antenna Red 2 x Batteries pad 8 x Landing shock absorption pad 2 x Protective Tube of Antenna 4 x Rubber Shock Pad 2 x (M15*180mm) Batteries strap 2 x (M15*180mm) Batteries strap 1 x (1.5mm) L shape wrench 1 x Plastic matching plate

GEPRC Crocodile Baby 4

Flywoo Hexplorer LR Analog 4" Hexacopter Frame

Description  As we said before we will explore more fun with Dave_C in the new field of #micro long range. We did it! After the success of Explorer LR 4 everyone has many new needs. For example: I hope it can carry a full-size gopro! I hope it is perfect for freestyle and cruising! I hope it has Bluetooth function! We

HEXplorer LR 4 Hexa-copter Frame kit

Propeller Size

The props work with the motors to lift your quad off the ground.  Choose a prop size that fits your frame.  Higher pitch props are efficient in fast environments and are less responsive in slow speeds. Lower pitch props are efficient in slower environments and are more responsive in slow speeds. Beginners should try various pitch props to see what works best for them.

Propellers

Motor Stator Size

The motors spin with the propellers to lift your quad off the ground. If you’ve picked a frame already, we show you which motors are appropriate for your frame. Beginners can choose motors with a similar stator size that others have used for the frame you’ve selected. Alternatively, calculate the thrust required for a particular thrust-to-weight ratio and learn to read motor thrust tables to select the best motors for your needs.

Motors

ESC Stack Mount

The ESC(s) controls your motors’ speed. It draws power from the battery to spin the motors based on what the FC tells it to do. Each motor needs an ESC. It’s common today to see 4-in-1 ESCs so you only need to buy a single part. For beginners, choose a 4-in-1 ESC that has a compatible mount with your frame and FC. The biggest consideration is amperage limit. We show you ESCs with appropriate amperage limits based on your frame size. You can calculate how much amperage you need based on your motor and prop choice.

ESCs

FC Stack Mount

The FC is the brain or the CPU of your quad. It has a processor and other components that allow it to listen to your inputs and tells the quad what to do. FCs are commonly sold together with other components integrated or stacked (like ESCs and video transmitters). For beginners, choose a FC with a F4 or F7 processor that has a compatible mount with your frame.

Flight Controllers

Camera Size

The FPV camera captures the image you see through the goggles. An FPV camera may be included with the VTX, particularly with digital VTXs.
